Lot 2 - Matsuura MC-500V
Description:

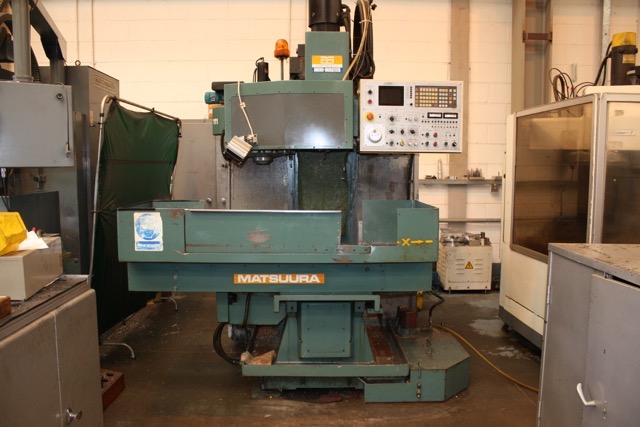

Matsuura MC-500V
Floor space 2300mm x 2700mm ex maintenance area
Height 2500mm
Weight 2700kg
Traverses X Y Z: 510 x 330 x 450mm,
Table 920 x 320mm,
T slot size 18mm
3 slots on 100mm centres
Spindle speed 40 - 6000 rpm,
Spindle taper BT35,
Table to spindle end 125 - 585mm
Spindle centre to column slide way 340mm

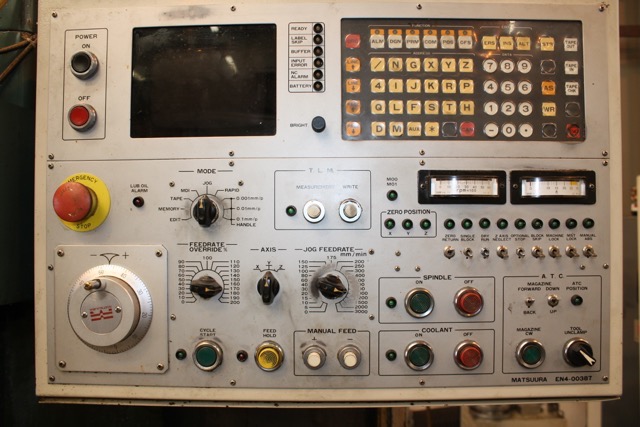

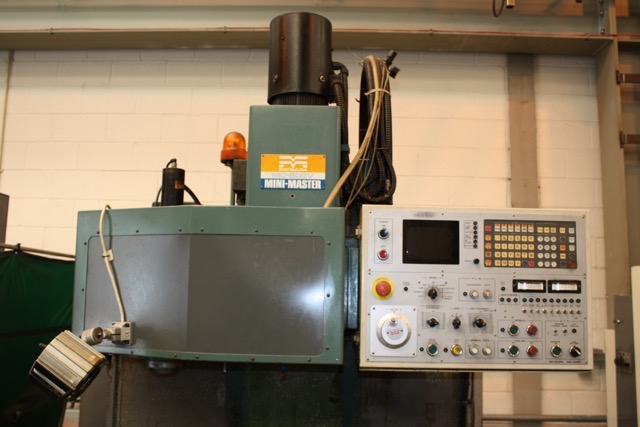

Mini-Master system M5G,
16 Station ATC,
Max tool dia 140mm
Max tool weight 6kg
Coolant,
10 off various toolholders
Location:Edinburgh, Scotland
*Can be loaded free of charge onto flatbed truck
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
