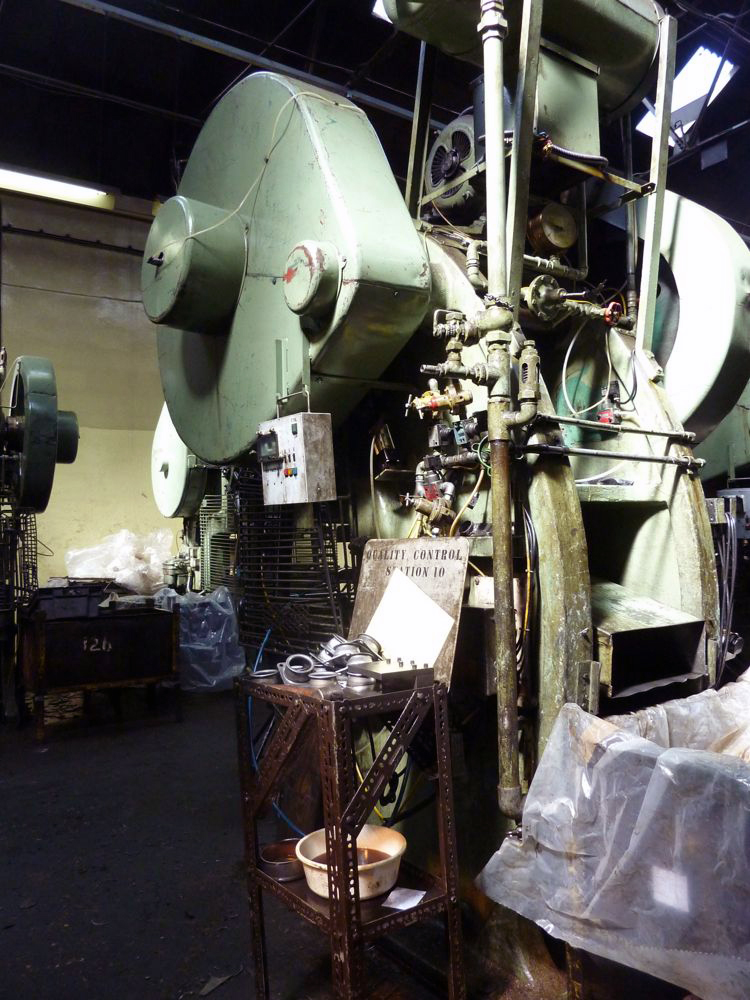

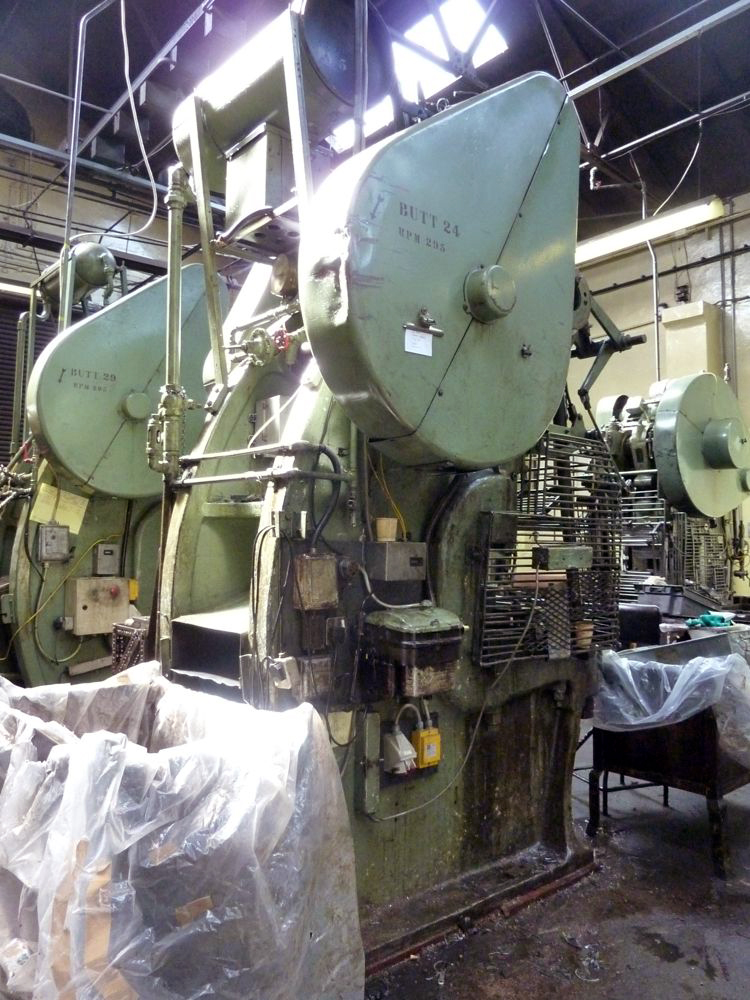

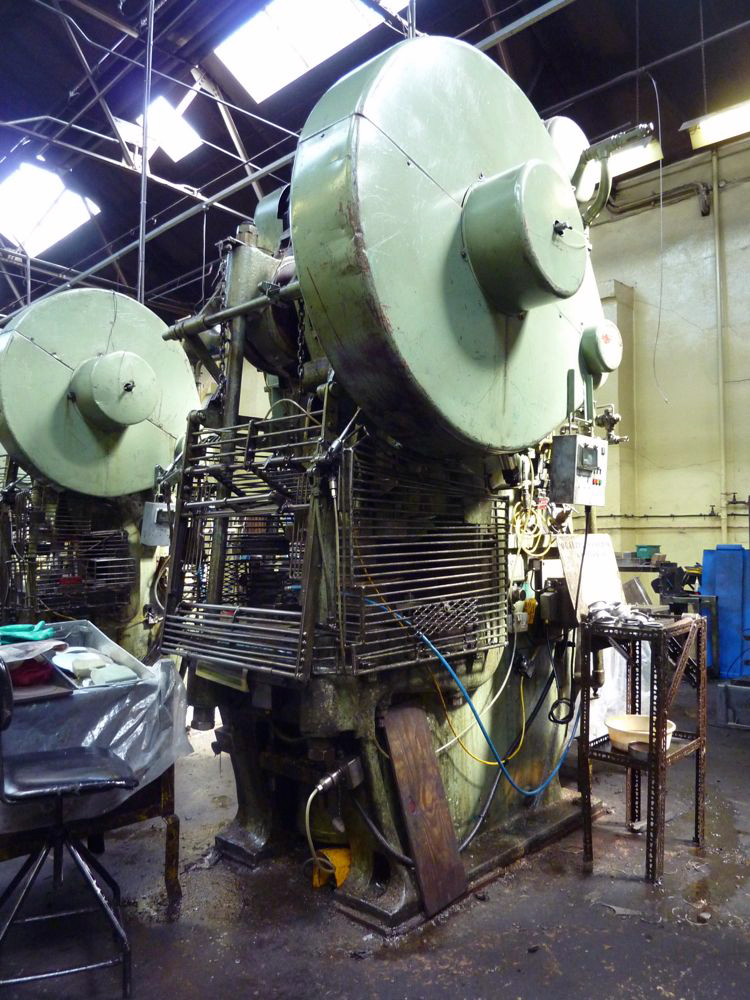

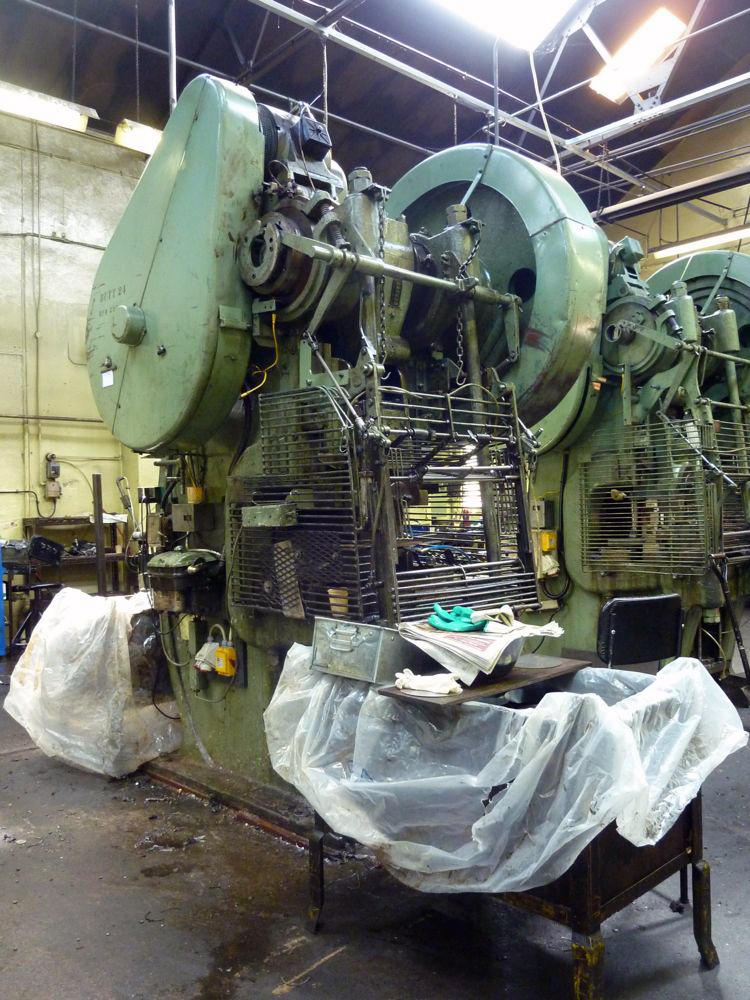

Lot 13 - 100 Ton Butterley Press with Die Cushion (Butt 24)

Description:

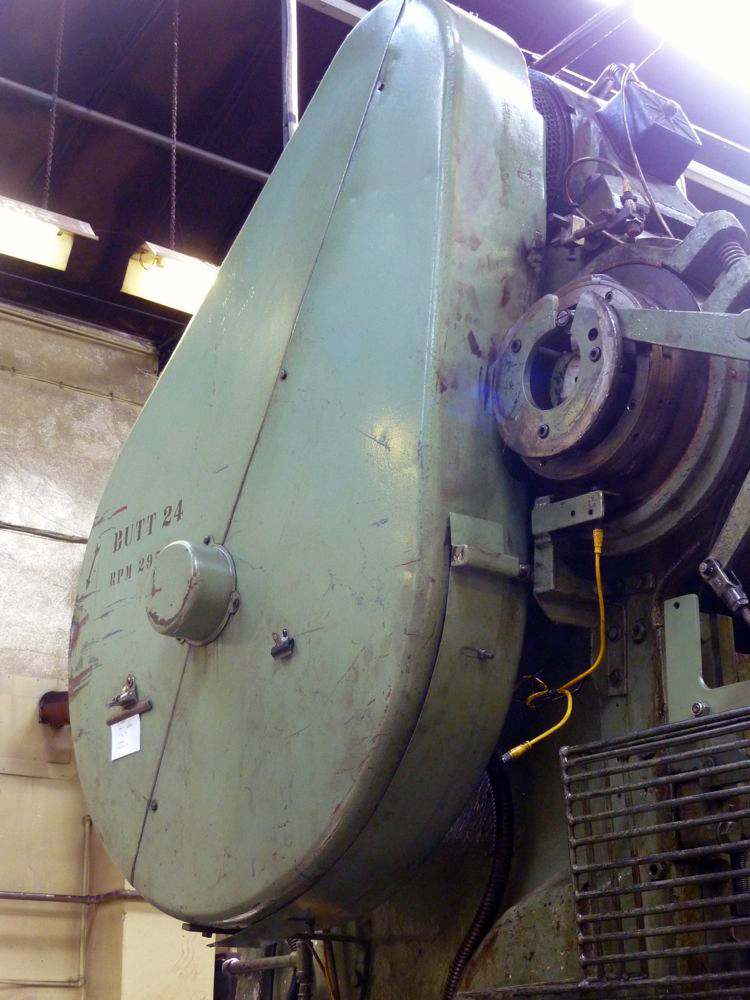

100 Ton Butterley Press with Die Cushion (Butt 24)

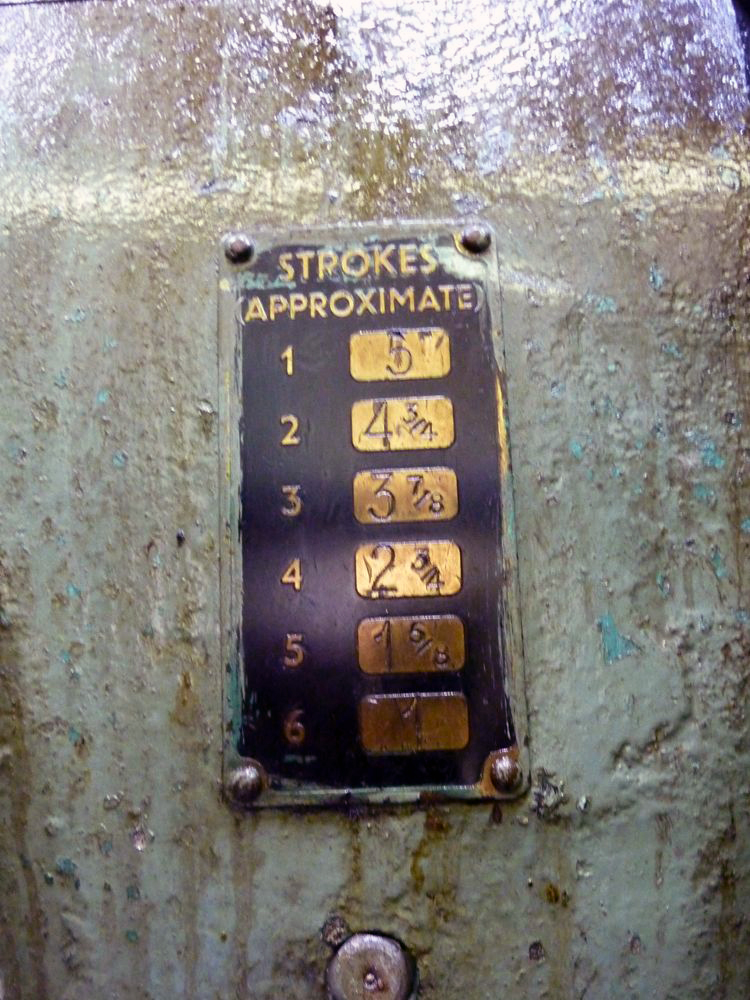

Capacity: 100 Ton      Stroke: 1.1 5/8, 2 3/4, 4, 4 3/4, 5    RAM Adjustment: 3    Strokes/min: 45

RAM Screwed in - Shut height: Min stroke:11 7/8  Max stroke:9 7/8 Open height: Min stroke:12 13/16 Max stroke: 14 13/16

Bolster to guides: 14 3/4      Bolster to frame radius: 10

Centre of RAM to frame radius F to B: 8

Centre of RAM to frame F to B: 12

Bolster to Floor 36 7/8

Press Bolster: Thickness: 3 1/2, L to R 31 7/8, F to B 25 1/2, Hole(s): 6

Opening in Press Bed: 15 3/4sq     Adaptor:  2 dia     Largest adaptor plate inside guides: 15 3/4 x 12

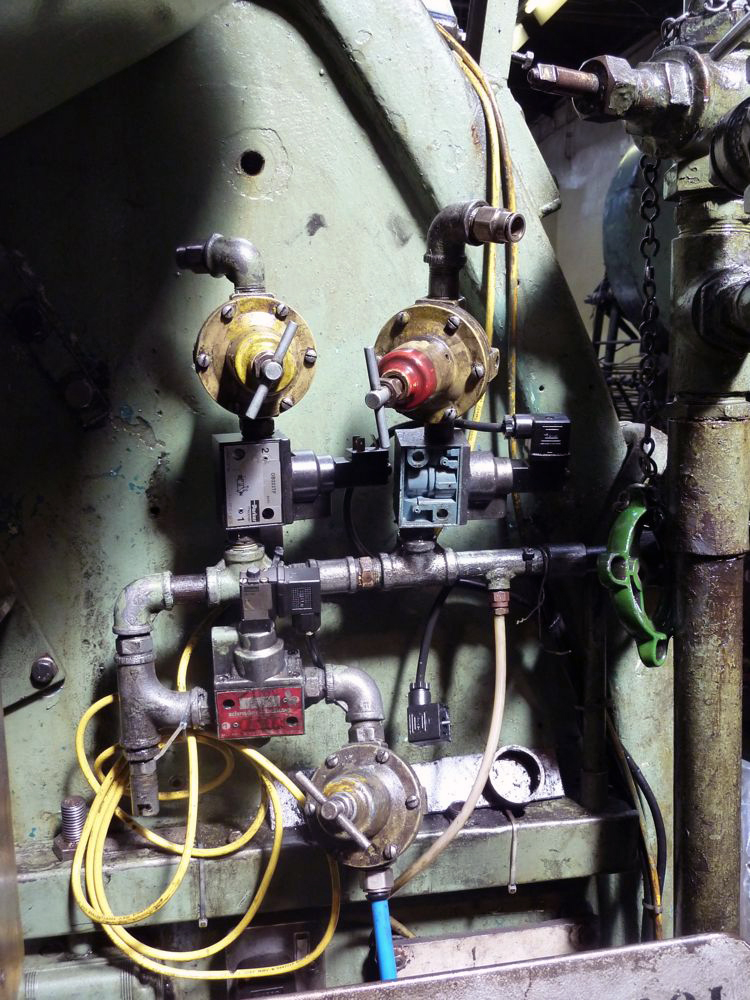

Air particulars: Cushion


* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
