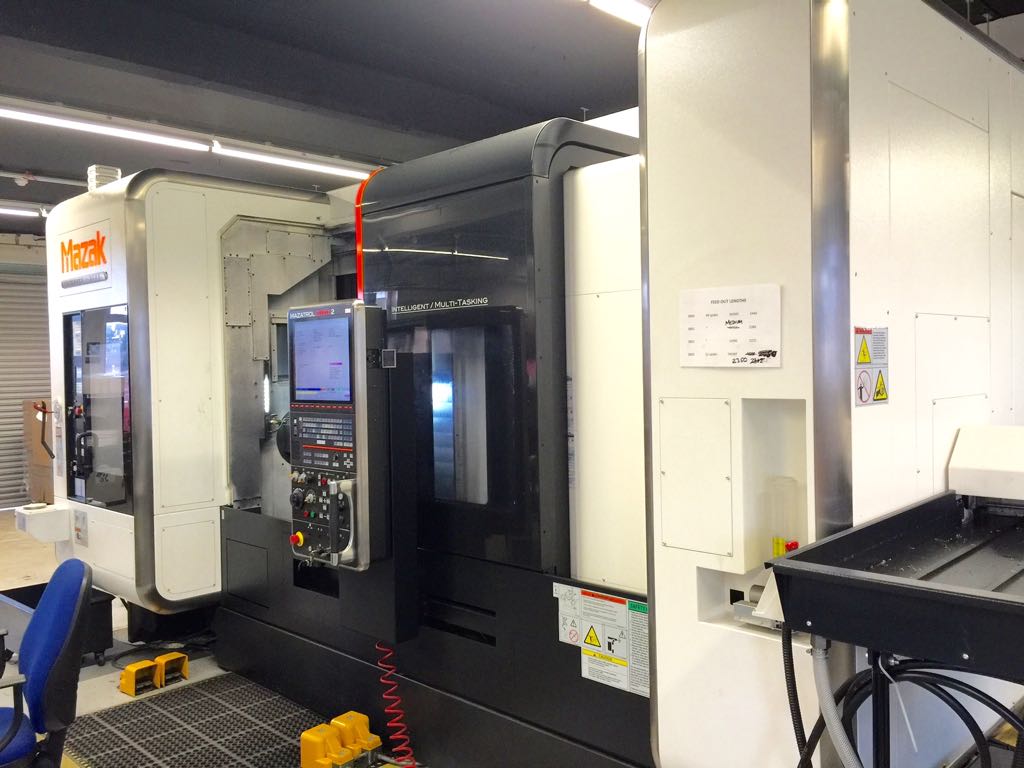

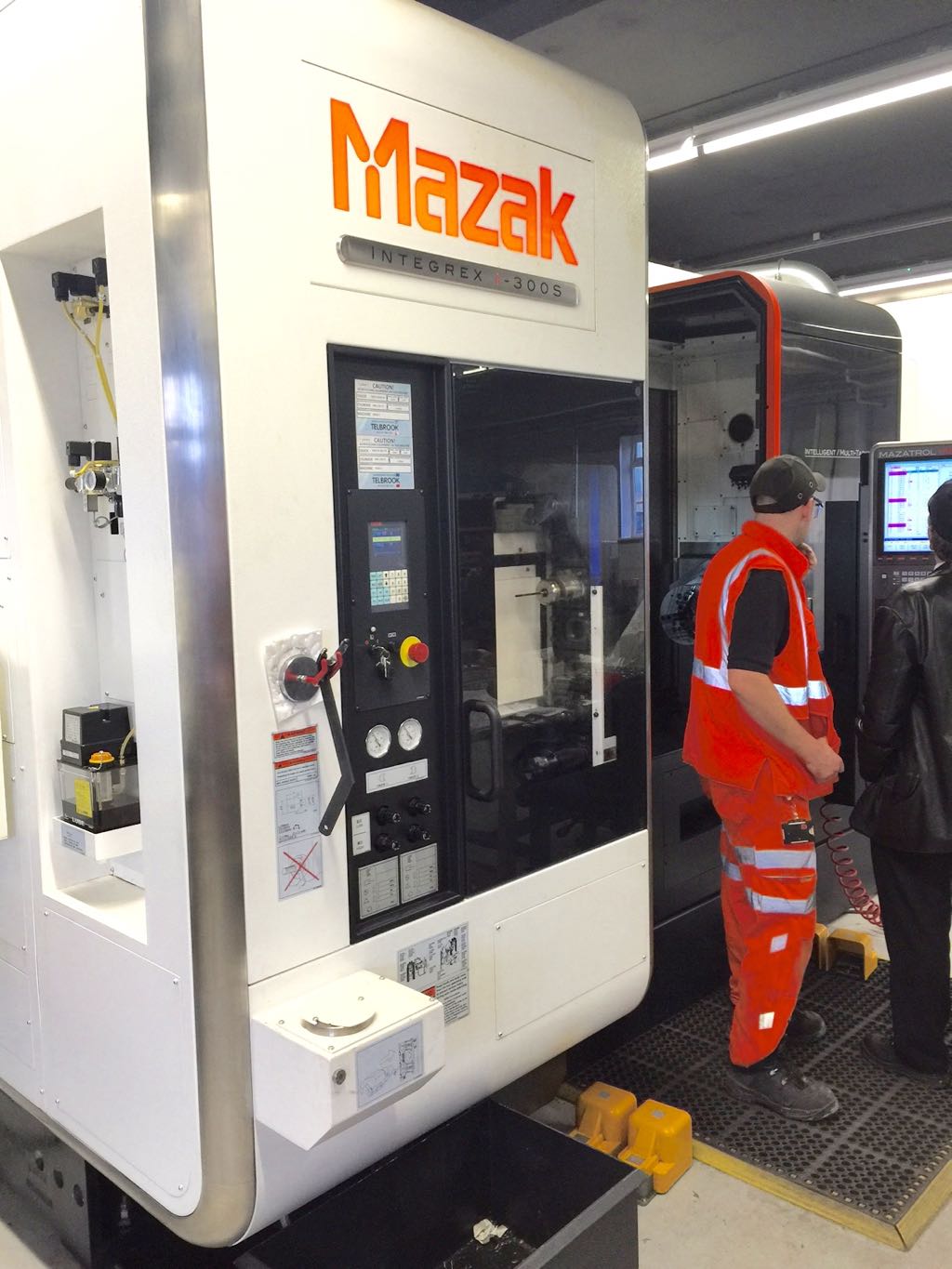

Lot 1 - 2014 Mazak Integrex i300S 7 Axis CNC Lathe with Barfeed and Tooling Package

Description:

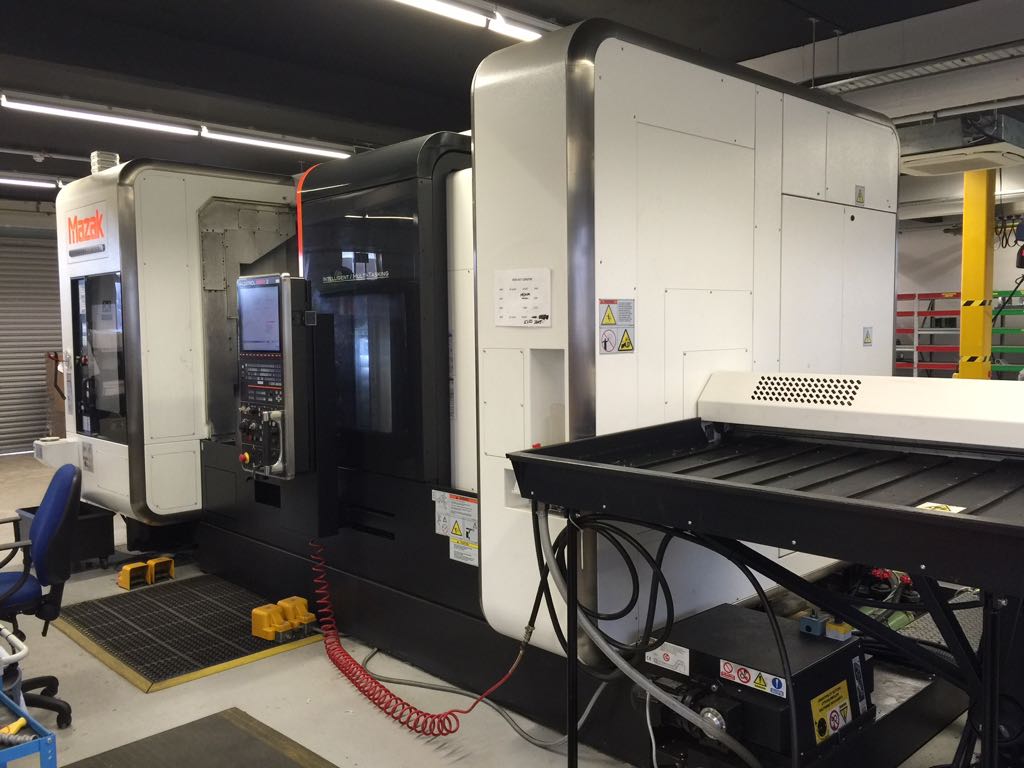

2014 Mazak Integrex i300S - Matrix 2 - 1500mm Bed

Capacity

Chuck size main spindle : 10"
Chuck size secondary spindle :10"
Max Swing: 658mm
Swing over cross slide: 658mm
Swing during Y-Axis Process: 658mm
Max machining diameter: 658mm
Bar work capability main spindle (dependant on chuck system): 77mm
Bar work capability secondary spindle:77mm
Max machining length: 1519mm
Max support weight main spindle chuck work: 450kg
Max support weight main spindle shaft work: 1000kg
Max support weight secondary spindle chuck work: 400kg

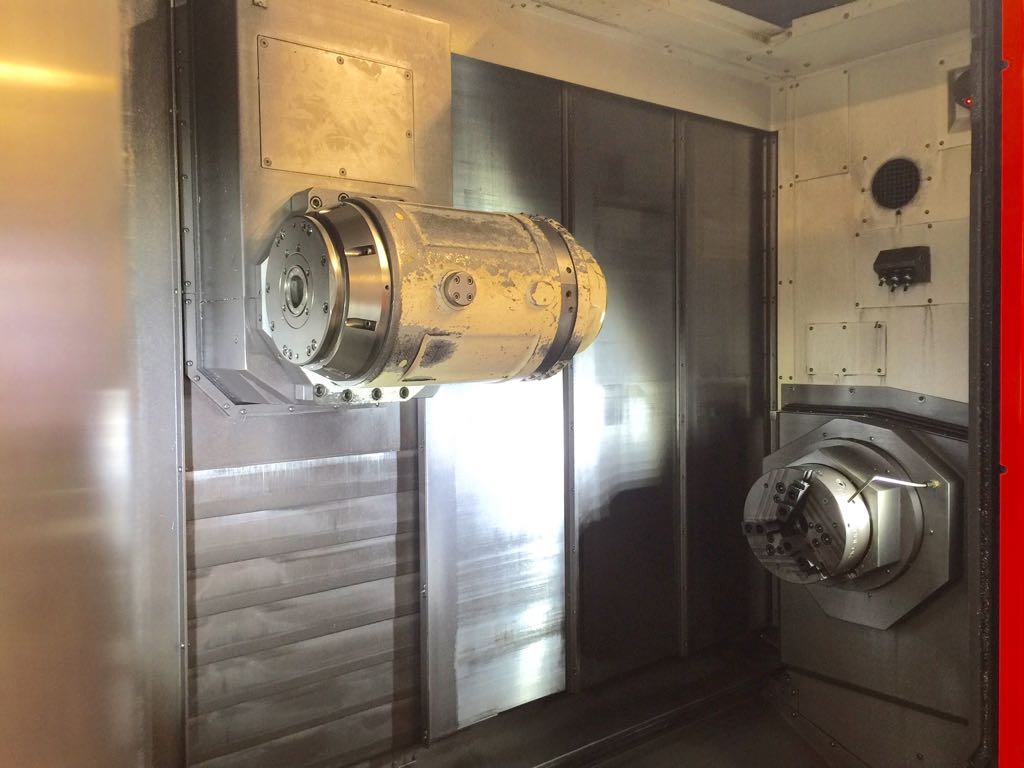

Main Spindle

Rotating speed maximum: 4000min
Rotating speed minimum: 35min
Acceleration and deceleration time: 3.8s
Through hole diameter: 91mm
Motor output (30 min rating): 30.0 KW

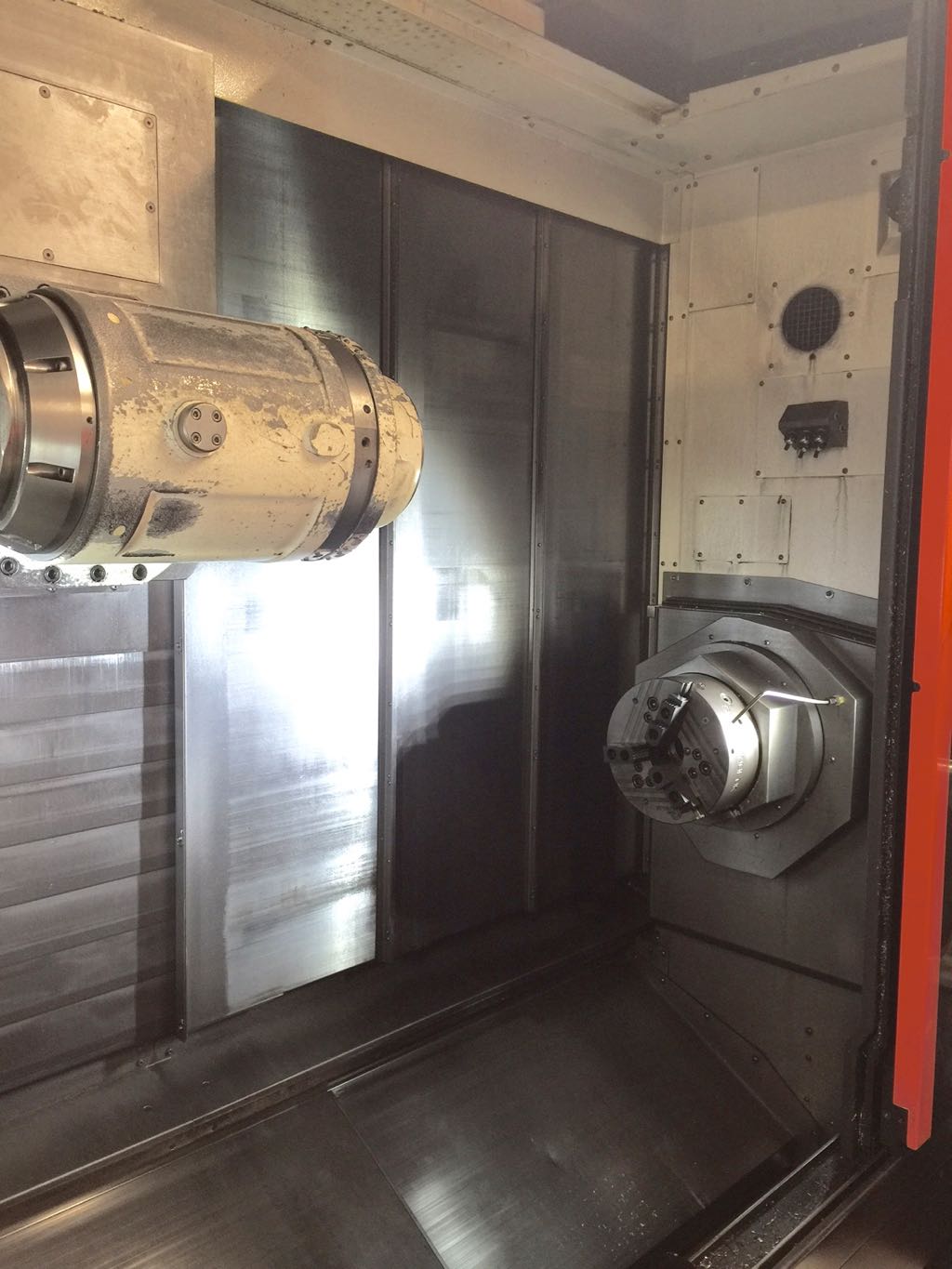

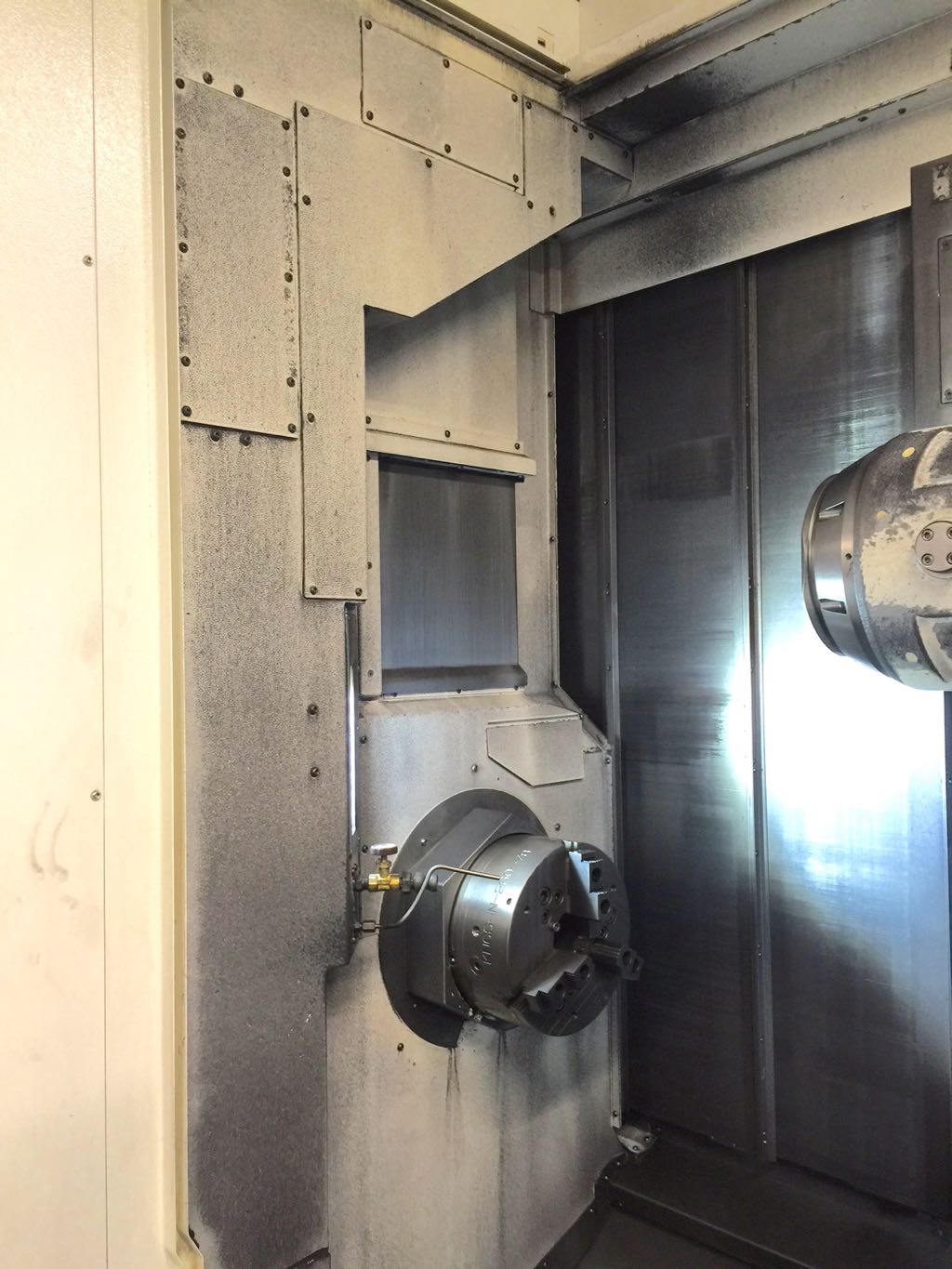

Secondary Spindle

Rotating speed maximum: 4000min
Rotating speed minimum: 35min
Motor output (30 min rating): 26.0 KW

Milling Head

Type: single spindle with ATC unit
Tool shank type: KM63/CAPTO C6/HSK T63
Tool size (OD turning): 25mm
Tool size (ID turning): 40mm
Tool size (milling tool max diameter): 125mm
Tool size (milling tool max length) : 400mm

Feed Axes

Rapid feed rate X: 50 m/min
Rapid feed rate Y: 50 m/min
Rapid feed rate Z: 40 m/min
Rapid feed rate W: 30 m/min
Movement stroke X: 615mm
Movement stroke Z: 1585mm
Movement stroke Y: 250mm
Movement stroke W: 1574mm

Others

Coolant tank capacity: 550L
Power requirement (continuous): 81.95kVA

Machine dimensions

Height of centers: 1235mm
Length: 4910mm
Width: 2800mm
Height: 2720mm
Weight: 15500kg

*Machine fitted with relocation detector

Additional Equiptment

Second spindle C Axis
Overload detection system
Signal Tower
36 CAPTO Tool magazine
Shower coolant
Coolant & air for chuck jaws
Preparation for coolant
Barfeeder interface kit
Bar unloader interface (2nd spindle)

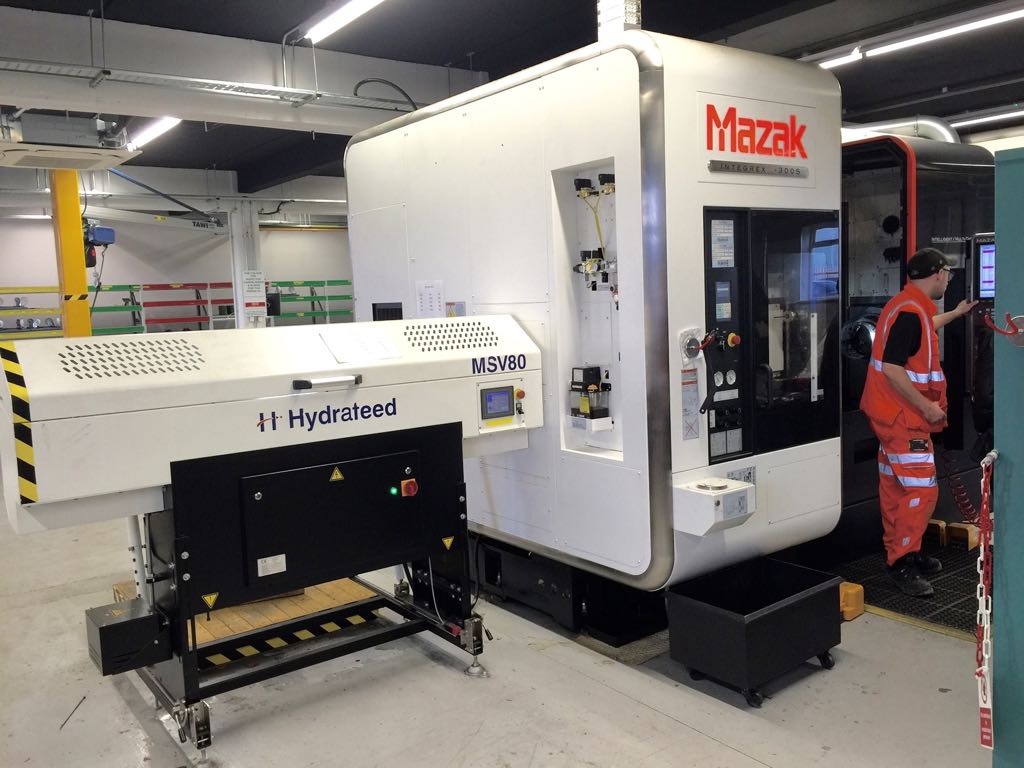

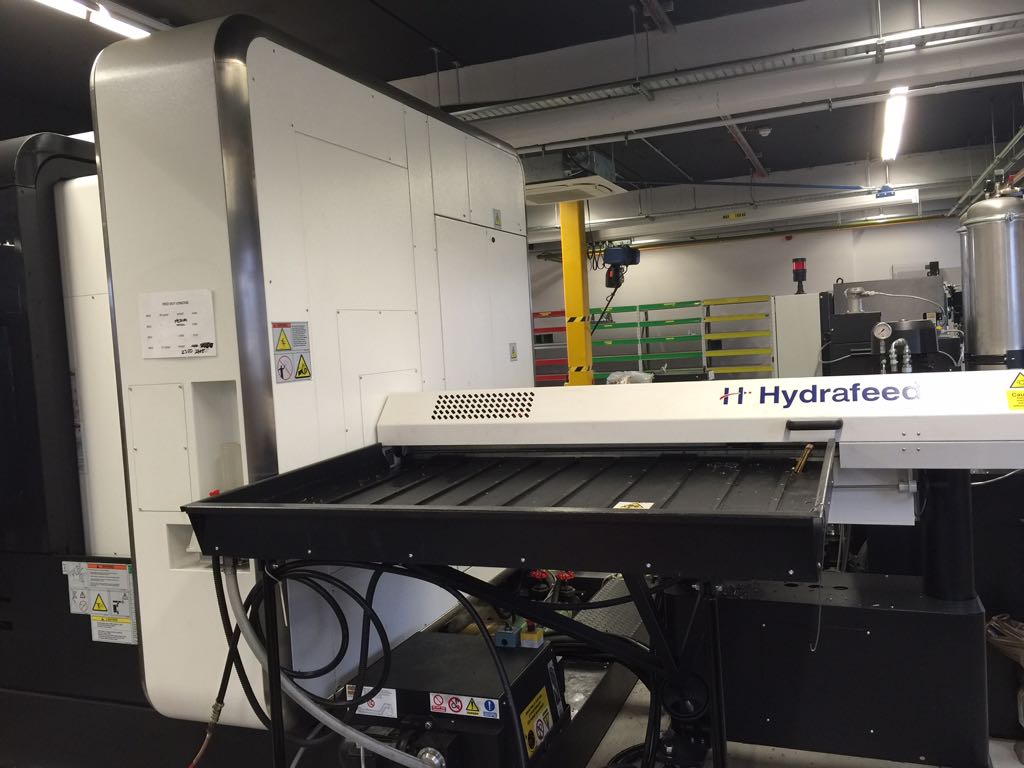

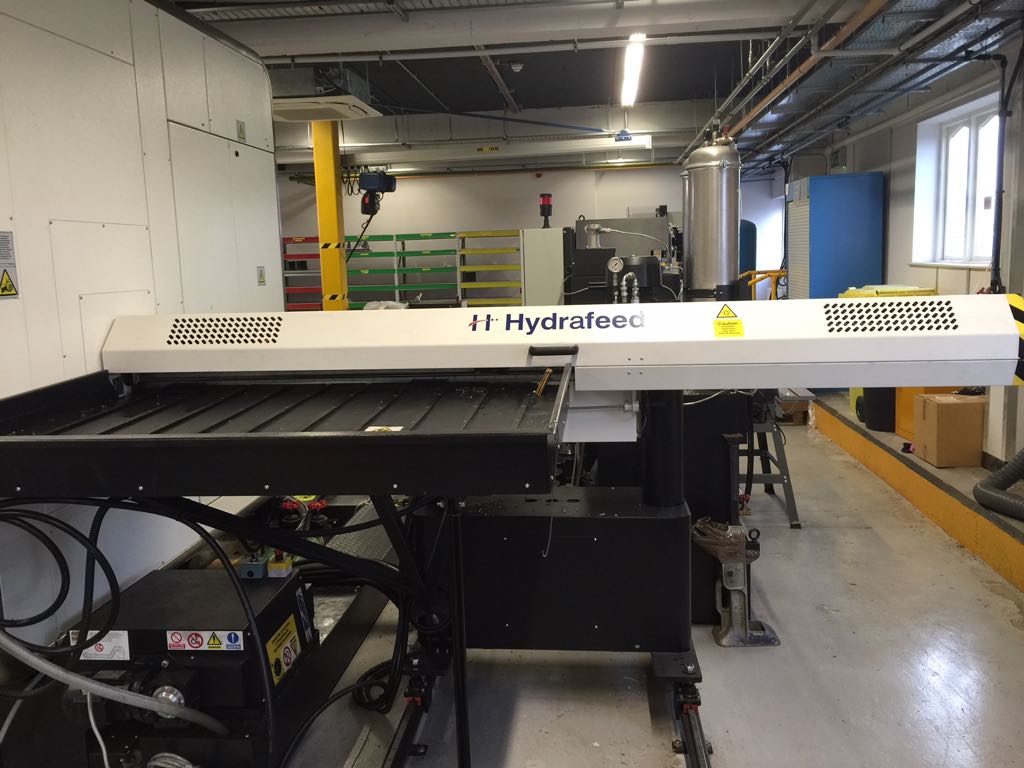

Hydrafeed bar loader and unloading system
High/low chuck pressure system (1st spindle)
High/low chuck pressure system (2nd spindle)
SMW KNCS chuck and cylinder packages head 1 and head 2 with tube caps for both parts
Preperation for RMP60 probe
RMP600 radio probe only including inspection plus software
FSE 15 bar special discharge swarf management system

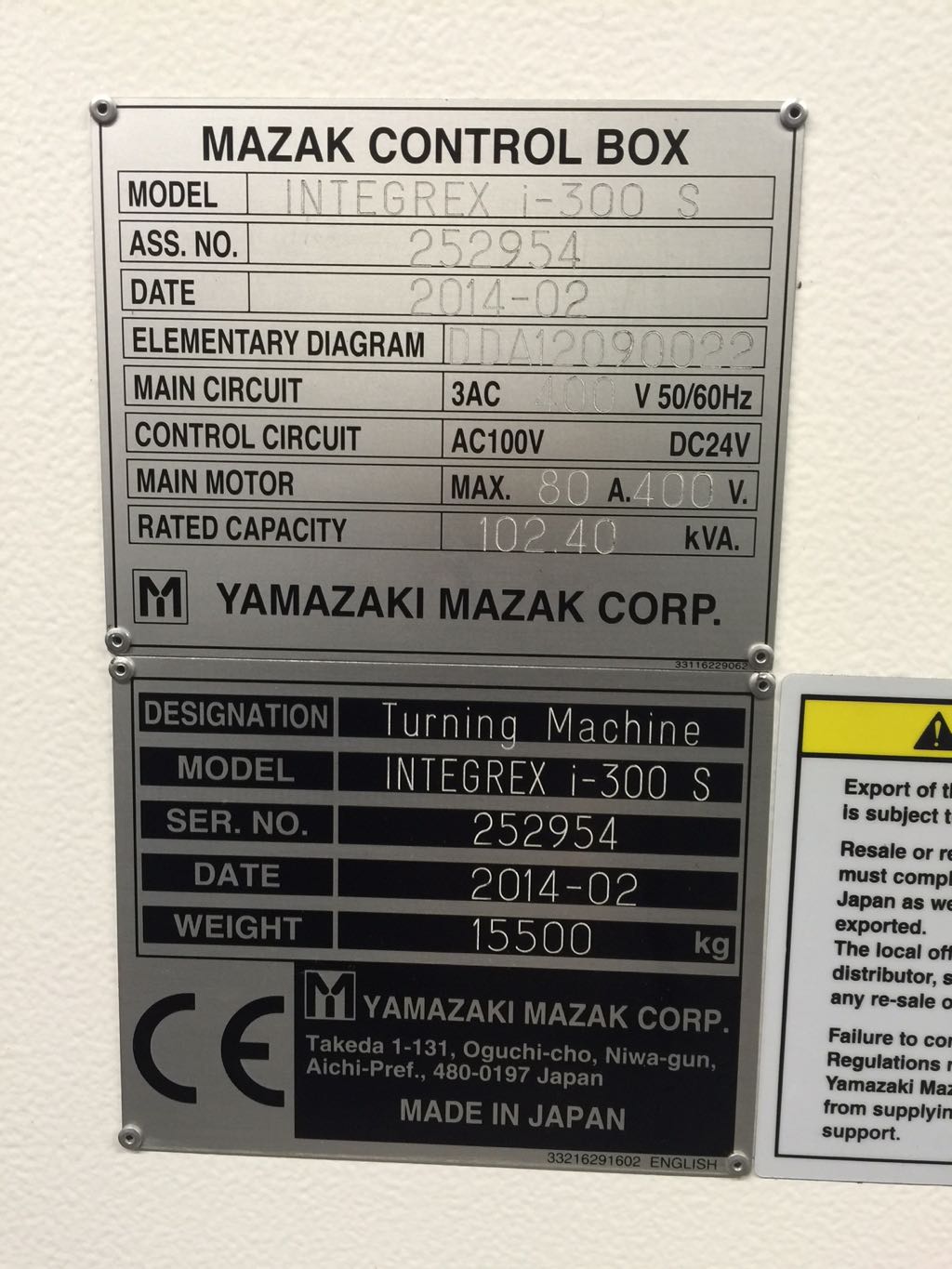

S/n: 252954

Date: 02-2014

Location: Nottingham

*Please note: Specifications are taken from original order document, however things may have changed, and will be confirm shortly.

**MORE PHOTOS & VIDEO COMING SOON

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
