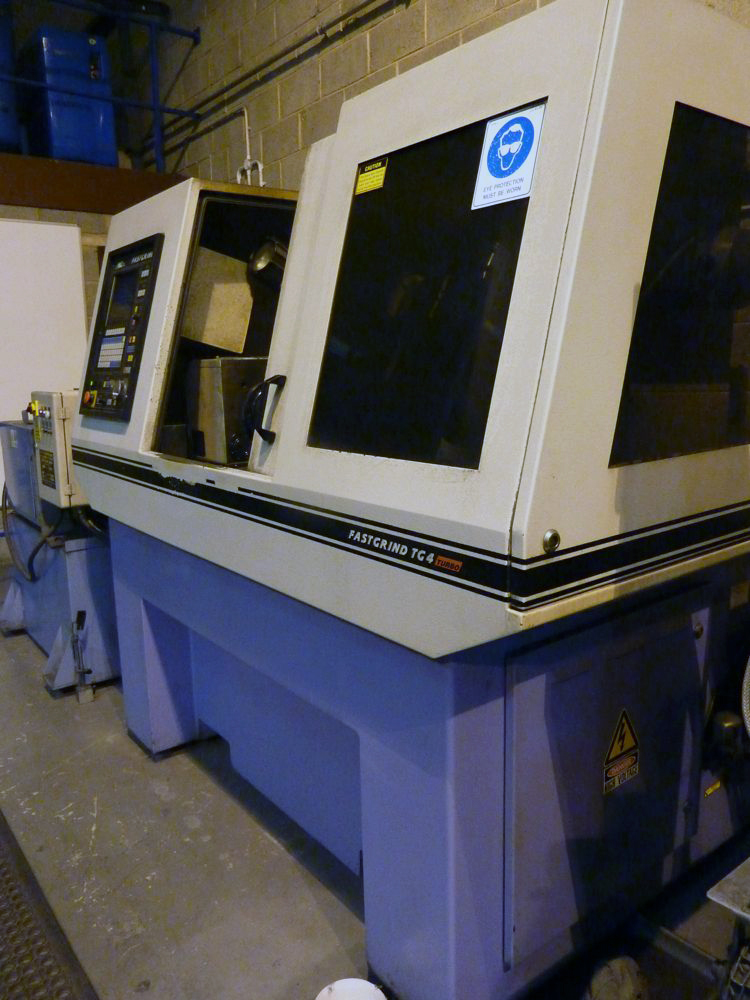

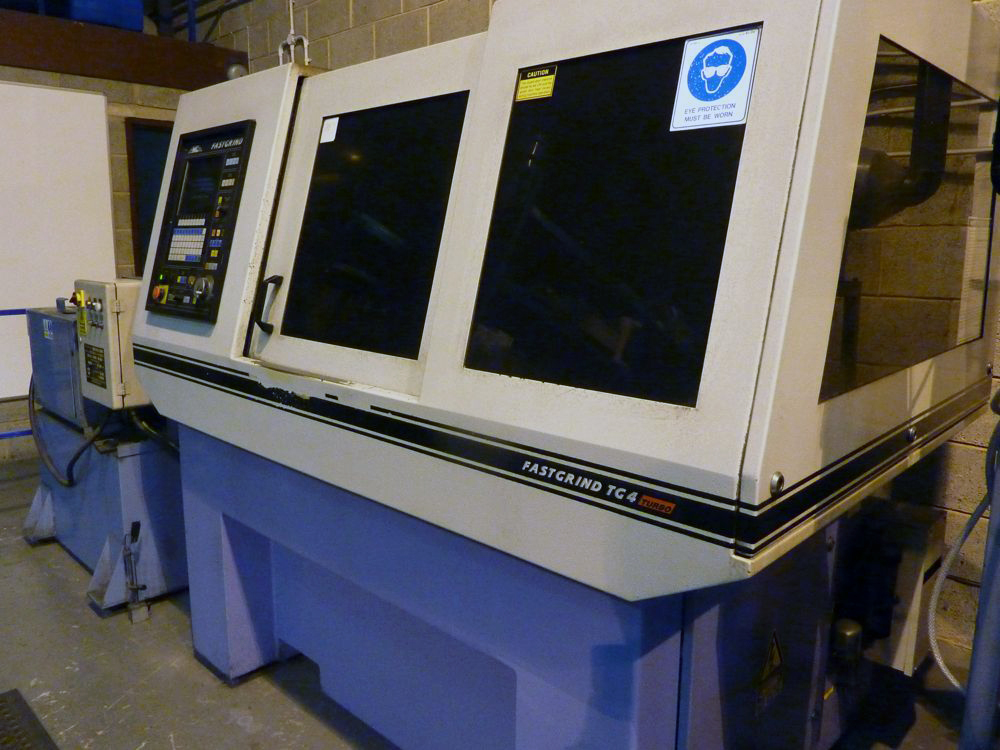

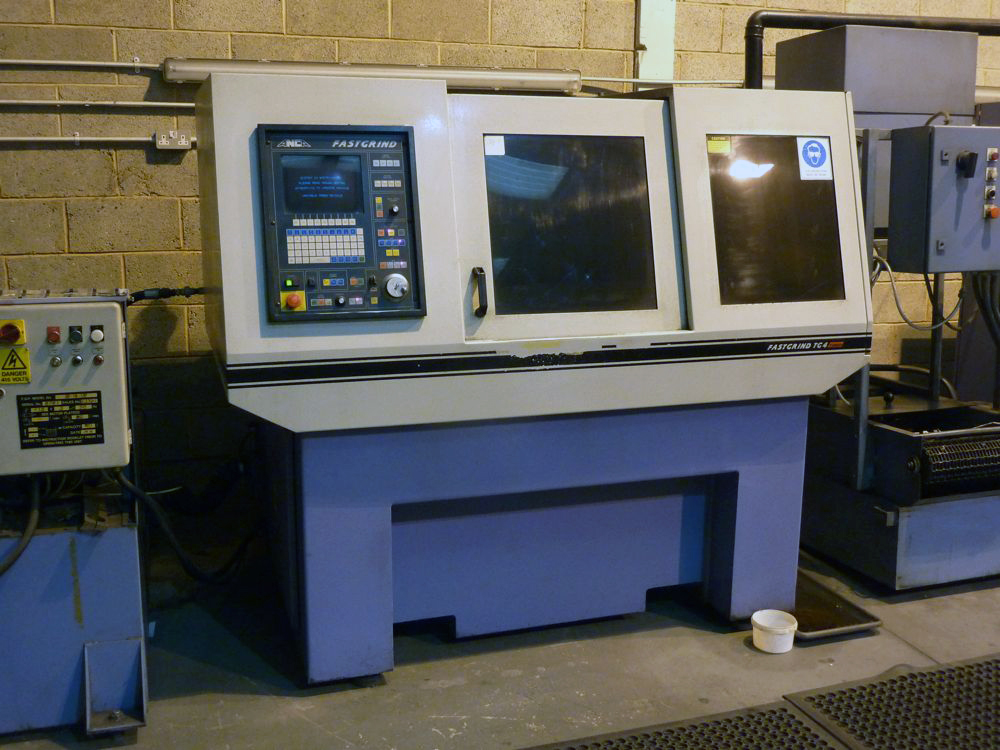

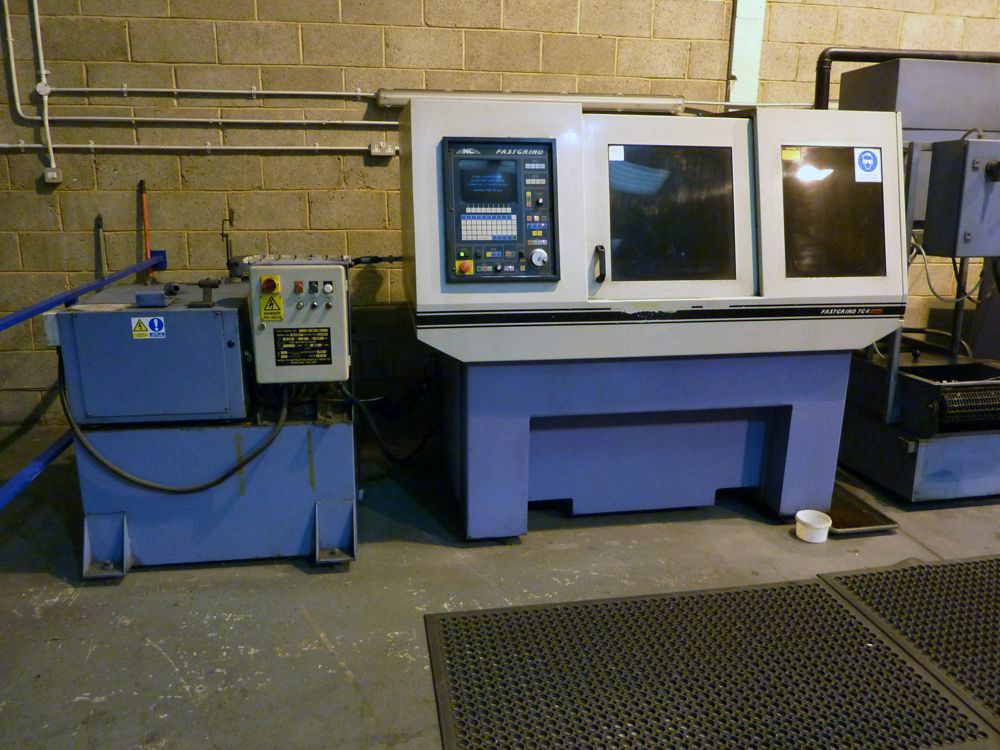

ANCA FASTGRIND TG4 4 Axis Tool and Cutter Grinder

Lot 16 - ANCA FASTGRIND TG4 4 Axis Tool and Cutter Grinder

Description:

ANC FASTGRIND TG4 4 Axis Tool and Cutter Grinder

Specifications
ANCA MODEL FASTGRIND TG4 4-AXIS CNC TOOL & CUTTER GRINDER
Maximum grinding length (100mm wheel @ 0 deg) 15.86"
Maximum grinding length (100mm wheel @ 30 deg) 13.30"
Positional feedback resolution .0001969"
Servo input resolution .0001969"
Programming resolution .0000394"
Maximum feedrate 137.79" Accuracy
Workpiece spindle C/L to grinding spindle nose (max) @ 0 deg 7.91"
Workpiece spindle C/L to grinding spindle nose (min) @ 0 deg 6.06"
Positional feedback resolution .000197"
Servo input resolution .000197"
Programming resolution .0000394"
Workpiece spindle C/L to grinding spindle nose (max) 5.86"
Workpiece spindle C/L to grinding spindle nose (min) 1.45"
Positional feedback resolution .000197"
Servo input resolution .000197"
Programming resolution .0000394"

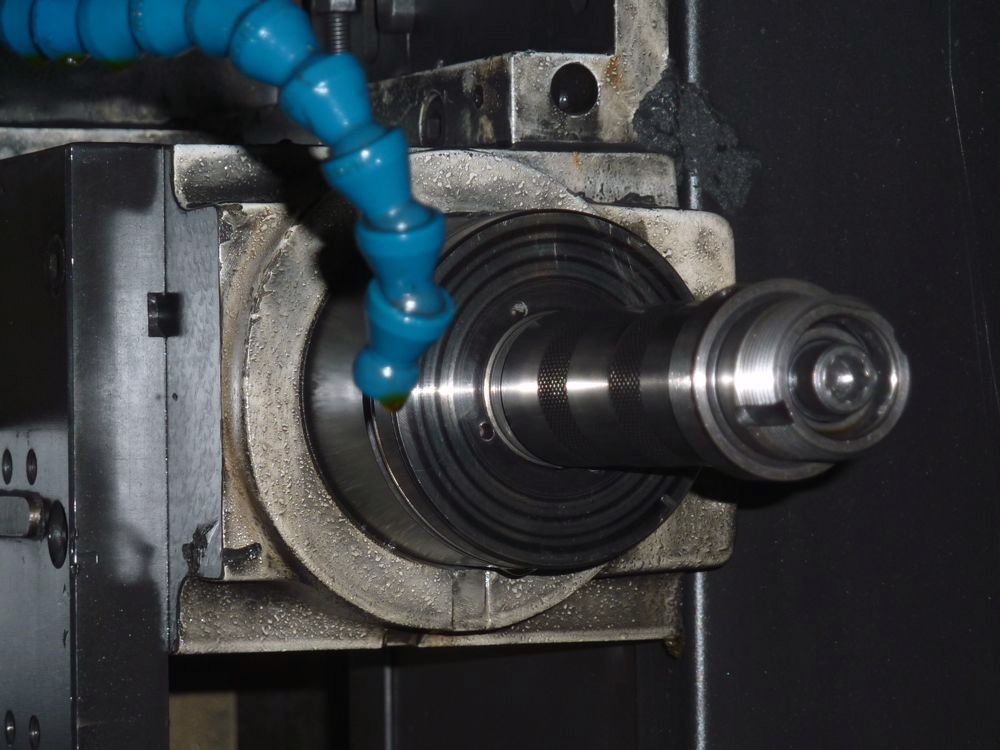

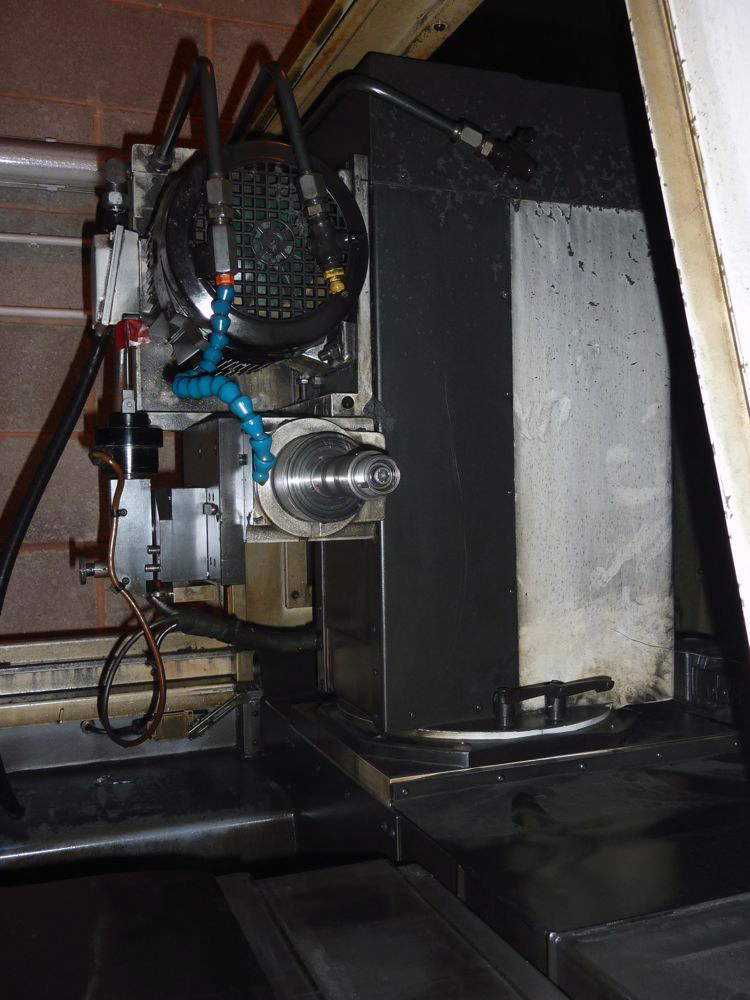

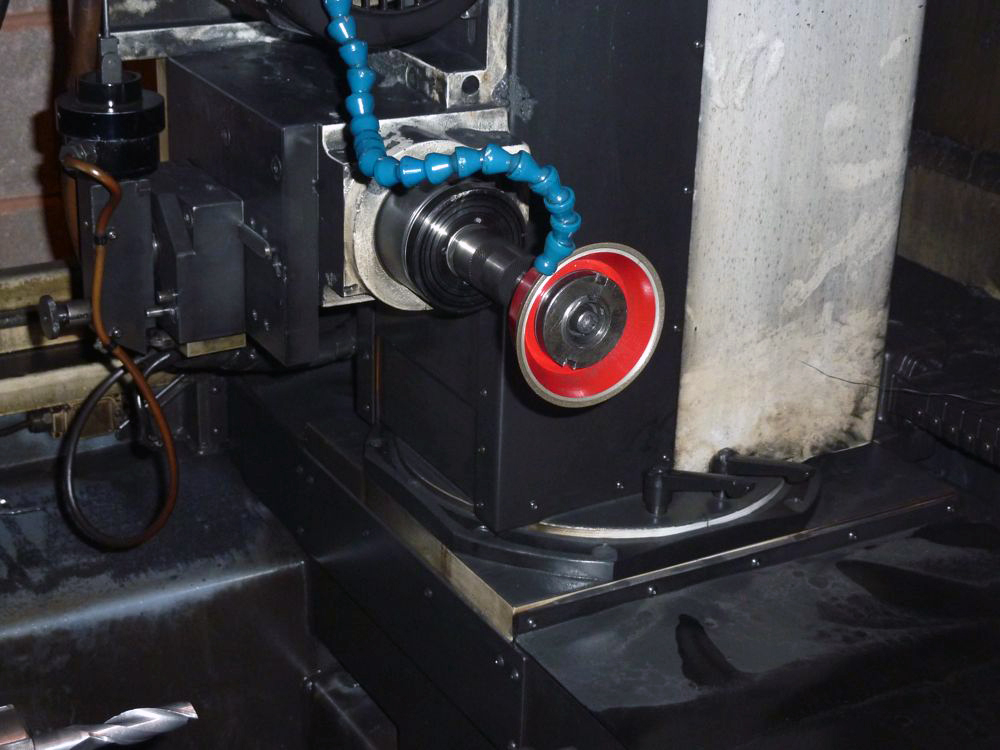

Variable speed grinding spindle
Maximum speed 150 RPM, 250 RPM option
Positional feedback resolution .005 deg.
Servo input resolution .005 deg.
Programming resolution .001 deg.
Speed range (closed position loop) 0 - 150 RPM
Maximum runout at workpiece spindle nose (TIR) .0001969"
Speed 1910/2870/4305 RPM or 2296/3445/5167 RPM
Grinding wheel locations Front/Back
Maximum runout at grinding spindle nose (TIR) .0000787"
Precision machined cast iron #2 morse taper
Measurement technique "on-the-fly"
Location repeatability .0001969"
Measurement repeatability .0001969"
Permissible overtravel .472" Degrees of freedom 6 directions
Machine: ColorRAL7035/RAL5014 (Durathane paint)
Power requirements (18 KVA) (50/60 Hz) 480/460/415/380/220
Watertight guarding Fully enclosed

Location: Nuneaton UK

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
