Lot 23 - Butler Elgamill CS-10 Bed Milling Machine
Description:

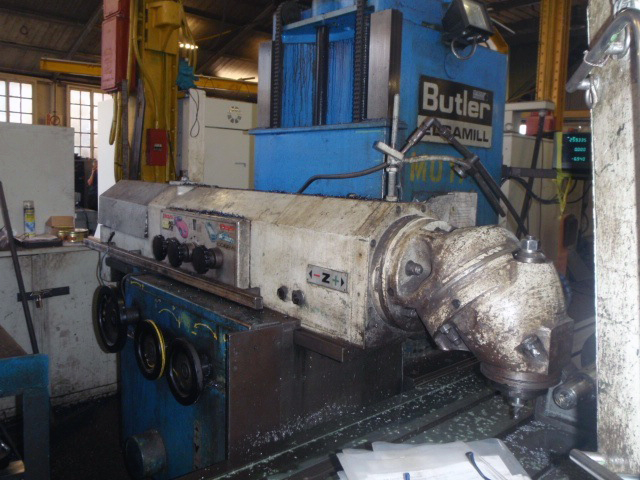

Butler Elgamill CS-10 Bed Milling Machine

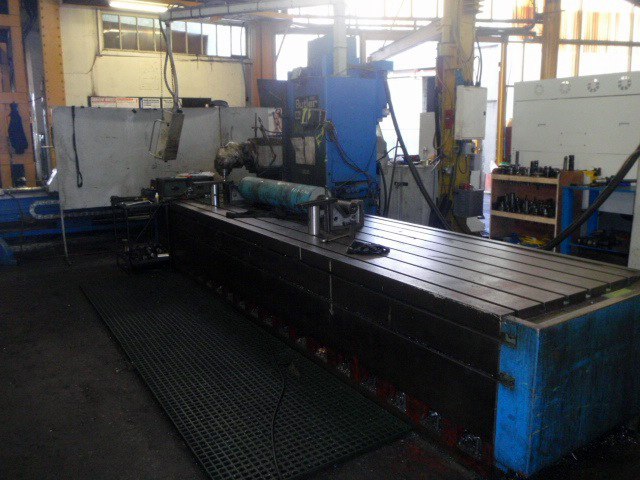

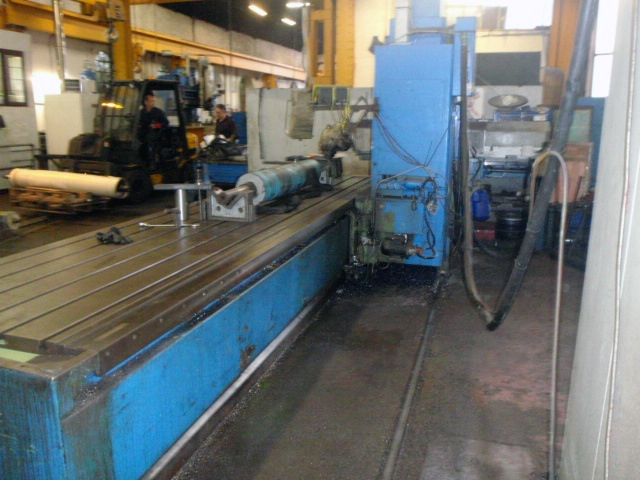

Table size:5000 mm x 1030 mm
Long travel: 3300 mm
Vertical travel: 1000 mm
Cross traverse: 980 mm
Spindle taper: 50
Spindle 15 HP
Speeds:27 off - 30-2080 RPM
Feed rate: 6-500 mm/min
Equipment:

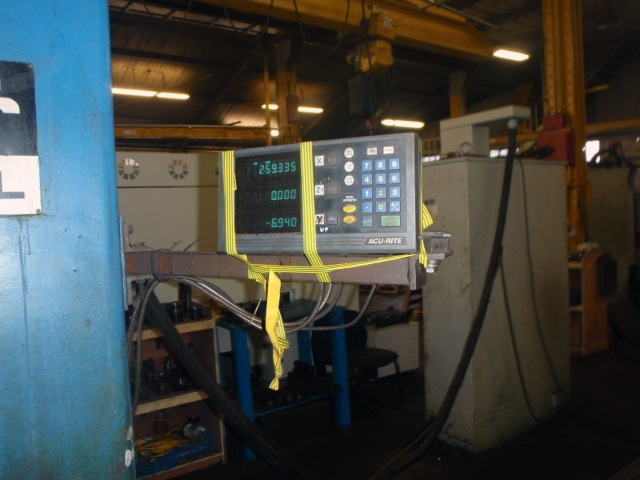

3 Axis Digital Read Out (New X Scale fitted March 2012)
Universal head
Coolant
Back Rail

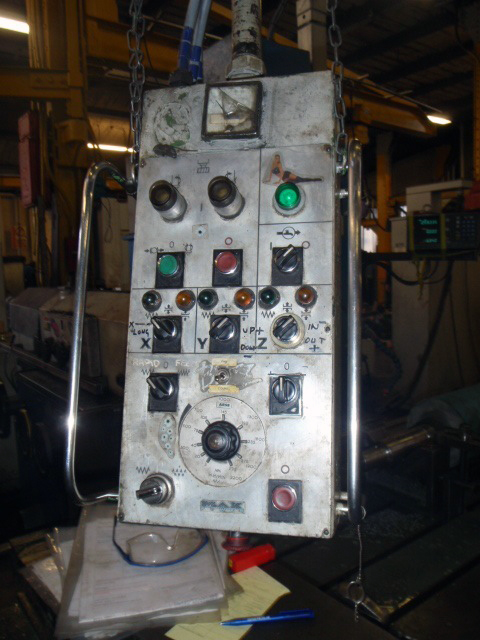

Pendant Control
Buyer will have the use of the overhead cranes to loaded to transport.
Location: Briton Ferry, Neath
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
