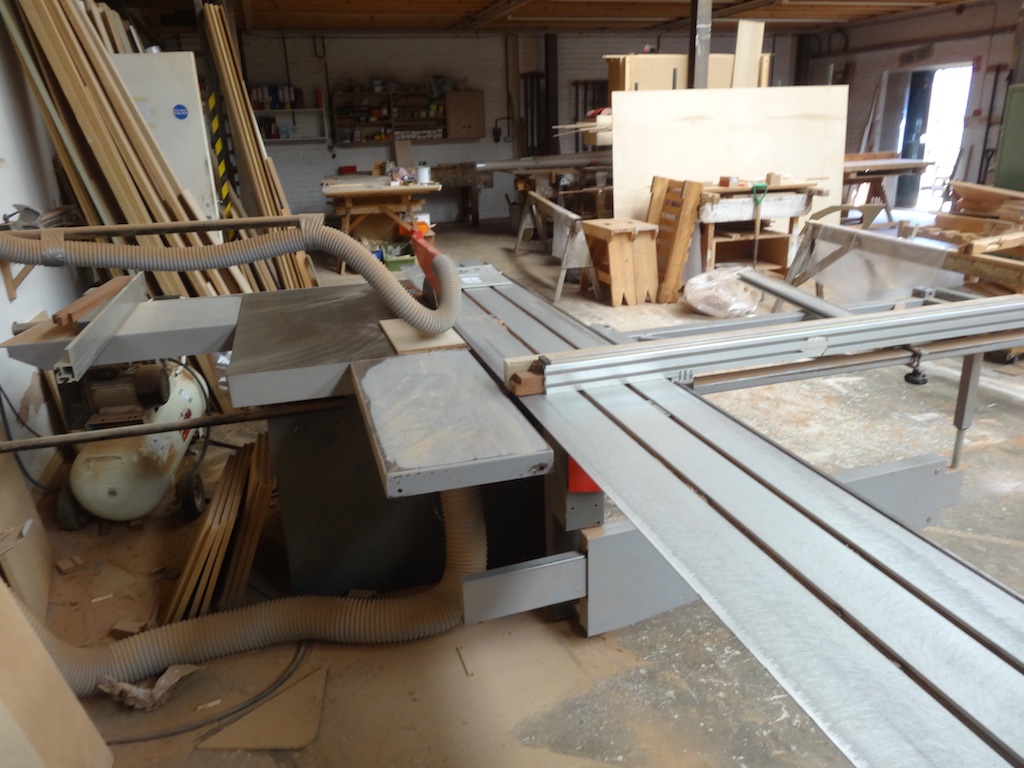

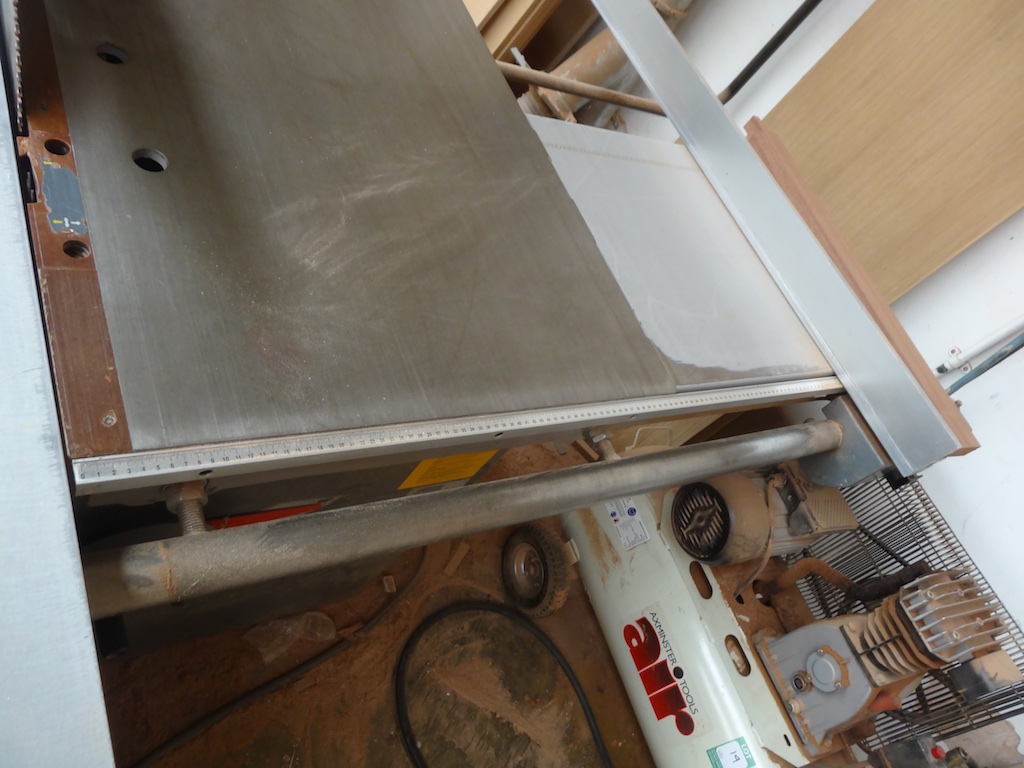

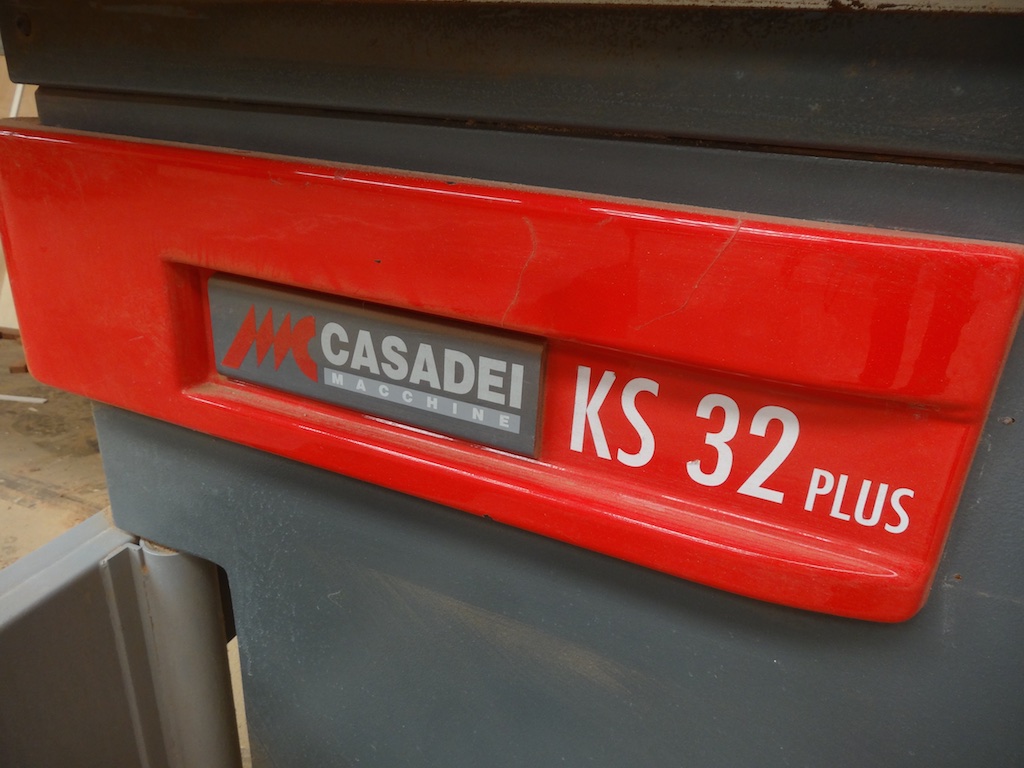

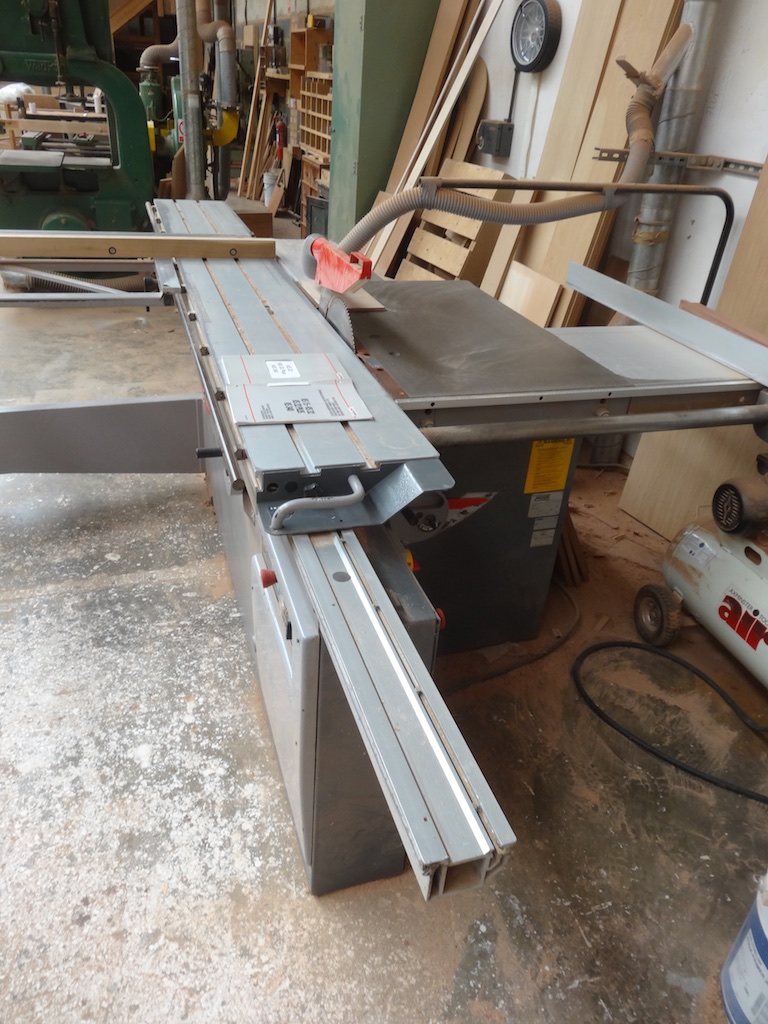

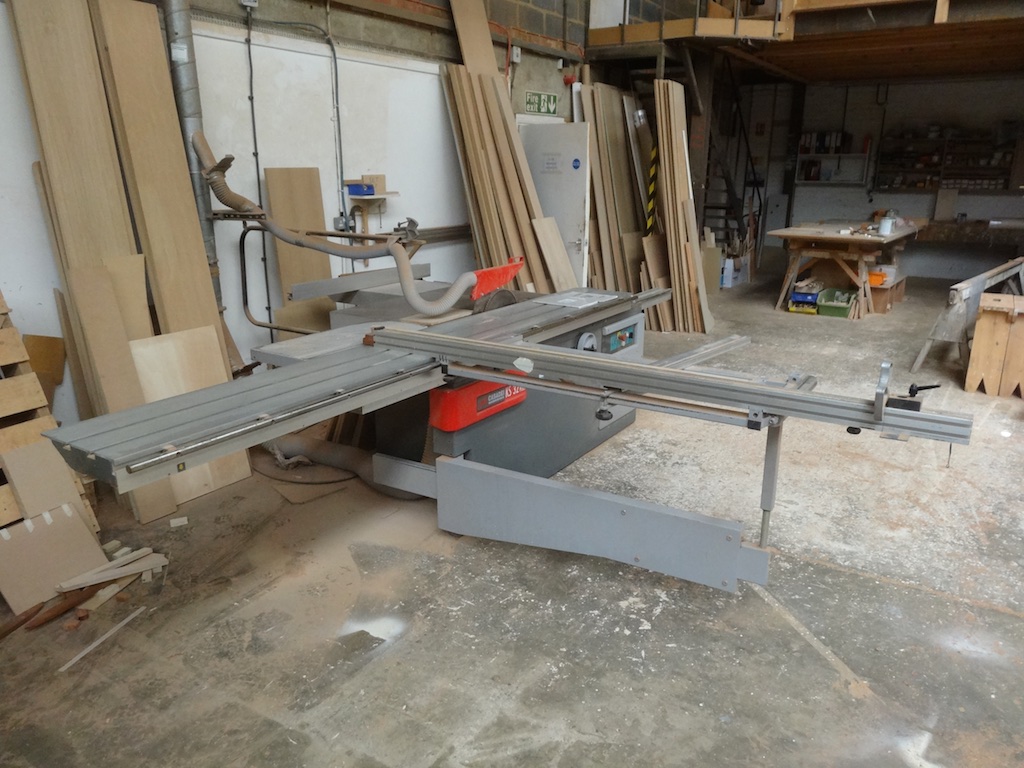

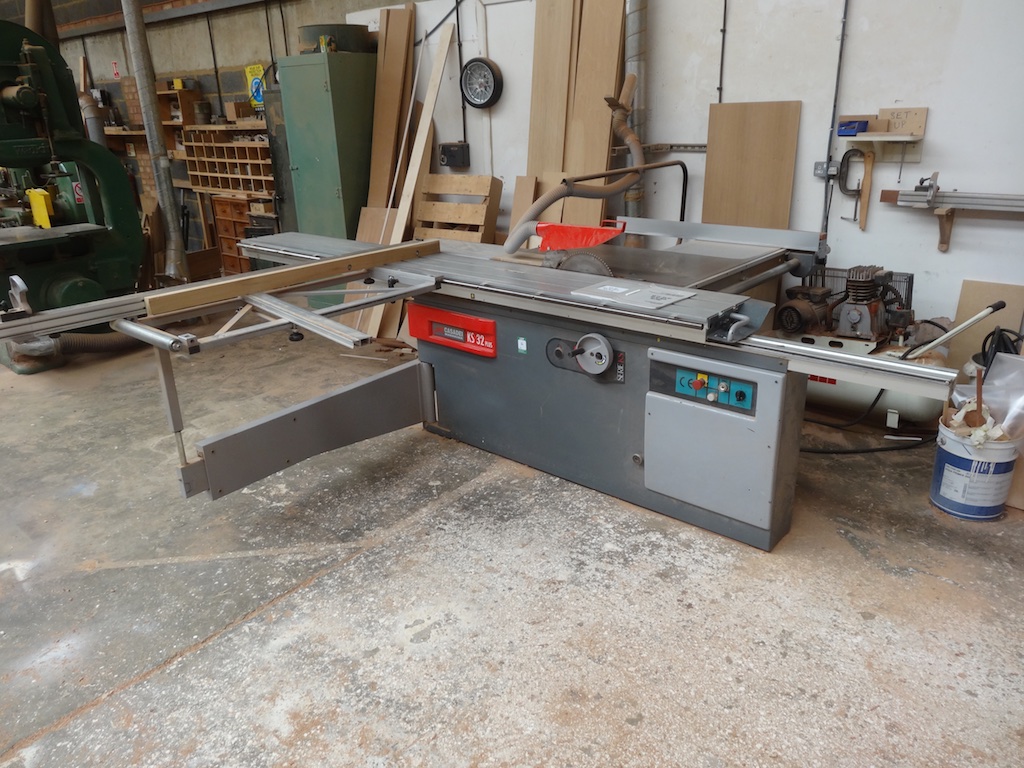

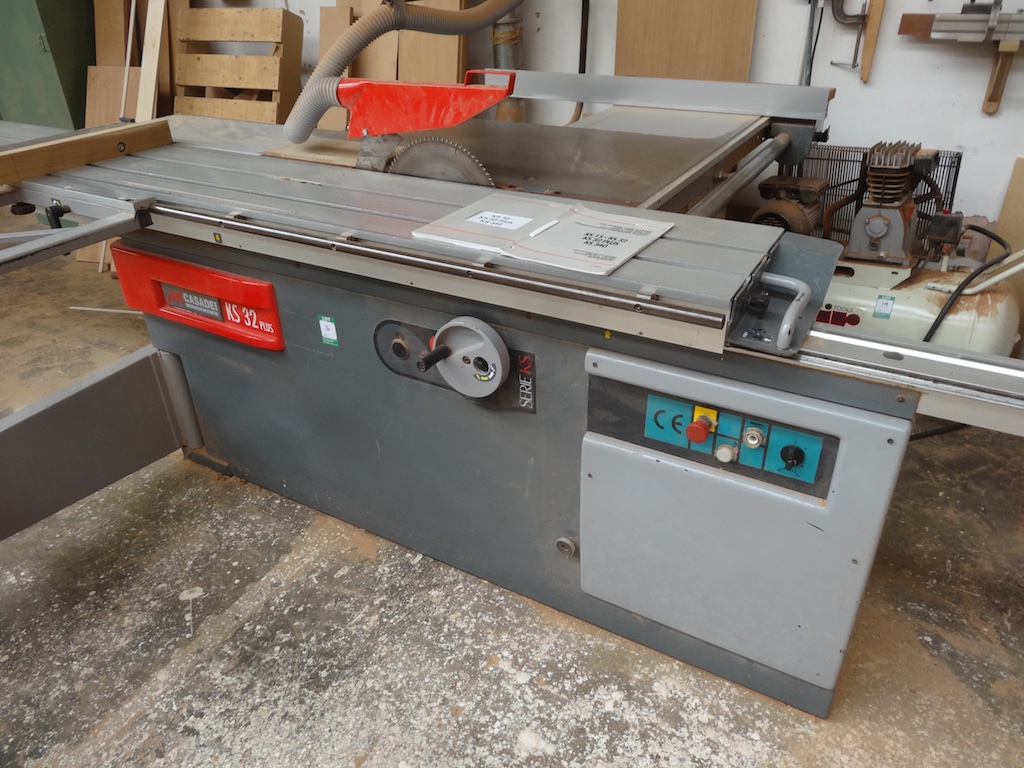

Casadei KS32 Panel Saw - Year 1998

Lot 5 - Casadei KS32 Panel Saw - Year 1998

Description:

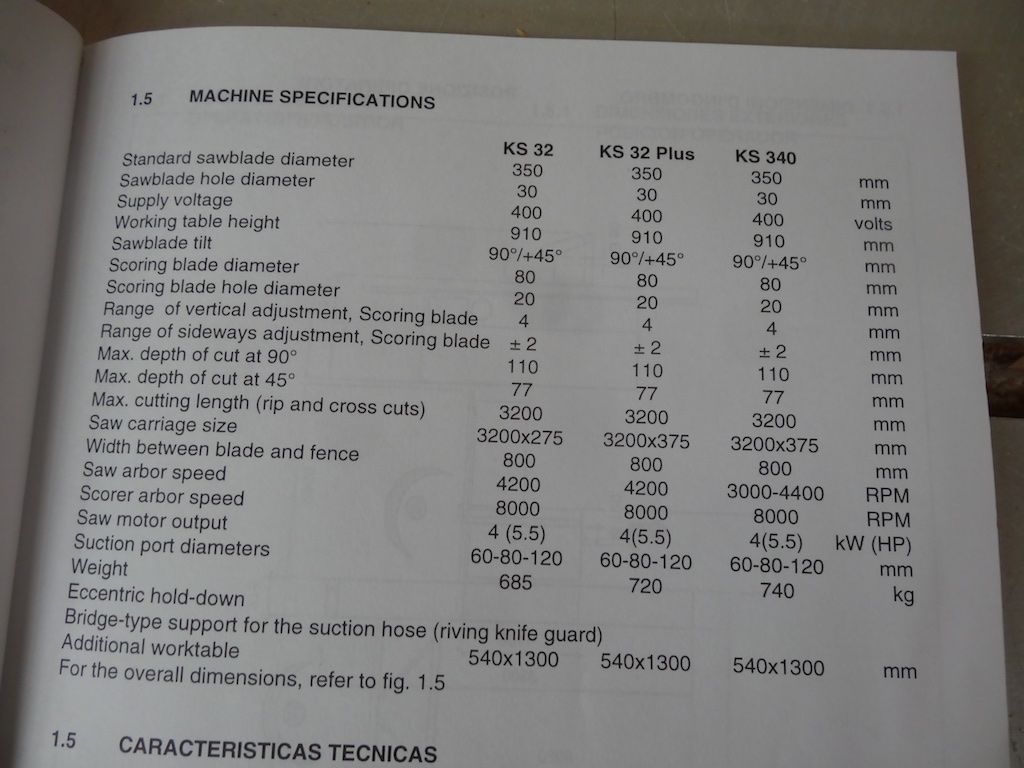

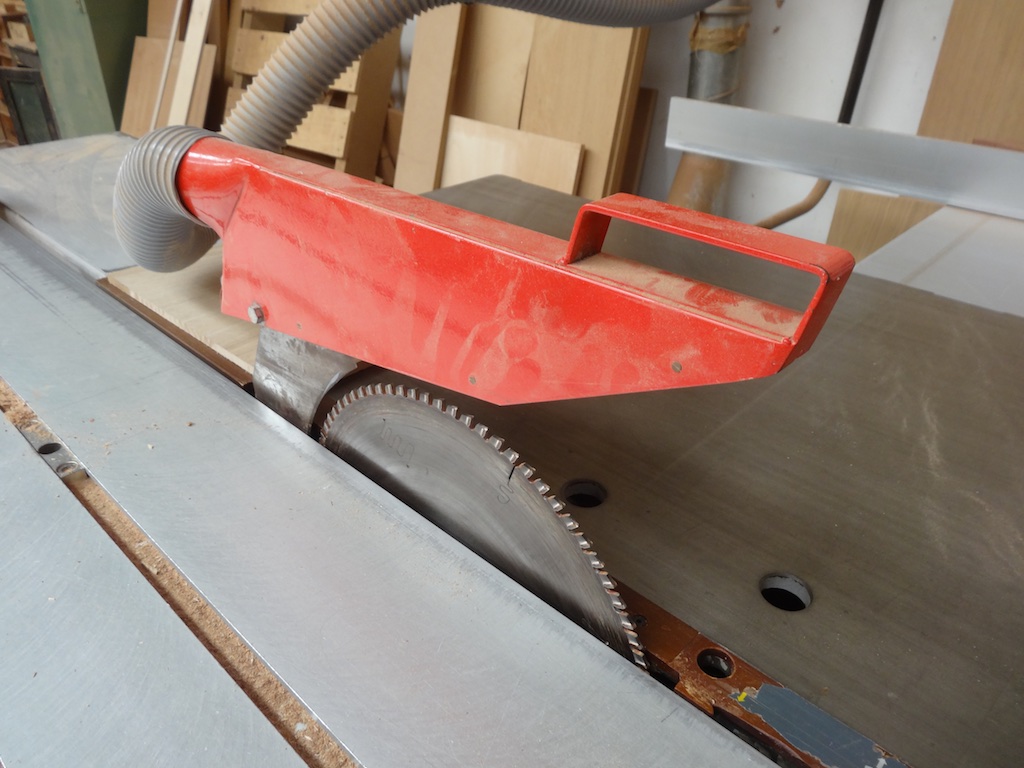

Standard Sawblade Diameter: 350mm
Sawblade Hole Diameter: 30mm

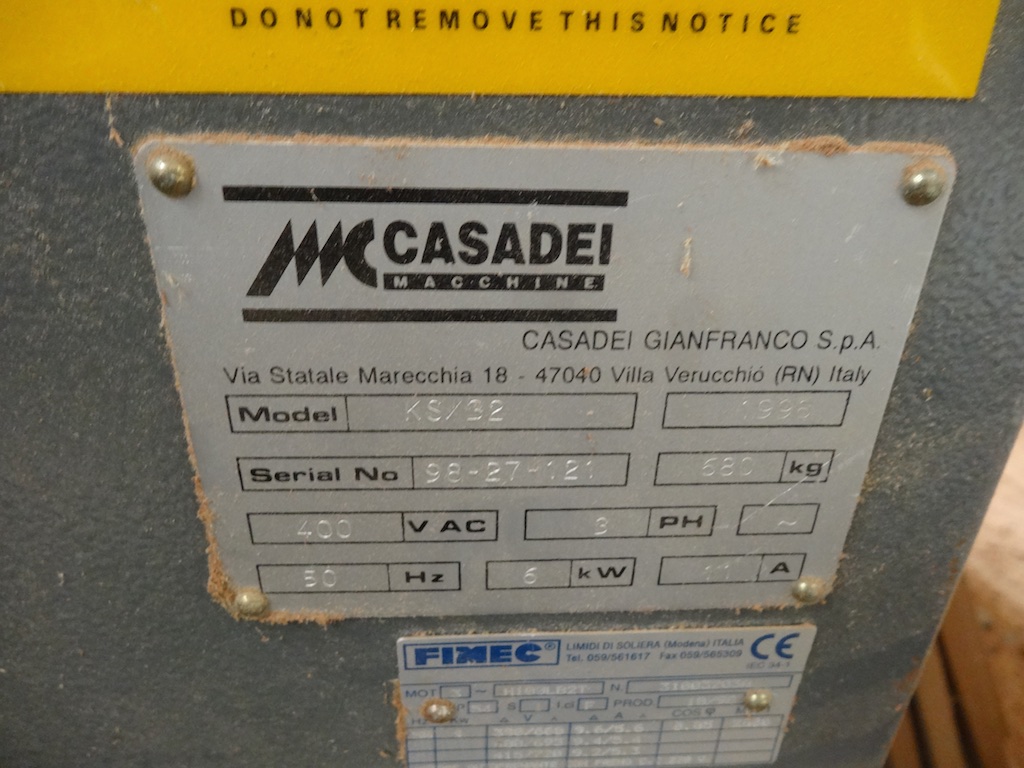

Supply Voltage: 400v
Working Table Height 910mm

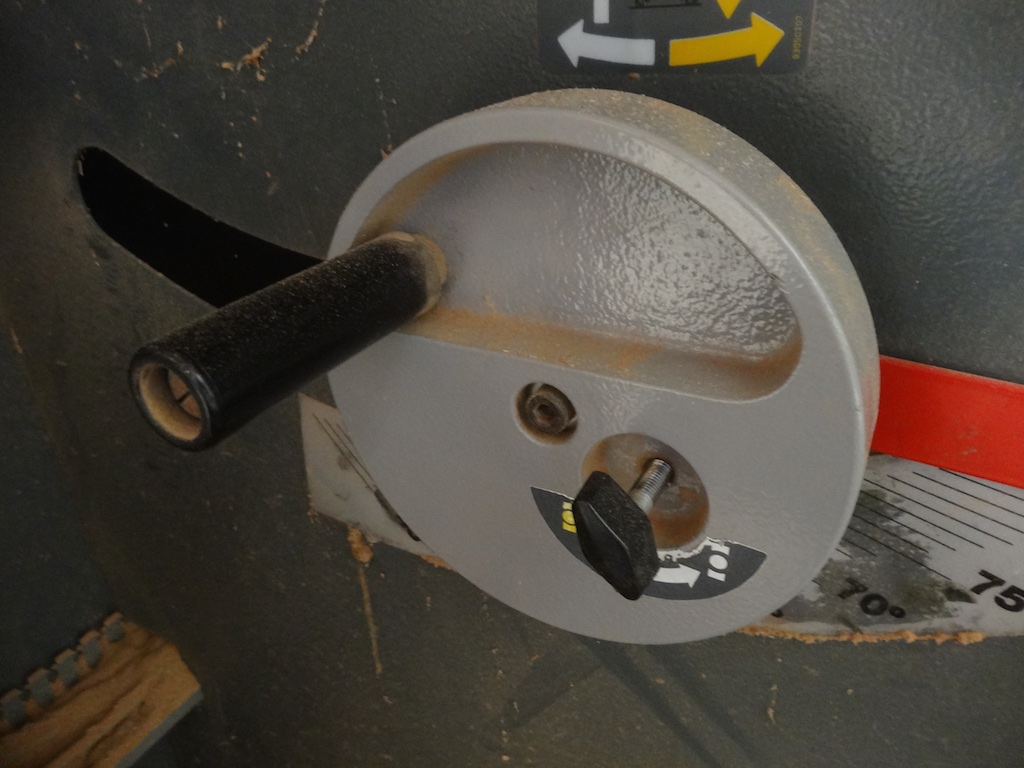

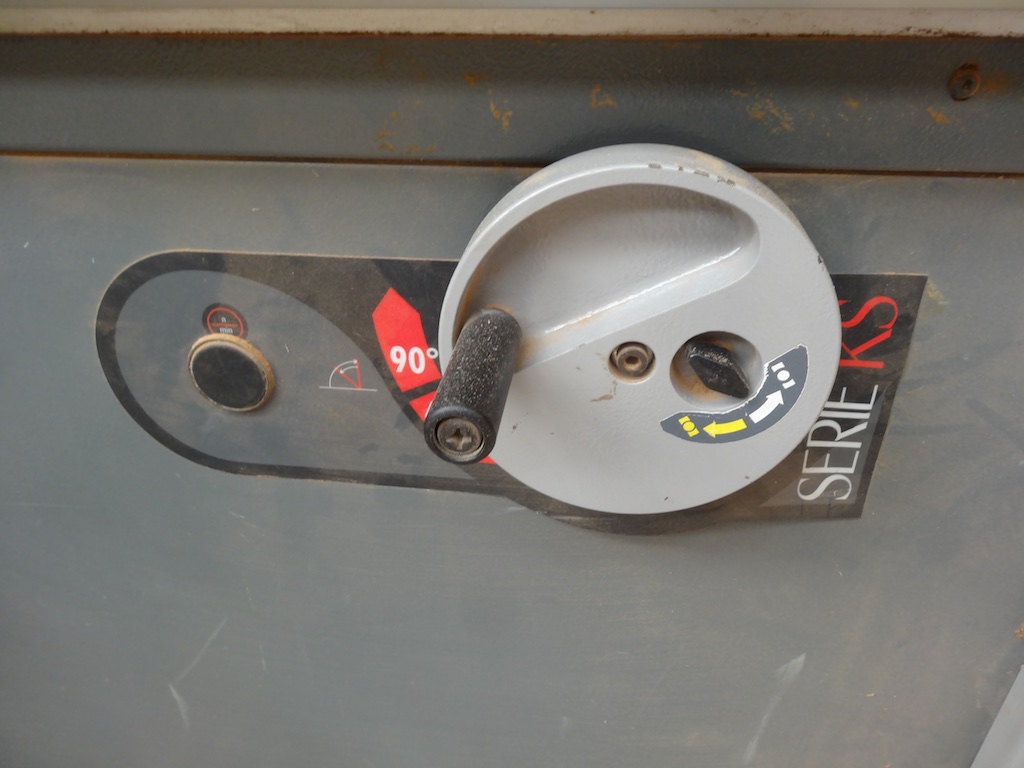

Sawable Tilt 90 degrees / +45 degrees
Scoring Blade Diameter: 80mm
Scoring Blade Hole Diameter: 20mm
Range of Vertical Adjustment, Scoring Table: 4
Range of Sideway Adjustmen, Scoring Table: +-2
Max Depth of cut at 90 degrees: 110mm
Max Depth of cut at 45 degrees: 77mm

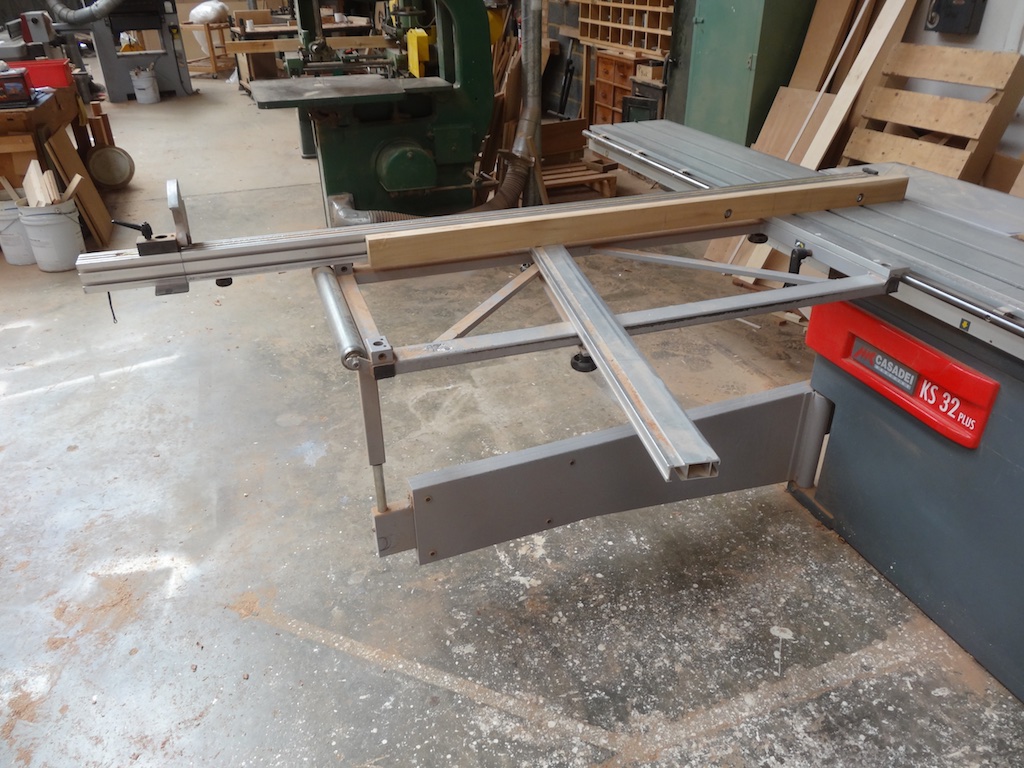

Saw Carriage Size: 3200mm
Saw Arbor Speed: 4200rpm
Scorer Arbor Speed: 8000rpm
Saw Motor Output: 4kW (5.5hp)
Suction Port Diameters: 60-80-120mm

Working open Dimensions: 6920mm x 3300mm x 1330mm High
Transport Dimensions: 3300mm X 1700mm X 1330mm High
Weight: 720kg

Location: Thame

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
