Lot 1 - Correa Diana 35 CNC Bedmill with Integrated 4th Axis (2007)
Description:

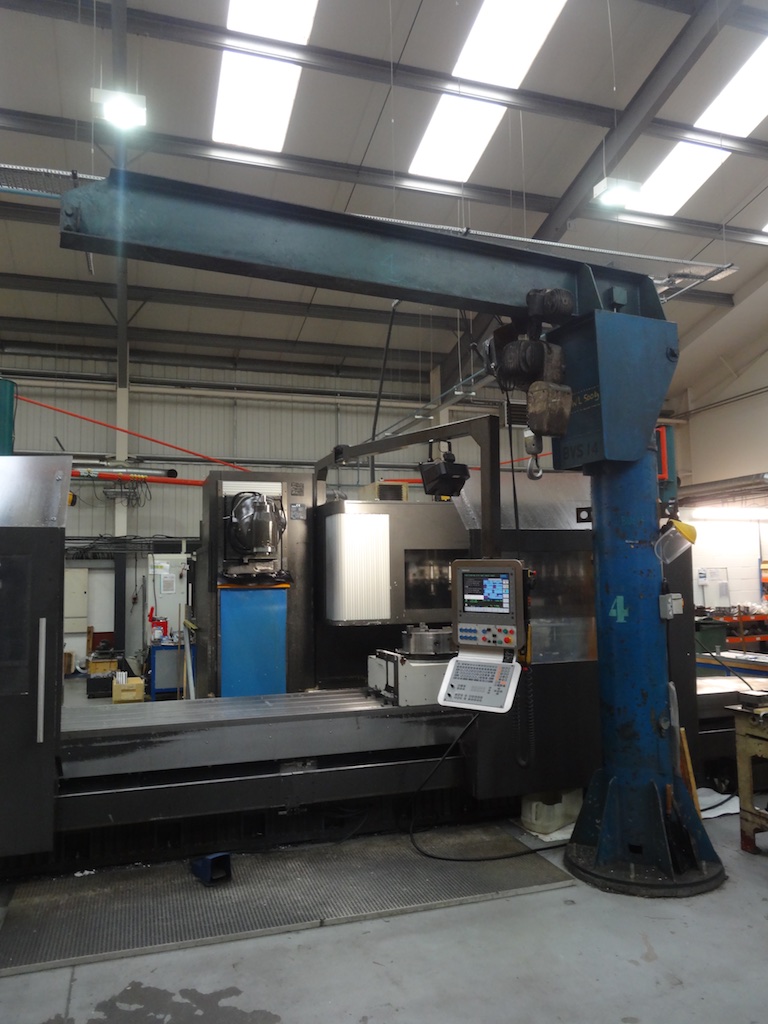

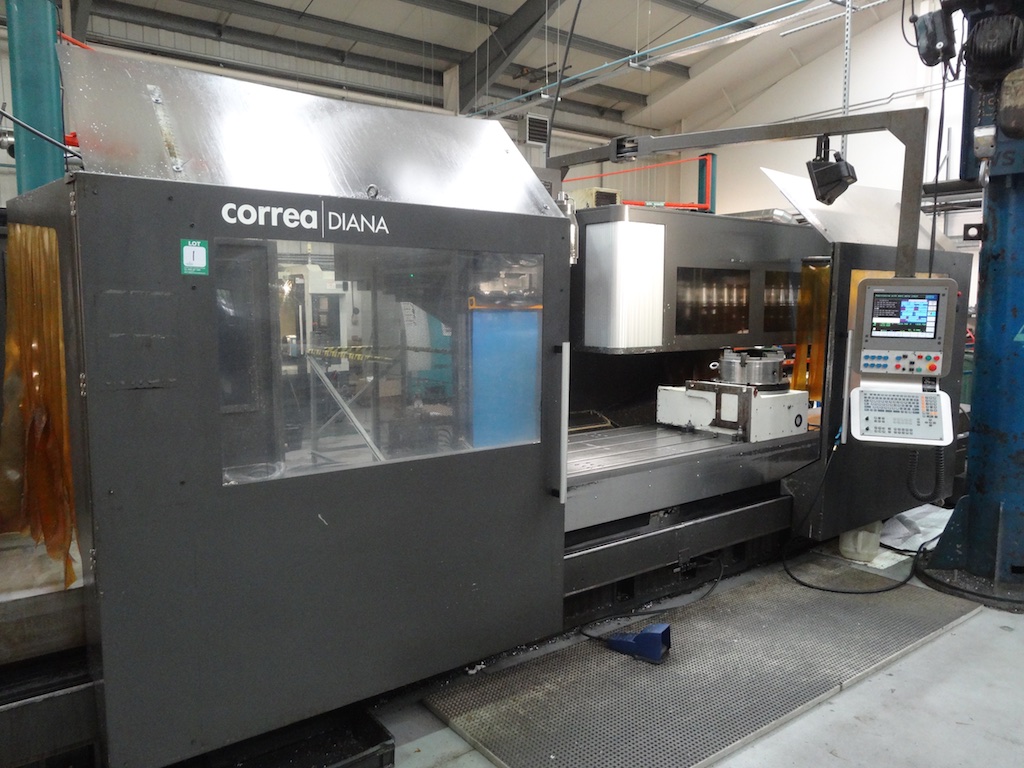

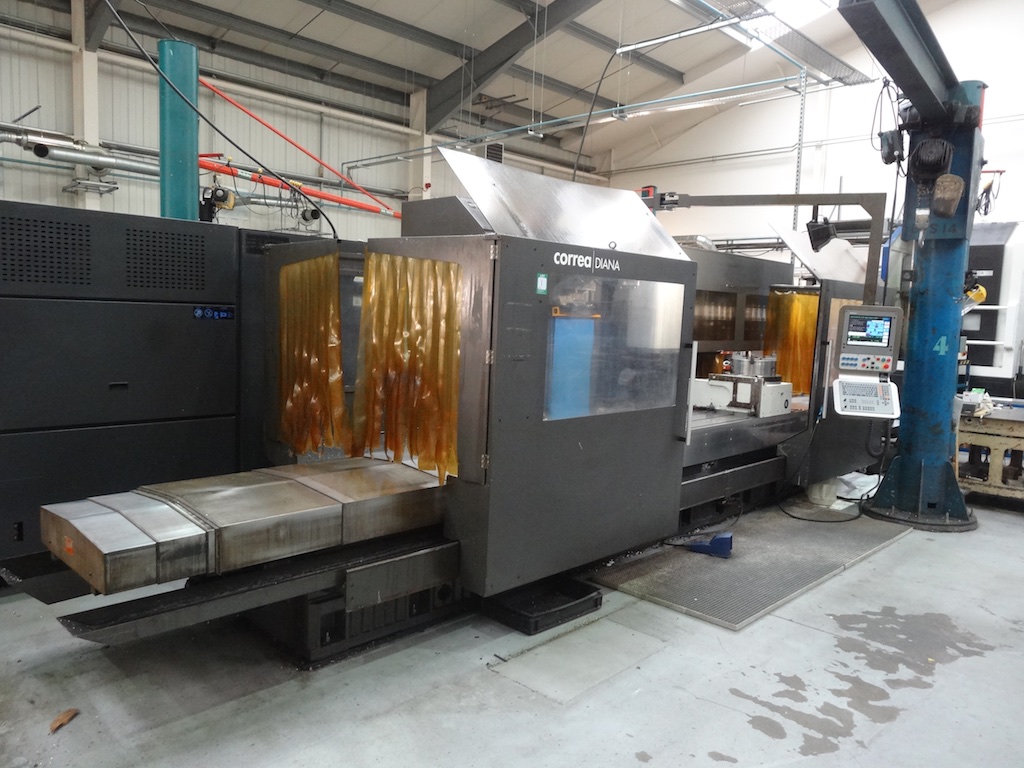

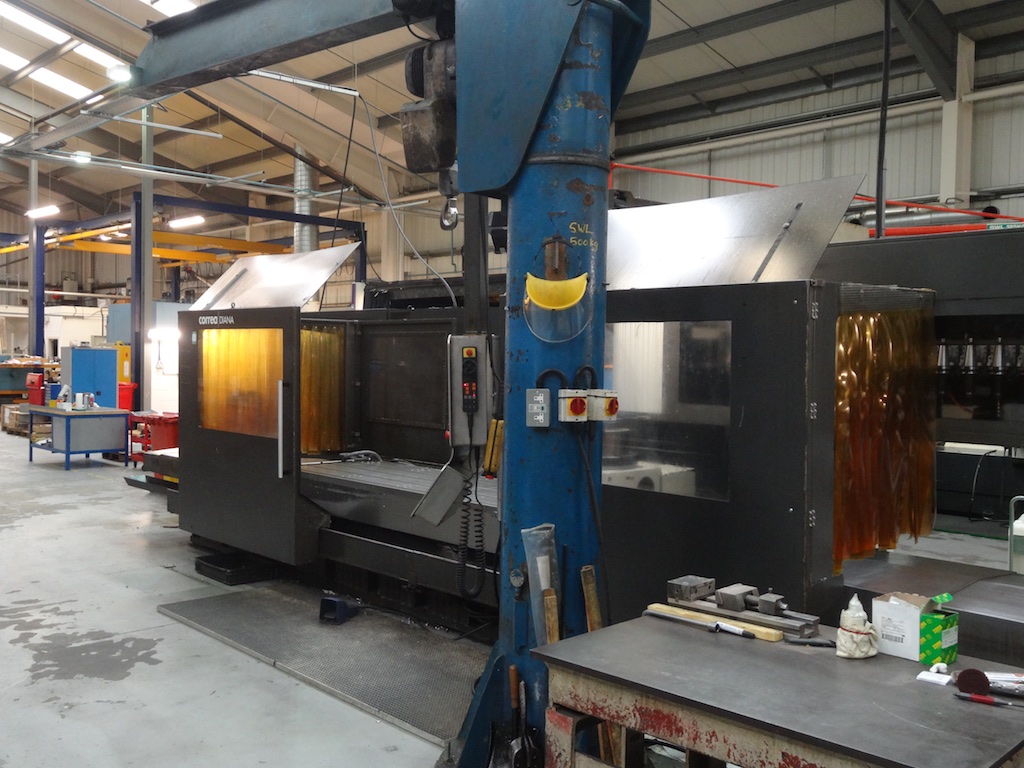

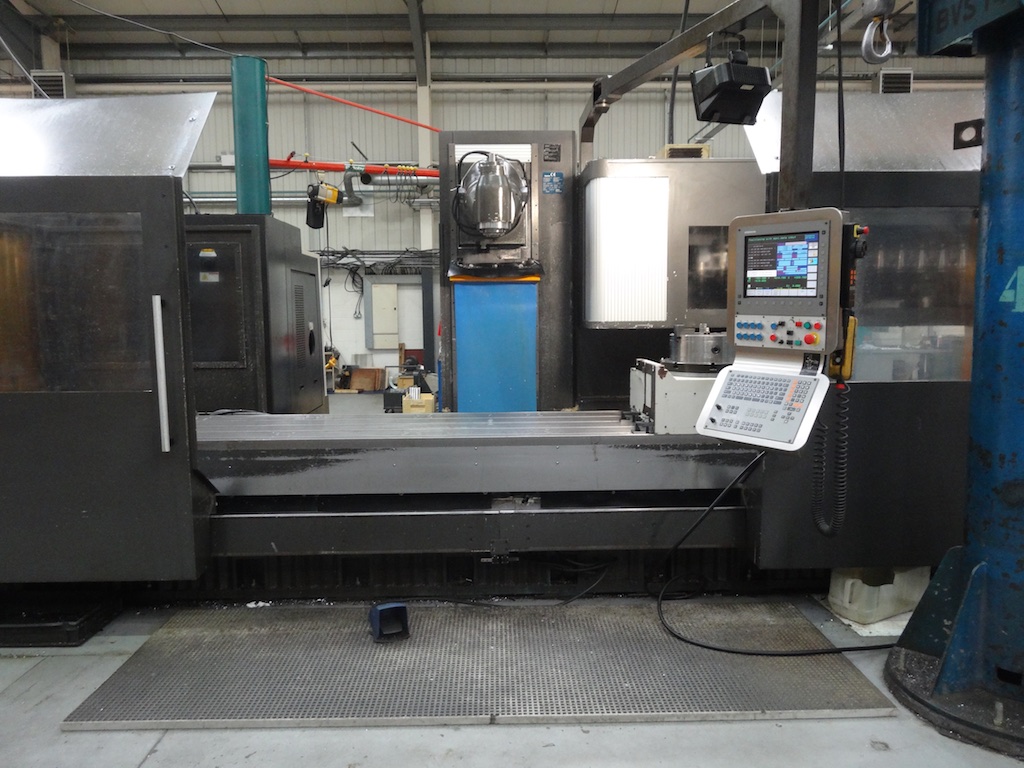

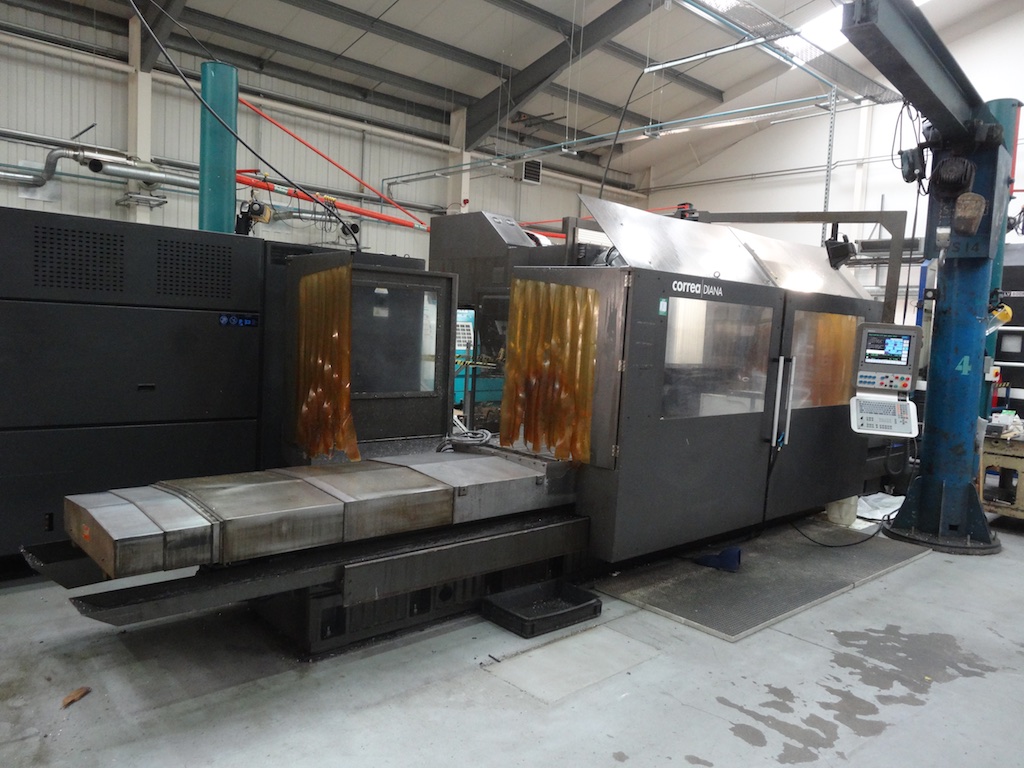

Correa Diana 35 CNC Bedmill (Year 2007)

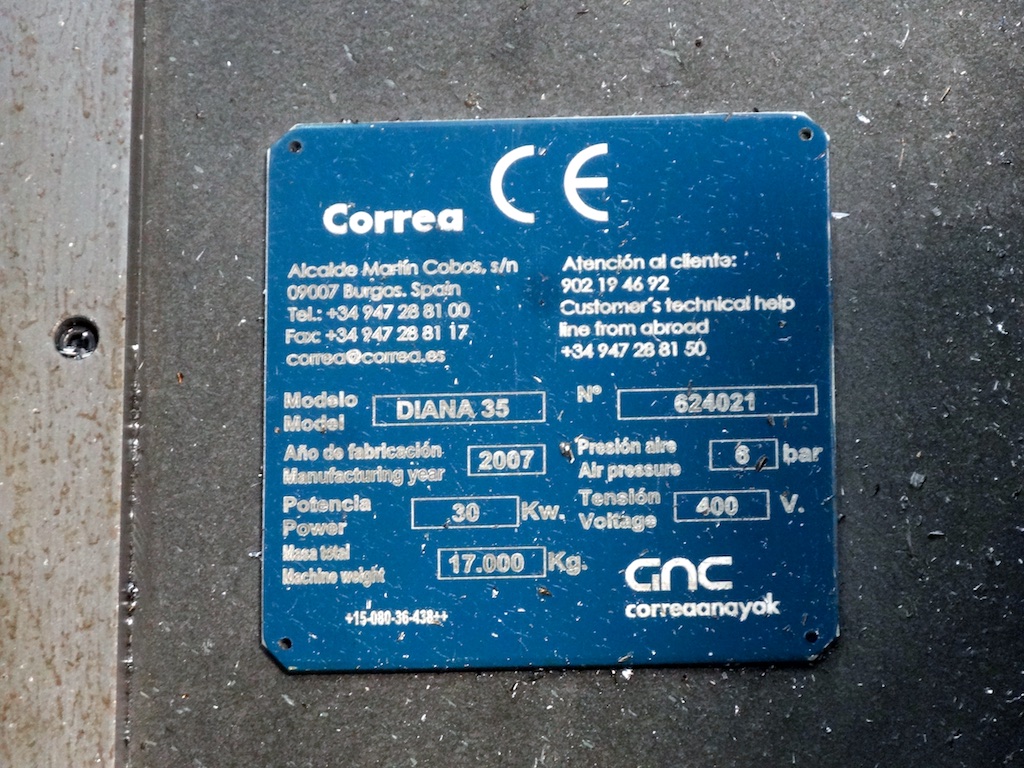

Serial Number 624021

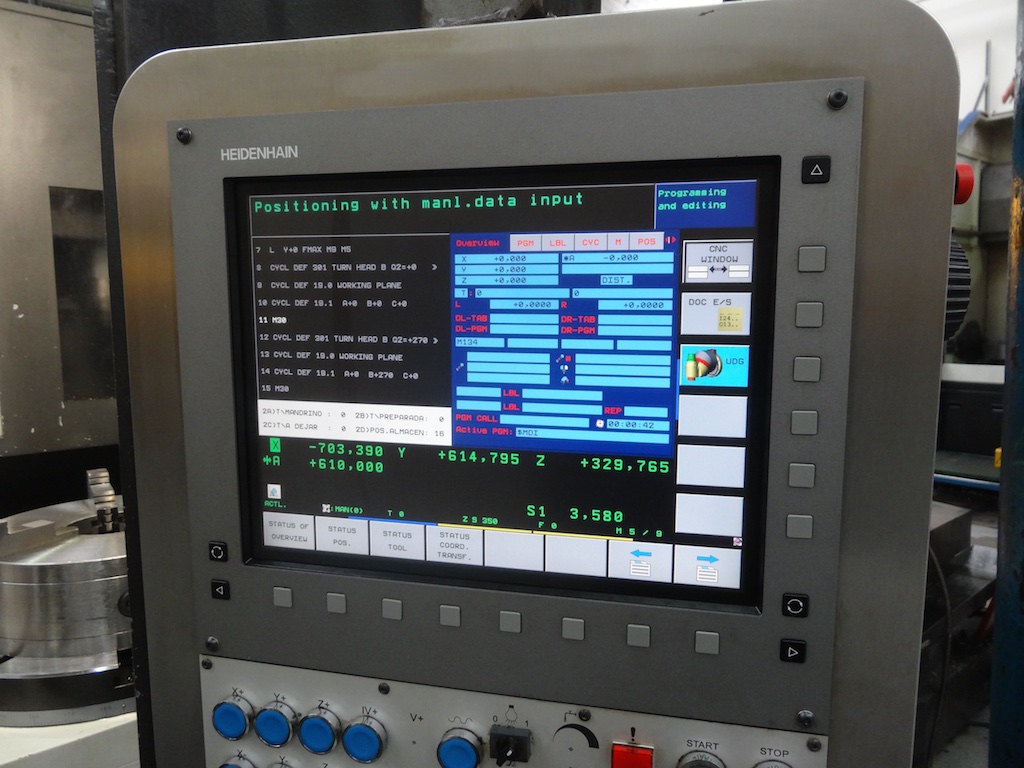

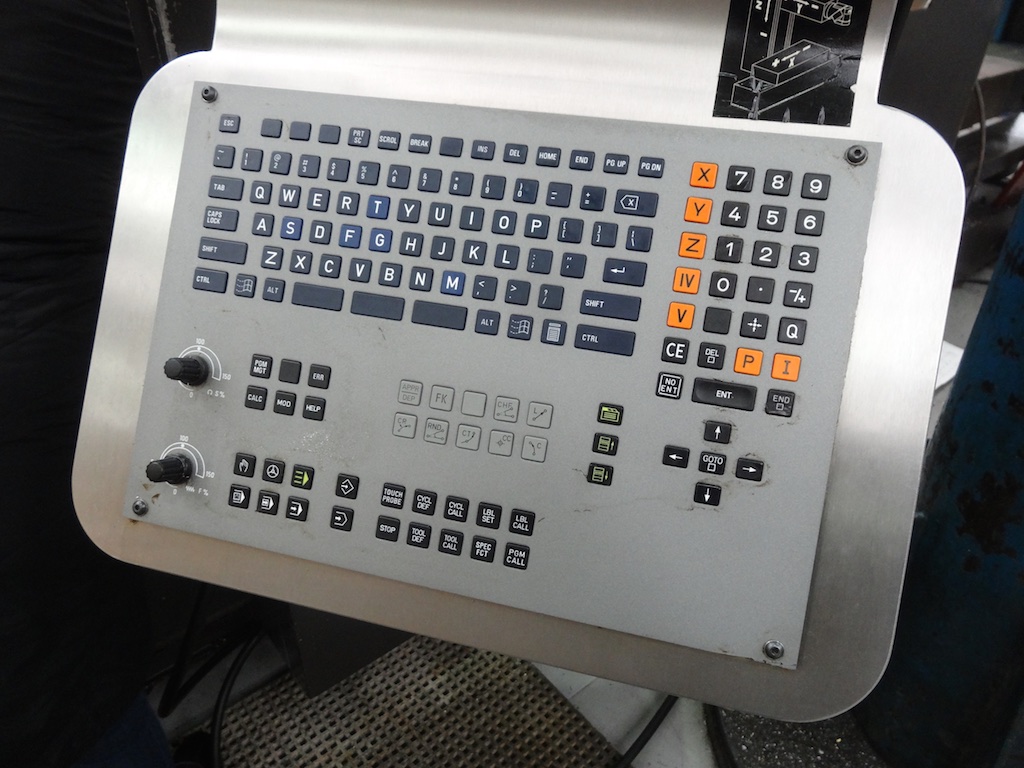

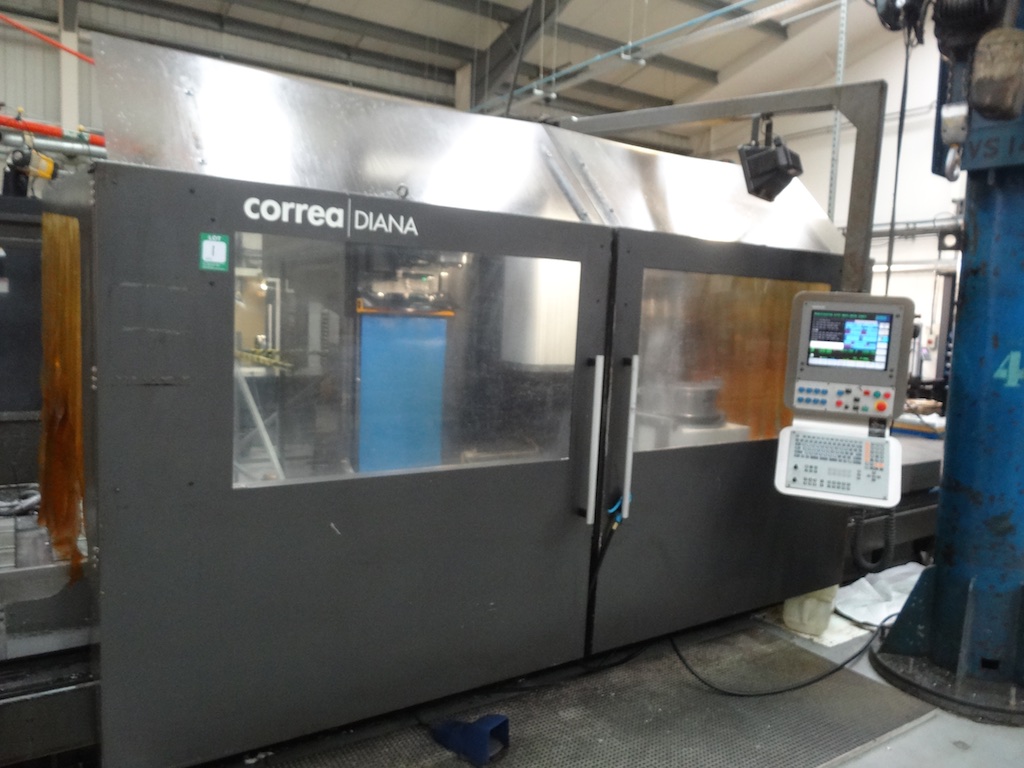

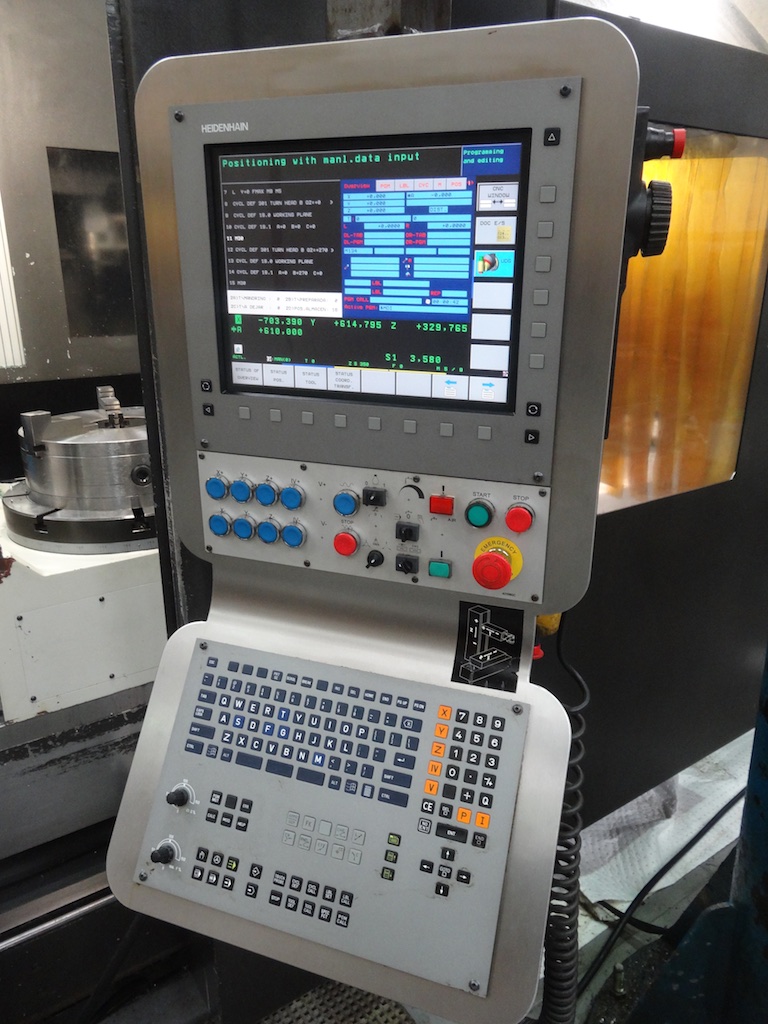

Heidenhain TNC530i Control

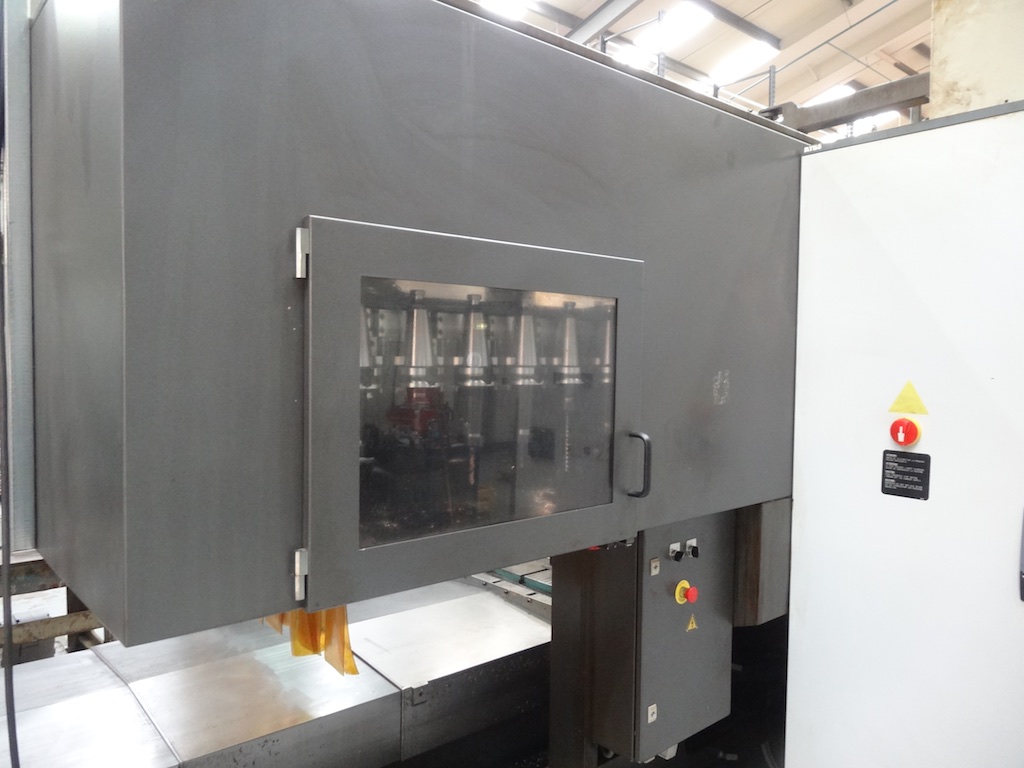

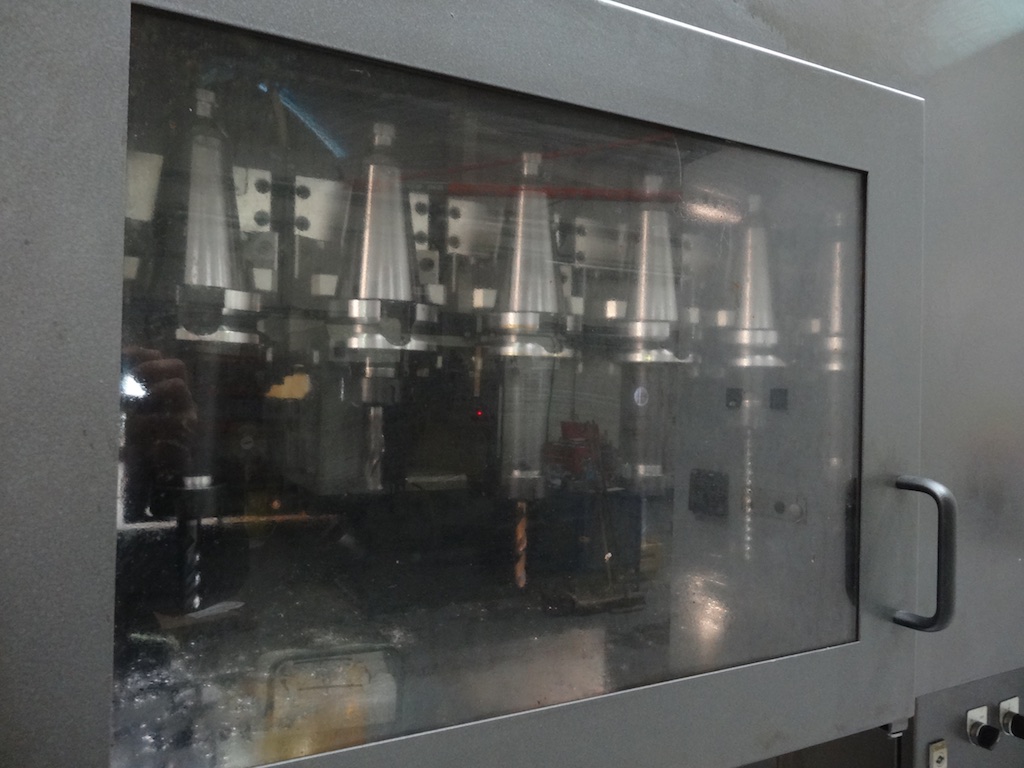

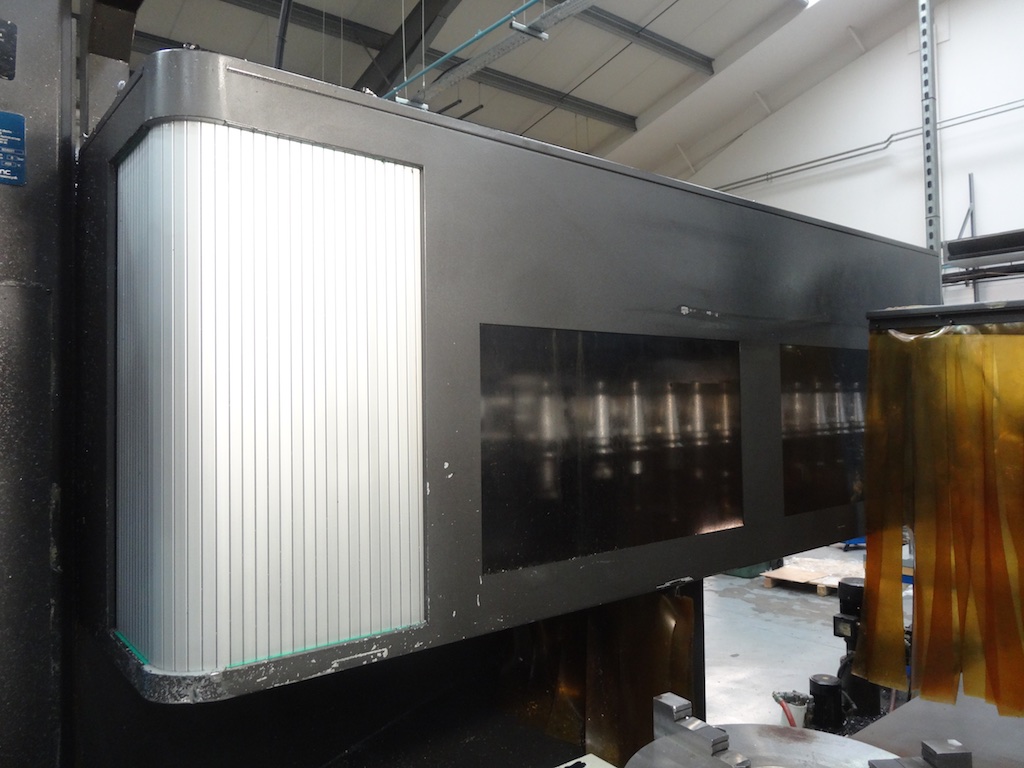

30 Station ATC

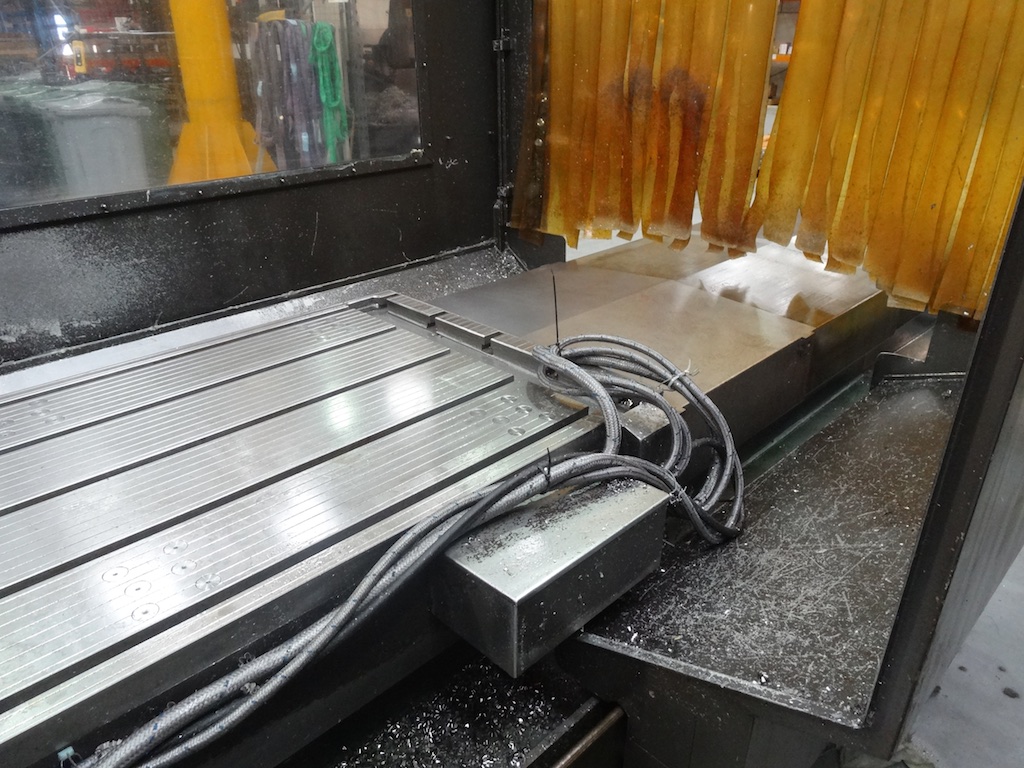

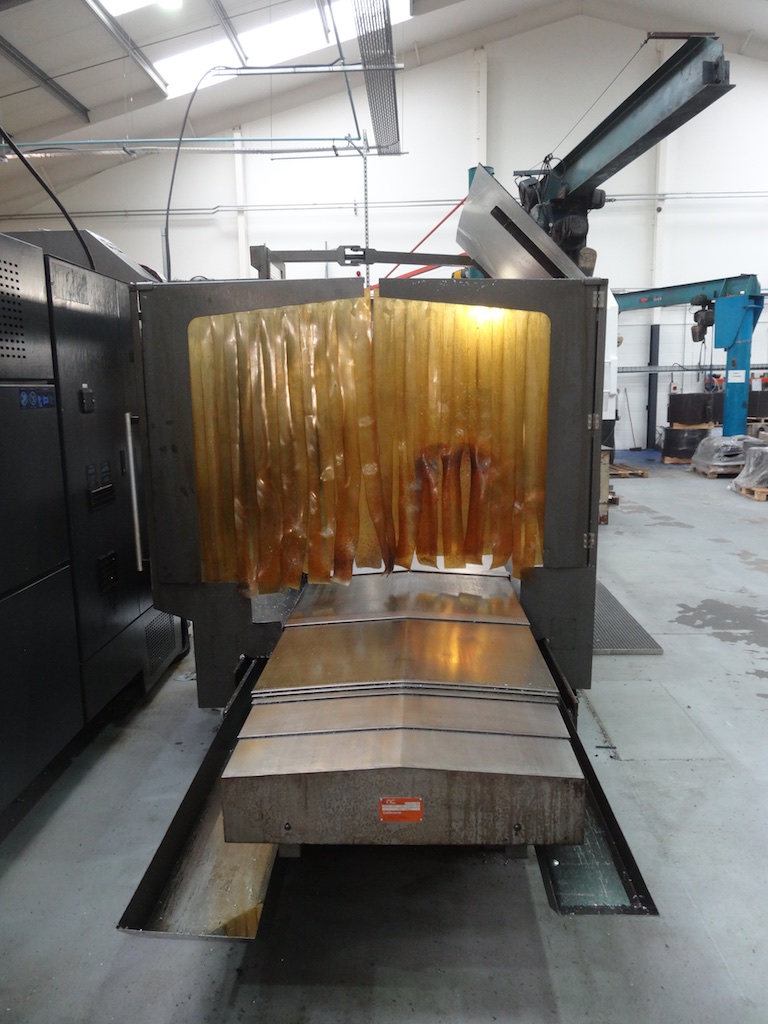

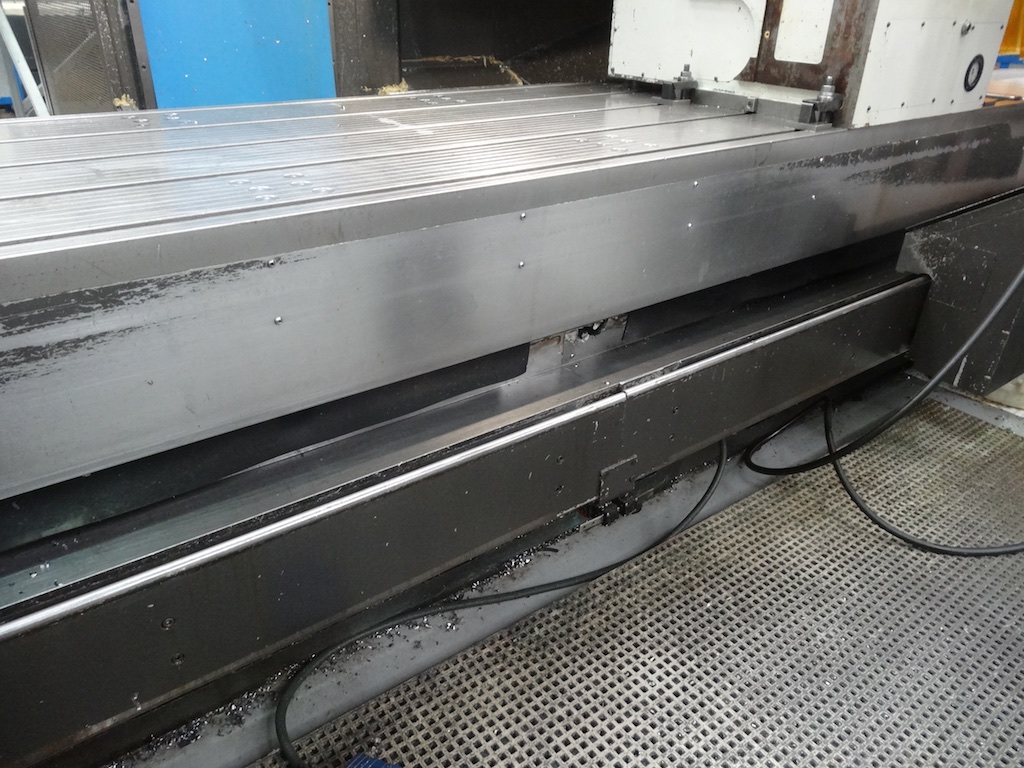

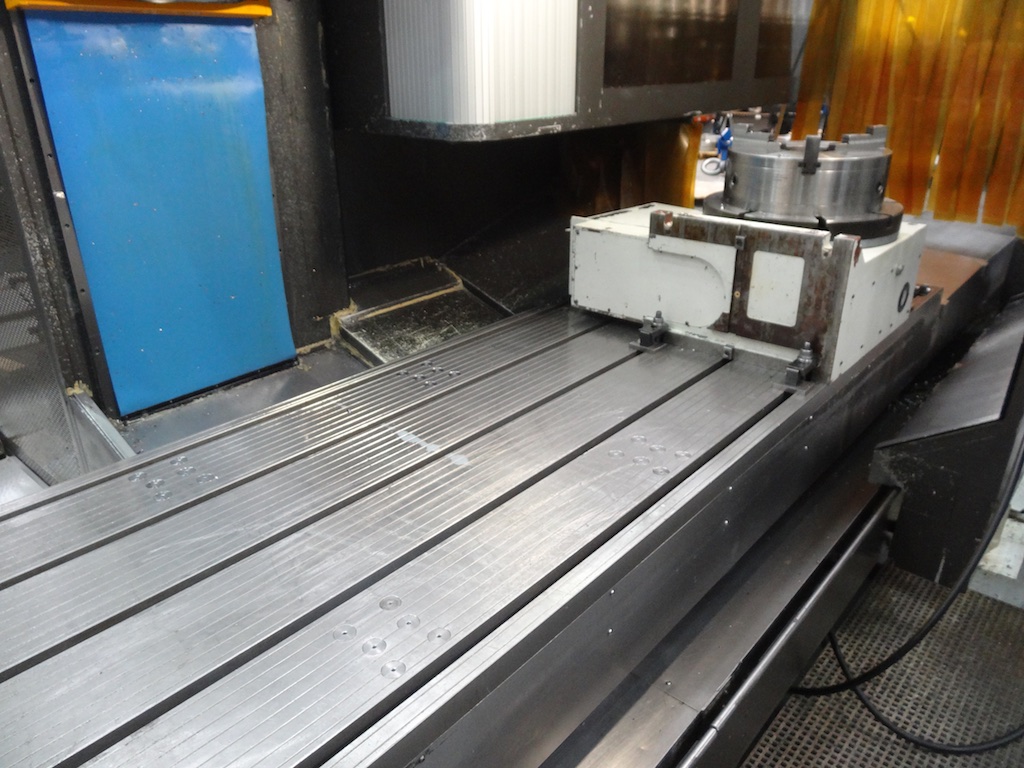

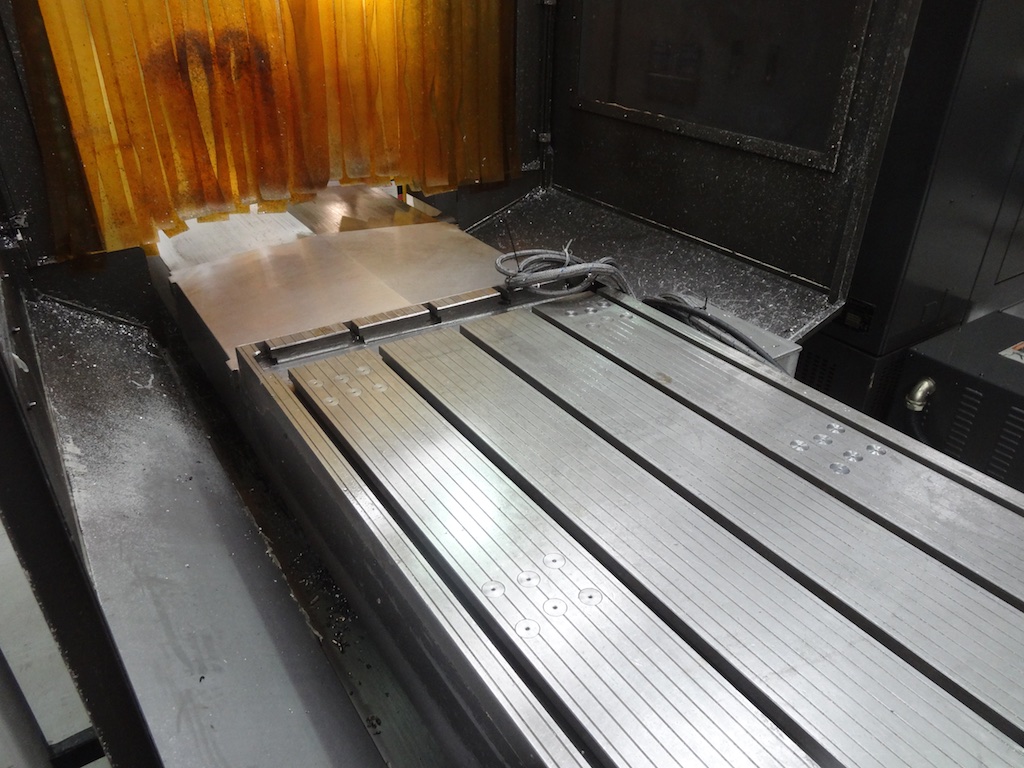

Table: 3500 x 900mm (5 x 22mm T slots, 200mm apart)
Traverses XYZ: 3500 x 1000 x 1000mm

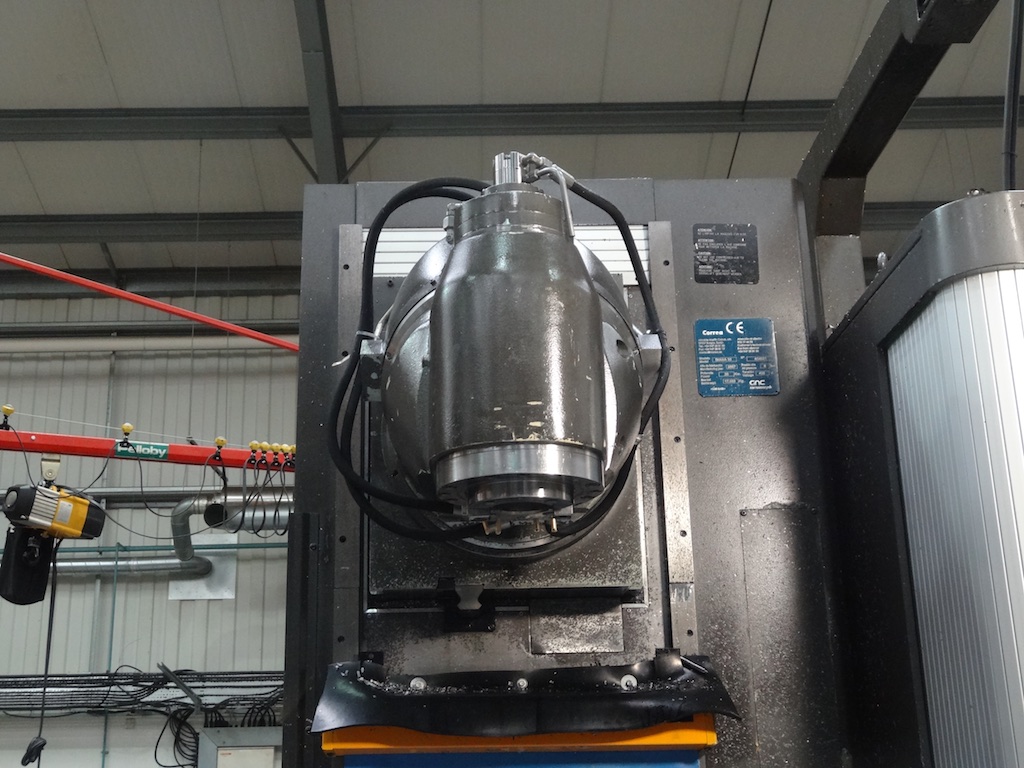

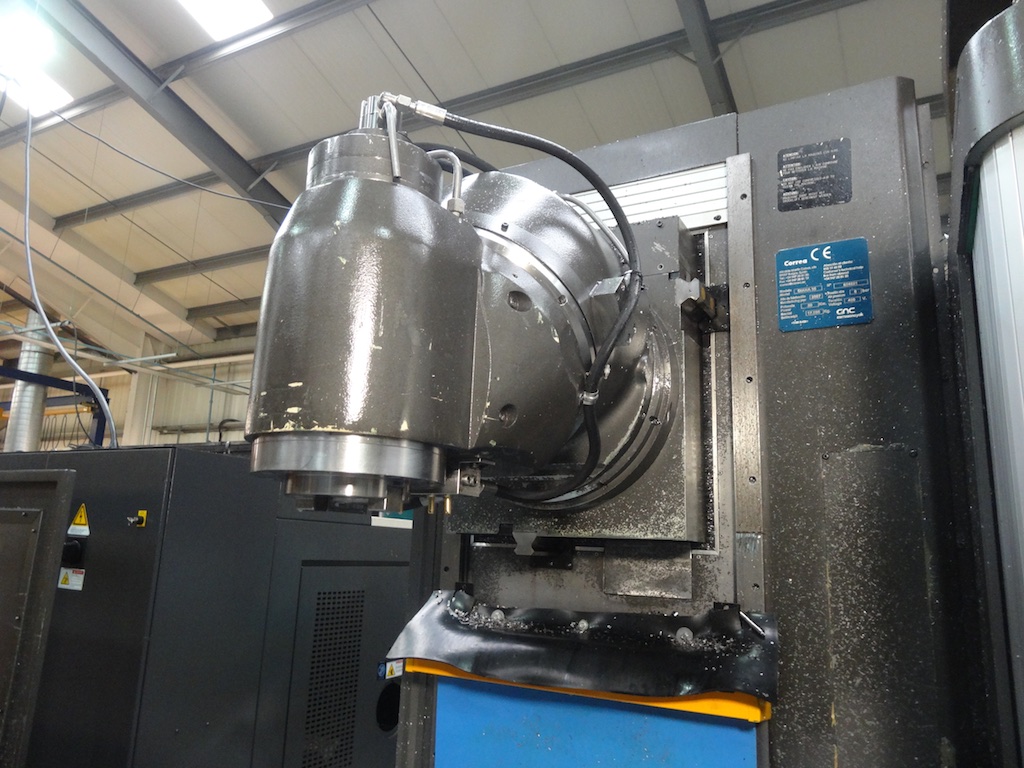

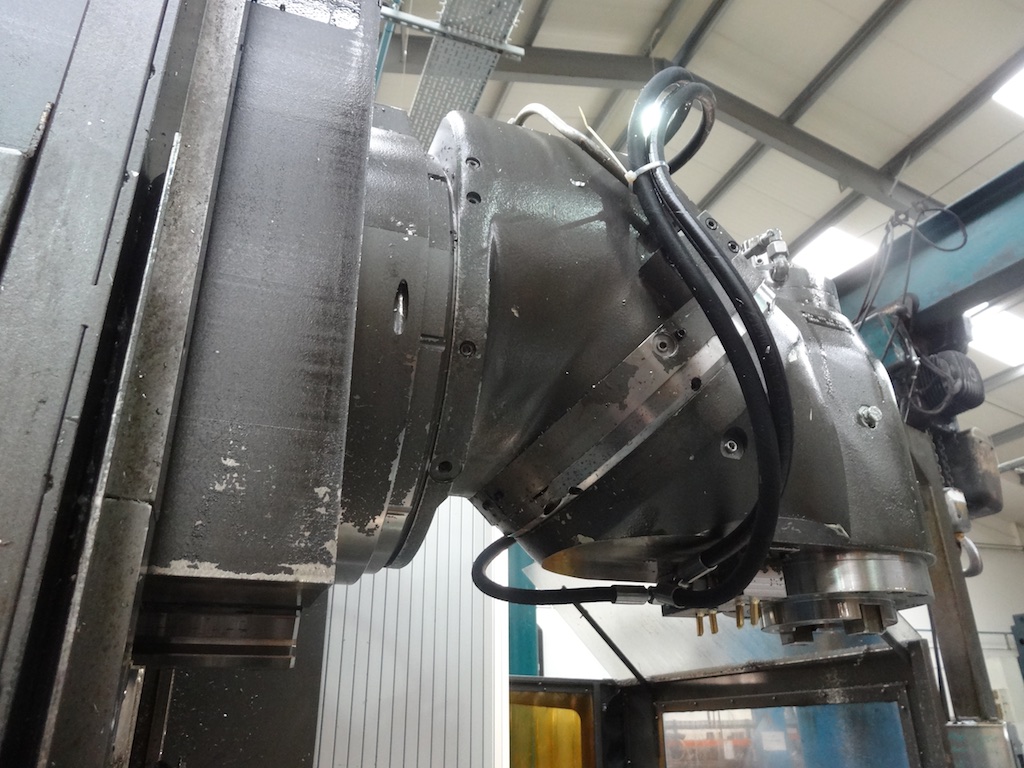

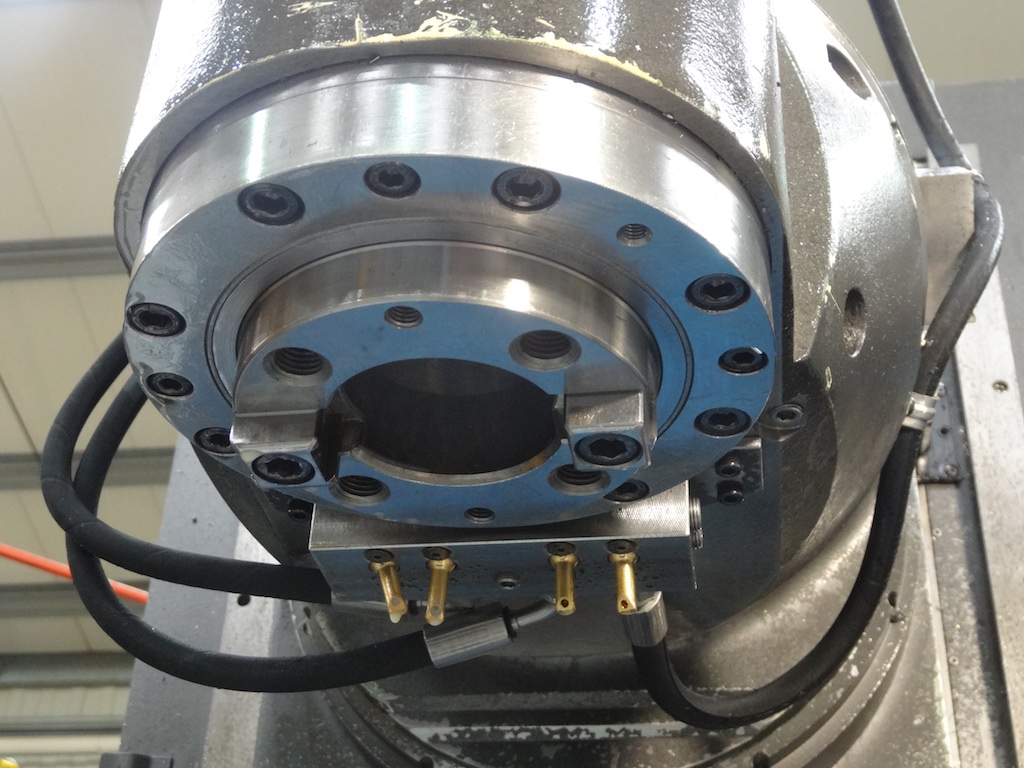

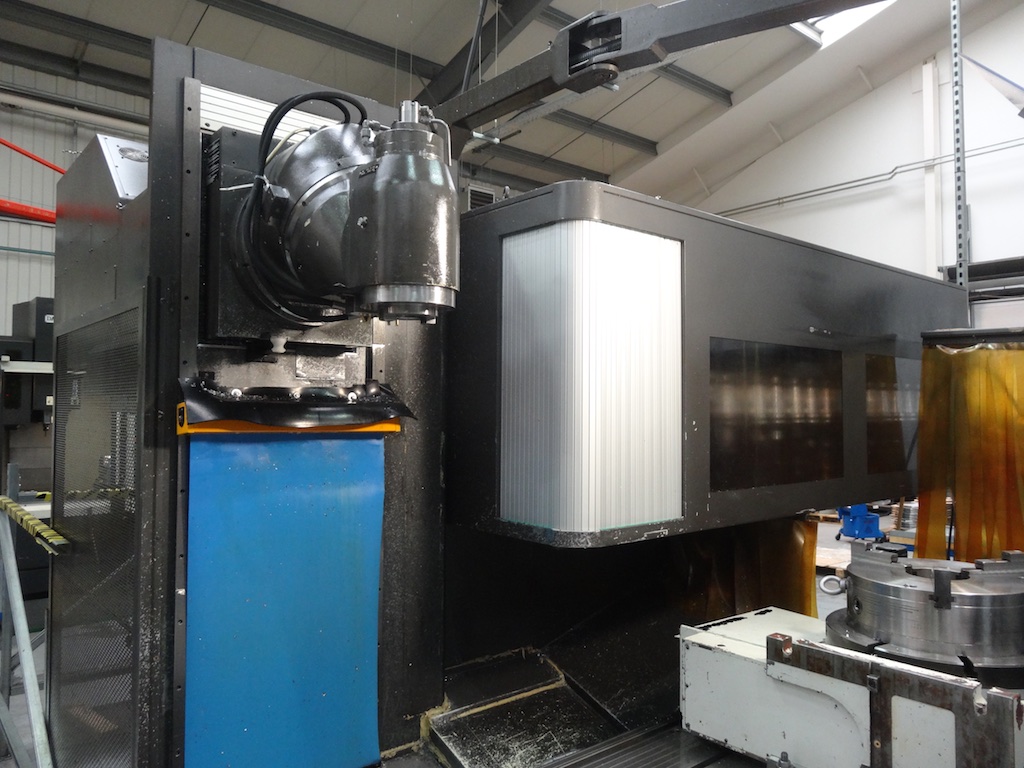

2.5 degree Auto Indexing Universal Head
Spindle nose ISO50

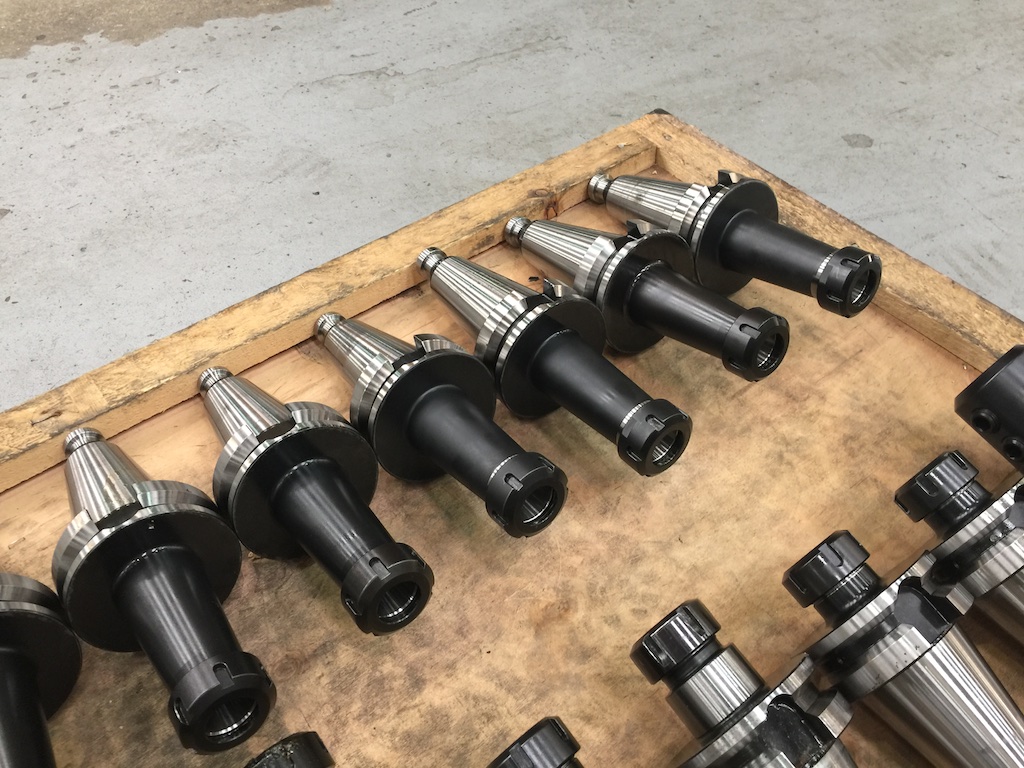

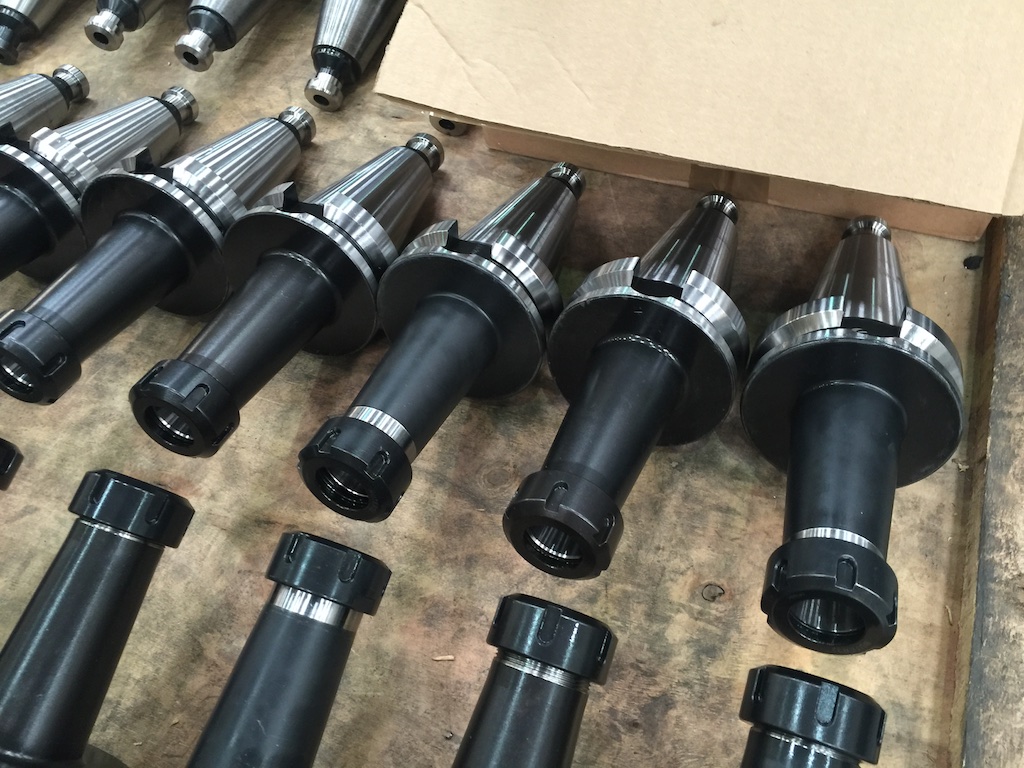

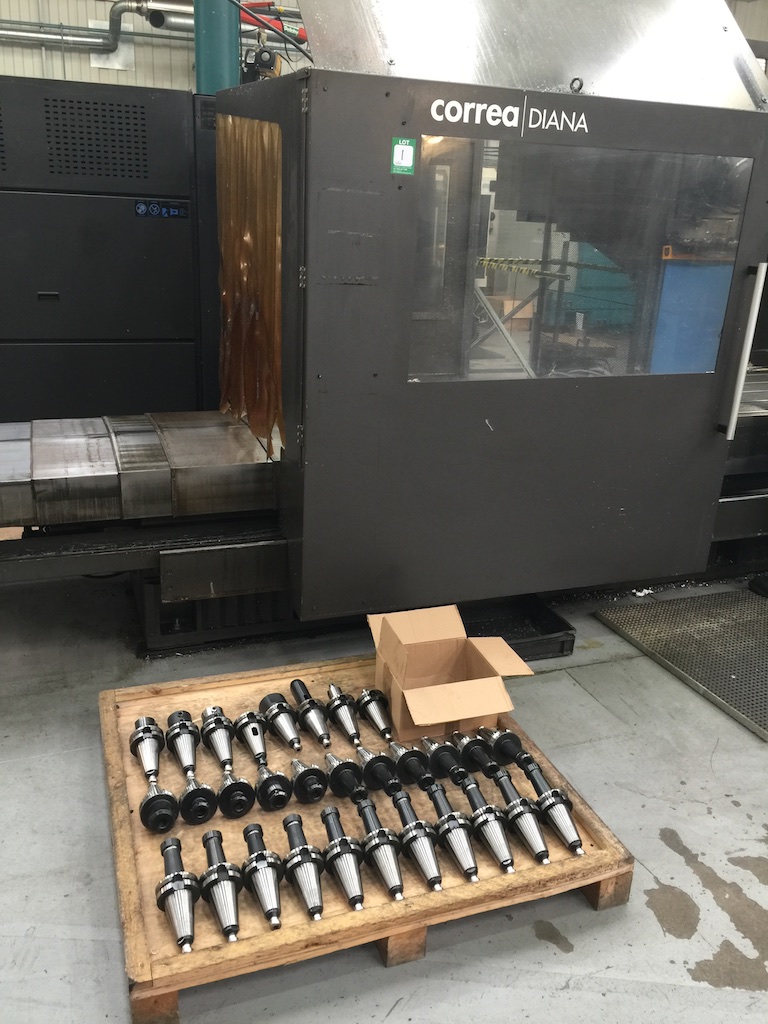

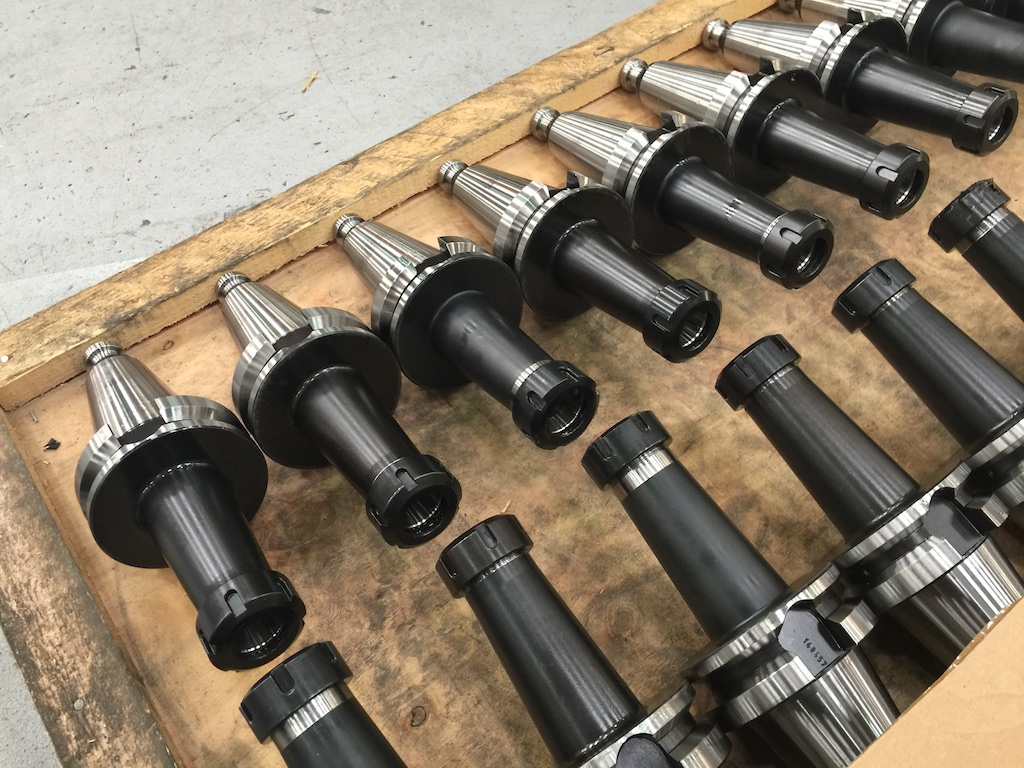

Tool Type BT50
Spindle Speed: 3000rpm
30kW Spindle Motor

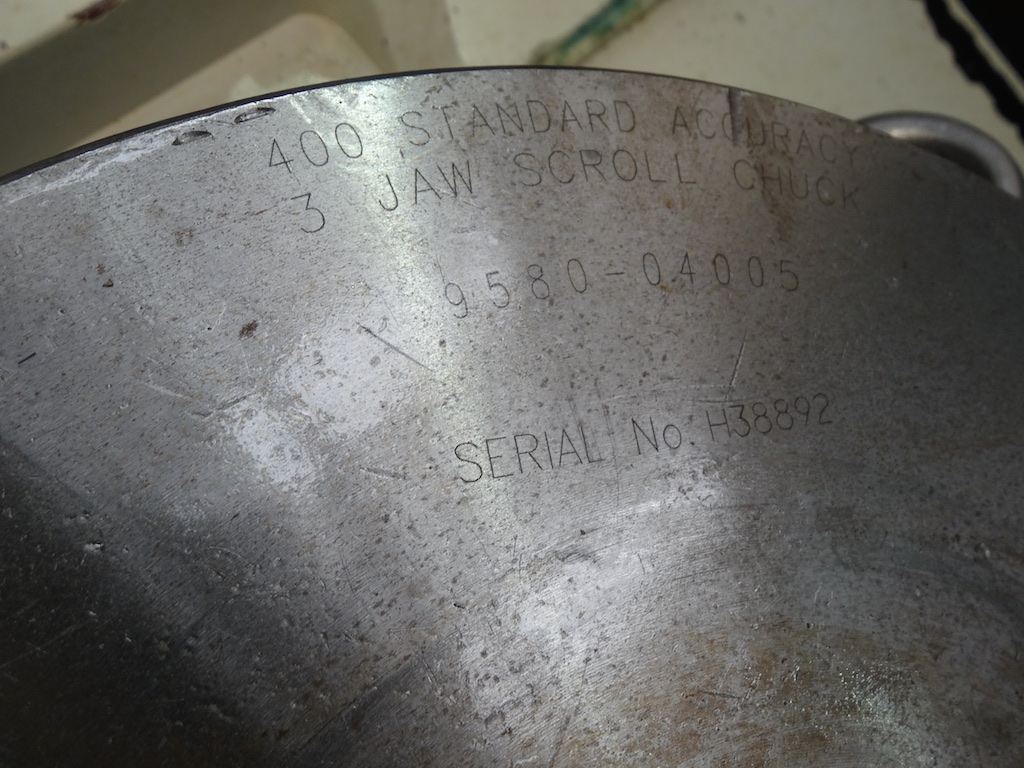

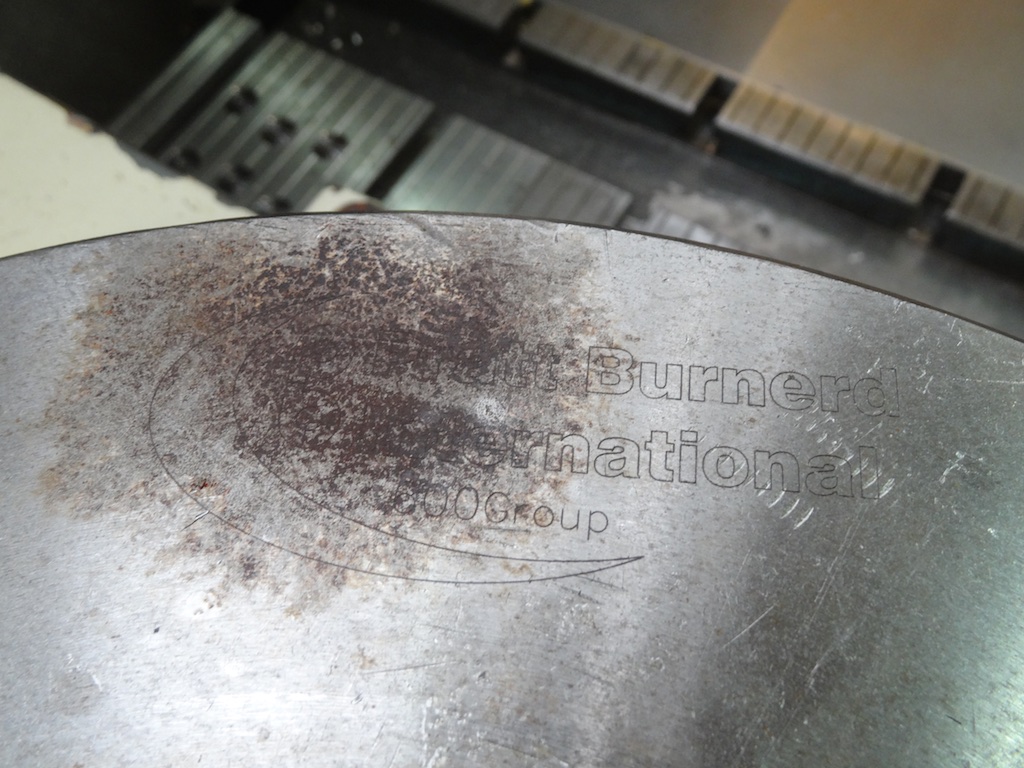

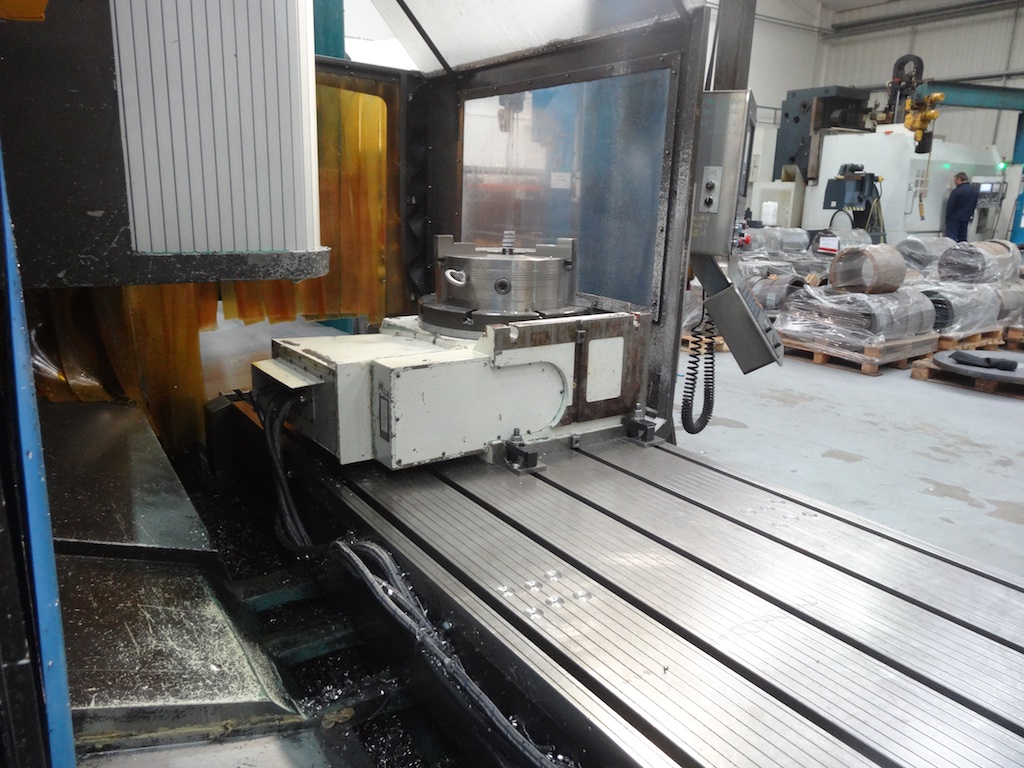

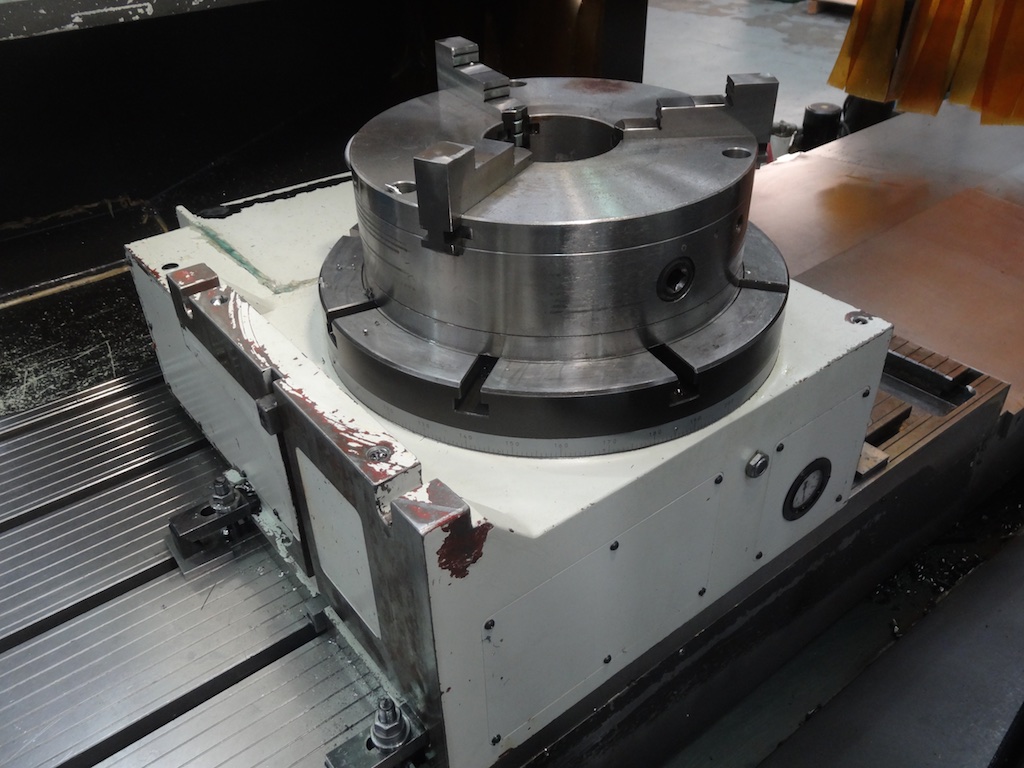

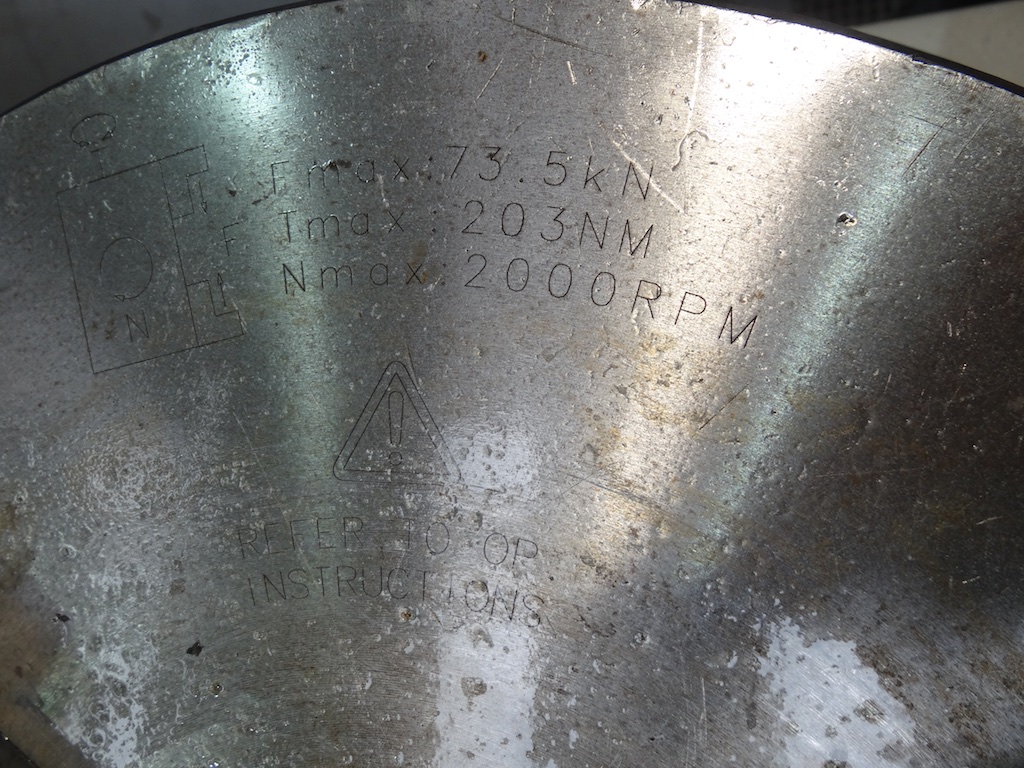

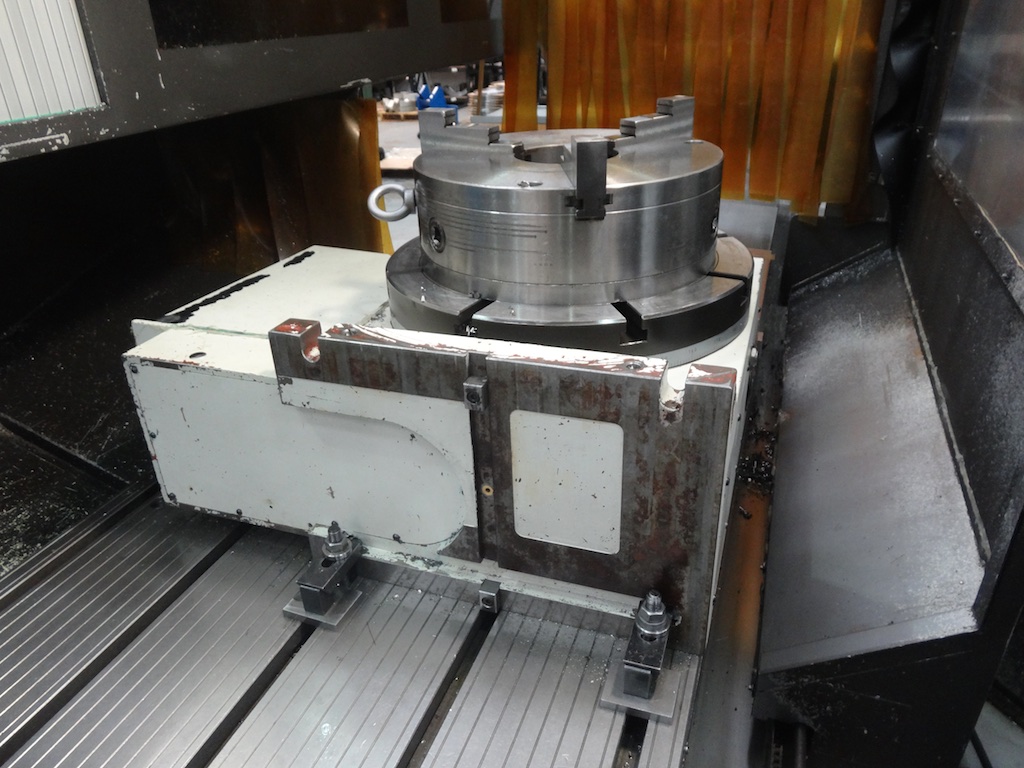

4th Axis rotary Table with 0.001 degree indexing & 16” Chuck fitted
Maximum working feedrate: 20m/min
Maximum load on table: 5000kg

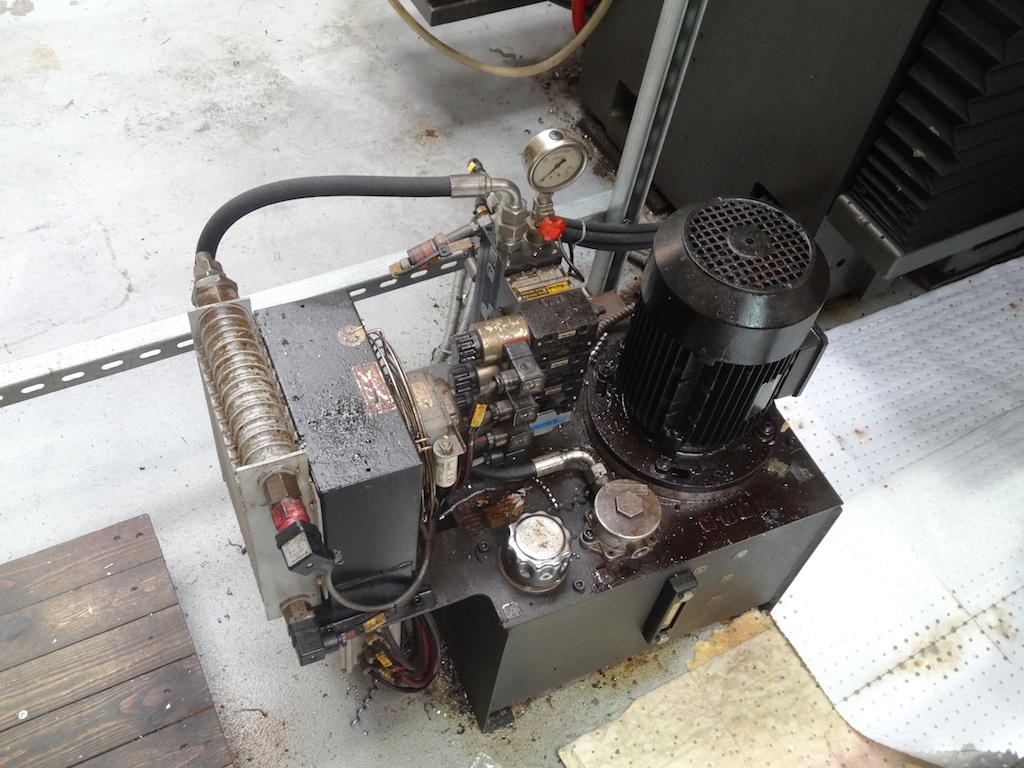

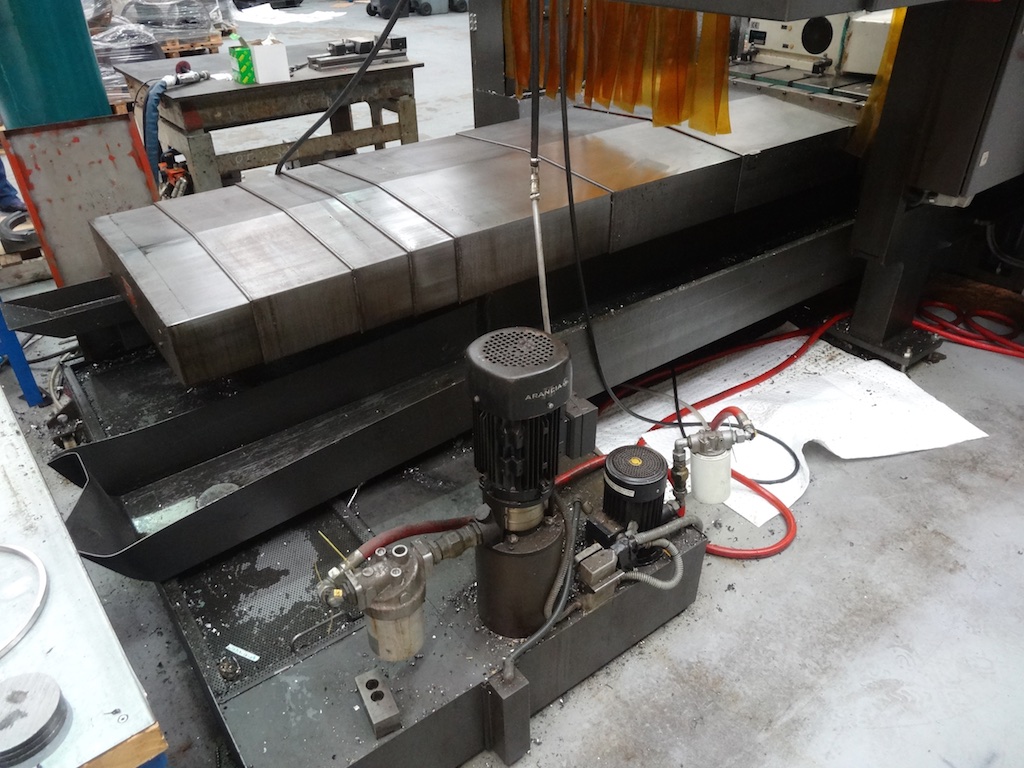

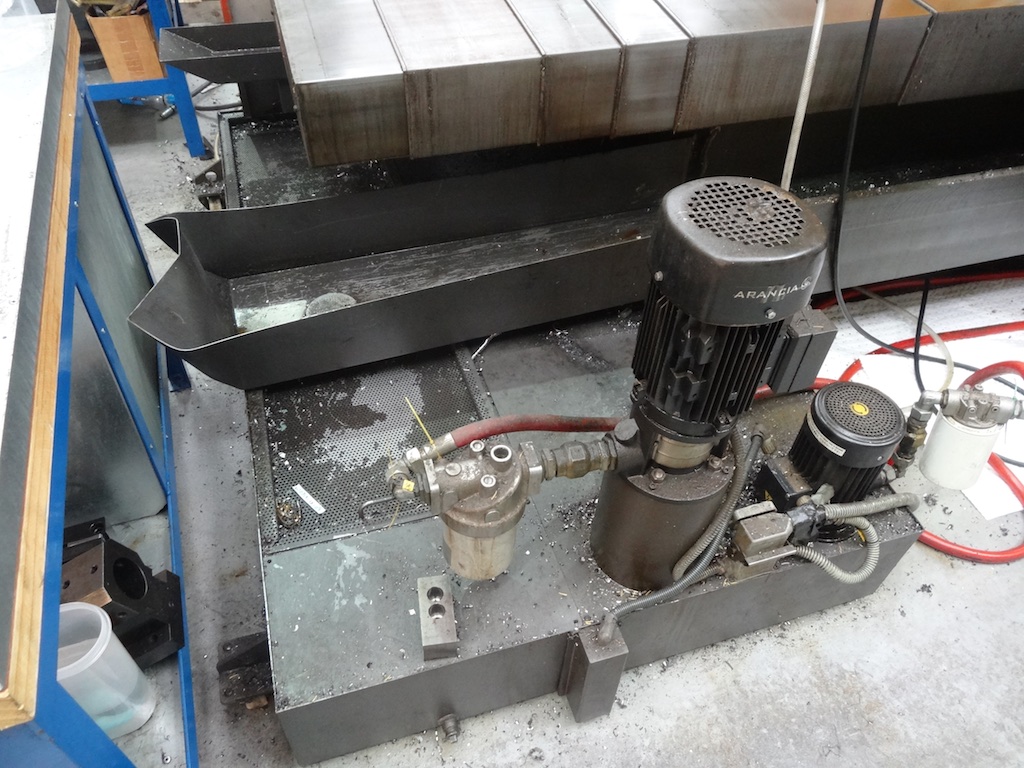

Coolant System
Dimensions L x W x H: 10,000 x 5300 x 3500mm
Weight: 17000kg
Location: West Yorkshire
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
