Lot 2 - DMG DMU 50 Eco (2010)

Description:

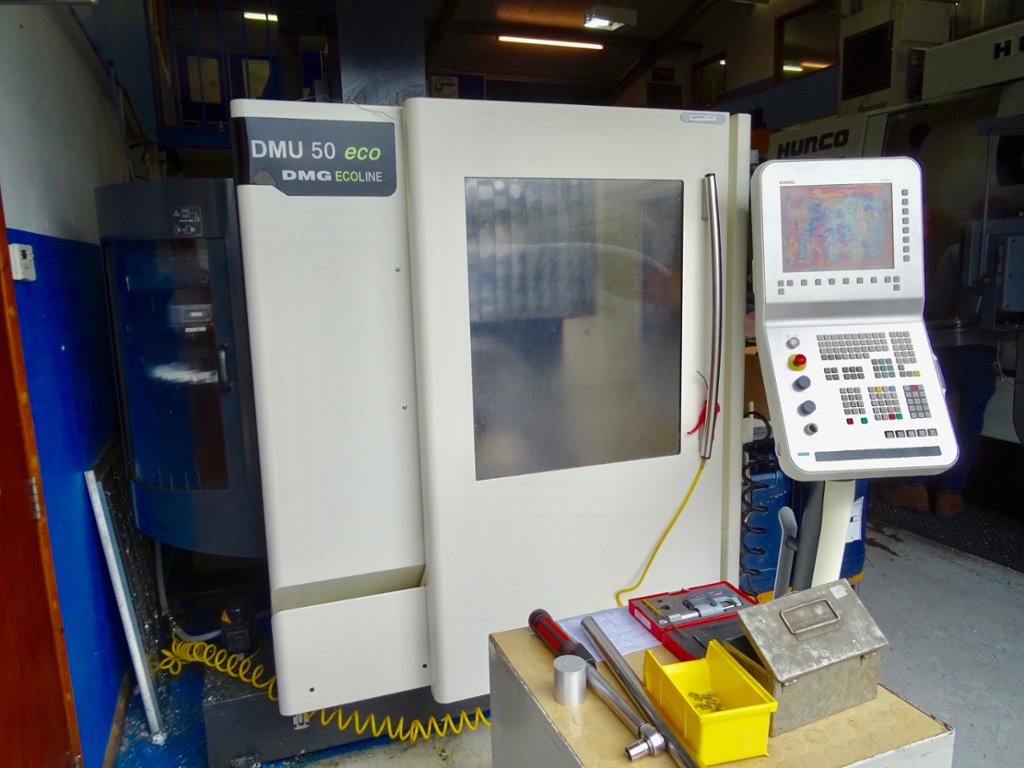

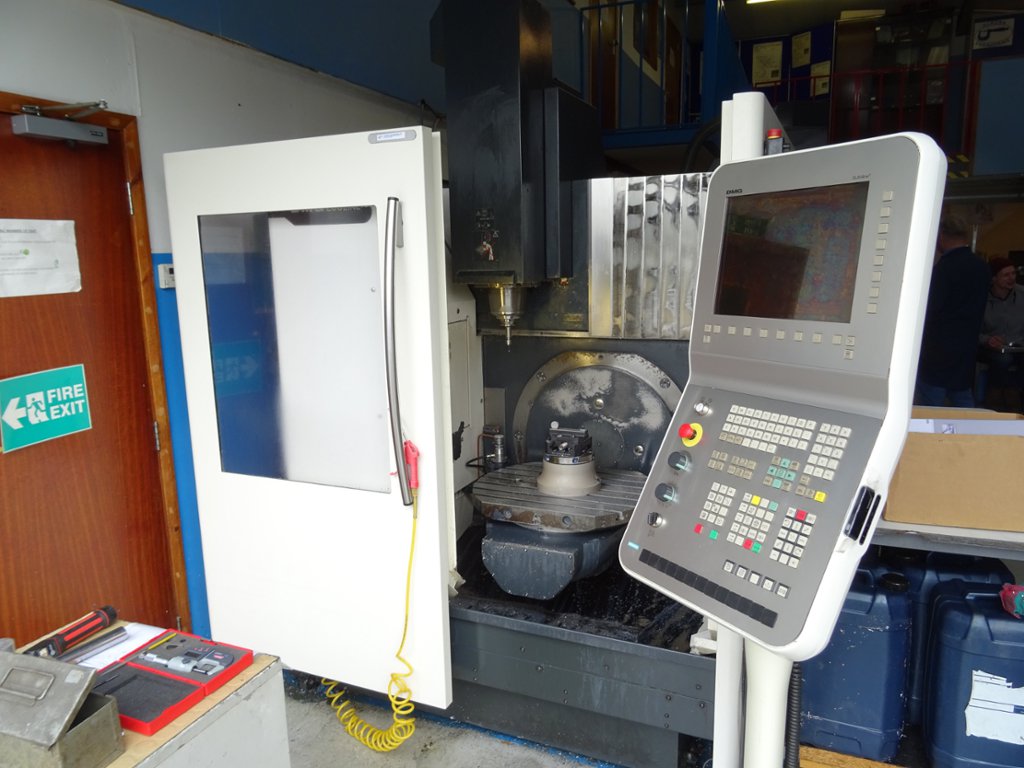

DMG DMU 50 Eco (2010) with Manuals

Installation Dimensions

Max height - 2426mm, Width without controls - 1834mm, Length without grip - 2121mm, Installation area - Machine - 5050 L X 4050 W

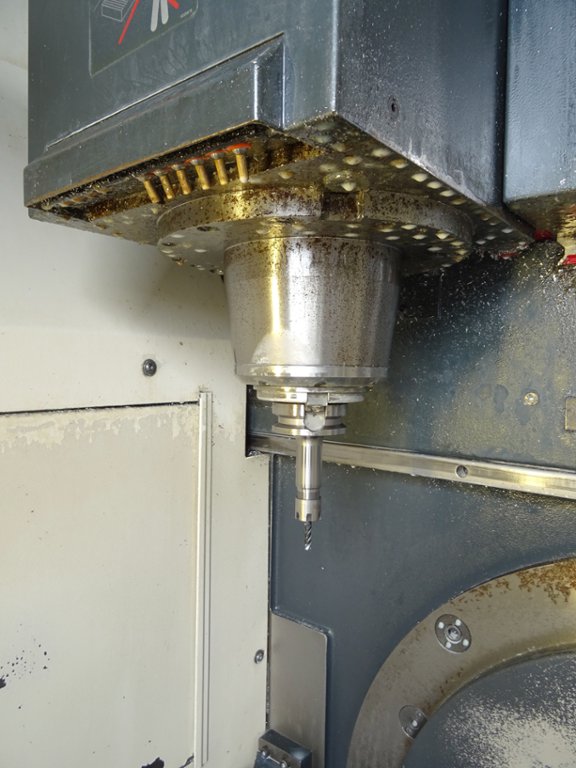

Vertical Cutter Head - 8000 rpm

Speed

Infinitely programmable - 20-8000 rpm, In setup mode - 20-800rpm

Motor Performance

Max driving power 40% ED - 13KW, Rated power 100% - 9KW

Torque

Max spindle torque 40% ED - 82 Nm, Rated torque 100% ED - 57 Nm

Tool Mounting KSK40/BT40

Tool retension force 10 kN

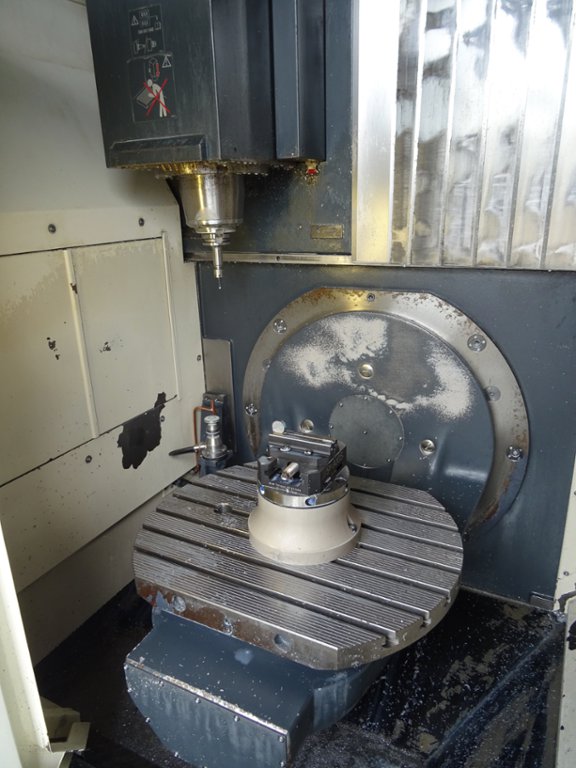

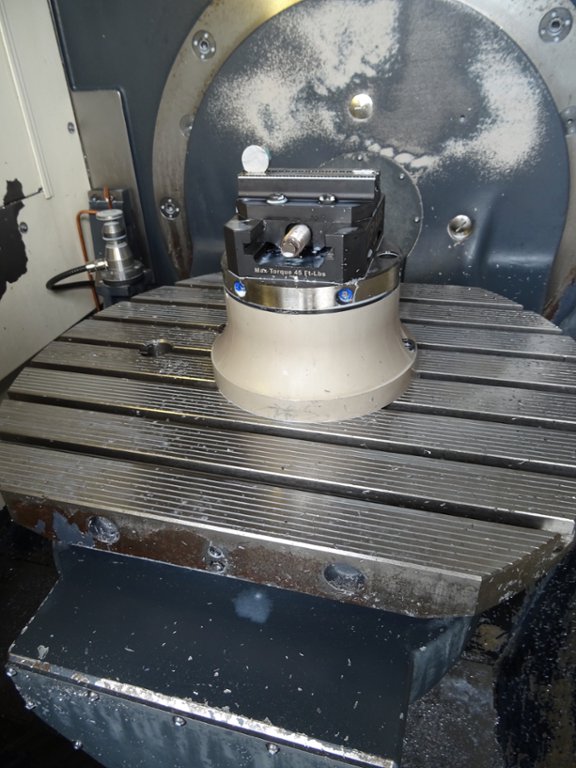

Rotary Swivelling Circular Table

C Axis

Clamping surface of rotational axis (rotary axis) - 630 X 500 mm, T Slot distance/size - 63/14H7 mm, Centre bore - 30H6 mm, Rapid speed - 2160 per min, Range of rotation - 360 degrees, Clamping - Hydraulic

B Axis

Swivel range (Swivel axis) - 115 (-5/+110), B Axis Clamping - Hydraulic, Max load (table centre) - 200 kg

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
