Lot 1 - Doosan Puma MX2100ST - Fanuc 31i Control (2010)

Description:

Doosan Puma MX2100ST - Fanuc 31i Control (2010)

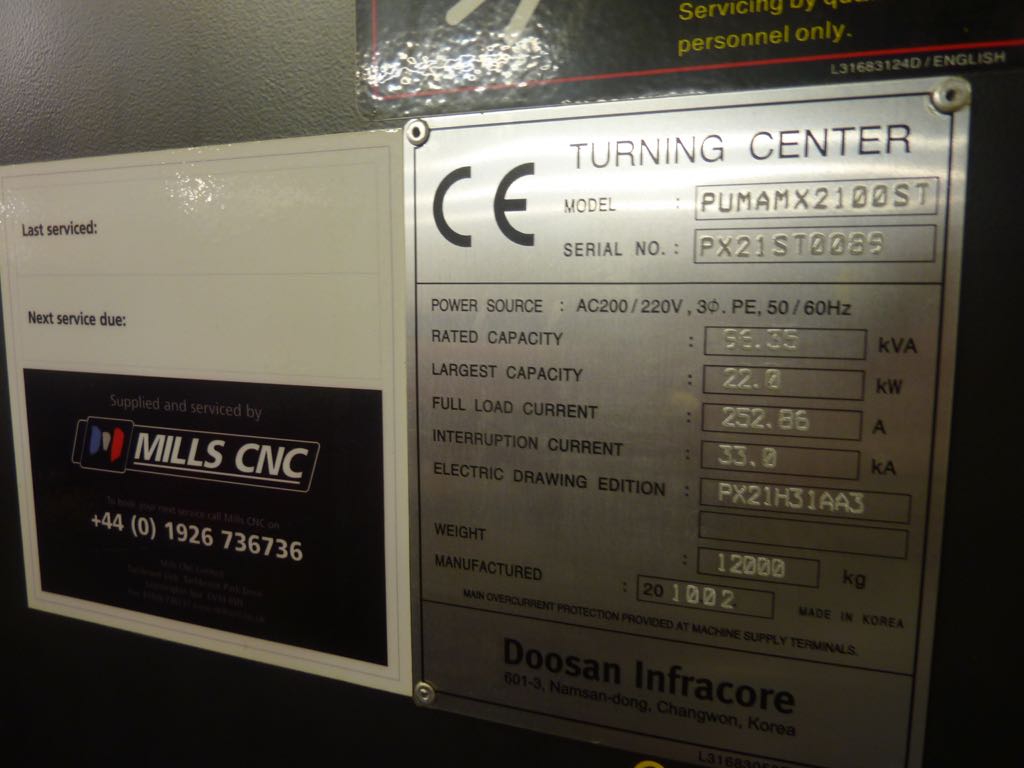

Serial no: PX21ST0089

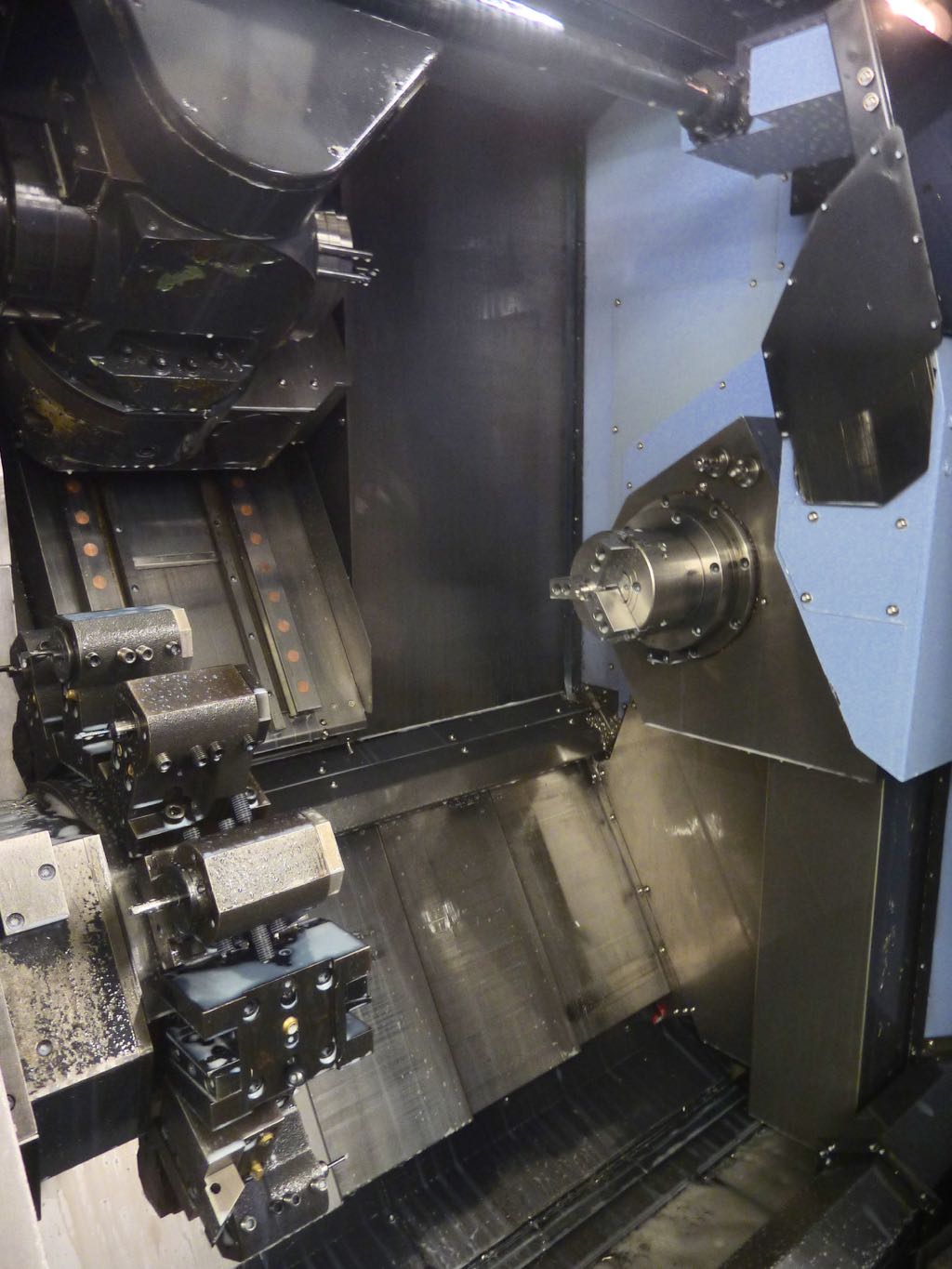

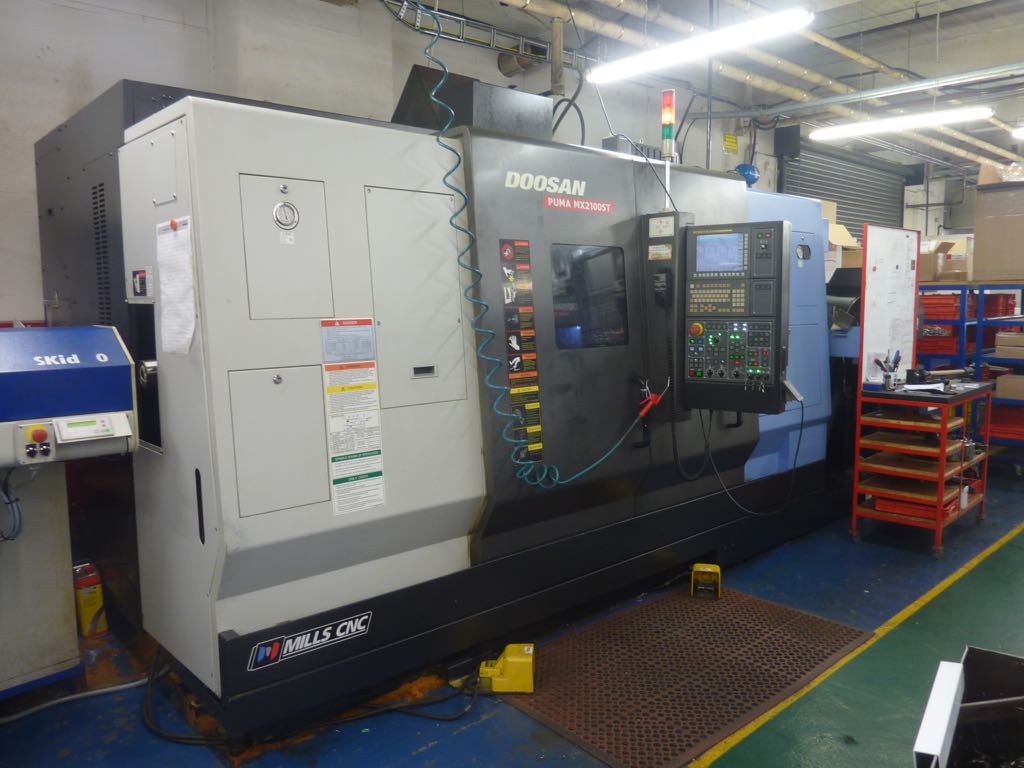

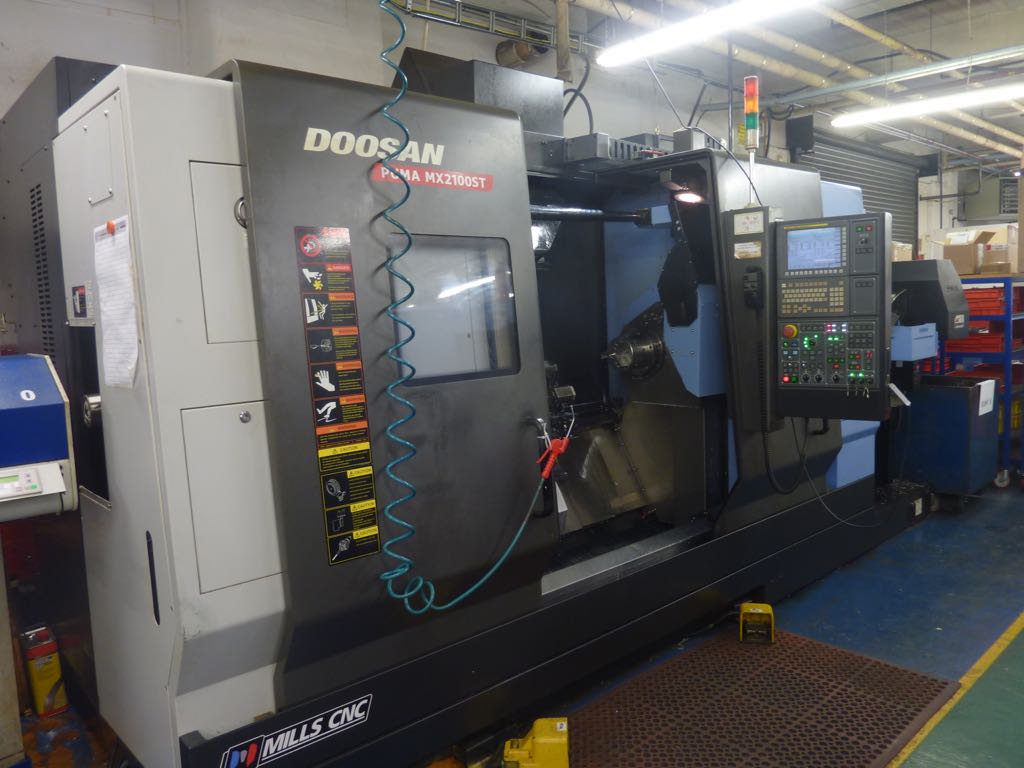

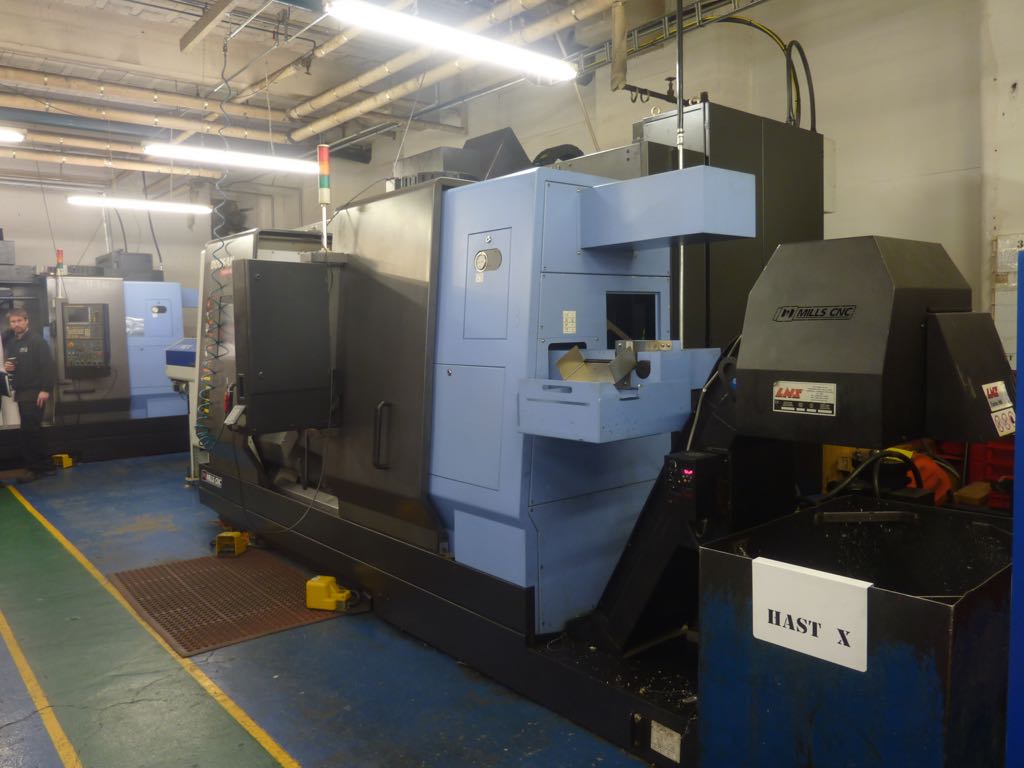

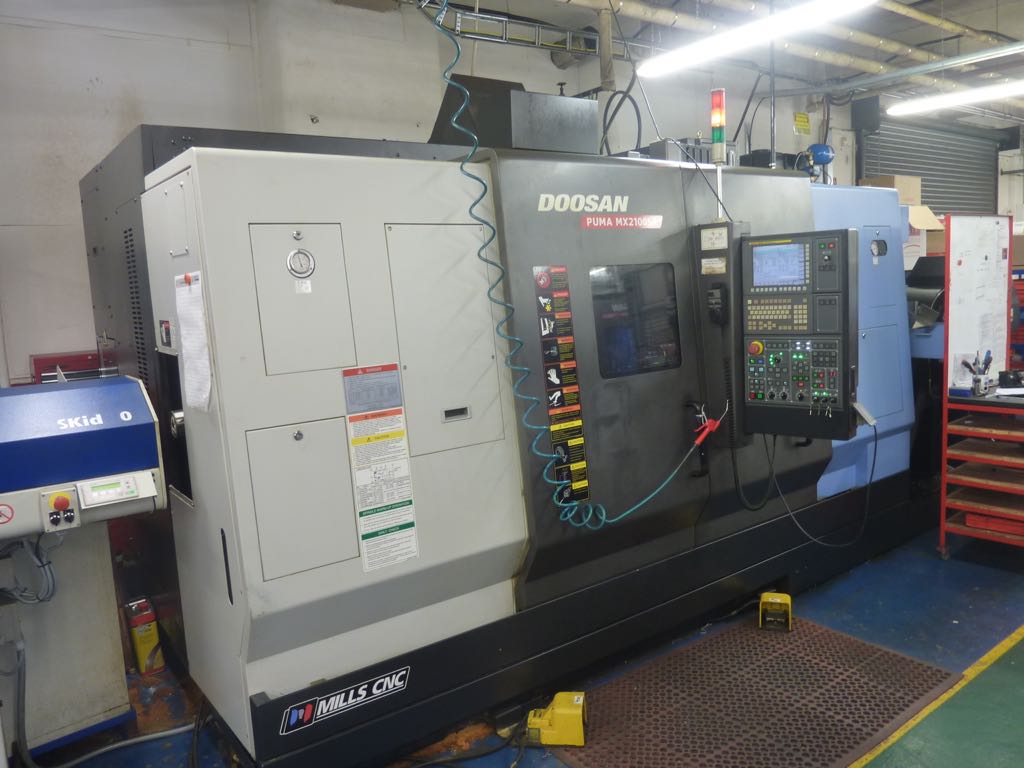

Doosan Puma MX2100ST CNC Mill/Turn
Max Swing 750mm
Max Swing Over Saddle 600mm
Max Turning Dia (Upper) 550mm
Max Turning Dia (Lower) 315mm
Max Workpiece Length 1020mm
Max Bar Dia 65mm
Max Weight on Spindle (inc Chuck) 120kg
Tool Storage Capacity 40 tools

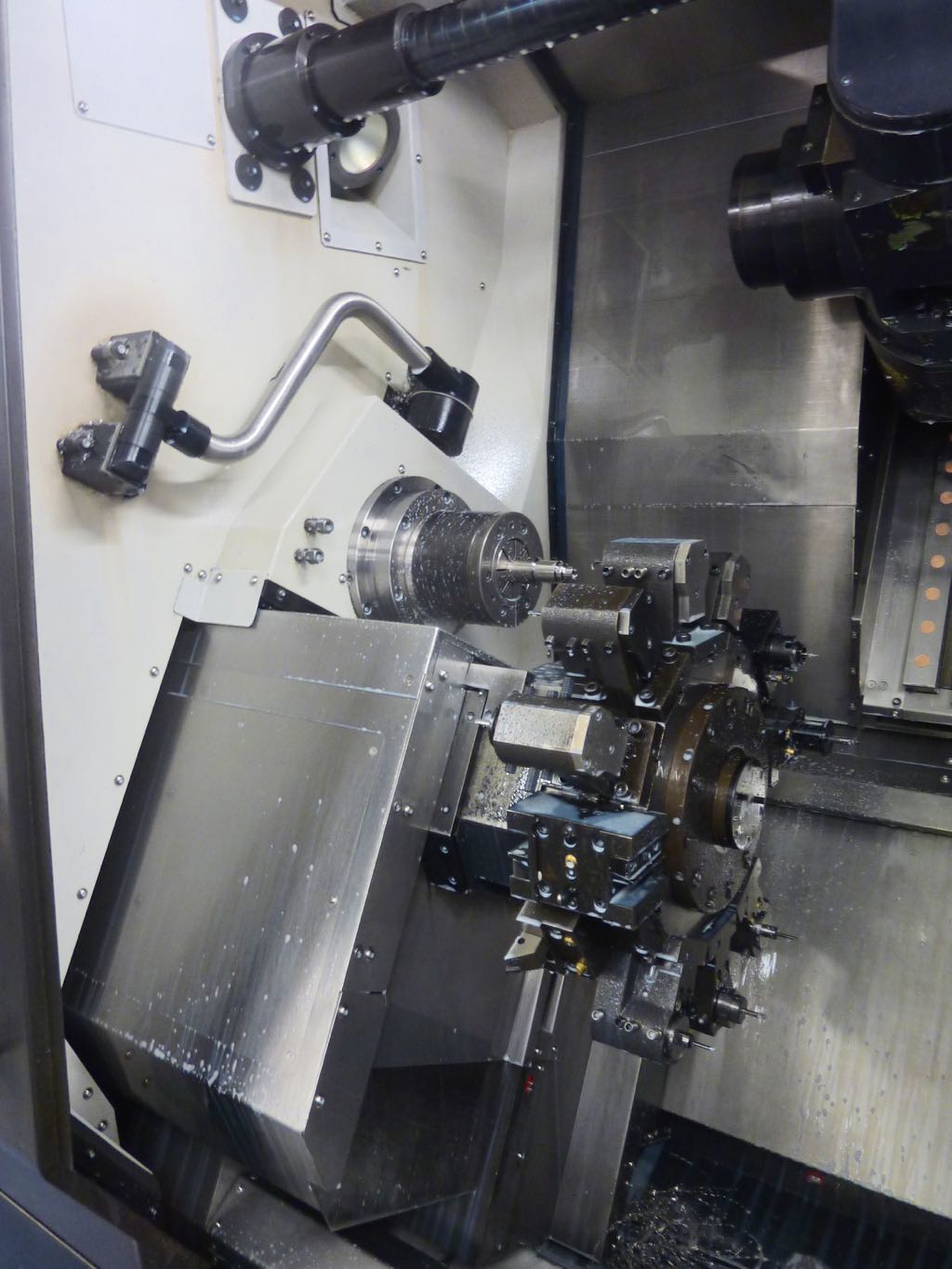

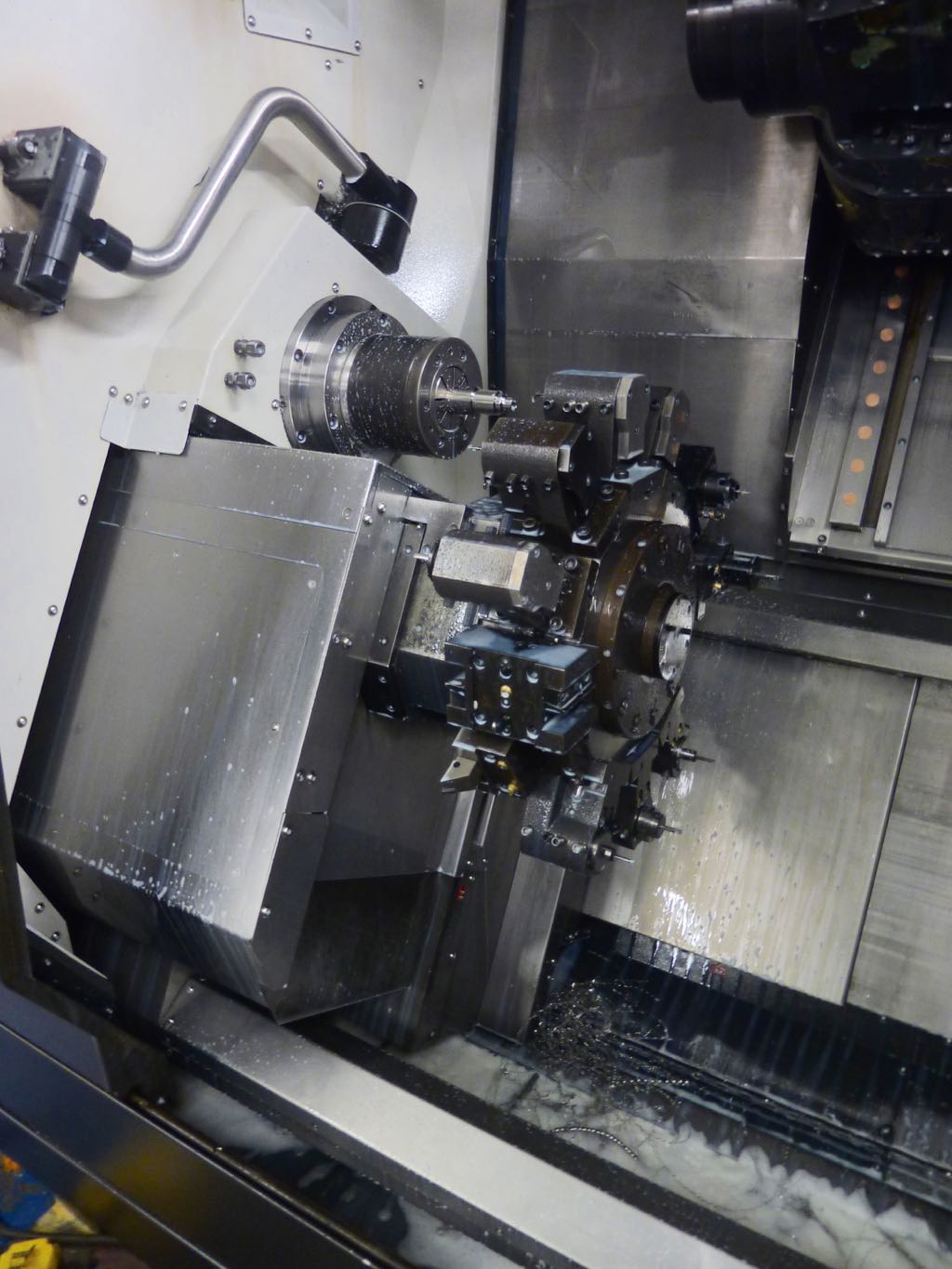

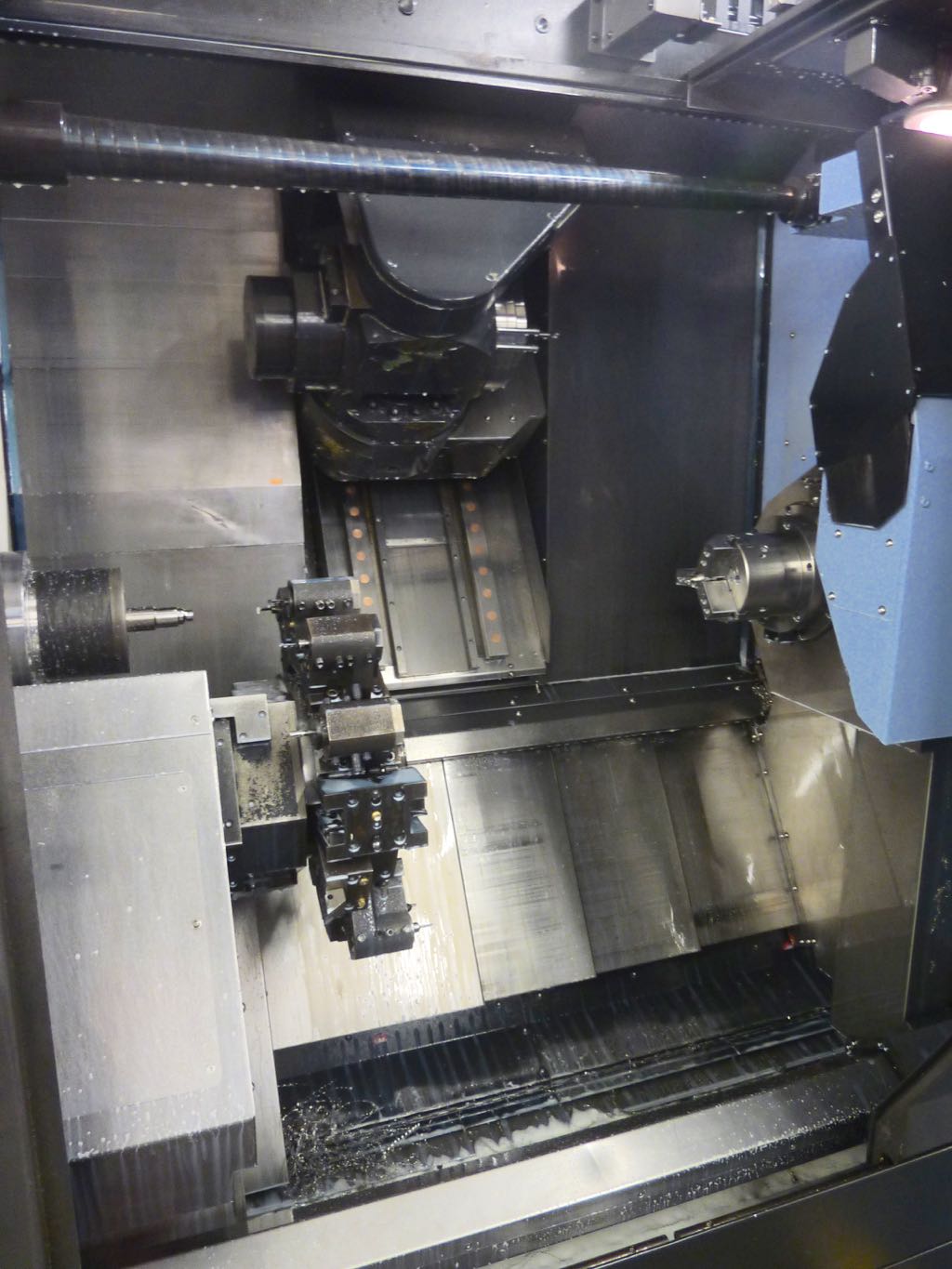

Lower Turret Type - BMT55
No. of Stations - 12

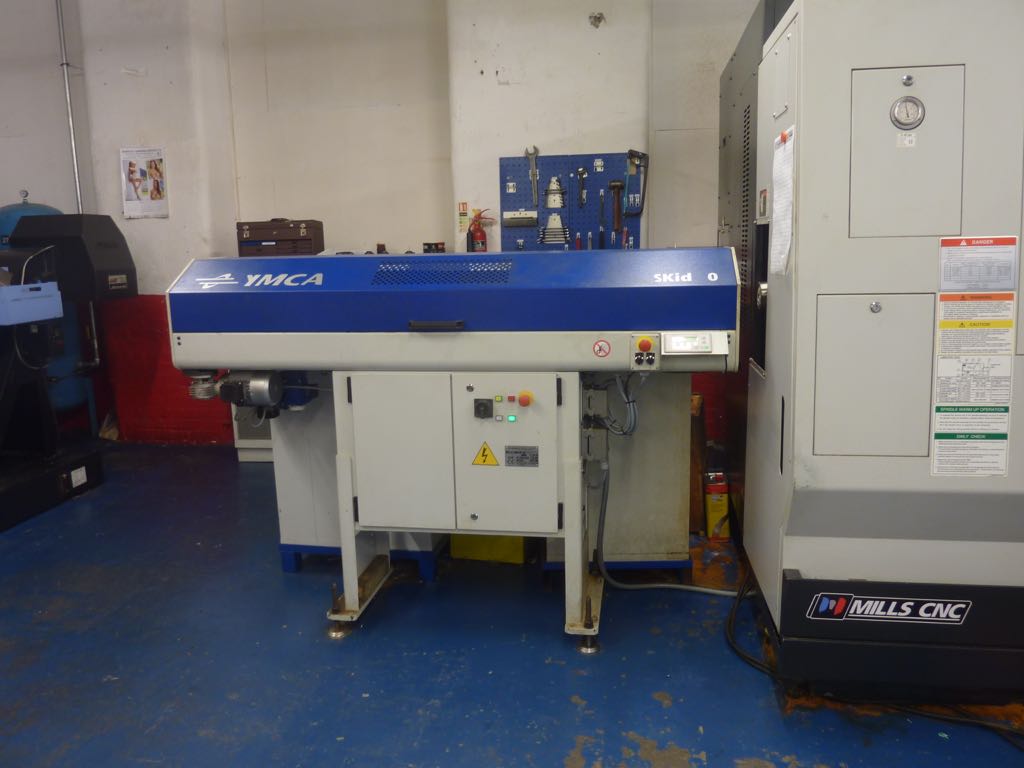

Iemca KID80 Bar Loader Chip Conveyor and Bucket
Right & Left Hand Spindle Power 18.5kW/22kW
B Axis Spindle Speed 10,000rpm
LH and RH Spindles Speed 5,000rpm
B Axis Spindle (Golf Swing) Clamps at 5 Deg Intervals Rotary Tool Collet Size - ER32 Rotary Tool Speed - 4000rpm Coolant Pressure 20 Bar Max on B Spindle Coolant Pressure 20 Bar Max on Turret High Pressure Coolant thru B Spindle
20 Bar High Pressure Coolant thru Turret
7 Bar Square Shank Turning Tools 25mm
Max Boring Bar Dia 40mm" 87.6 kVA

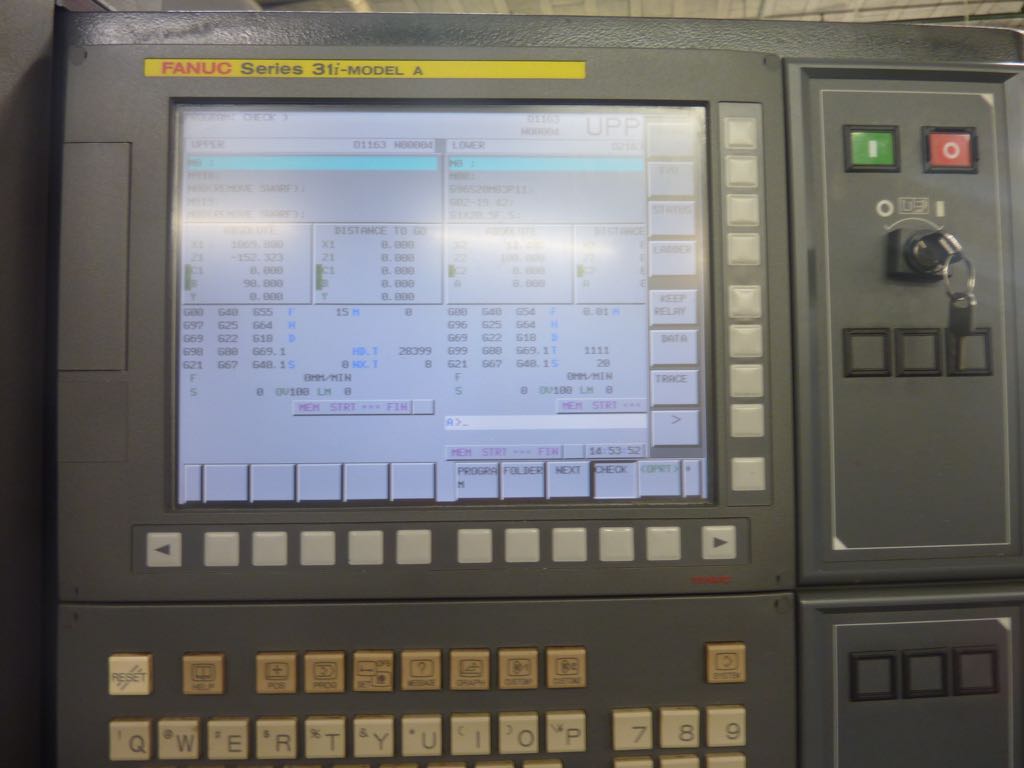

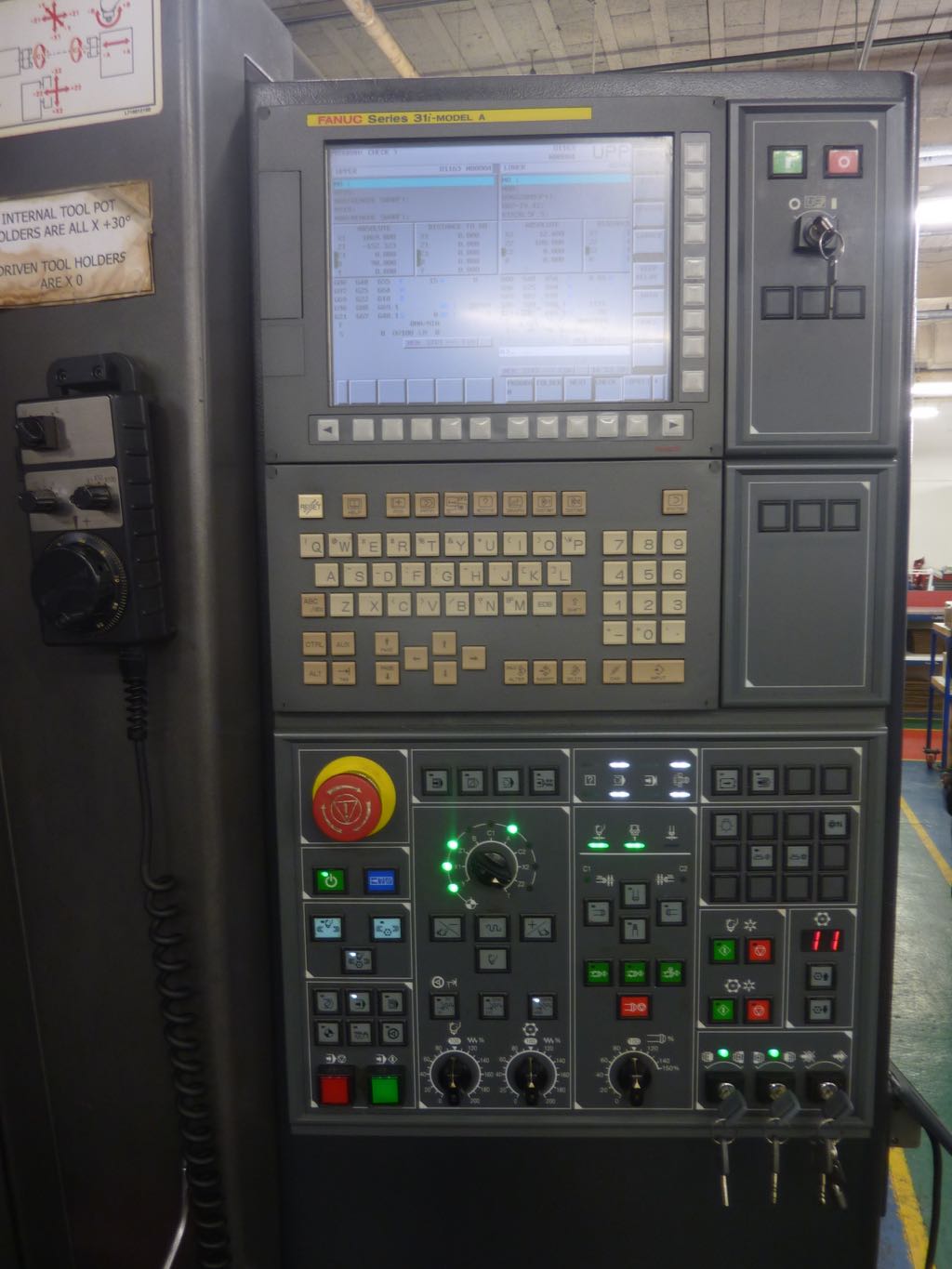

Fanuc 31i Model A Control
-A 4850mm x 2470mm x 2805mm
12,000kg

*Included

X20, Captoe holders
X6, static holders made up of x3 tuning tool and x3 boring tool holders
X2, standard driven tool holders for lower head
X1, collet chuck - no collets
X1, 6” chuck

Location: Lancashire



*Please satisfy yourself with the specifications before bidding as they may have been taken from the internet

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
