Lot 1: Doosan PUMA Series MX 2000ST - 9 Axis CNC (2005)

This page will update every 3 seconds. Bidding will be extended on individual lots if bids are placed within 10 minutes of the items end time.

Bidding Information

Opening bid:	£50000
Increment:	£1000
Bids:	0
Ends in:	2012-02-02 15:00:00 ( bidding ended )

Description

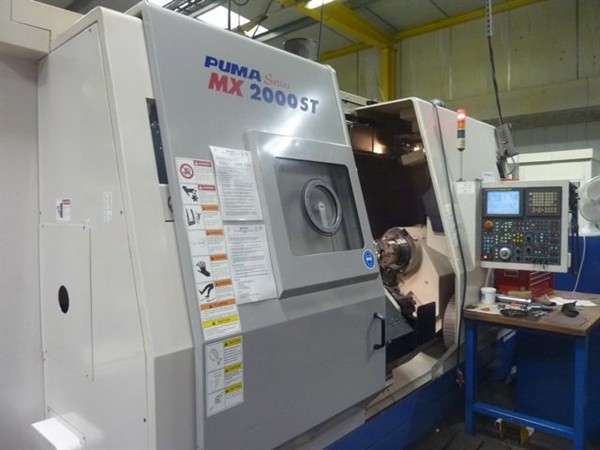

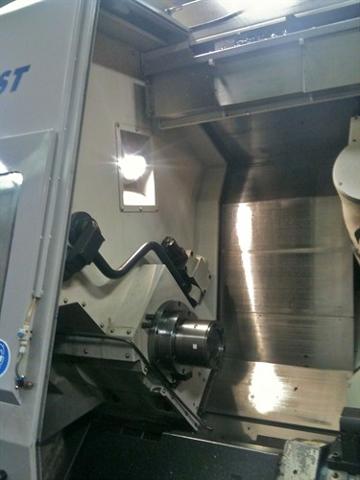

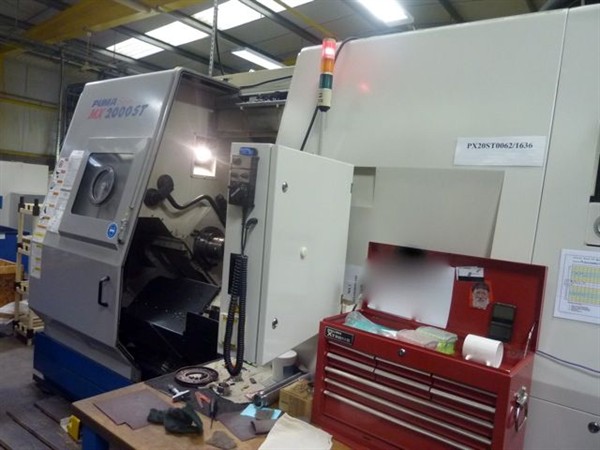

Doosan PUMA Series MX 2000ST - 9 Axis CNC (2005)

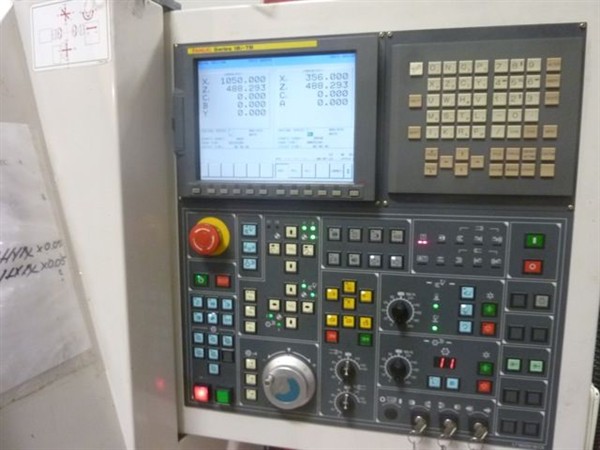

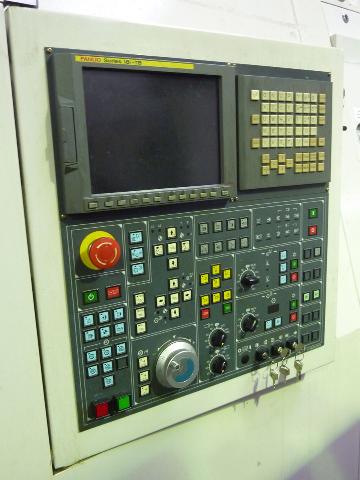

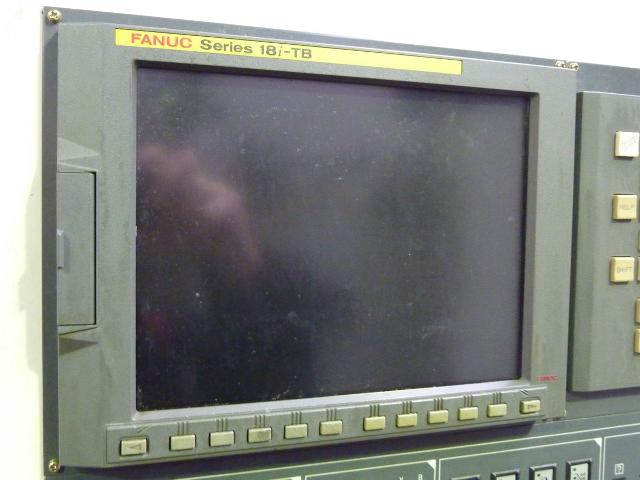

Fanuc Control Series 18i-TB
Maximum Cutting diameter: 540mm,
Maximum Cutting Length: 1020mm,
Milling RPM: 10,000 rpm,
Spindle Motor Power: 22kw,
Spindle Speed: 5,000rpm,
Sub Spindle Max Speed: 5,000rpm,
Sub Spindle Motor Power: 22kw,
Tool Size: 25 x 25 mm,
Turret Positions: 24 Top Magazine,
12 Lower Turret, Y axis Travel: +- 80,
C axis: 0.001 deg, Configuration: 9 Axis!

Options:

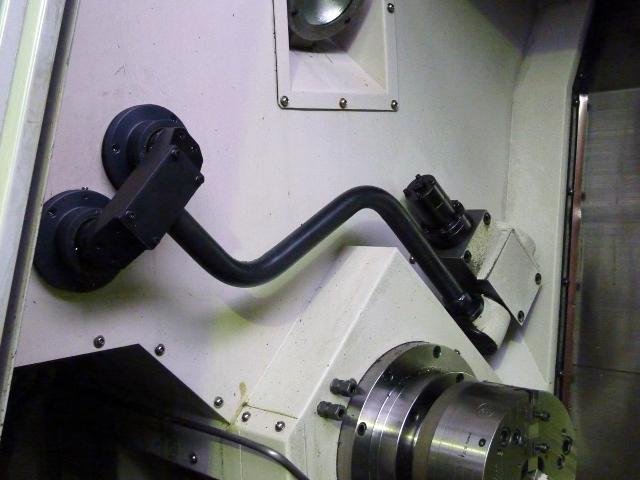

C axis & Milling, Tool setter, Coolant,

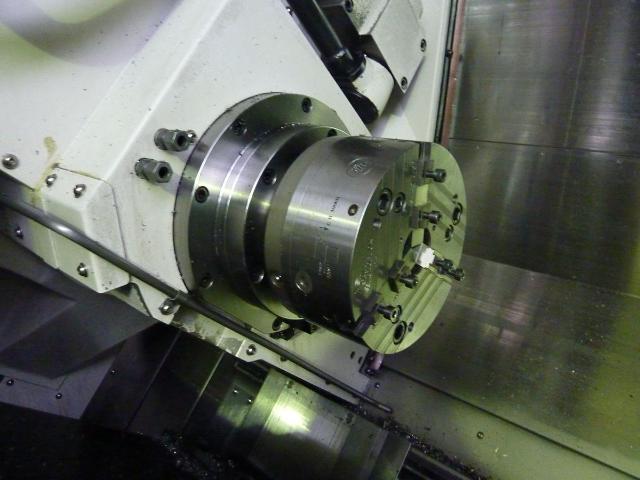

Y-Axis, 3 Jaw Chuck, Collet Chuck, Manuals,
B axis, C axis, C Axis (0.001deg) on Sub Spindle,

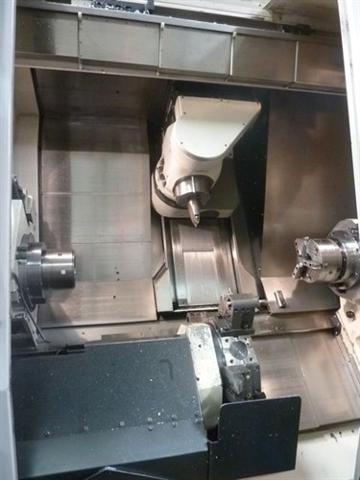

Automatic Vertical/Horizontal Swivelling Head.

Location: Coventry
The machine has been removed from site, but can be viewed under power

Loading to truck would be included in final bid
