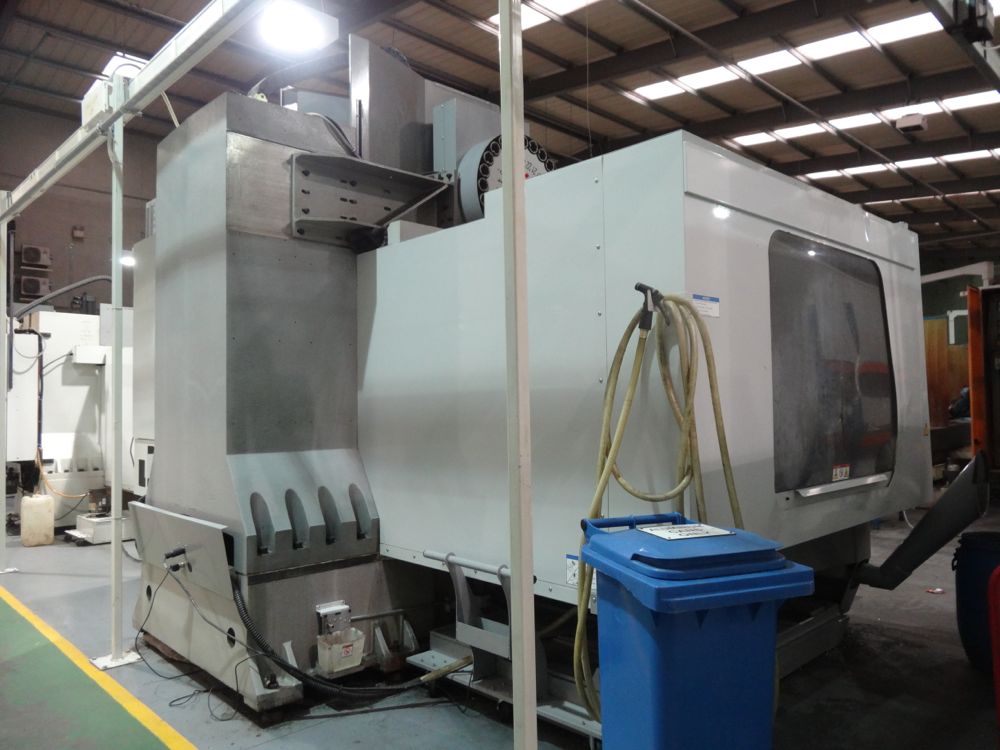

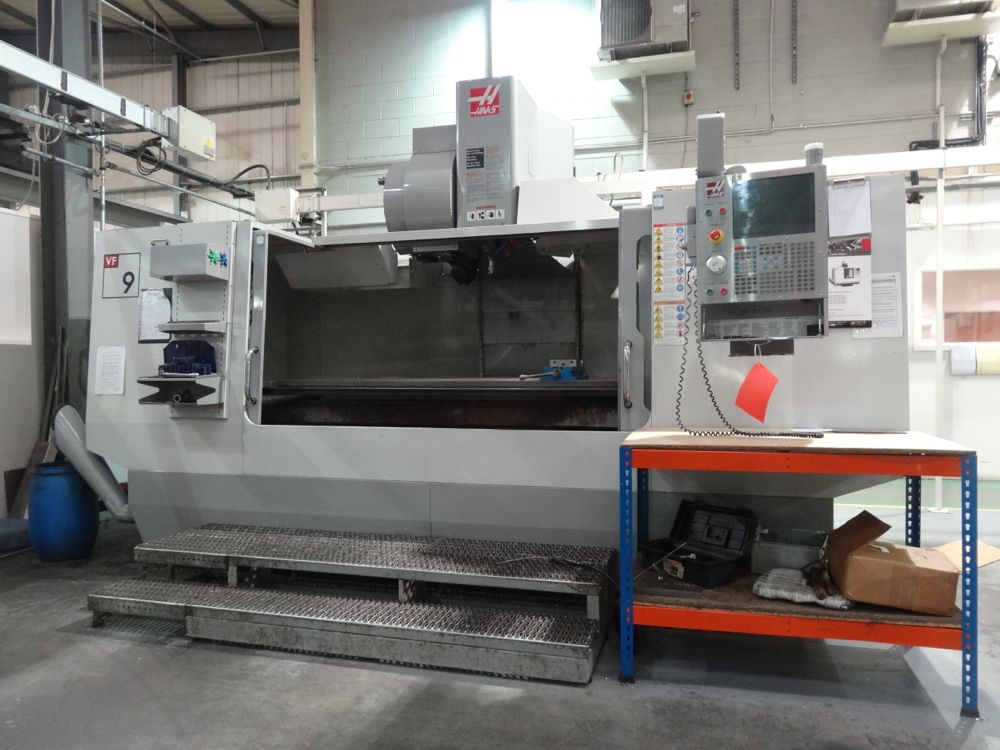

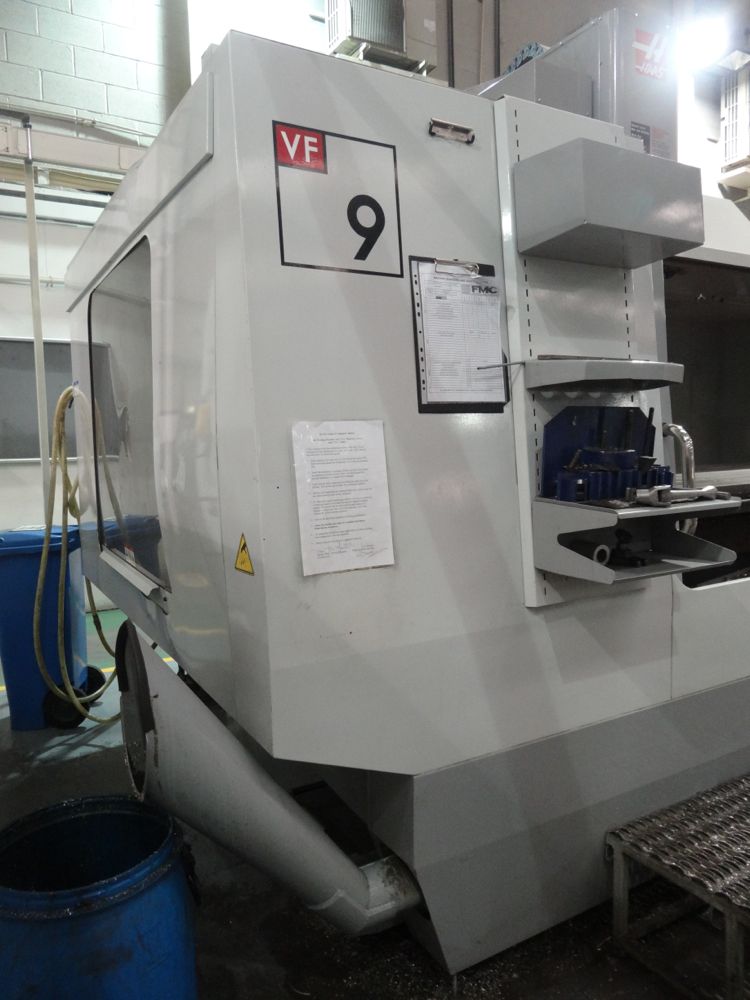

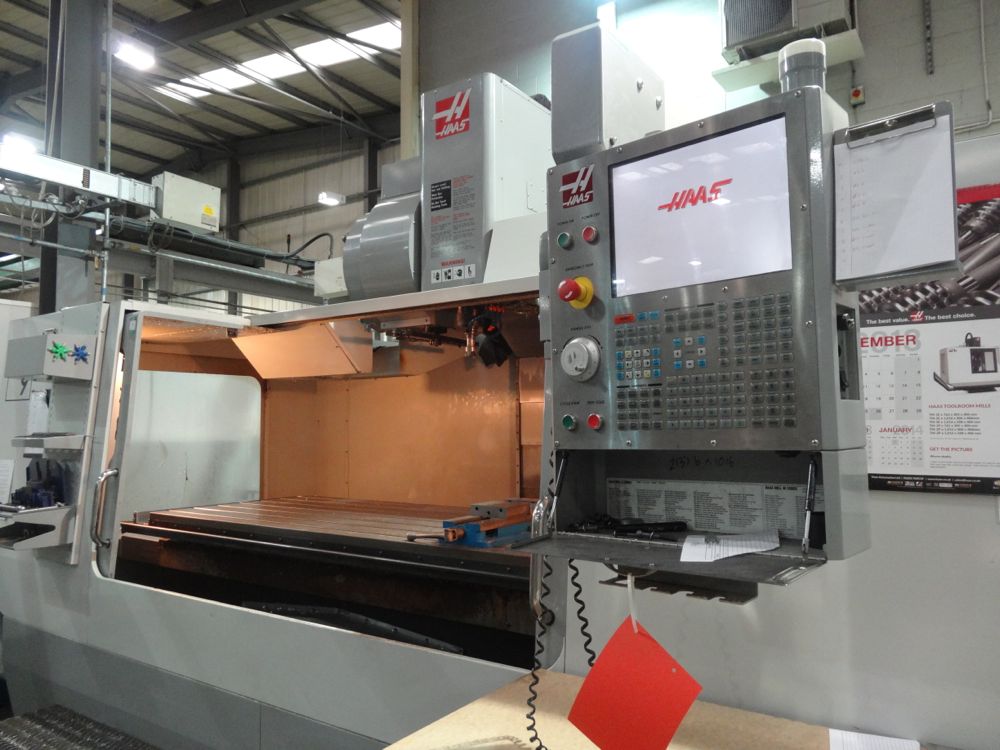

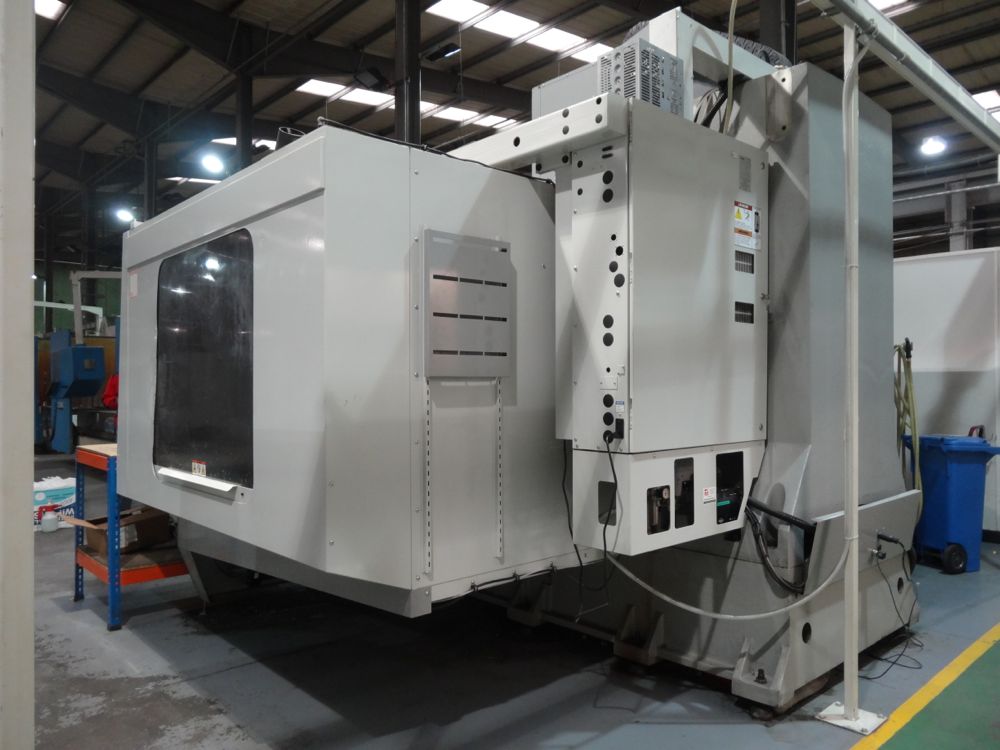

HAAS VF-9 Vertical Machining Centre (2008)

Lot 1 - HAAS VF-9 Vertical Machining Centre (2008)

Description:

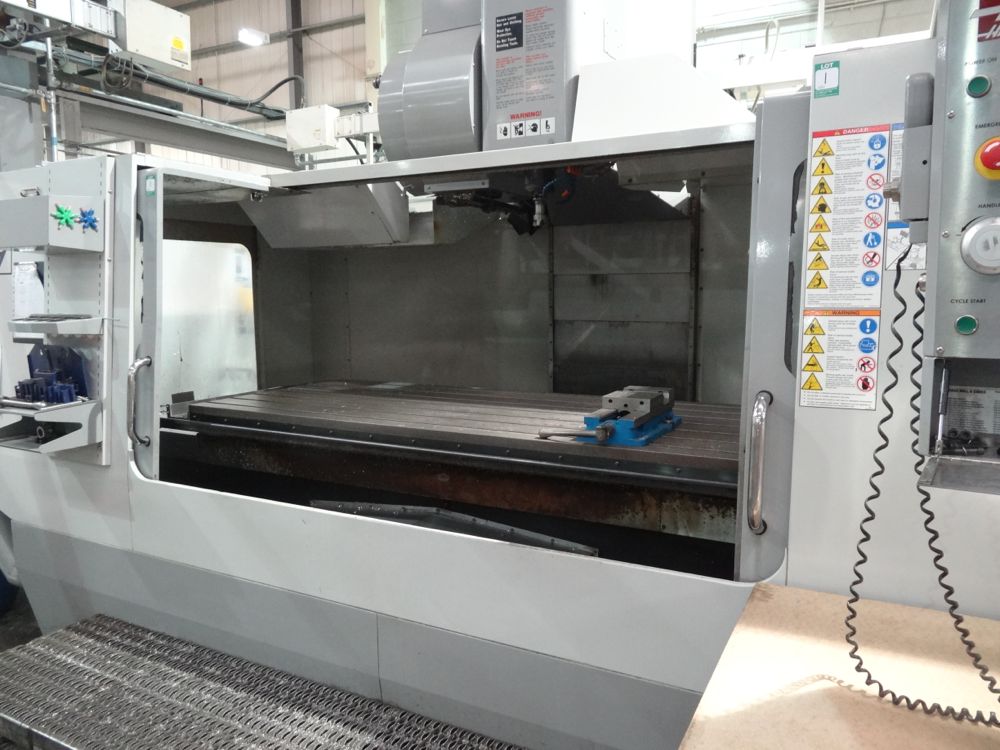

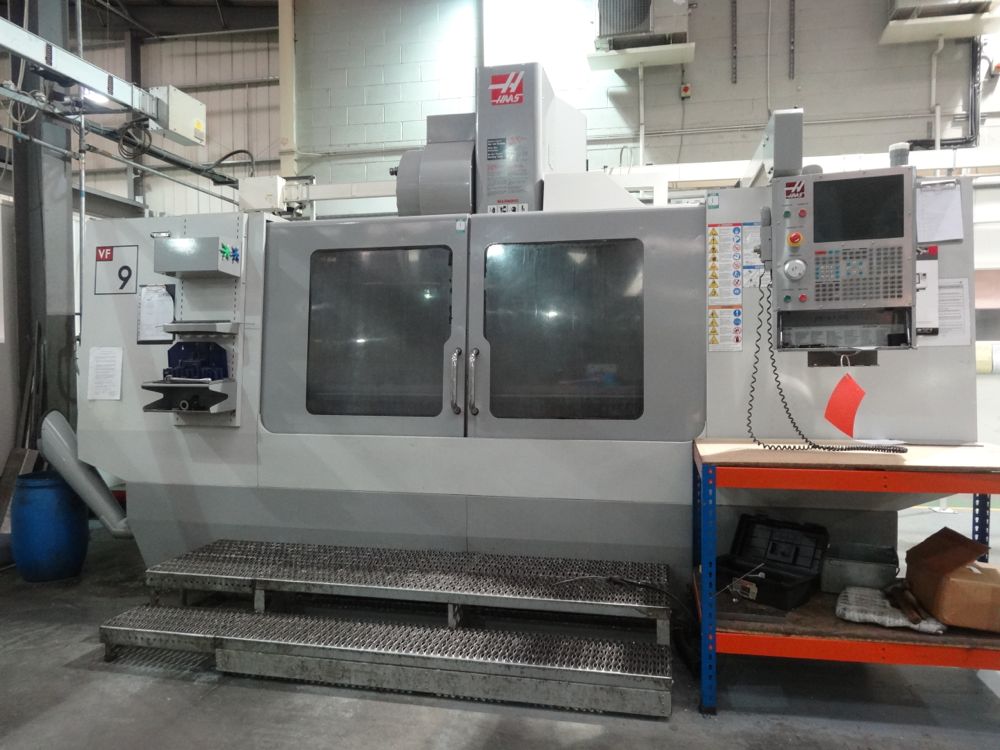

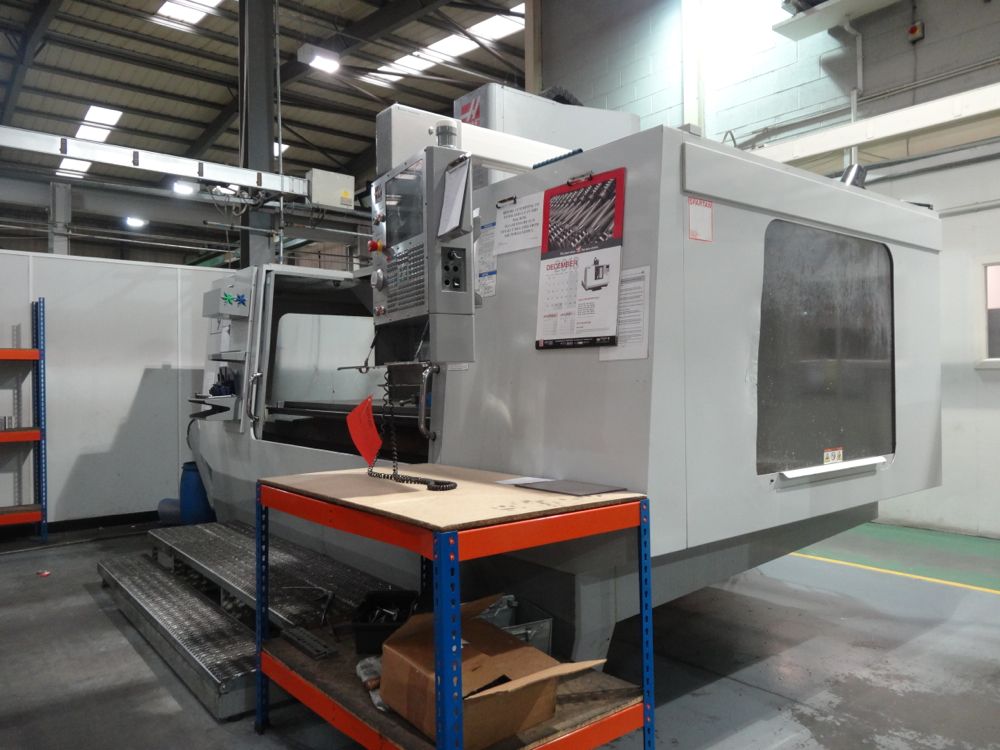

HAAS VF-9 Vertical Machining Centre (2008)

Travel

X Axis: 2134 mm
Y Axis: 1016 mm
Z Axis: 762 mm
Spindle Nose to Table (~ max): 864 mm
Spindle Nose to Table (~ min): 102 mm

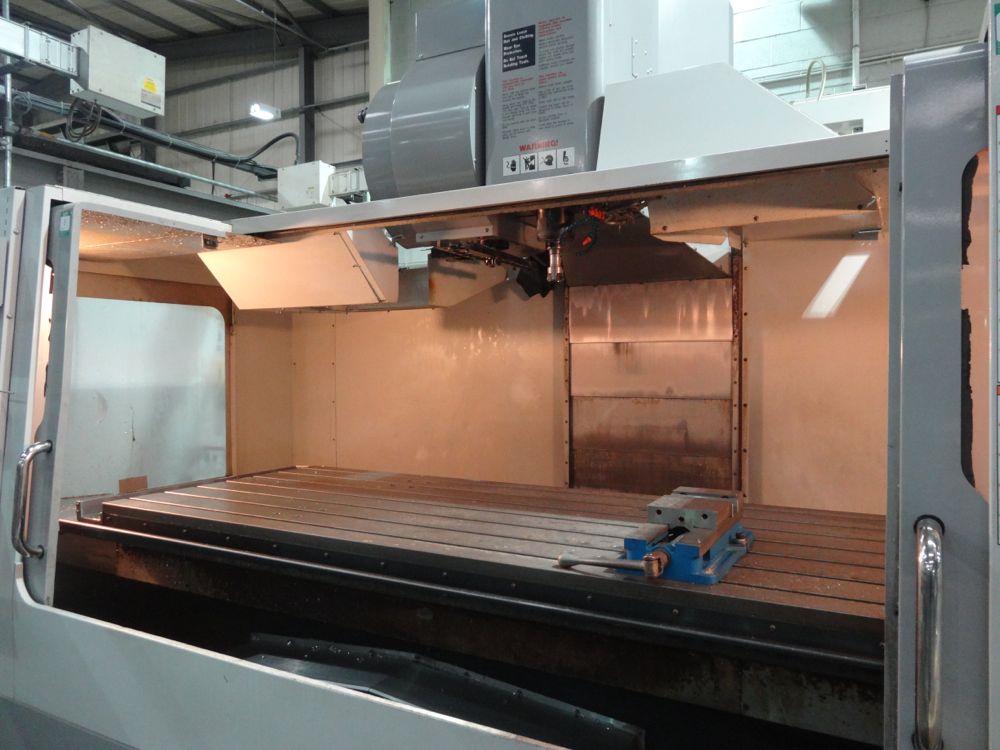

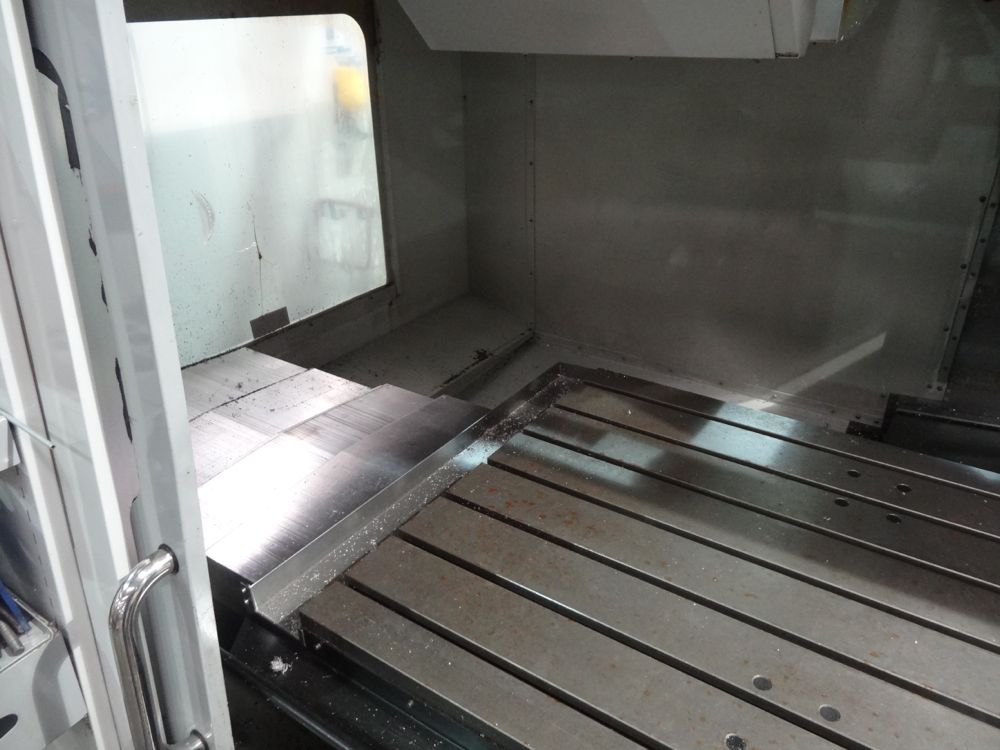

Table Length: 2134 mm
Table Width: 914 mm
T-Slot Width: 16 mm
T-Slot Center Distance: 125.0 mm
Number of Std T-Slots: 7
Max Weight on Table (evenly distributed): 1814 kg

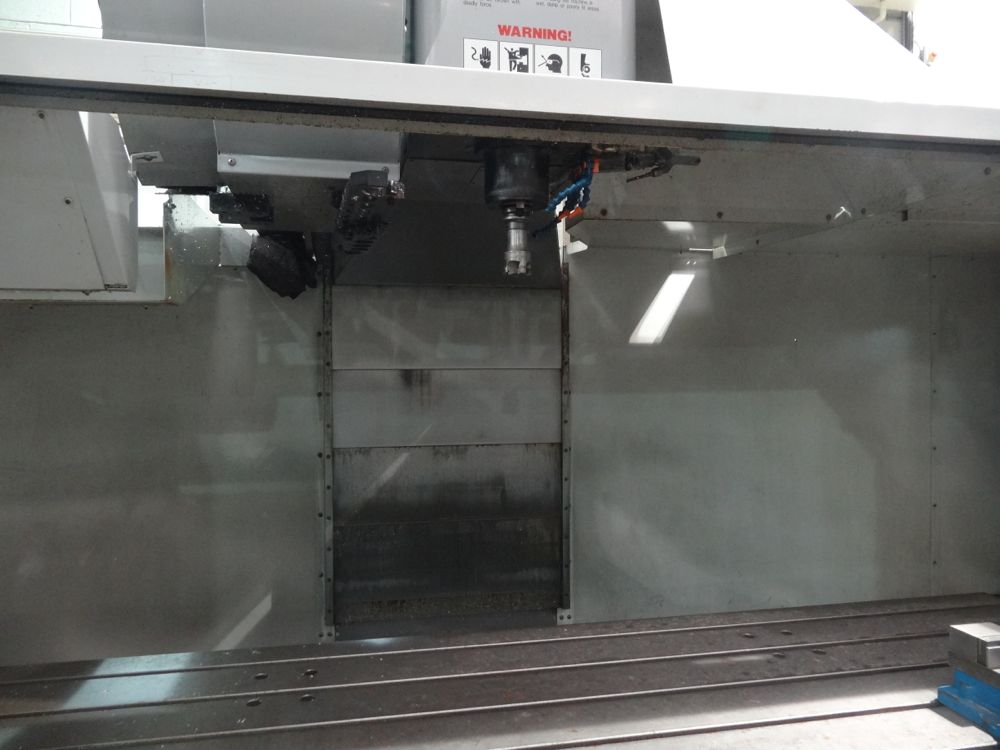

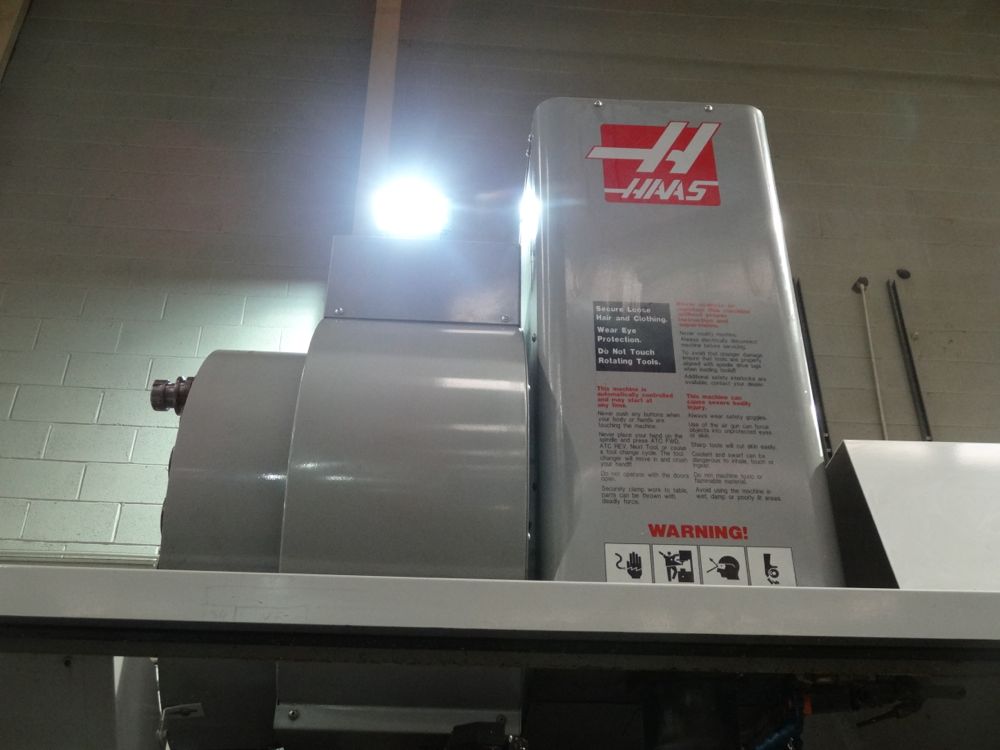

SPINDLE
Max Rating: 22.4 kW
Max Speed: 8100 rpm
Max Torque: 122 Nm @ 2000 rpm
Drive System: Inline Direct-Drive
Max Torque w/opt Gearbox: 339 Nm @ 450 rpm
Taper: CT or BT 40
Bearing Lubrication: Air/Oil Injection
Cooling: Liquid Cooled

FEEDRATES
Rapids on X: 15.2 m/min
Rapids on Y: 15.2 m/min
Rapids on Z: 15.2 m/min
Max Cutting: 12.7 m/min

AXIS MOTORS

Max Thrust X: 15124 N
Max Thrust Y: 15124 N
Max Thrust Z: 24910 N

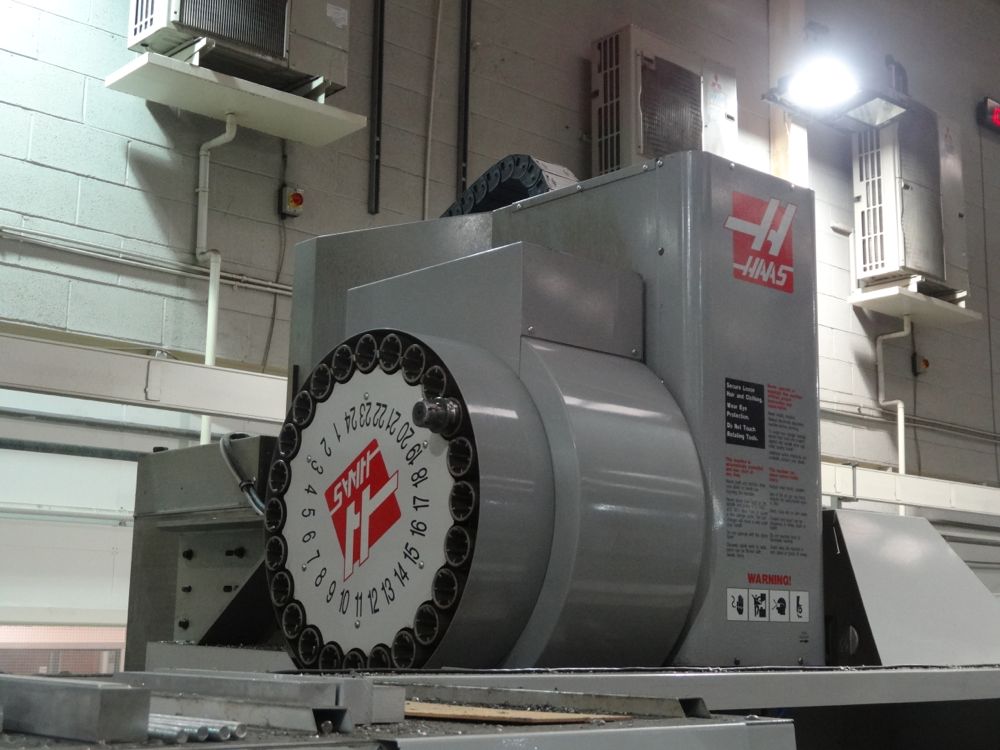

TOOL CHANGER
Type : SMTC
Capacity: 24+1
Max Tool Diameter (adjacent empty): 152 mm
Max Tool Diameter (full): 76 mm
Max Tool Length (from gage line): 406 mm
Max Tool Weight: 5.4 kg
Tool-to-Tool (avg): 2.8 sec
Chip-to-Chip (avg): 3.6 sec

GENERAL
Air Required 4 scfm, 100 psi 113 L/min, 6.9 bar
Coolant Capacity: 360 L

Location: Seaham, County Durham

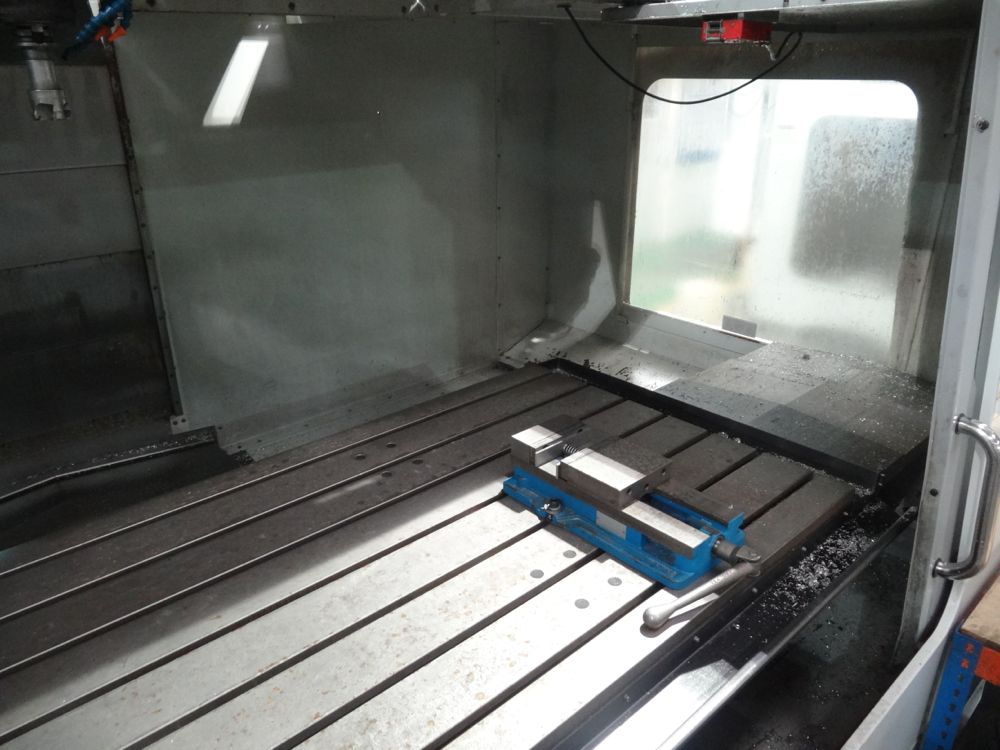

Please note: Vices are not included

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
