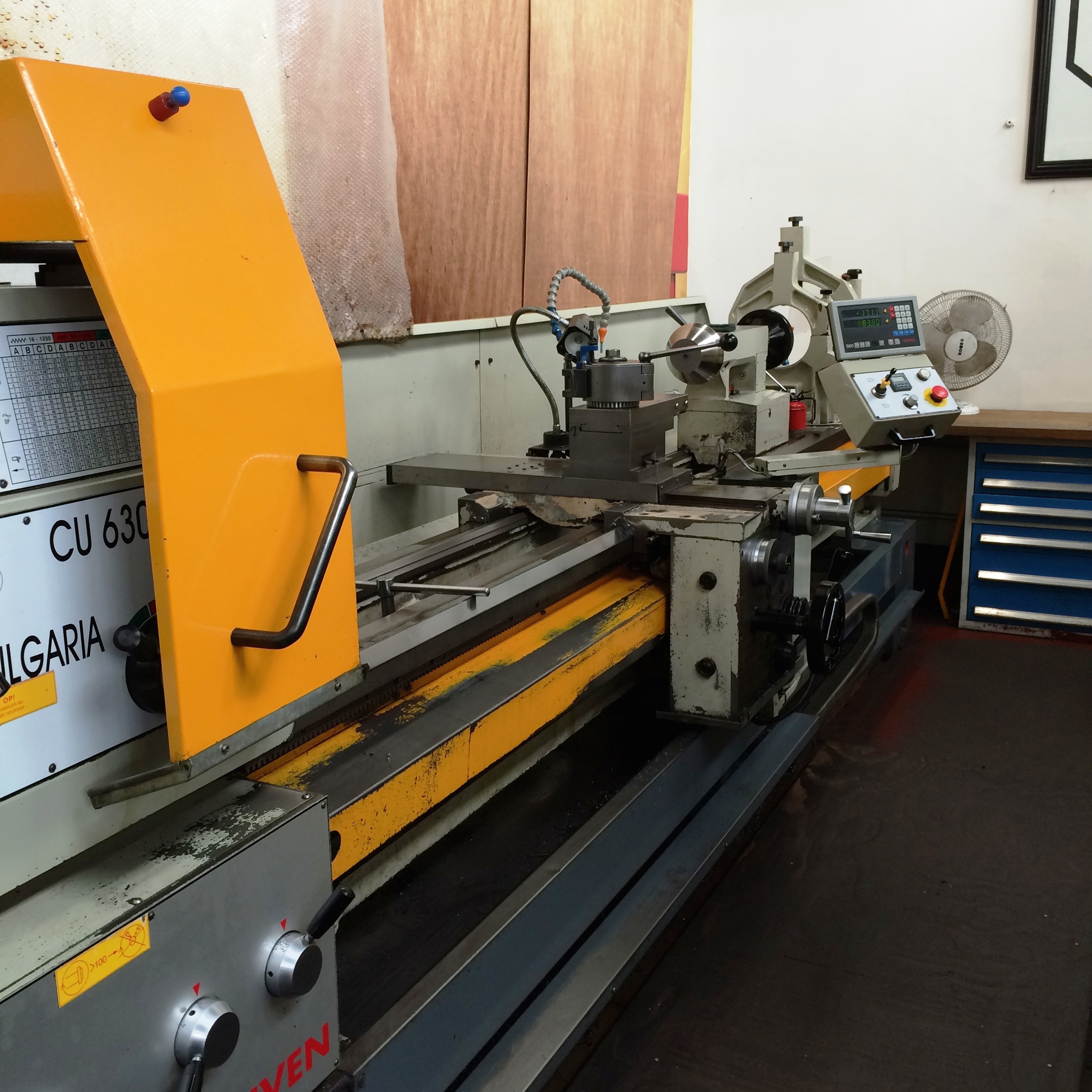

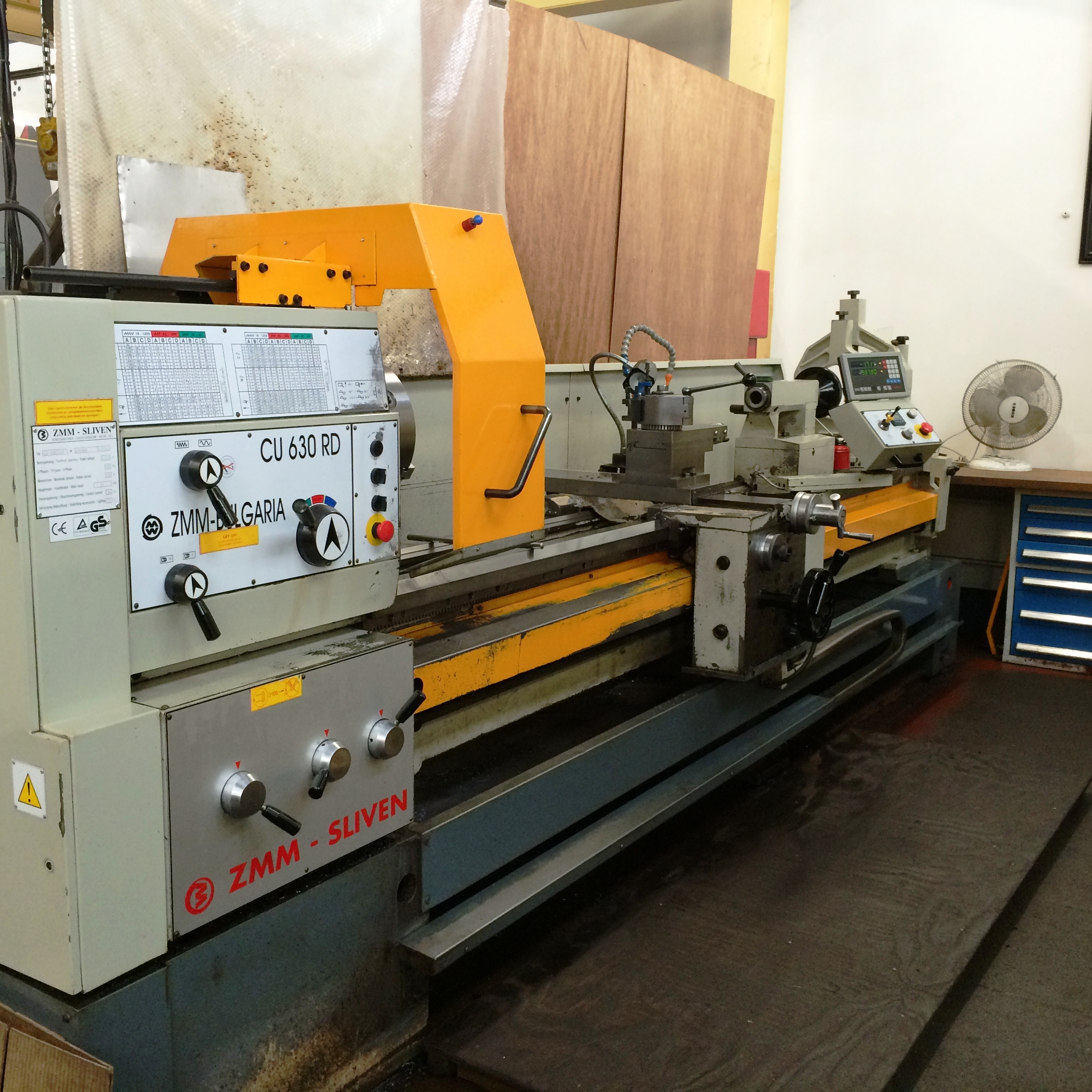

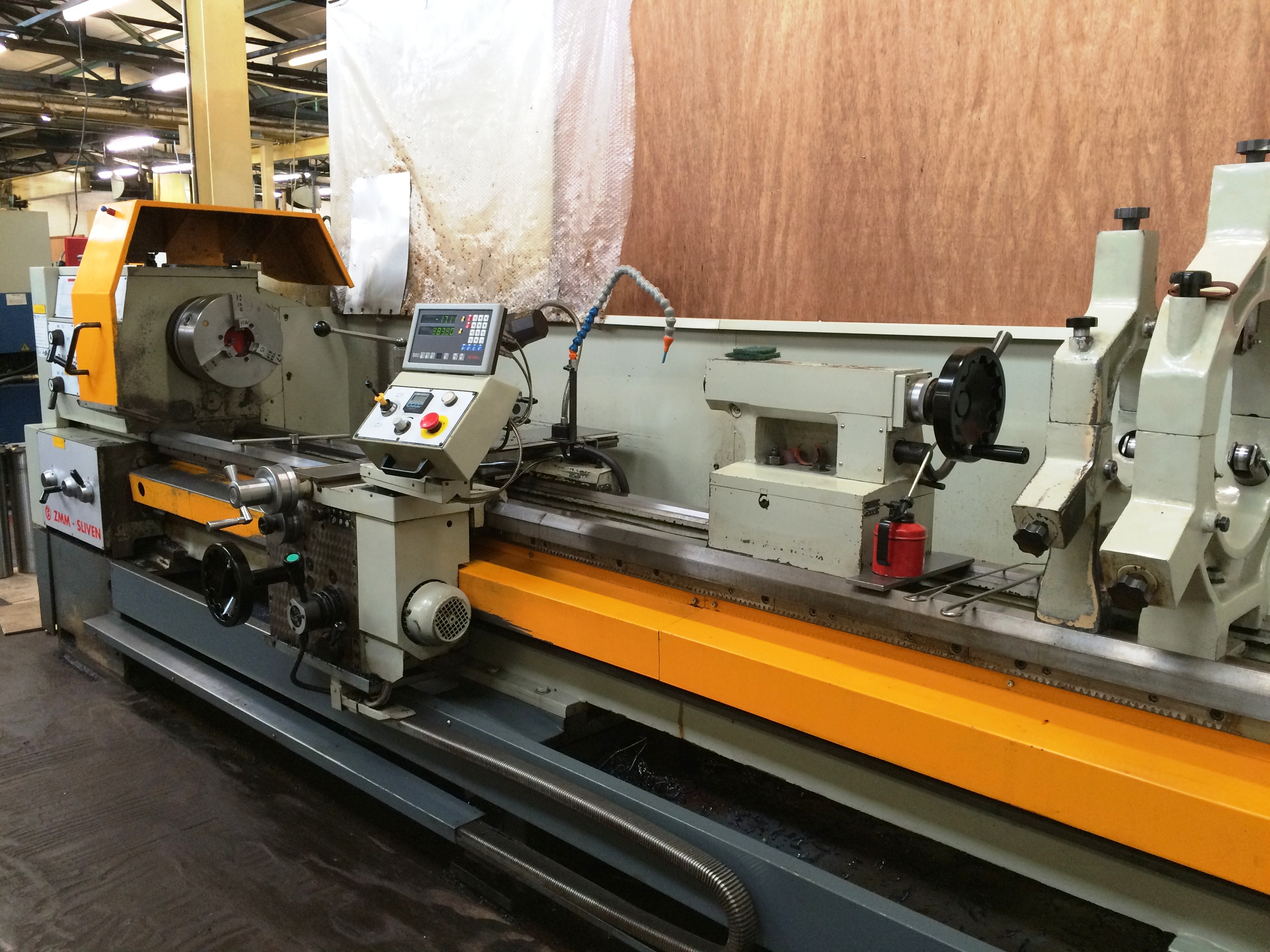

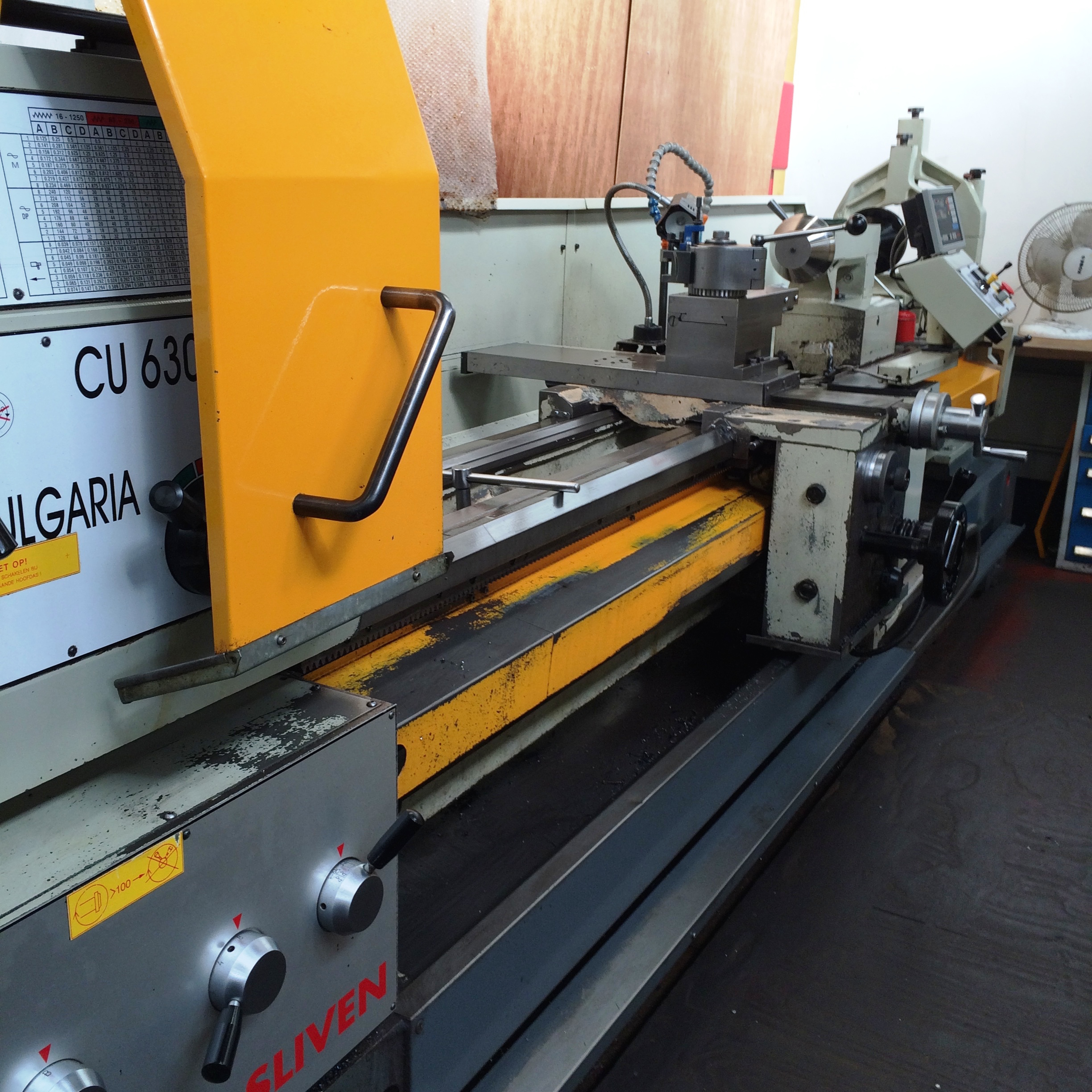

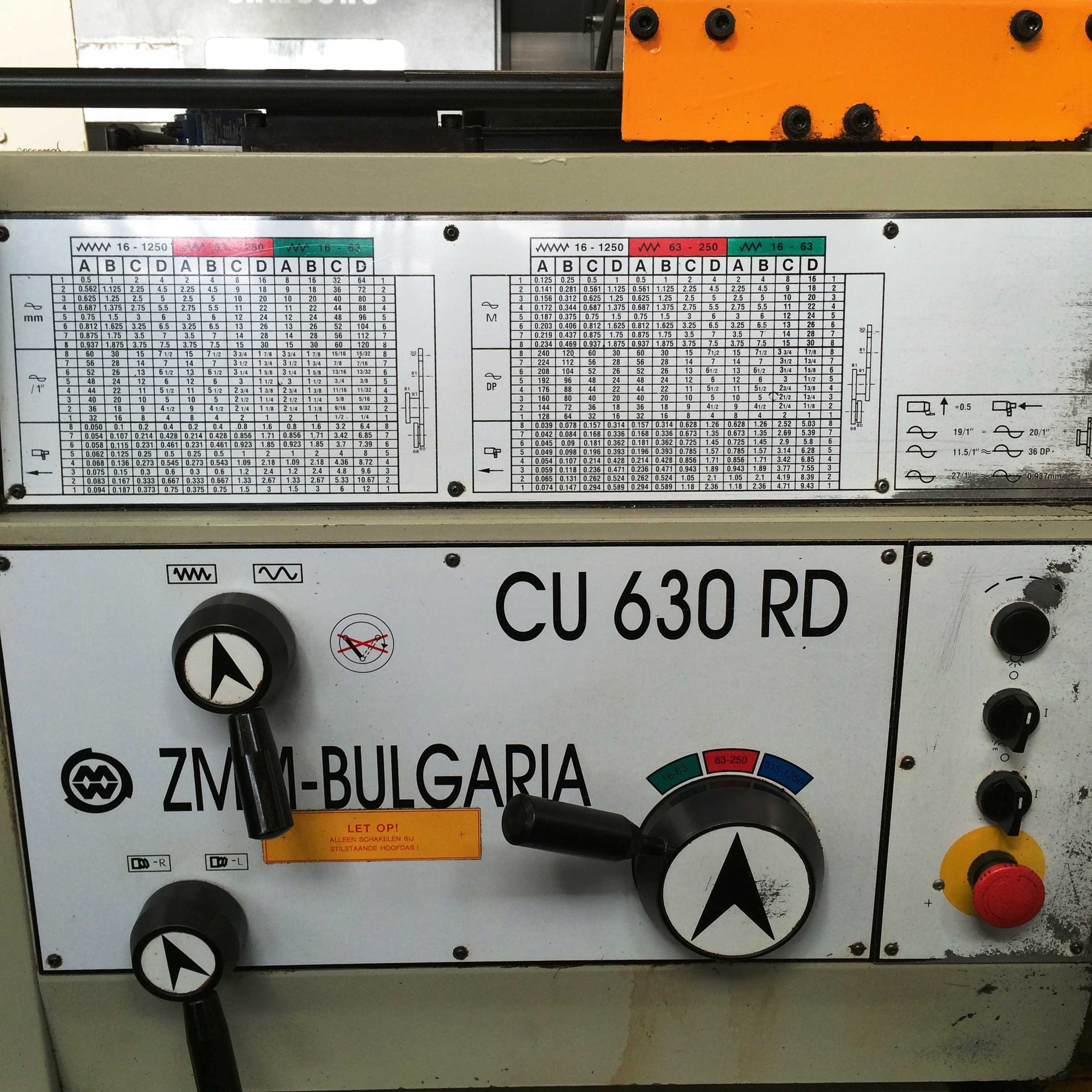

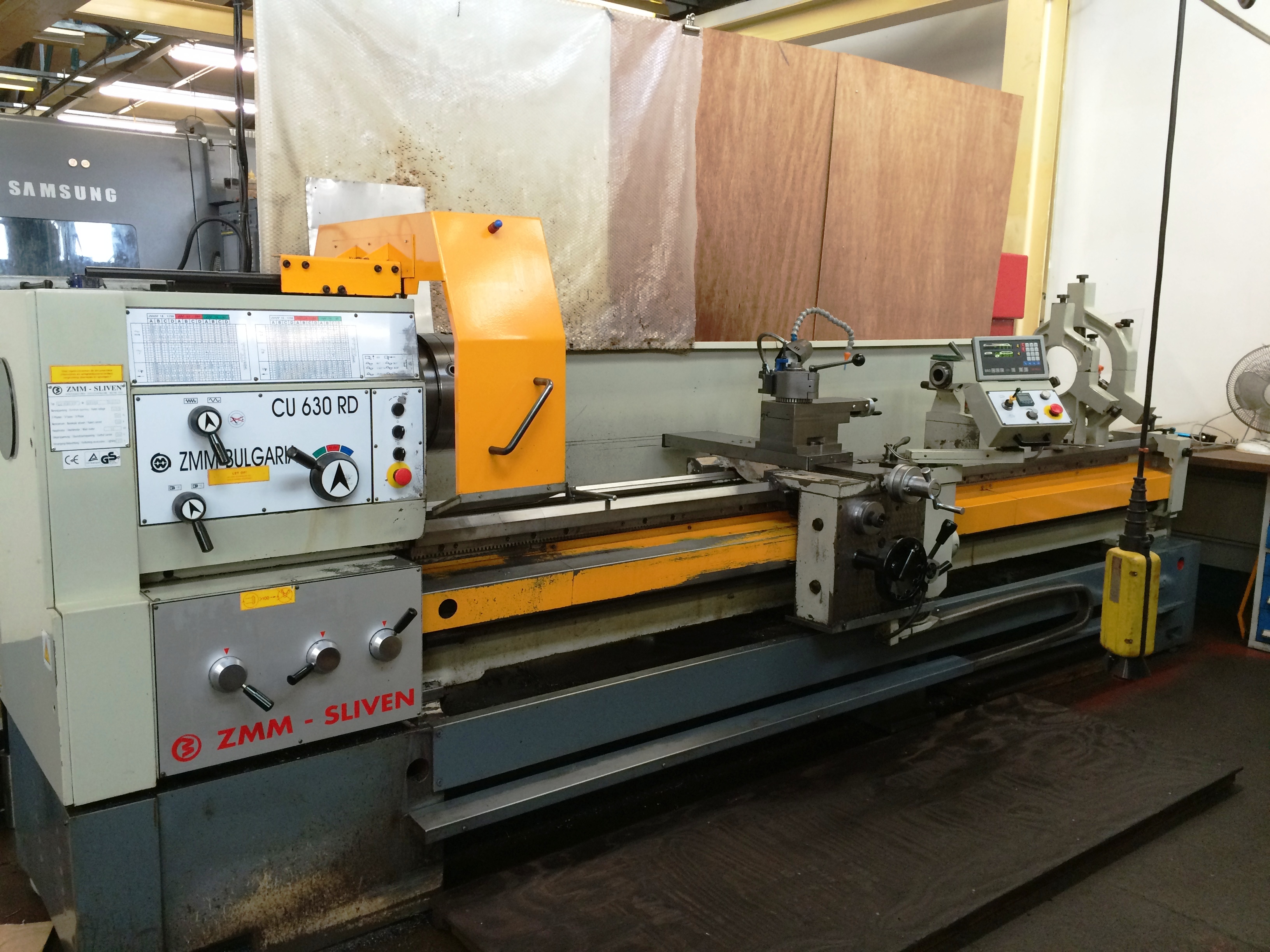

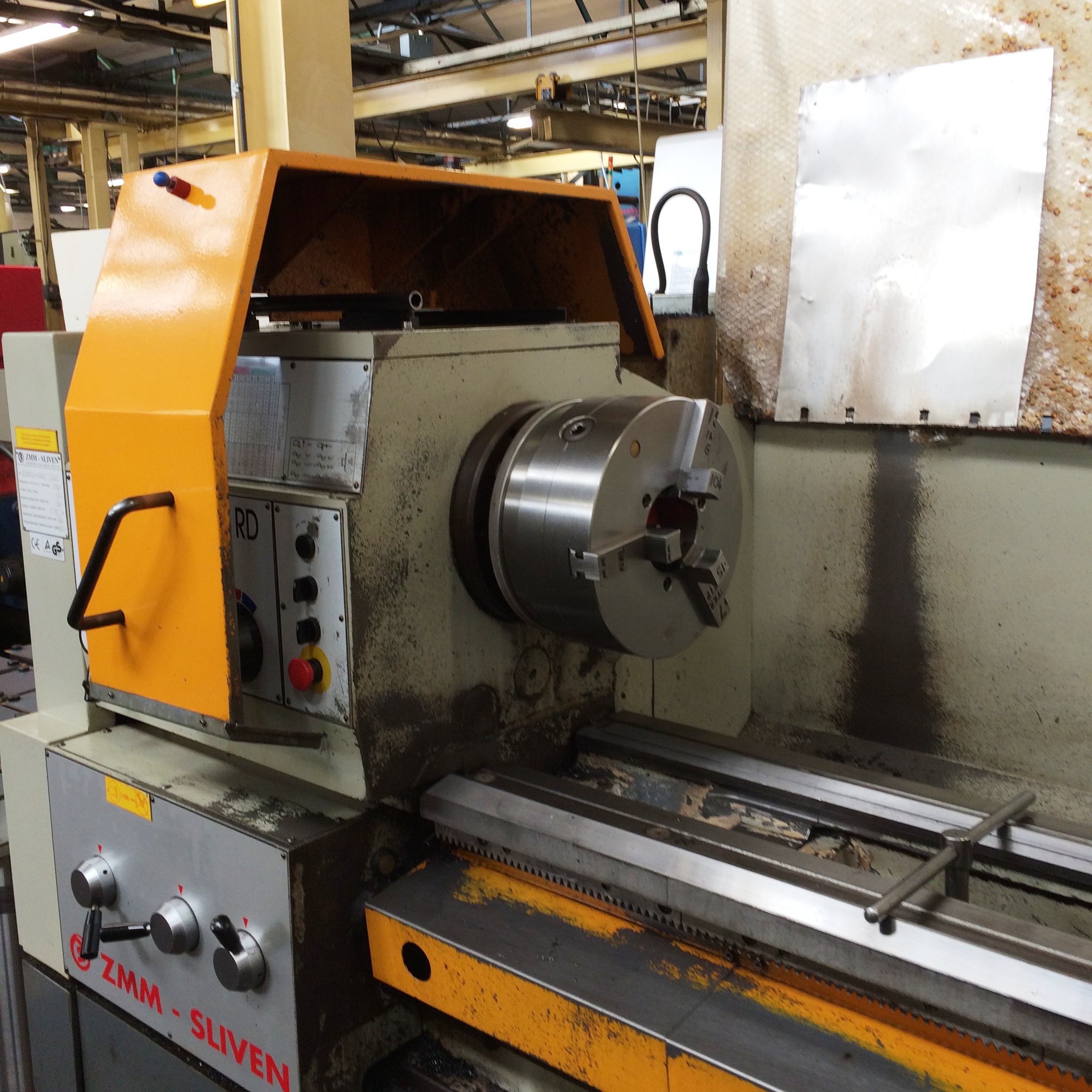

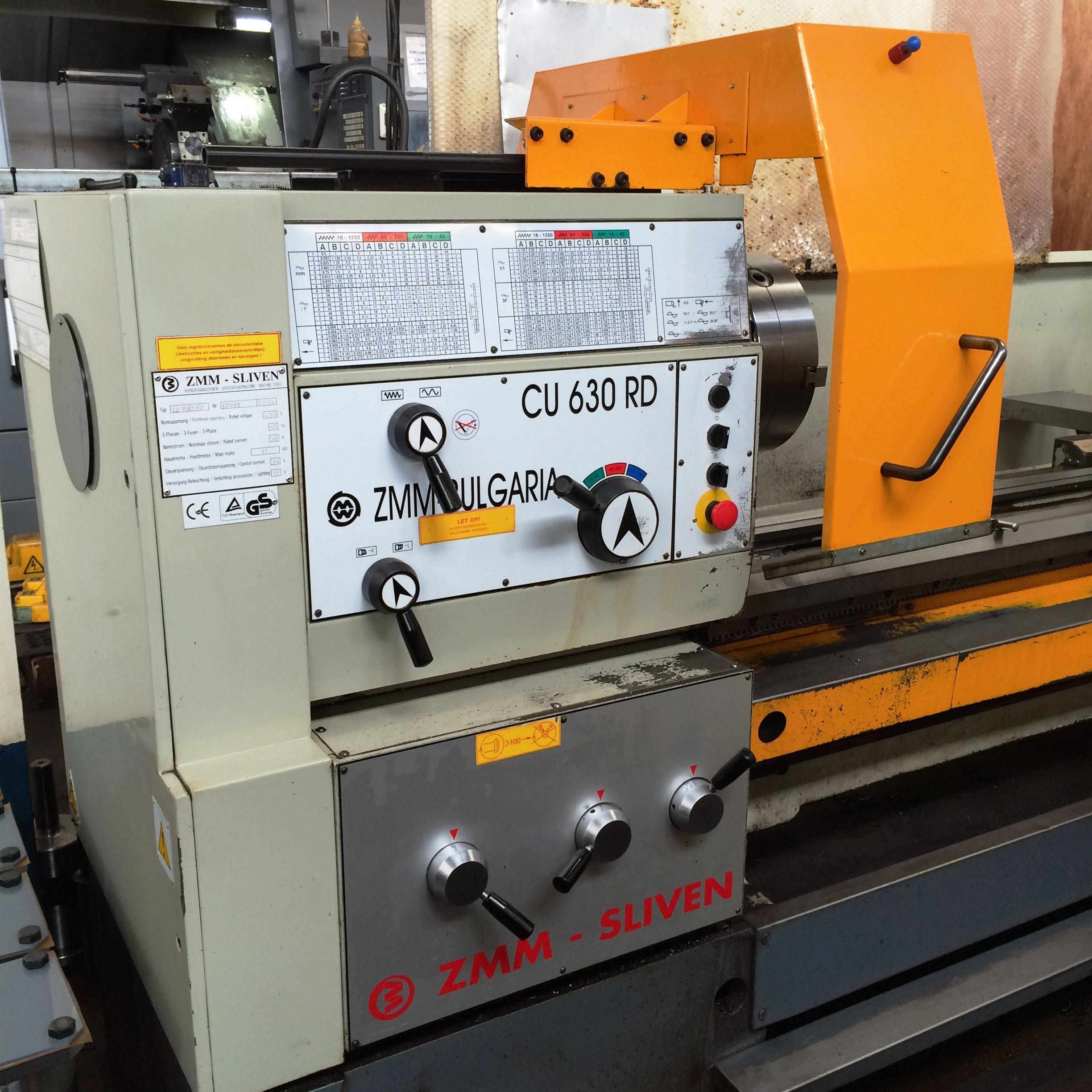

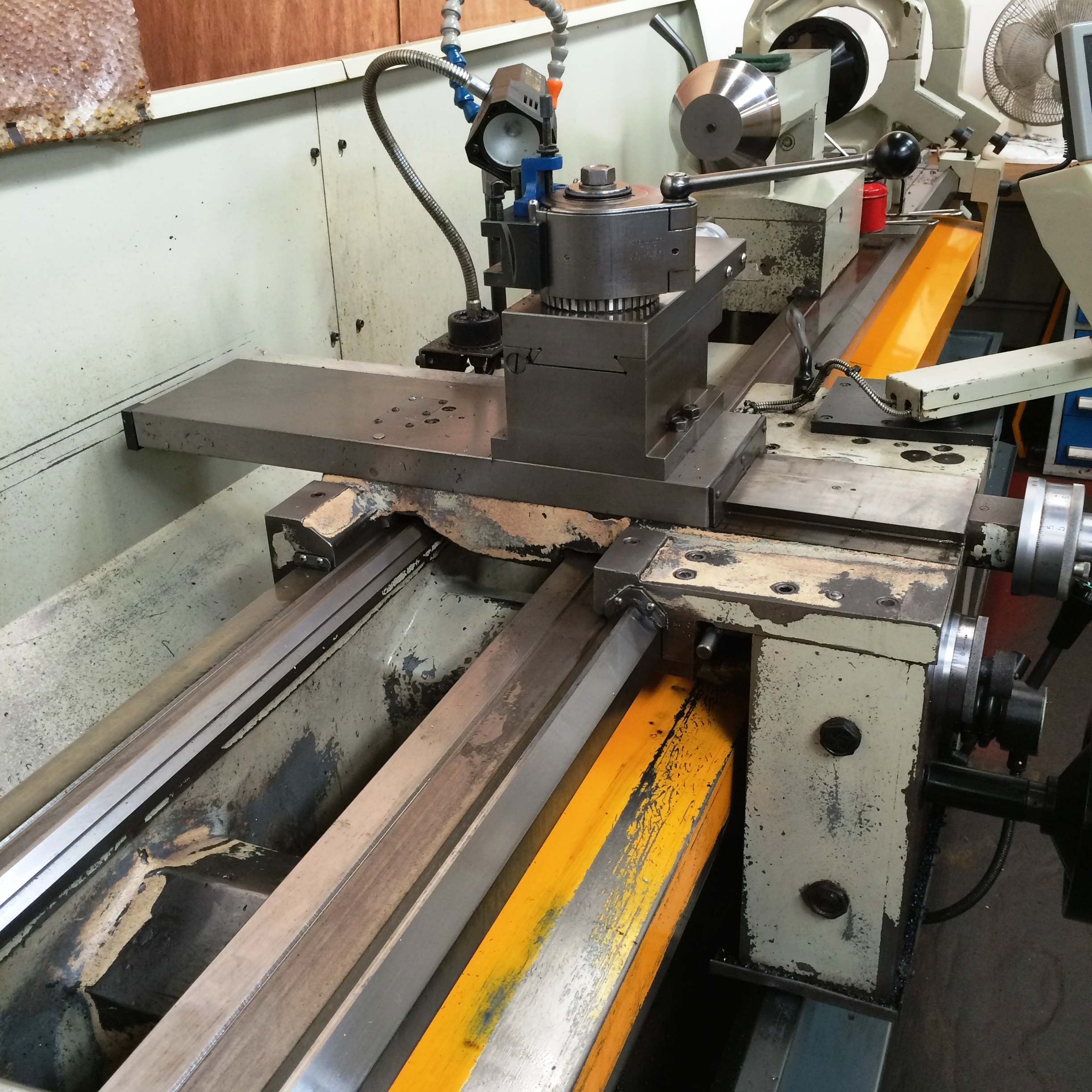

Lot 1 - Huvema CU 630 RD Centre Lathe (2008) Immaculate

Description:

Huvema CU 630 RD Centre Lathe (2008)

Number Of Thread Cuttings: 64

Number Of Feeds: 120

Distance Between Centers: 3000mm

Width Of Bed: 500 mm

Tailstock Spindle Diameter: 75 mm

Digital Readout: Optional

Hole Through Spindle: 75 mm

Thread Cutting Metric: 0,5 - 120 mm

Thread Cutting Module: 0,125 - 30 Module

Thread Cutting Pitch: 1 - 240 DP

Thread Cutting Whitworth: 0,25 - 60 TPI

Swing In Gap: 830 mm

Swing Over Bed: 630 mm

Swing Over Cross Slide: 430 mm

Cross Slide Travel: 315 mm

Net Weight: 3010 kg - 3160 kg - 3310kg - 3590 kg - 4600 kg - 5630 kg

Taper Of Spindle Internal - External: DIN 55027, gr .8

Taper Tail Stock: MT5

Spindle Speeds: 12,5-1250 Rpm

Main Motor Power: 11 kW

Tailstock Spindle Travel: 250 mm

Top Slide Travel: 130 mm

Longitudinal Feed Range: 0,04 - 12 mm/r

Cross Feed Range: 0,02 - 6 mm/r

Article number: 400V



Location: Scotland

*No Loading Facilites on Site

*Please satisfy yourself with the specification before bidding

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
