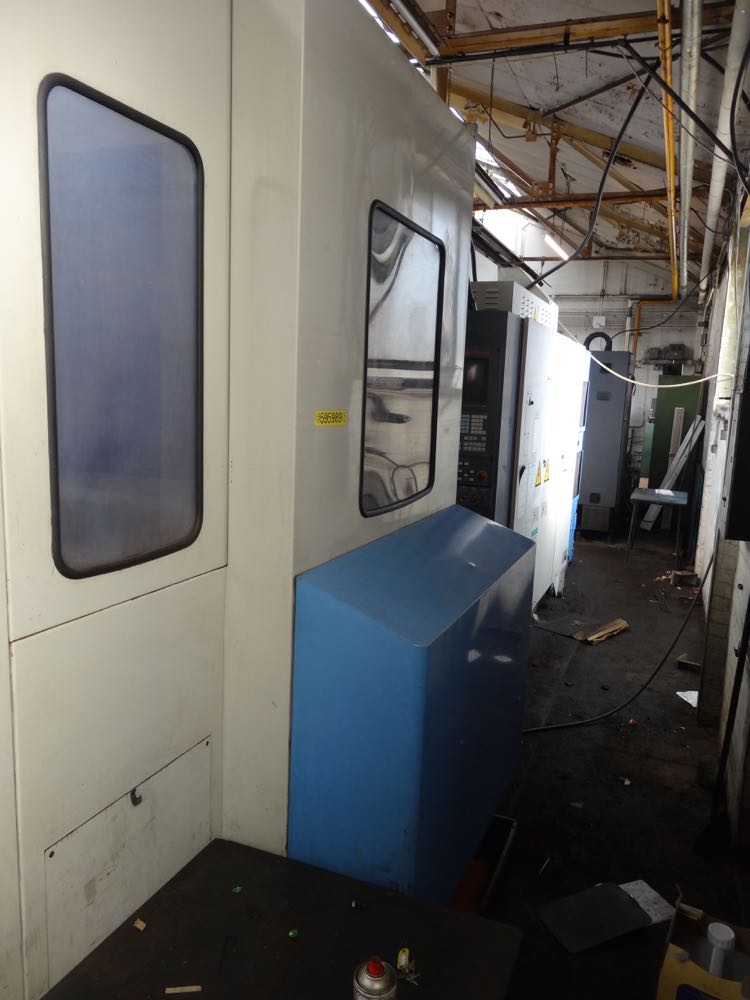

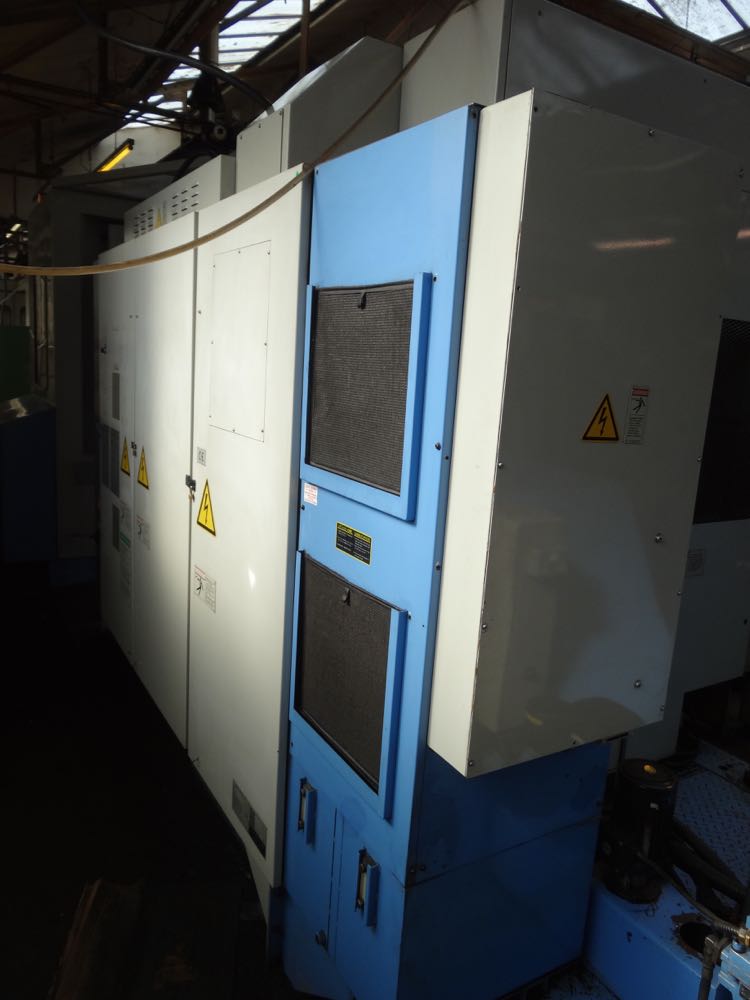

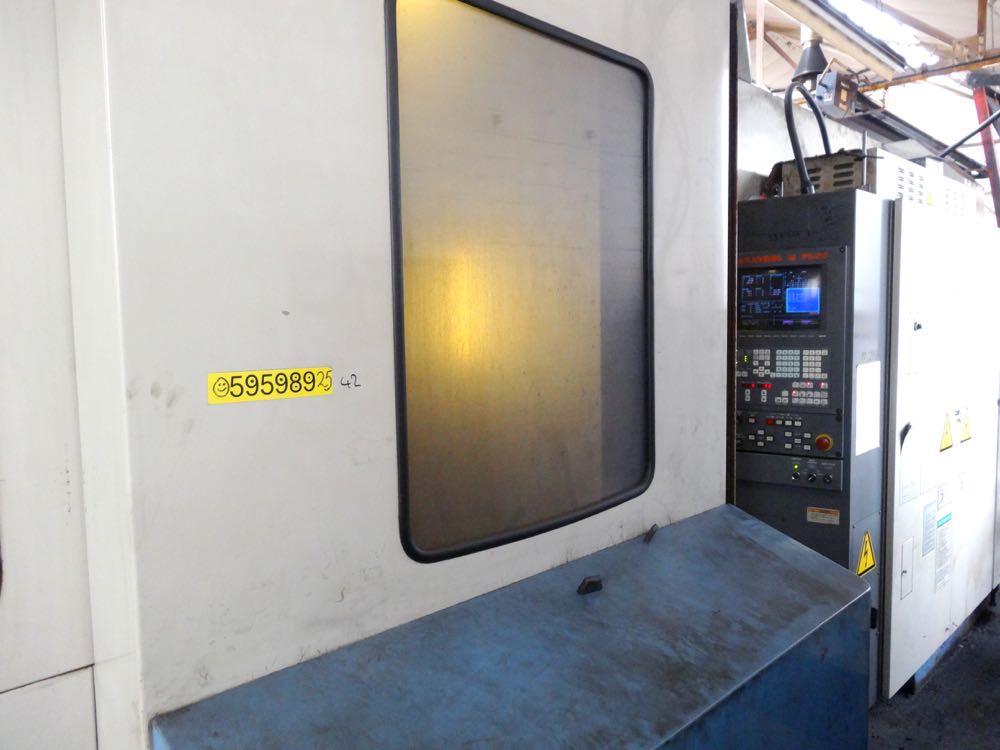

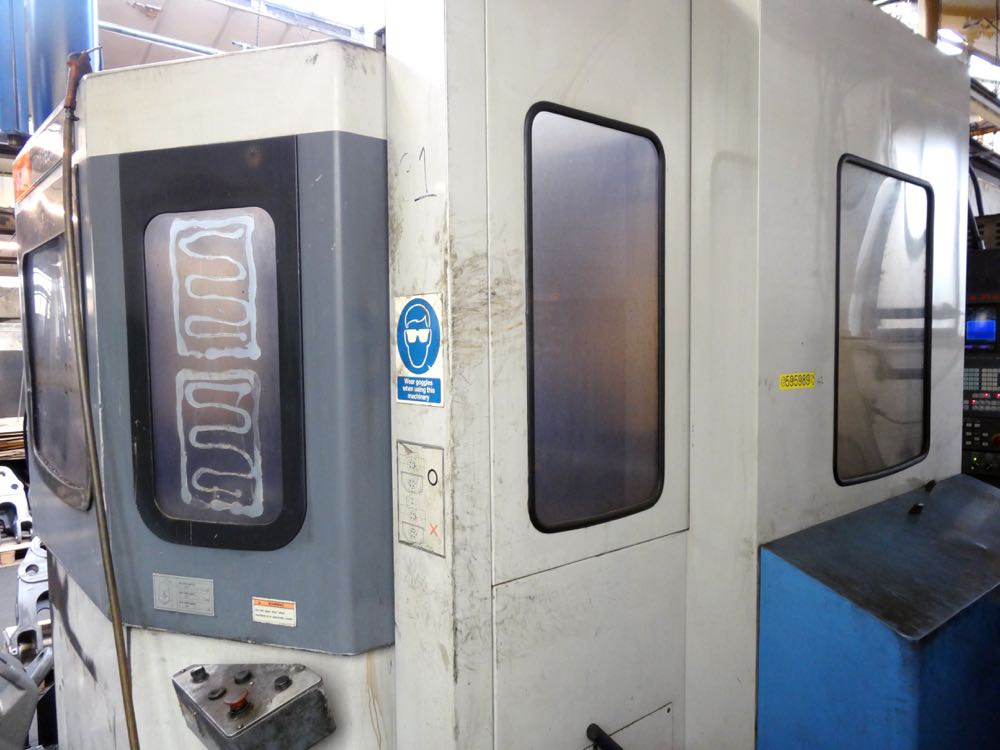

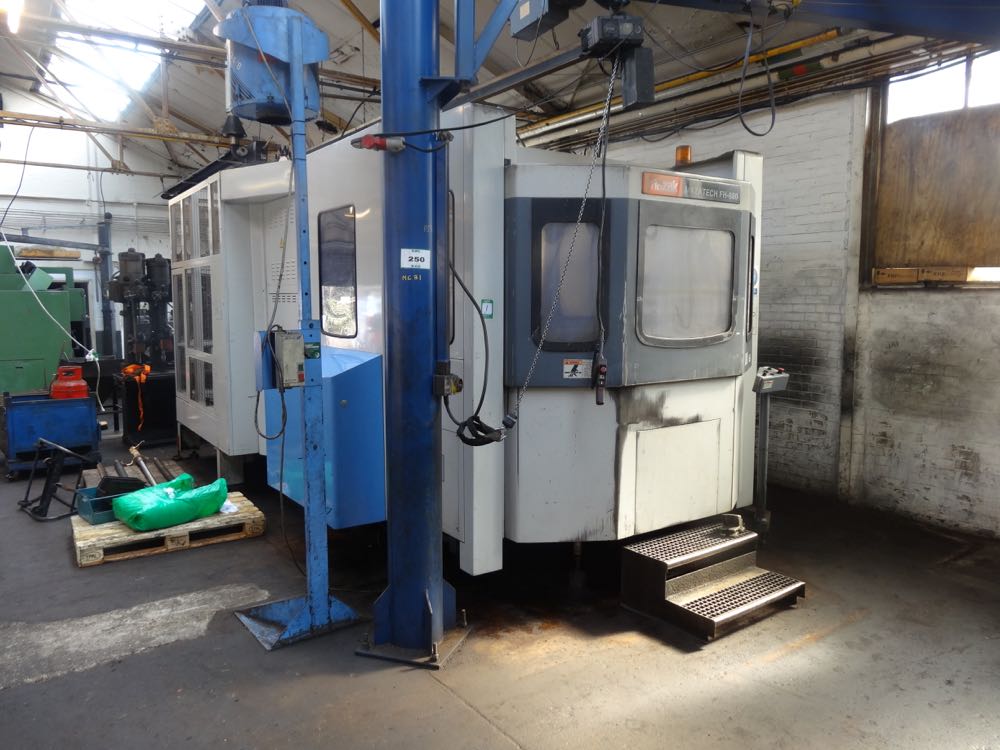

Lot 1 - Mazak FH680 HMC
Description:

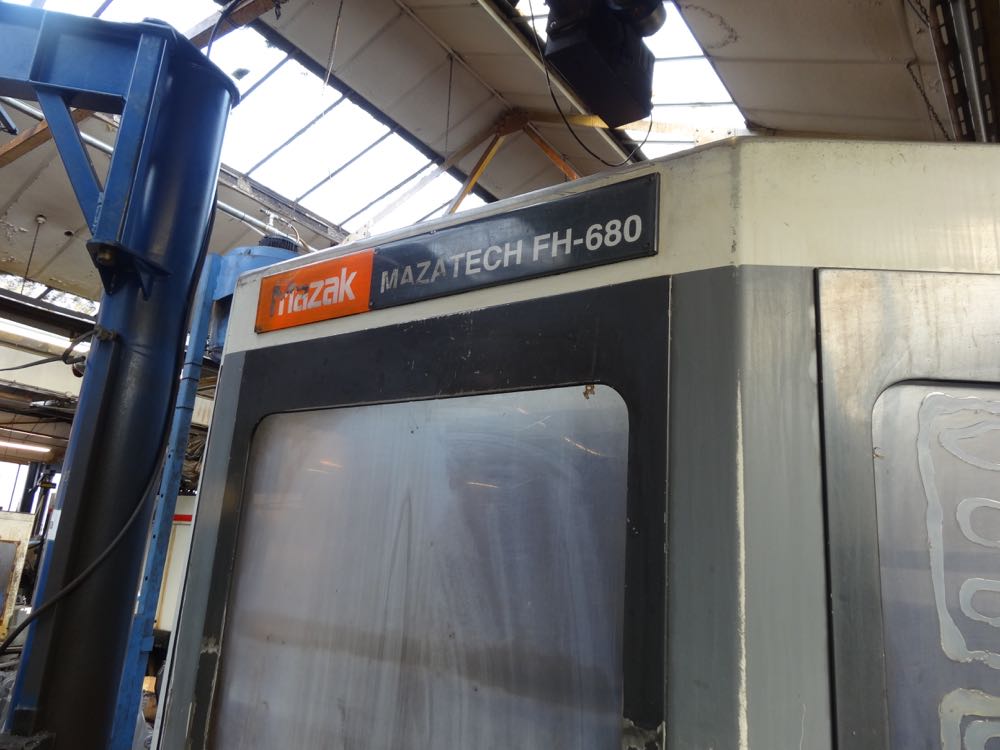

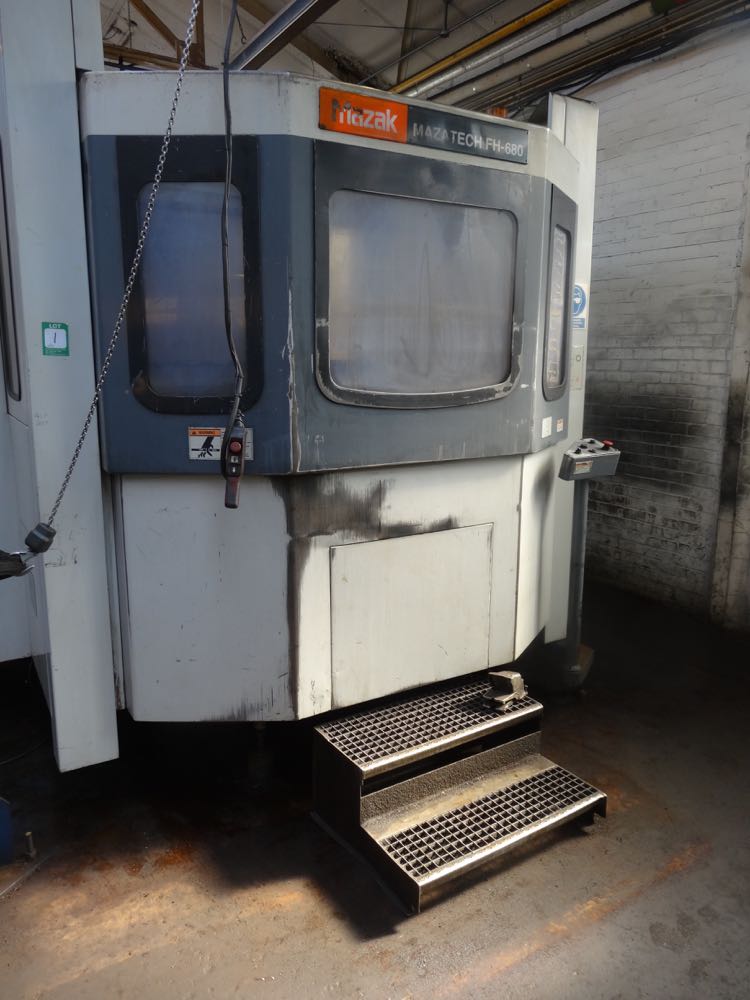

Mazak FH680 HMC

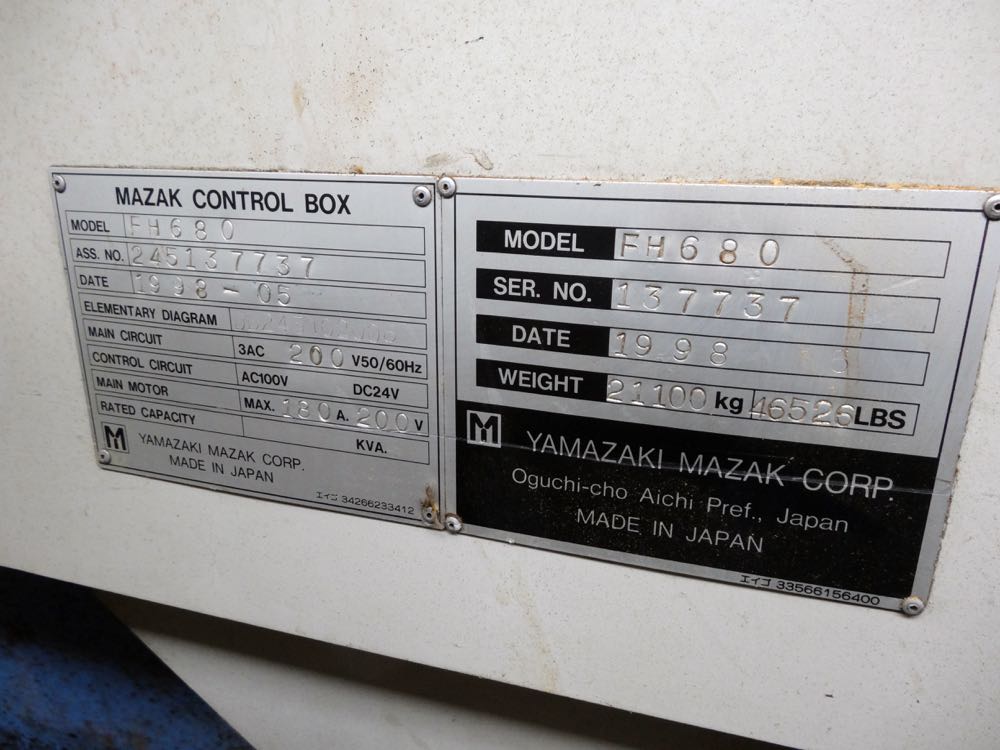

S/n: 137737
Year: 1998
Weight: Approx 17.5ton

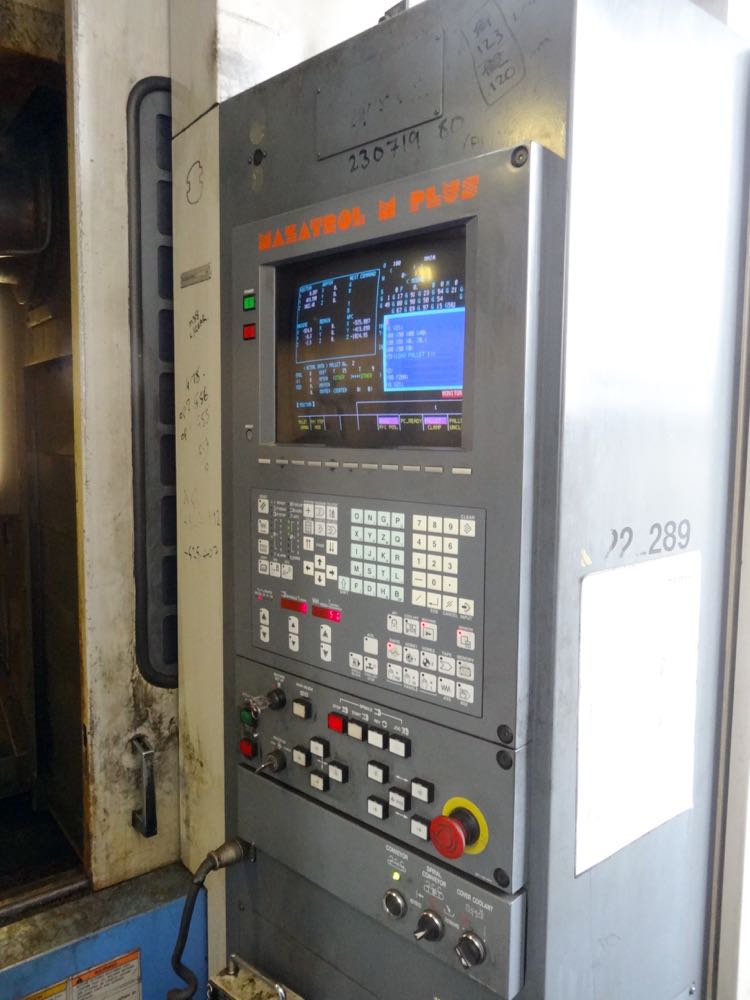

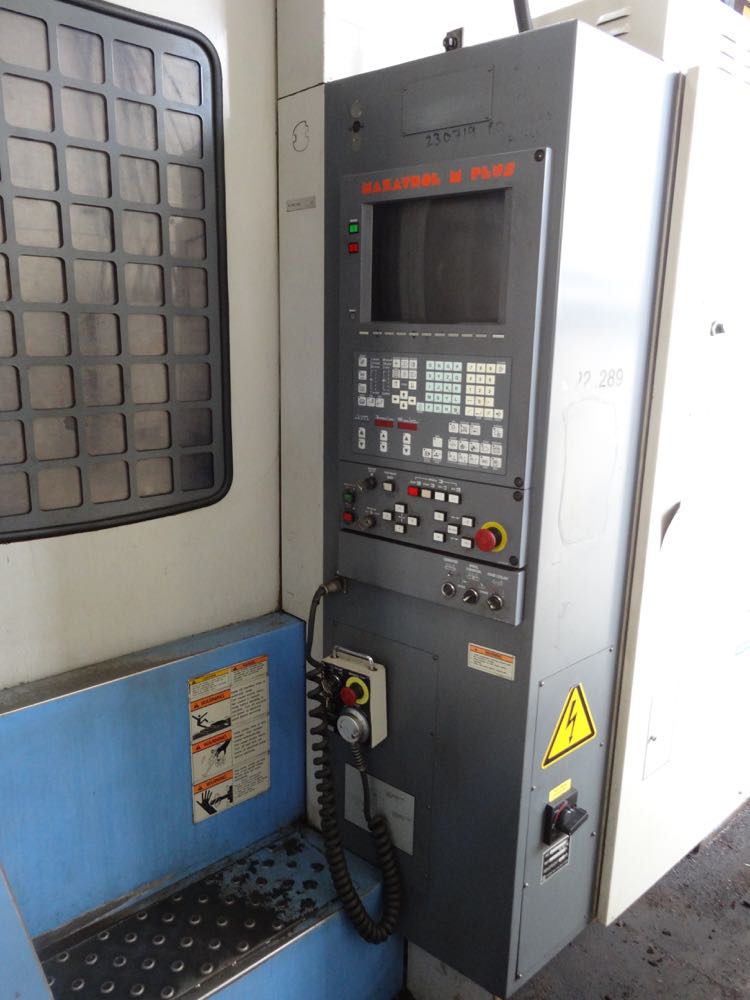

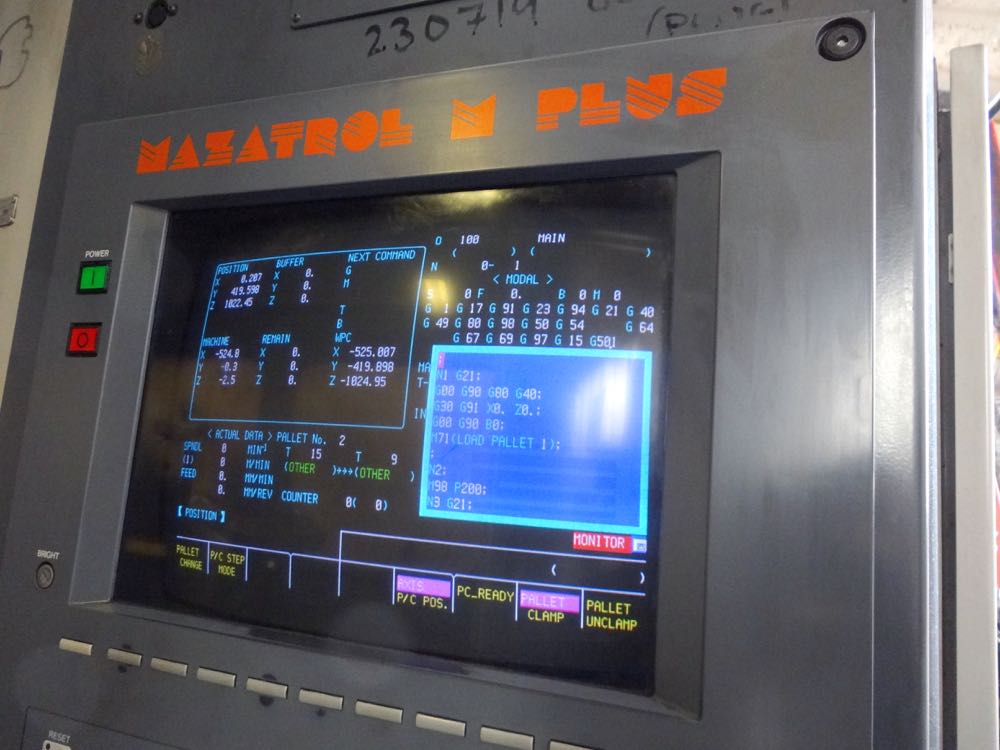

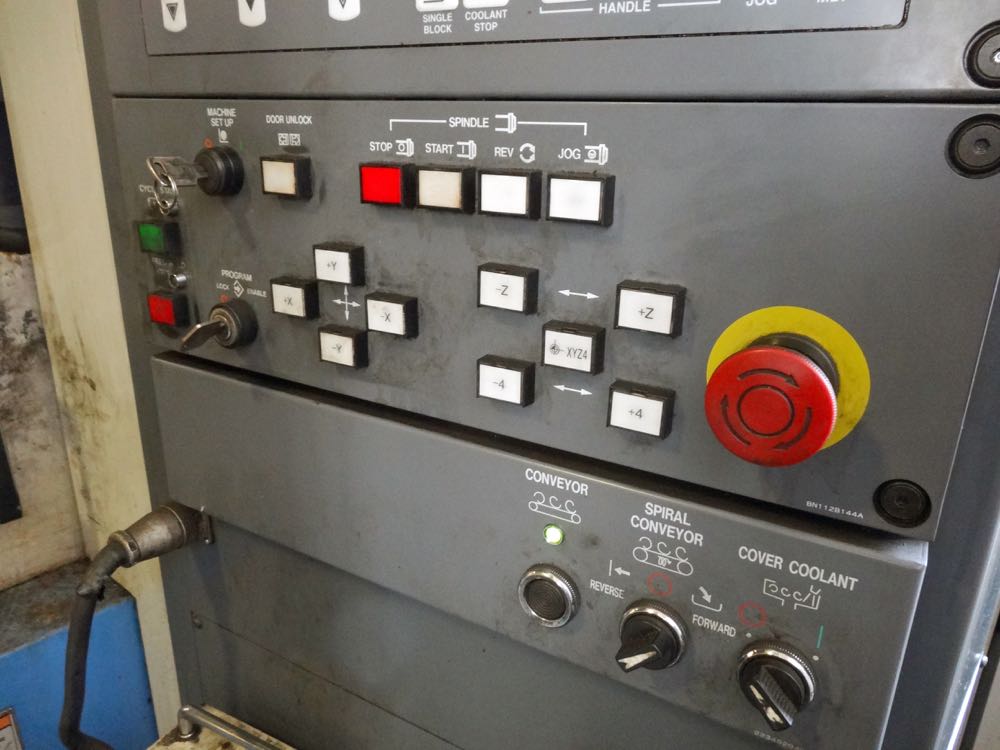

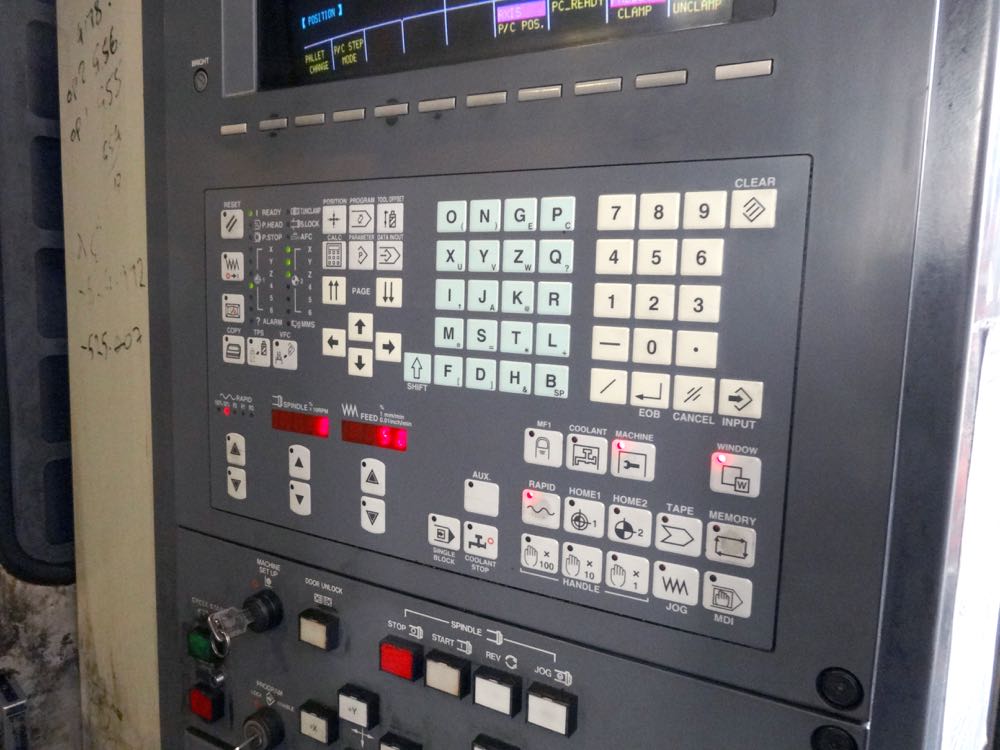

Mazatrol M Plus Control
X Axis: 1050mm
Y Axis: 800mm
X Axis: 880mm
Distance from pallet top to spindle centre: 100 - 900mm
Distance from pallet cents to spindle nose: 150 - 1030mm

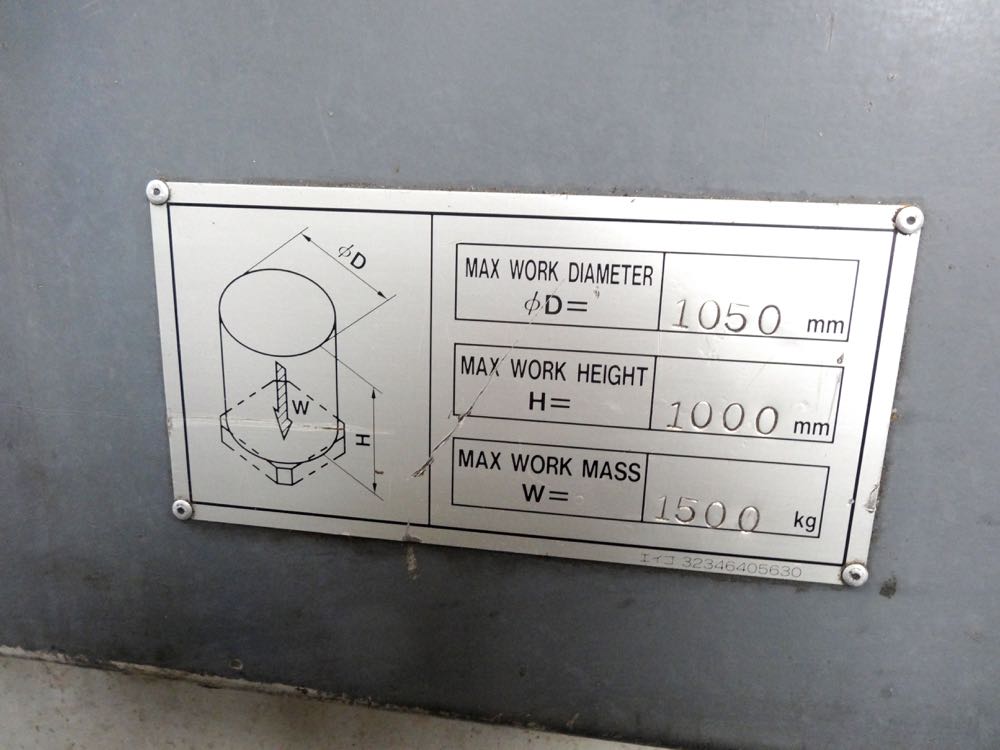

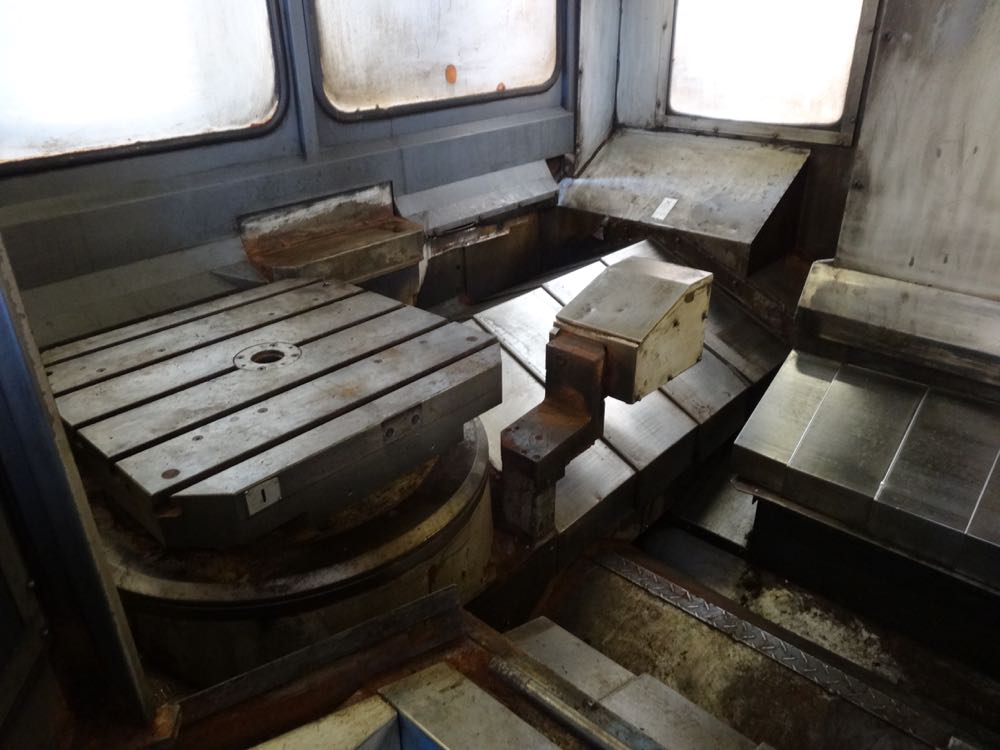

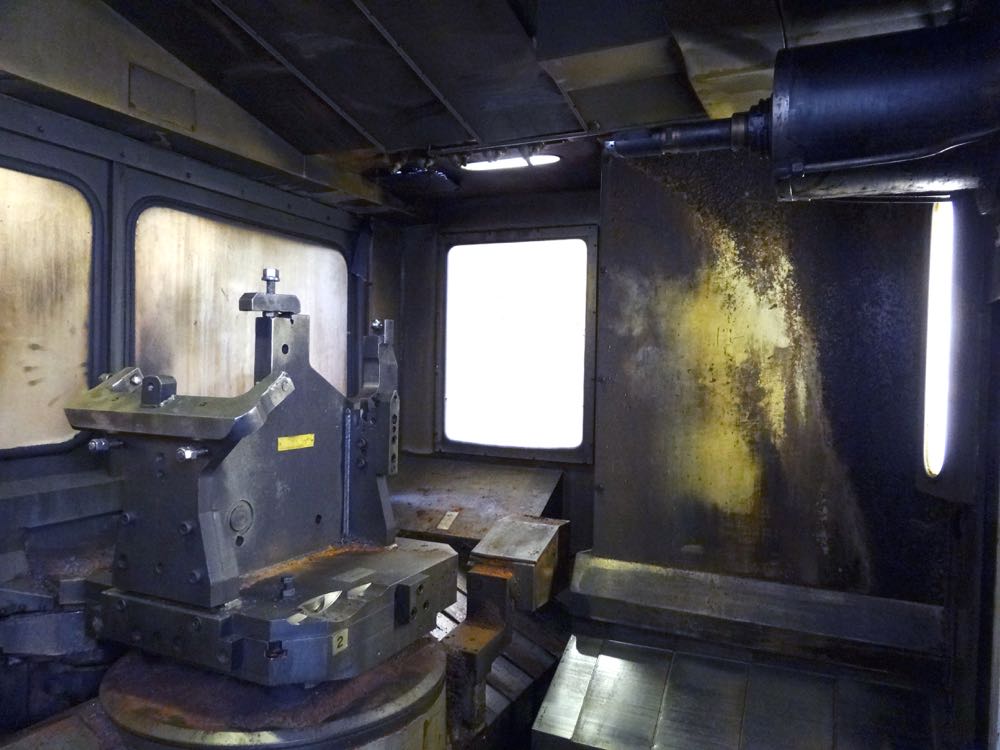

Pallet size: 630 x 630mm
Pallet load capacity: 1500kg
Pallet top surface: M16 x P2 tap 25 places, pitch 125mm
Minimum indexing angle increment: 0.001
Indexing time: 2.2 sec

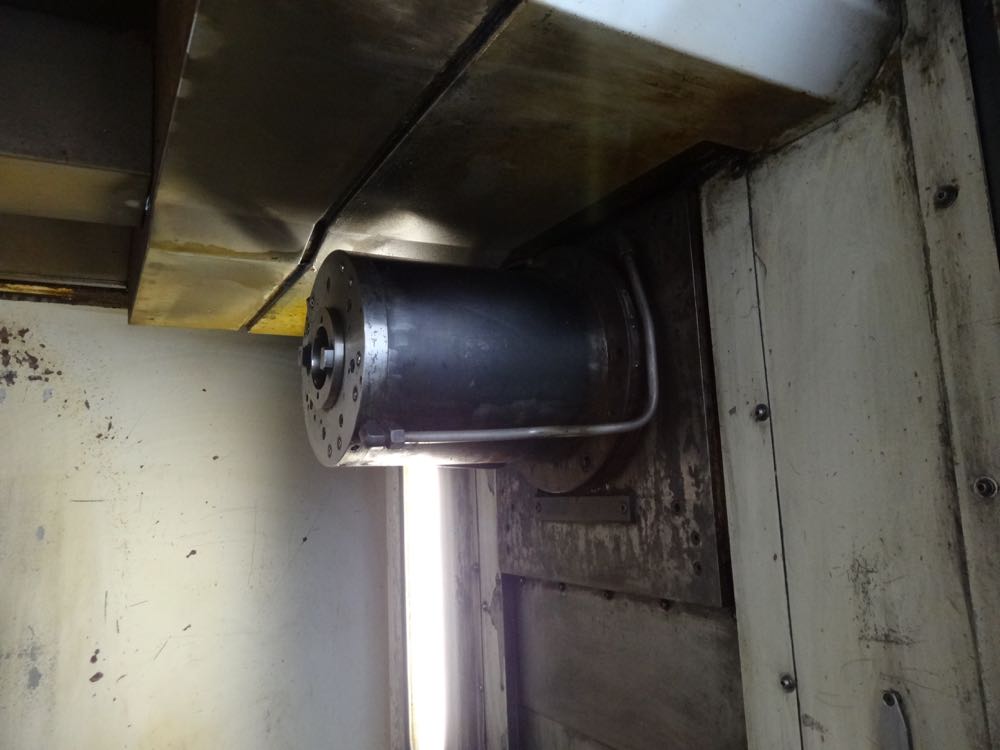

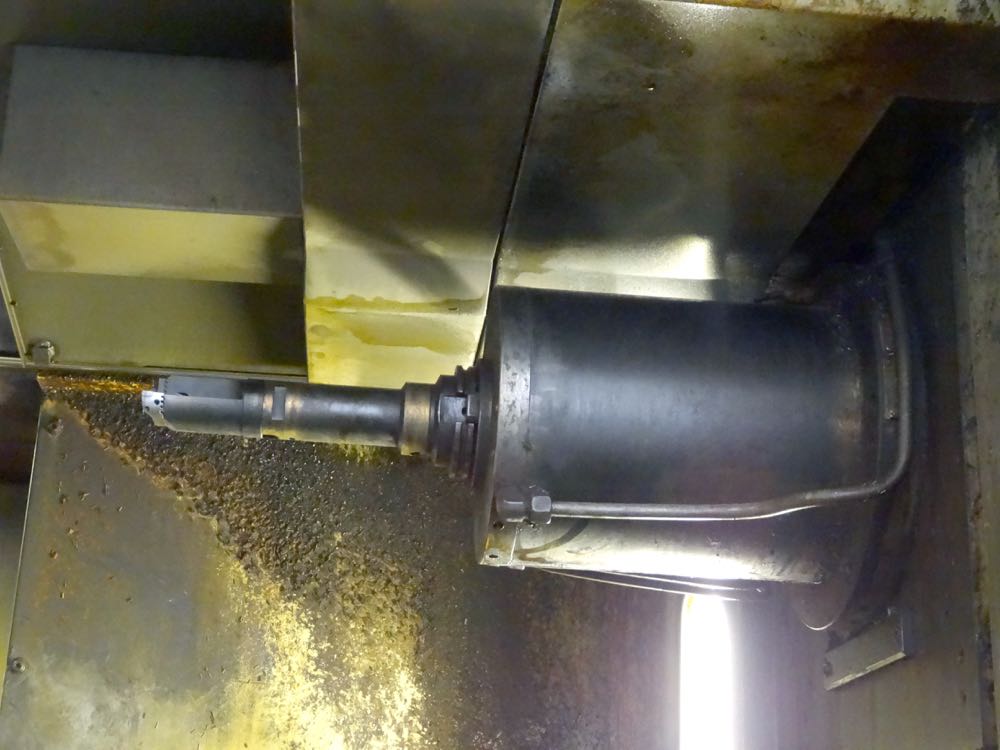

Max spindle speed: 10000rpm
Max spindle torque 54kgf-m
Spindle motor: AC37kW
Spindle taper: ISO 50
Rapid traverse: 40000mm/min
Cutting federate: 40000mm/min

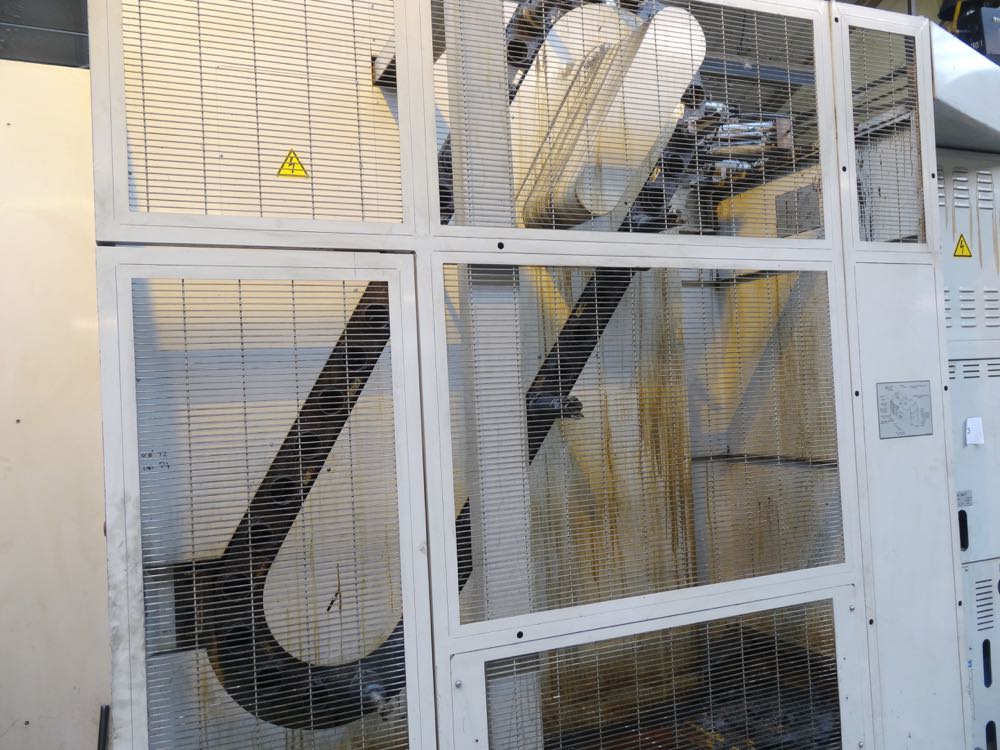

Auto tool changer:
Tool shank type: Cat no.50

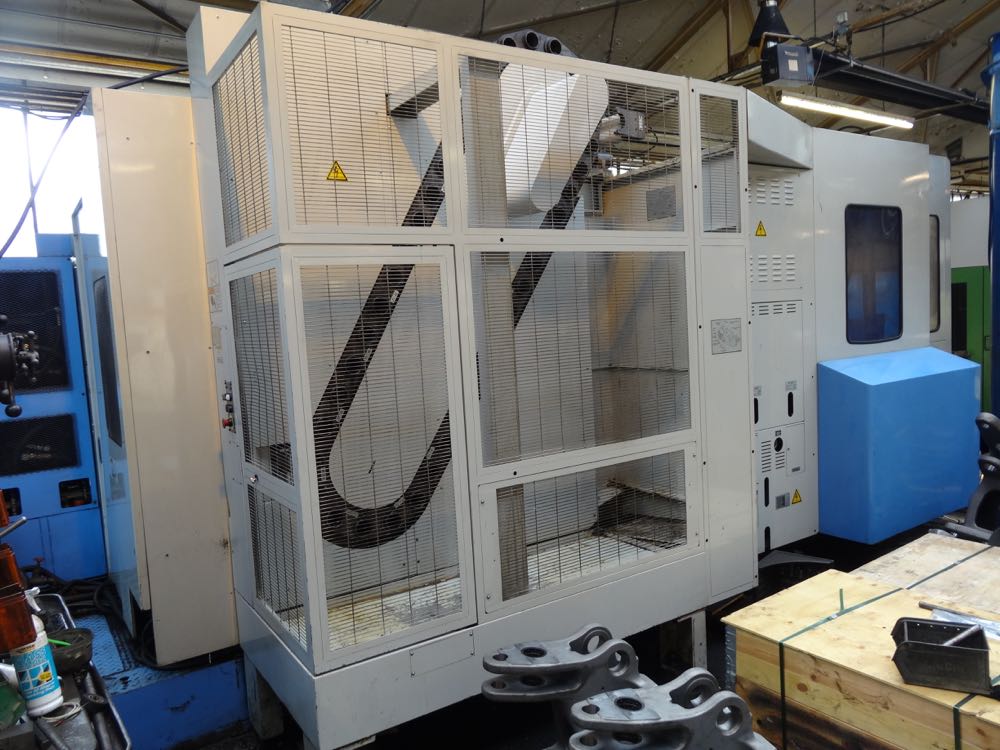

Tool magazine cap: 40 tools
Max tool dia/ length from gauge line/ weight: 135mm/500mm/30kg
Max tool dia: 260mm
Tool selection method: random selection/shortest path
Tool change time (tool to tool) 1.8sec
Tool change time (chip to chip) 5.0 sec

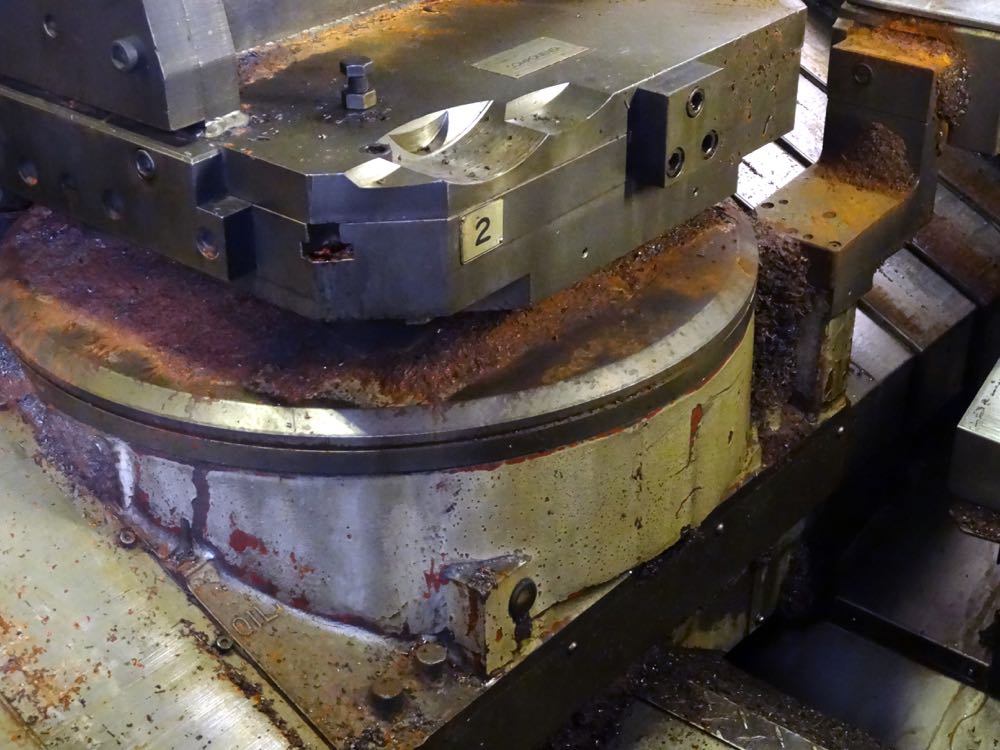

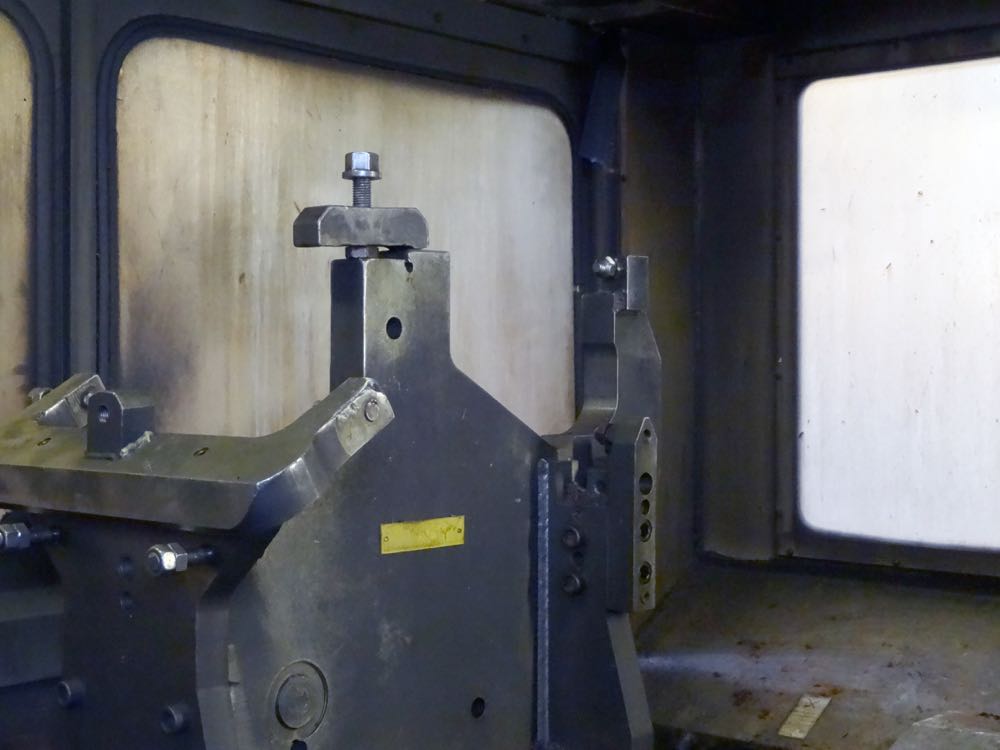

Automatic Pallet Changer:
No of pallets: 2
Change system: Rotary type
Pallet change time: 10 sec

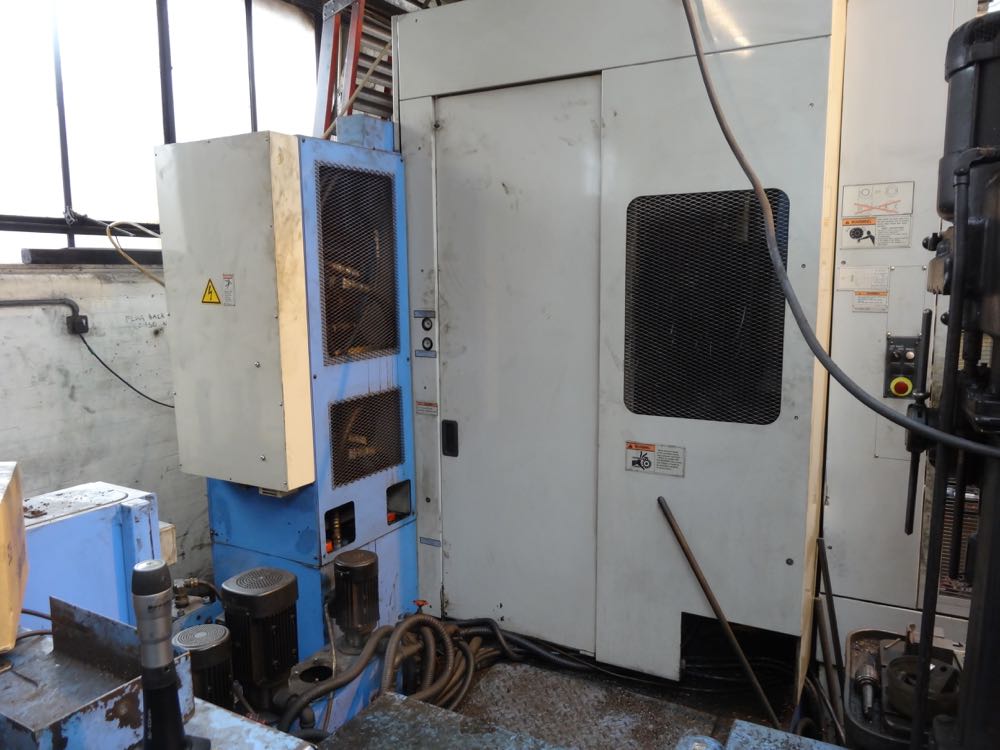

Machine size:
Height: 3187mm
Floor space required: 3705 x 6363mm
Machine weight: 19900kg

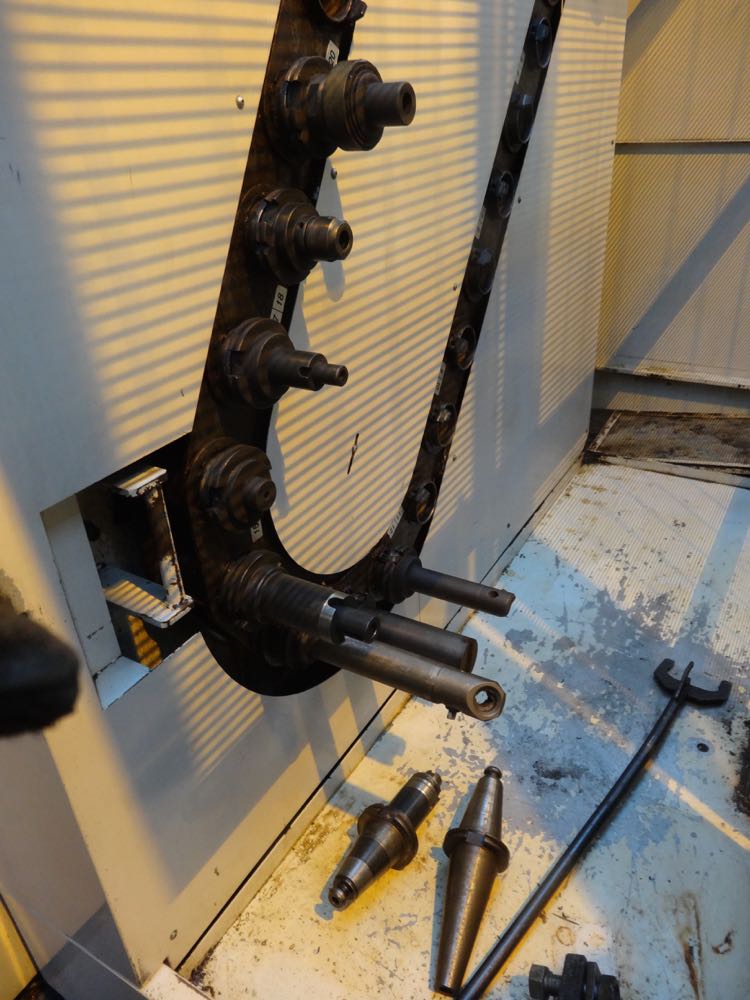

Tooling package TBC
Location: Thurmaston Leicester
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
