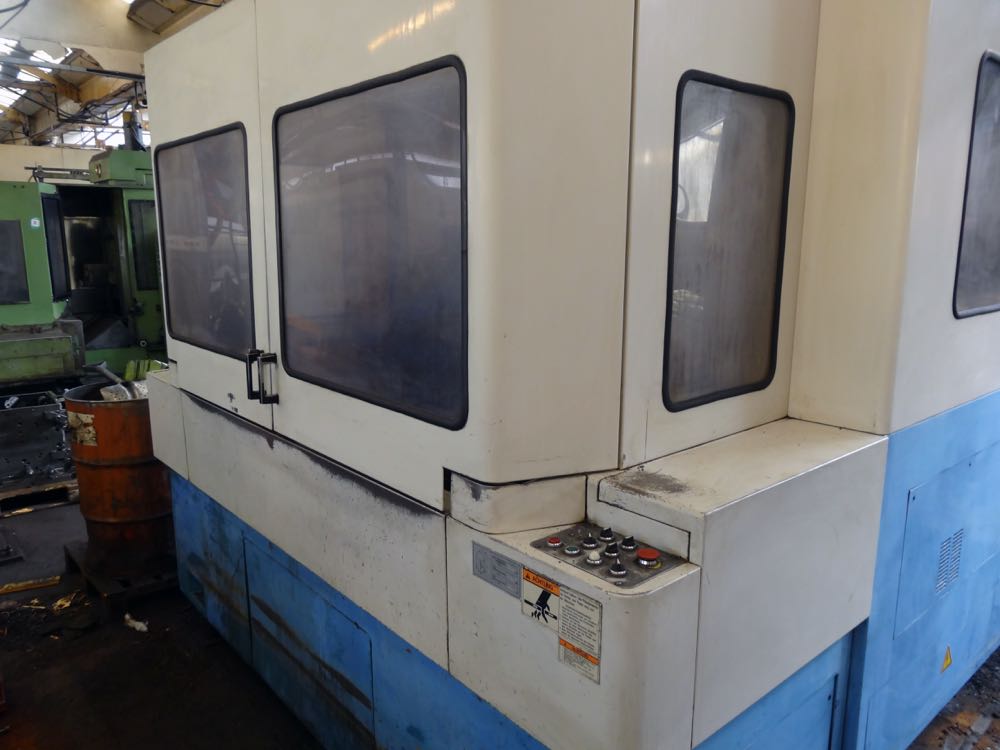

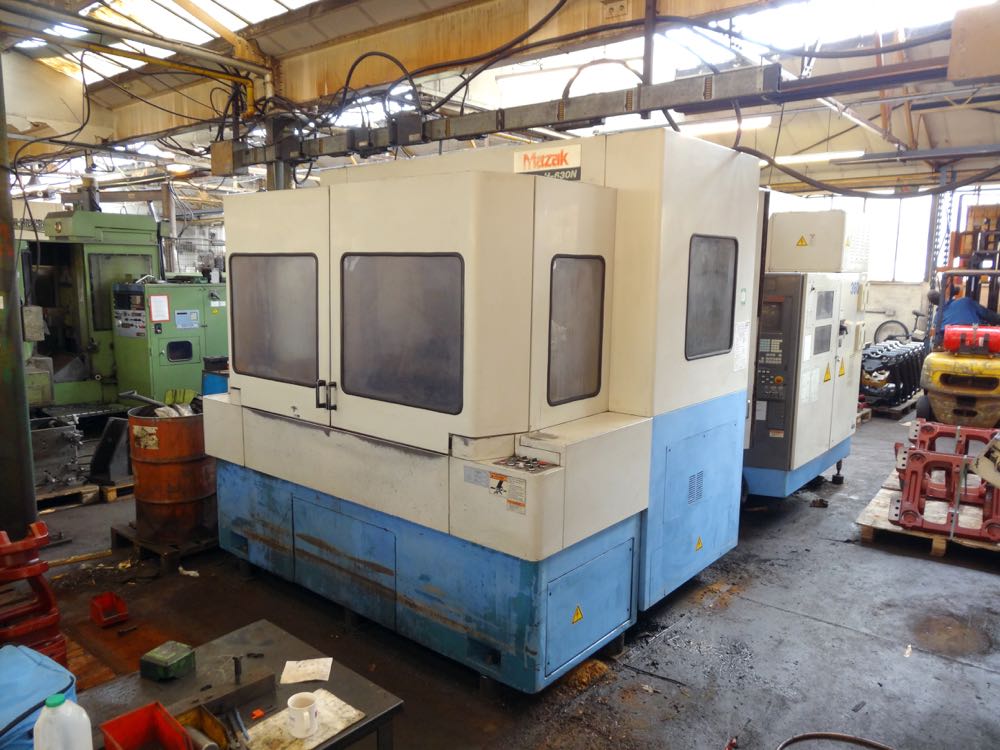

Lot 2 - Mazak H630N HMC
Description:

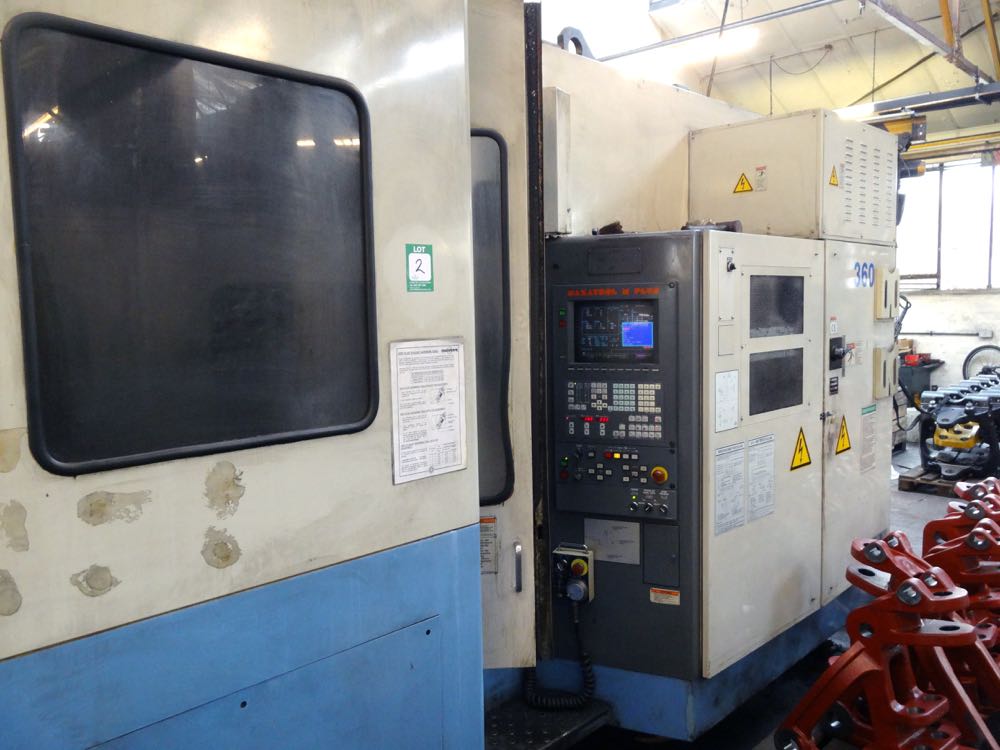

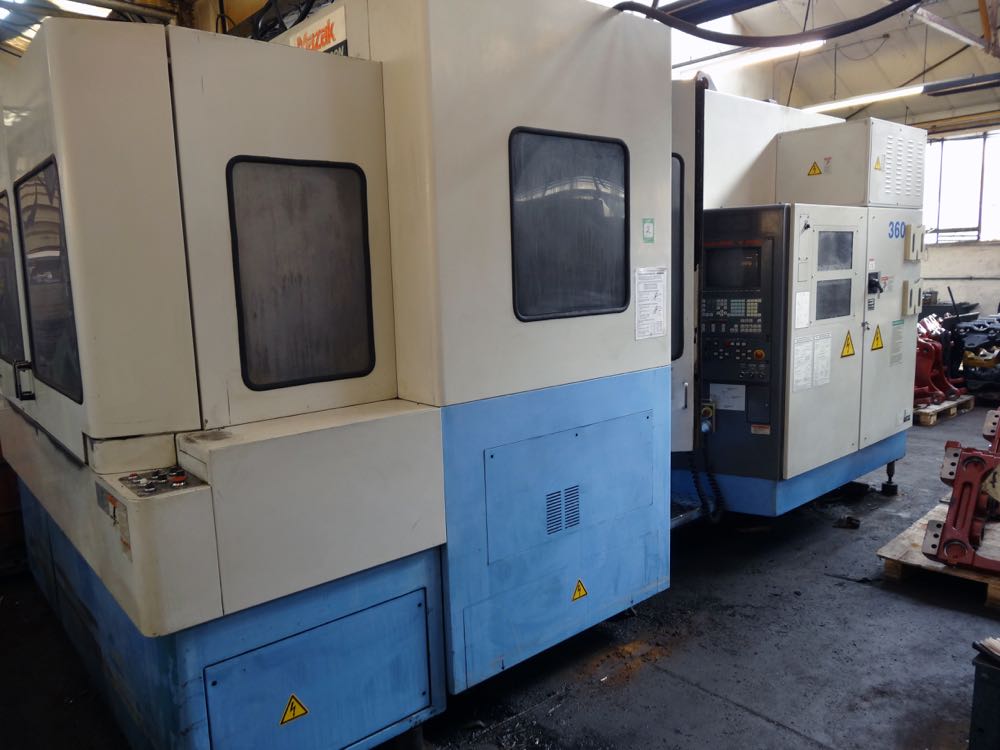

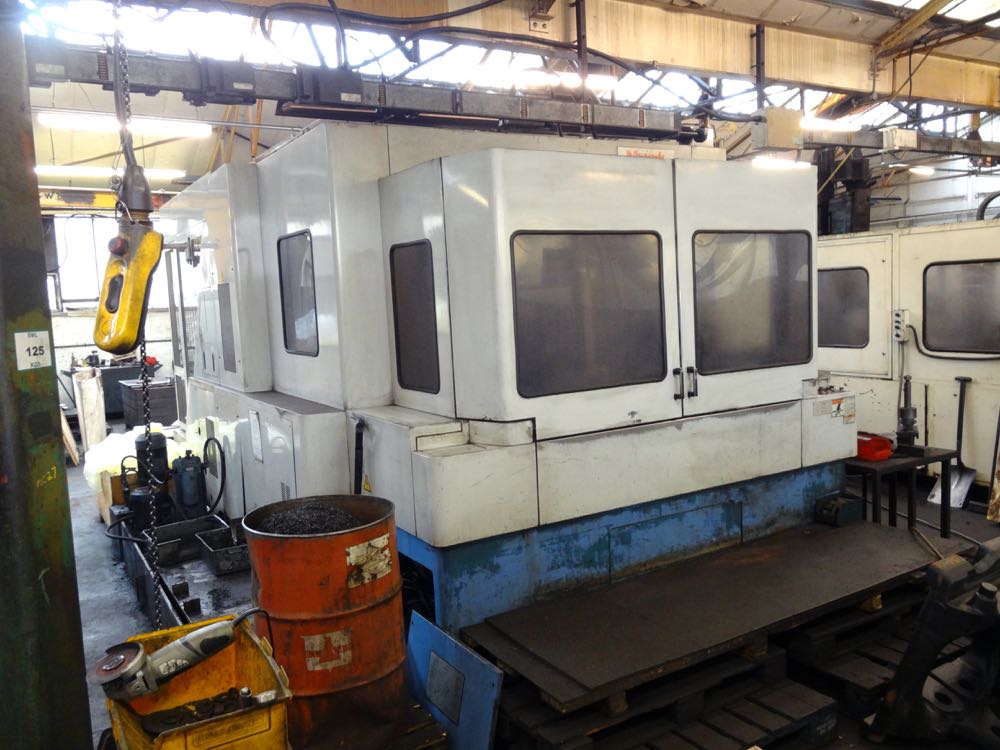

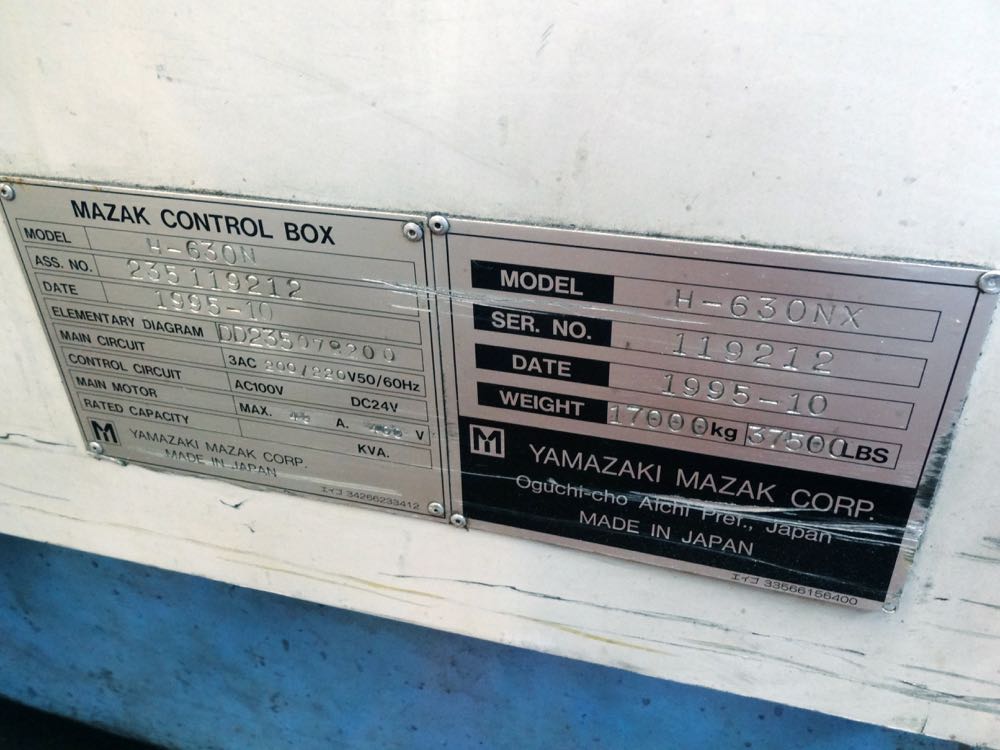

Mazak H630N HMC
S/n: 119212
Year 1995

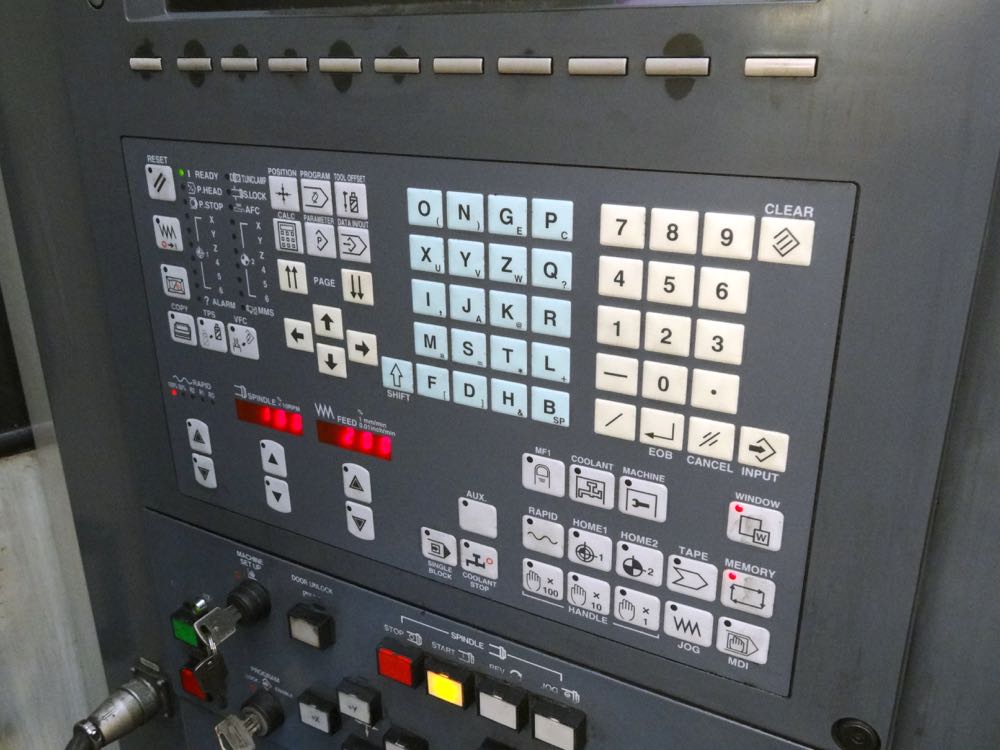

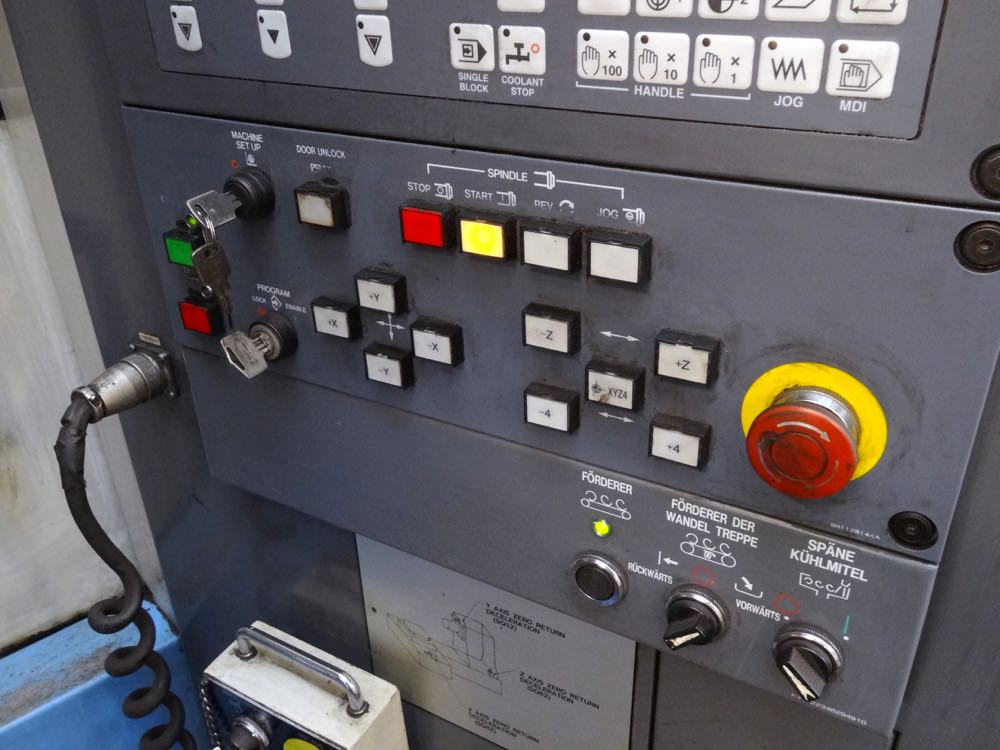

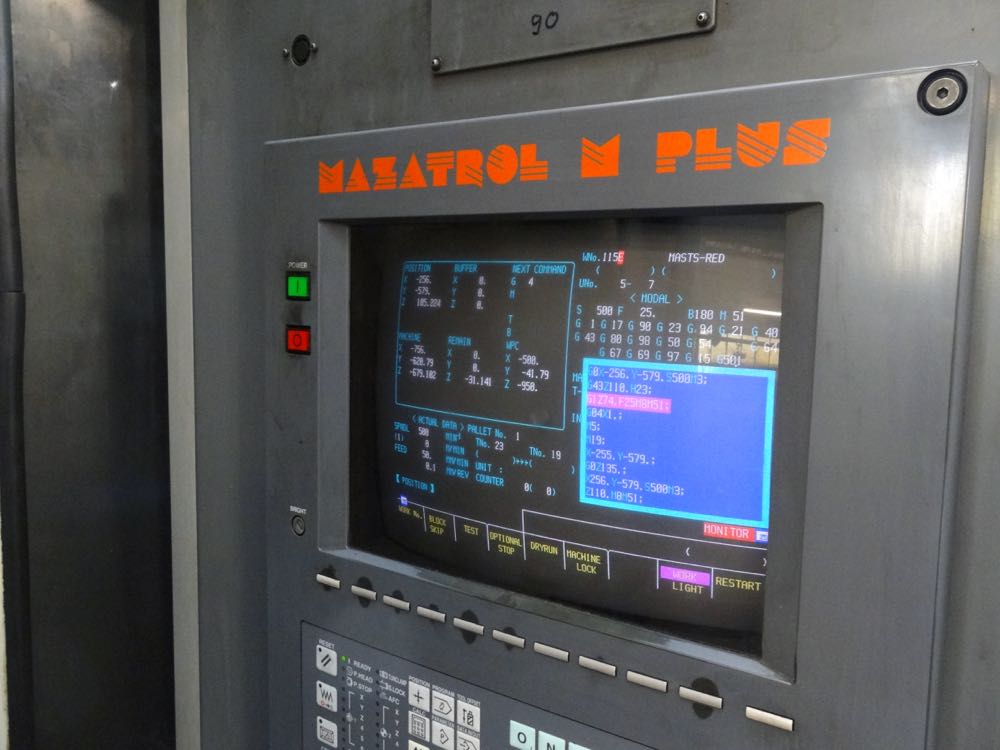

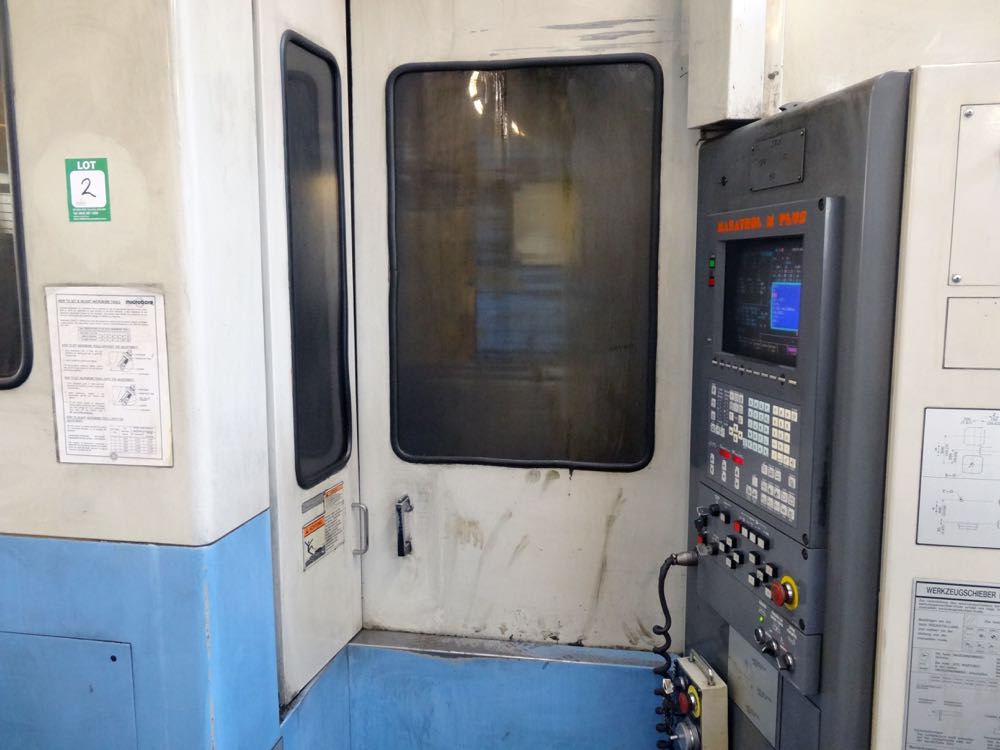

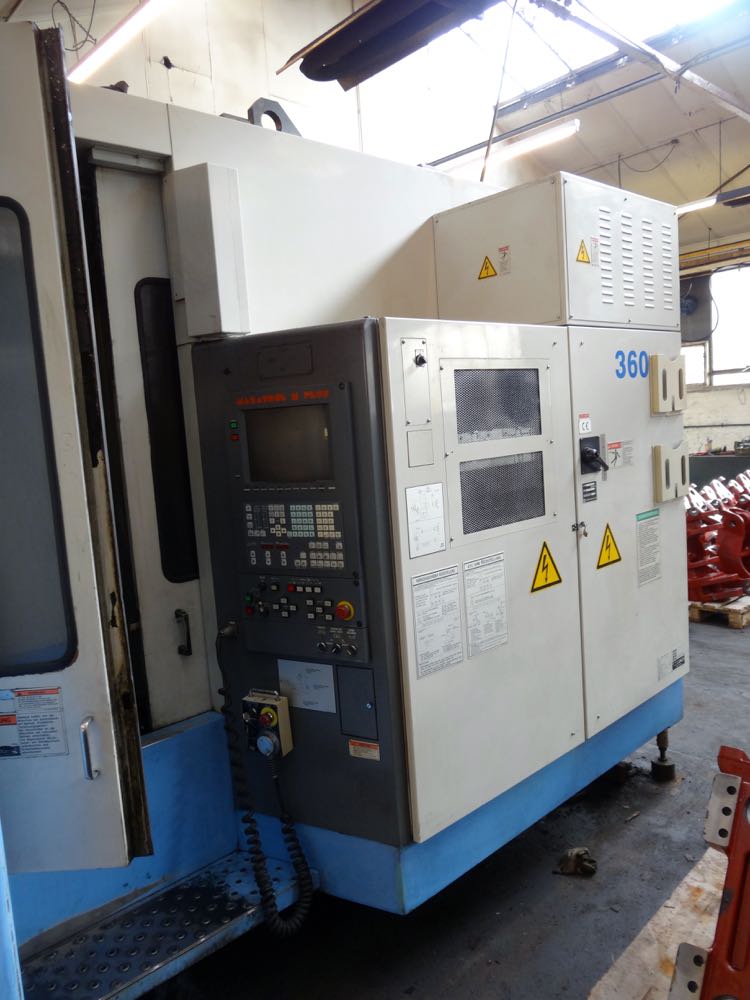

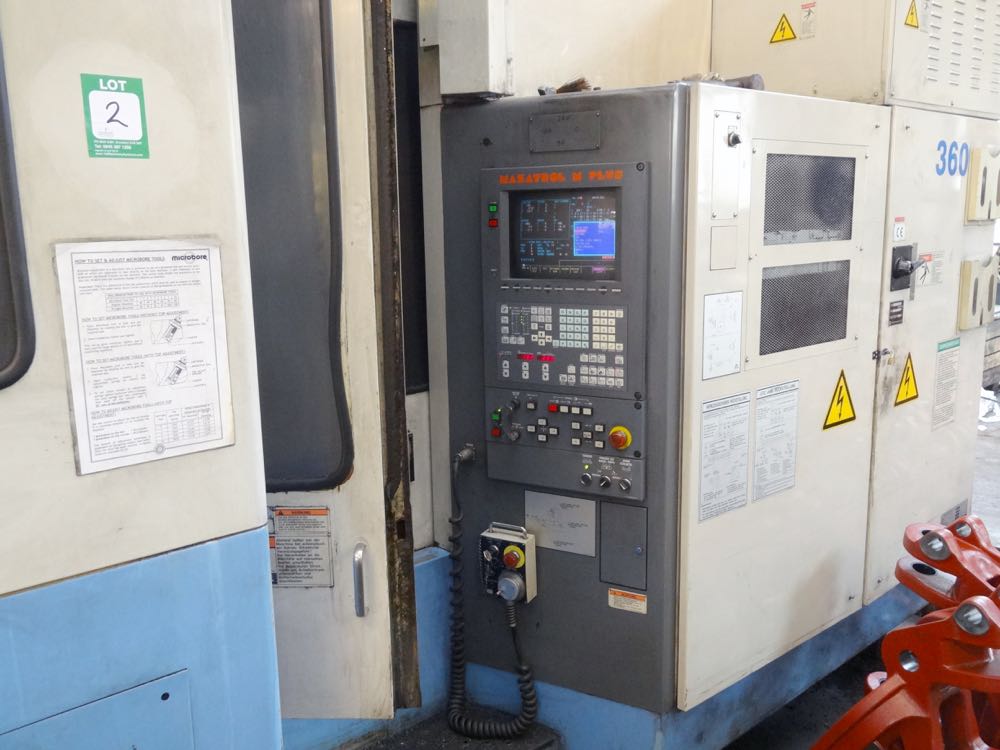

Mazatrol M Plus Control
Specifications

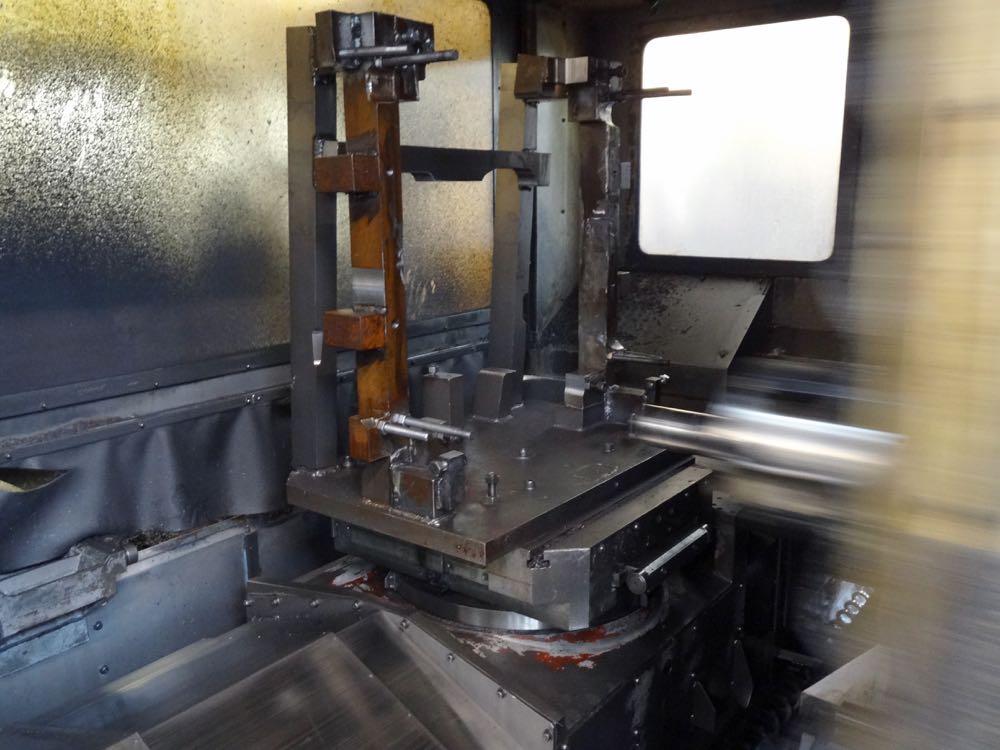

Pallet Size / Number of Pallets 24.8" x 24.8" / 2
Table Load Capacity 1200kg
Pallet Indexing 360,000 Position Full 4th
X-Axis Travel 39.4"
Y-Axis Travel 31.5"
Z-Axis Travel 29.5"

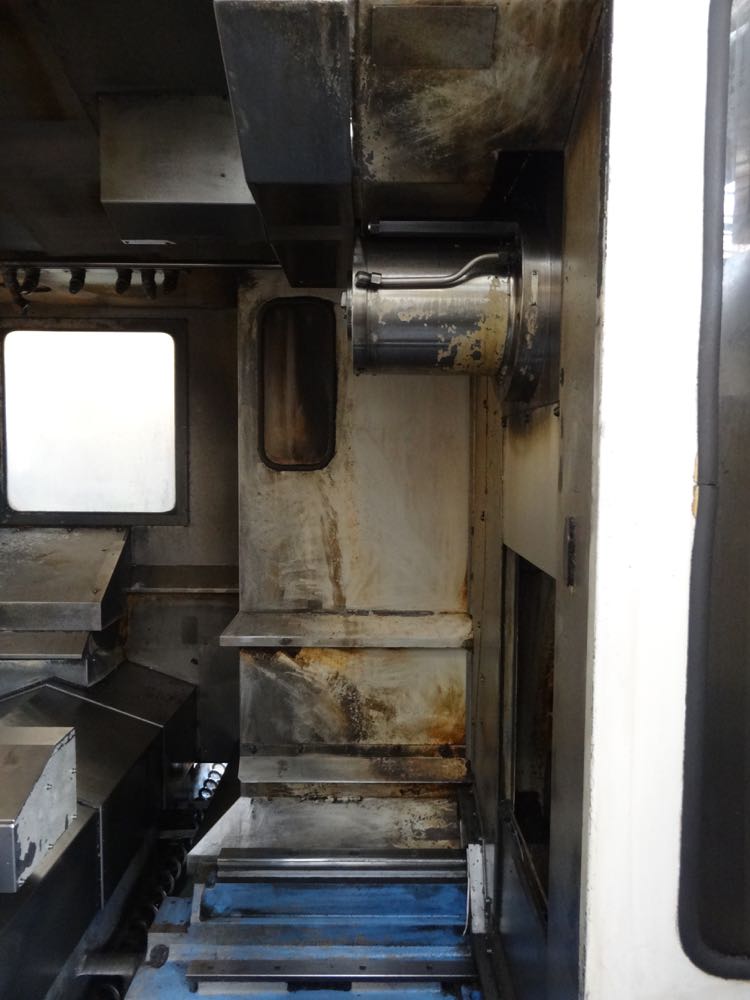

Spindle Nose CAT 50
Spindle Speed 22 ~ 4500 RPM
Spindle Motor 30 HP
Max. Spindle Torque 639 ft-lb
Max Tool Length: 500mm
Max Tool Dia: 135mm, 260mm
Spindle Center to Table Top 1.97" ~ 33.5"

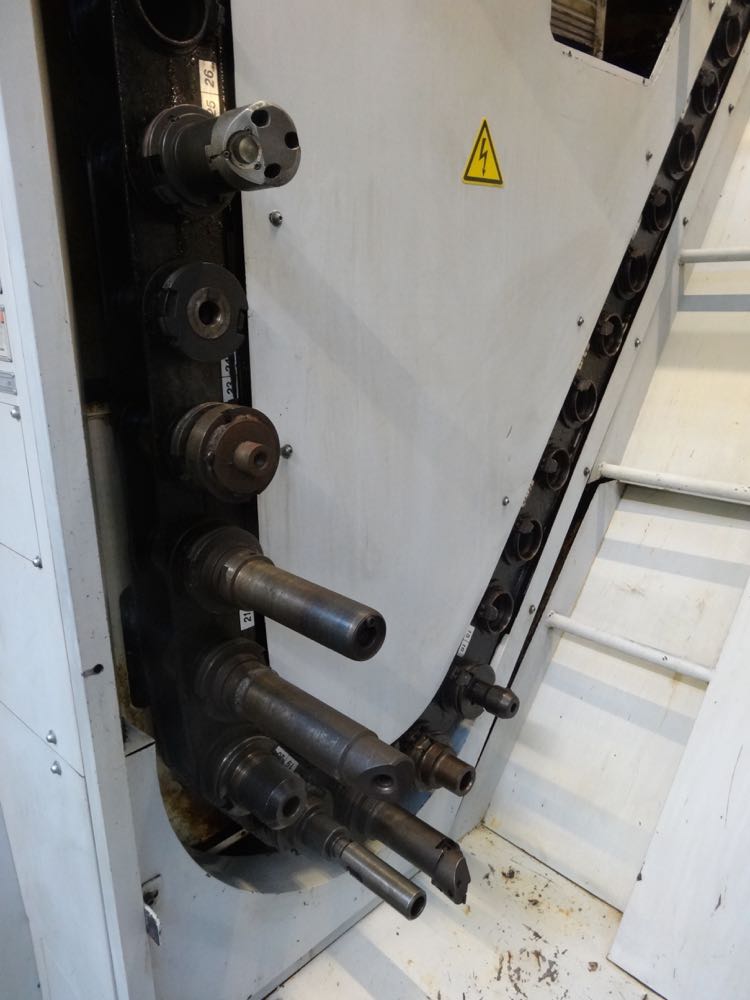

Number of Tool Positions 40 Position ATC
Max. Tool Diam. / no Adjac. Tools 5.12" / 10.2"
Max. Tool Weight 59.4 lbs
Rapid Traverse Rates 781 IPM
Machine Weight 17002kg
Equiped with

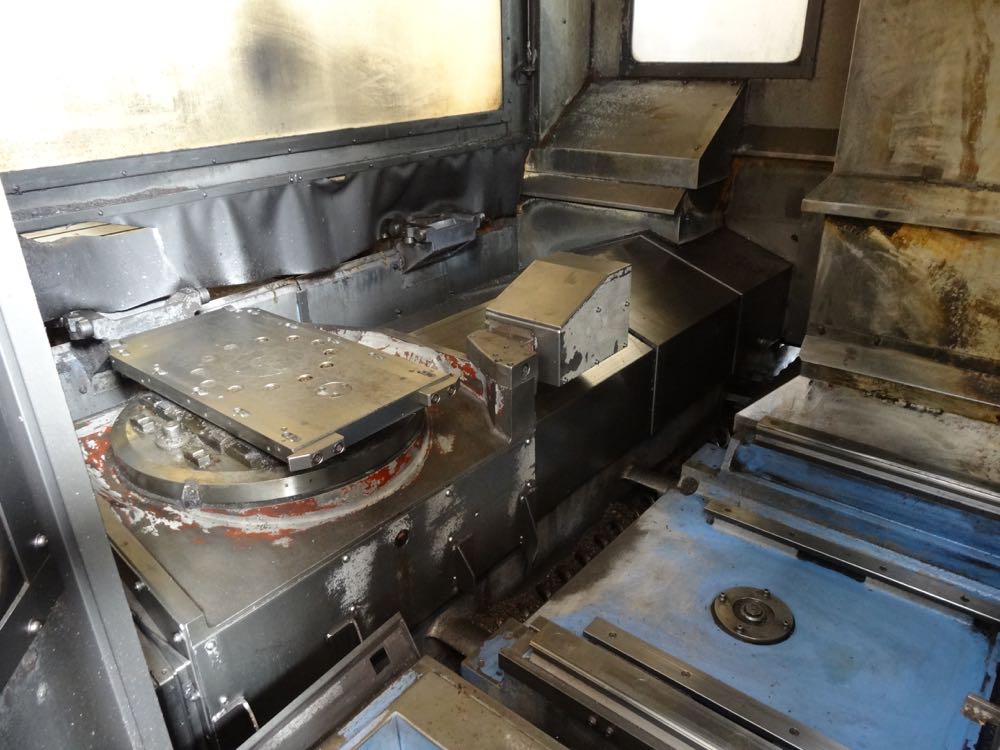

2 Pallet Changer
Coolant Thru the Spindle
Chip Conveyor
Multi Tap Transformer
Flood Coolant
Tooling package TBC
Location: Thurmaston Leicester
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
