Lot 34: Mecof DGT2 - 5 axis Bed Milling New Control

This page will update every 3 seconds. Bidding will be extended on individual lots if bids are placed within 10 minutes of the items end time.

Bidding Information

Final bid:	£22500
Increment:	£500
Bids:	2
Ends in:	2012-02-02 15:10:00 ( bidding ended )

Description

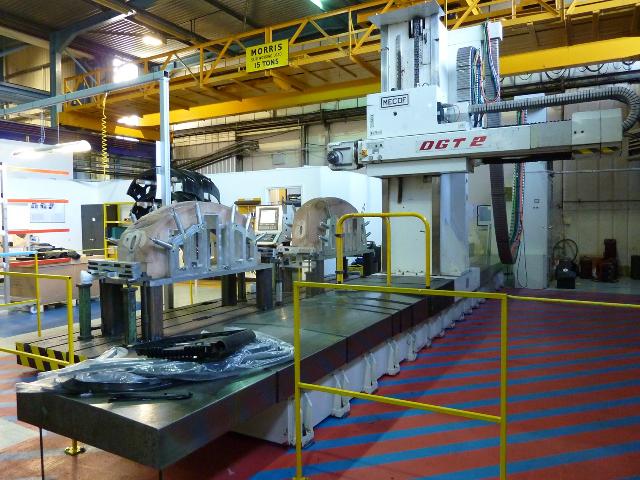

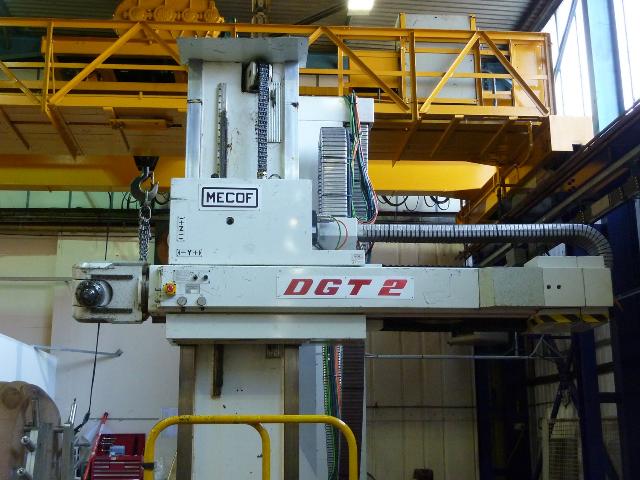

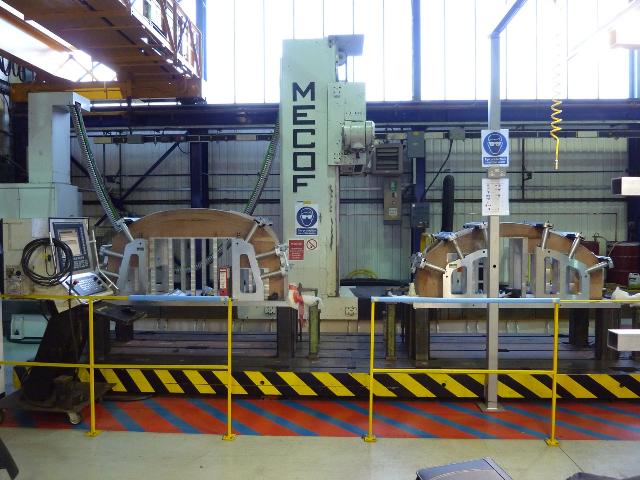

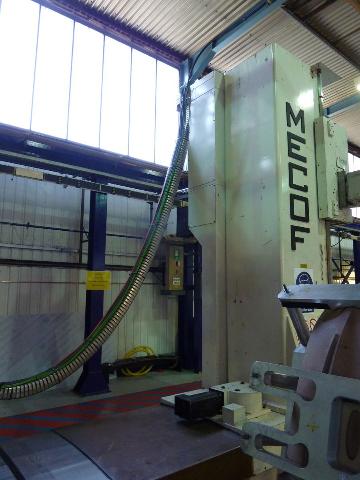

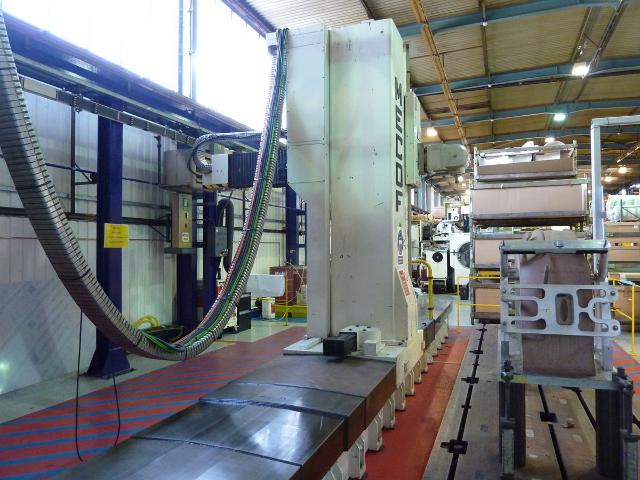

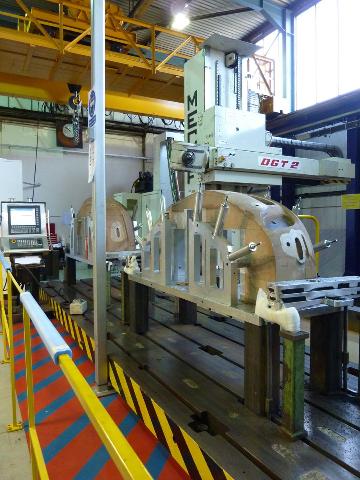

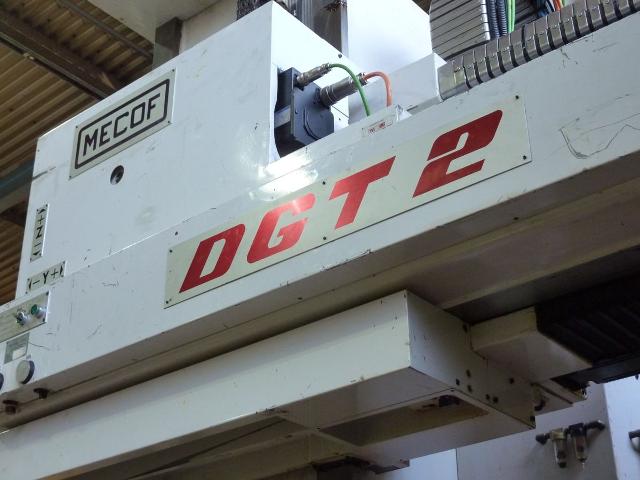

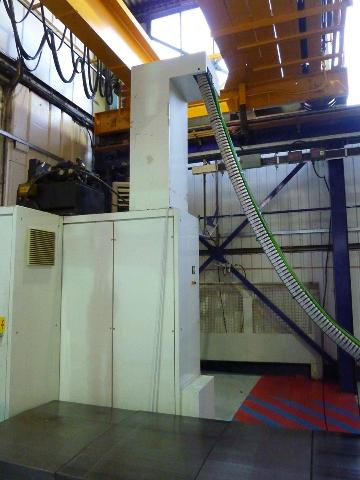

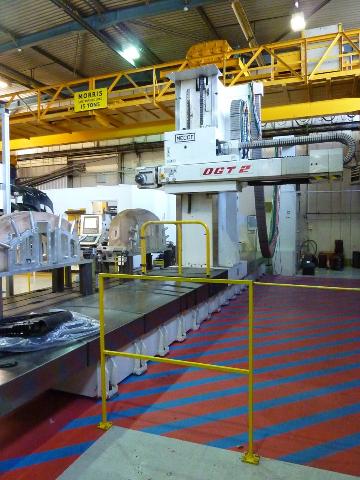

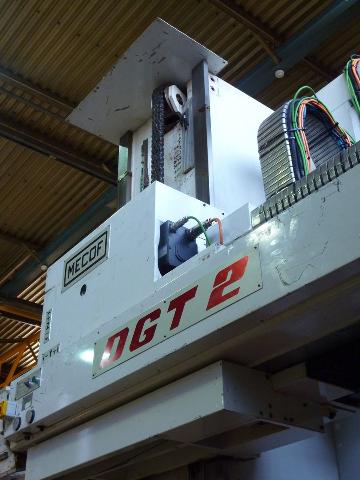

Mecof DGT2 5 axis Bed Milling Machine

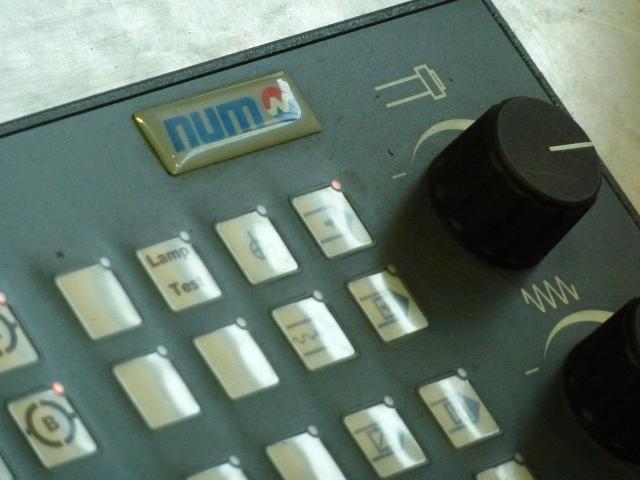

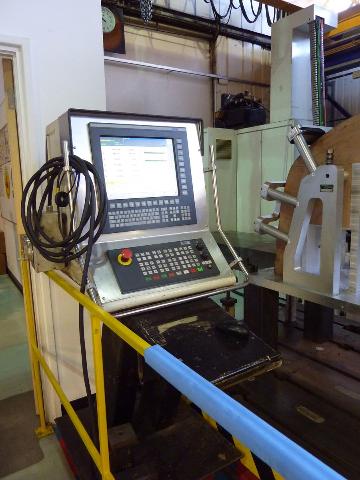

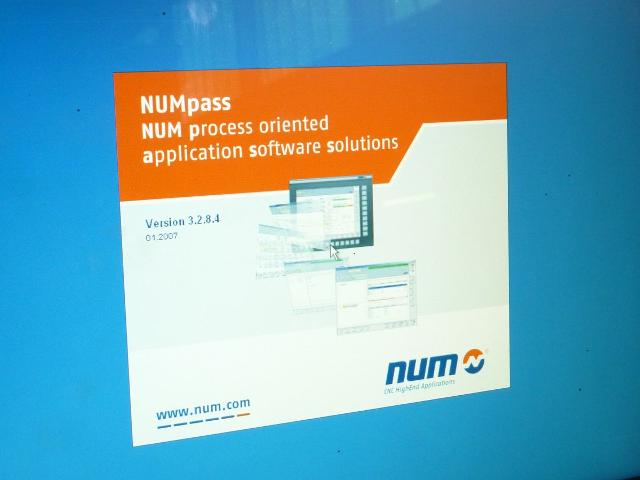

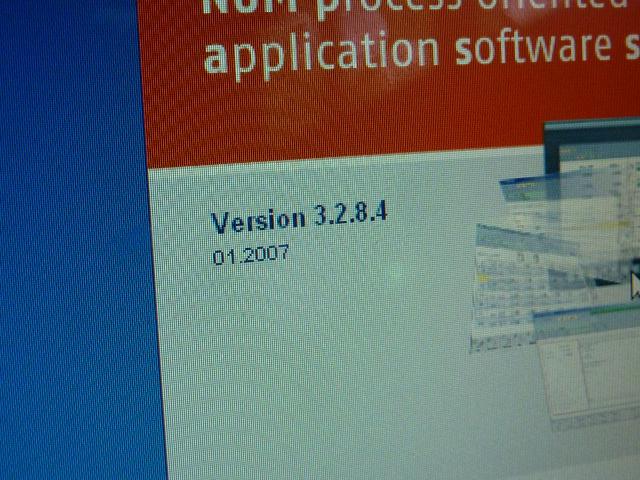

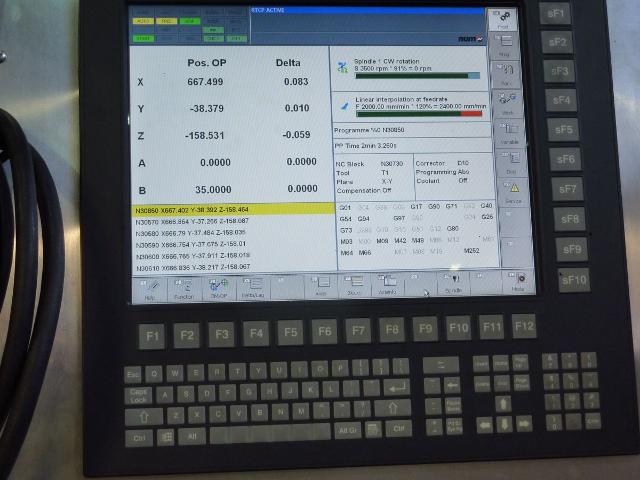

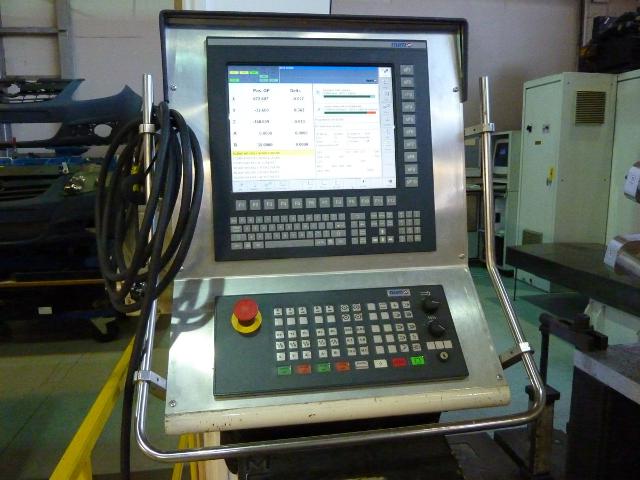

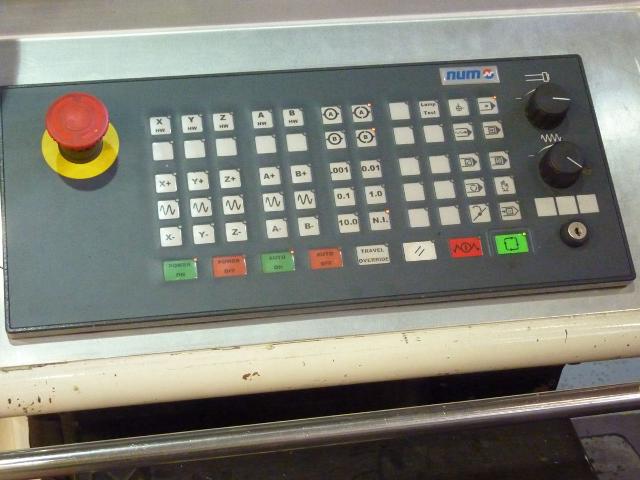

New Num CNC Control fitted in 2009 with new drives, motors and electrics, it also has Window XP, so you can operate it with a mouse.

X Travel 6000mm
Y Travel 1000mm
Z Travel 1680mm
A Axis -5/+185
B Axis -190 / +195

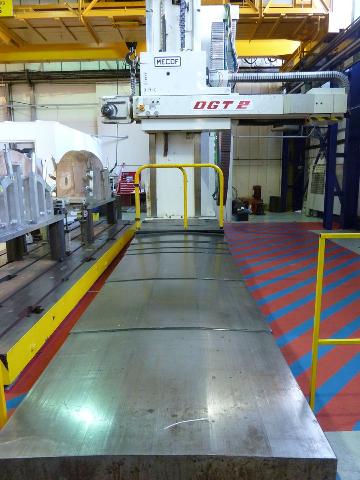

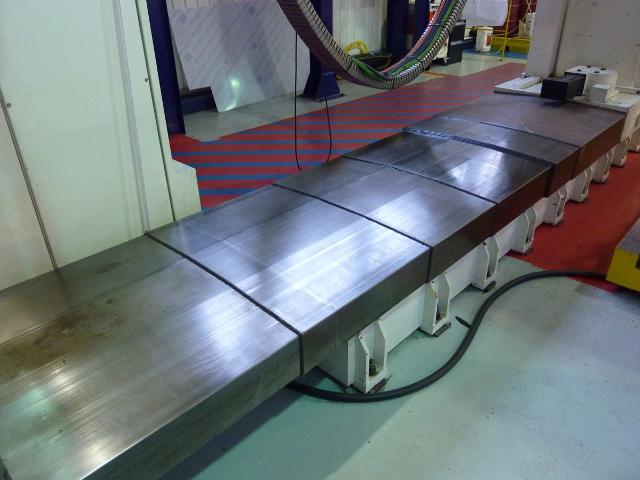

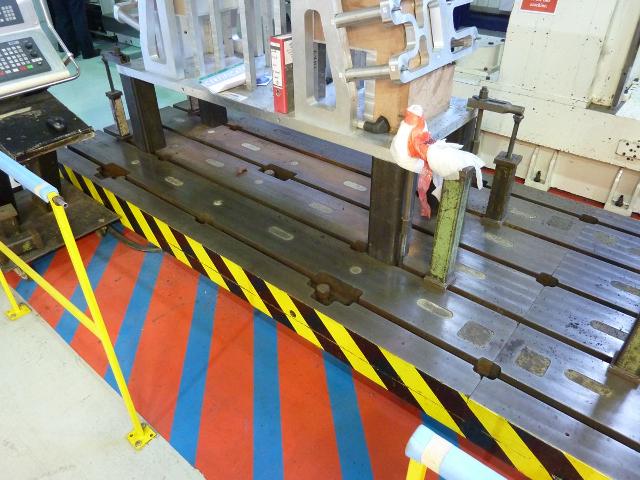

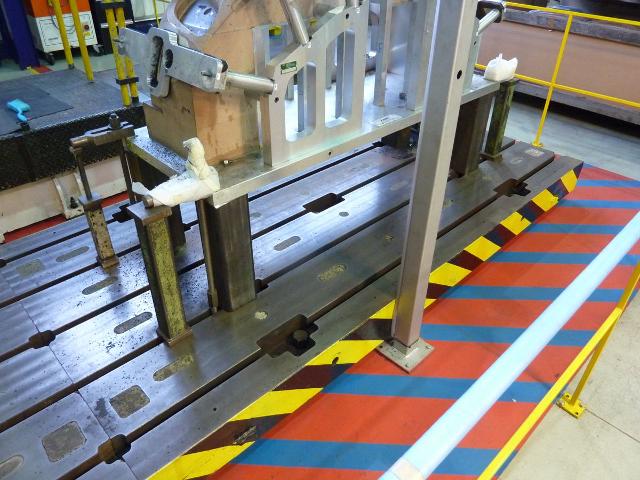

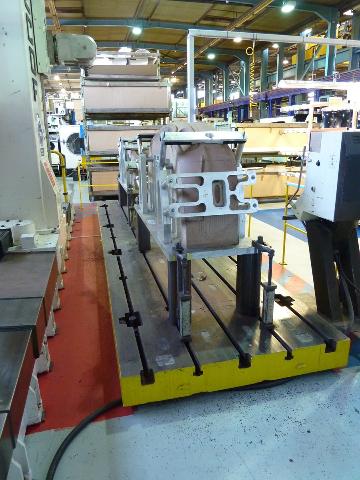

2 x Bedplates 3070mm x 1535mm x 200mm
5 T slots

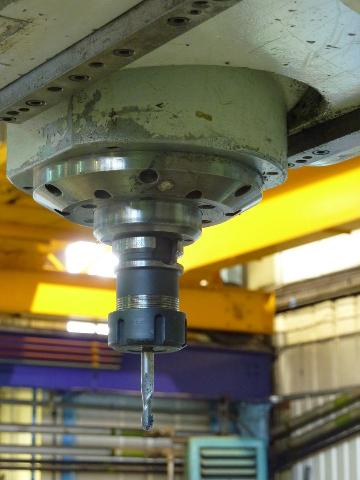

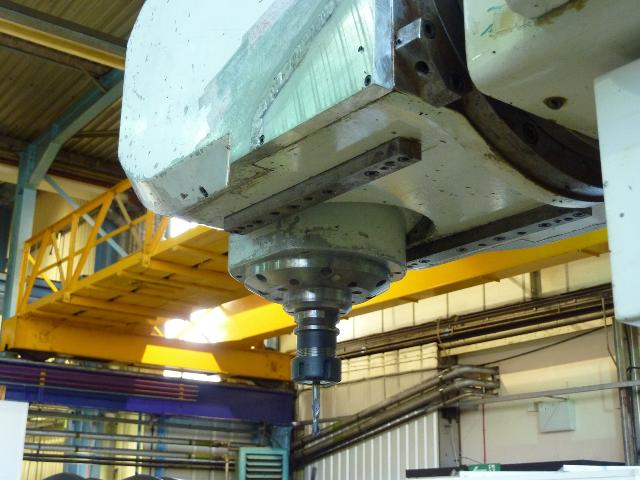

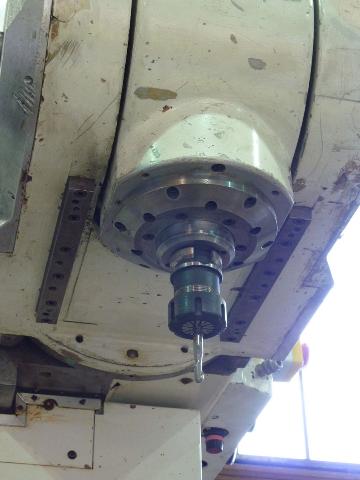

Spindle Taper SK30
Spindle Speeds 15000rpm
Spindle Motor 15hp
Power Draw Bar

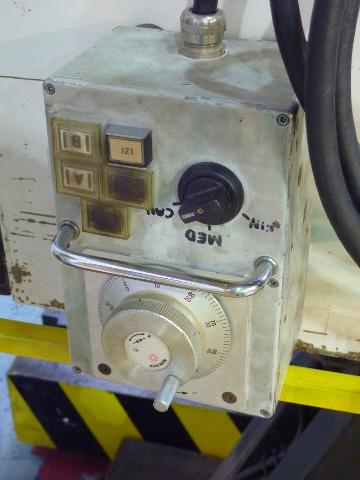

Wander lead

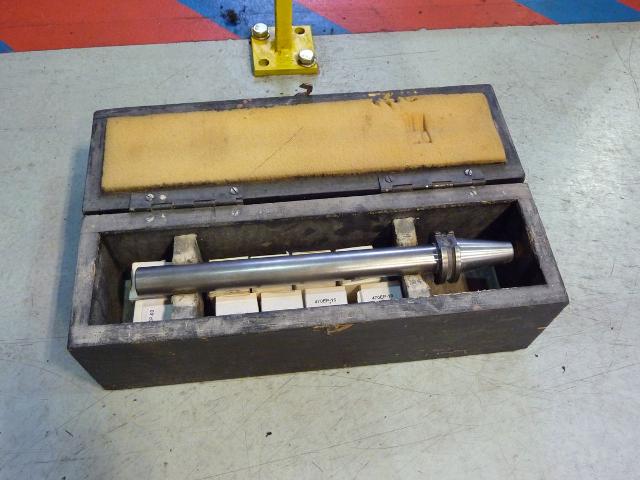

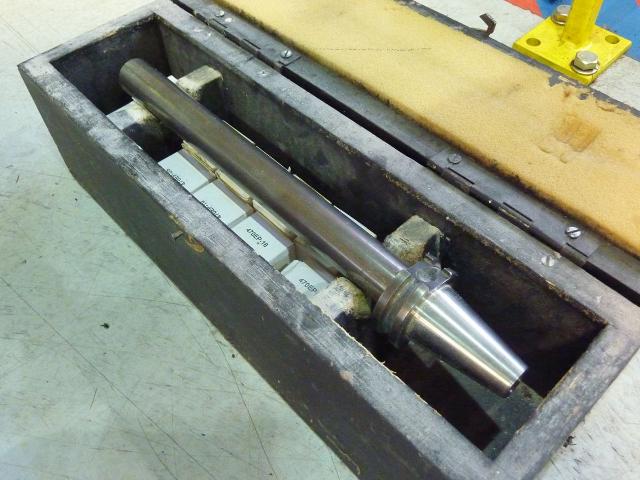

Setting Bar

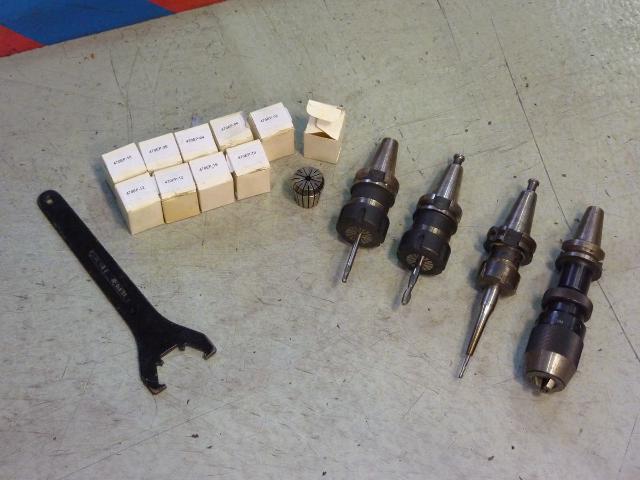

Collets

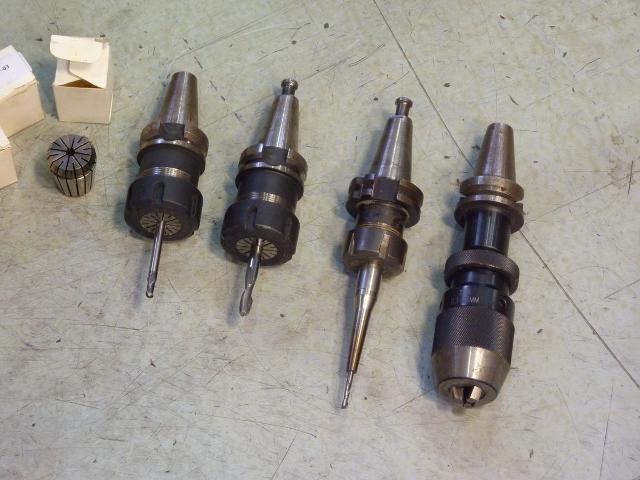

4 Tool Holders

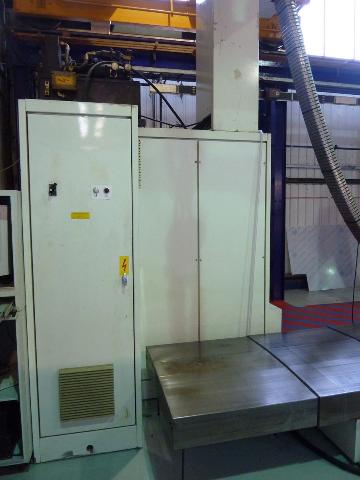

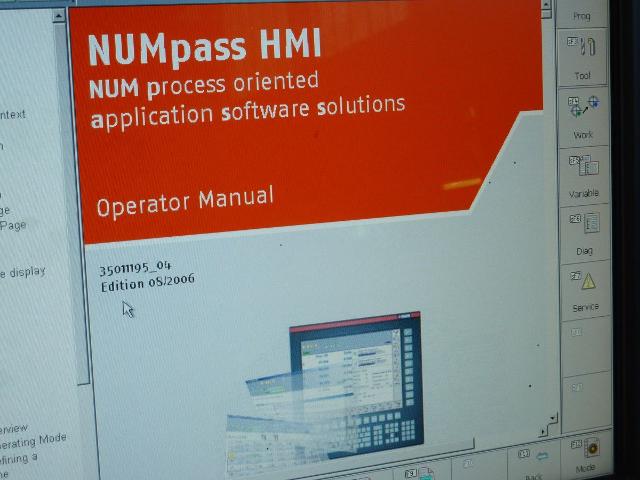

Num Control Manuals and new electrical drawings
NO Machine Manuals

Working Area: L 11000mm x W 7000mm x H 4200mm
Machine Weight: 27200kgs

The machine is currently set-up for true 5 axis machining using RTCP and its not suitable for cutting metal of any kind

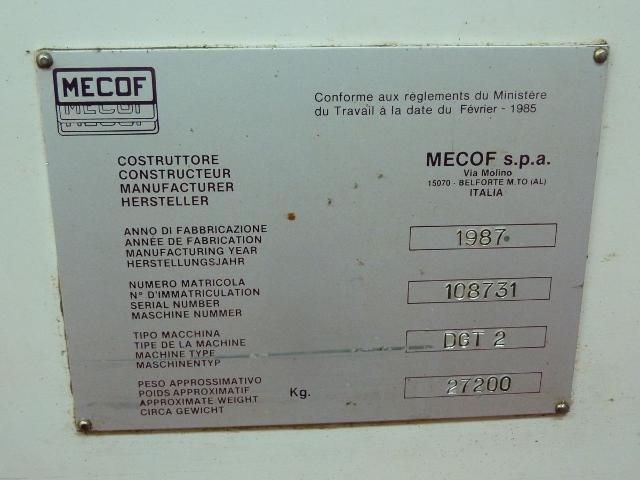

Year of manufacturer 1987
Serial Number: 108731

Location: Petersfield, Hampshire
