Lot 5 - Proking Model LC40/3000 Oil Country CNC Lathe (Year 2001)
Description:

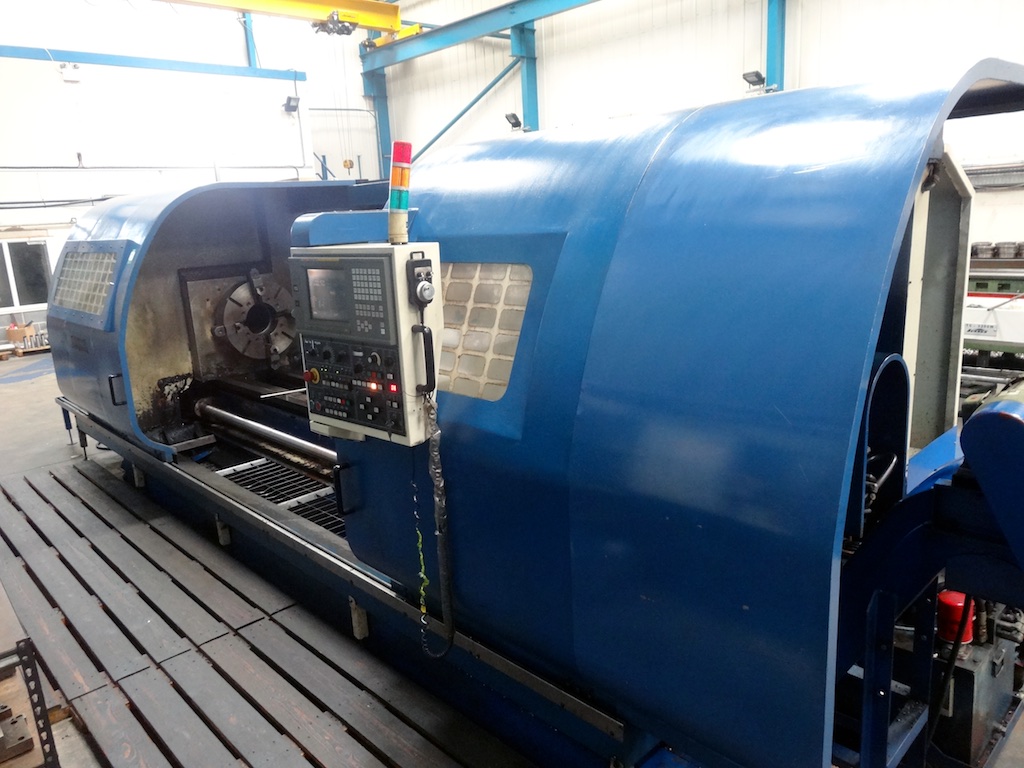

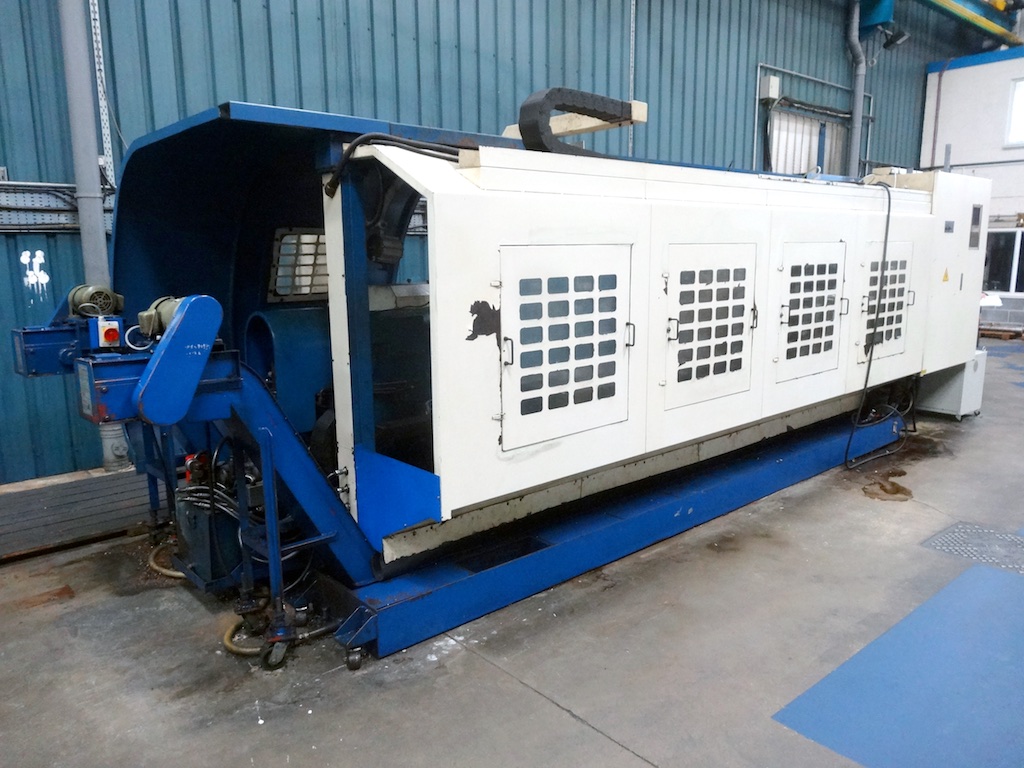

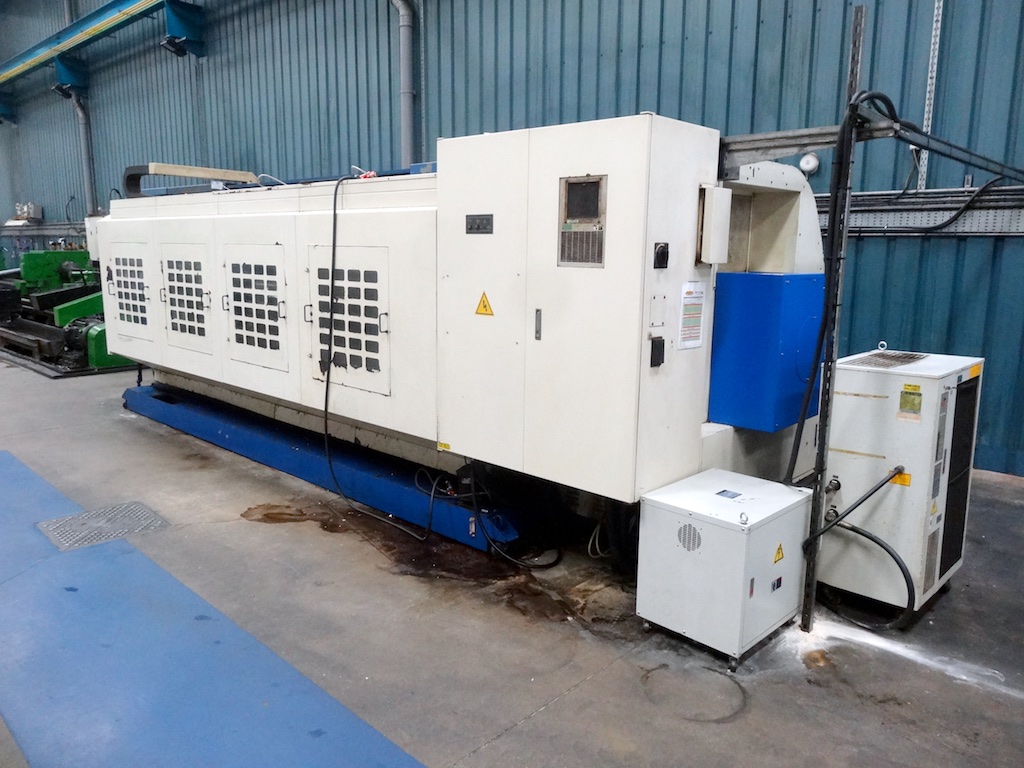

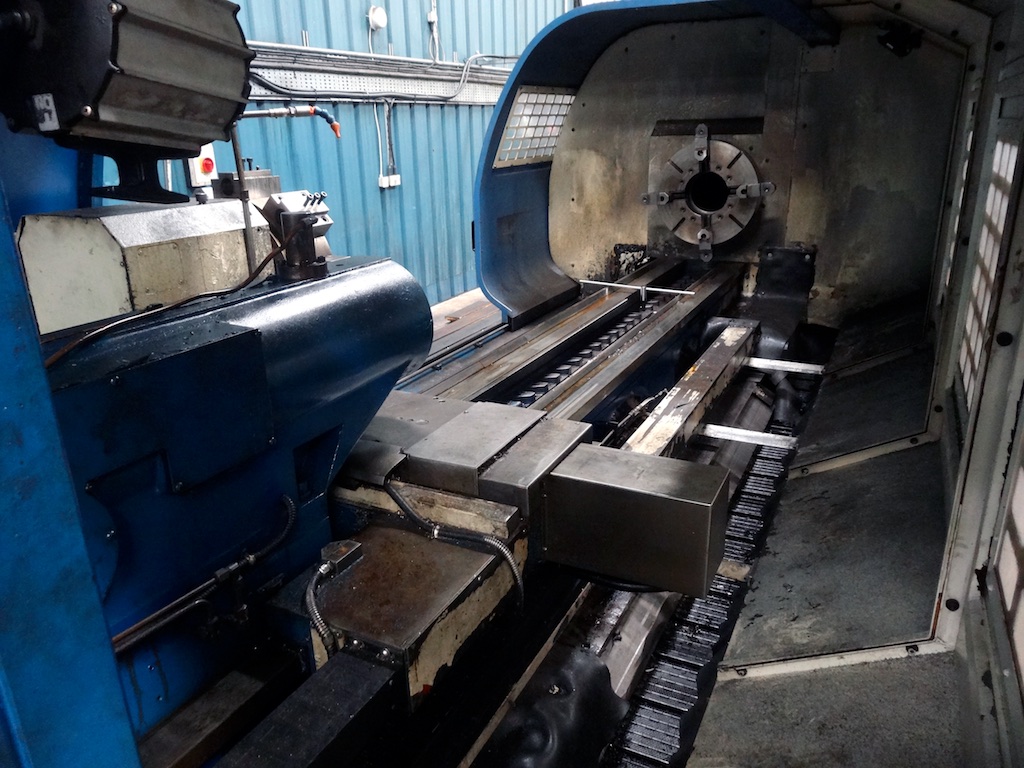

Proking Model LC40/ 3000 Oil Country cnc lathe
Year 2001, serial no. LC40/ 27865
1010mm swing over bed
640mm swing over cross slide
3000mm between centres
230mm spindle bore
bedwidth 560mm

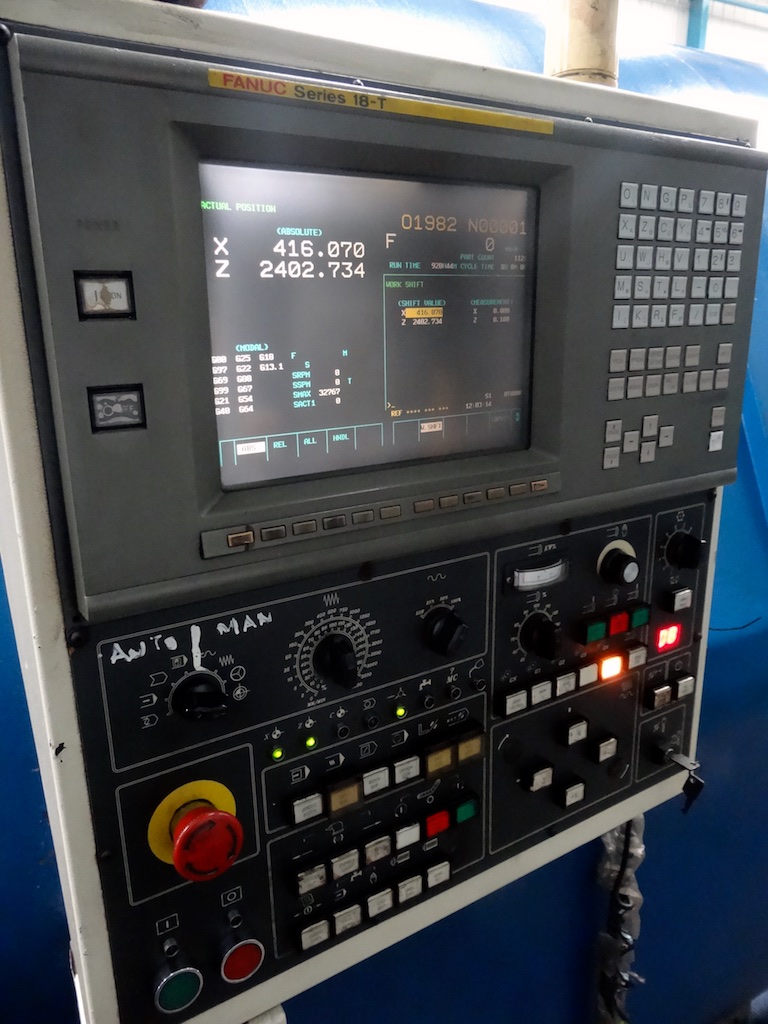

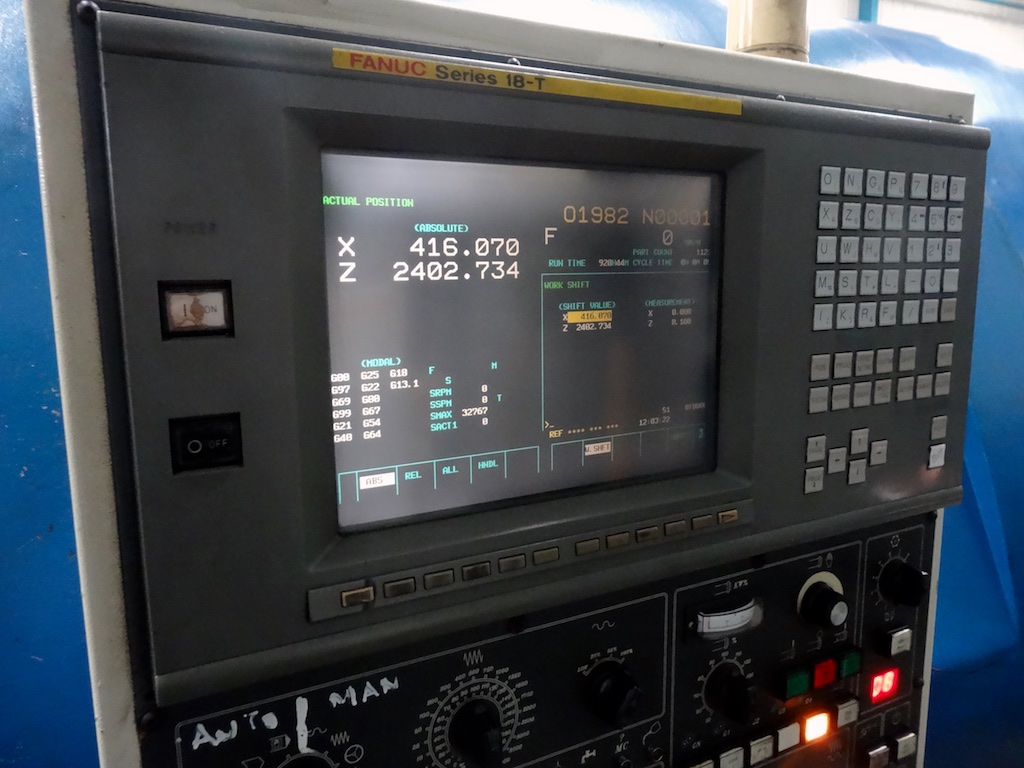

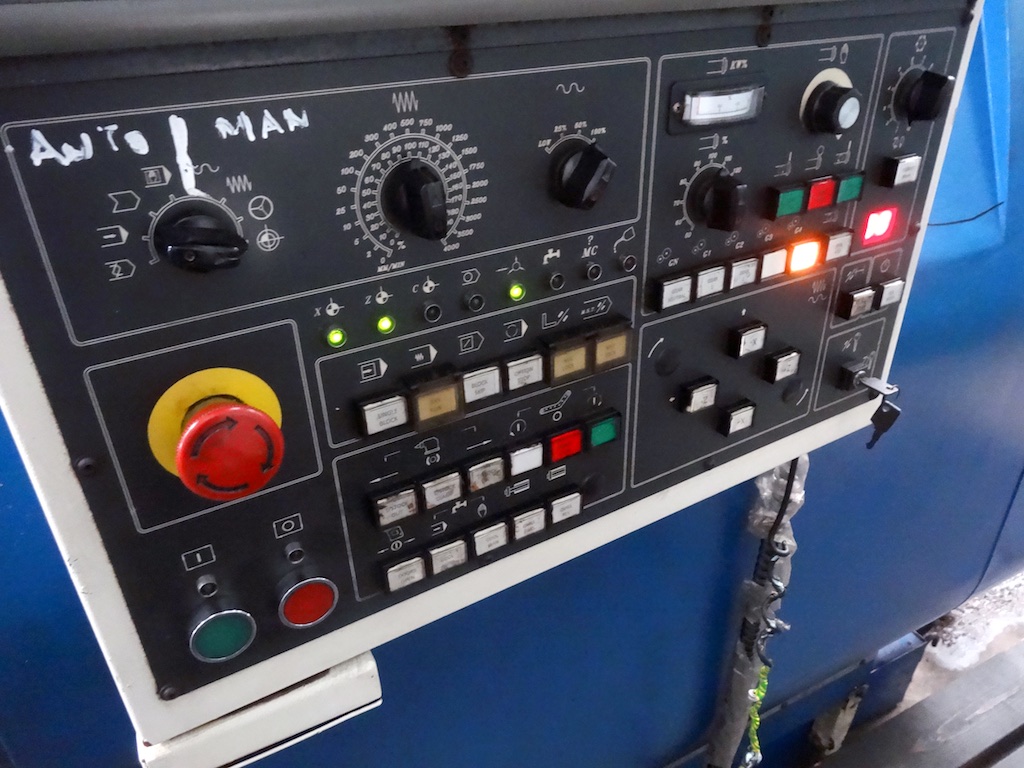

Fanuc series 18-T Control

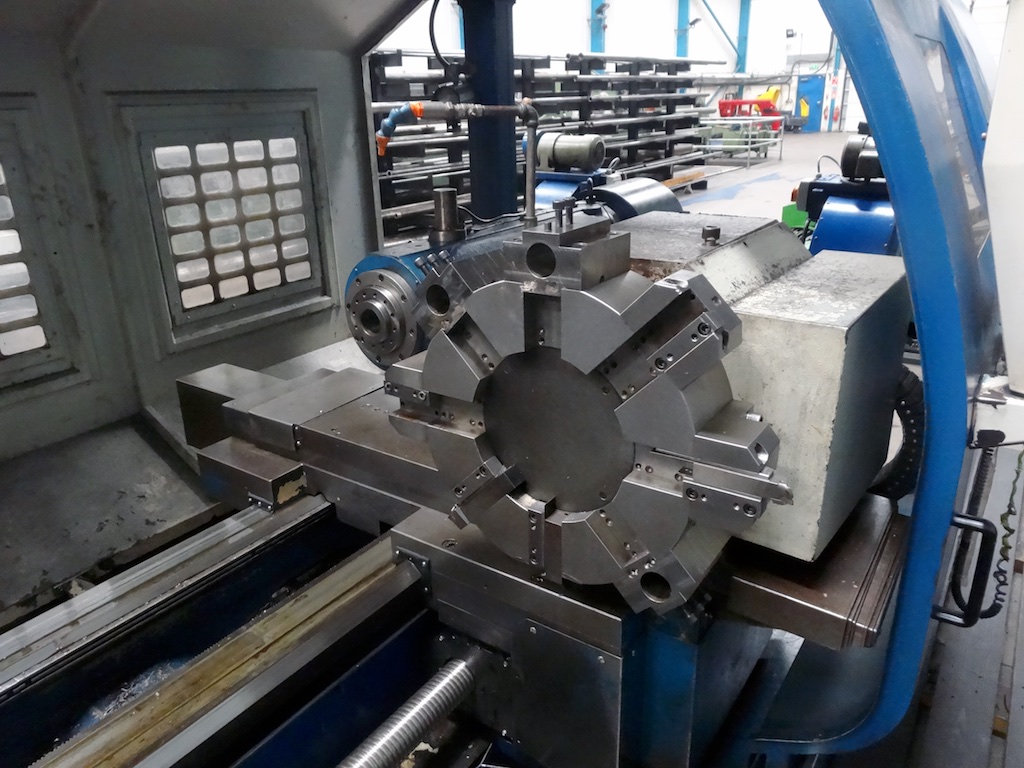

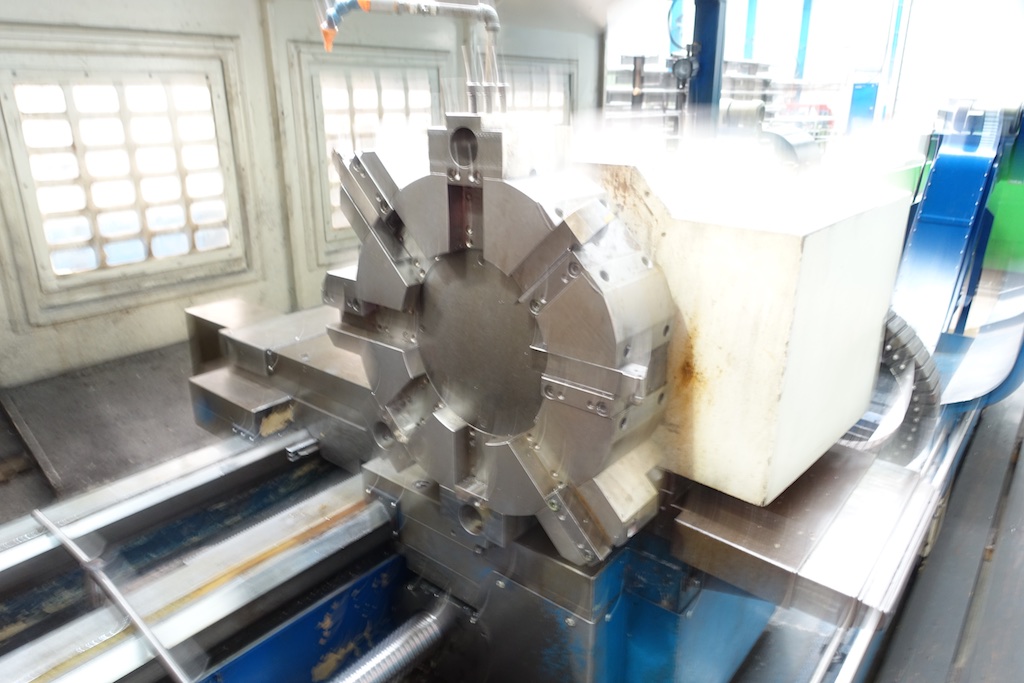

8 Station Turret

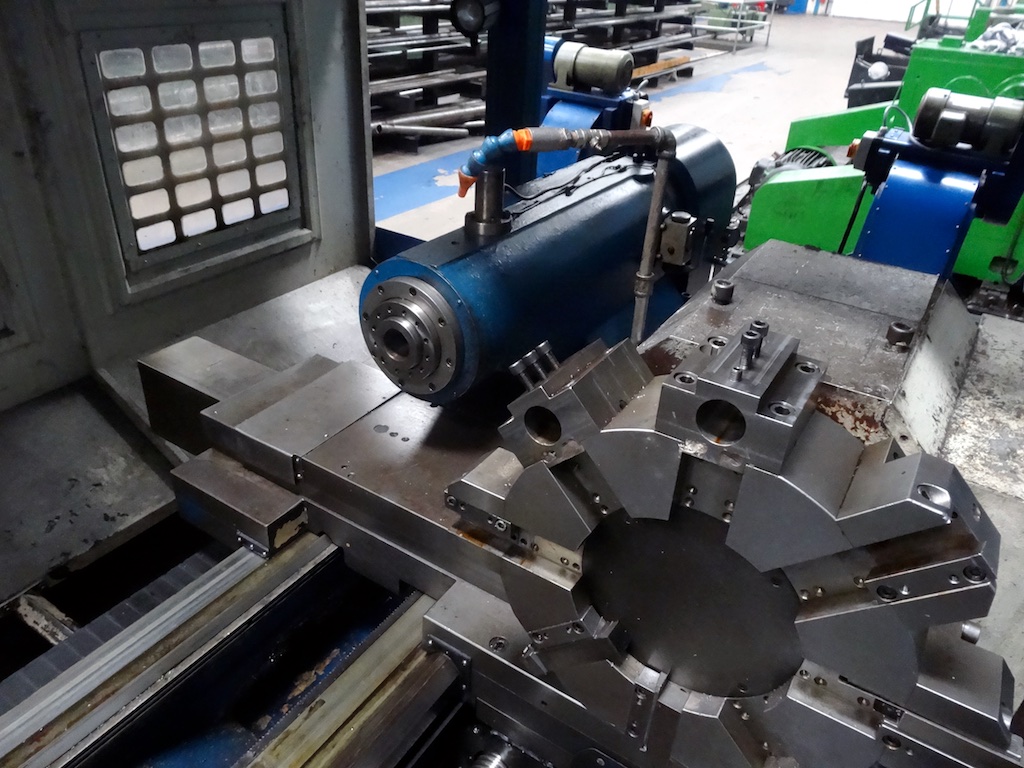

Hydraulic Tailstock, 6 Morse taper

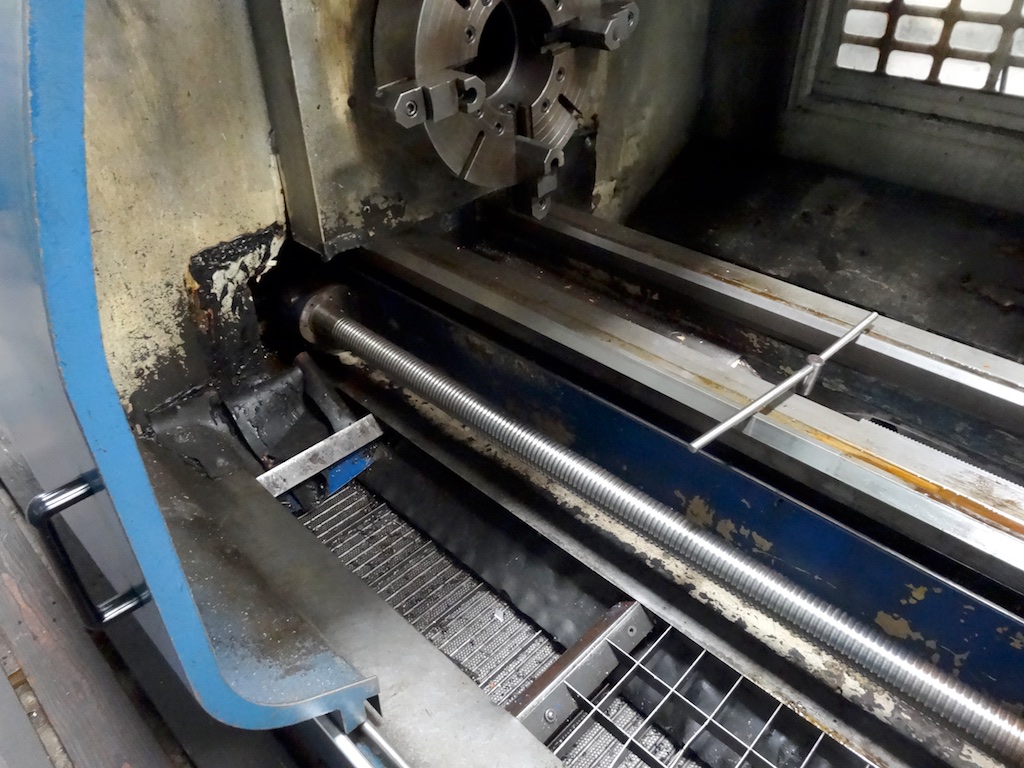

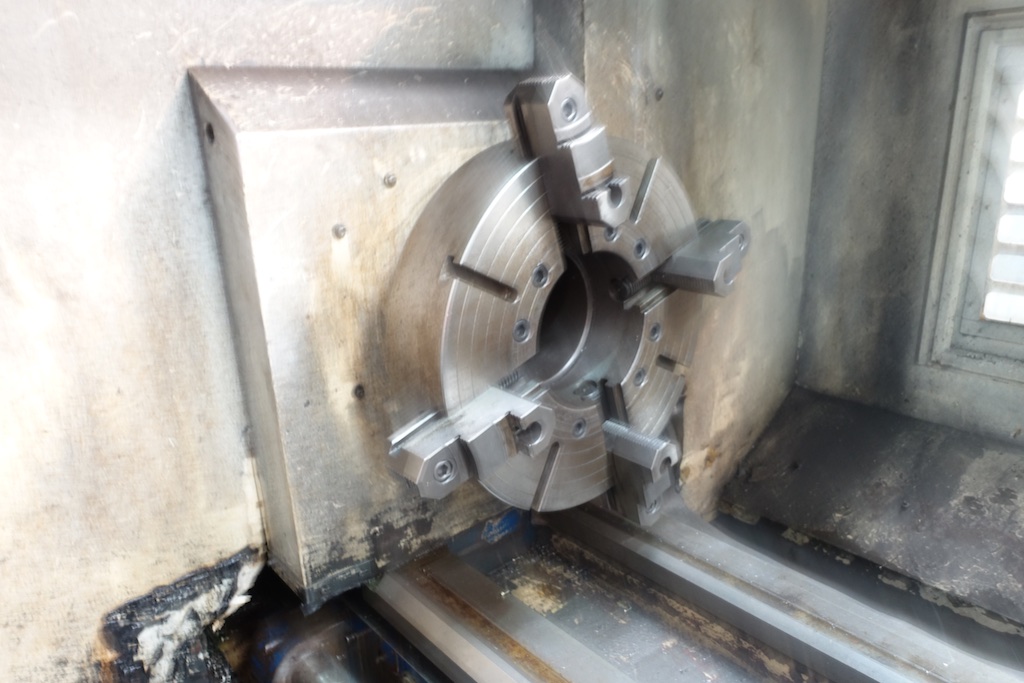

600mm 4 Jaw Chuck
Machine is configured for twin chucks but no back chuck supplied with machine

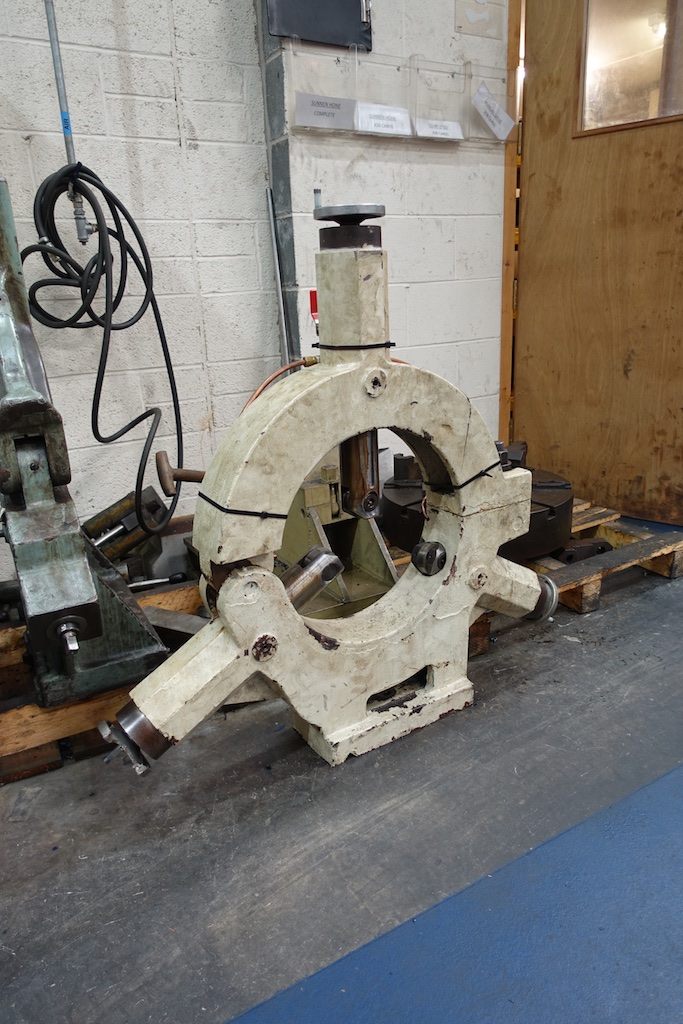

1 off fixed stady with 75mm - 300mm capacity

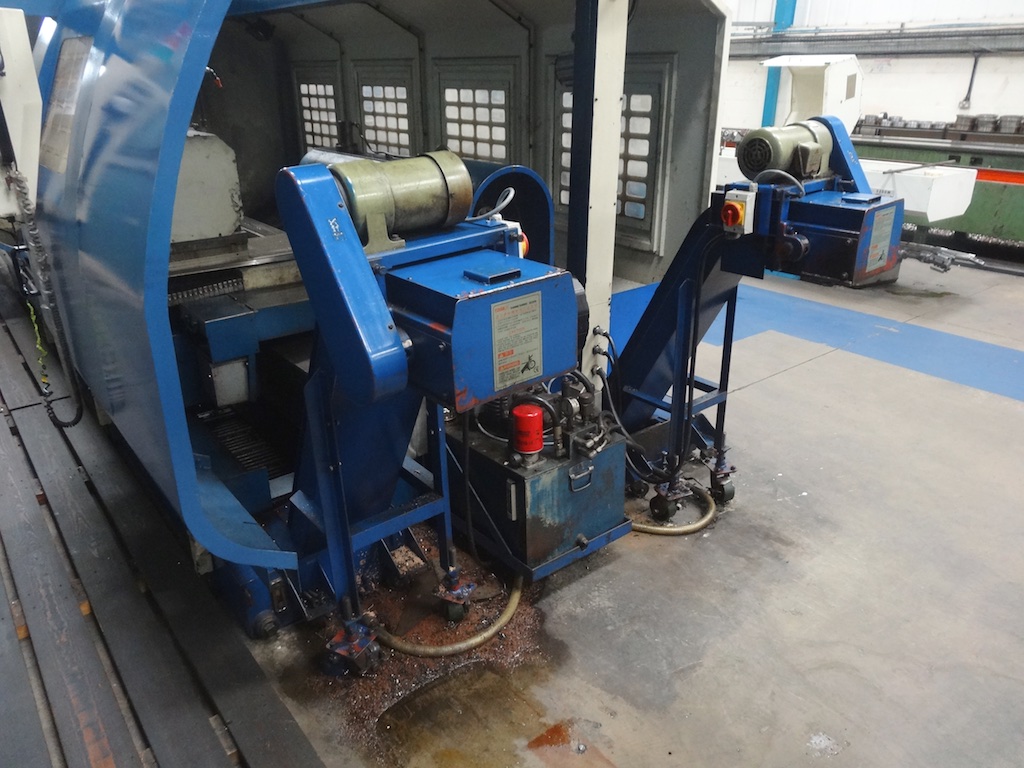

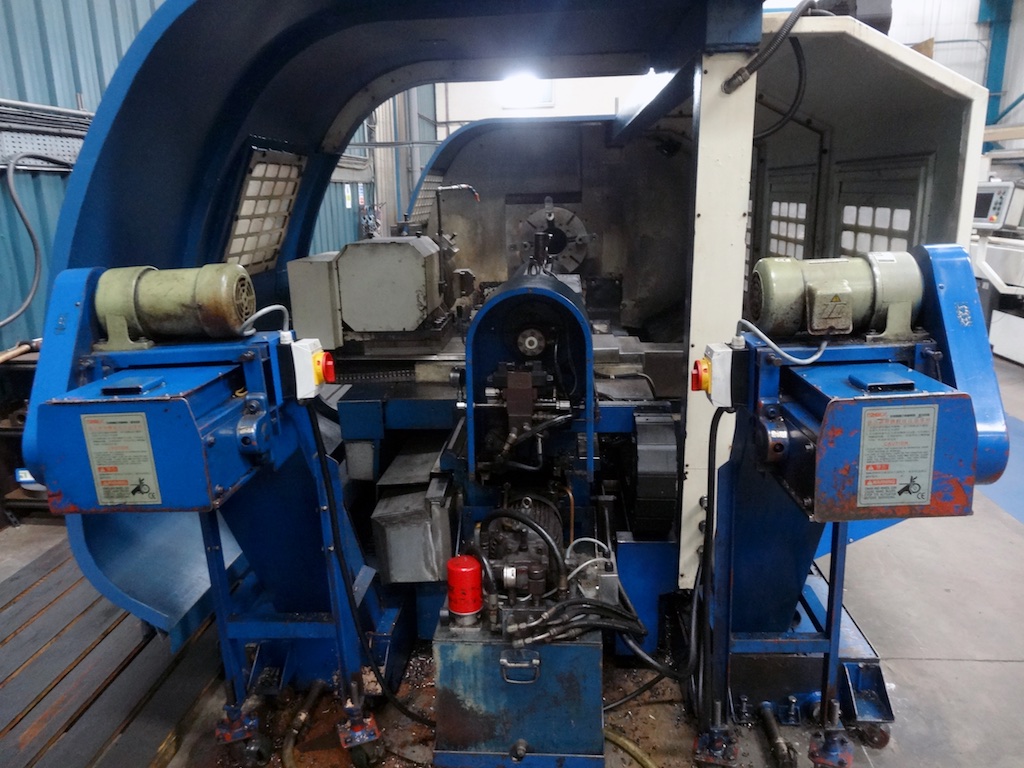

twin swarf conveyors

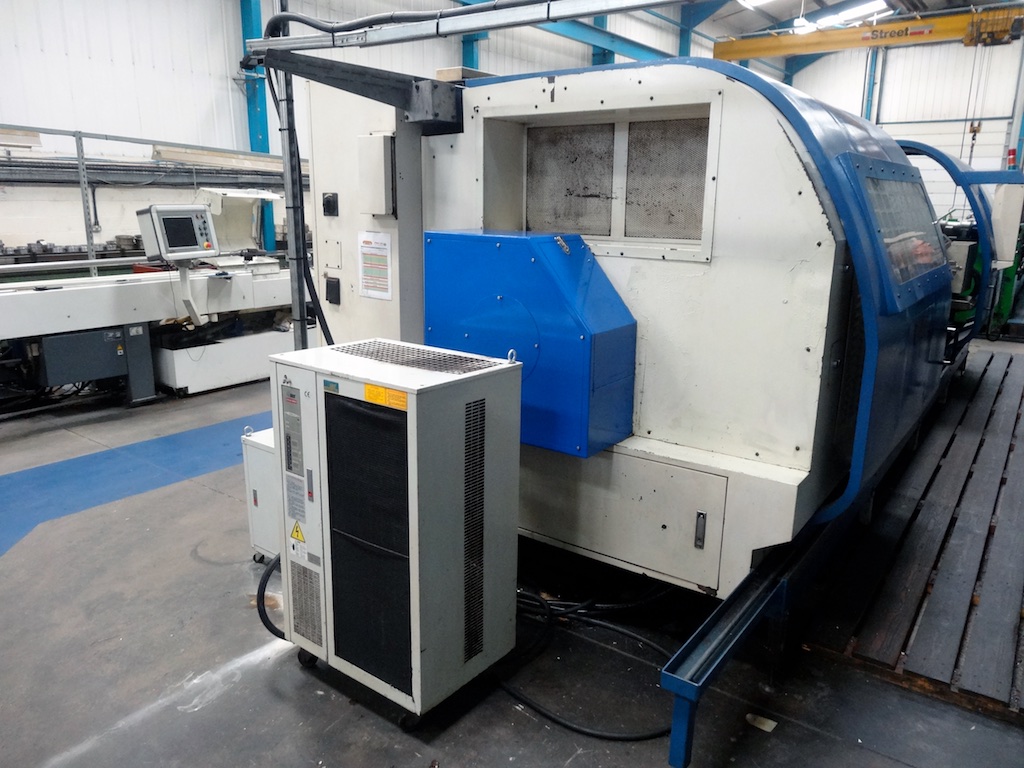

Cooler unit 50 x 60 x 120cm
Uennliang Electric Transformer 50 x 60 x 65cm
Machine L x W x H: 7040 x 2700 x 2500mm
weight 11,000kg
Location: Sheffield
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
