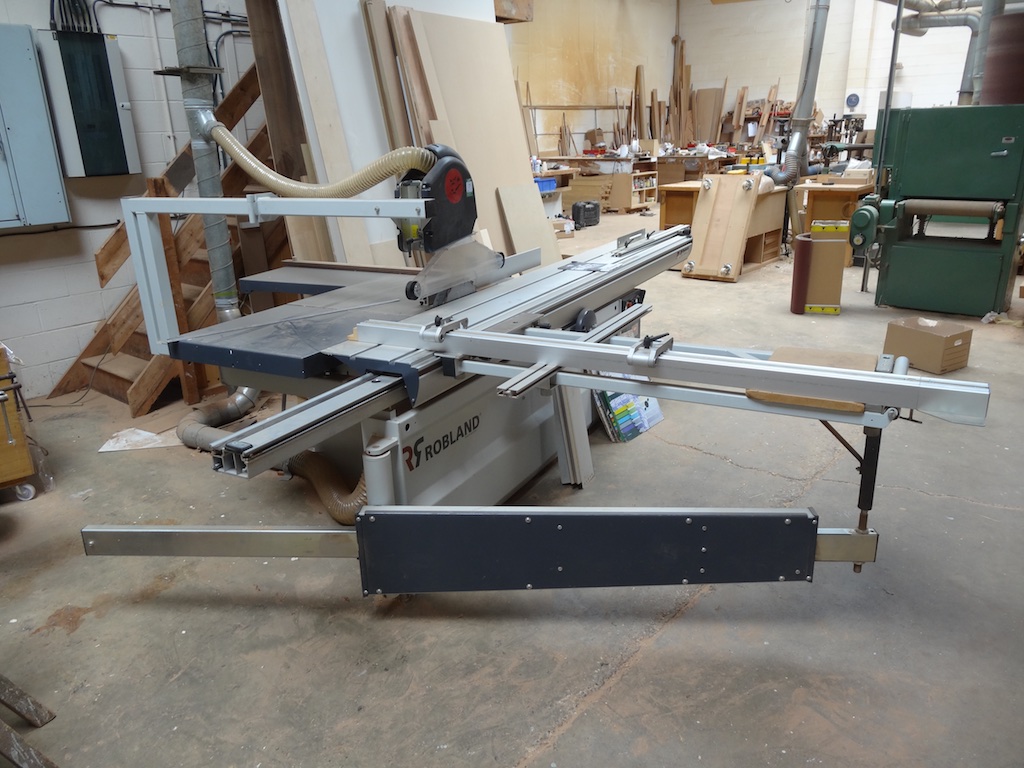

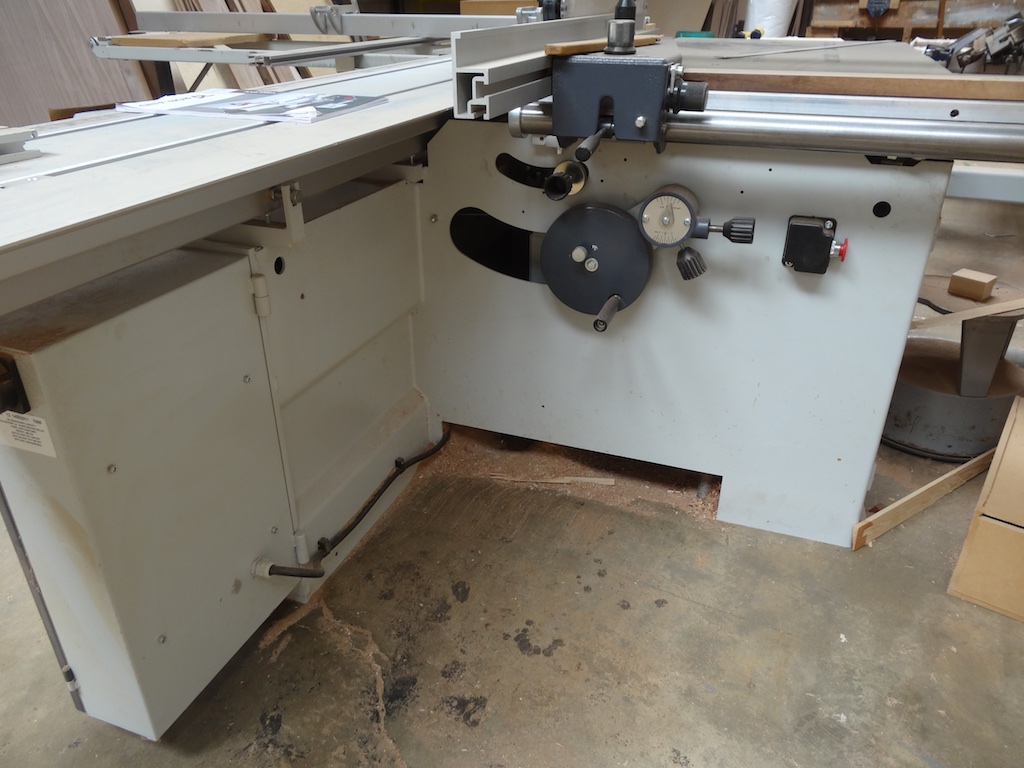

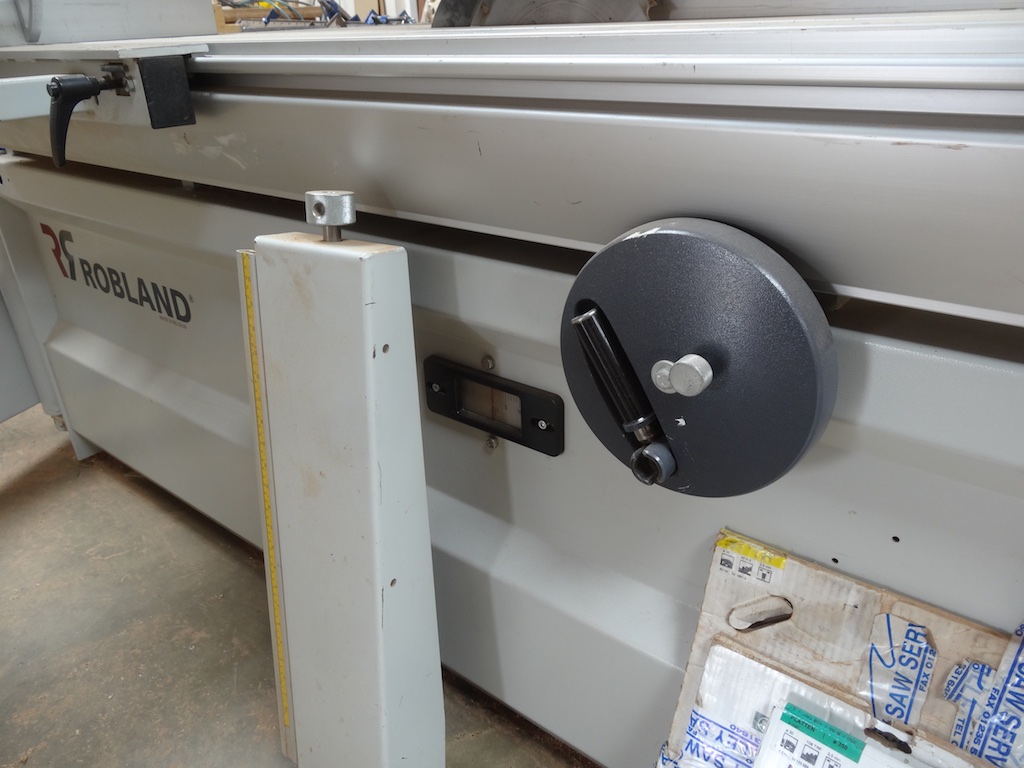

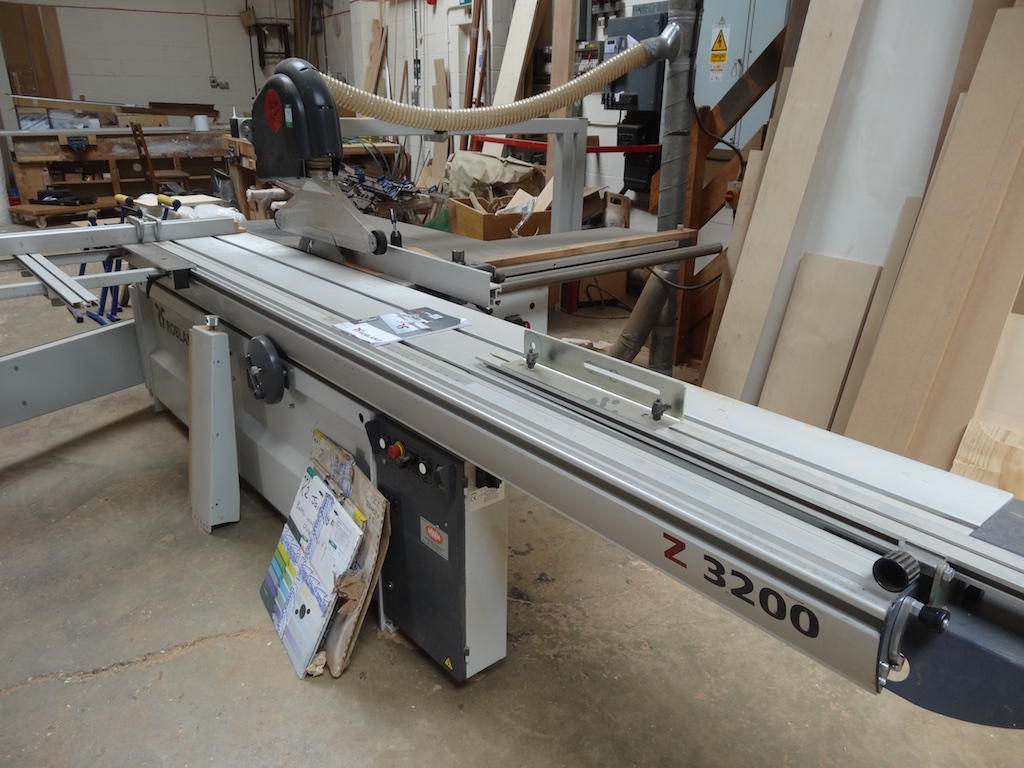

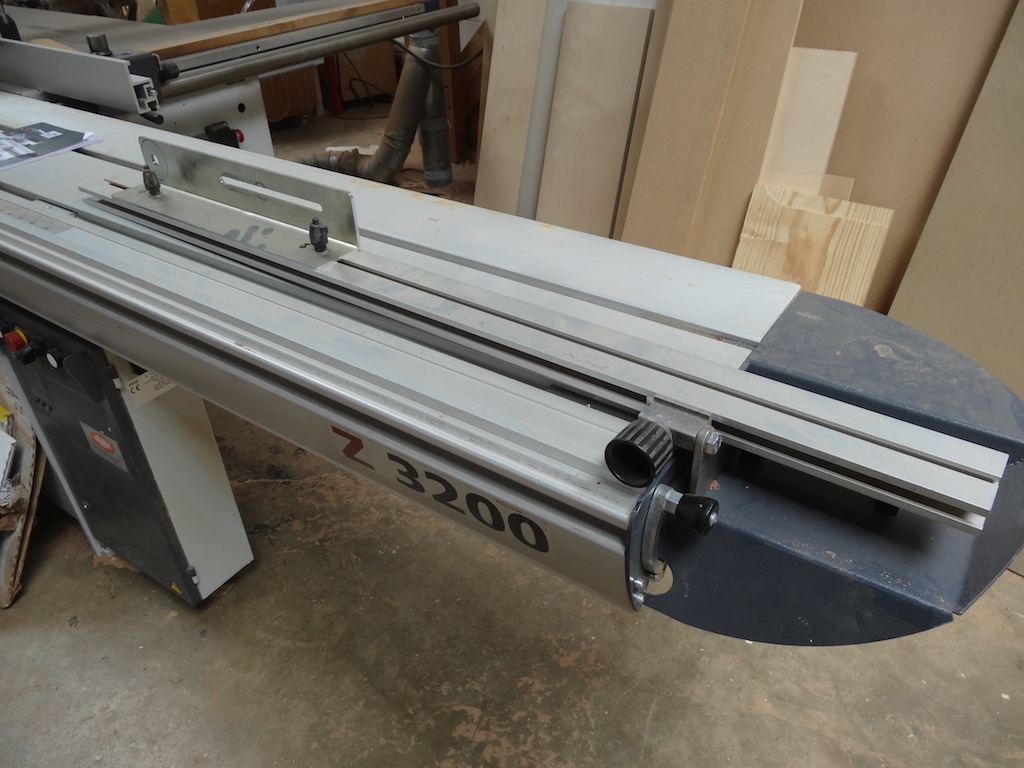

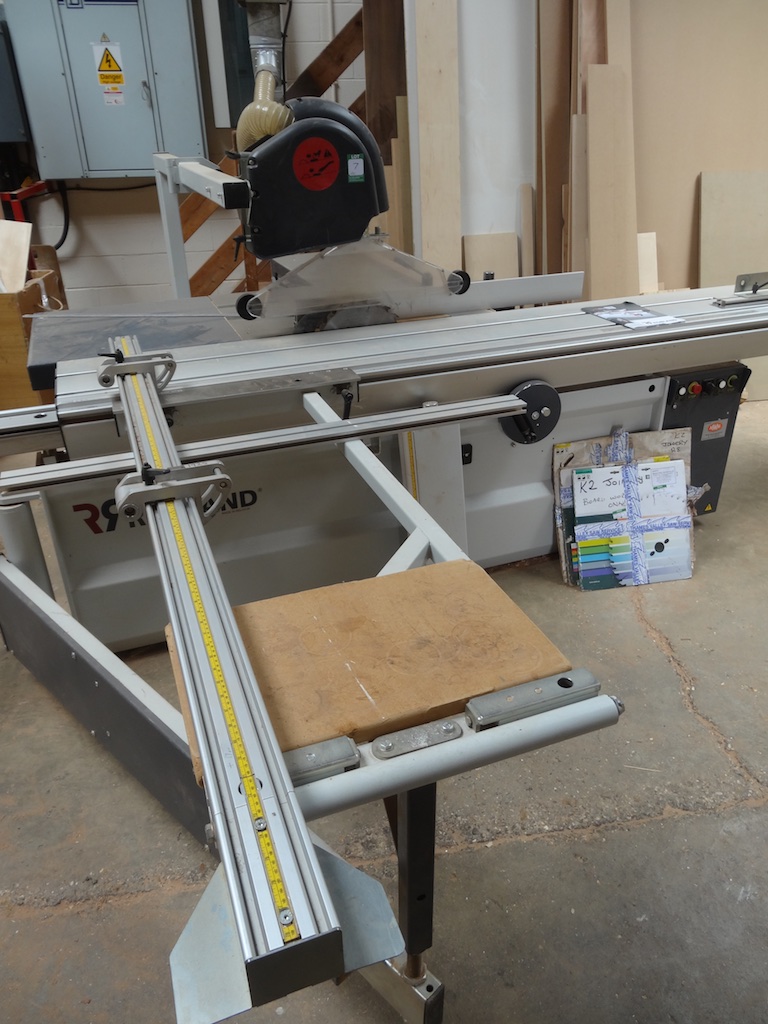

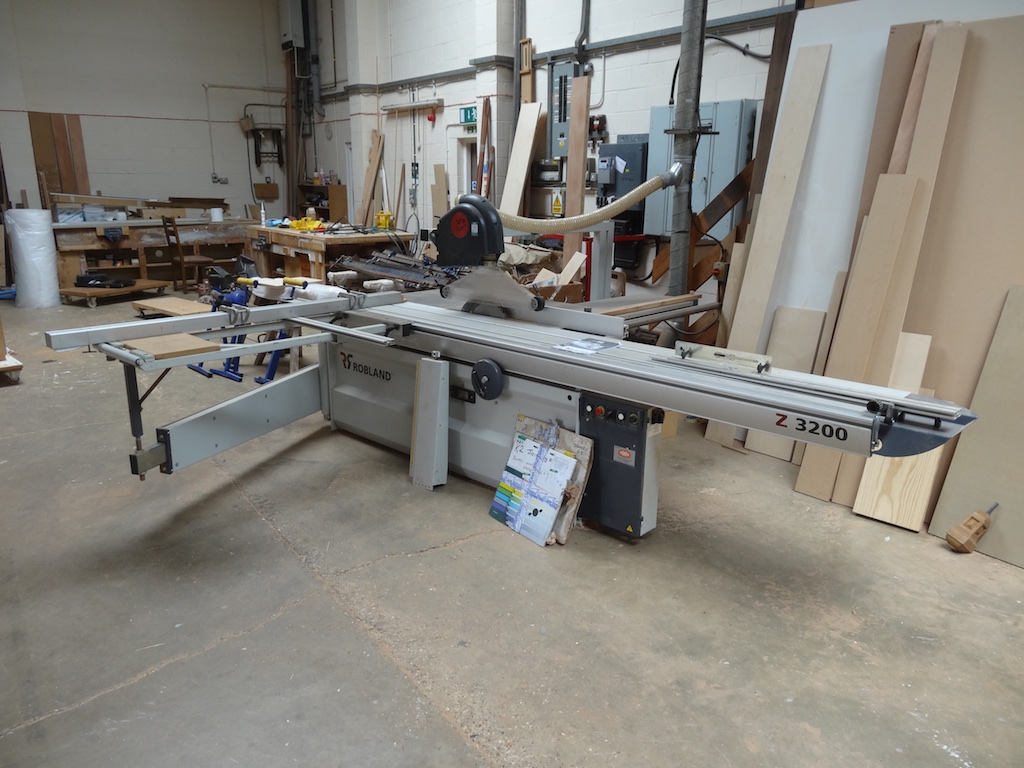

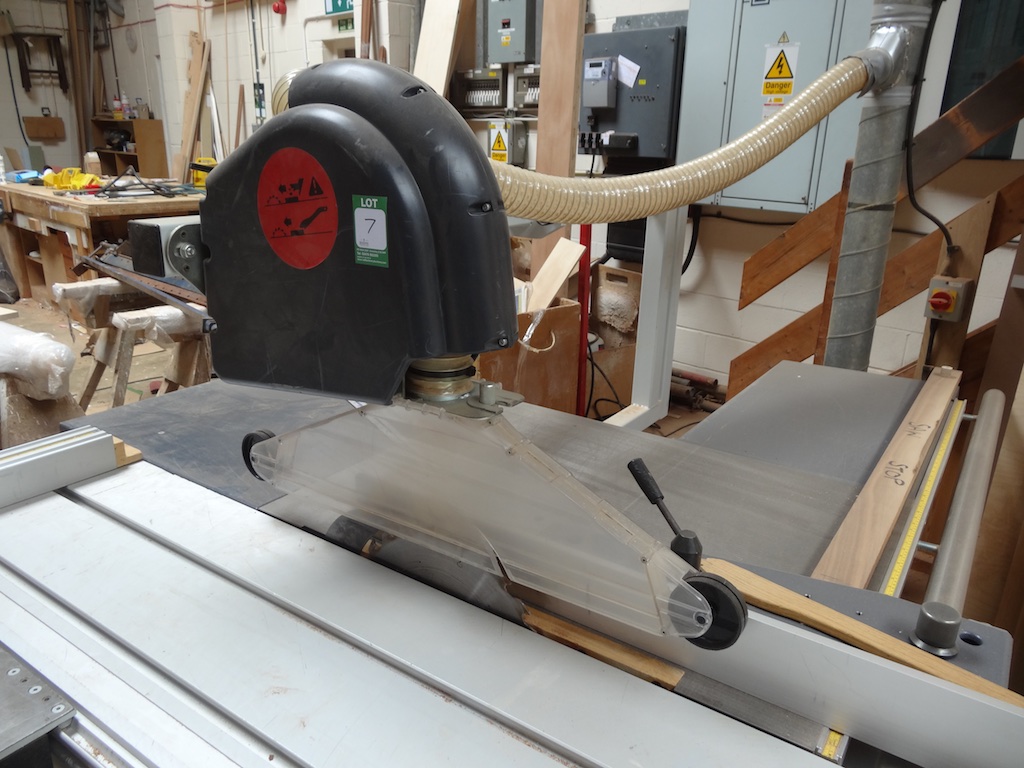

Lot 7 - Robland Z 3200 Panel Saw
Description:
Robland Z 3200 Panel Saw,

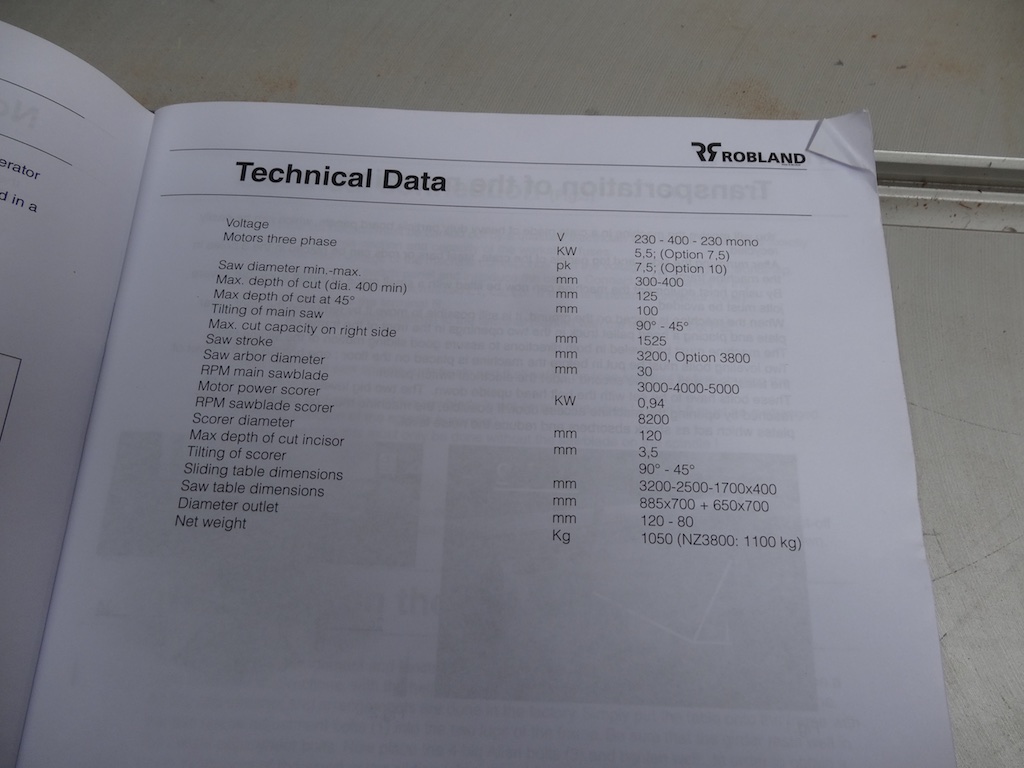

Saw dia min: 300mm
Saw dia max: 400mm
Max depth of cut (dia 400min): 125mm
Max depth of cut at 45 degrees: 100mm
Tiliting of main saw: 90degrees - 45degrees
Max cut capacity on right side: 1525mm
Saw stroke: 3200mm
Saw arbour diameter: 30mm

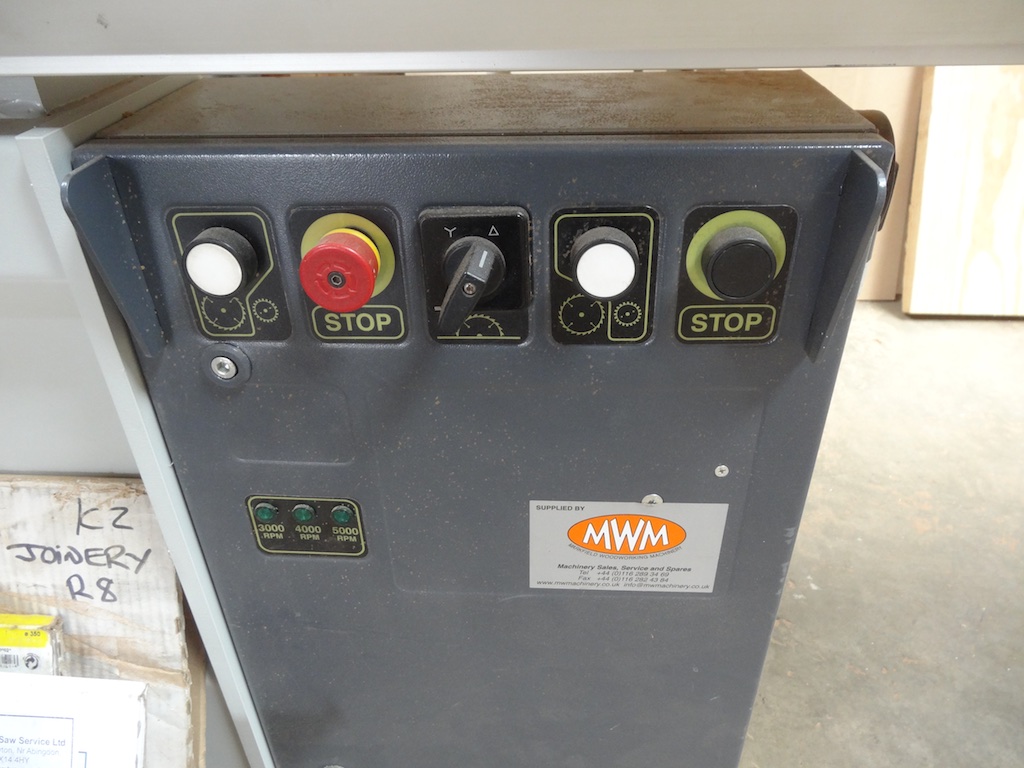

RPM main sawblade: 3000,4000,5000
Motor power scorer: 0.94KW
RPM sawblade scorer: 8200
Scorer dia: 120mm
Max depth of cut incisor: 3.5mm
Tiliting of scorer: 90degrees - 45degrees

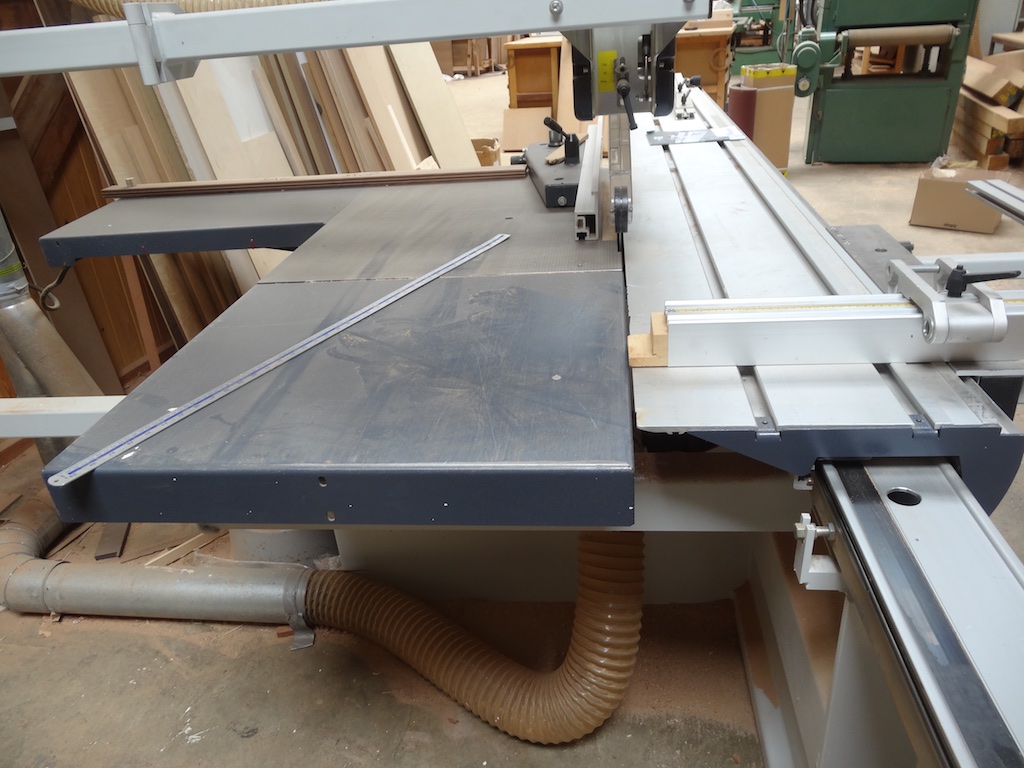

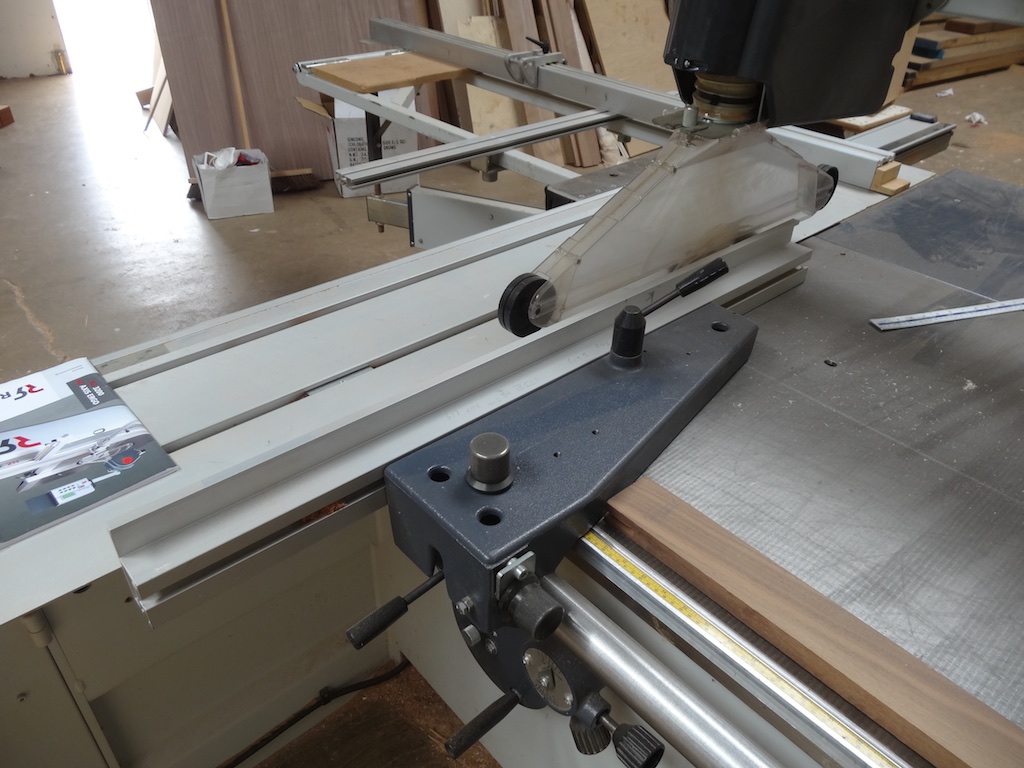

Sliding table dimensions: 3200-2500-1700x400mm
Weight: 1050kg

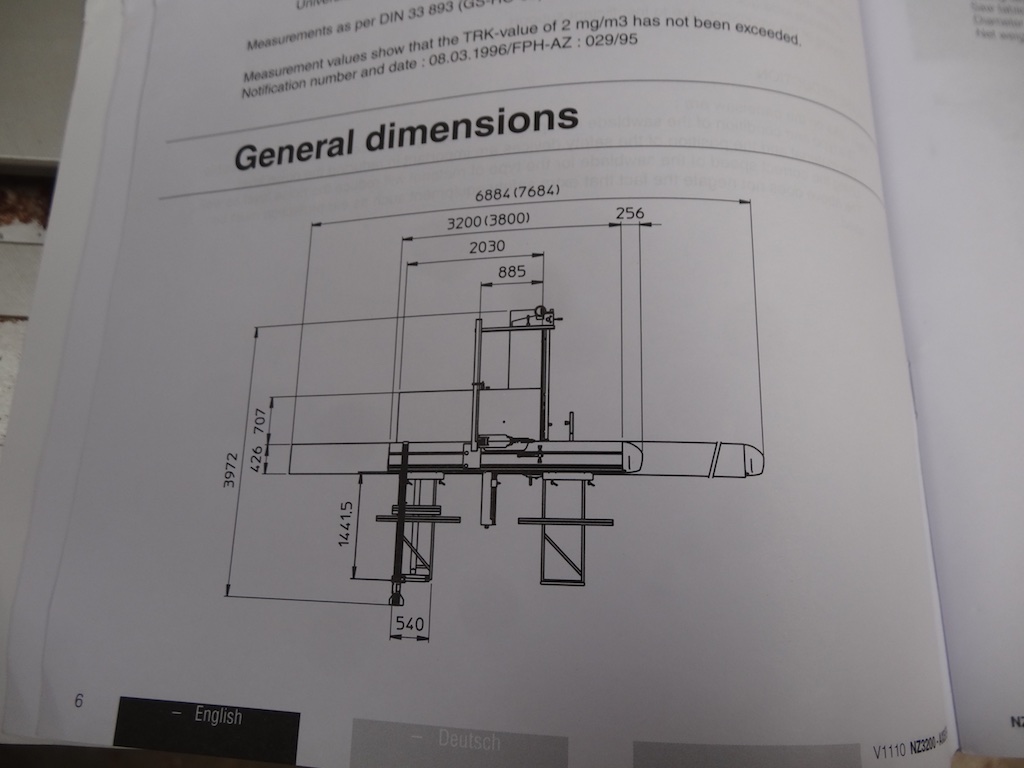

355cm Long X 223cm Wide 155cm h. for Transport
Plus 164cm Extra Width when fully setup,
Location: Dudley
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
