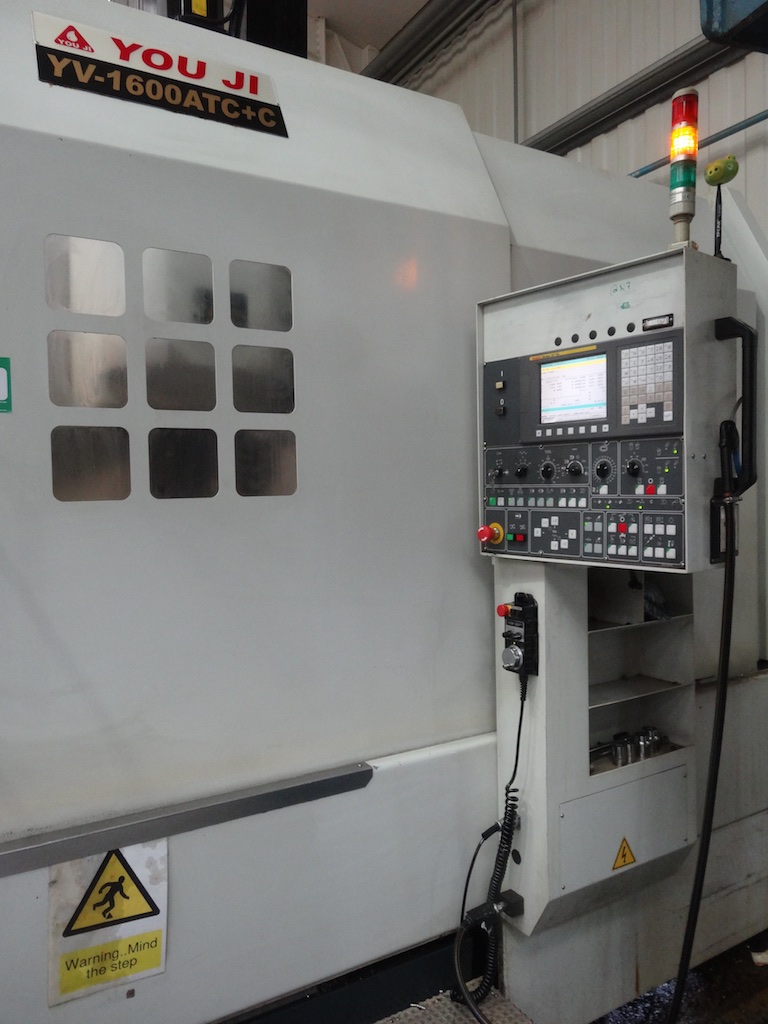

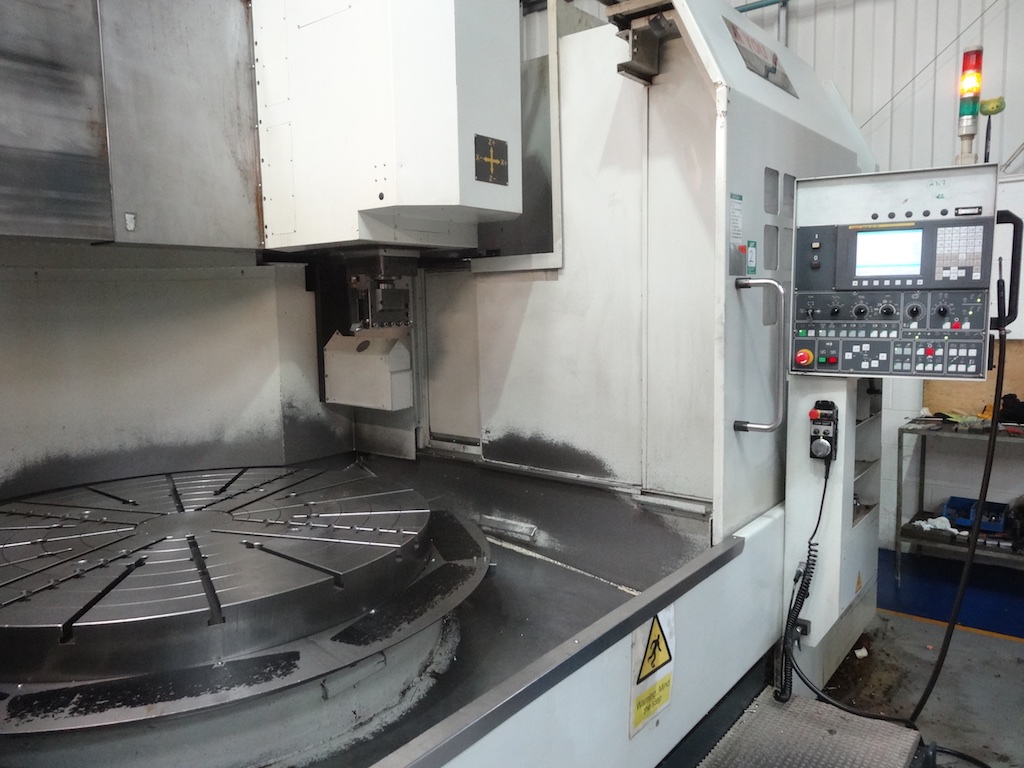

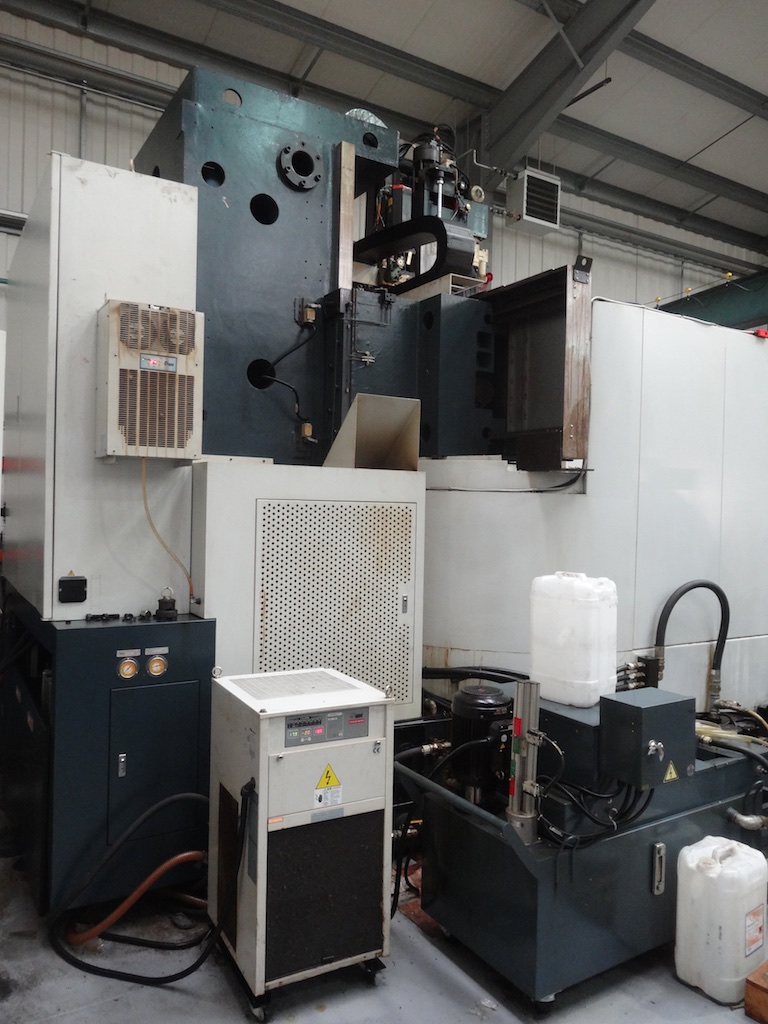

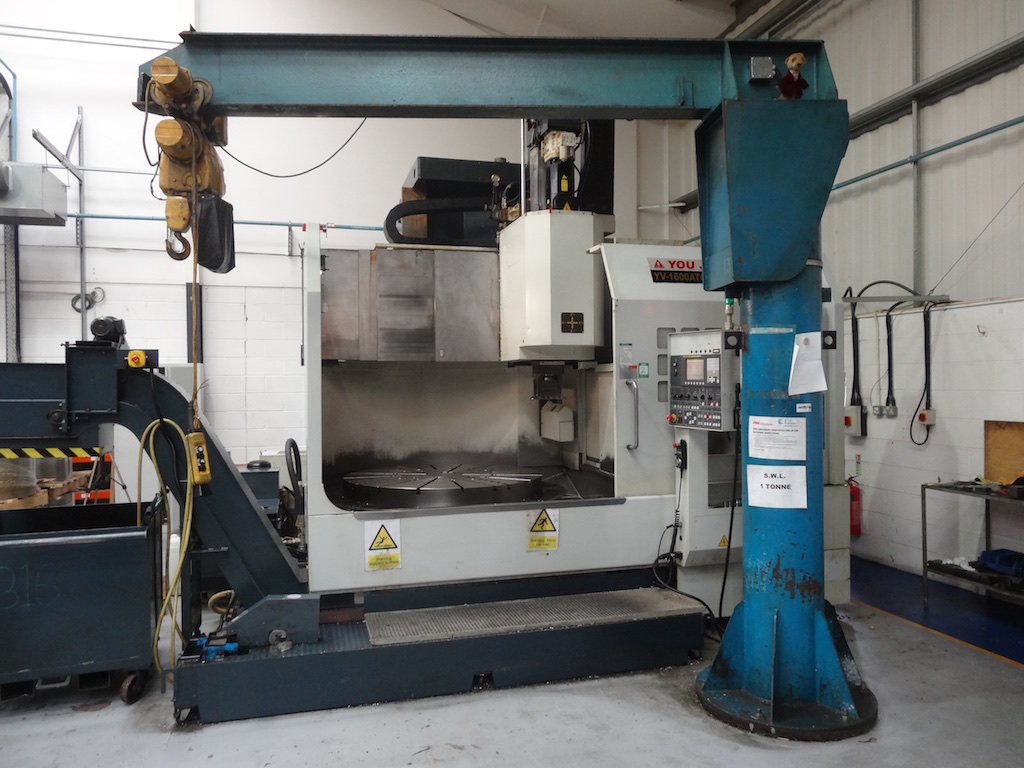

Lot 2 - YOU-JI YV-1600ATC CNC Vertical Borer with C axis & Milling (2011)
Description:

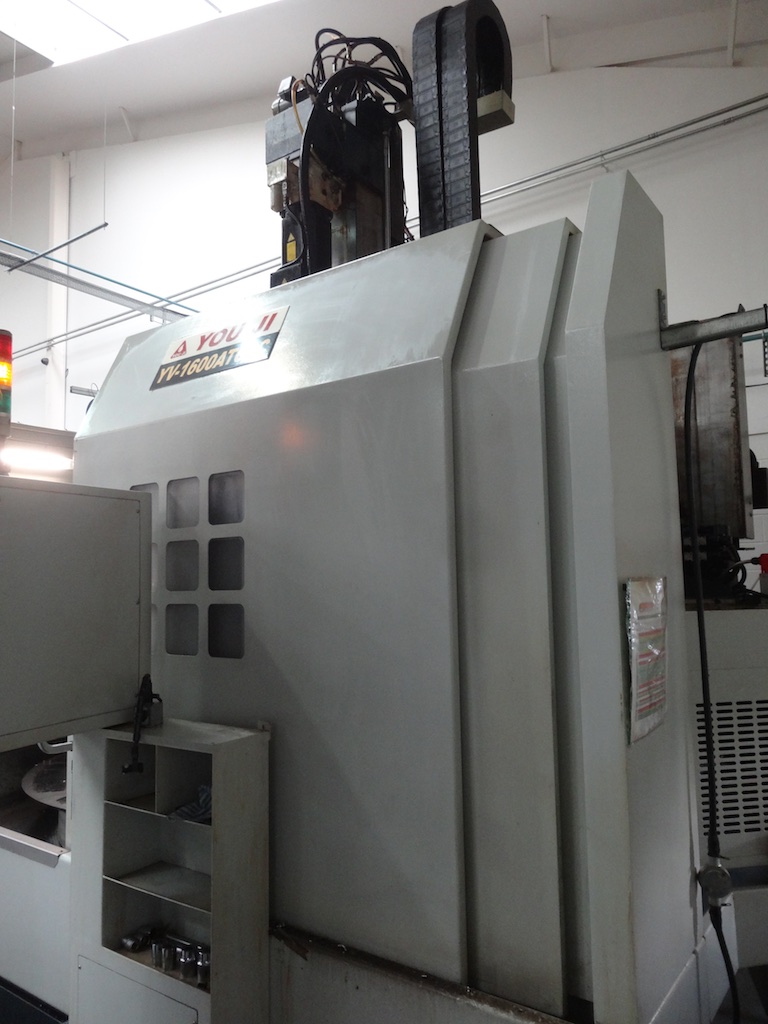

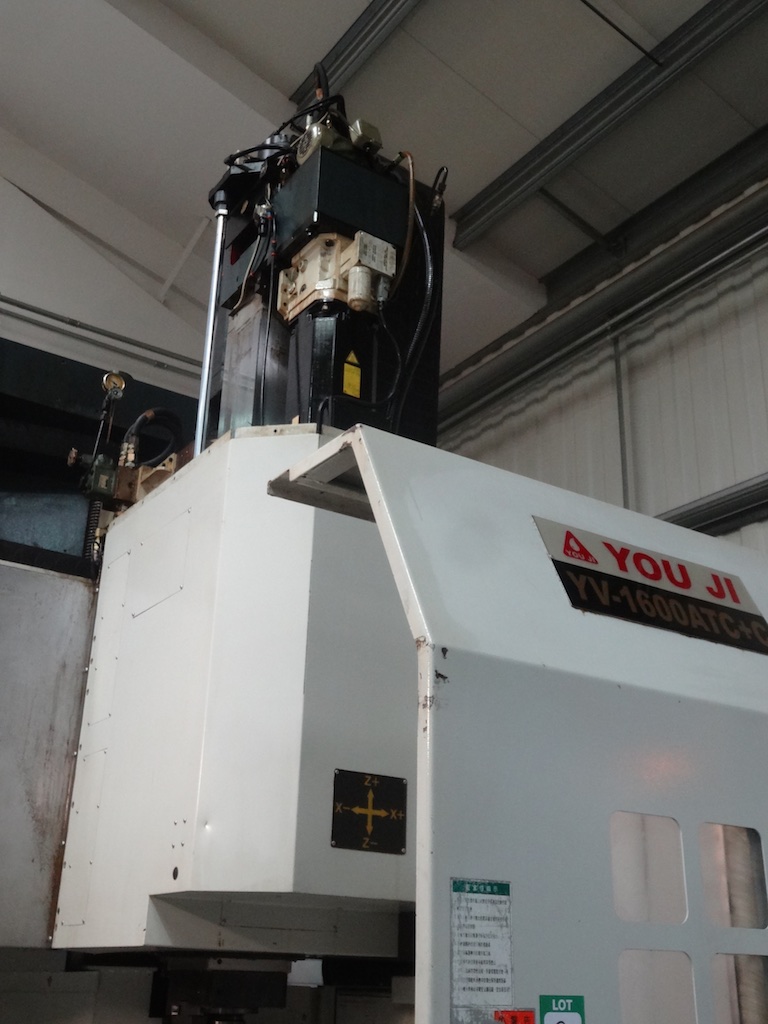

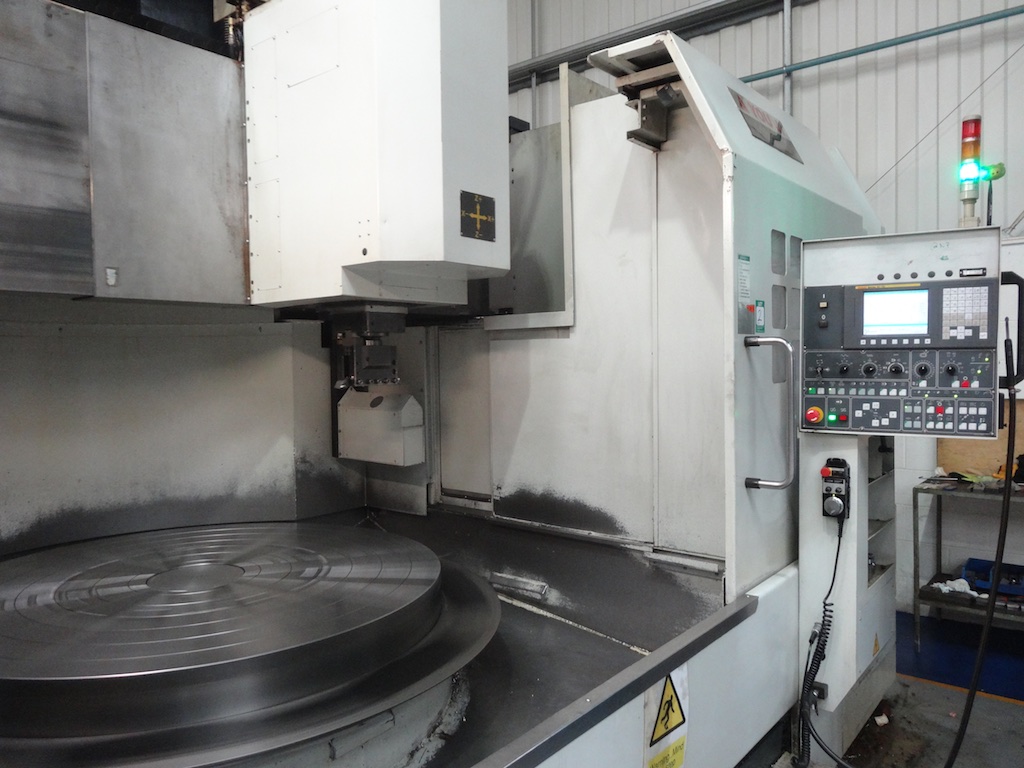

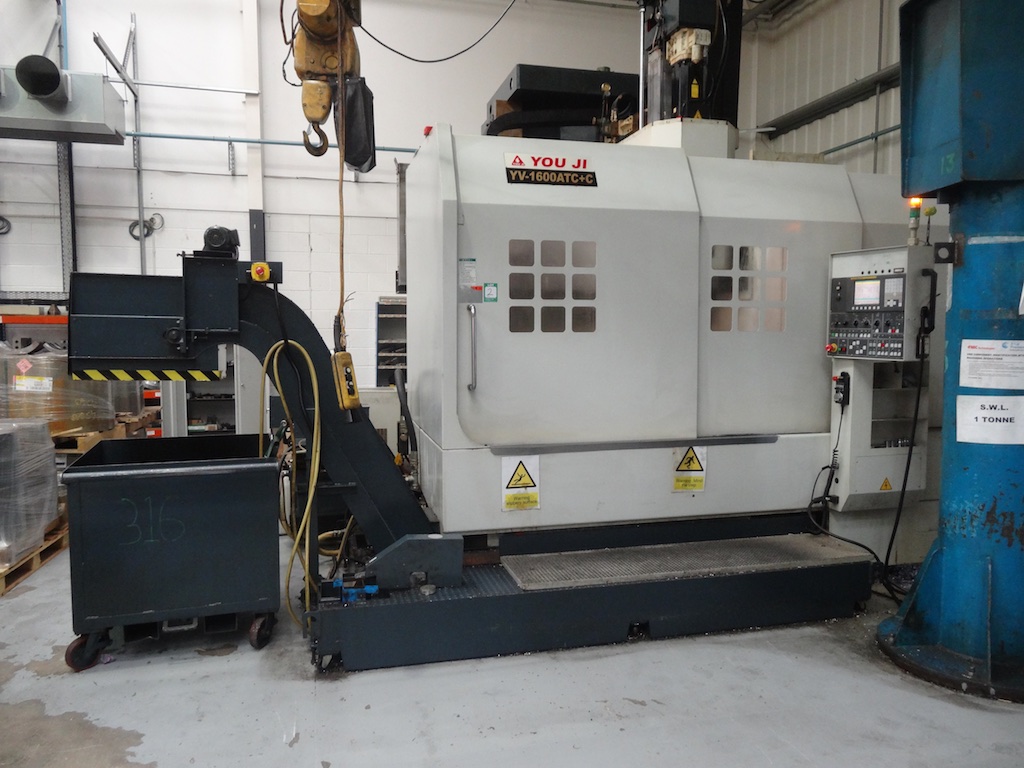

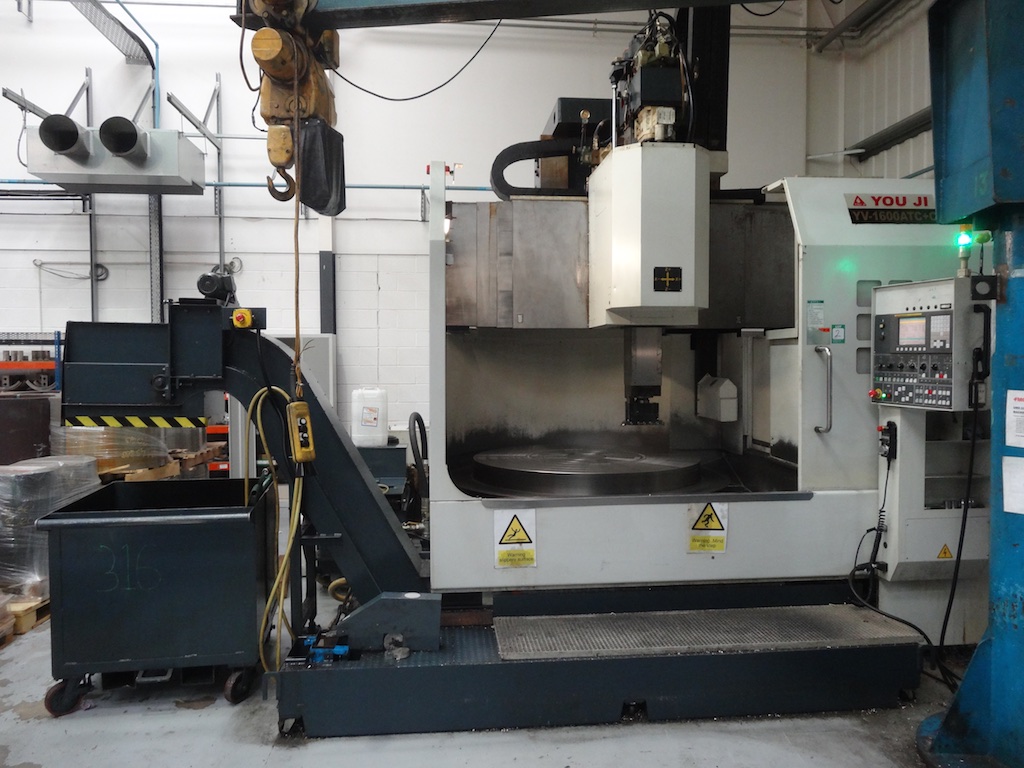

YOU-JI YV-1600ATC CNC Vertical Borer with C axis & Milling (2011)

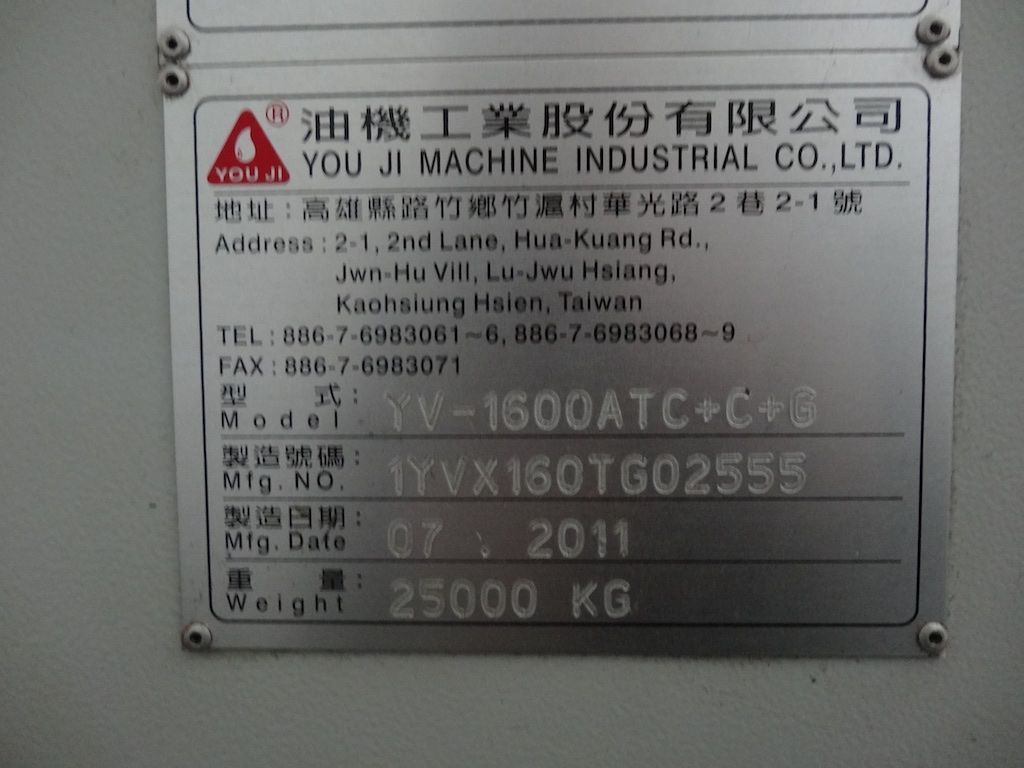

S/n: iYVX160TG02555
Date: 07/2011
Weight: 25000kgs
Dimensions L x W x H: 5200 x 6100 x 5000mm

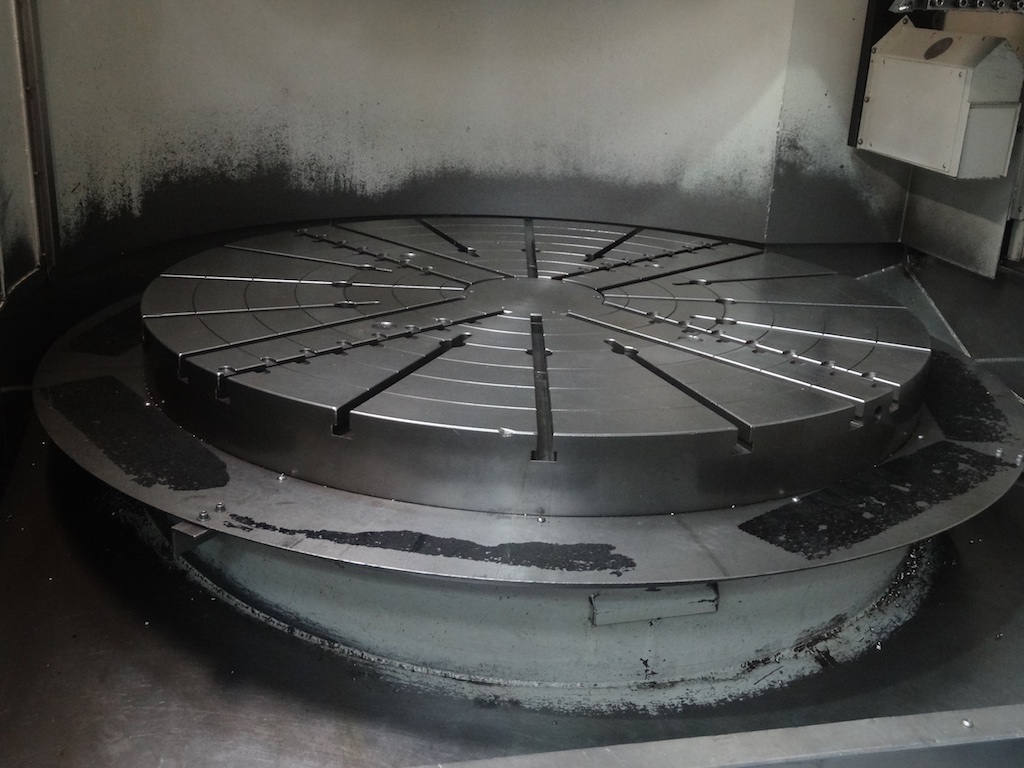

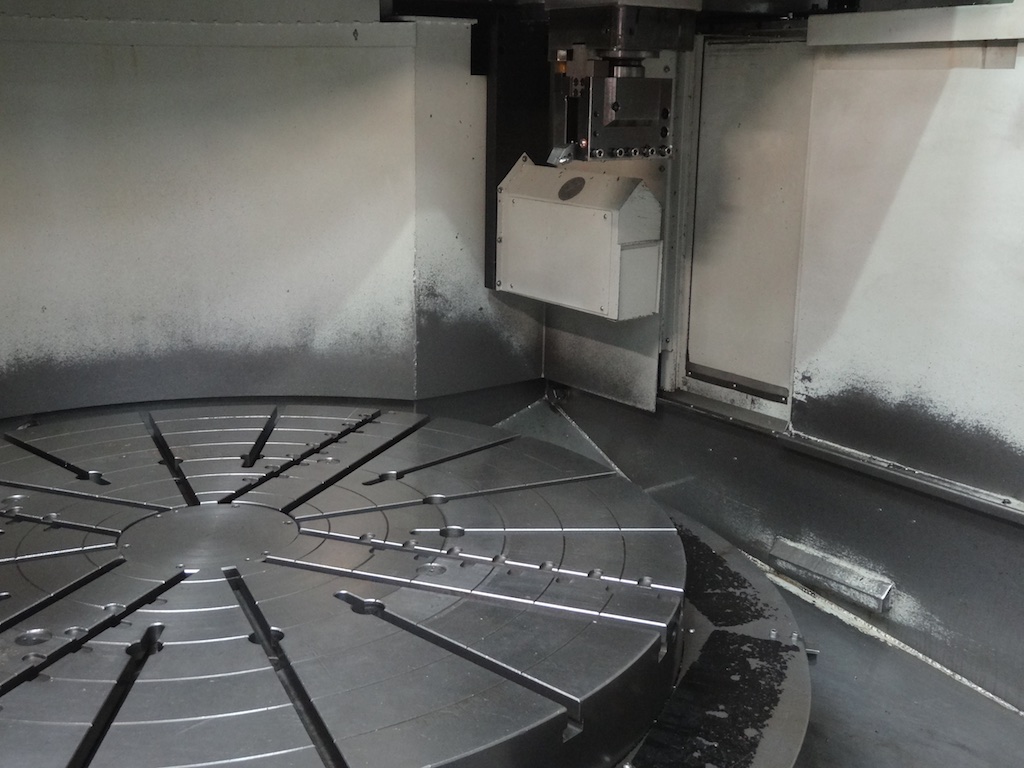

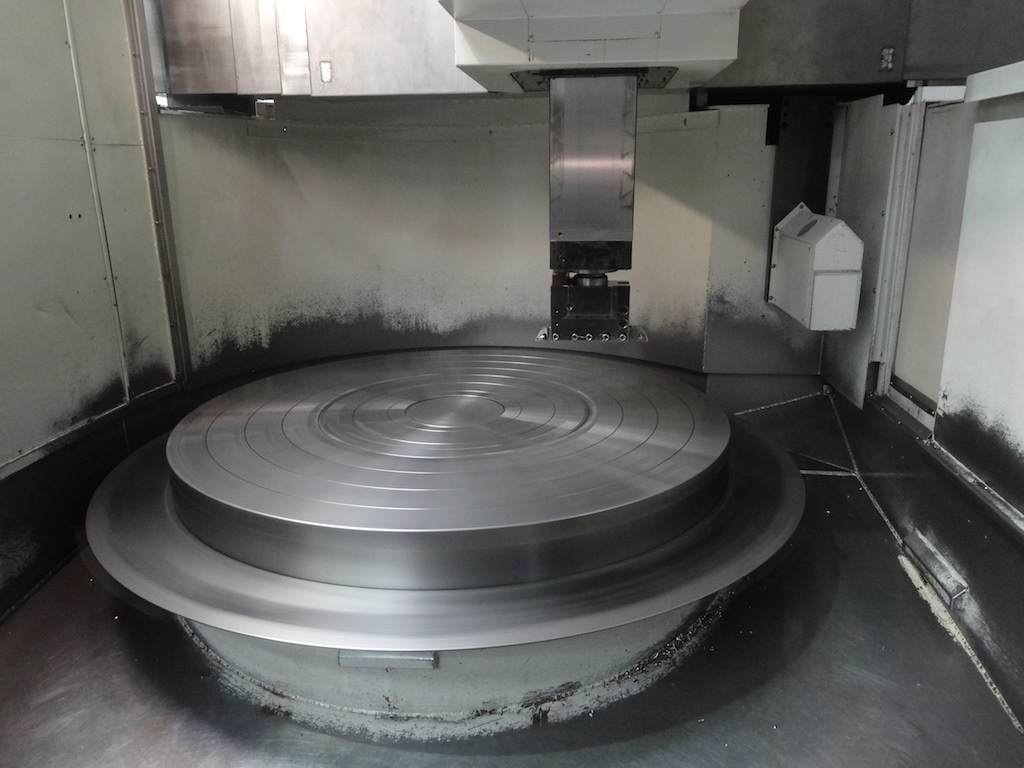

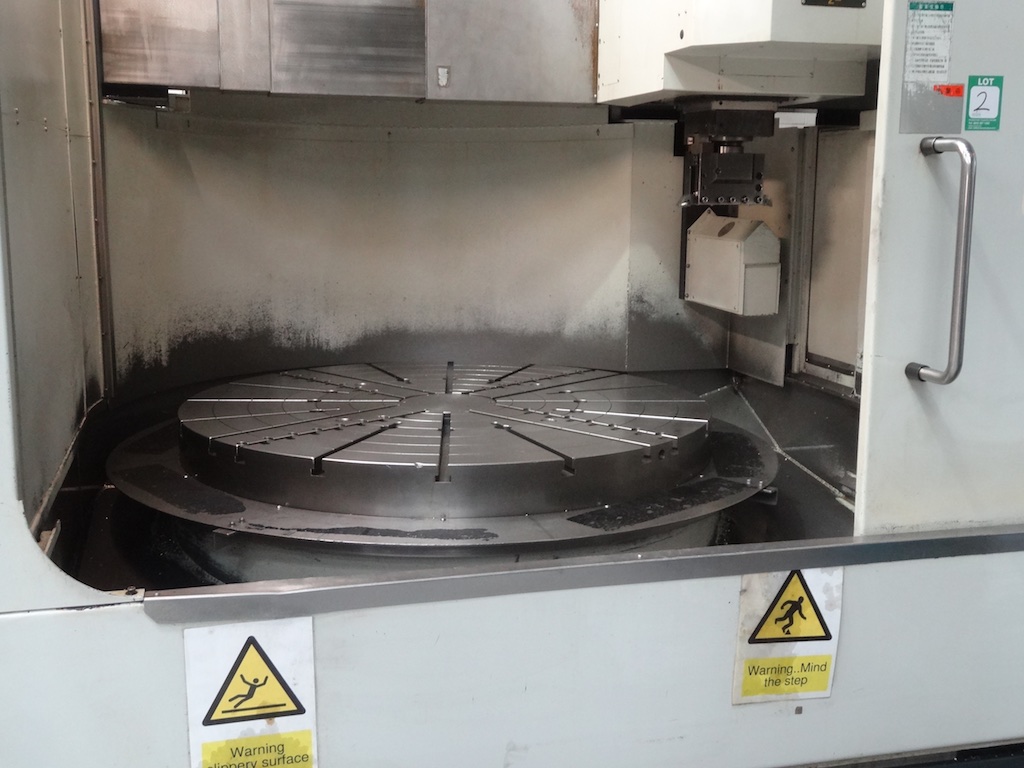

Chuck size 1600mm Diameter
Swing 2000mm

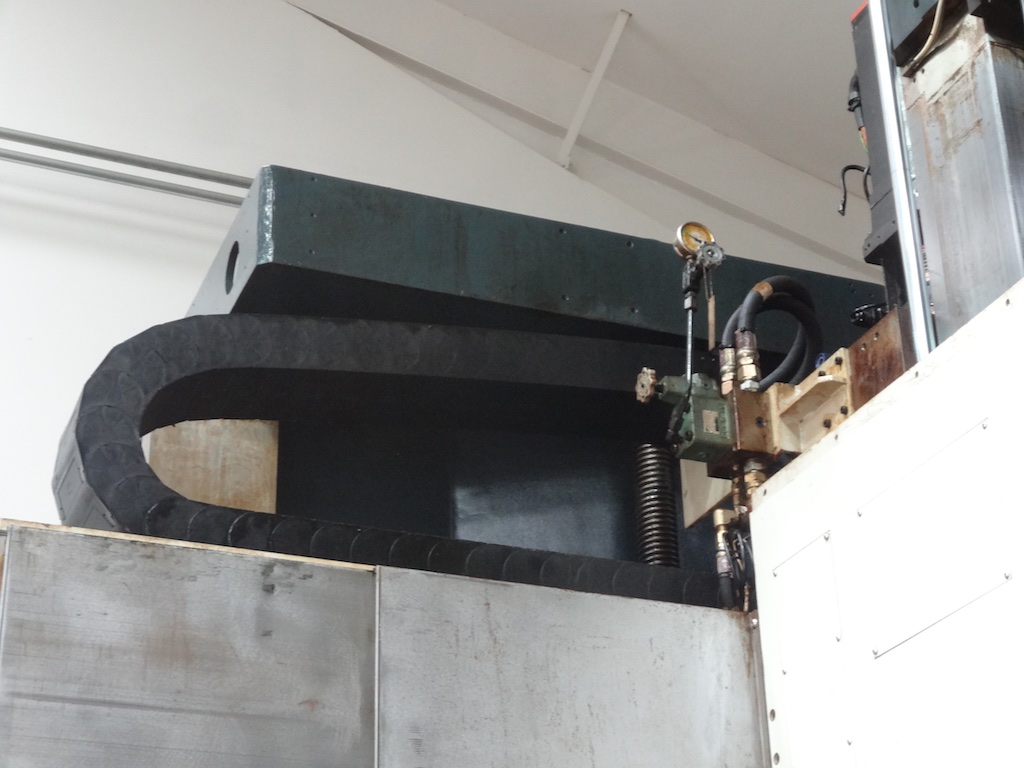

Vertical Travel of Crossrail 750mm
Vertical Travel of Ram (Z axis 900mm)
Maximum Cutting Diameter 1800mm
Maximum Cutting Height 1200mm
Maximum Table Load 8000kg
Spindle Motor 37/45kW
Table Speed : 1~62 rpm Low Range, High Range 62 ~ 250rpm

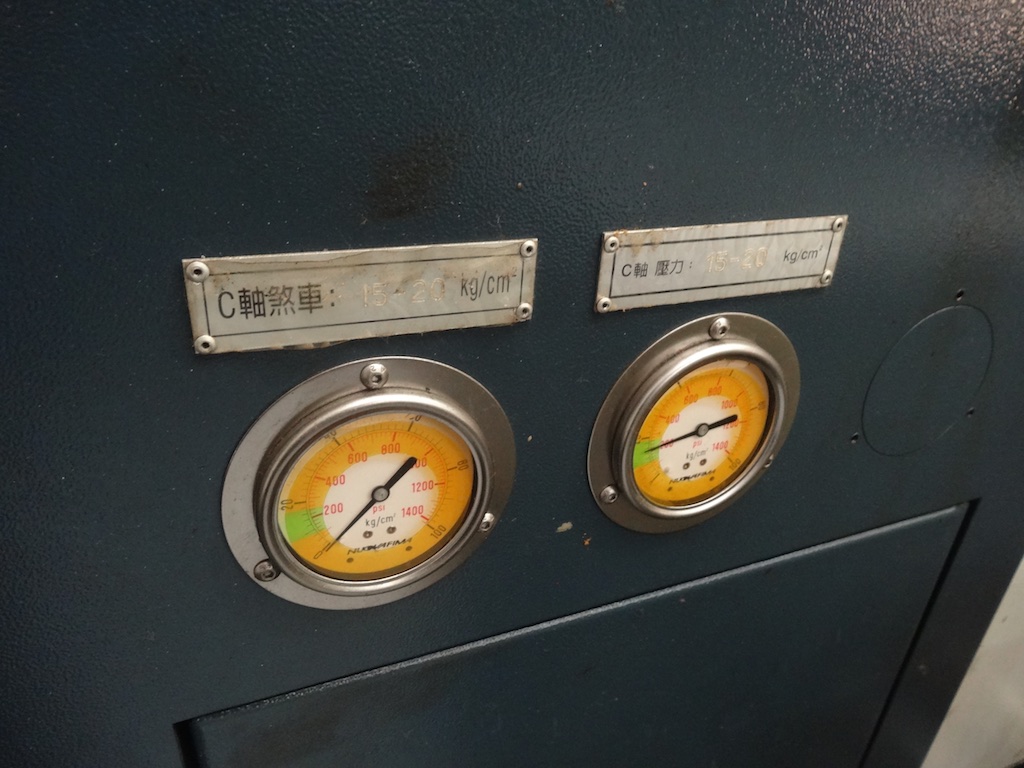

C axis (0.001 degree) & Milling (max 2400rpm @ 11kW)
24 Station ATC with Tool Holders
Tool holder BT50

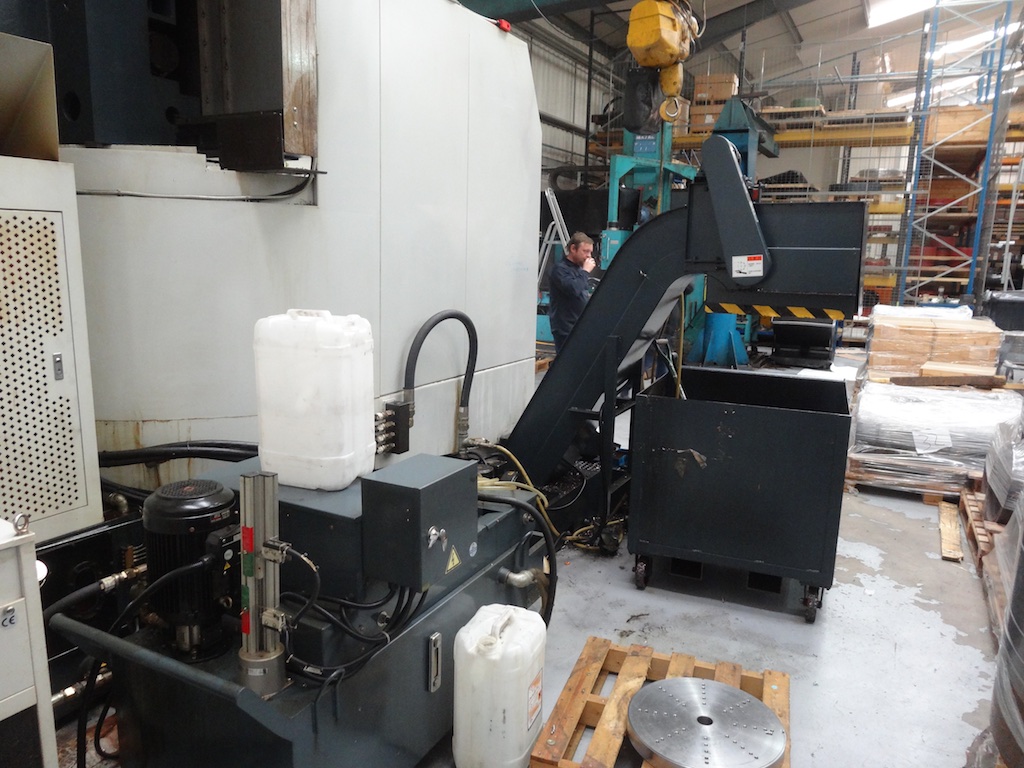

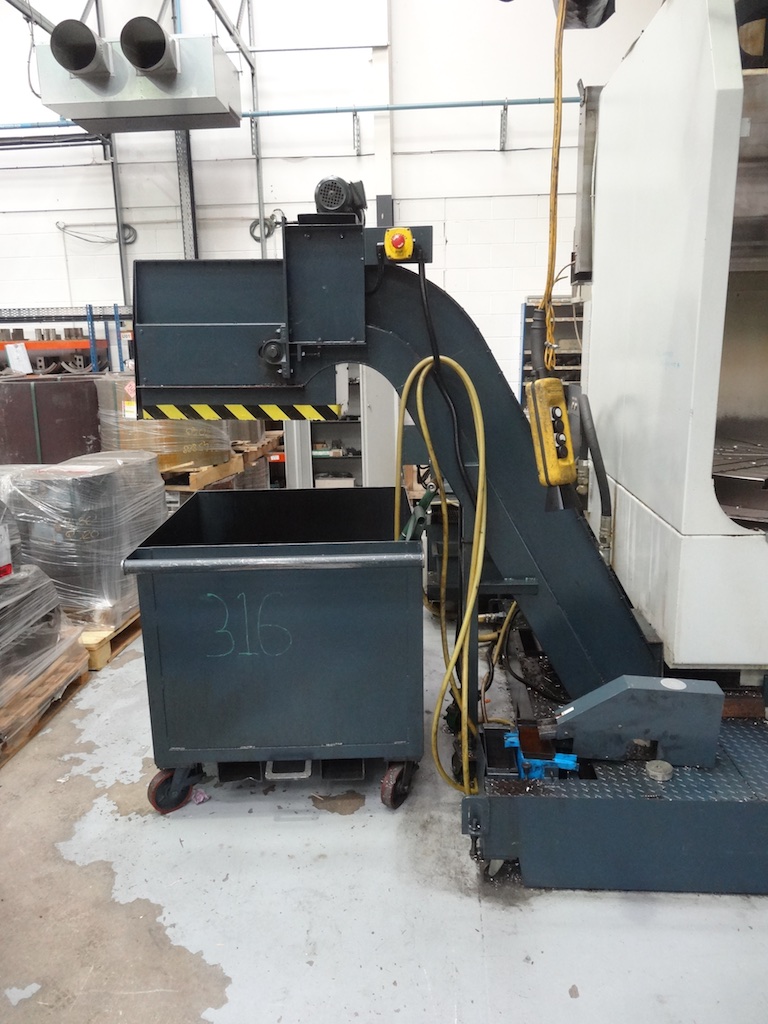

Swarf Conveyor

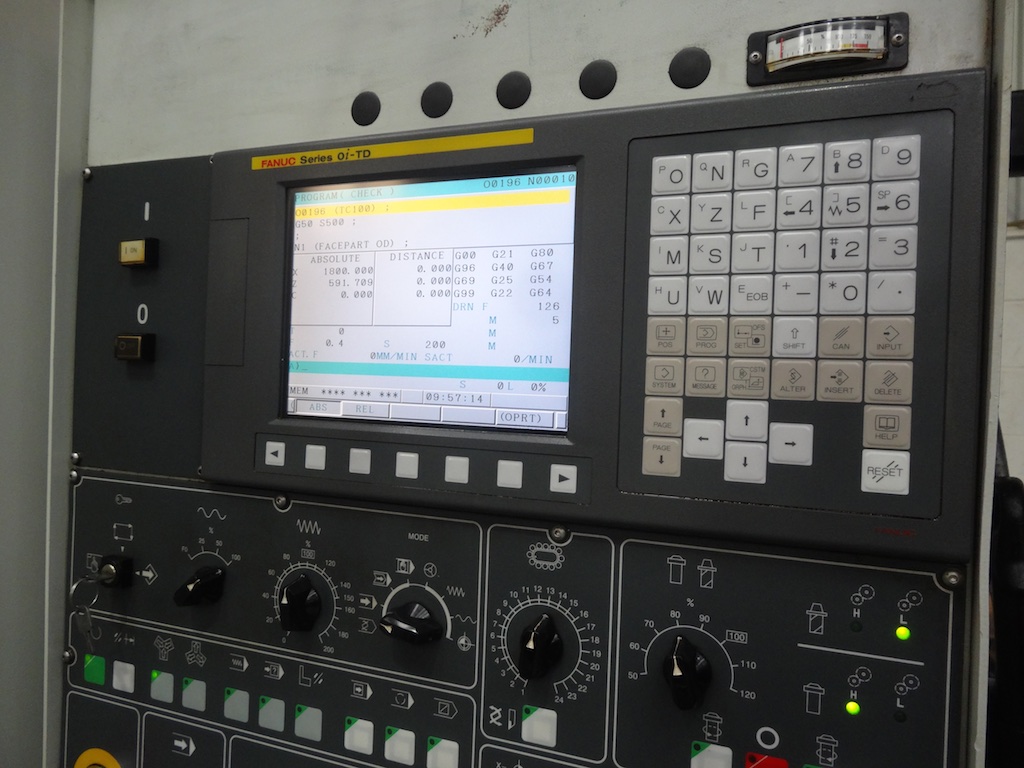

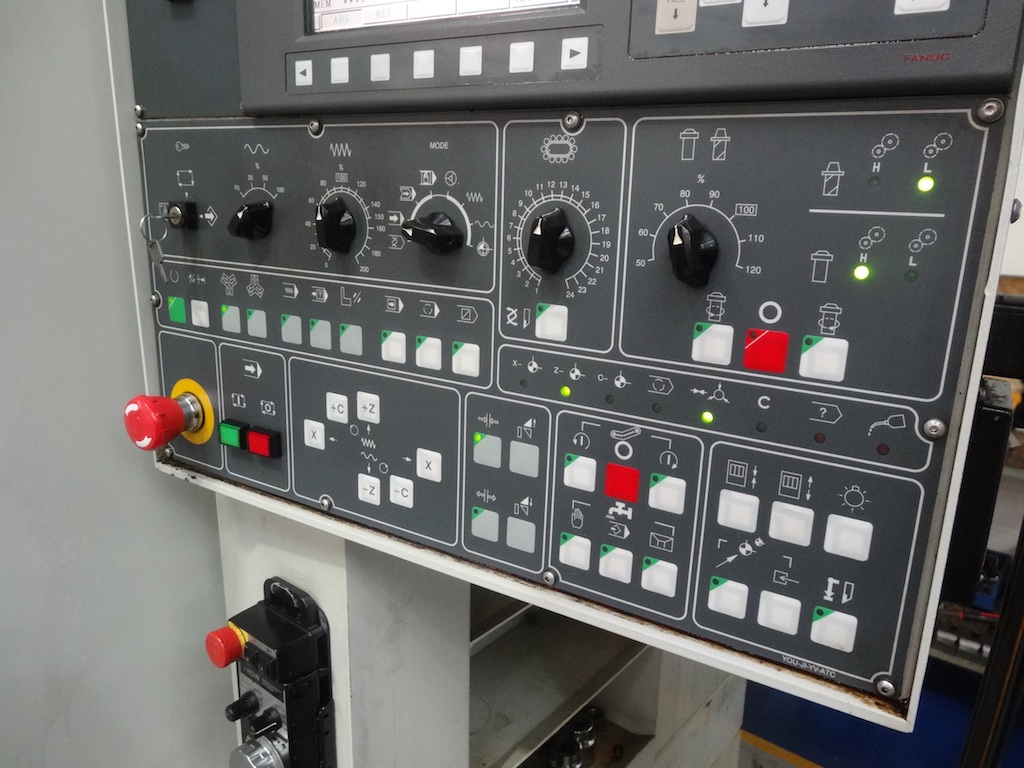

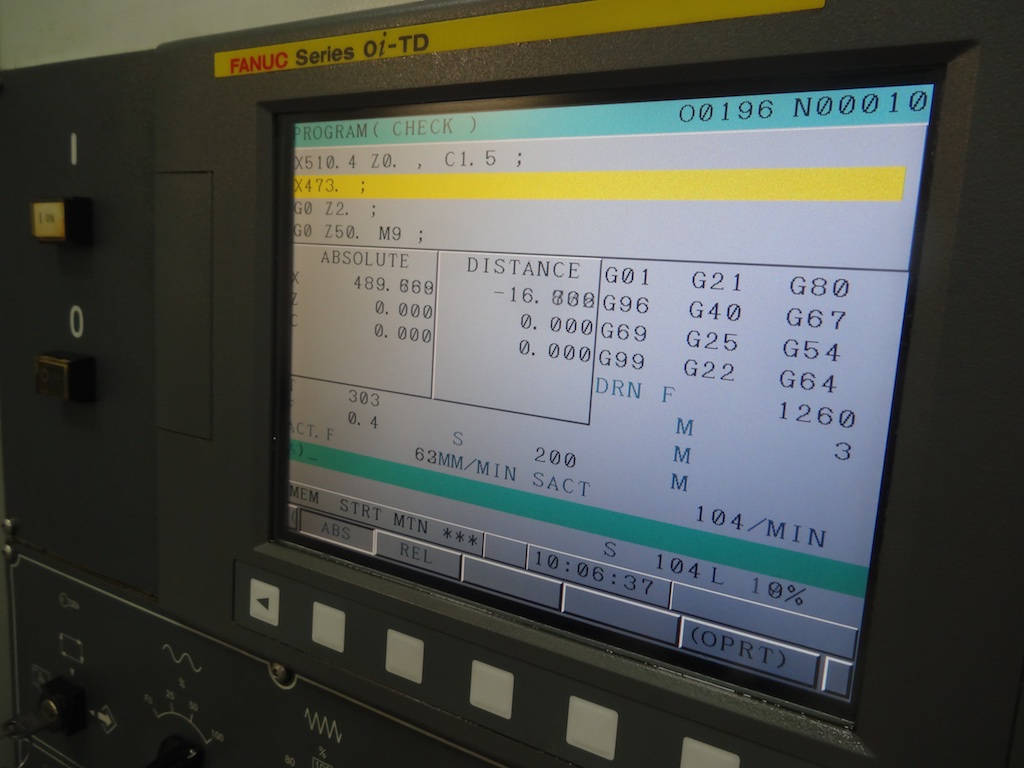

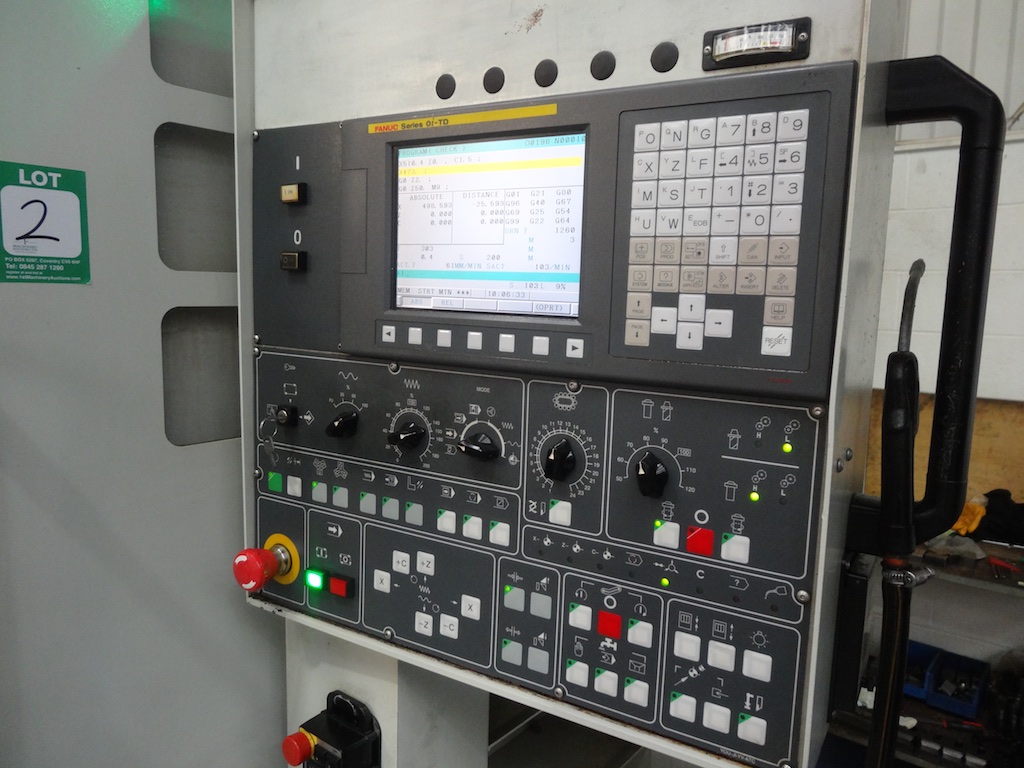

Fanuc Series Oi - TD Control

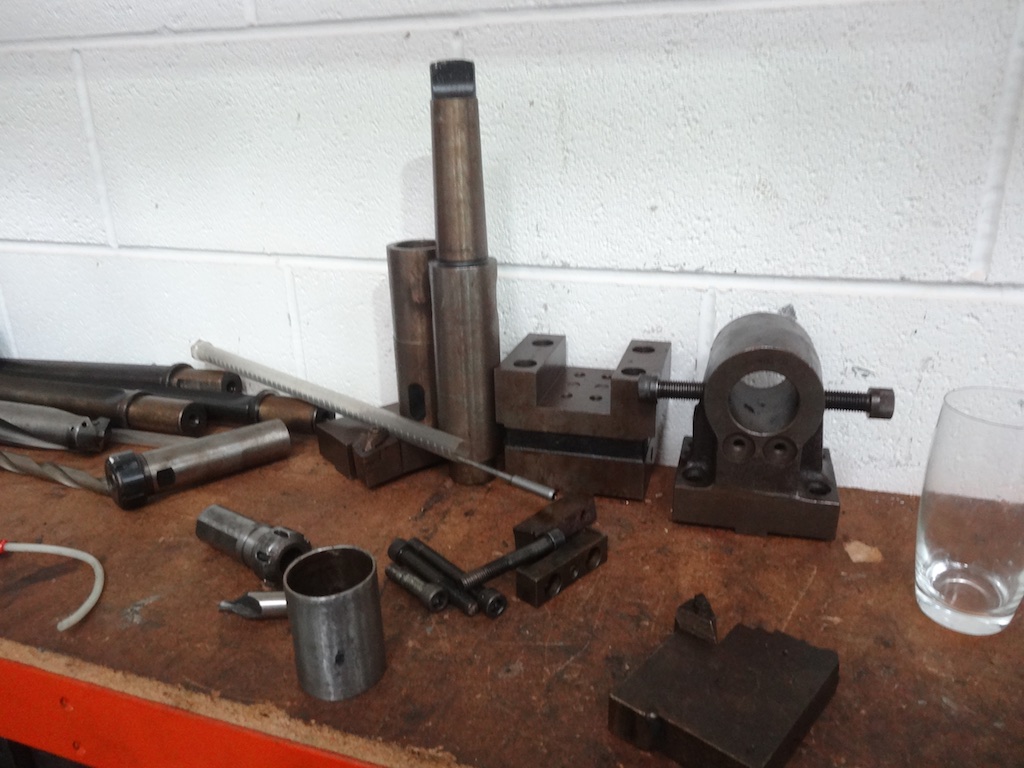

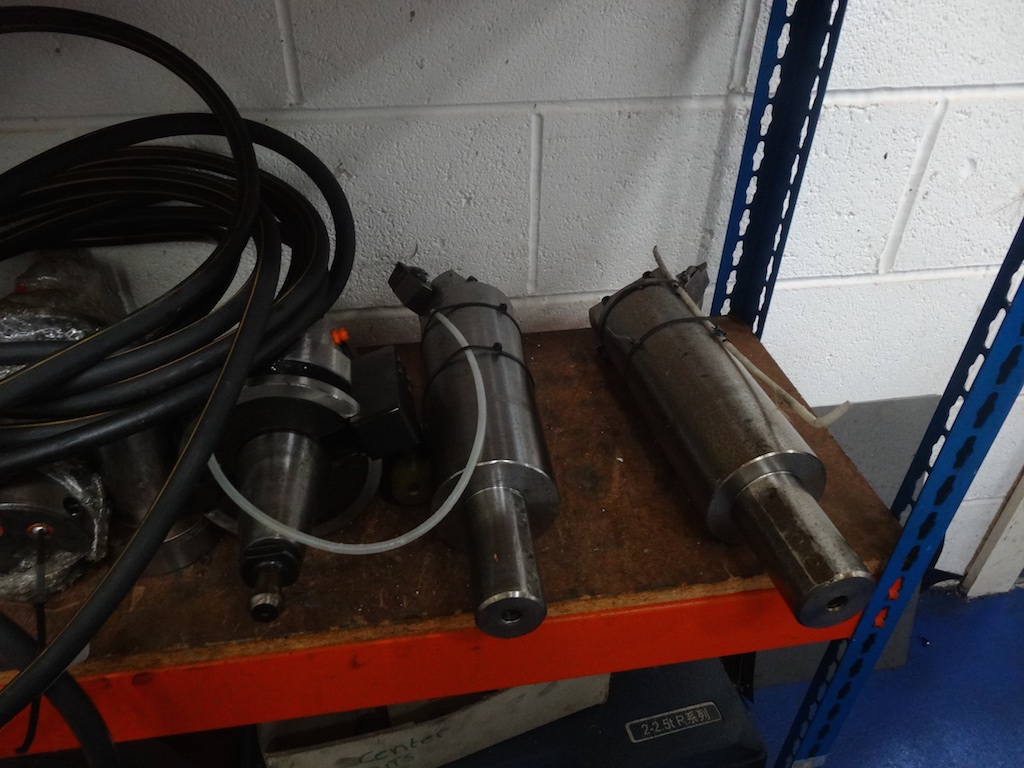

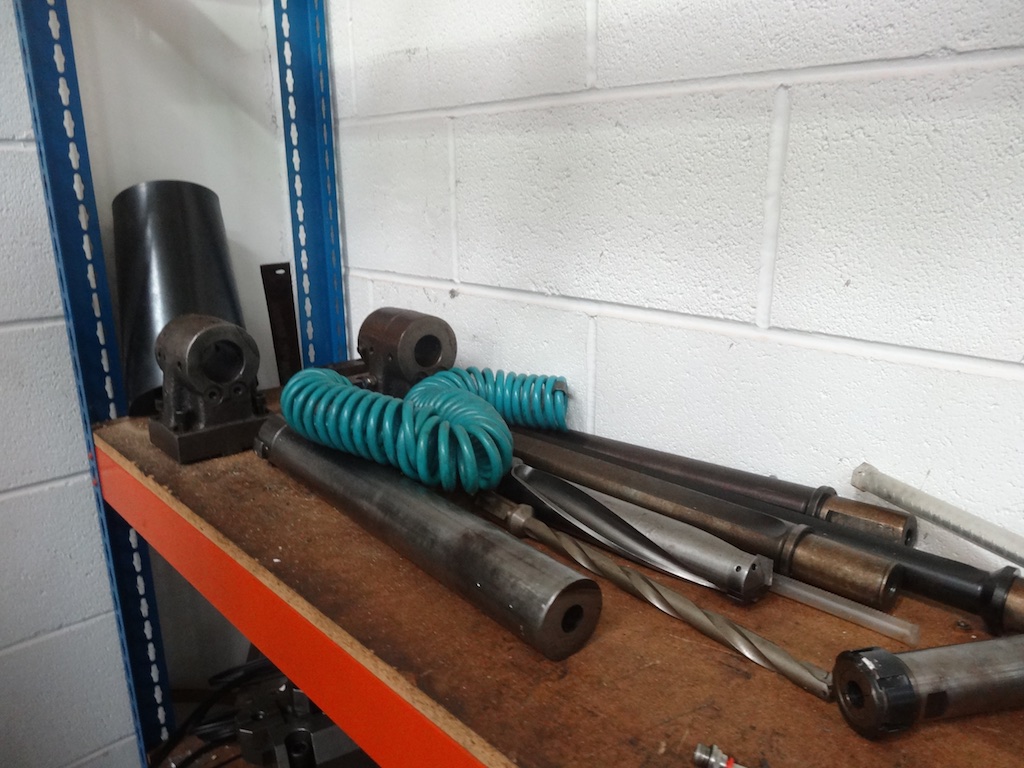

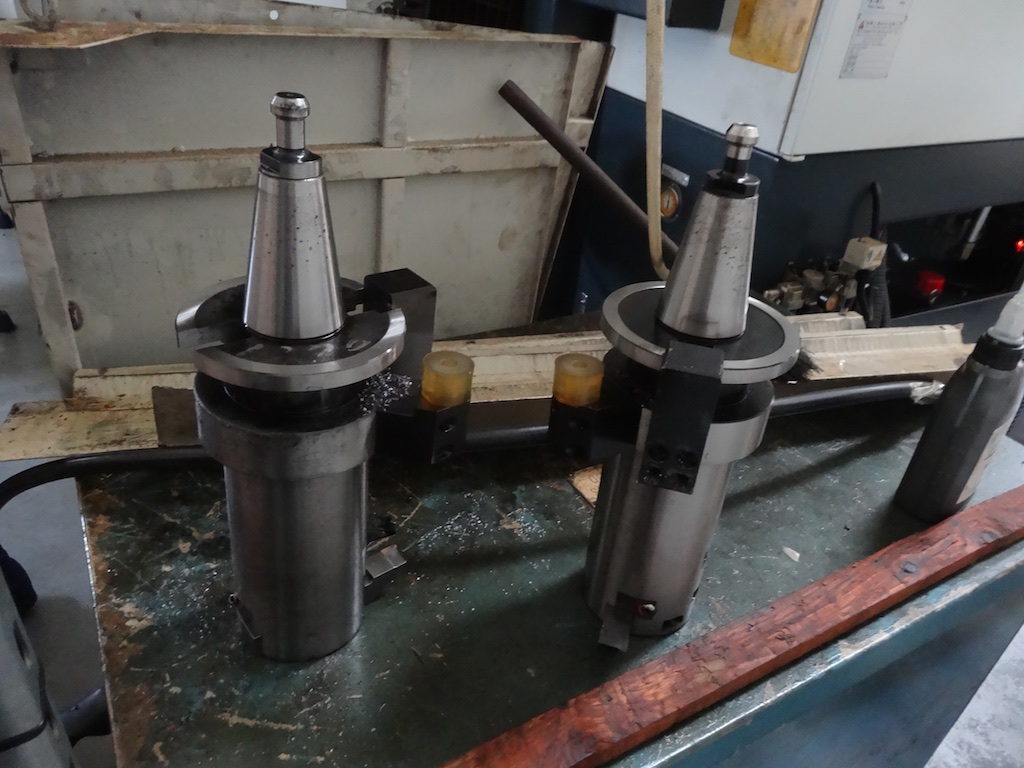

Live tooling package (see Photos)

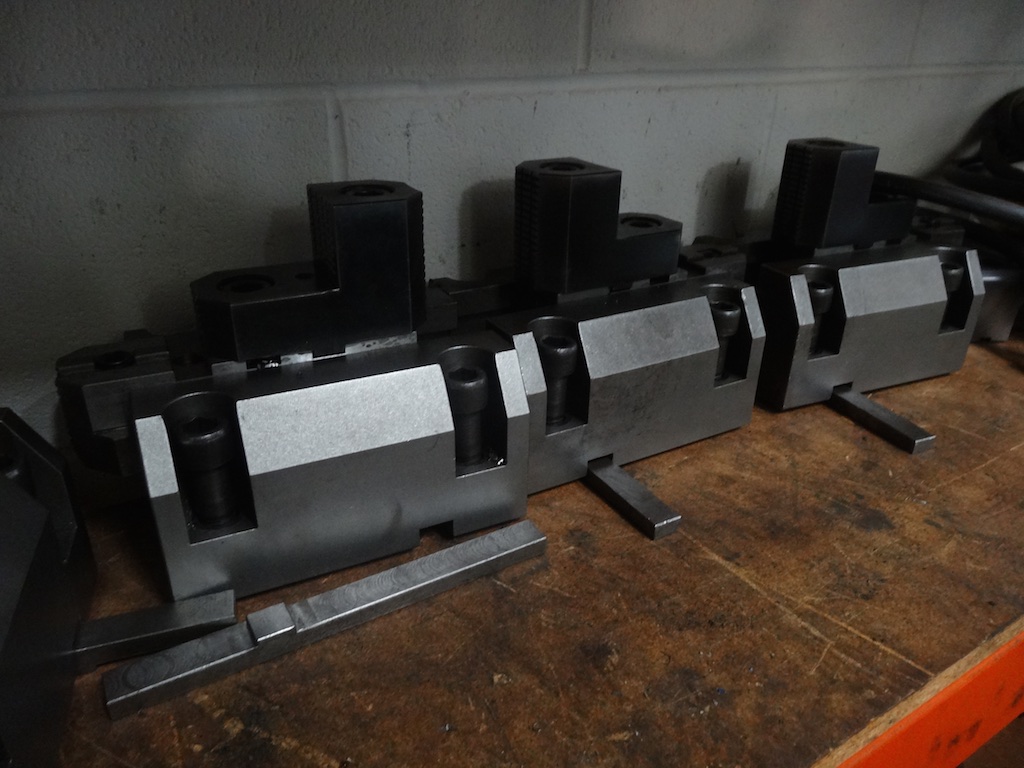

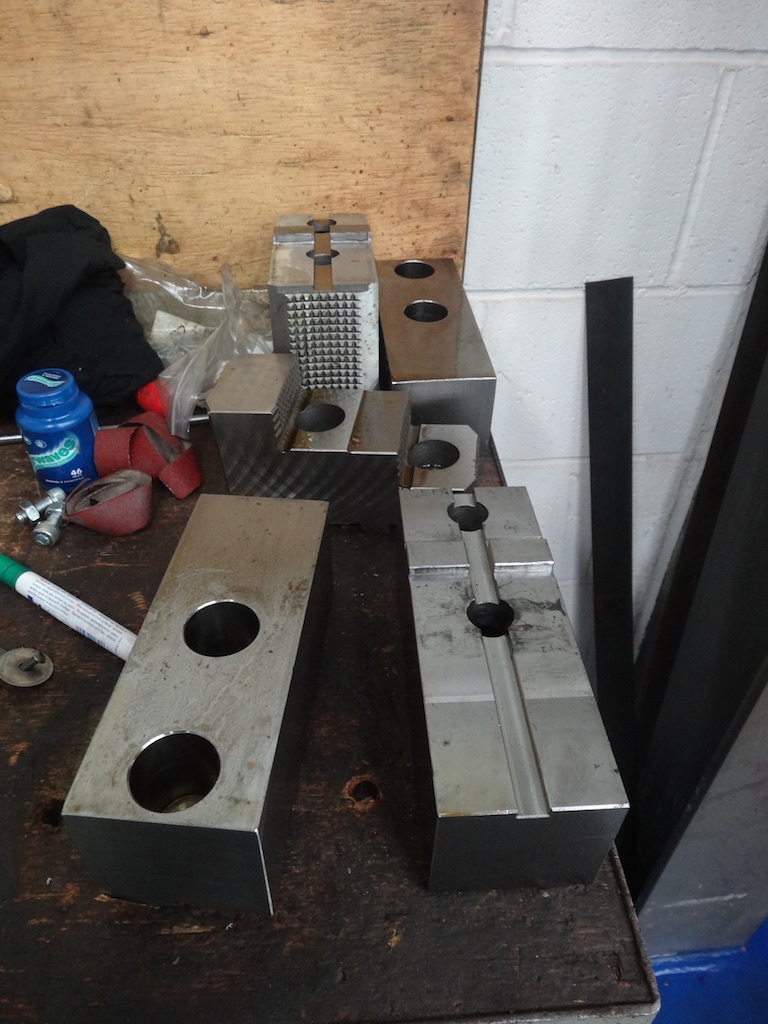

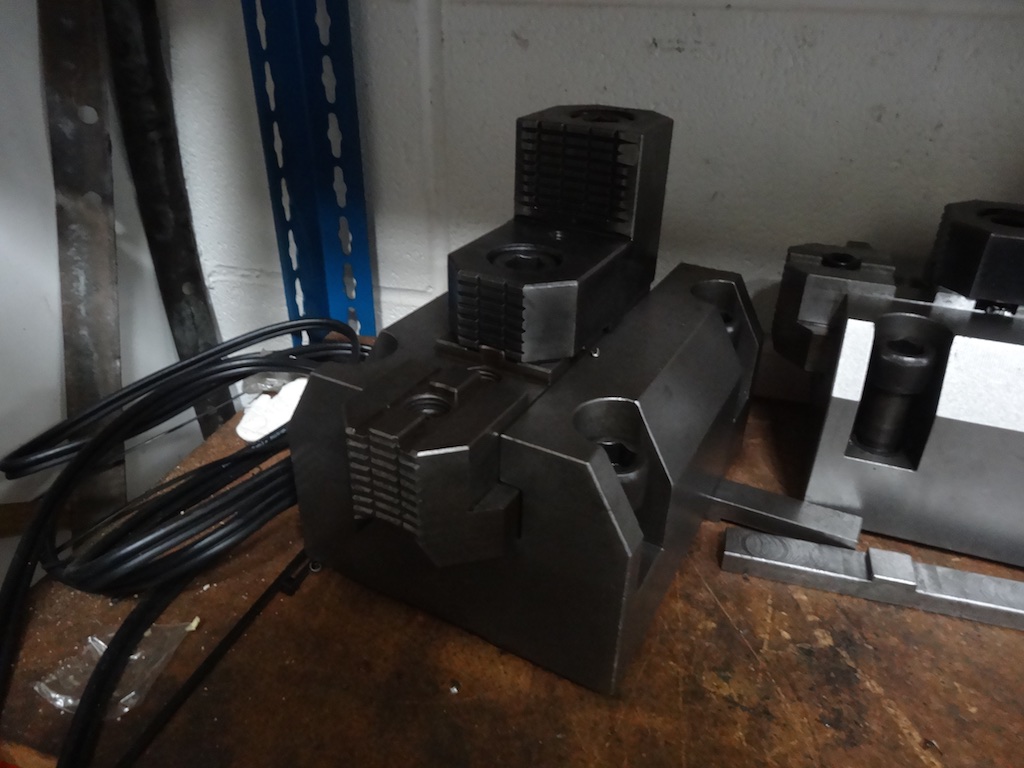

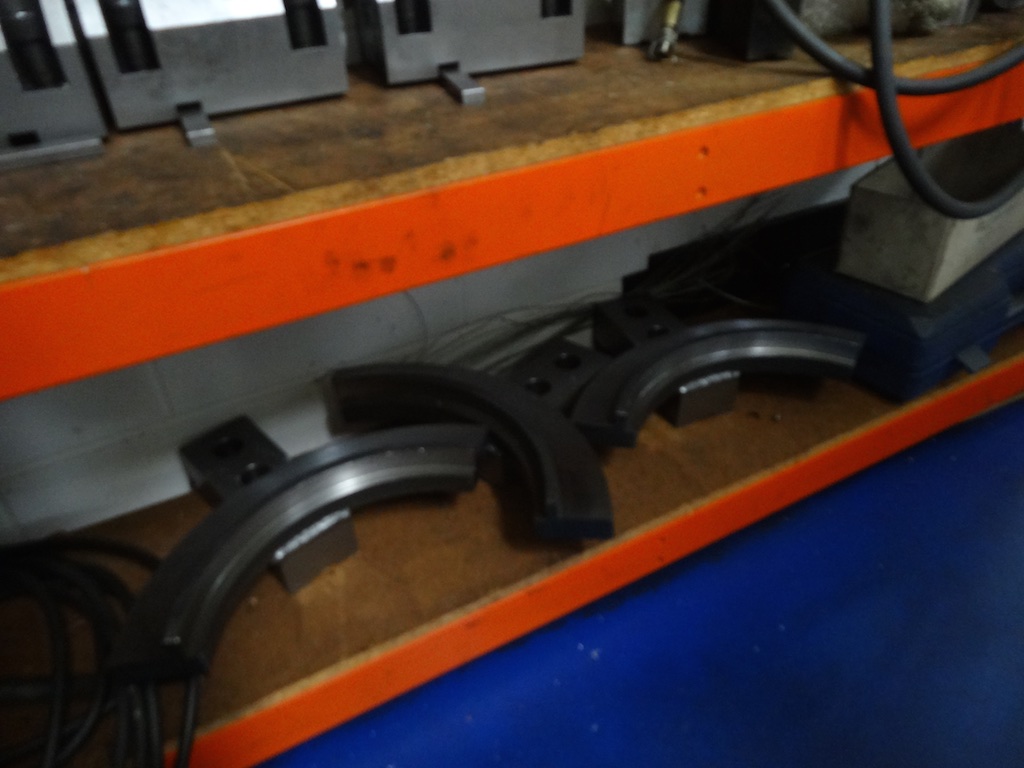

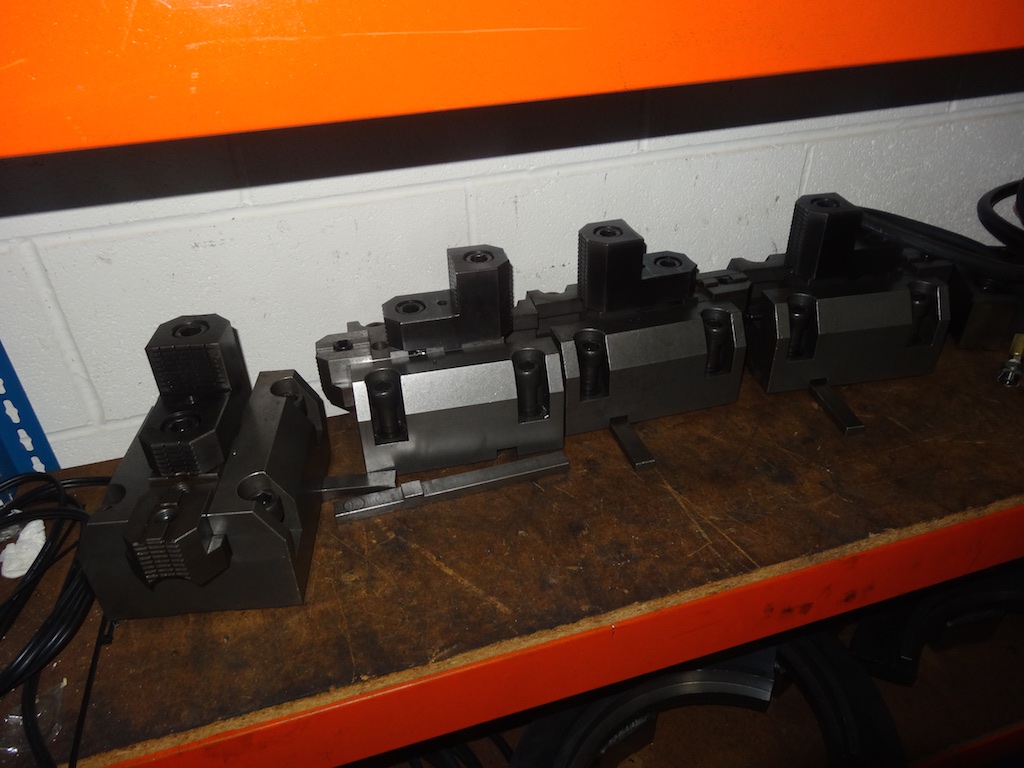

4 Jaw Attachments with hard Jaws
Interlocked Guards
Light use over last 3 years
Location: West Yorkshire
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
