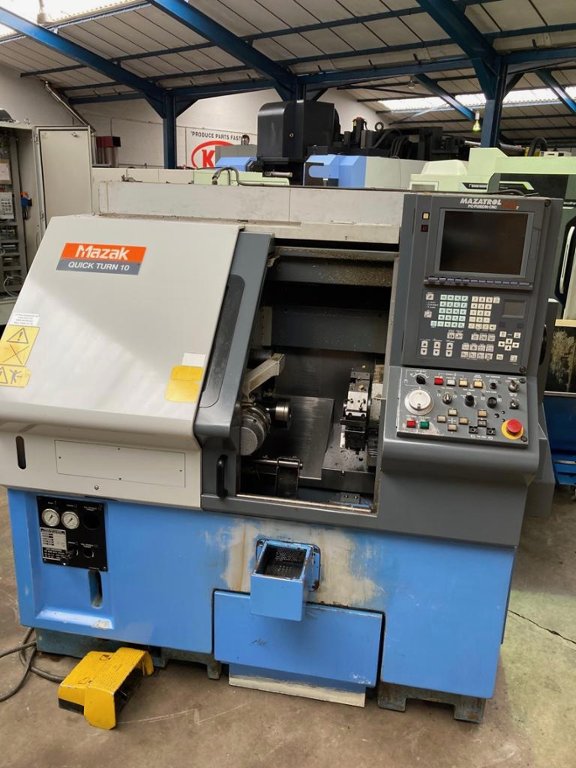

Lot 3 - Mazak QT10 CNC Lathe (2001)

Description:

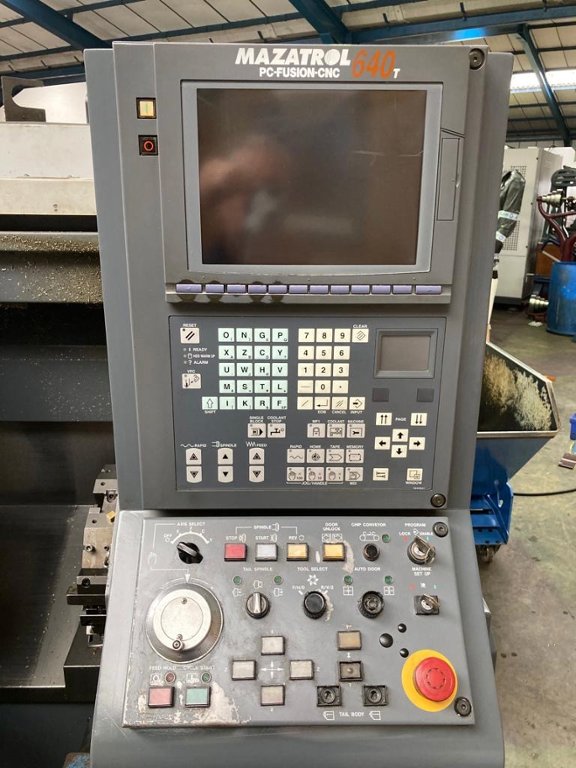

Control: Mazatrol Fusion 640T
Chuck size: 6" 3-Jaw Hydraulic
Maximum swing: 19.25"
Maximum cutting diameter: 6.3"
Maximum machining length: 11.2"
X-axis travel: 3.75"
Z-axis travel: 11.4"
Spindle nose / bore / bar capacity: A2-5 / 1.97" / 1.57"
Spindle speeds: 60-6,000 rpm
Spindle motor: 10 hp
Spindle torque: 70 ft. lbs
Number of turret positions: 12 Position Drum
Rapid traverse rates x/z: 1200 / 1300 ipm
Tailstock quill diameter / center: 2.17" / #4 MT
Tailstock body travel / quill travel: 12.8" / NA

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.

Bid information

Time remaining

HRSMINSEC
000000

07 Oct 2021 15:50:00 BST


Final remove by date: 21/Oct/2021

Location: Coventry

Lot location

Transport information

  • Weight: 2720kg
  • Other Transport Details: Loaded to suitable transport £100
