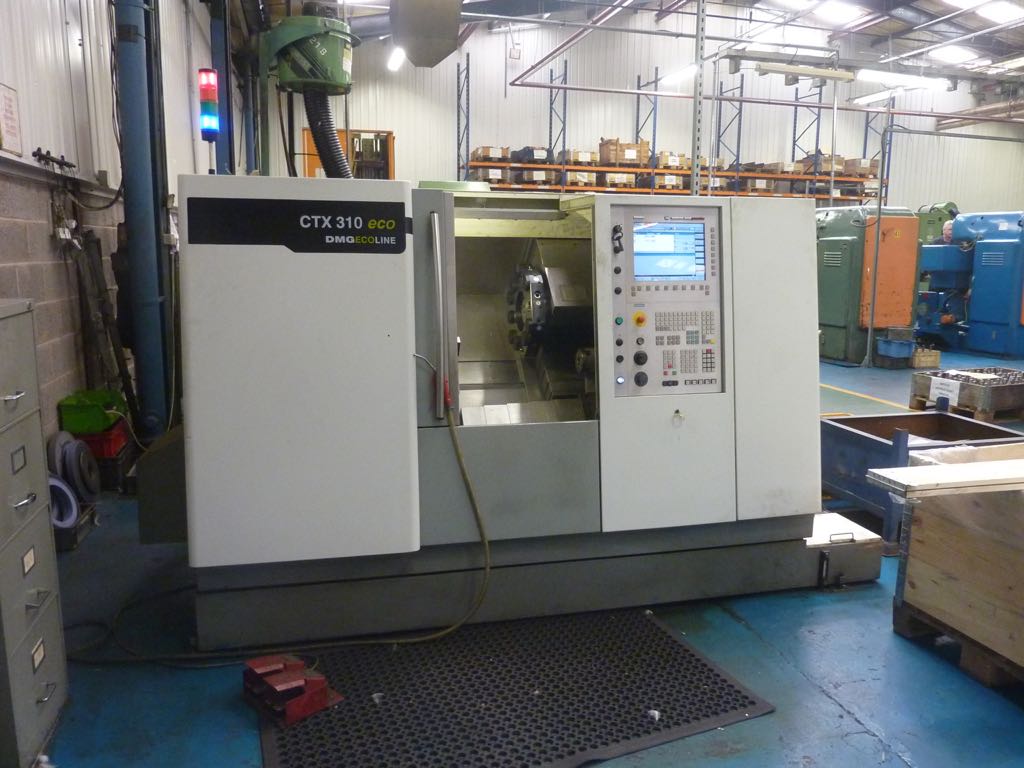

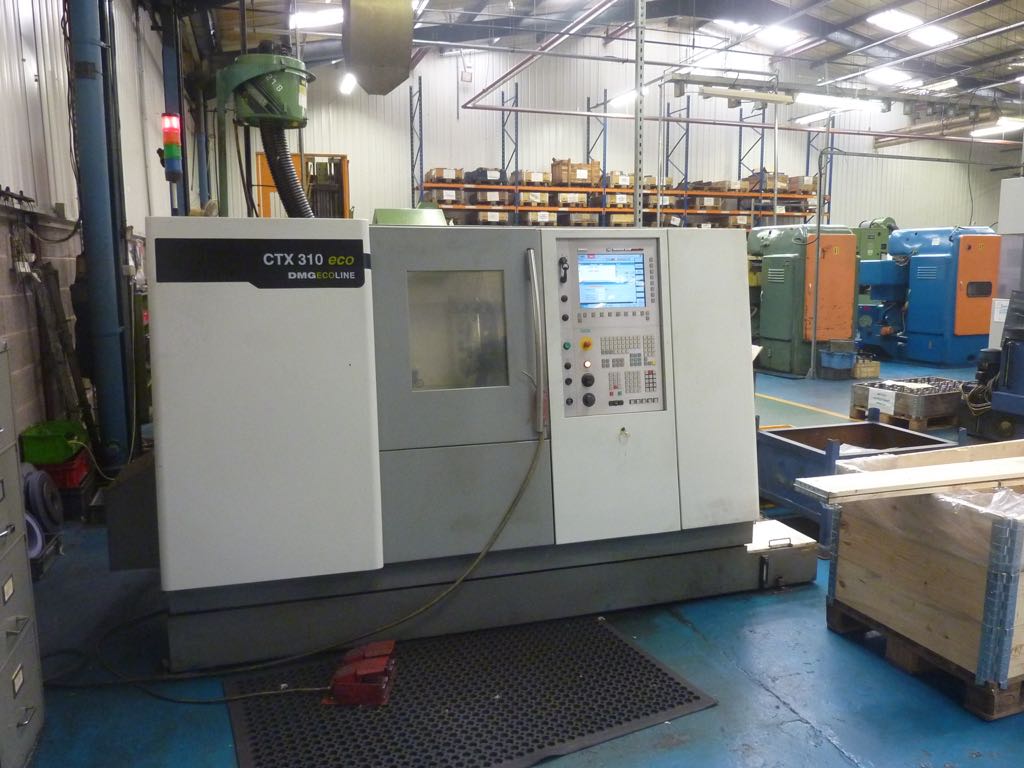

2007 DMG CTX 310 Ecoline

Lot 1 - 2007 DMG CTX 310 Ecoline

Description:

WORKING AREA
* optional
Maximum swing mm 330
Swing over cross slides mm 260
Max. turning diameter mm ø 200
Cross travel (X) mm 182.5
Longitudinal travel (Z) mm 455
Rapid traverse (X / Z) m/min 30 / 30
MAIN SPINDLE
Spindle head (flat flange) mm 140h5
Bar capacity mm ø 51 / ø 65*
Front bearing diameter mm 100

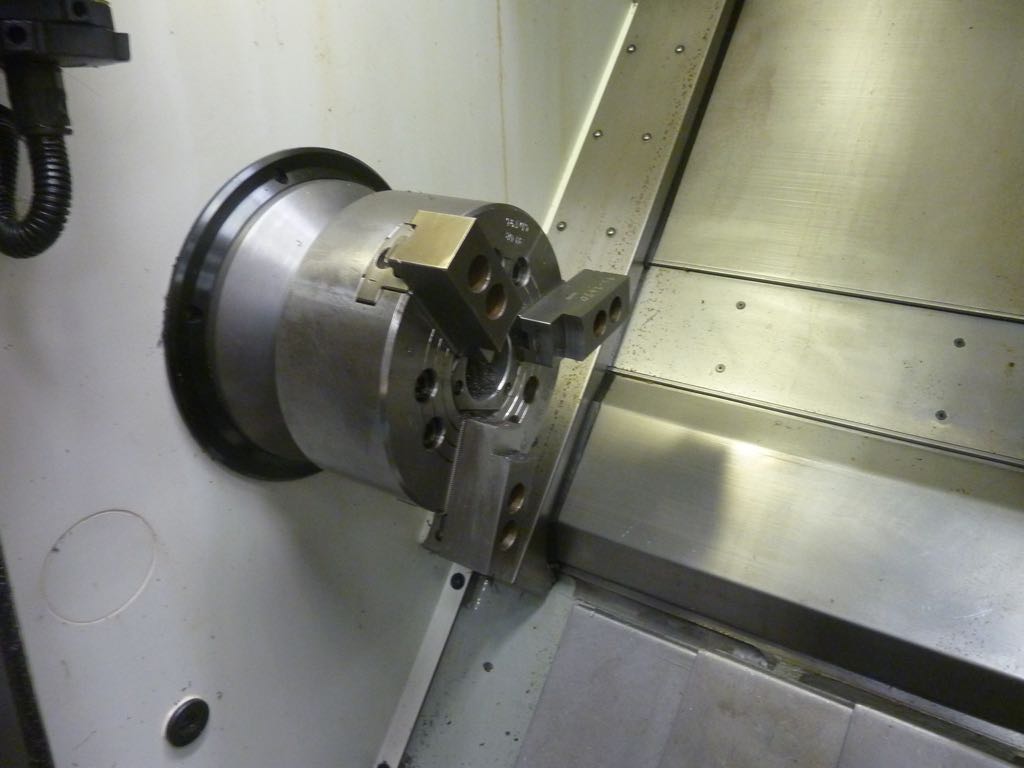

Chuck mm 210*
Drive power (40 / 100 % ED) kW 16.5 / 11
Maximum torque (40 / 100 % ED) Nm 166.5 / 112
Maximum speed rpm 5,000
POSITIONING ACCURACY
To ISO 230-2 in X / Z axes (indirect measurement system) µm 8 / 8

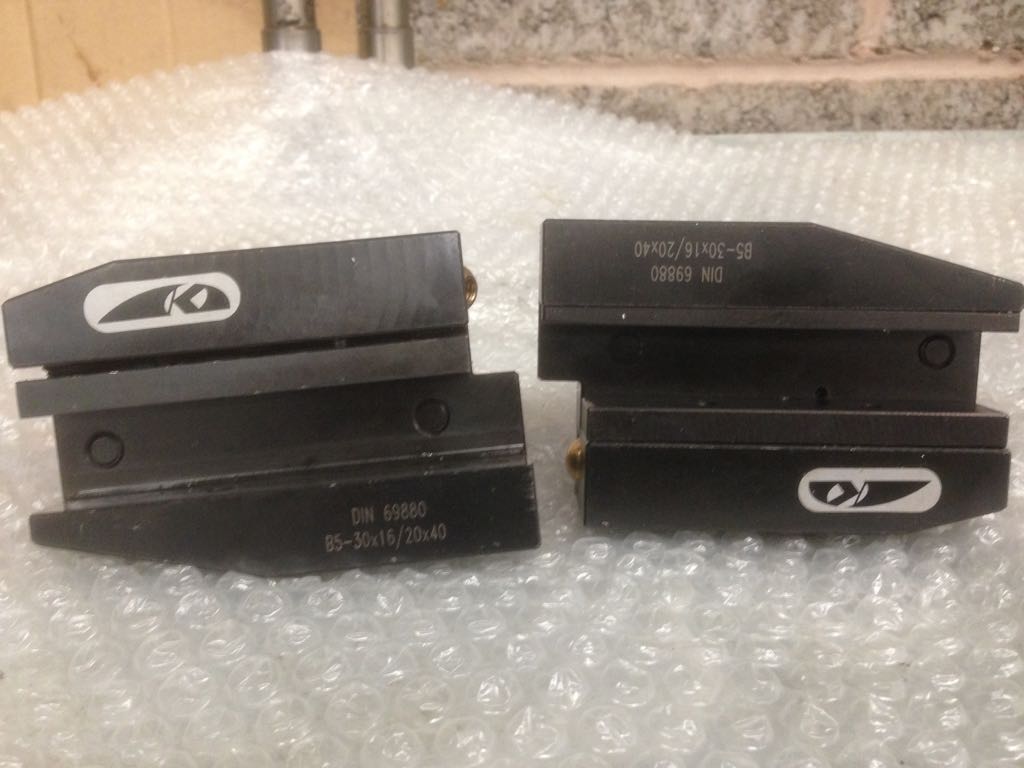

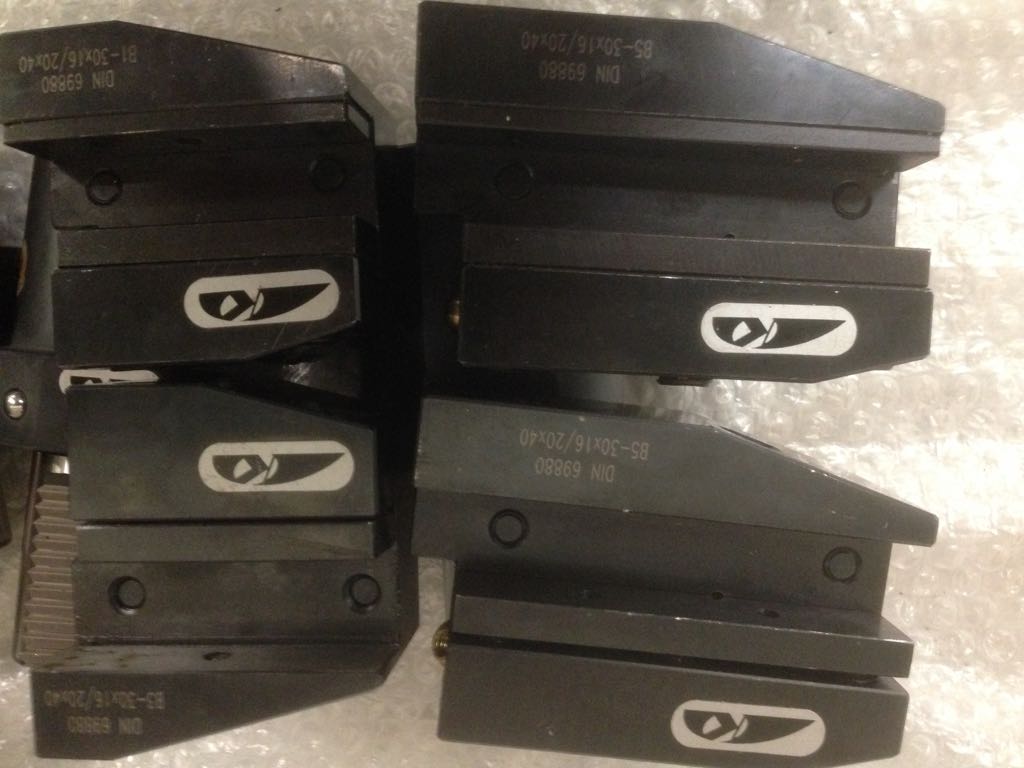

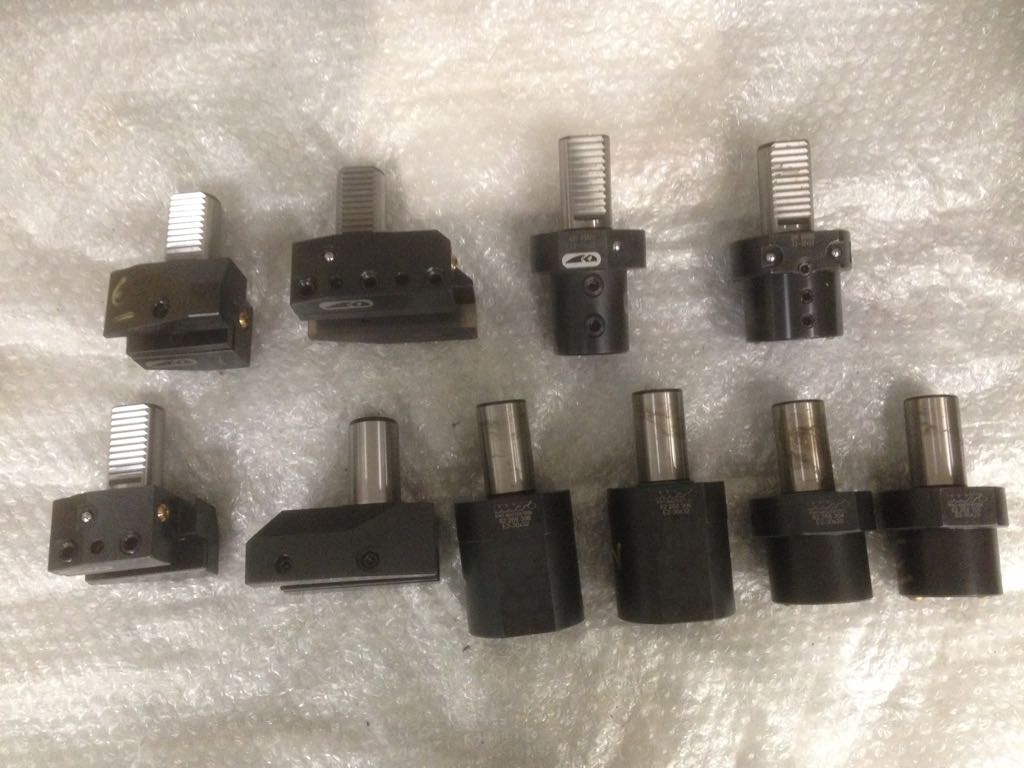

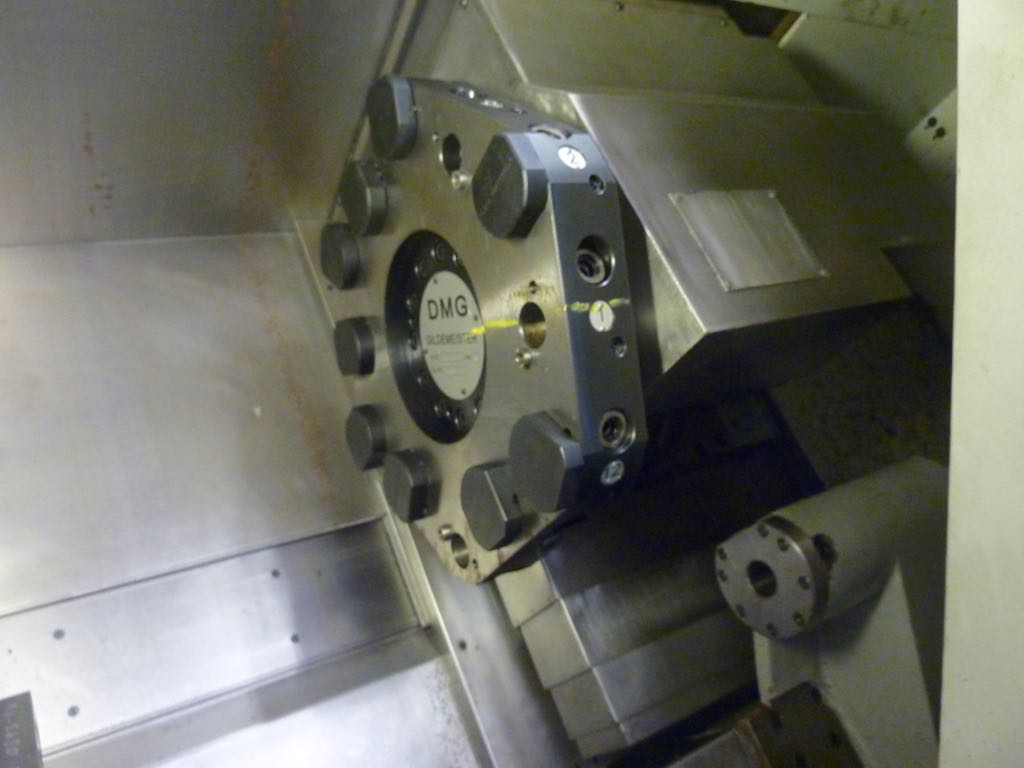

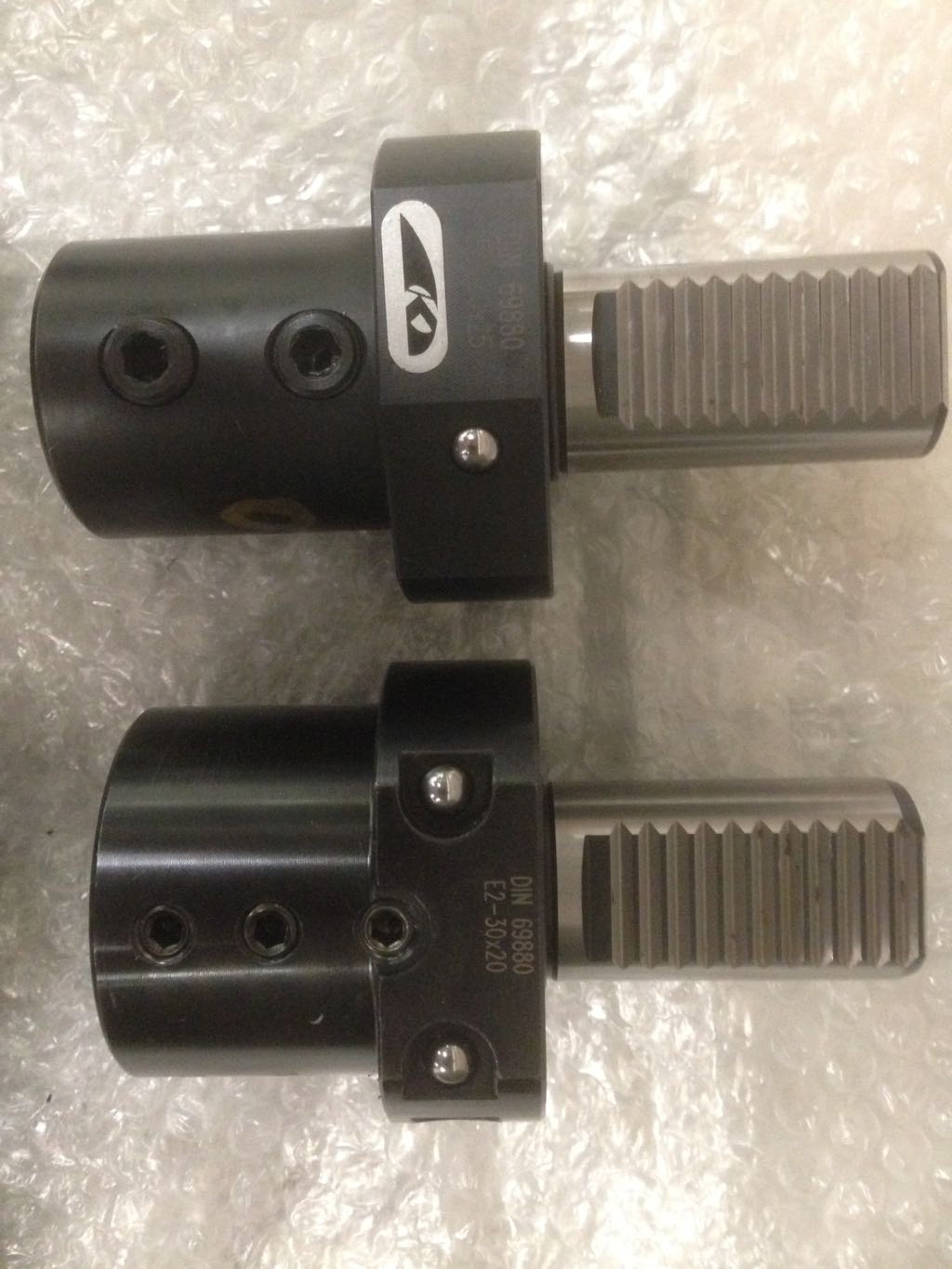

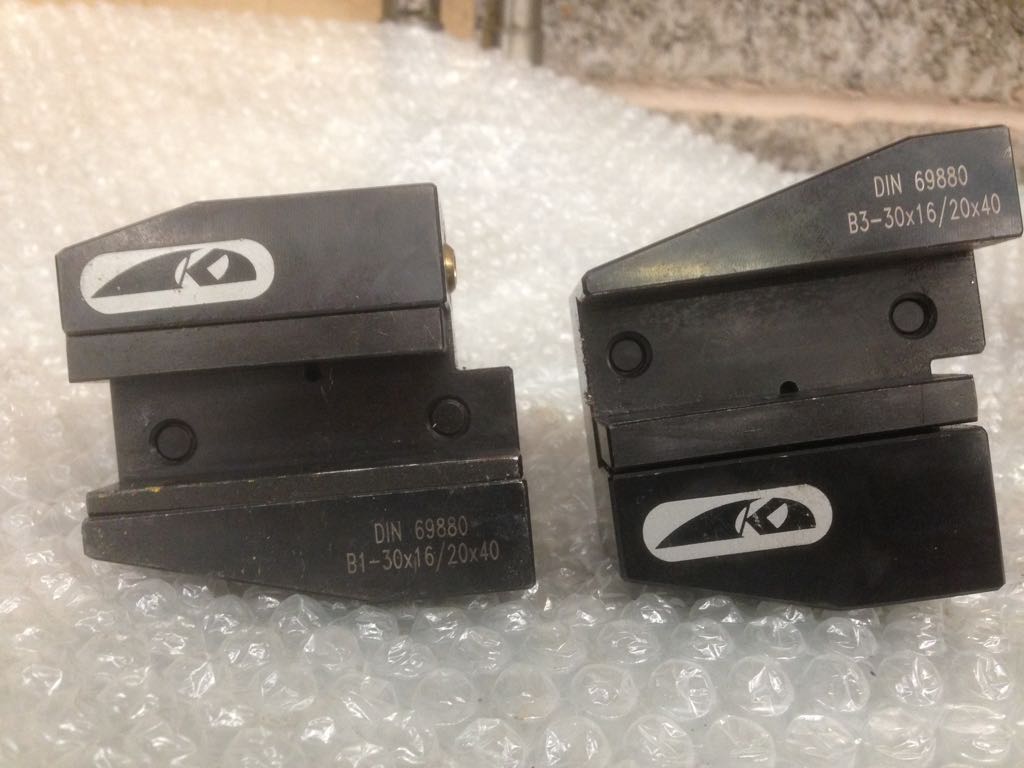

TOOL HOLDER
Number of tool stations 12
Of which driven tool stations 12
Shank diameter mm 30
Drive power (40 % ED) at 2,000 rpm kW 4.2
Maximum torque (40 % ED) Nm 20
Maximum speed rpm 4,500

*Please satisfy yourself with the specifications as they may have been taken from the internet

Location: Coventry

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
