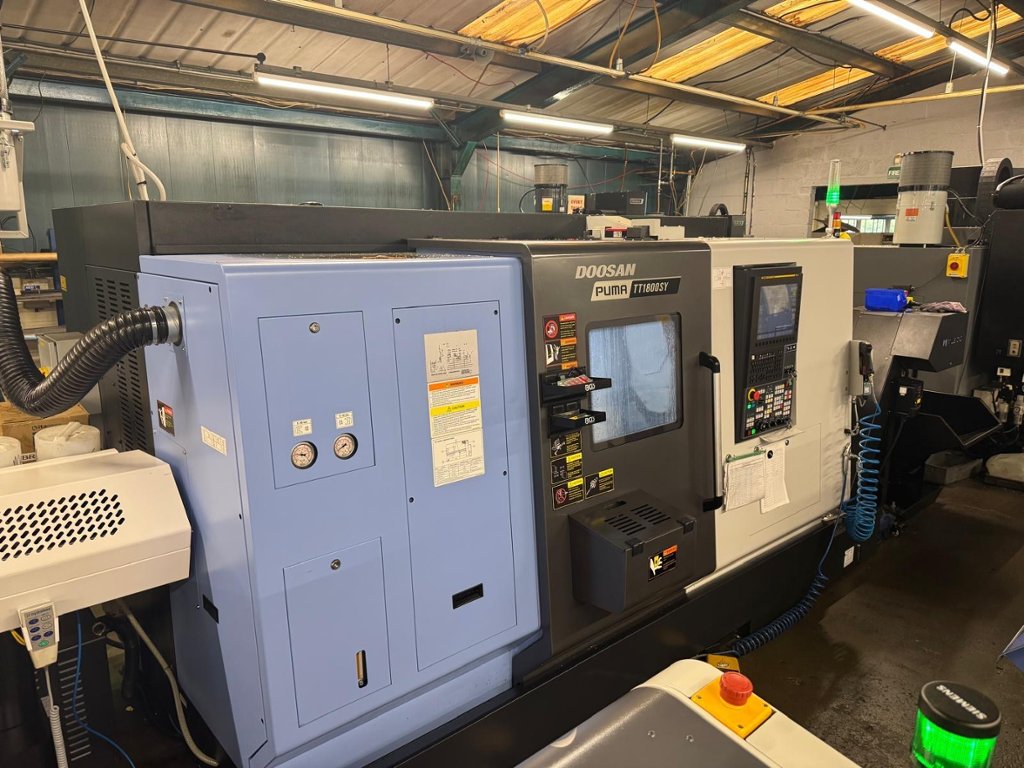

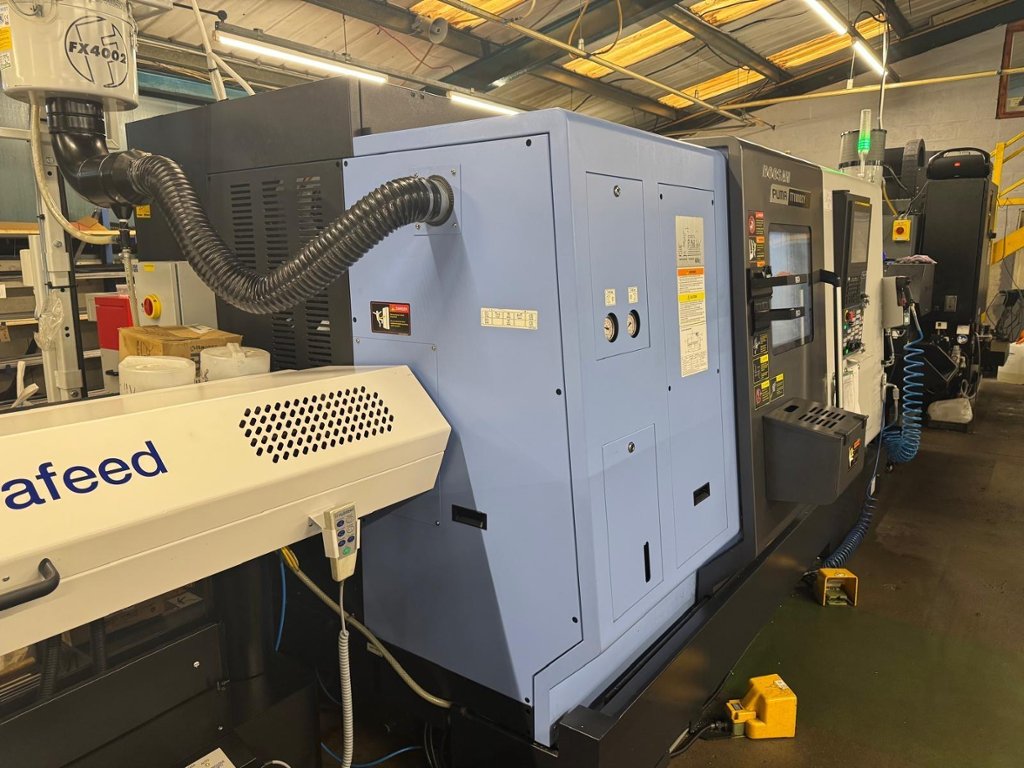

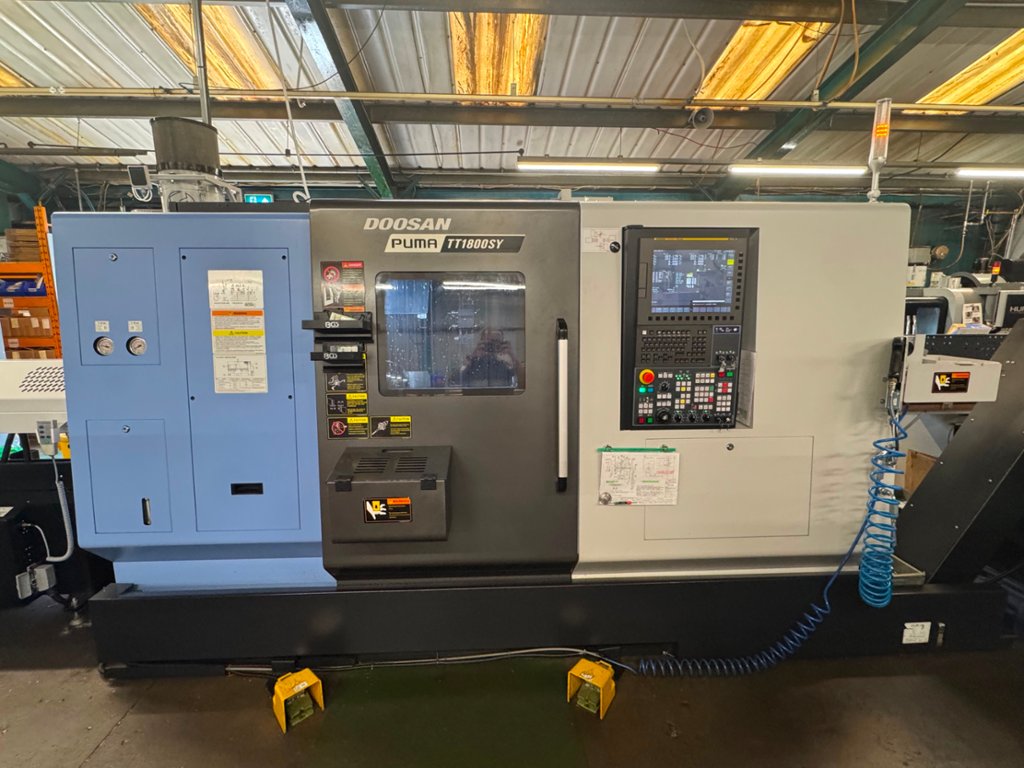

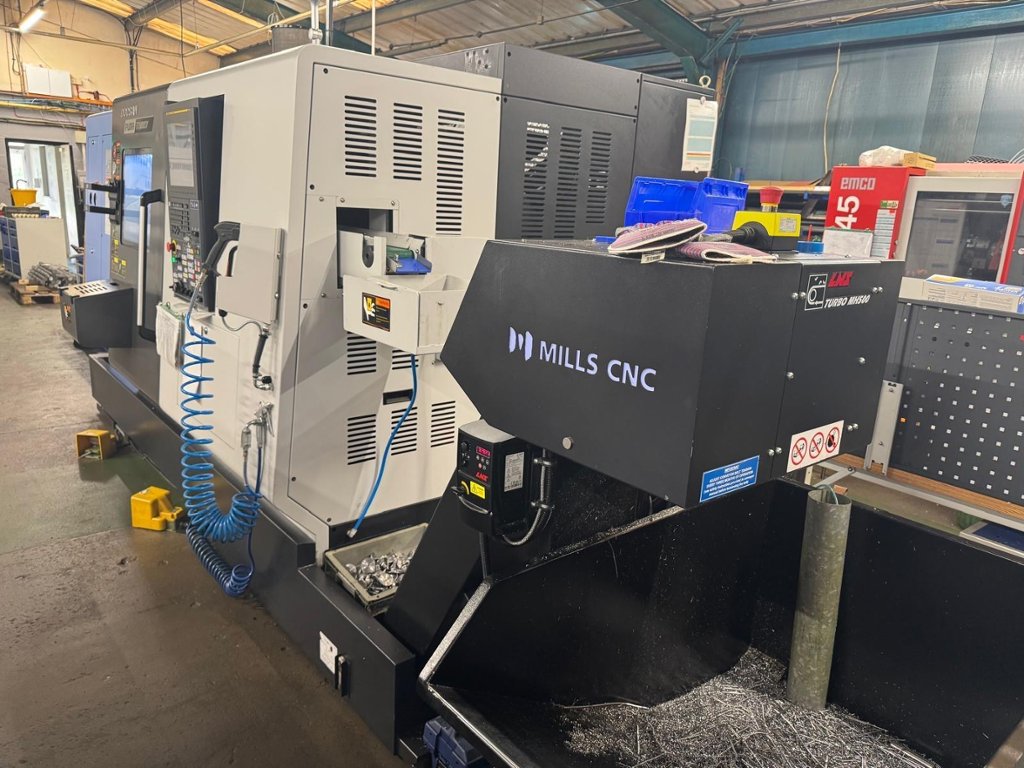

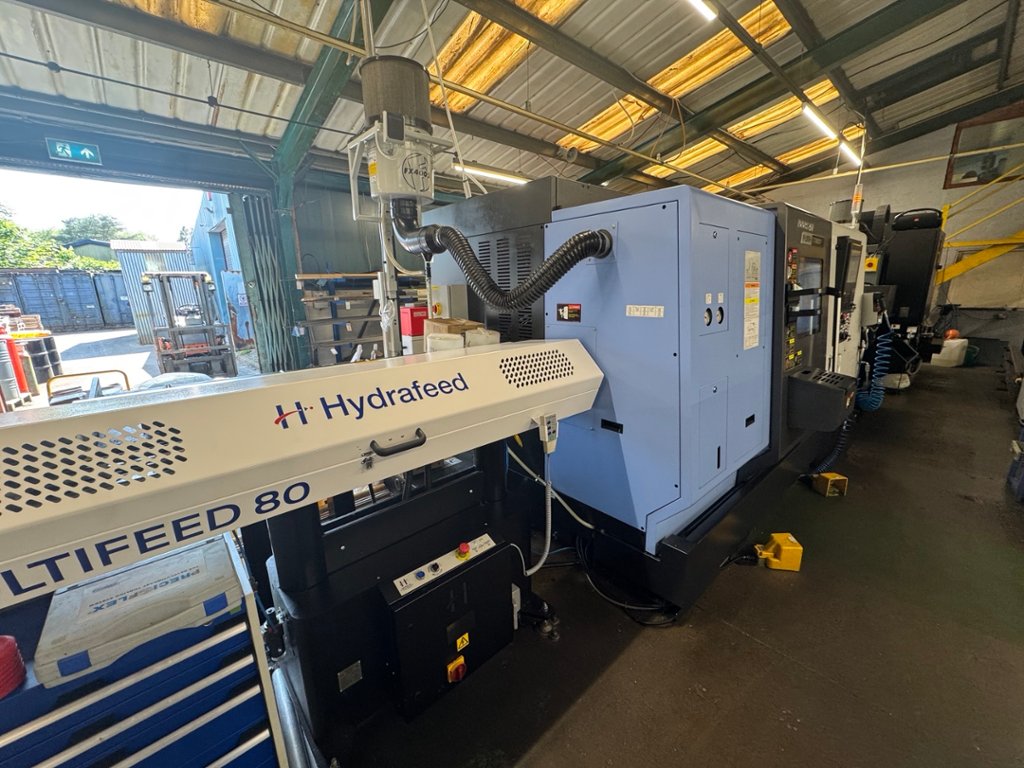

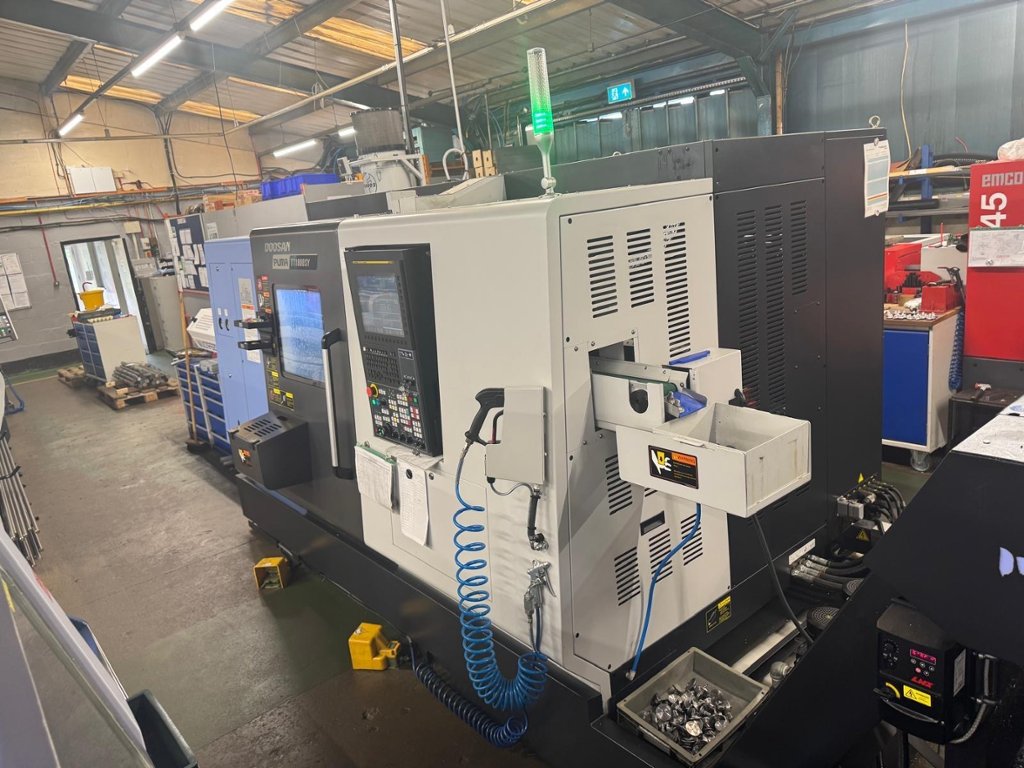

2021 Doosan Puma TT1800SY Twin Turret CNC Lathe

Width: 3905mm
Depth: 2070mm
Height: 2080mm
Weight: 8800kg
Other Transport Details: Loaded to suitable transport - £250

Lot 1 - 2021 Doosan Puma TT1800SY Twin Turret CNC Lathe

Description:

Chuck size 8 inch
Bar Capacity 65 mm
Max. Turning Diameter 230 mm
Max. Turning Length 230 mm
X Axis Rapid Traverse 20 m/min
Z Axis Rapid Traverse 40 m/min
Max. Spindle Speed 5000 r/min
Max. Spindle Power 22 kW
Max. Spindle Torque 208 N·m
Max. Sub Spindle Speed 5000 r/min
Max. Sub Spindle Power 22 kW
No. of tool station 24
Rotary Tool r/min 5000 r/min
X Axis Travel distance 190 mm
Y Axis Travel distance 100 mm
Z Axis Travel distance 720 mm

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
