Lot 3 - Agie Charmilles Robofil 440CC (2004)
Description:

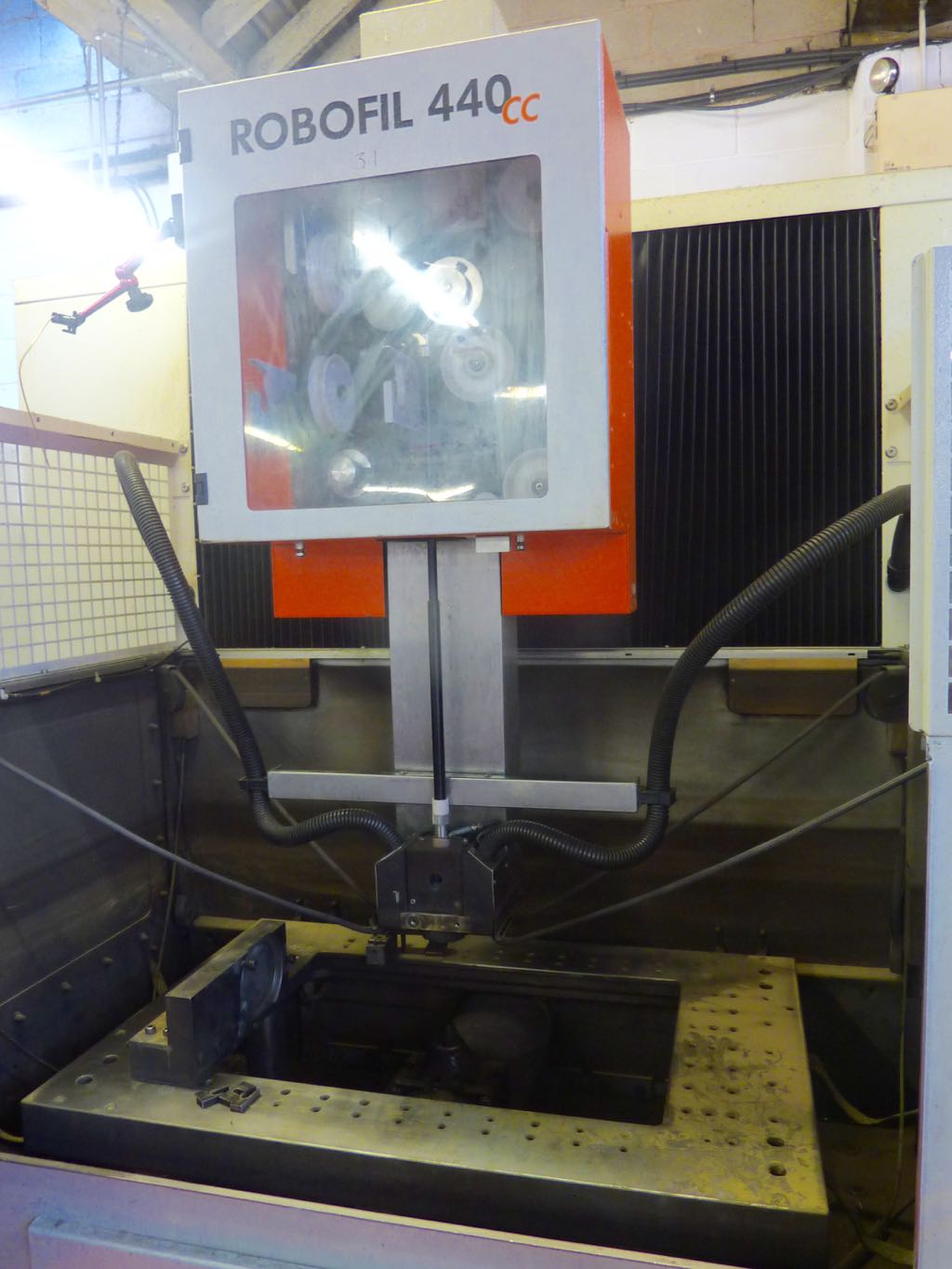

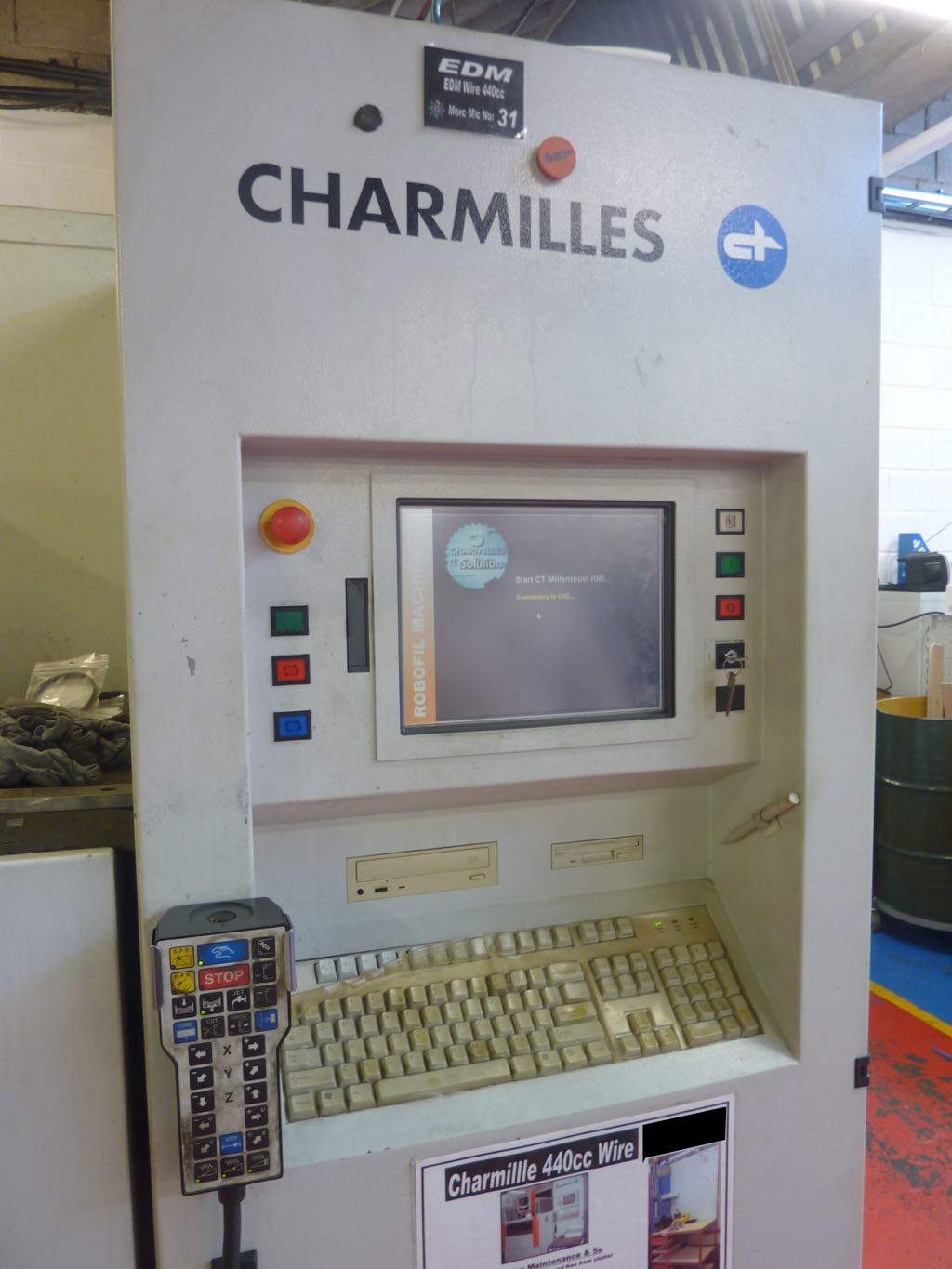

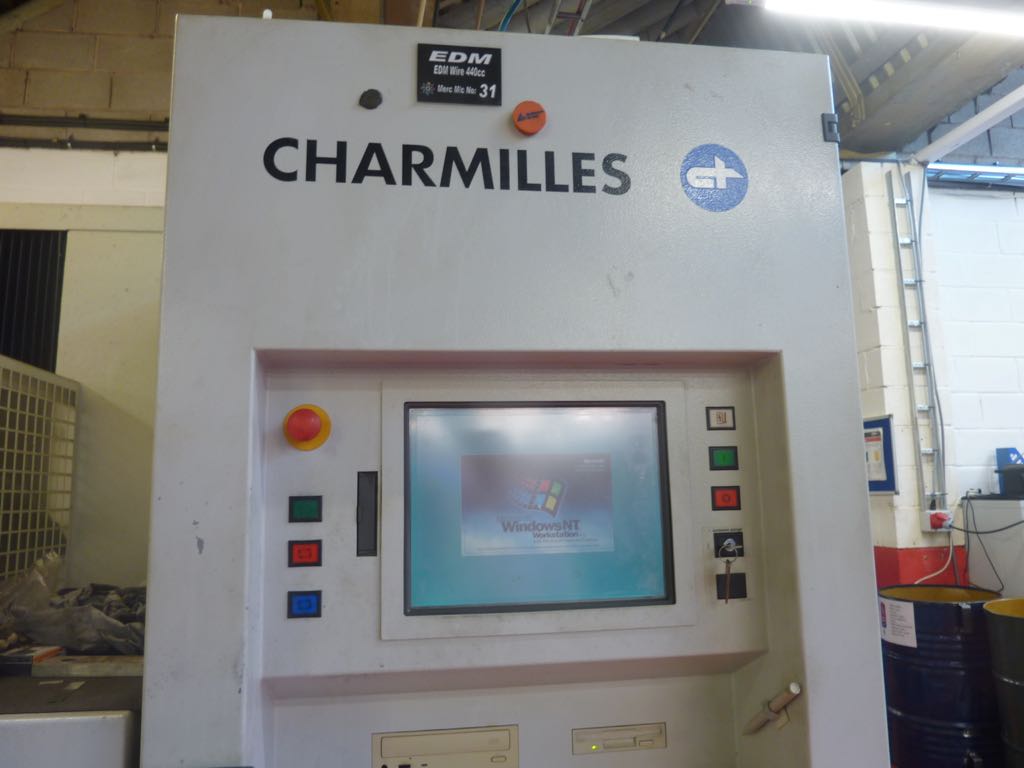

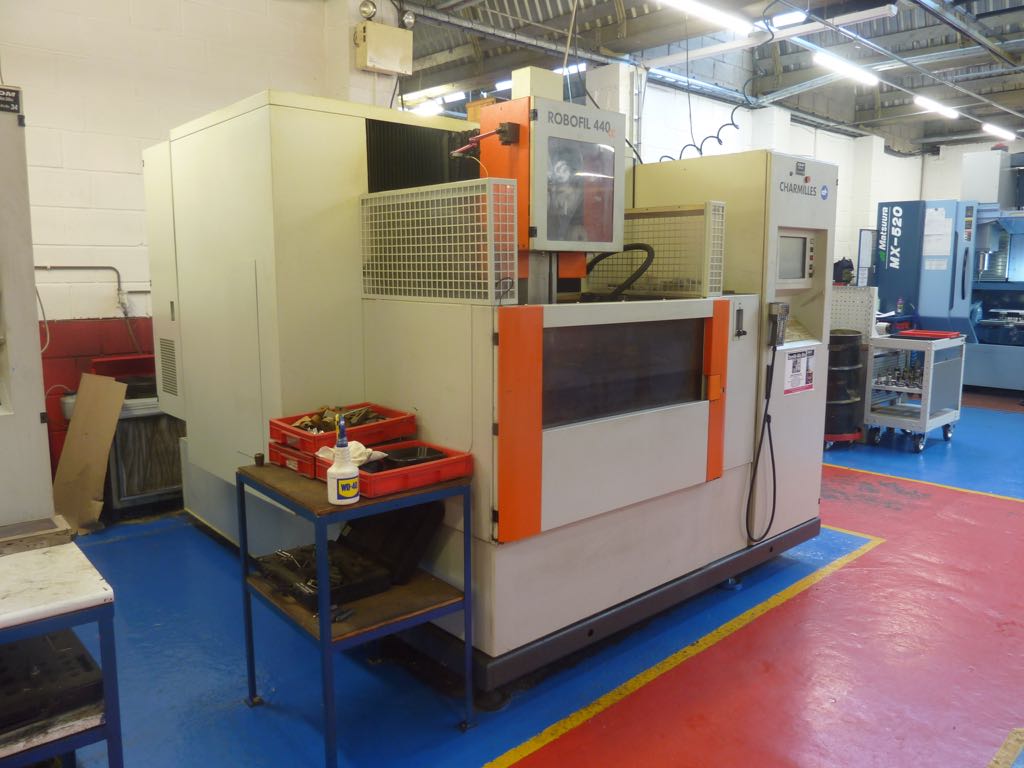

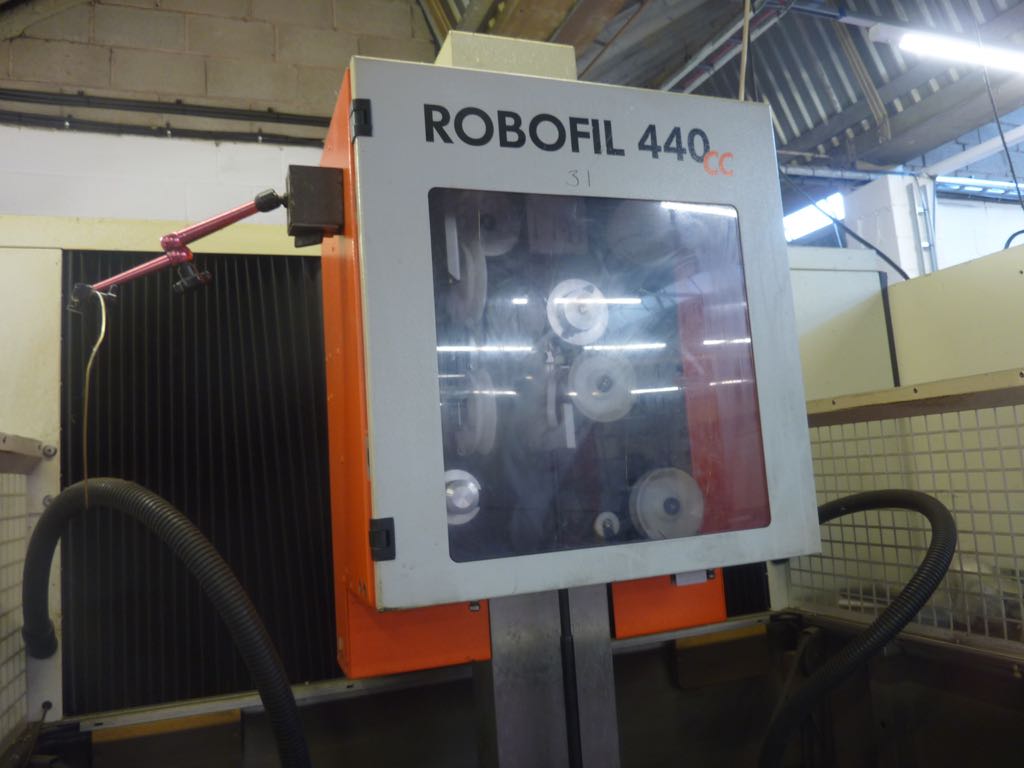

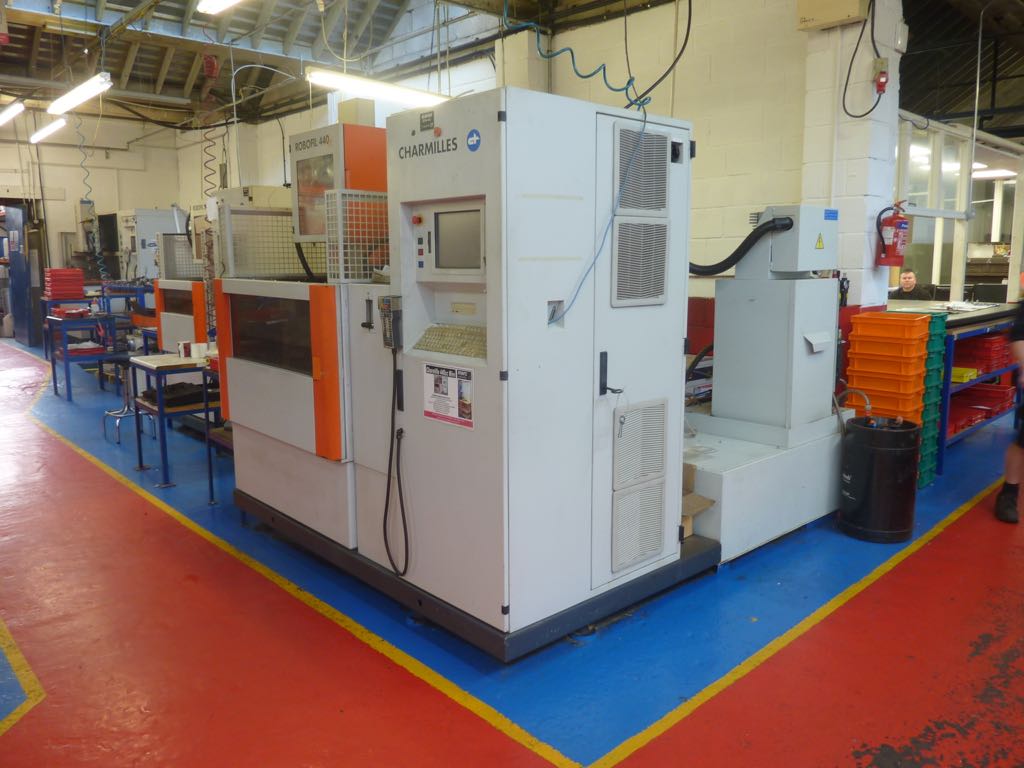

Agie Charmilles Robofil 440CC (2004)

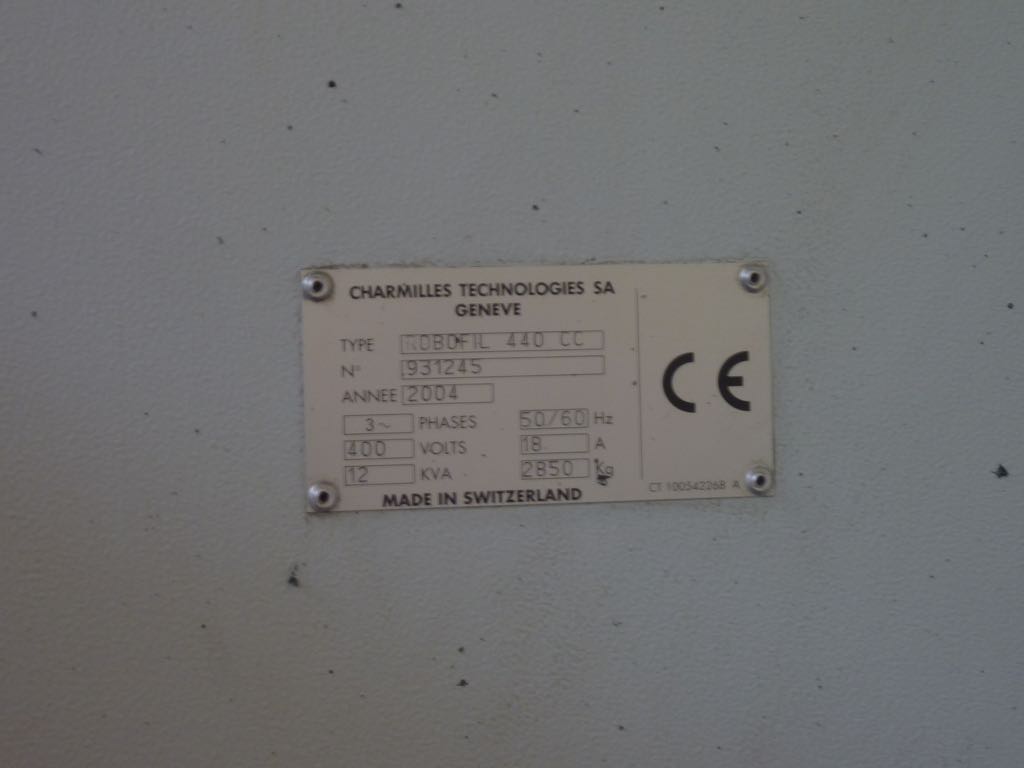

S/n:931245
GENERAL SPECIFICATIONS
X AXIS TRAVELS 21.65”
Y AXIS TRAVELS 13.78”
Z AXIS TRAVELS 15.7"
U/V AXIS TRAVELS 21.65” x 13.77”
TAPER CAPACITY 0-30 DEGREES
MAX. WORKPIECE DIMENSIONS 47.2” x 27.5” x 15.75”
MAX. WORKPIECE WEIGHT 3,300 Lbs.
WIRE DIAMETERS .004” - .012”
WIRE SPOOL SIZE 17.7 Lbs.
MAX CUTTING SPEED 37 SQUARE INCHES PER HOUR
MACHINE SIZE 101” x 110” x 101”
MACHINE WEIGHT 7,275 LBS - 2850kg
Location: Lancashire
*Please satisfy yourself with the specifications before bidding as they may have been taken from the internet
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
