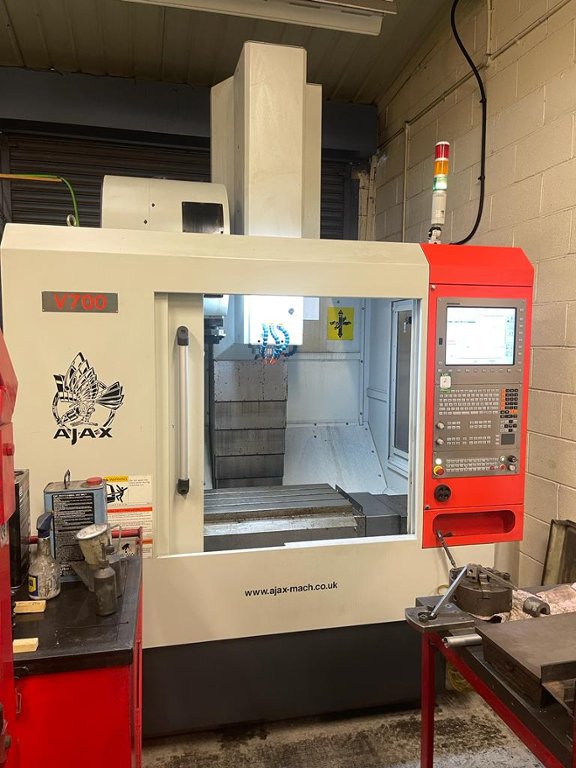

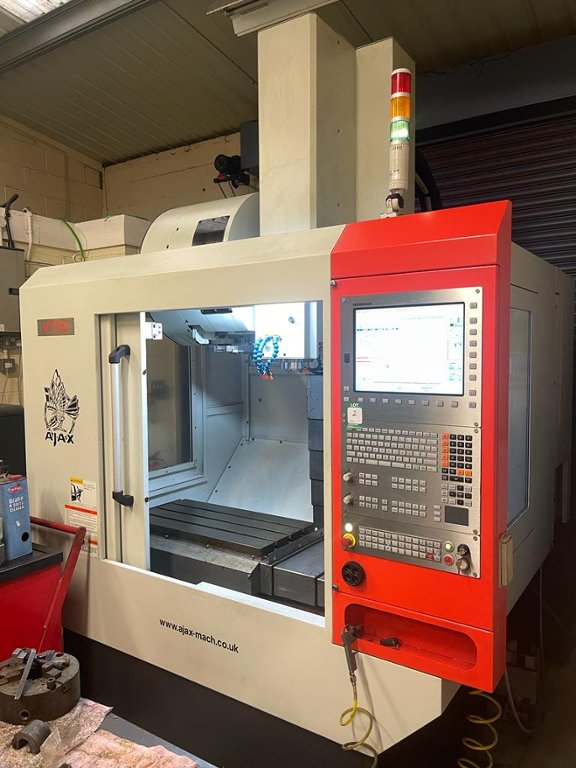

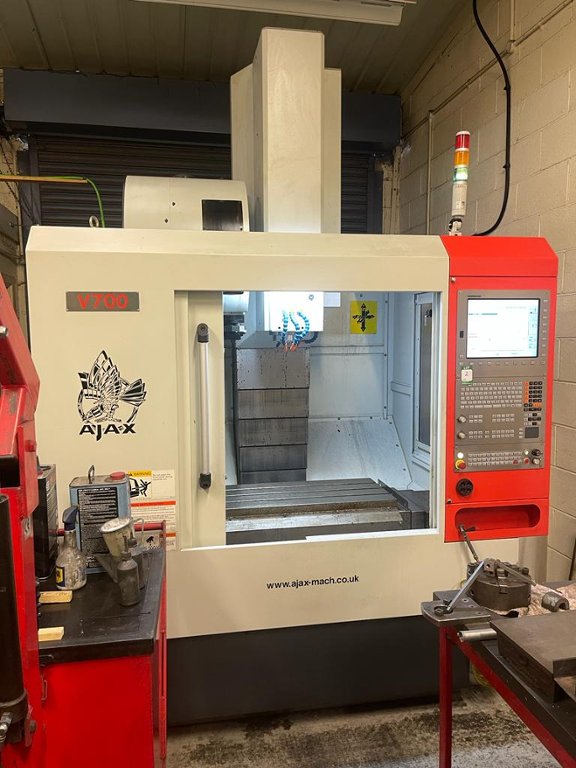

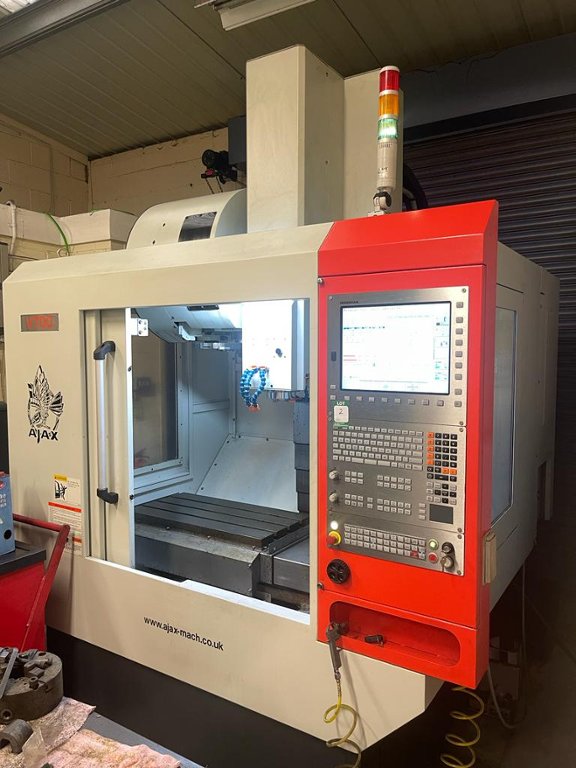

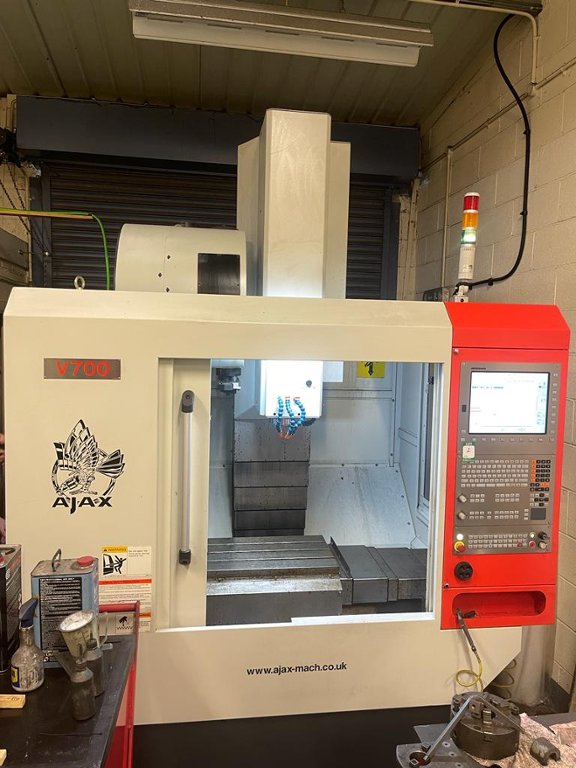

Ajax V700 CNC Vertical Machining Centre (2013)

Lot 2 - Ajax V700 CNC Vertical Machining Centre (2013)

Description:

24 Tool Changer

BT40 Tooling

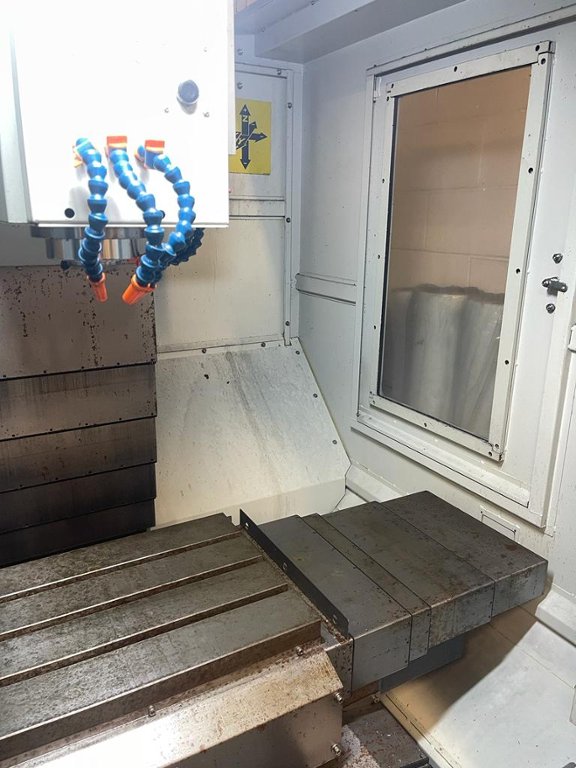

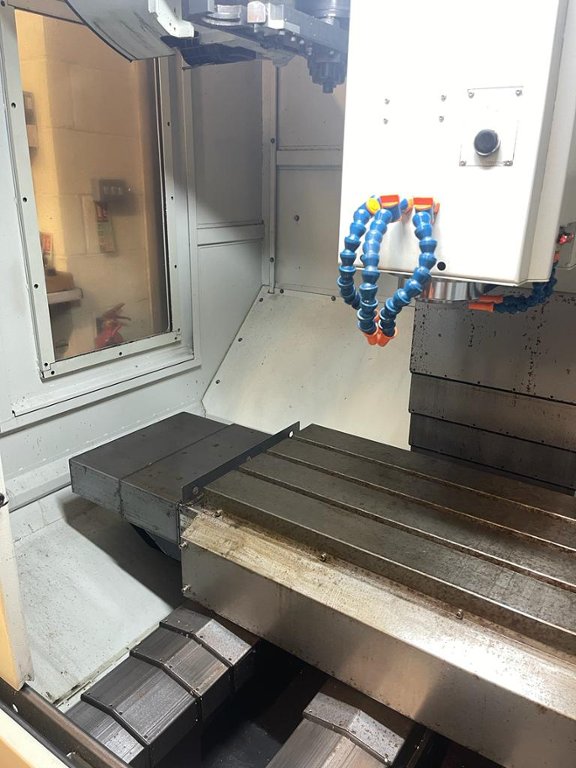

Working surface (X & Y) - 800 x 400 mm (31.5 x 15.7")

T Slot (no x width x pitch) - 3 x 18 x 100mm (3 x 0.7 x 3.9")

Table stroke (X & Y) - 700 x 400mm (27.5 x 15.7")

Cutting feedrate - 1~10000 mm/min (0.04~393.75")

Rapid traverse (X & Y) - 48000 mm/min

Rapid traverse (Z) - 32000 mm/min

X,Y Feed motor (AC servo unit) - 12Nm AC Motor

Z Feed motor (AC servo unit) - 12Nm AC Motor

Table load capacity - 250kg (551lbs)

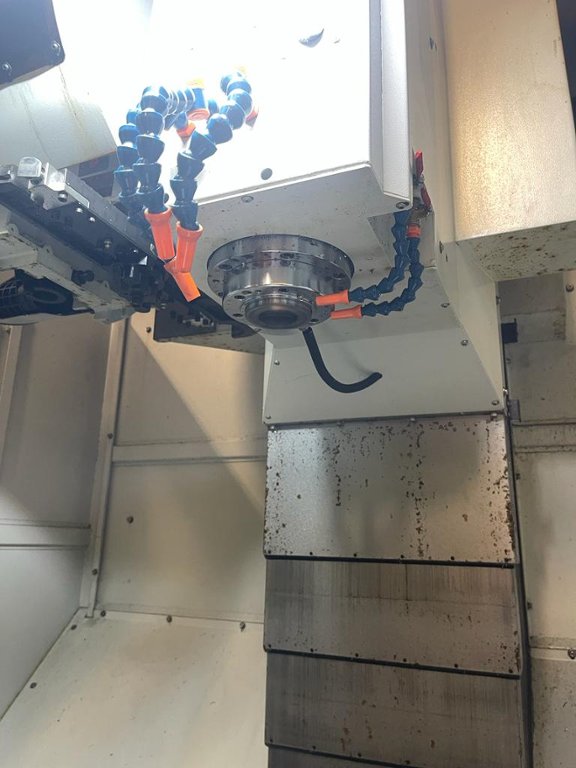

Spindle

Stroke (Z) - 550mm (21.6") & 650mm (25.5")

Table to spindle end - 150/700mm (5.9/27.5") & 150/800mm (5.9/31.4")

Spindle motor - 5.5/7.5kW

Spindle rotation speed range - 10000 - 15000 rpm

Max spindle moment of inertia - 26.3Nm

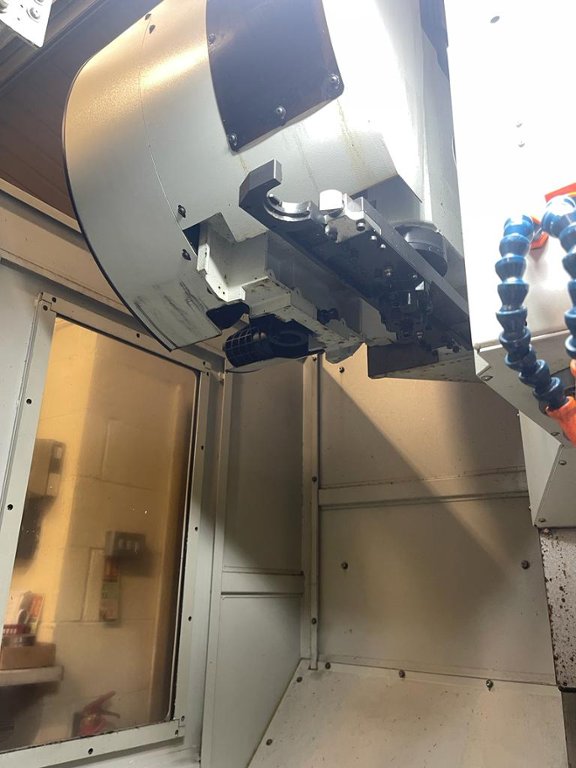

Automatic Tool Change

Type - Armless

Tool storage capacity - 14T

Tool change time (Tool to Tool) - 1.6 sec

Tool change time (Chip to Chip) - 3.2 sec

Max adjacent tool diameter - 120mm (4.72")

Max tool weight - 4kgs (8.8lbs)

Max tool length - 200mm (7.87")

Tool total weight - 4kg

Type - Arm

Tool storage capacity - 24T (OP)

Tool change time (Tool to Tool) - 2.0 sec

Tool change time (Chip to Chip) - 4.6 sec

Max adjacent tool diameter - 80mm (3.14")

Max tool weight - 7kgs (14.14lbs)

Max tool length - 250mm (9.84")

Tool total weight - 7kg

Air power required - 5.5bar

Spindle centre to column - 500mm (19.7")

Floor to table - 858mm (33.8)

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
