Lot 19 - AMOB MDH 60 CN1 Tube Bender (2009)
Description:

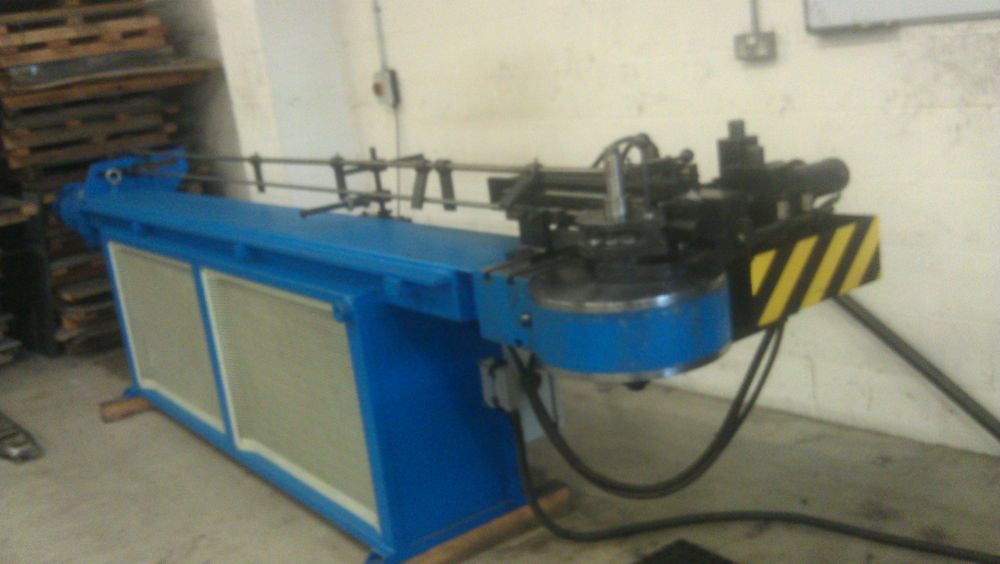

AMOB MDH 60 CN1 Tube Bender
Year 2009
Sequentially adjustable flip stops (x axis) yes
Fully hydraulic clamping yes
Optional Equipment
Automatic hydraulic mandrel extraction yes
Automatic hydraulic pressure die yes
Automatic hydraulic pressure die assist yes
Automatic mandrel lubrication yes
Hydraulic clamp for plane of bend positioner yes
Machine useful length increments (1m) yes
Split die system (square/rectangular/others) yes
Dies for profiles/tubes yes
Capacities
Maximum bending OD x thickness (steel - 450 N/mm2) 60mm x 3
Maximum bending OD x thickness (steel - 700 N/mm2) 50.8mm x 2
Maximum bending side x side x thickness (steel - 450 N/mm2) 50.8mm x 50.8mm x 2
Maximum section modulus (steel - 450 N/mm2) 7.3cm3
Maximum bending Angle(°) 190
Standard bending direction Clockwise
Working pressure - (bar) 150
Power supply - (Volts-Hz-Phases) 380V - 50Hz - 3P
Technical information
Power (kW) 8
Dimensions (mm) 4250 x 1200 x 1170
Weight (Kg) 1700
Maximum Centerline bending Radius 225mm
Maxium useful length 3000mm
Location: Eye, Suffolk UK
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
