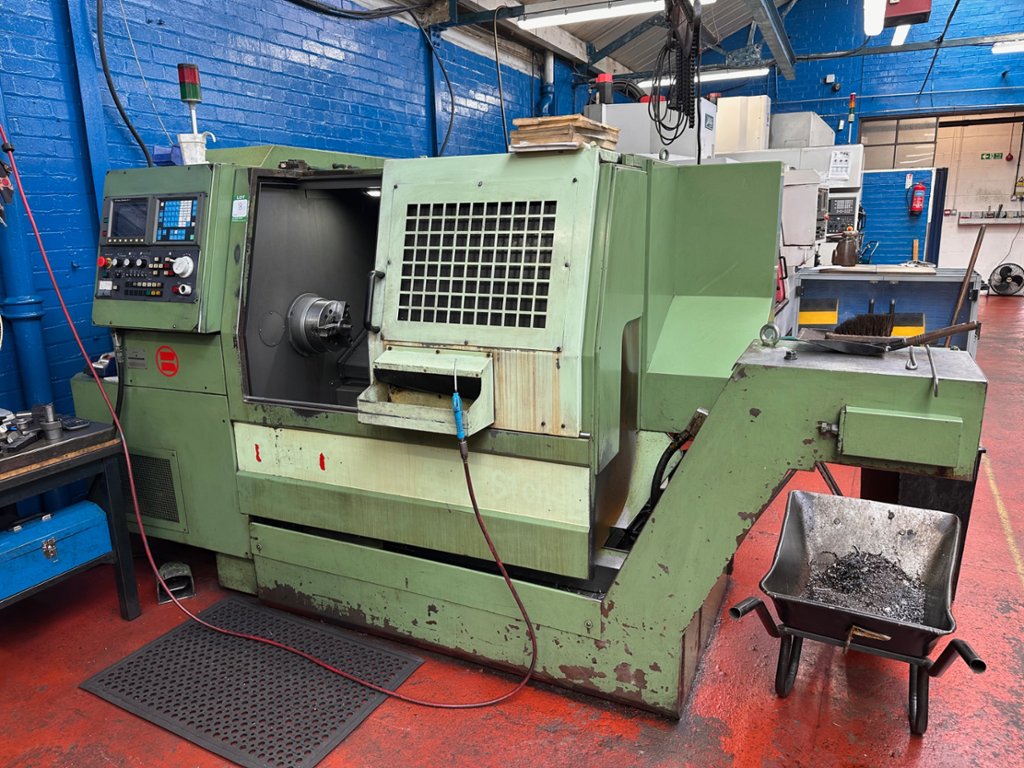

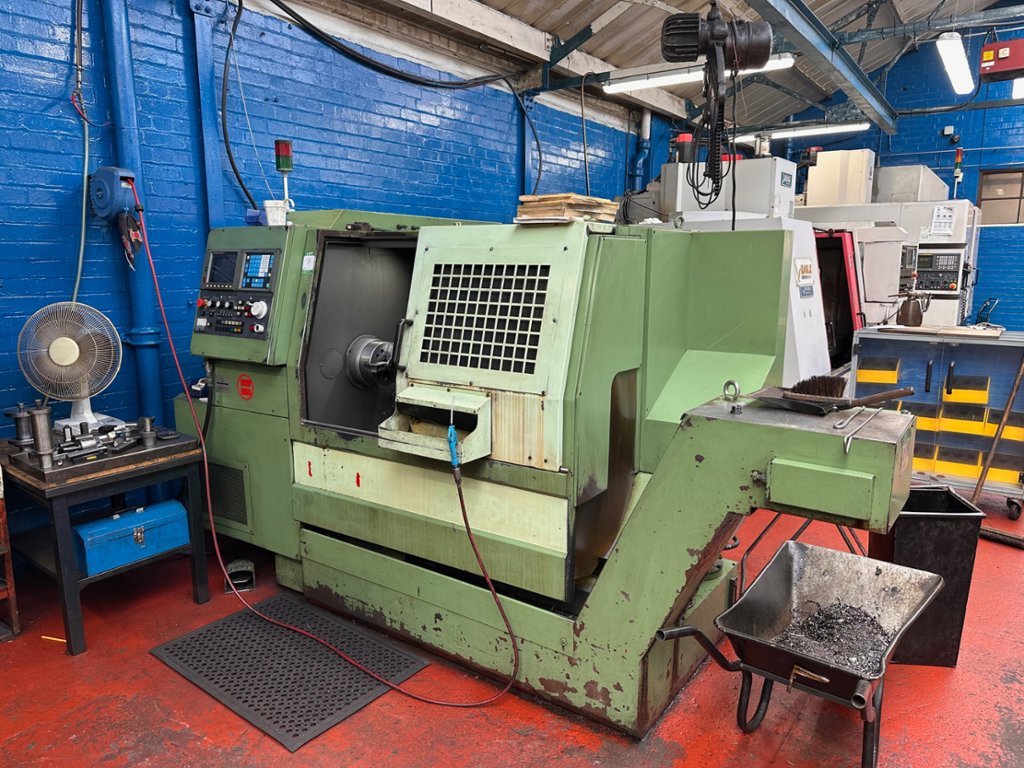

Biglia B.121/51 2-axis CNC Slant-Bed Turning Centre (1993)

Lot 8 - Biglia B.121/51 2-axis CNC Slant-Bed Turning Centre (1993)

Description:

Working Capacity & Envelope

Maximum Swing Over Bed: 520 mm, Maximum Turning Diameter: 250 mm (upgraded clearance over the late-80s 180 mm threshold), Maximum Turning Length: 420 mm, Distance Between Centres: 800 mm, X-Axis (Transverse) Travel: 190 mm, Z-Axis (Longitudinal) Travel: 420 mm

Spindle Performance

Spindle Nose Type: ASA 6"Spindle Bore (Bar Passage): 45 mm (Standard S1 variant baseline), Inner Front Bearing Diameter: 85 mm, Maximum Spindle Speed: 4,200 RPM (Balanced for standard AC digital configuration), Spindle Motor Power: 11 kW

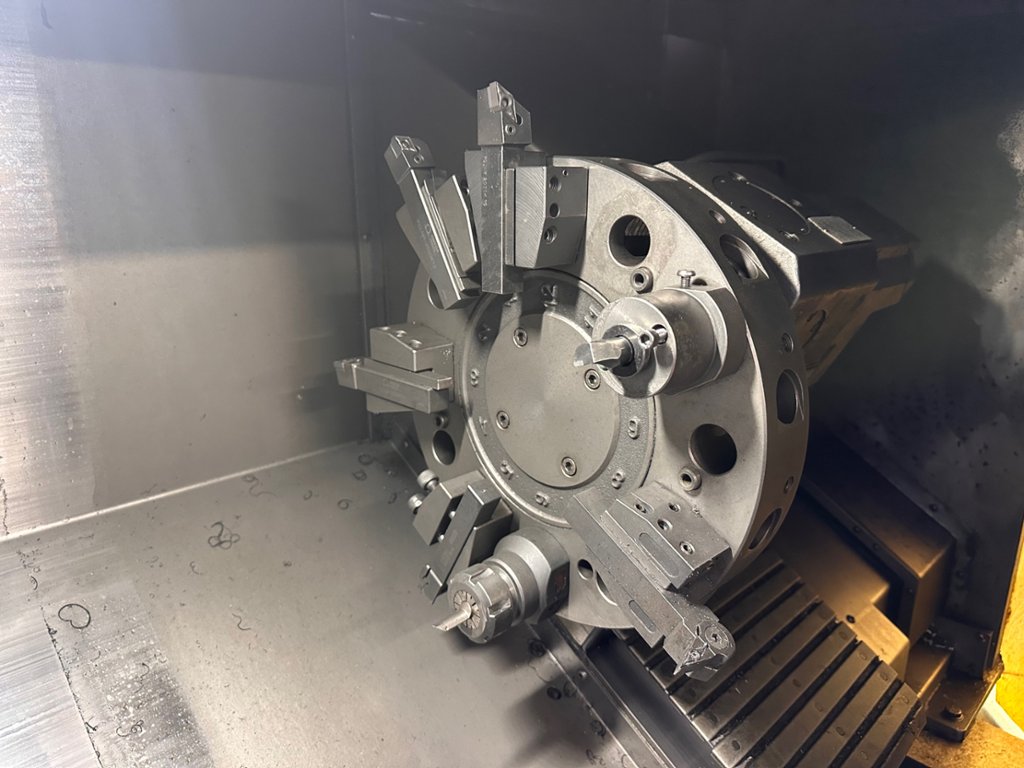

Turret & Tooling

Turret Stations: 12-position disc turret, Tool Shank Cross-Section: 20 mm x 20 mm square, Tool Holder Specification: VDI 30, Rapid Traverse Rates: 12 m/min (X-axis) / 15 m/min (Z-axis), Tailstock Profile: MK 5 (Morse Taper 5), 85 mm hub diameter, 100 mm sleeve travel

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
