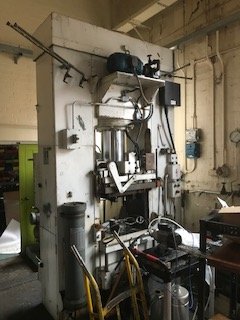

Bipel 150 Ton Hydraulic Press (1980)

Lot 11 - Bipel 150 Ton Hydraulic Press (1980)

Description:

complete with isothermic bolsters/plattens,

Bipel Compression moulding press, Model 150T FACS,

Double sided frame.

Capacity 150 tons.

Table left to right 28"

Table front to back 23"

Daylight 24"

Main ram stroke 18"

Hydraulic circuit pressure 1000 psi.

Main ram pullback force 150 tons.

Max pummel diameter 2.25"

Max shot weight 10 ounces.

Ejector force 3.5 tons.

Ejector stroke top 4"

Ejector stroke bottom 8"

Ex university.

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
