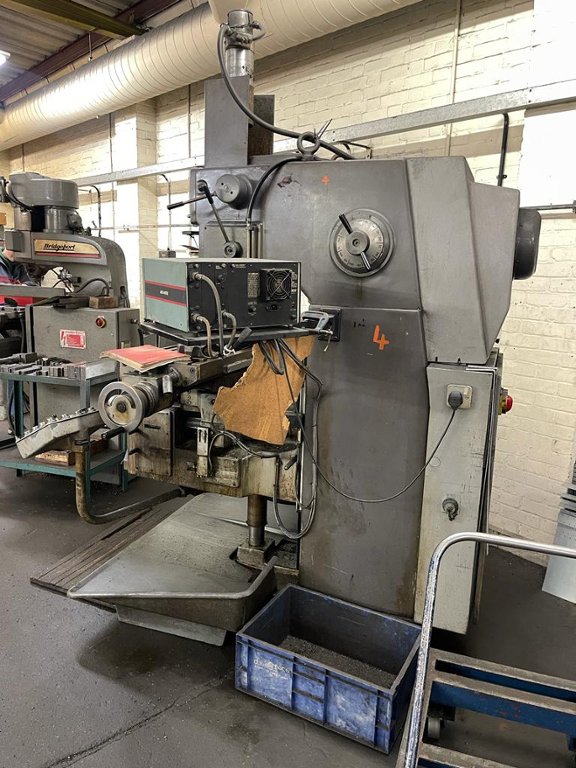

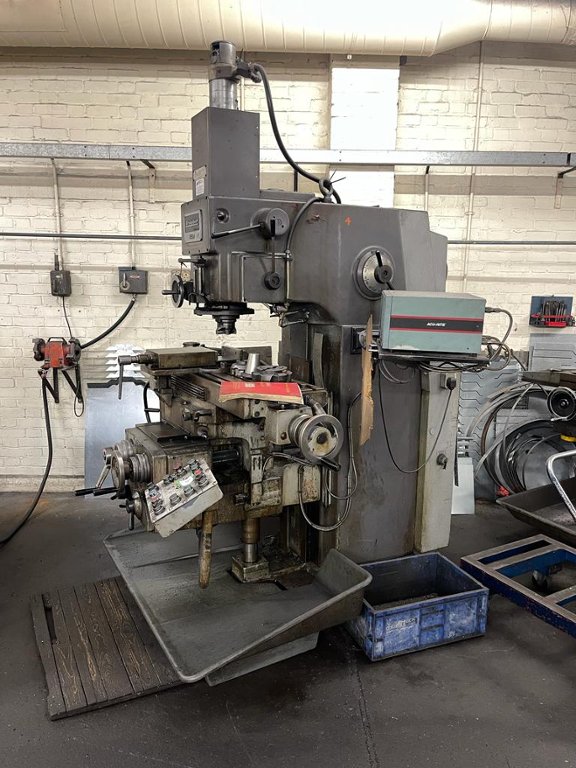

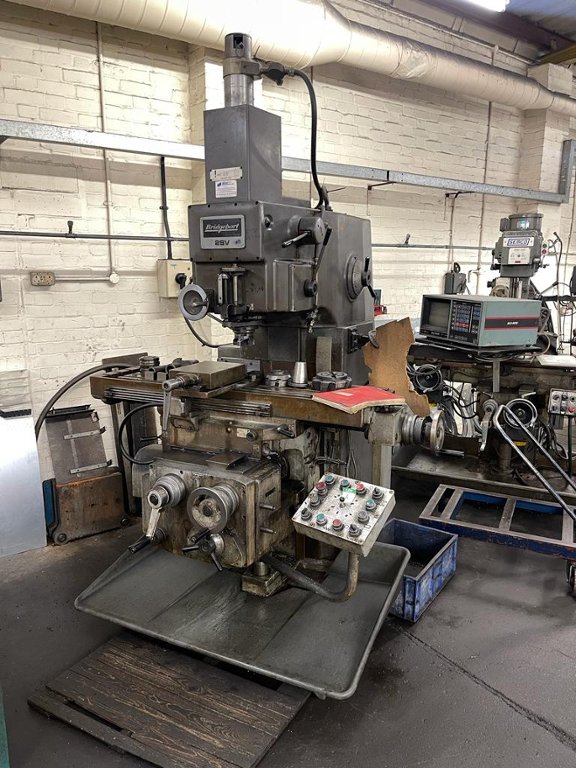

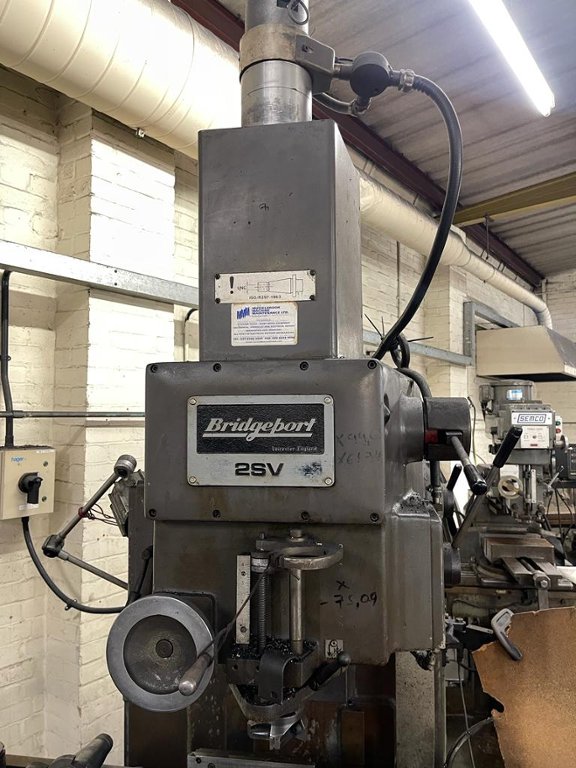

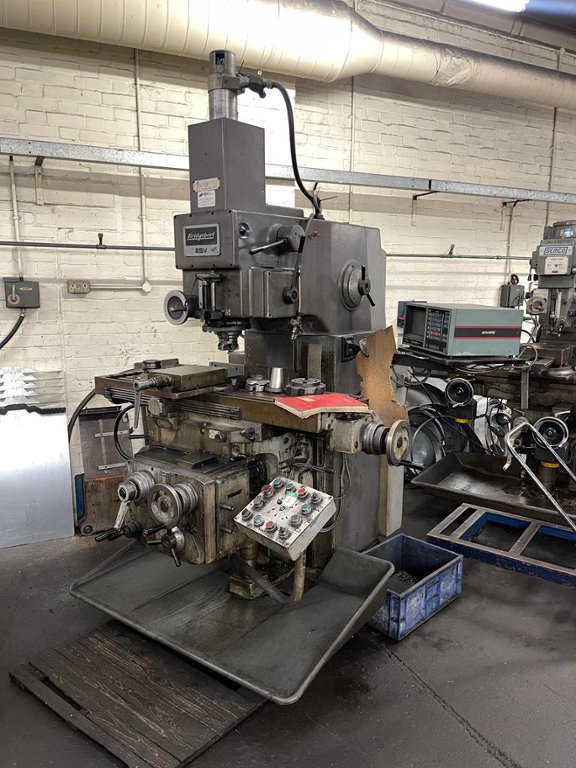

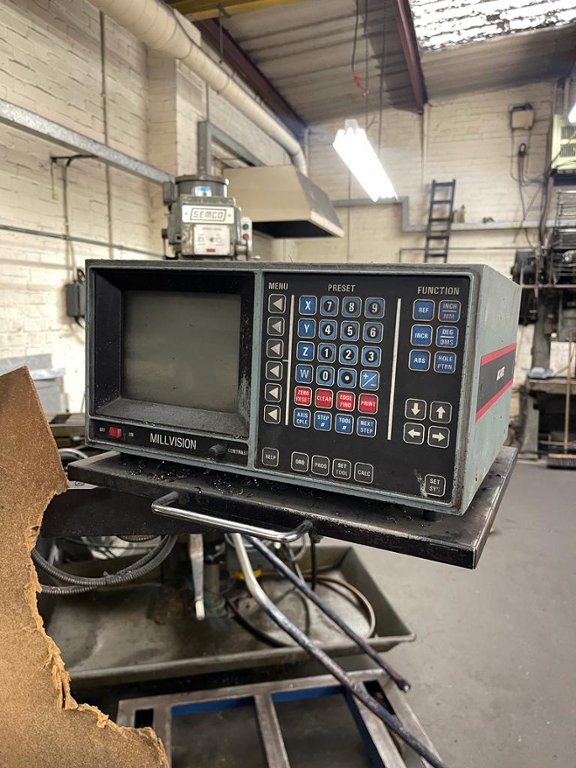

Bridgeport 2SV Vertical Milling Machine

Lot 6 - Bridgeport 2SV Vertical Milling Machine

Description:

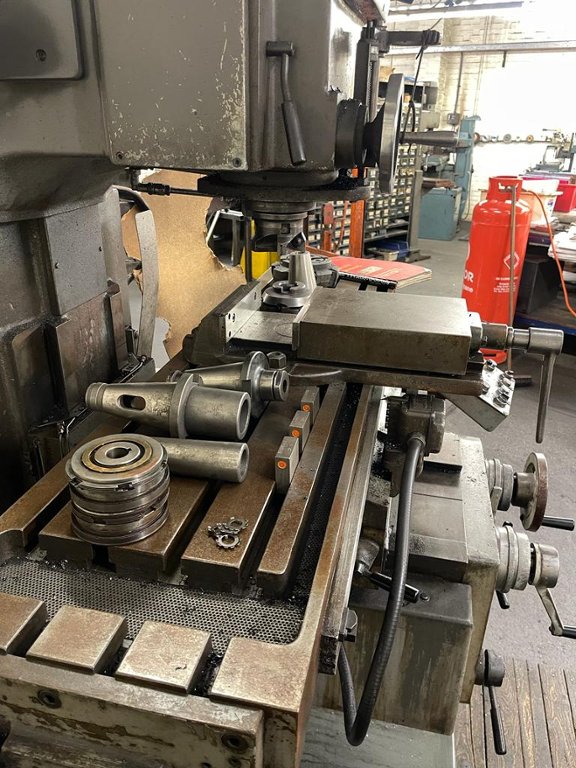

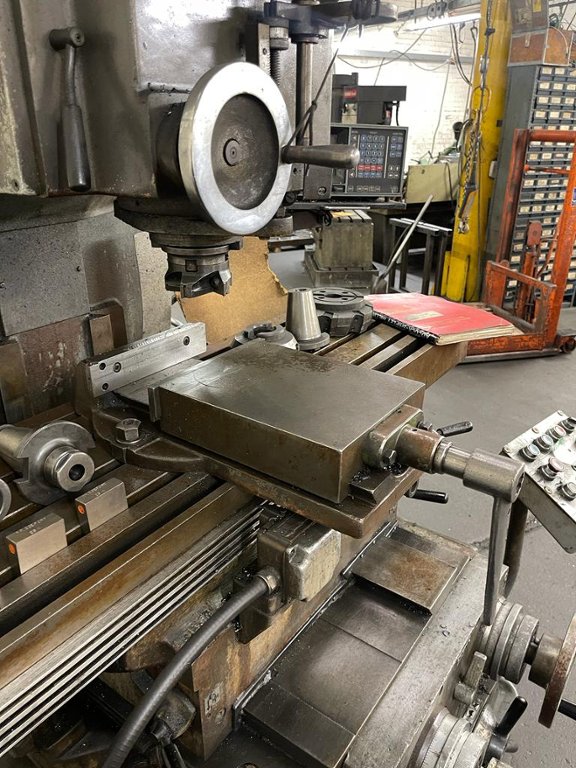

Comes with a 9" vice and a selection of tooling

Table Travel (X Axis) - 457mm, Saddle Travel (Y Axis) - 305mm, Quill Travel (Z Axis) - 125mm, Knee Travel - 365mm, Throat Distance - 395mm, Table to Spindle - 51mm, Maximum component weight, Centrally Loaded - 136kg

Overall Table Size - 1067x410mm, Working Surface - 864x318mm, Tee Slots (3) Centres - 111.1mm Width - 15.9mm

Motor - 1.5kW, Taper - No.30 Quick Change, Speed Range (Infinitely variable) - 50-3750RPM, Transmission Ratios - 1:1 and 8.3:1

D.C Permanent Magnet Motors - Stall Torque - 3.2Nm, Ballscrews-Pitch - 5mm, Manual Feedrate Range - 10 - 750mm/min, Rapid Feed Rate - 5000 mm/min, Programmable Feedrate Range - 1-5000 mm/min, Feedrate Increments - 1 mm/min

System Resolution - Linear - 0.001mm Angular - 0.001deg, Display Resolution - 0.005mm, Positioning Repeatability - ±0.010mm, Positioning Accuracy - ±0.025mm, Drilling Capacity - Mild Steel - 20mm dia, Milling Capacity - Mild Steel - 25cm3/min, Boring - Max dia - 100mm dia

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
