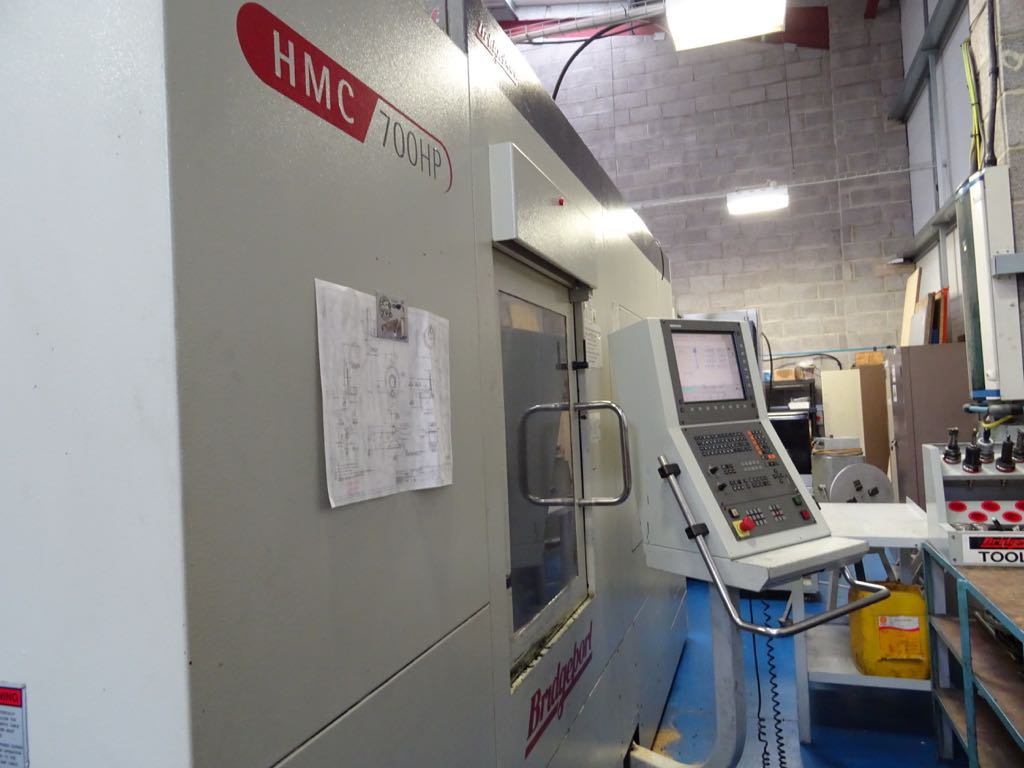

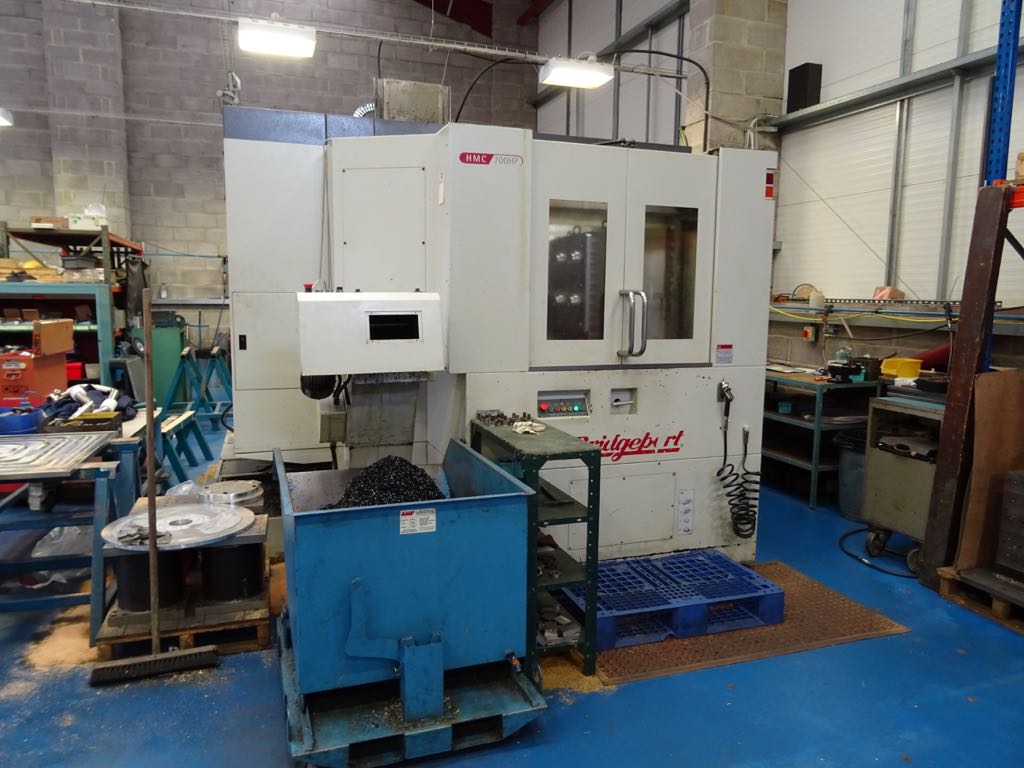

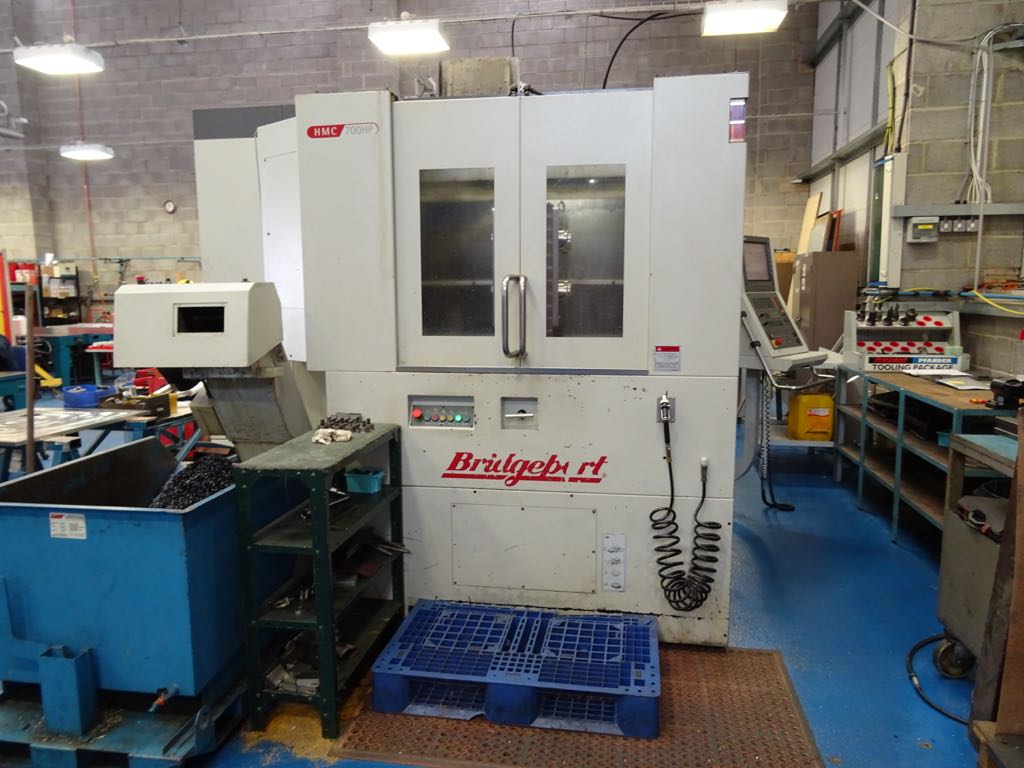

Bridgeport HMC 700HP (2004)

Lot 4 - Bridgeport HMC 700HP (2004)

Description:

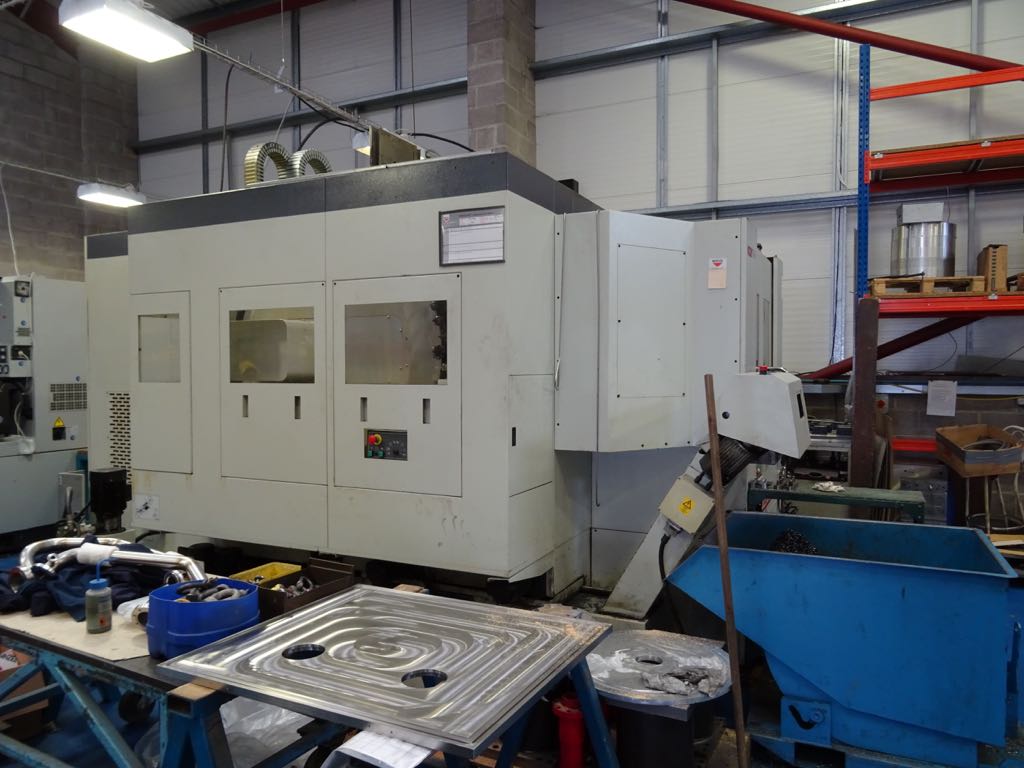

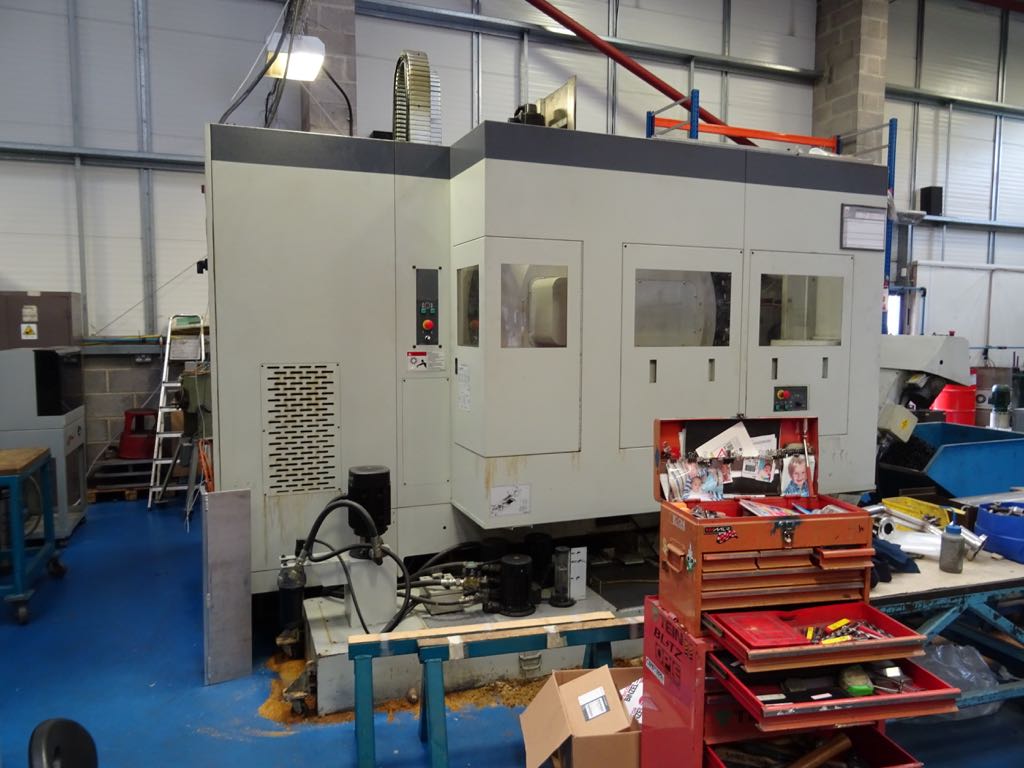

Bridgeport HMC 700HP (September 2004)

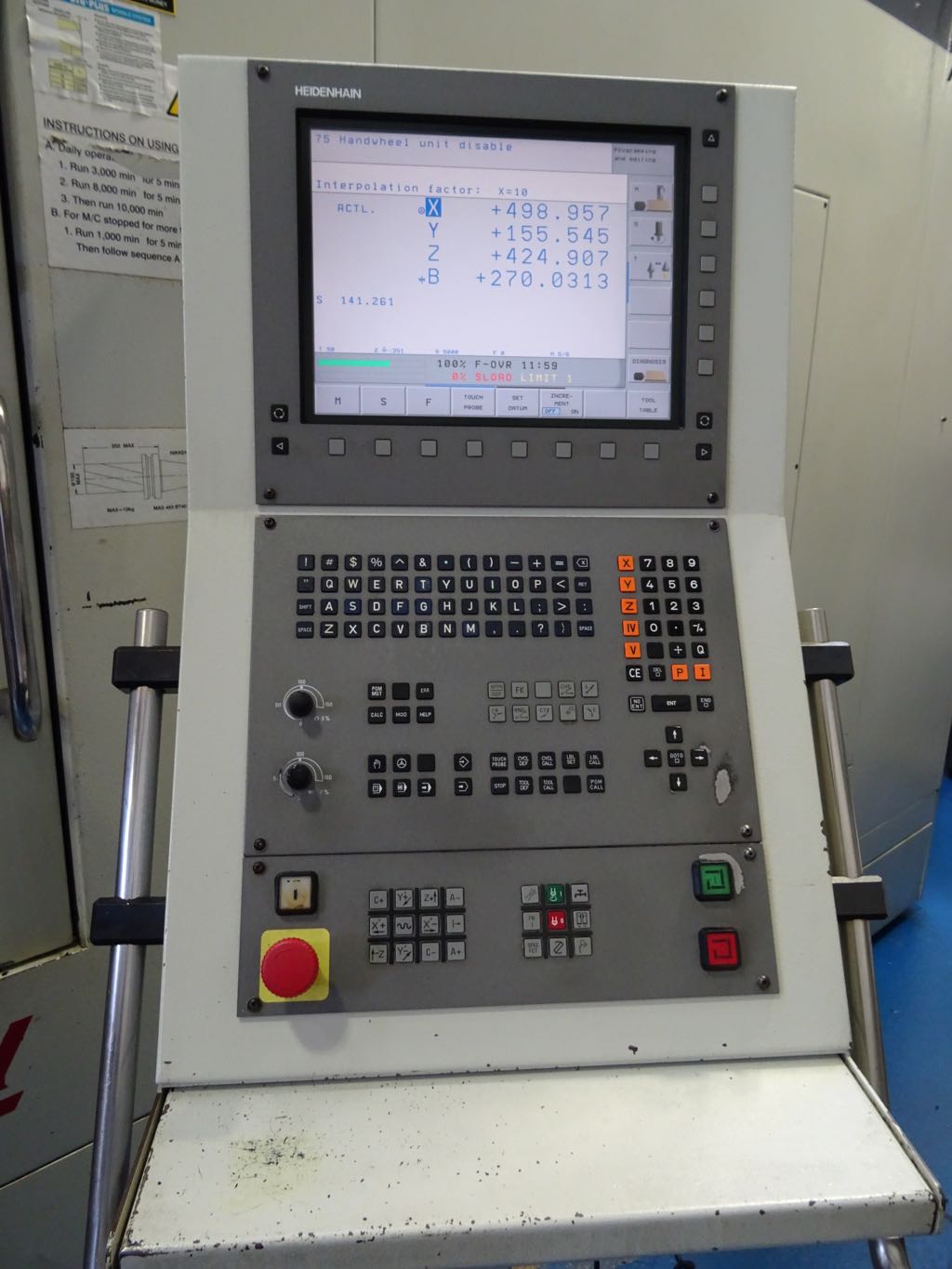

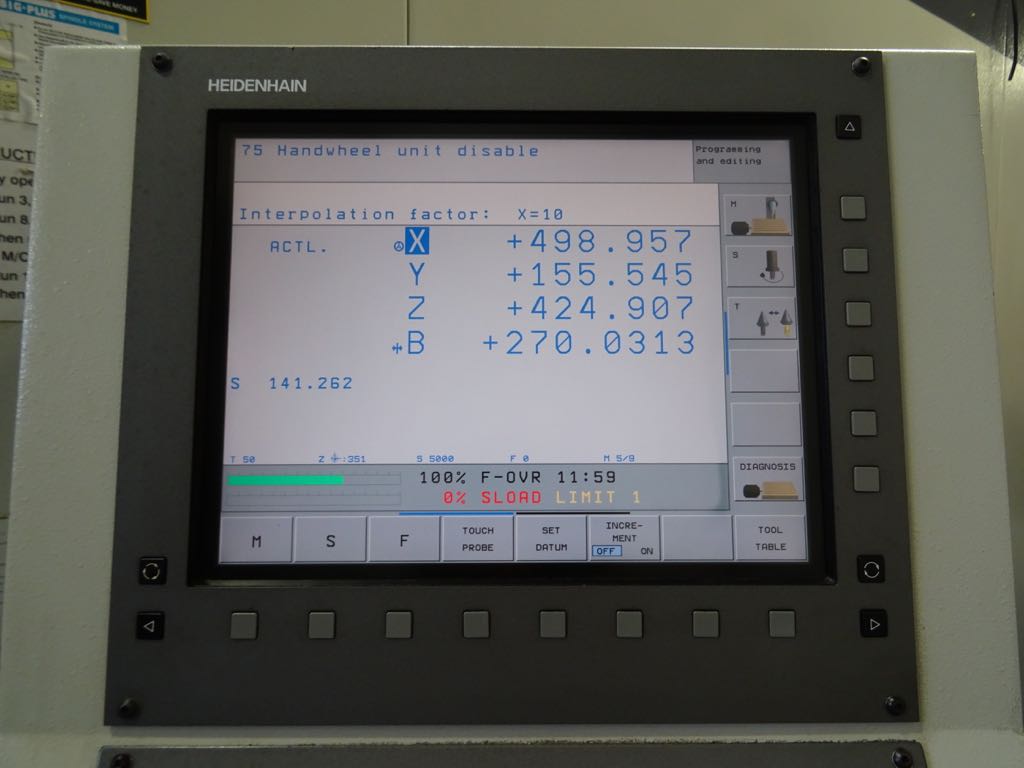

Heidenhain control

Machine Specifications

Travel

X Axis: 710mm
Y Axis: 610mm
Z Axis: 610mm
B Axis: 360 degrees

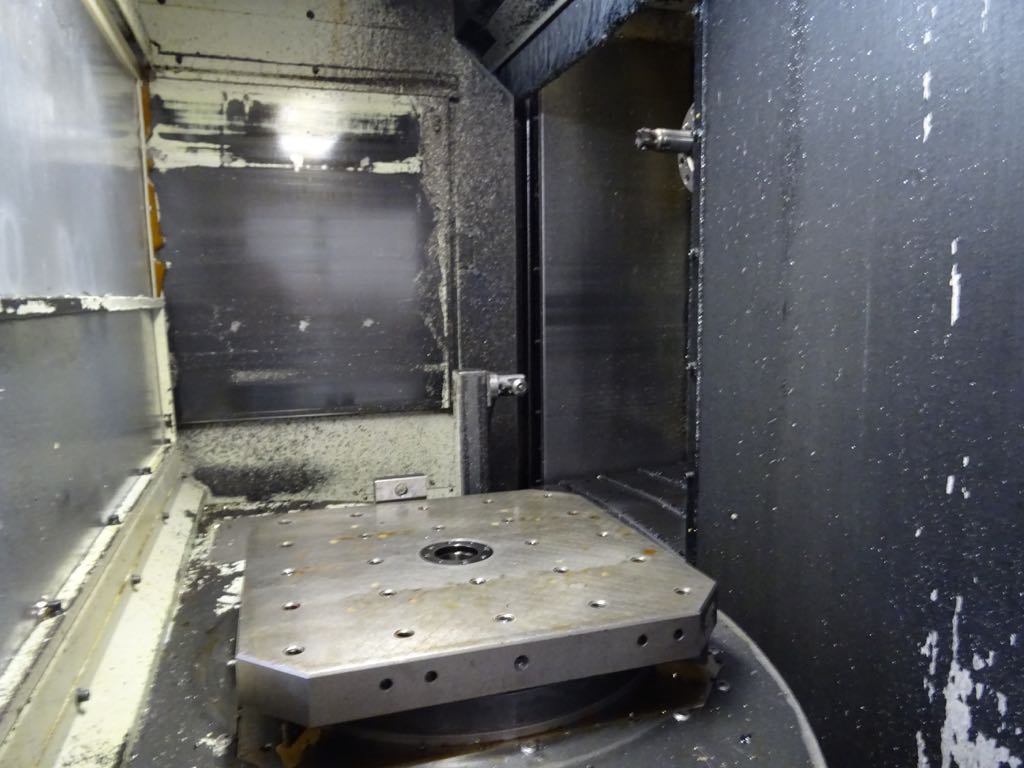

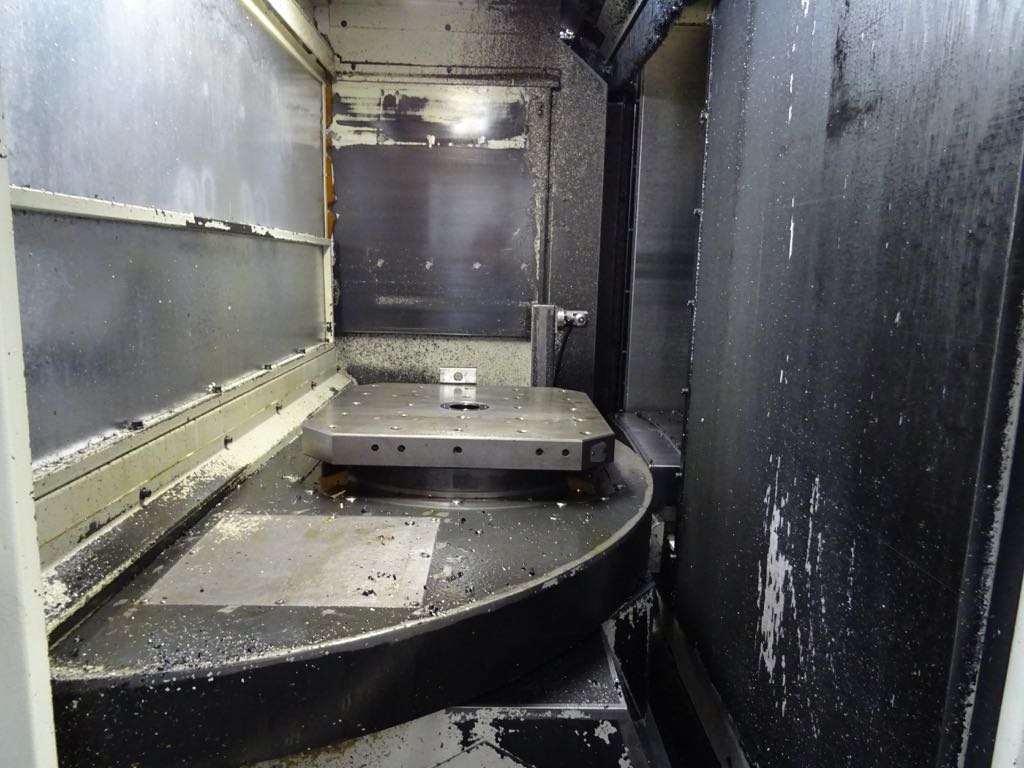

Pallet

Working Surface: 500mm x 500mm
Max worksurface swing dia: 680mm
Loading Capacity: 500kg
Max Workpiece Height: 710mm
Minimum Indexing Angle: 0.001 degrees
Indexing Time 90 degrees: 1.2 Seconds

Spindle

Max Spindle Speed: 10,000rpm
Spindle Power: 30kw
Max Spindle Torque: 191Nm
Spindle Taper: Face & taper No 40

ATC

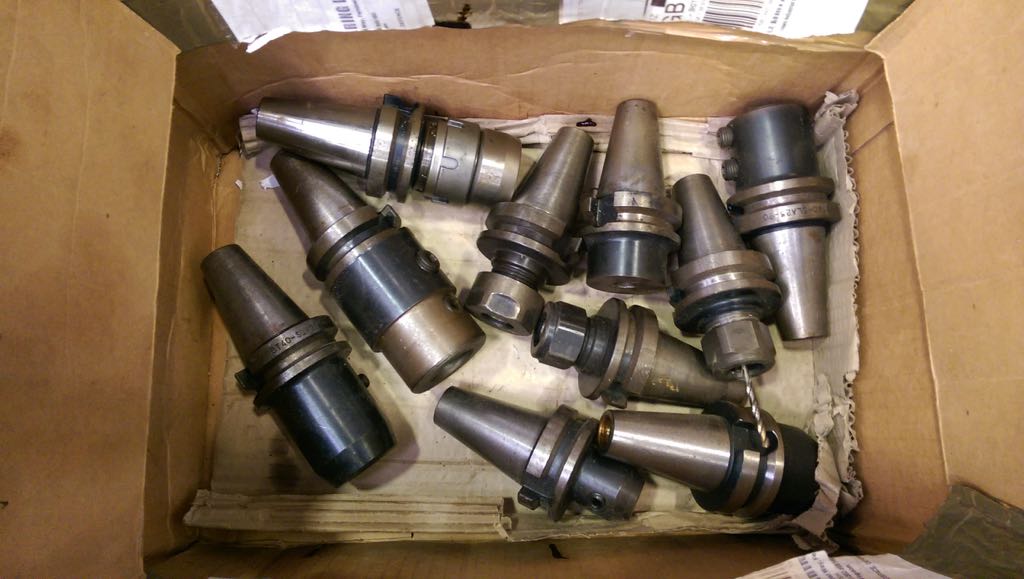

Type of Tool Shank: ISO 40
Tool Storage Capacity: 60
Max Tool Diameter: 80mm
Max Tool Length: 350mm
Max Tool Mass: 10kg
Tool Change Time: 1.5 secs

Machine Size

Machine Height: 3,100mm
Floor Space: 3675 x 4510mm
Weight: 13,000 kg

Location: Wimbourne, Dorset

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
