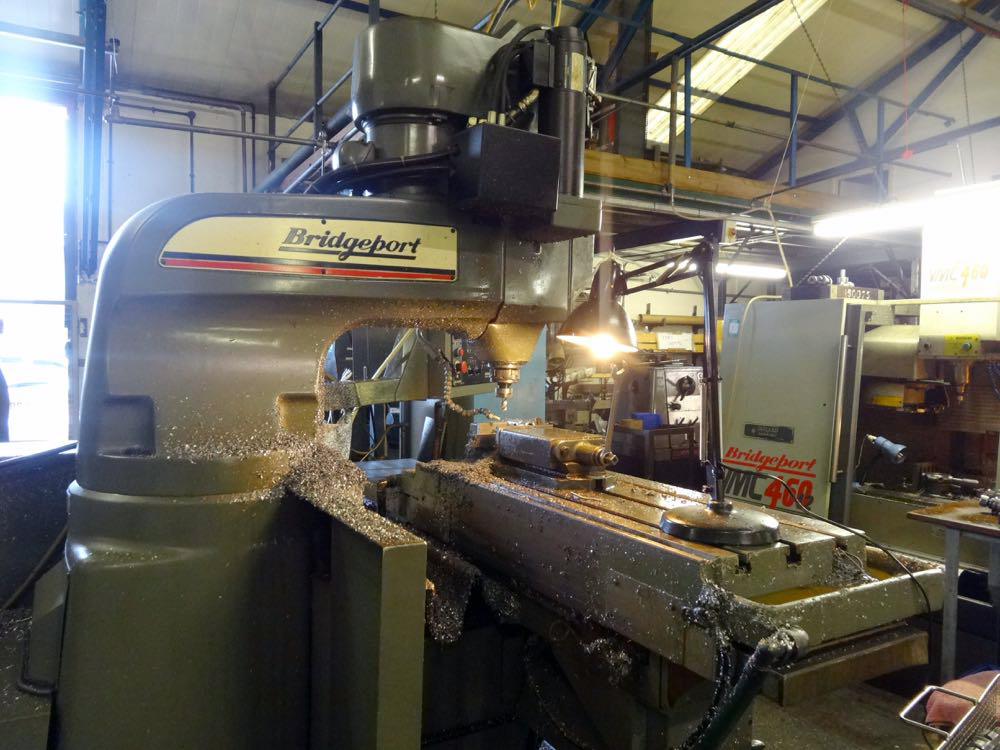

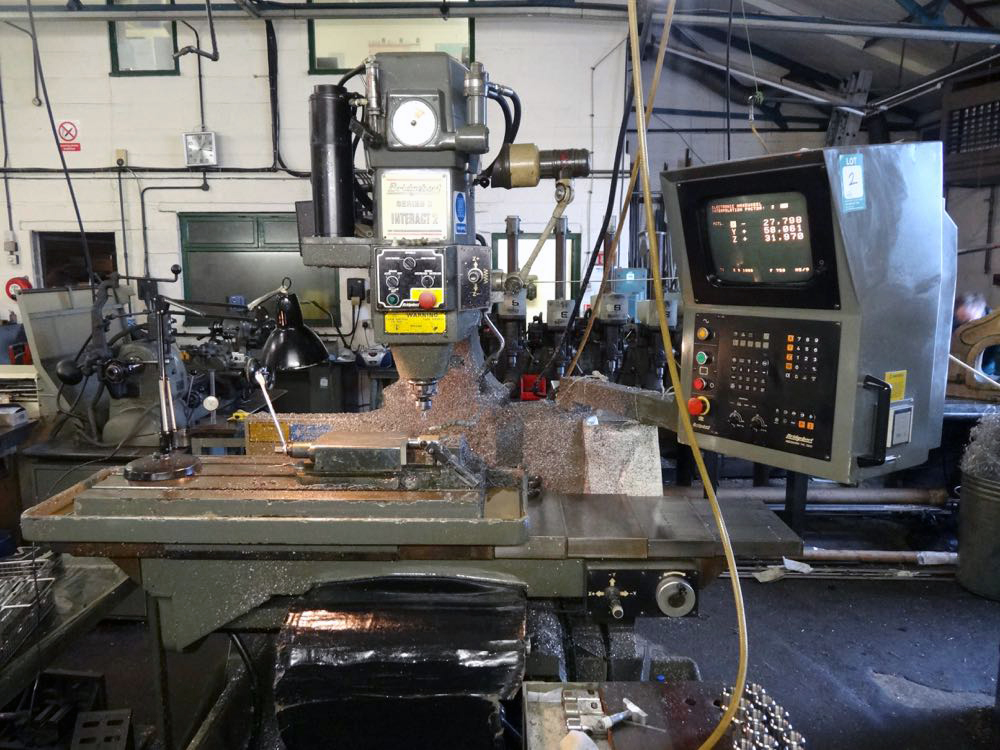

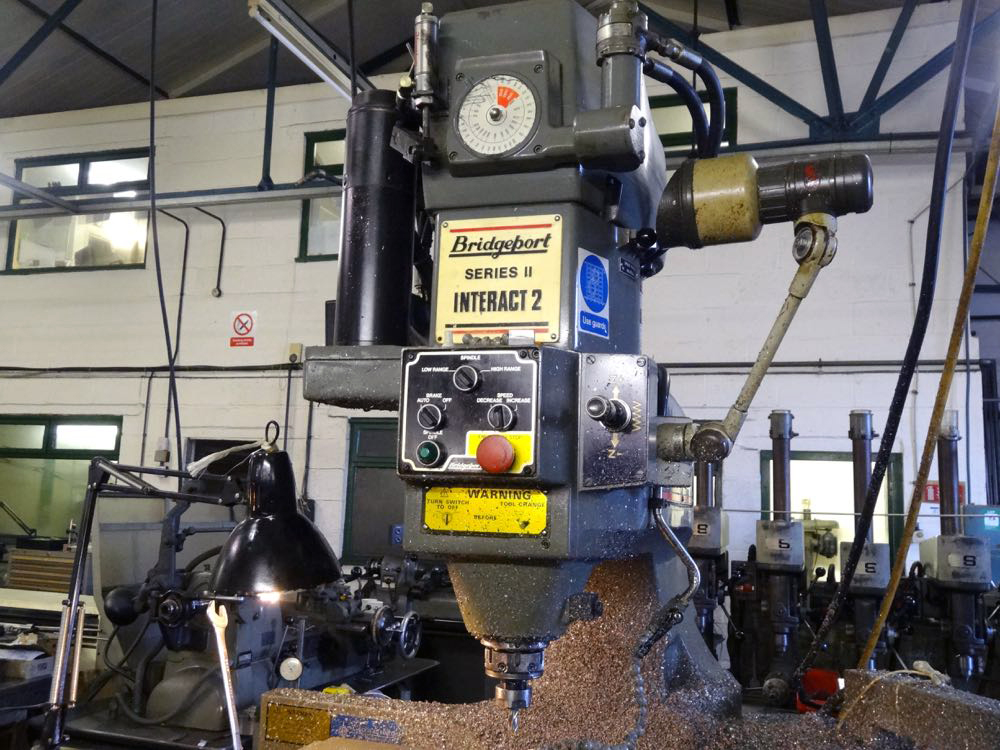

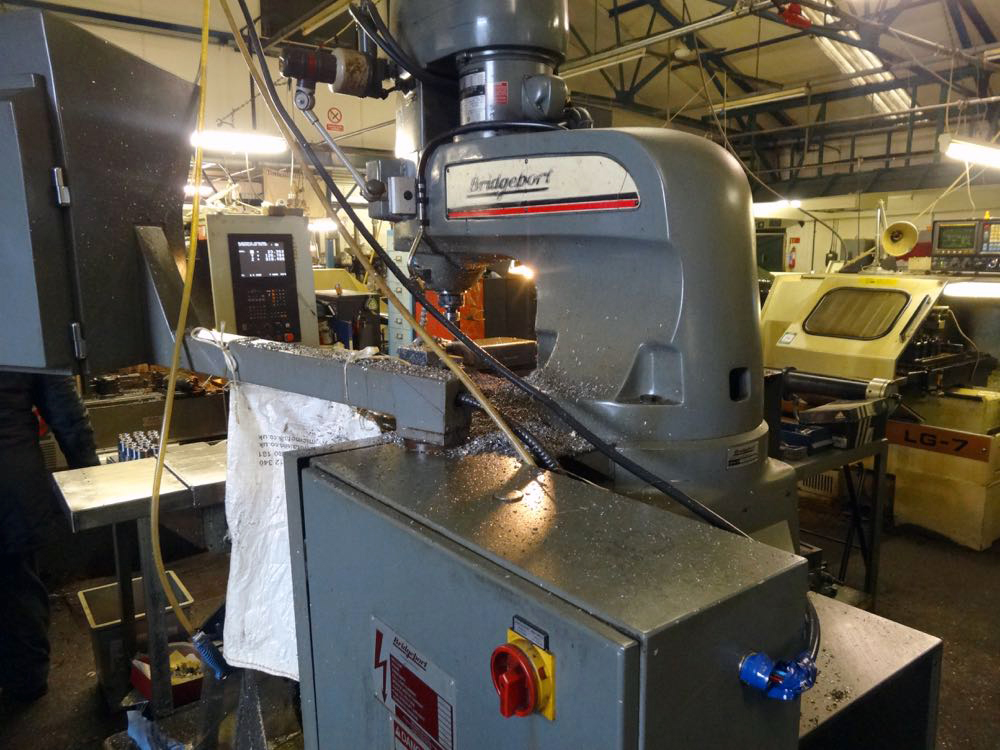

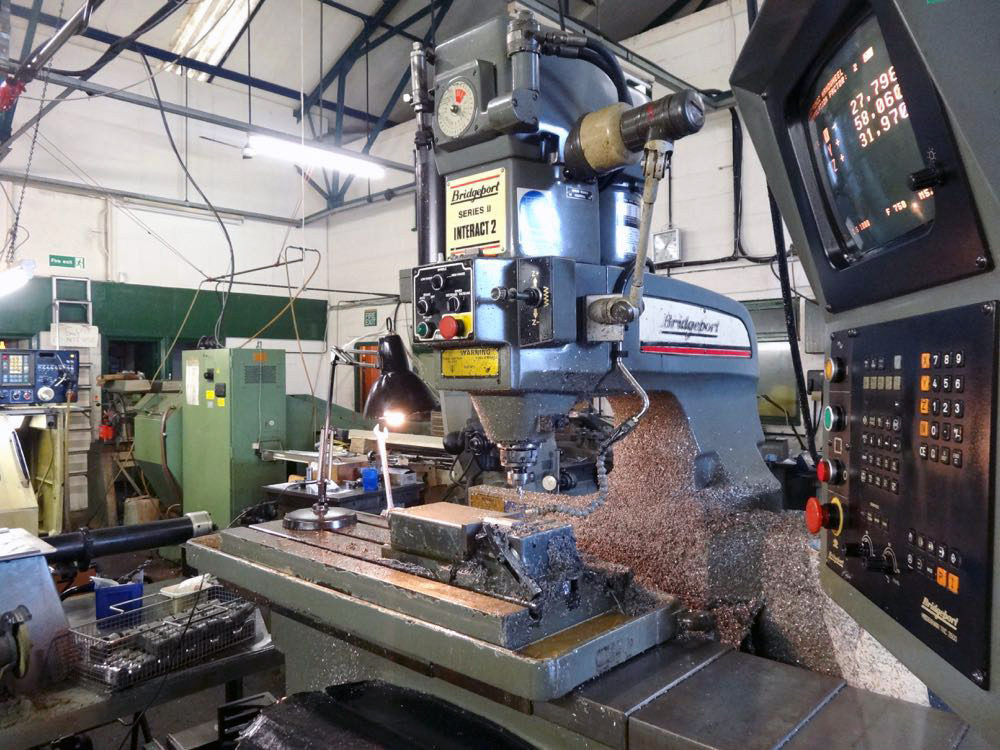

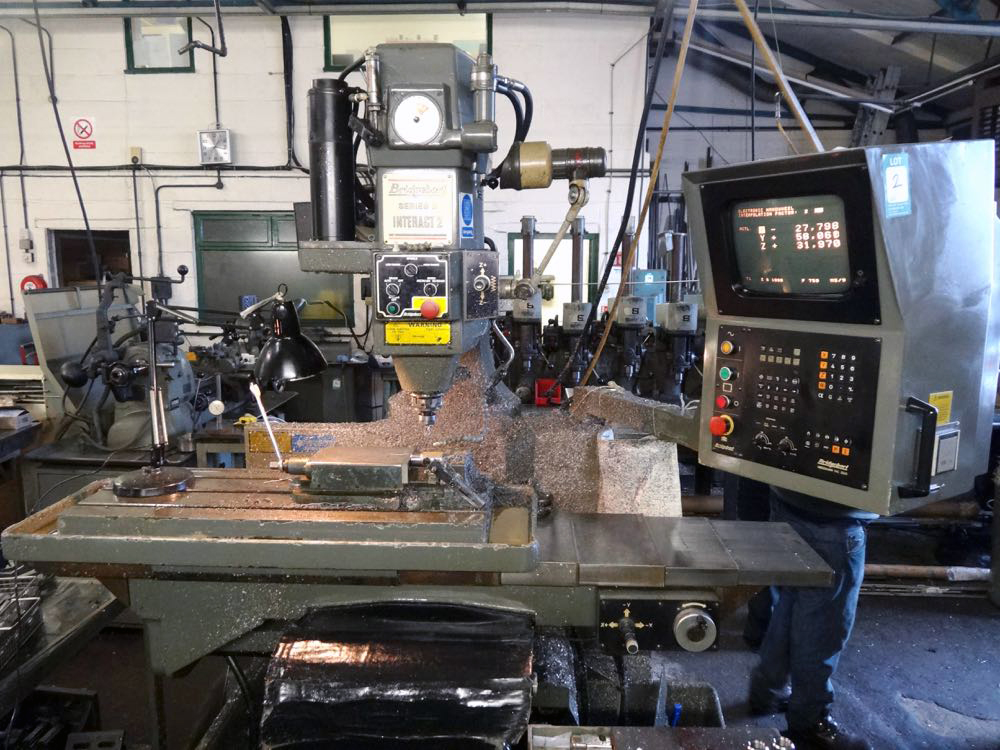

Bridgeport Interact 2 Series II

Lot 2 - Bridgeport Interact 2 Series II

Description:

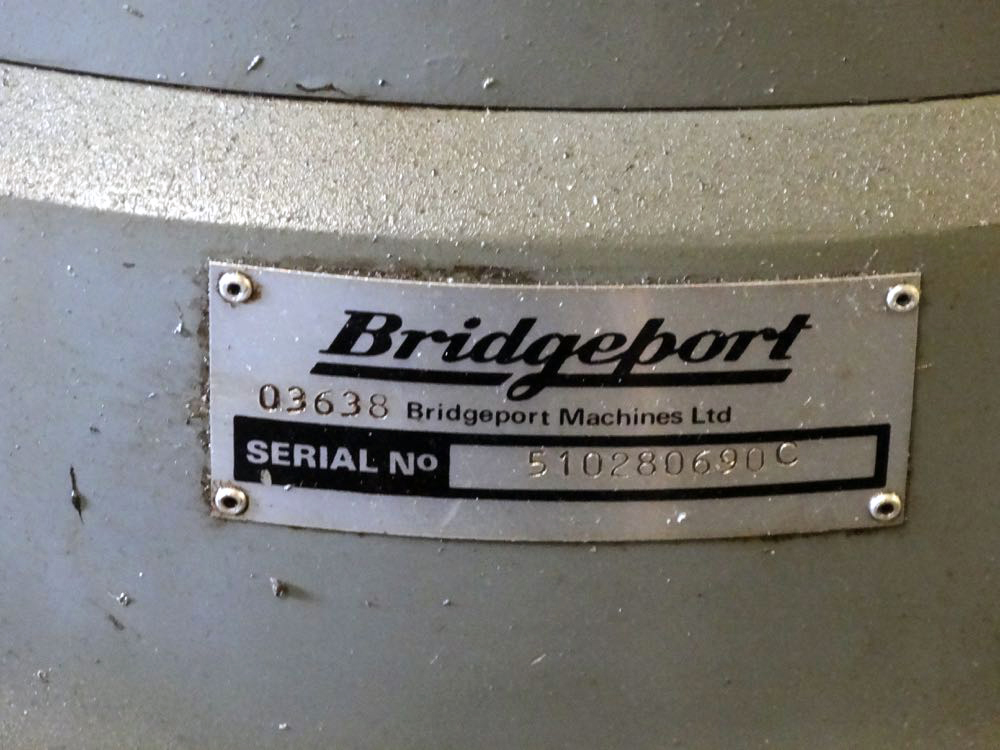

S/n S102806900

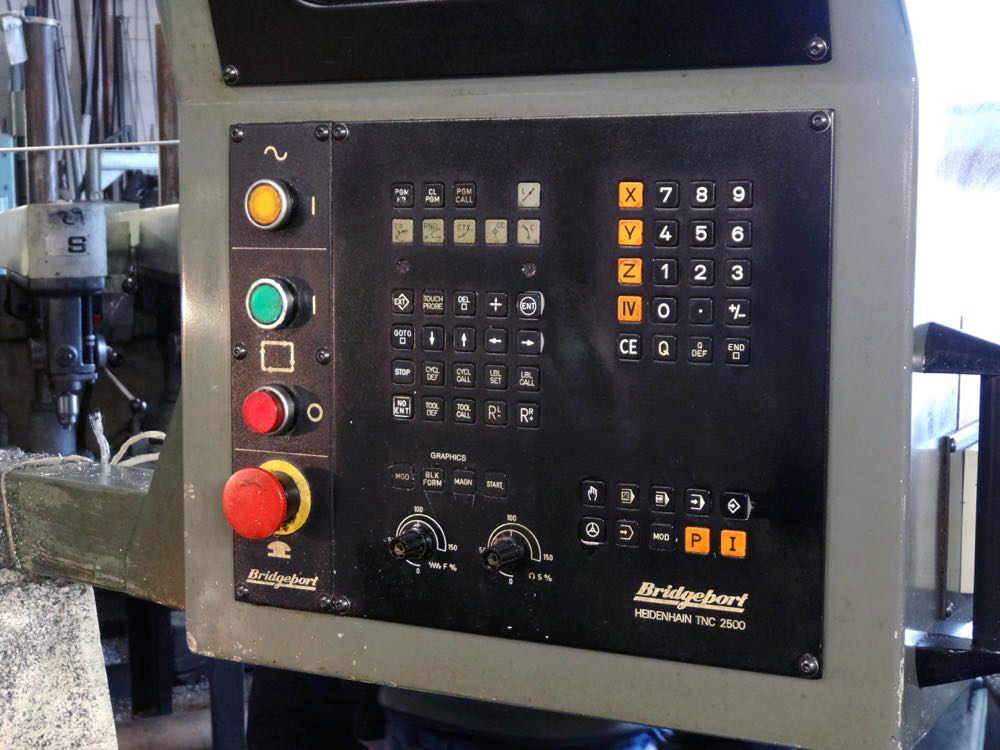

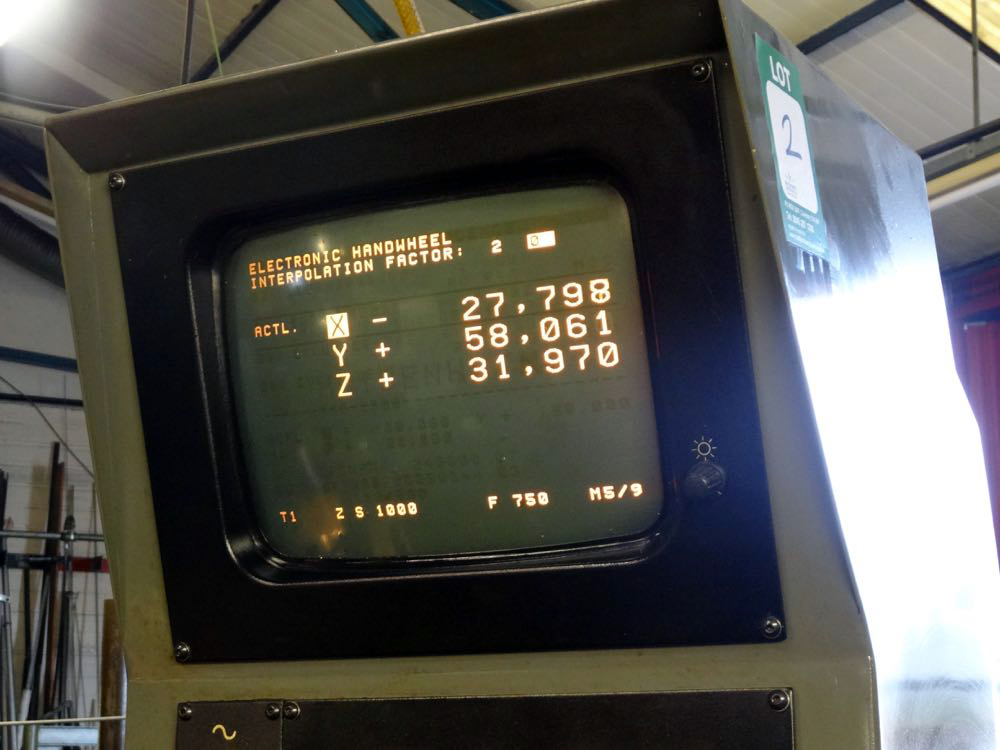

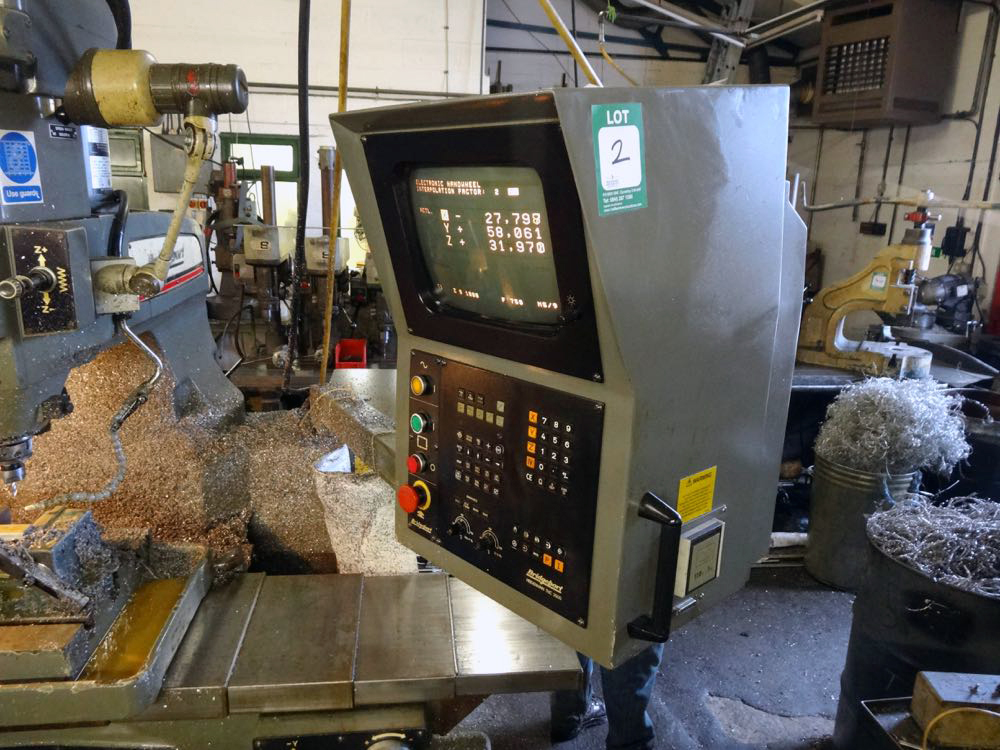

Heidenhain TNC 2500 Control
Speeds: 50 - 350 / 450 - 3000

HP 2
50/60 Cycles
Frame 1456 TY - 4
1410/1735 RPM
Type: TVF
Design B
Motor S/n: 11770101 Mod F547

Footprint: L x W x H: 2220 x 2500 x 2500mm approx.
Weight:

Range:

Table travel: (x axis): 760mm

Saddle travel: (y axis): 370mm

Quill travel: (z axis): 125mm

Knee travel: 335mm

Throat distance: 395mm

Table to spindle: 178mm

Maximum component weight, centrally located: 450kg

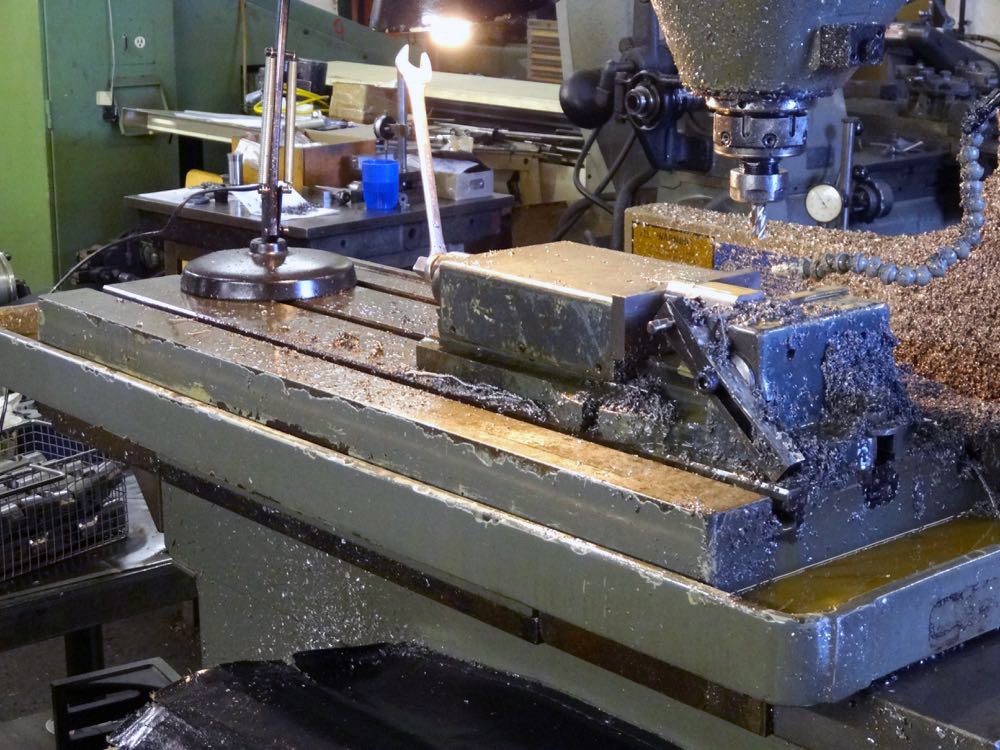

Table:

Overall size: 1194 x 422mm

Working surface: 965 x 380mm

T slots (3) 111.1mm centre 15.9 width

Height above floor - max: 2260mm

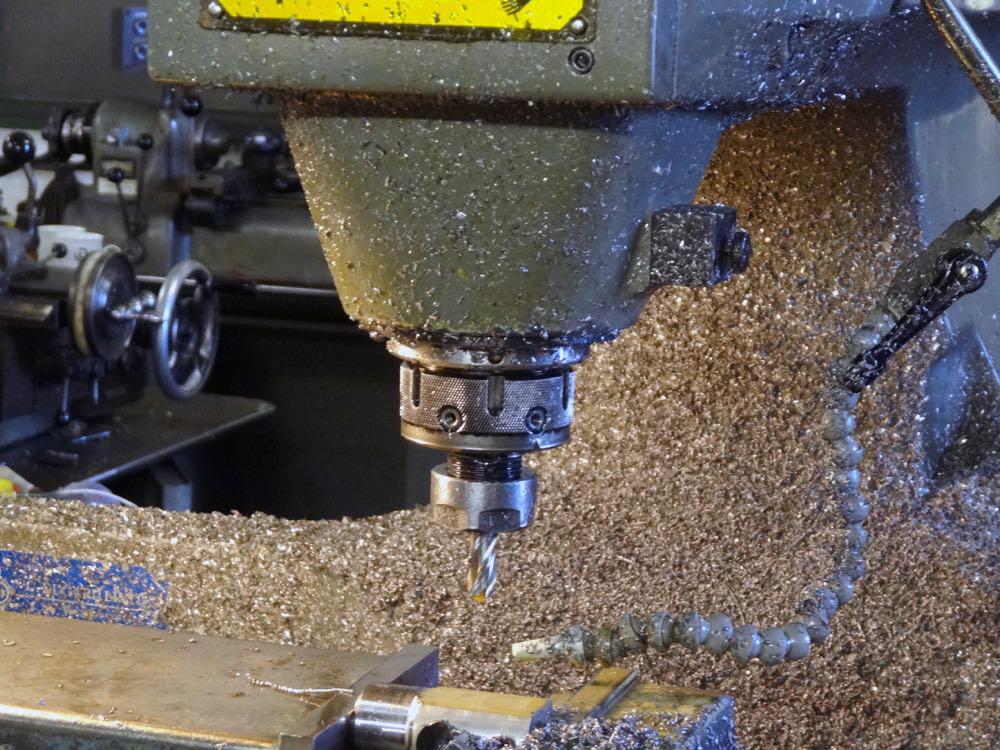

Spindle:

Taper: 30 quick change

Speed range: 50 - 3750 rpm

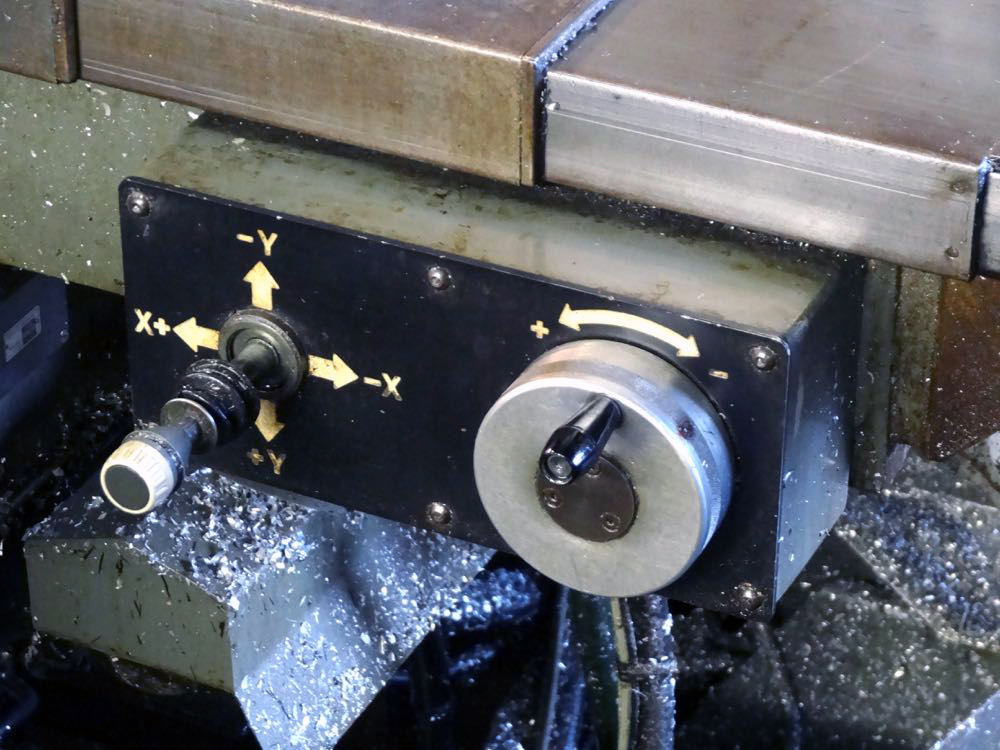

Feed Drive:

D.C permanent magnet motors - stall torque: 3.2 Nm

Ball screws - pitch: 5mm

Manual feedrate range: 10 - 750 mm/min

Rapid feedrate: 5000 mm/min

Feedrate increments: 1 mm/min

Drilling cap: mild steel: 20mm dia

milling cap: mild steel: 25cm3/min

Boring - max dia: 100mm dia

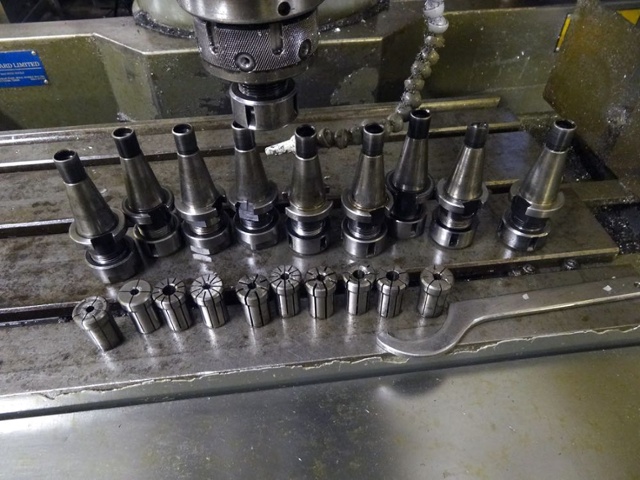

Some tool holders with the machine, machine vices, angle plates etc and cutters not included

Location: London (WJ Martin)

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
