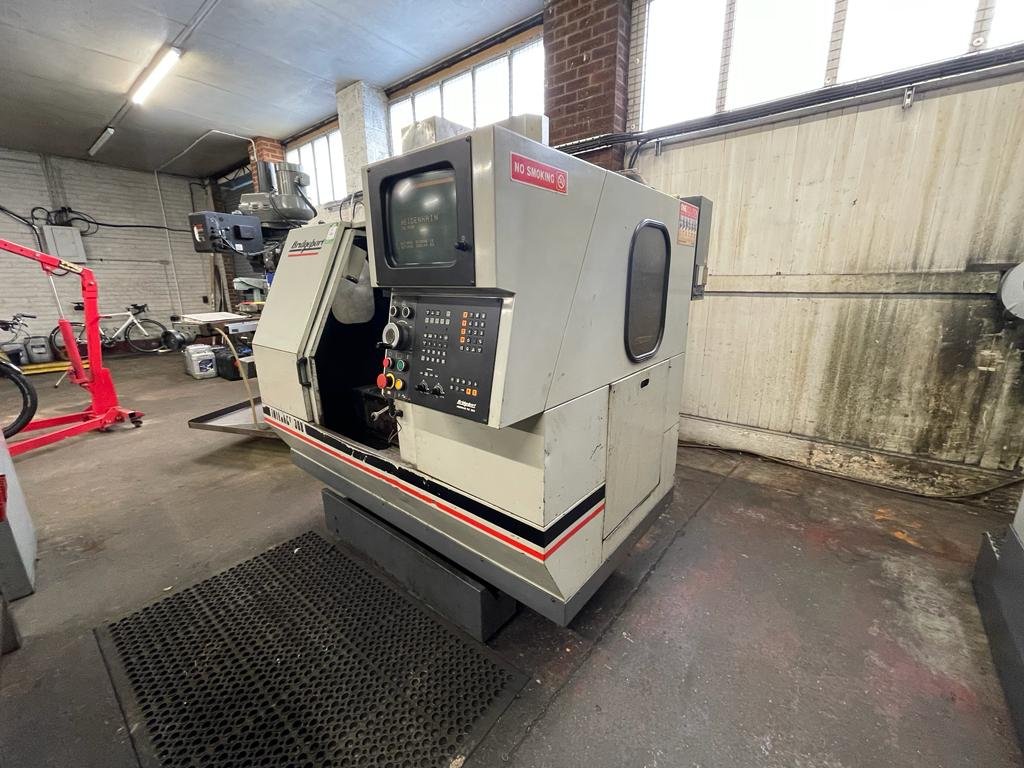

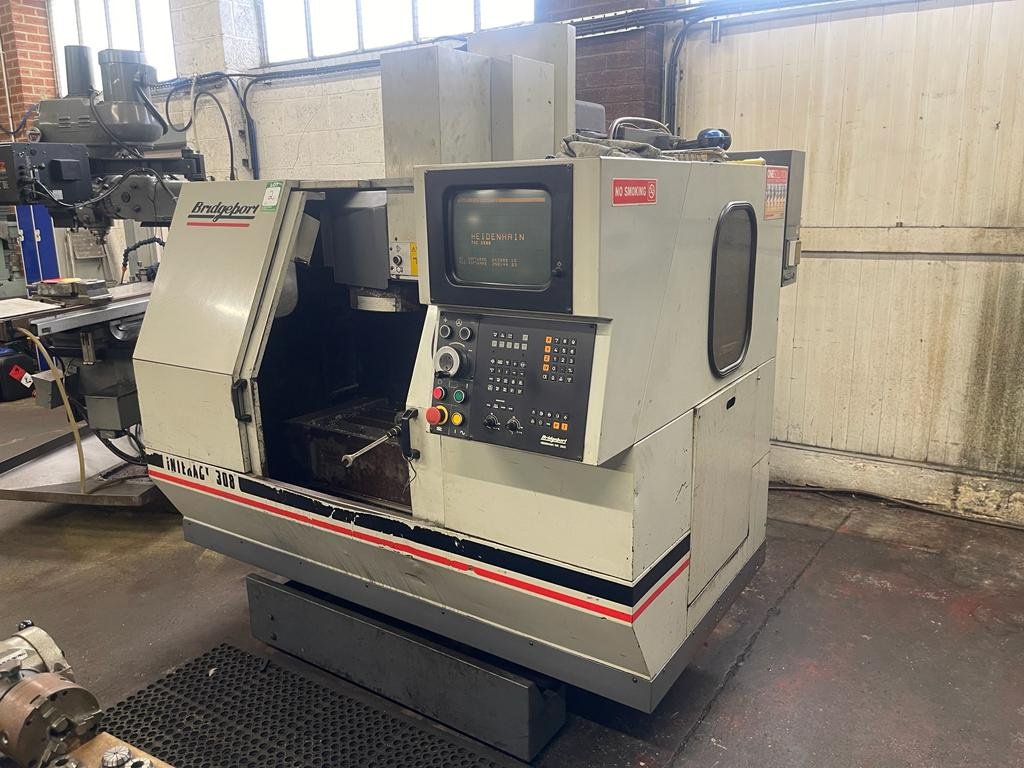

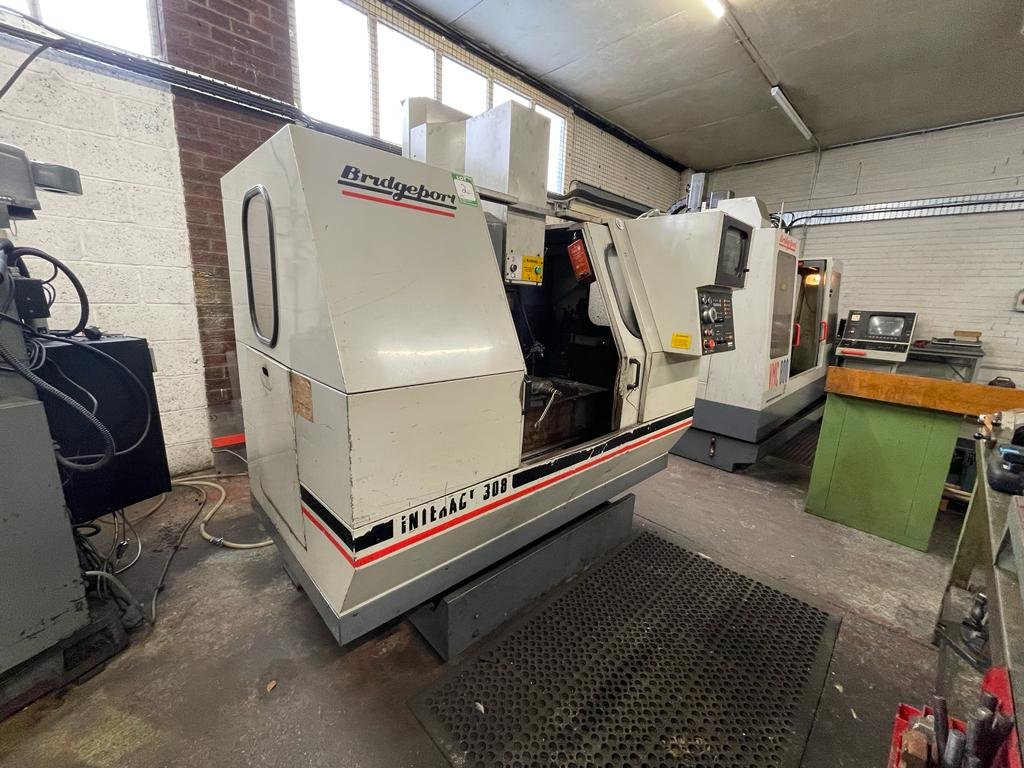

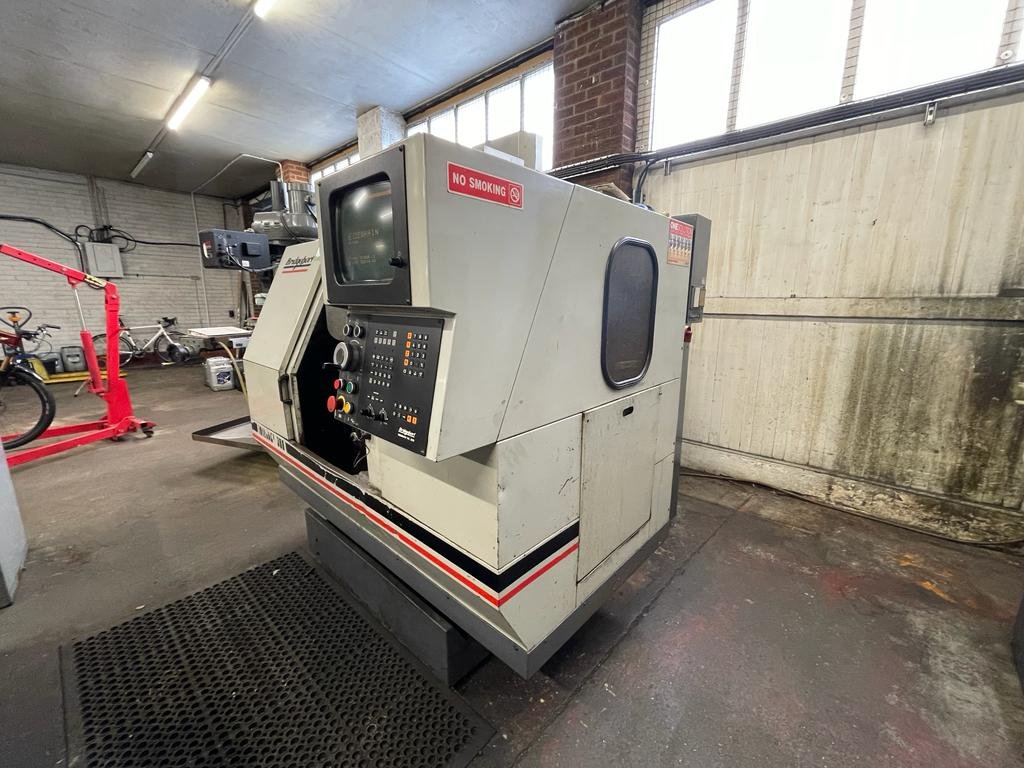

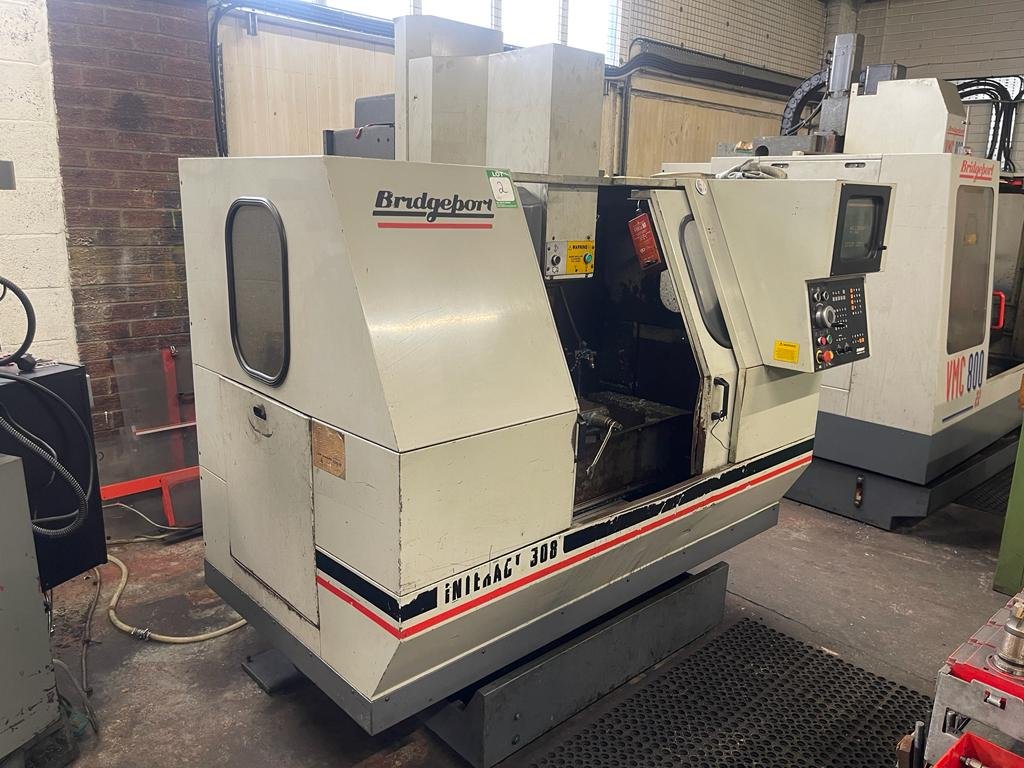

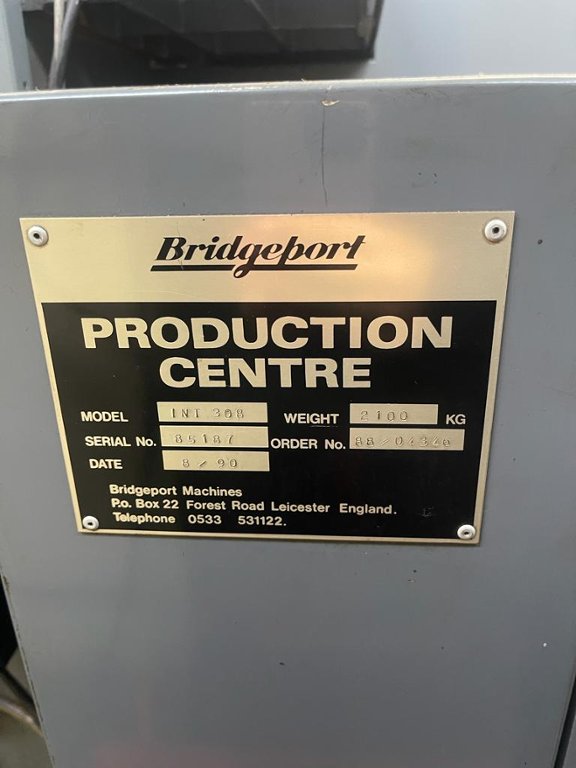

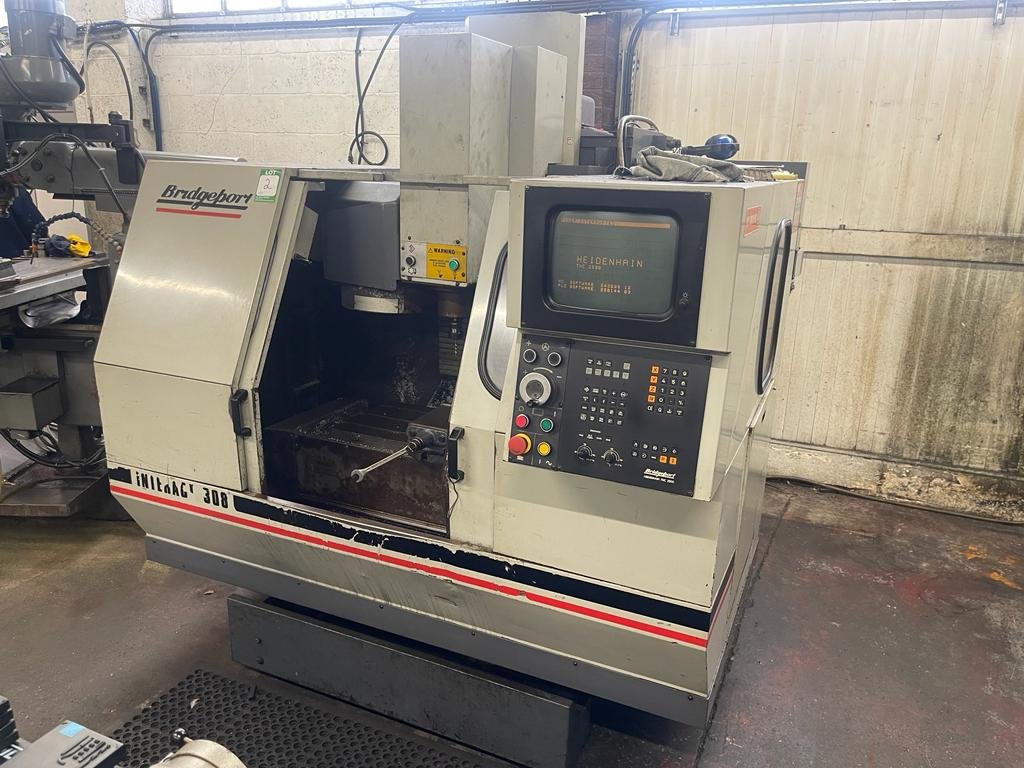

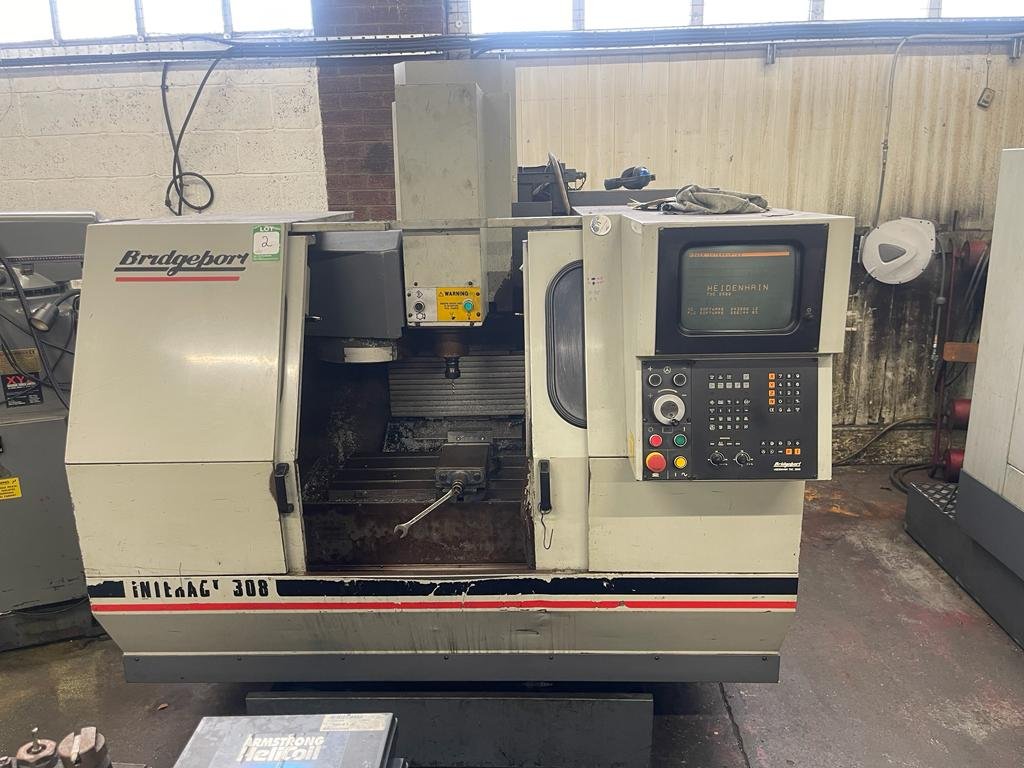

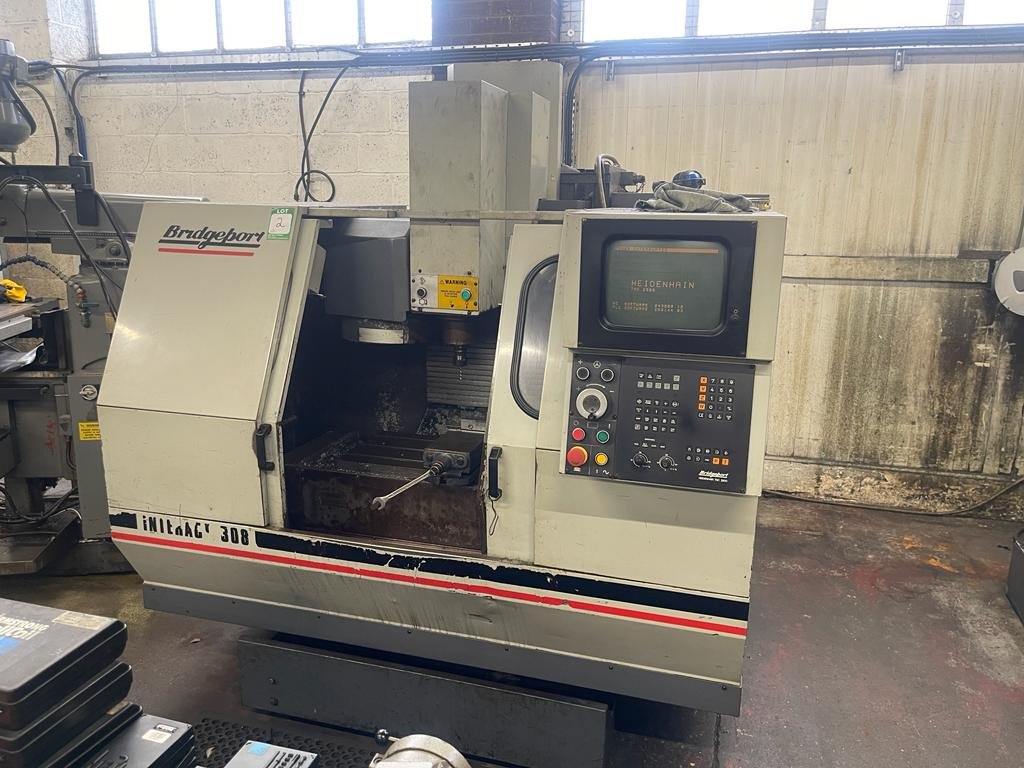

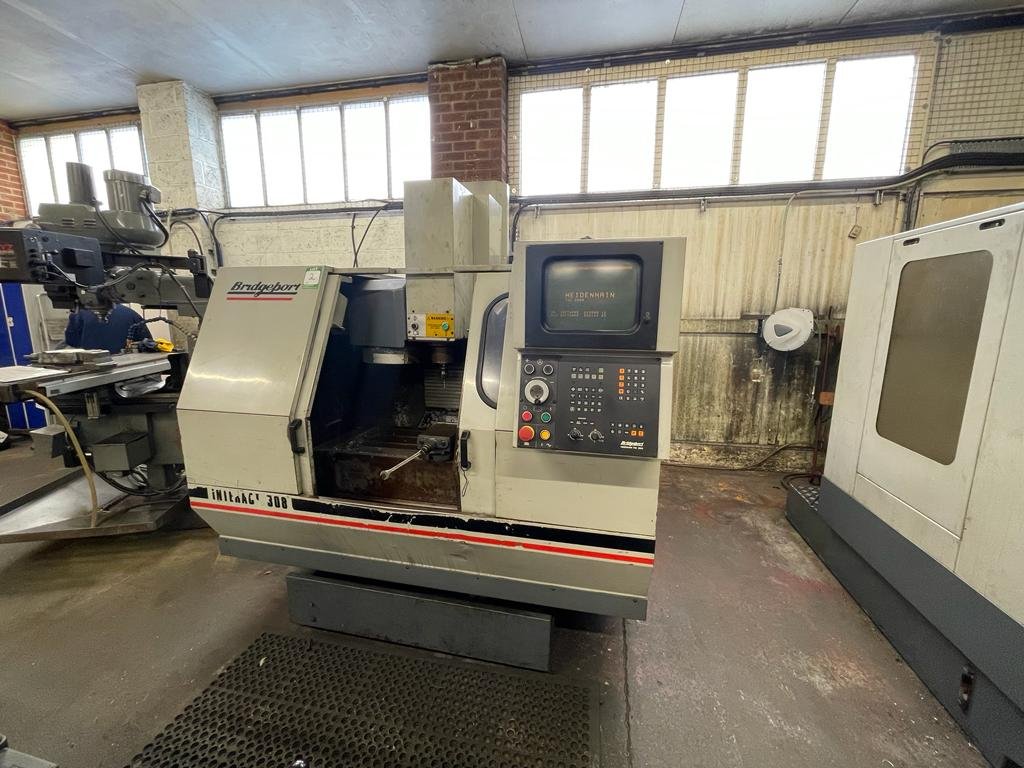

Bridgeport Interact 308 Vertical Machining Centre (1990)

Lot 2 - Bridgeport Interact 308 Vertical Machining Centre (1990)

Description:

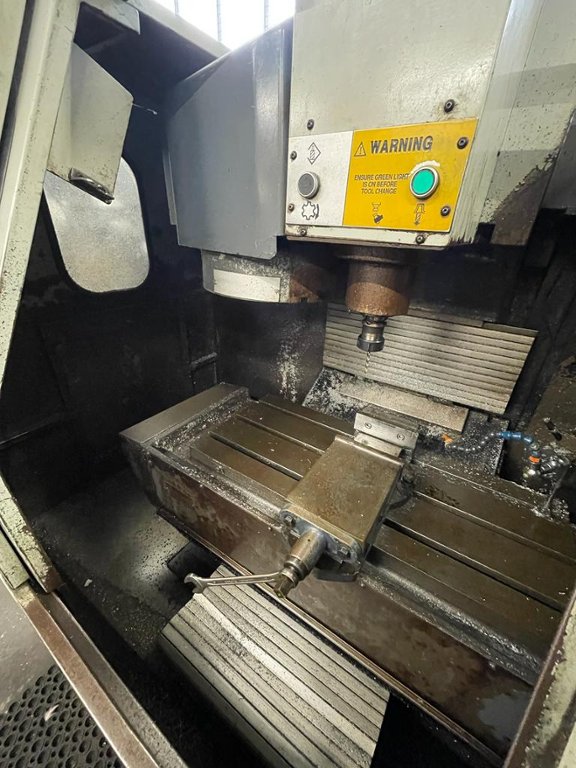

Vice NOT included

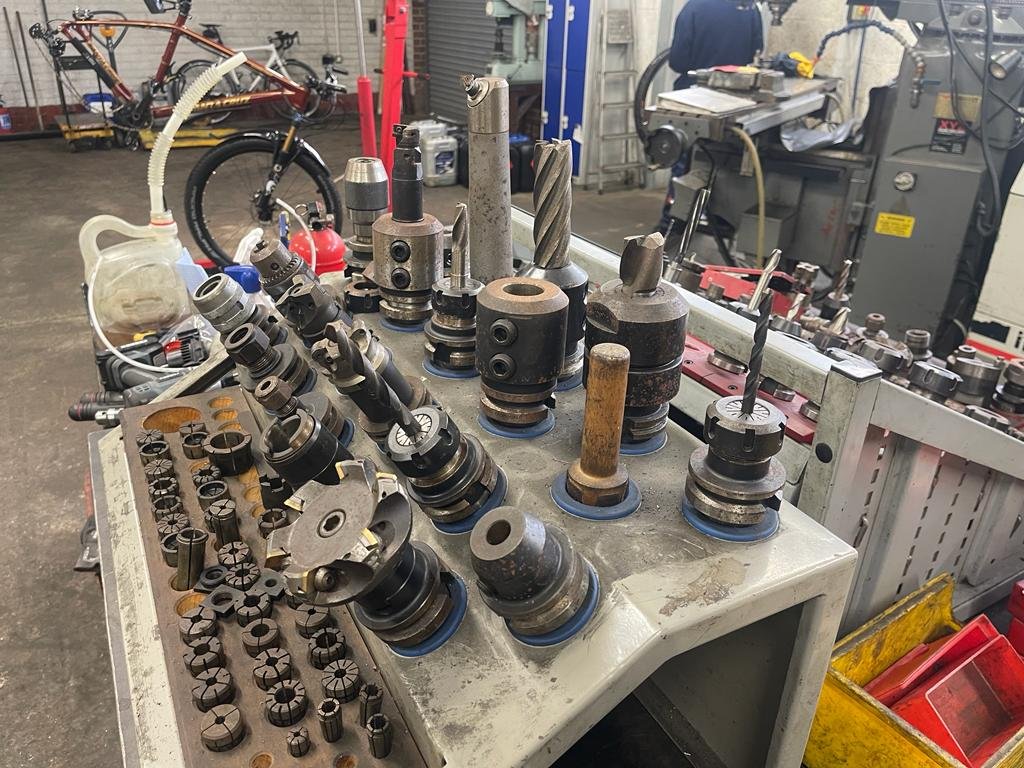

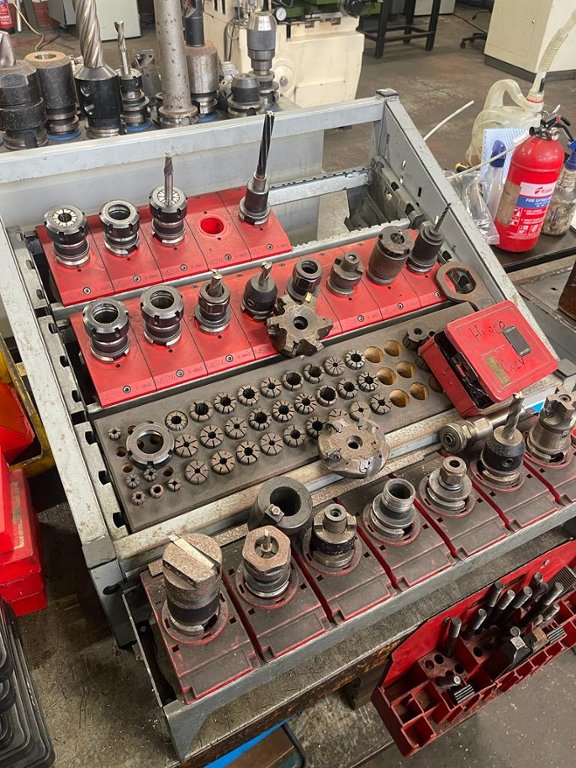

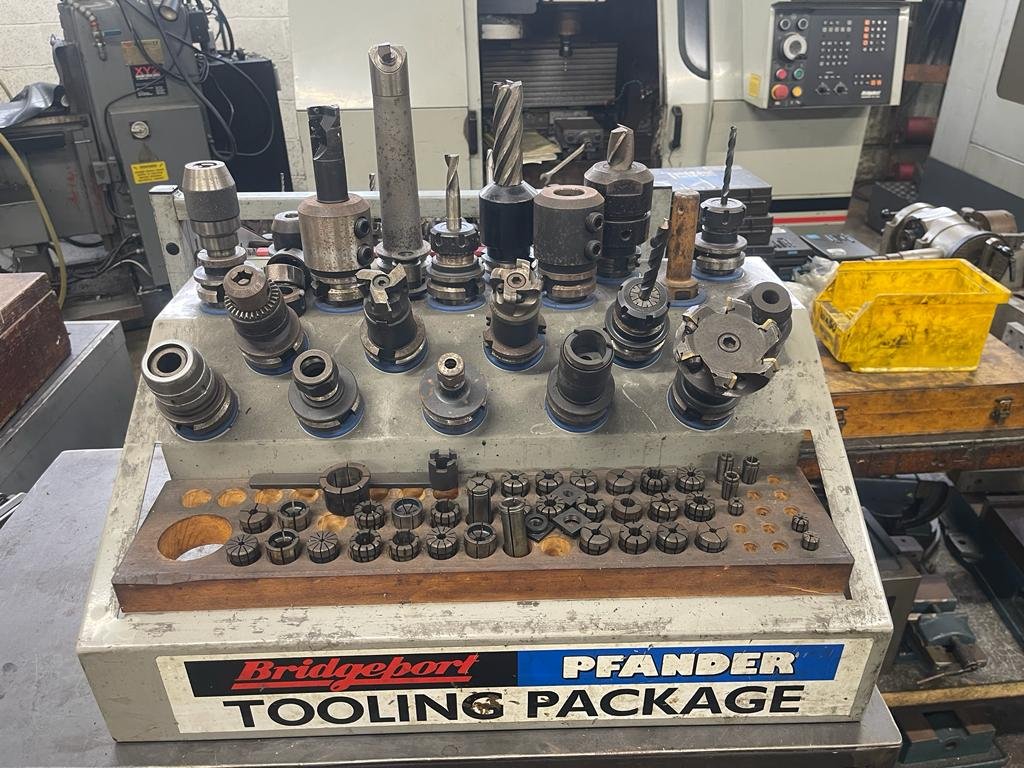

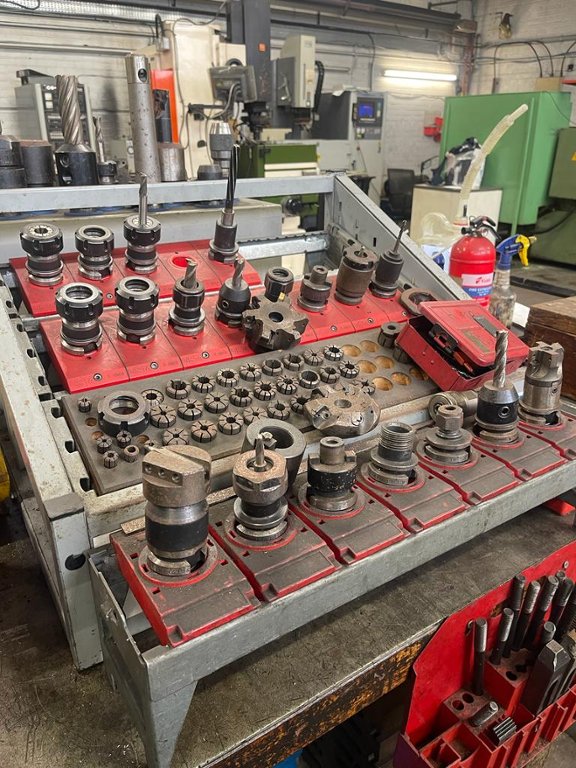

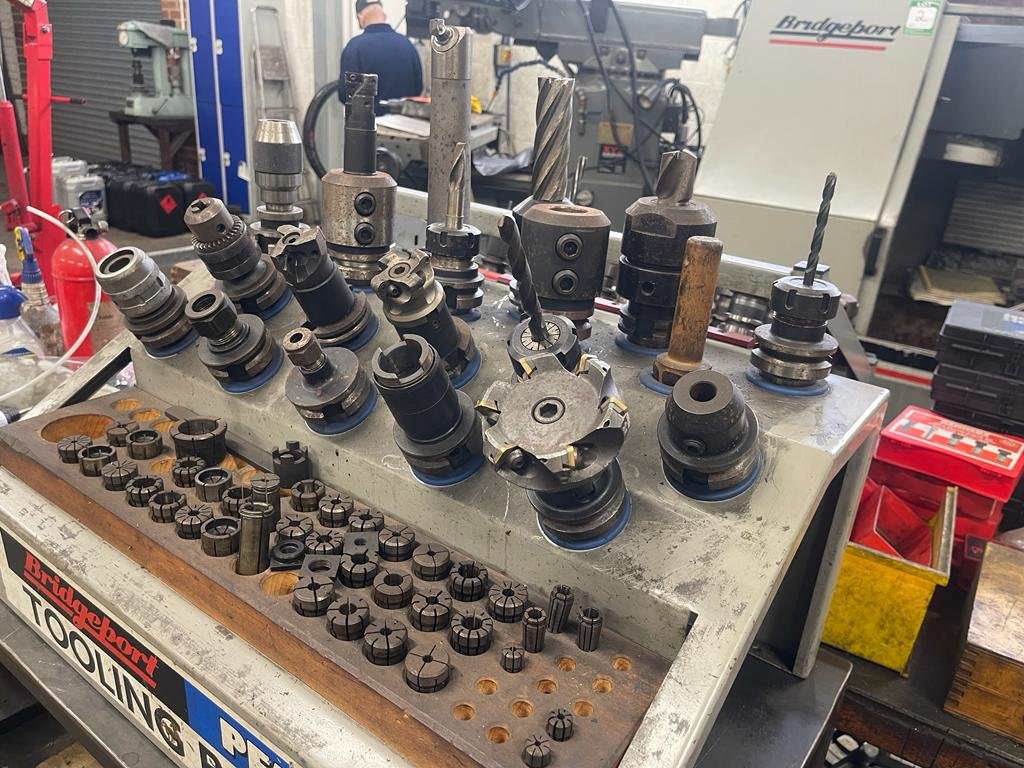

Selection of tooling included

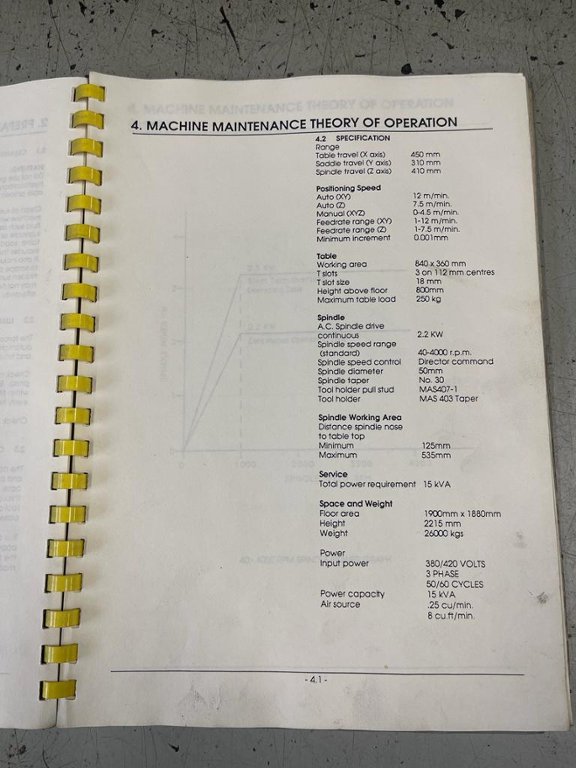

Table Travel (X Axis) - 450mm, Saddle Travel (Y Axis) - 310mm, Spindle Travel (Z Axis) - 410mm

Auto (XY) - 12m/min, Auto (Z) - 7.5m/min, Manual (XYZ) - 0-4.5m/min, Feedrate range (XY) - 1-12m/min, Feedrate Range (Z) - 1-7.5m/min, Minimum Increment - 0.001mm

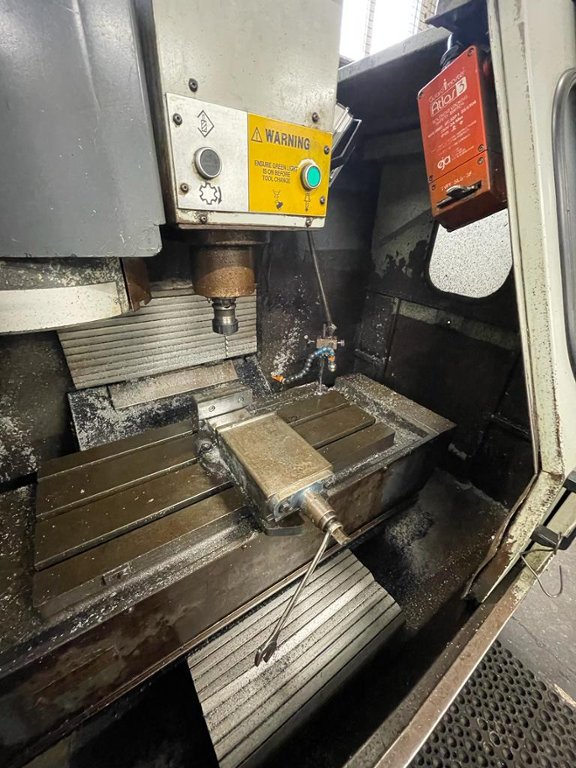

Working Area - 840 x 360mm, T Slots - 3 on 112mm Centres, T Slot Size - 18mm, Height above Floor - 800mm, Maximum table load - 250kg

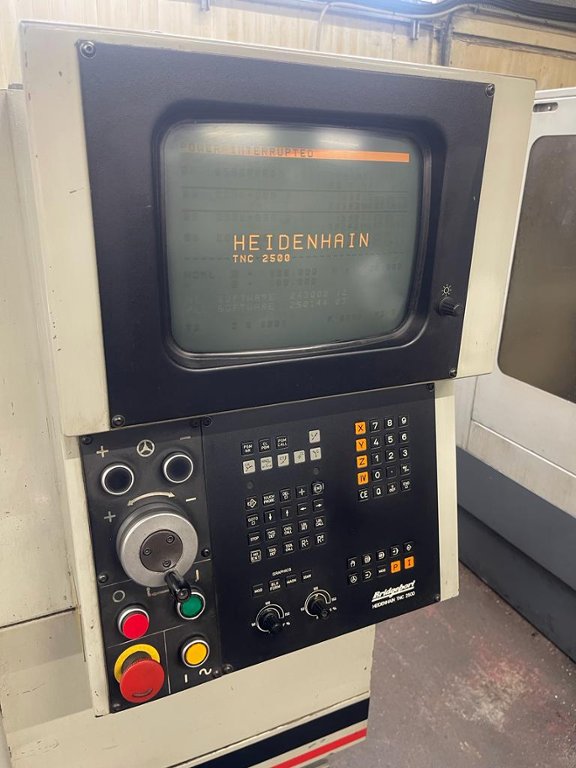

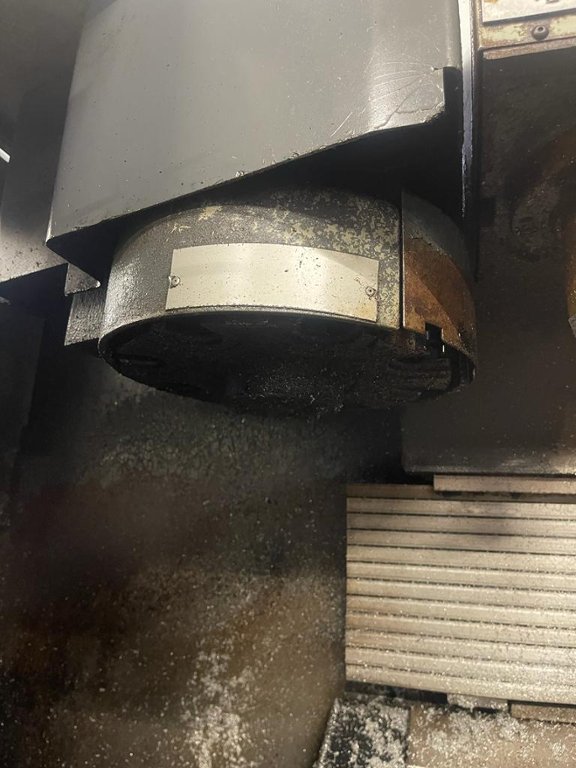

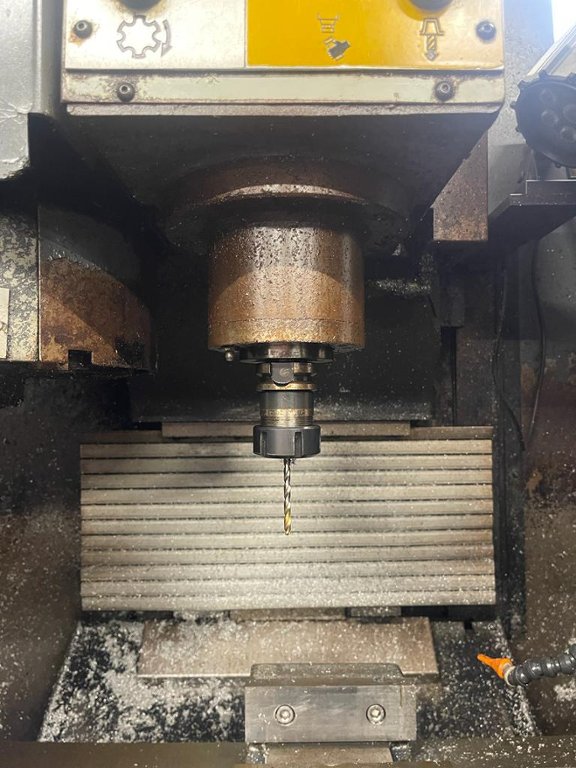

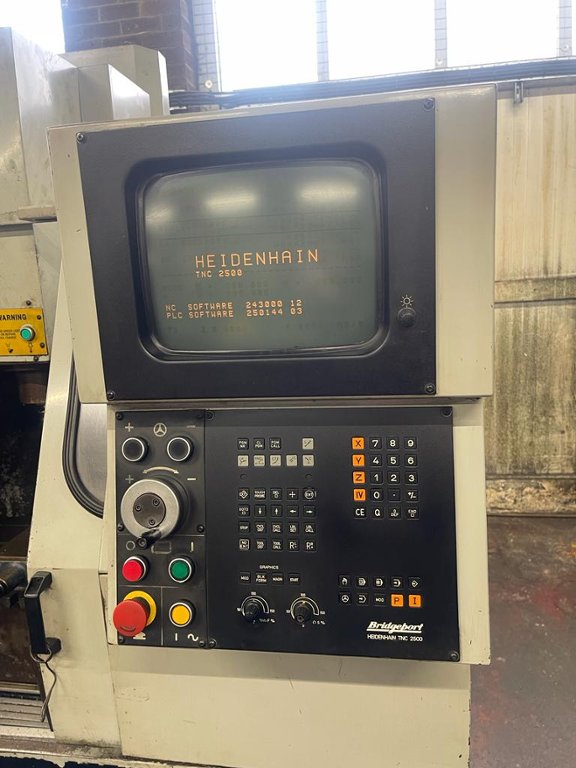

AC Spindle drive continuous - 2.2kw, Spindle speed range (standard) - 40-4000 RPM, Spindle speed control - Director command, Spindle diameter - 50mm, Spindle Taper - No.30, Tool holder pull stud - MAS407-1, Tool Holder - MAS 403 Taper

Distance spindle nose to table top - Minimum - 125mm - Maximum - 535mm

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
