Bridgeport VMC720X with 4th Axis

Lot 1 - Bridgeport VMC720X with 4th Axis

Description:

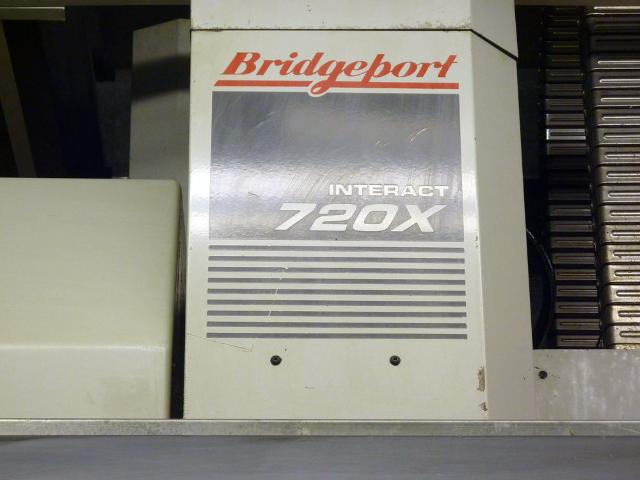

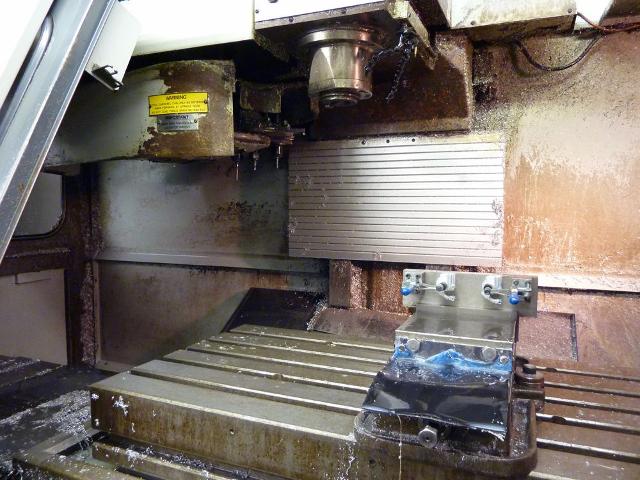

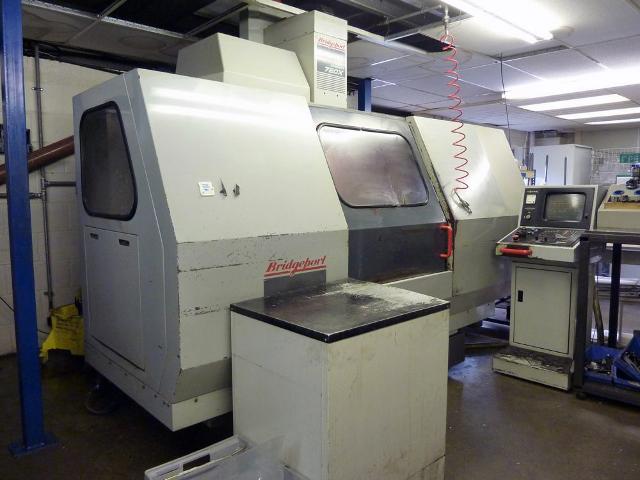

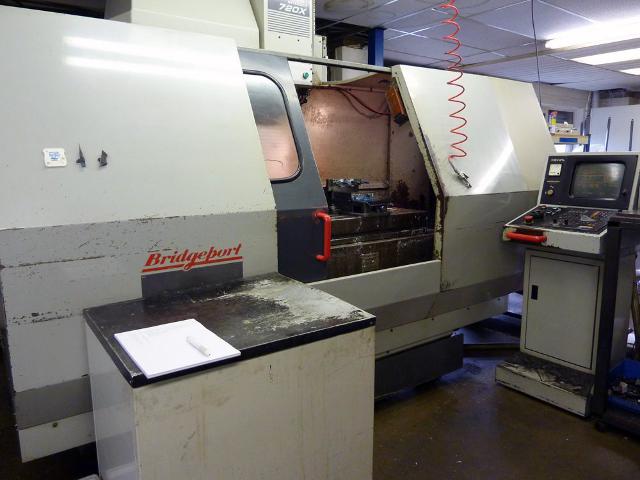

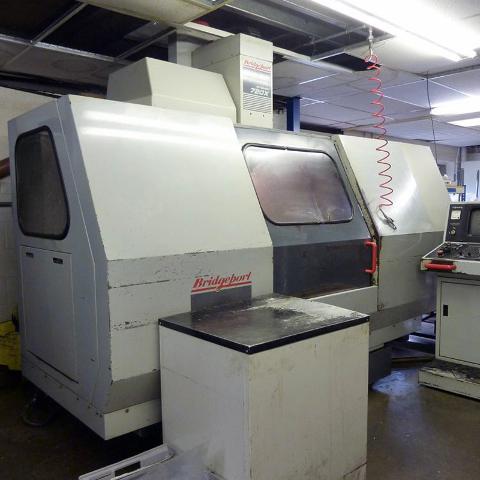

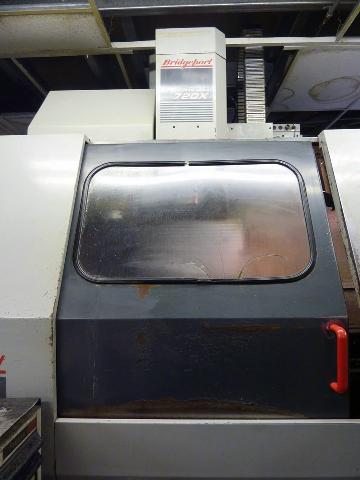

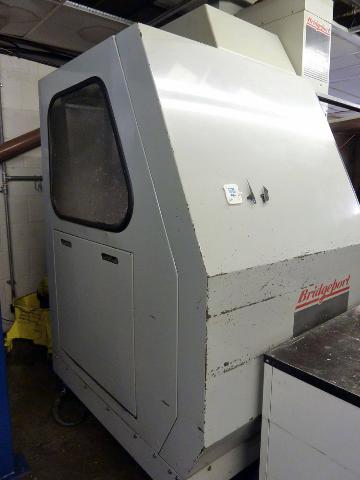

Bridgeport VMC720X (with 4th Axis)

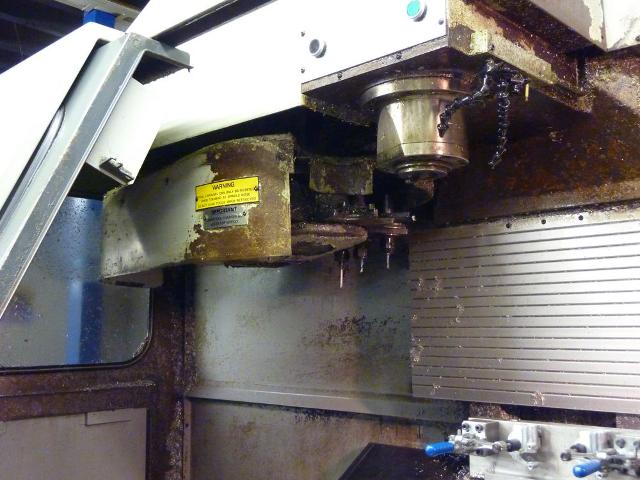

20 Tools Automatic Tool Changer

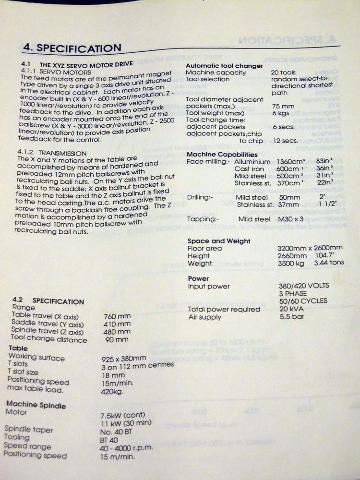

Range
Table Travel x,y,z 760mm x 410mm x 480mm
Tool Change Distance 90mm

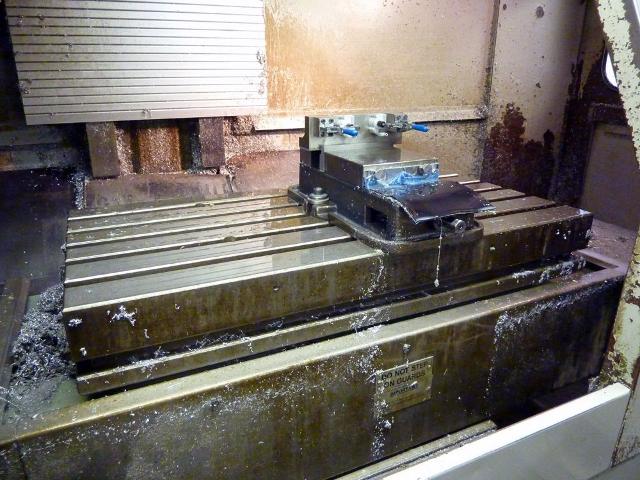

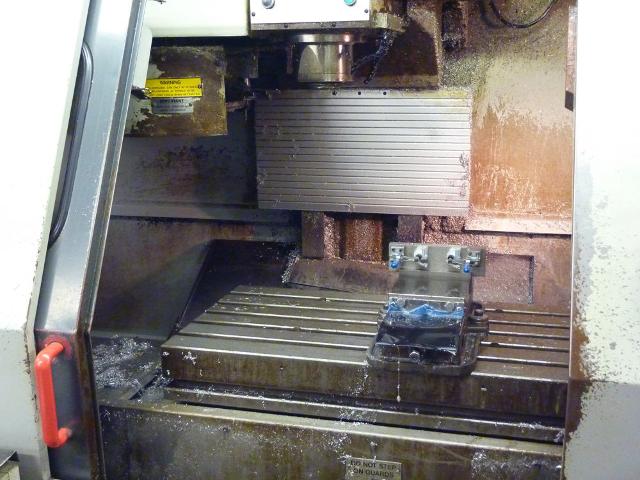

Table
Table Working Surface 925 x 380mm
T Slots 3 on 112mm Centres
T Slot Size 18mm
Positioning Speed 15m/min
max Table Load 420kg

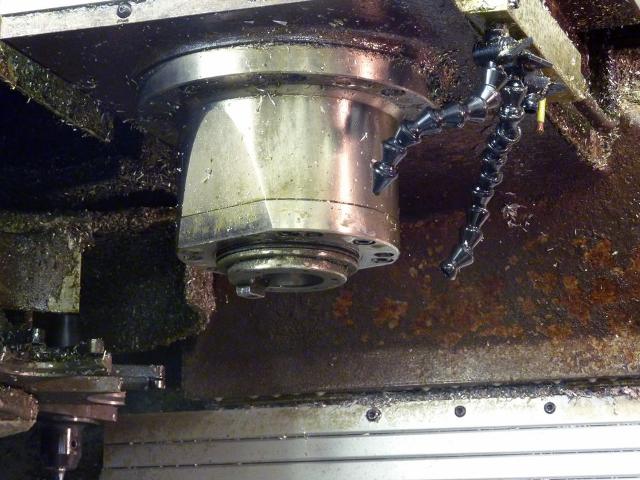

Machine Spindle
Motor 7.5kW (cont)
11kW (30 min)
Spindle Taper BT40
Tooling BT40
Speed Range 40-4000 rpm
Positioning speed 15m/min

Additional Specifications

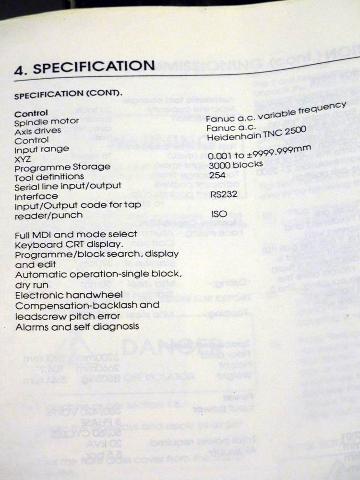

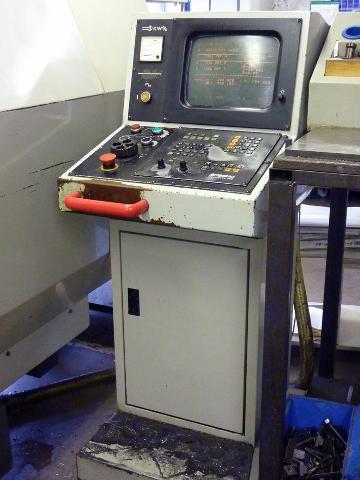

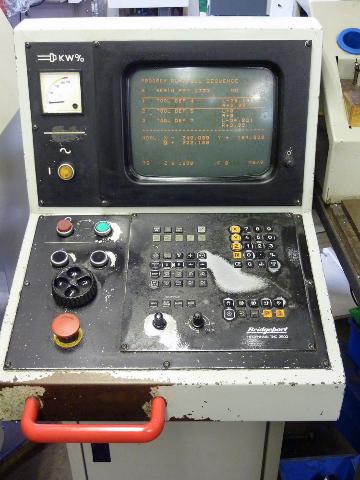

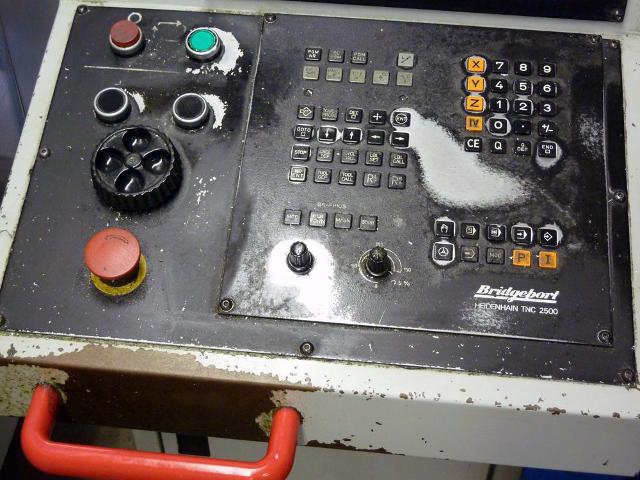

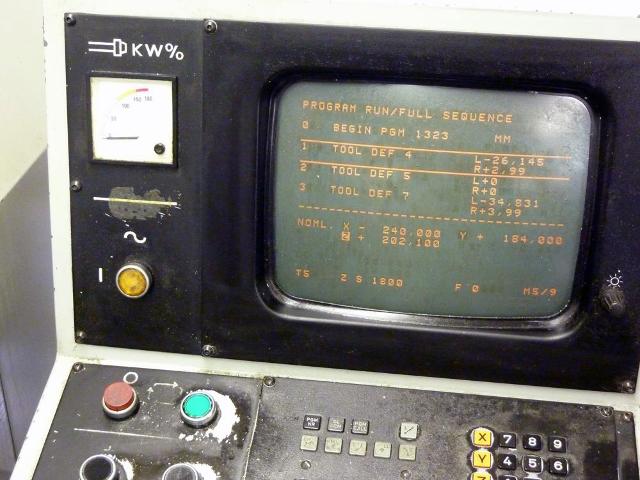

Heidenhain 2500 control

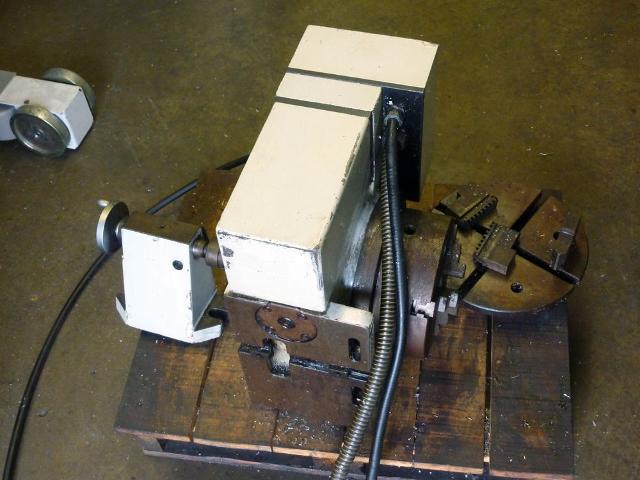

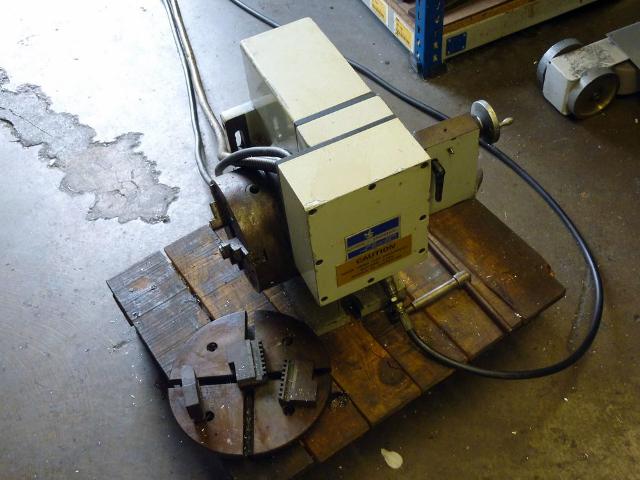

Jones & Shipman 4th Axis with 8" Chuck

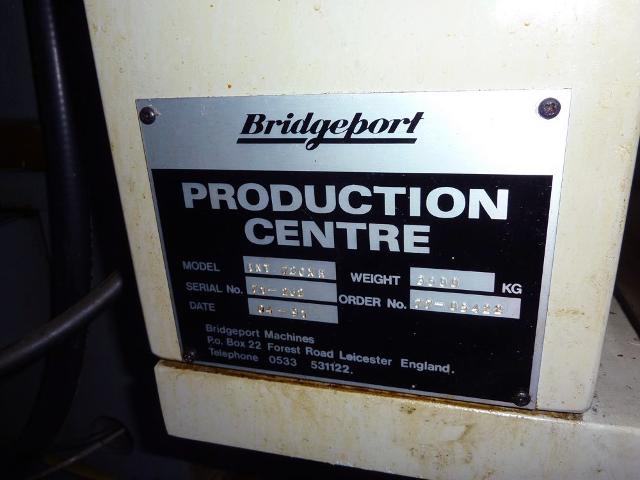

Year 1991

sn. 71-262

Space and Weight
Floor Area 3200mm x 2600mm
Height 2660mm 104.7"
Weight 3500kg 3.44 tons

Machine will be disconnected from Power and Mains, and Coolant removed.

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
