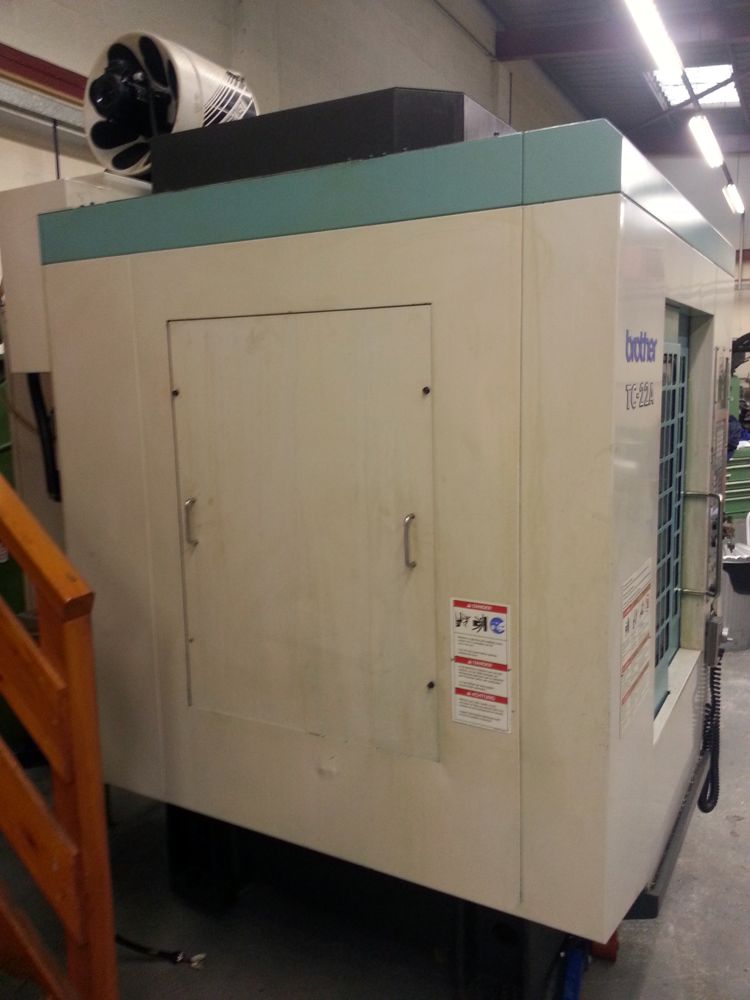

Lot 14 - Brother TC-22A (1999) 12000 Rpm, Drill and Tapping Center
Description:

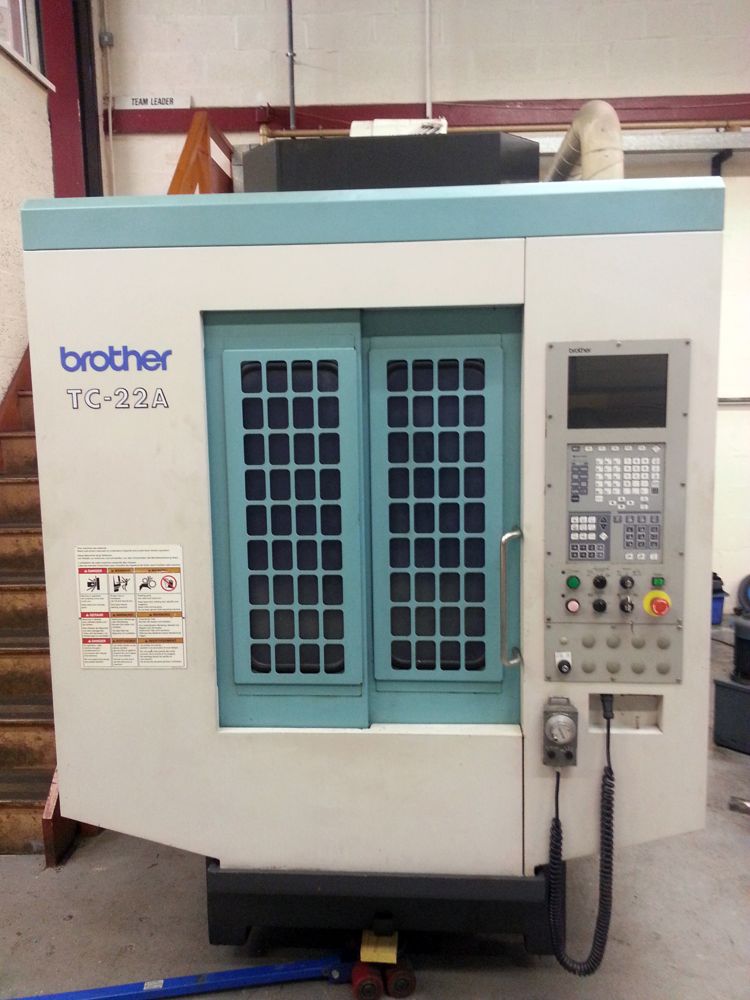

Brother TC-22A, Max. 12000 Rpm, Drill and Tapping Center

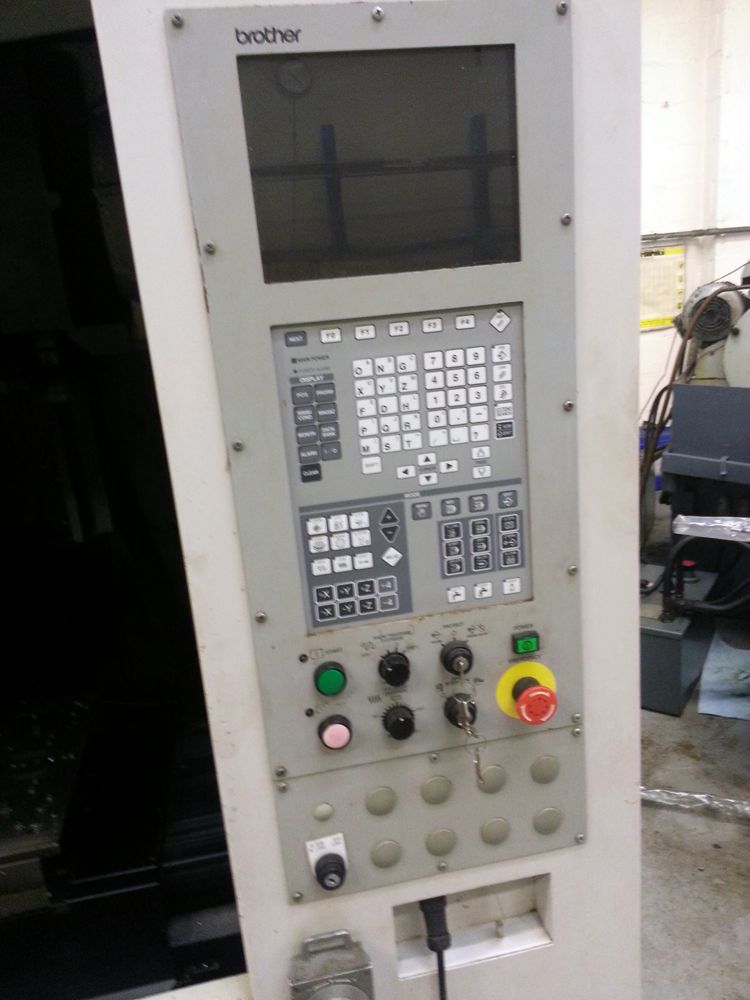

Control: Brother A00
Brand : Brother
Model : TC-22A
DRILL AND TAPPING CENTER

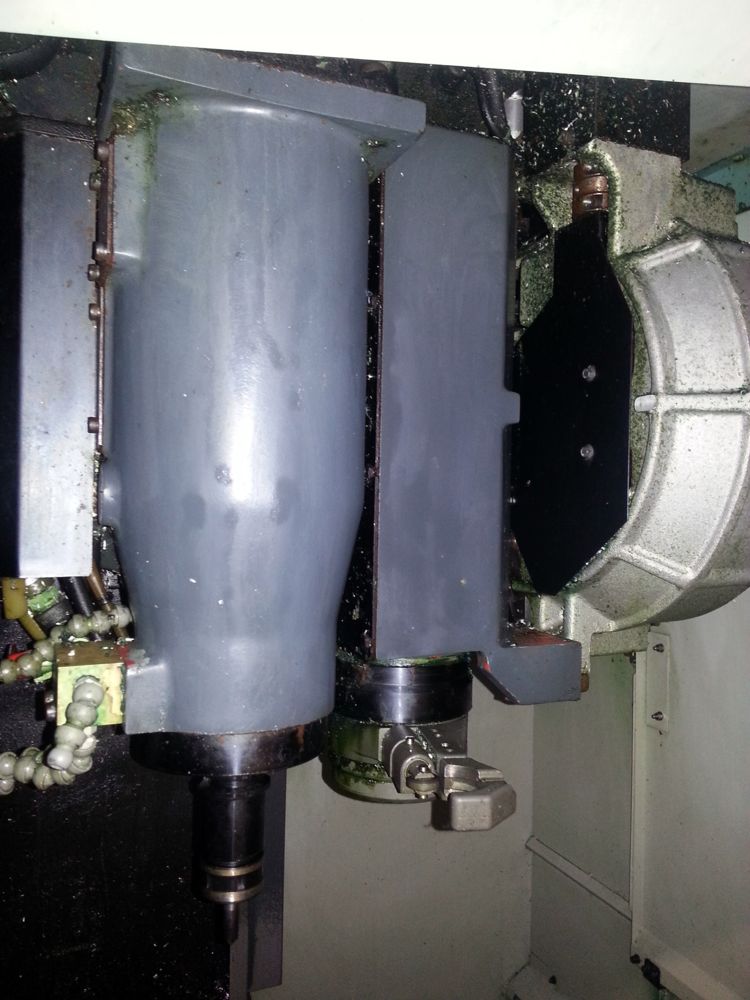

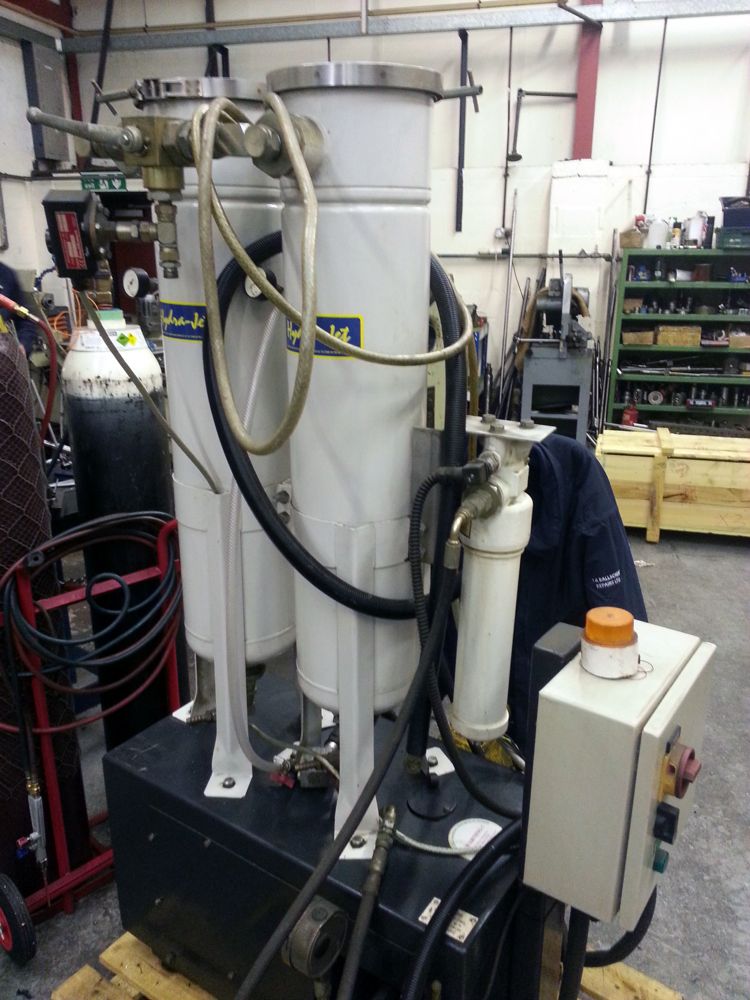

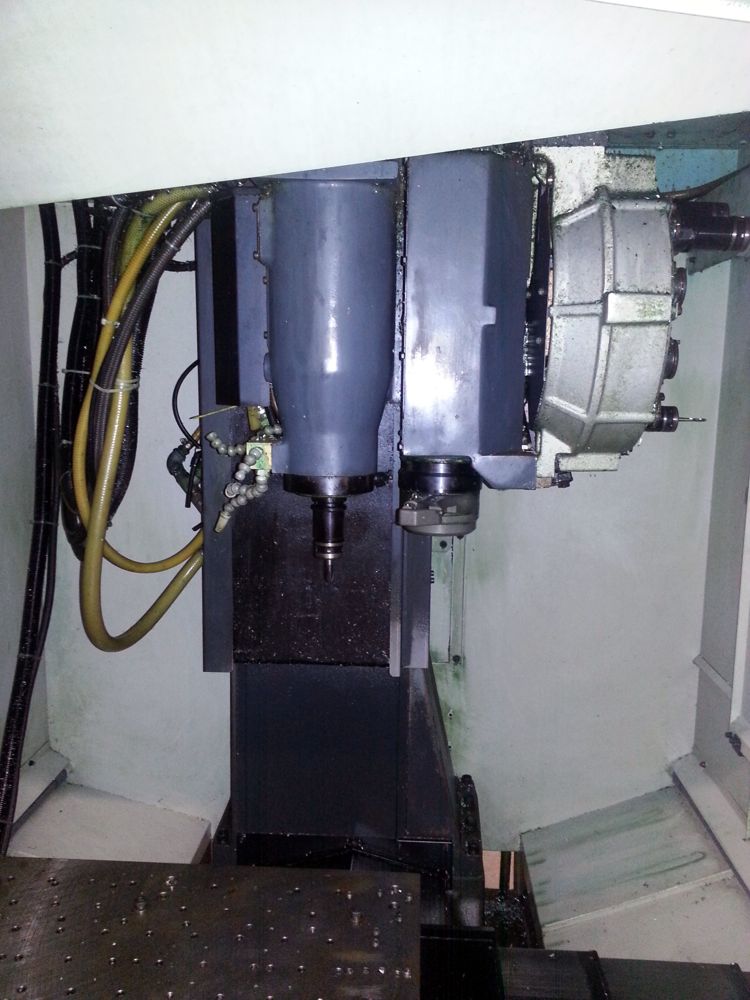

• NC5 spindle with High Pressure 70 Bar Through spindle coolant.
• Spindle Speed 12 - 12,000 rpm

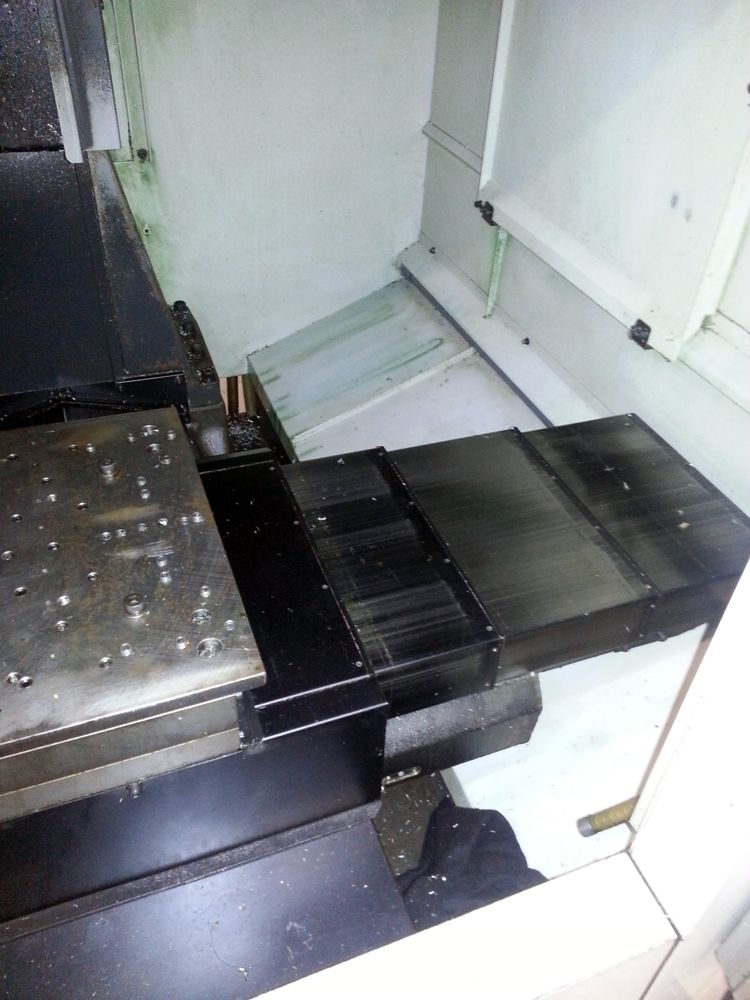

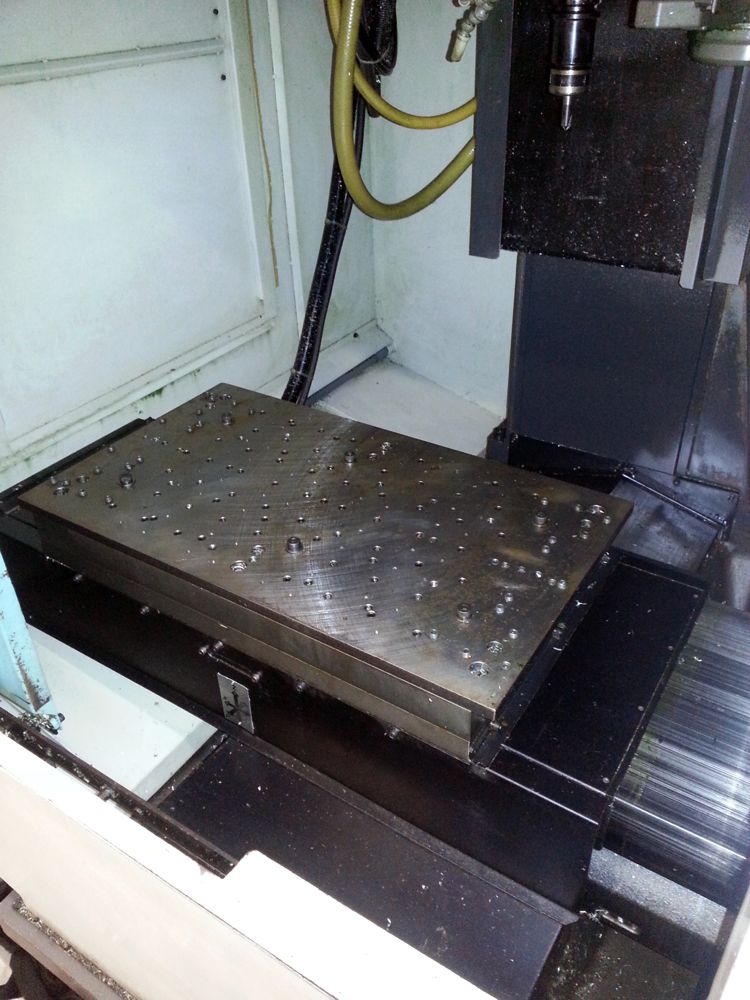

• Work Area 650mm x 400mm
• Max. Load on Table 440 lbs.
Travels:
• X Axis 500mm
• Y Axis 400mm
• Z Axis 400mm
• Distance Table to Spindle 200mm to 610mm
• Max. Tool Length 200mm
• Tool Changer 26 ATC
• Spindle Motor 10 HP
• Overall Dimensions: 2235mm H x 1625mm W x 2845mm L
• Overall Weight: 2300kg
• Power On Hours: 6000
Includes 10 NC5 toolholders
Machine has a Z axes riser block fitted
Manuals
Location: Coventry
Owner can arrange delivery and installation for a reasonable cost. (Please contact us for quotation)
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
