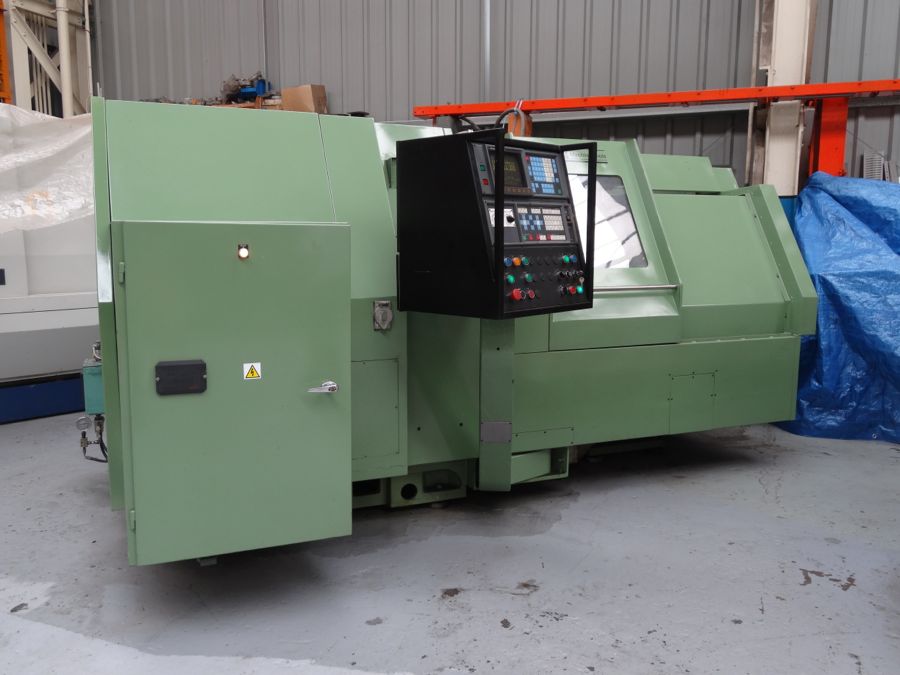

BSA 3000 CNC LATHE – 30” BED – EX DEMONSTRATION with Uk Warranty

Lot 1 - BSA 3000 CNC LATHE – 30” BED – EX DEMONSTRATION with Uk Warranty

Description:

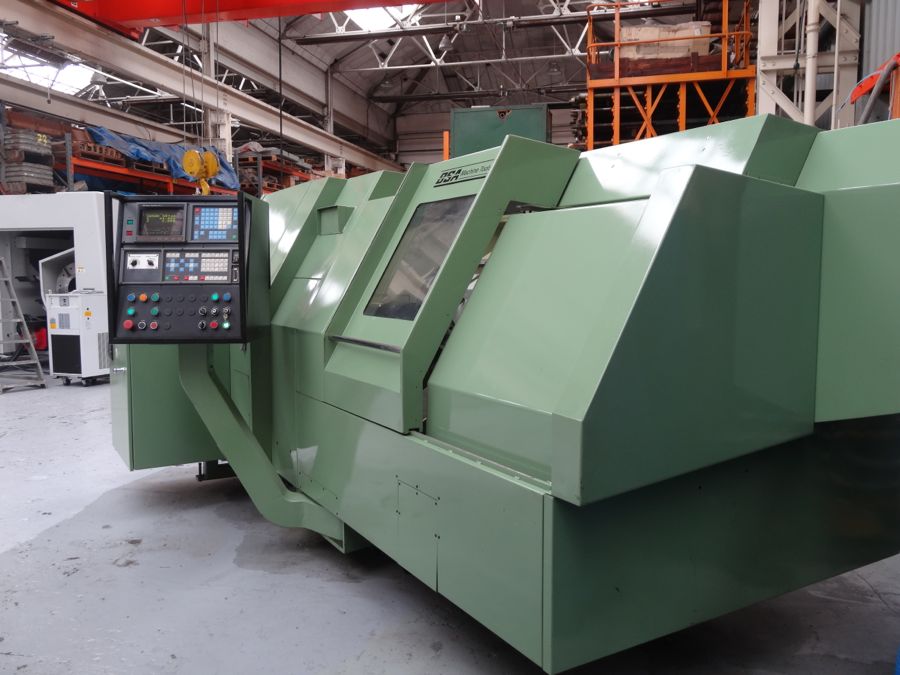

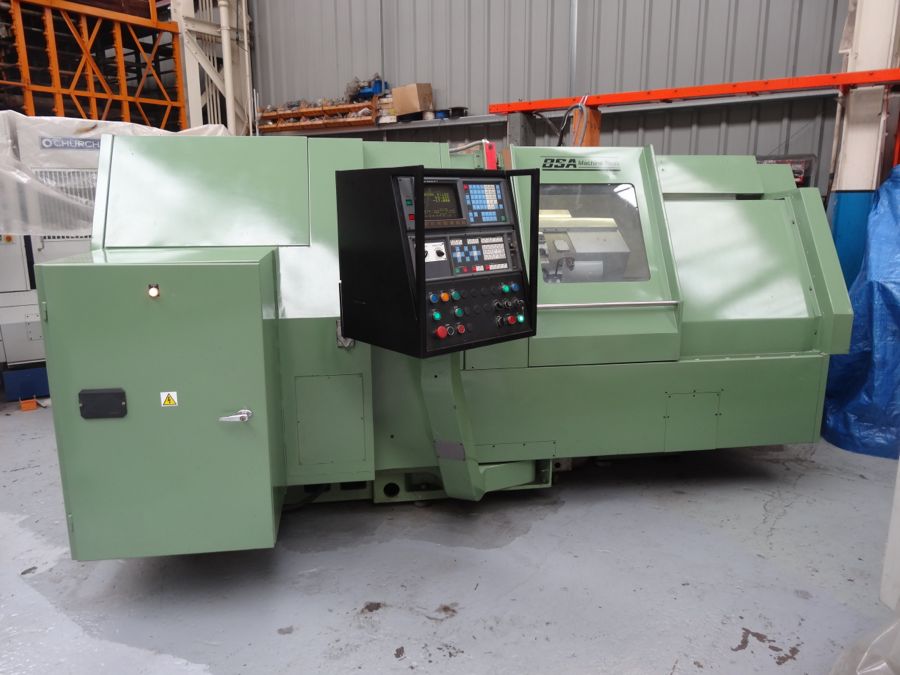

BSA 3000 CNC LATHE – 30” BED – EX DEMONSTRATION

Basic Specification - 500mm (20in) Swing over bed

- 250mm (10in) Swing over cross slide

- 762mm (30in) Between centres

- 946mm (37.25in) ‘Z’ travel

- 76mm ( 3in) Bar Capacity

Slant Bed: 30° from horizontal, utilising hardened and ground tool steel replaceable bedways, supporting ‘T’ design carriage and cross slide assembly.

Main Drive From a 22KW (30HP) variable speed, reversing AC Motor with Direct-coupling to the Headstock Drive Shaft. Spindle speeds available from 50 to 3000 RPM in 1 RPM increments.

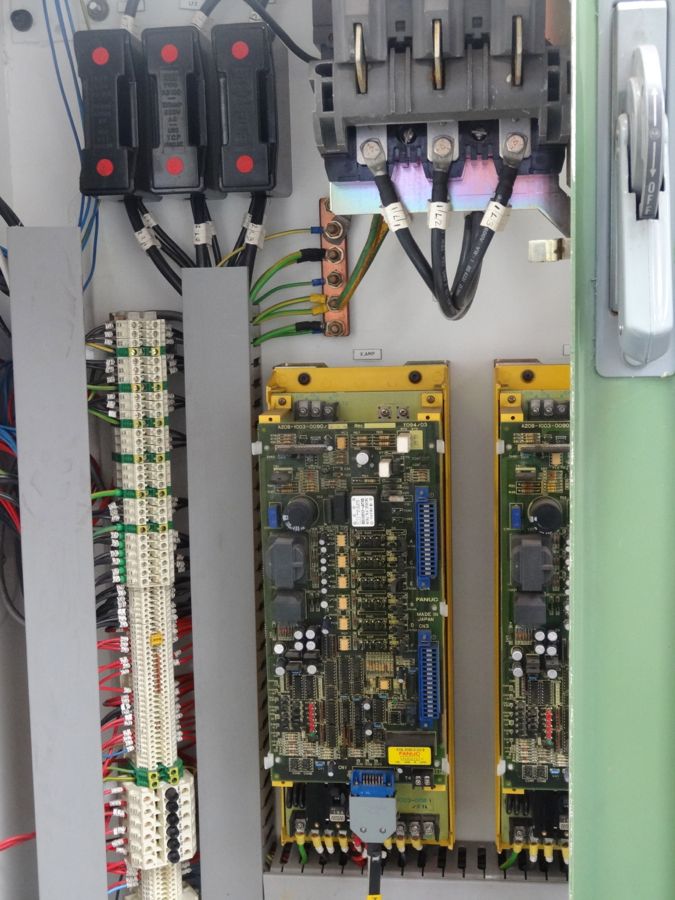

Axis Drive Through constant torque Servo Motors, AC powered PWM-controlled, providing feed rates from 2.5 to 6350mm/min (0.1 – 250in/min)

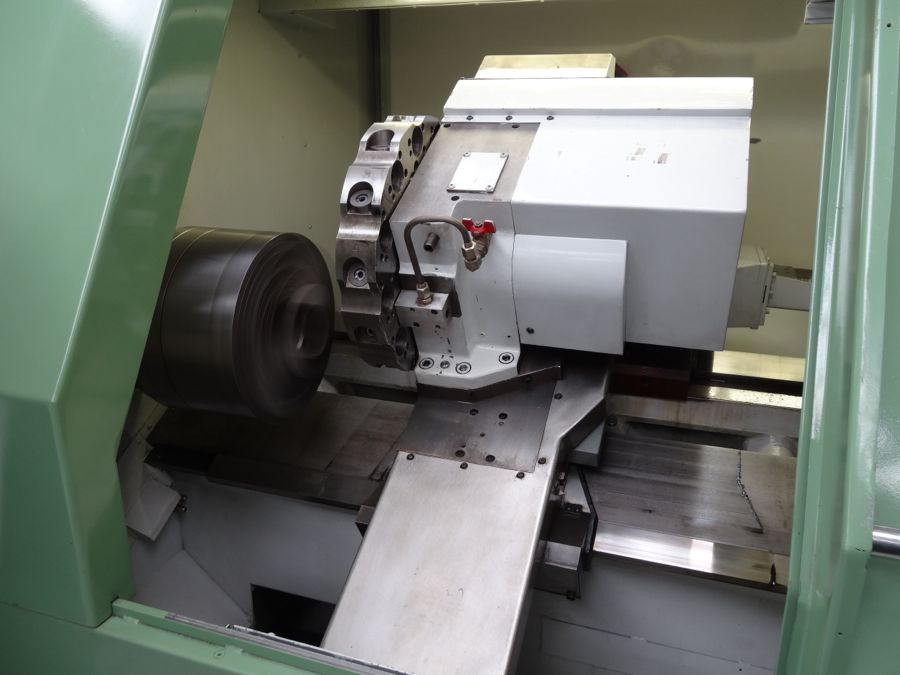

12 Position Combination Disc Turret
Housing eight O.D. and four I.D. turning tools.
Two boring bar holders supplied with machine allow for an alternative turret arrangement of six O.D. and six I.D. turning tools.
A curvic coupling is used ensuring sustained accuracy and the bi-directional turret systems allows for minimum idle time, with 330° indexing in only 4 seconds.

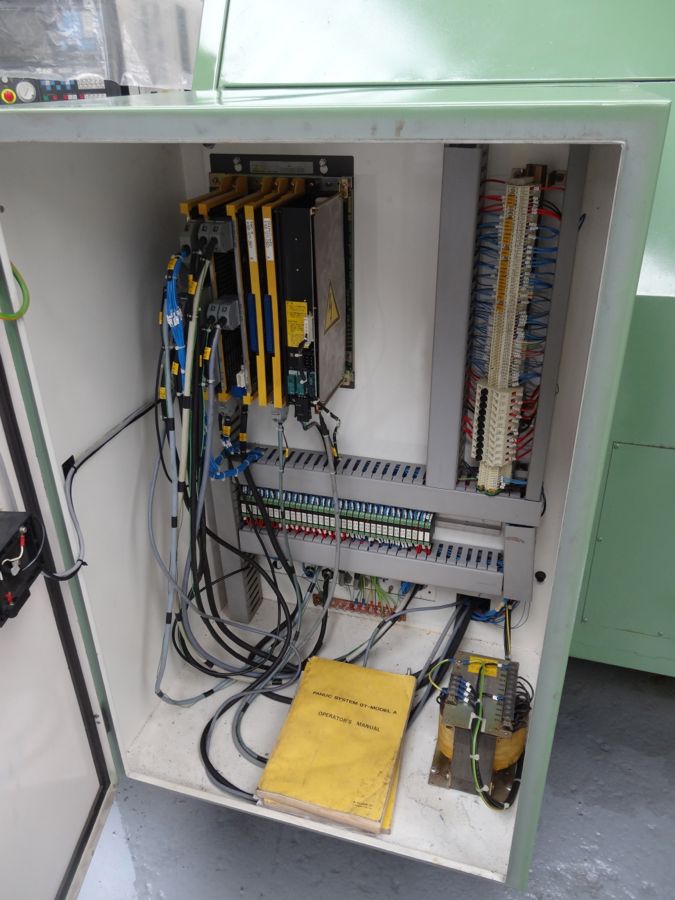

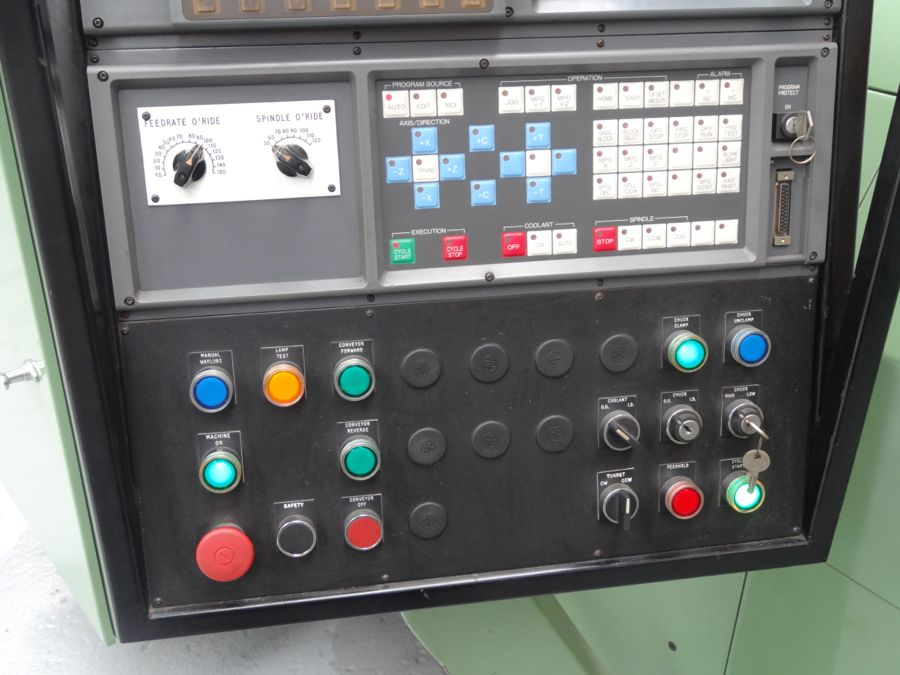

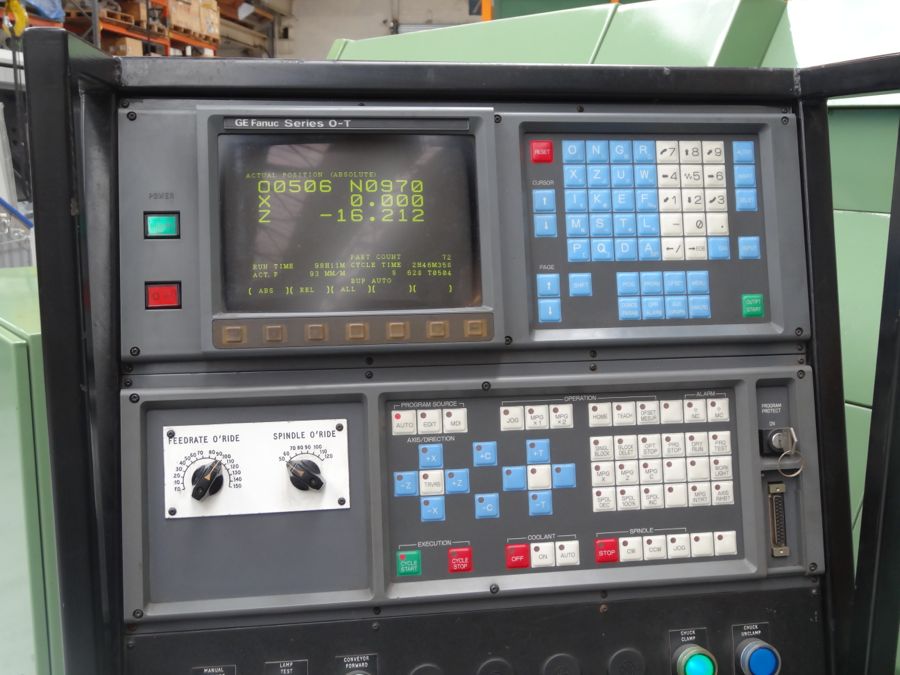

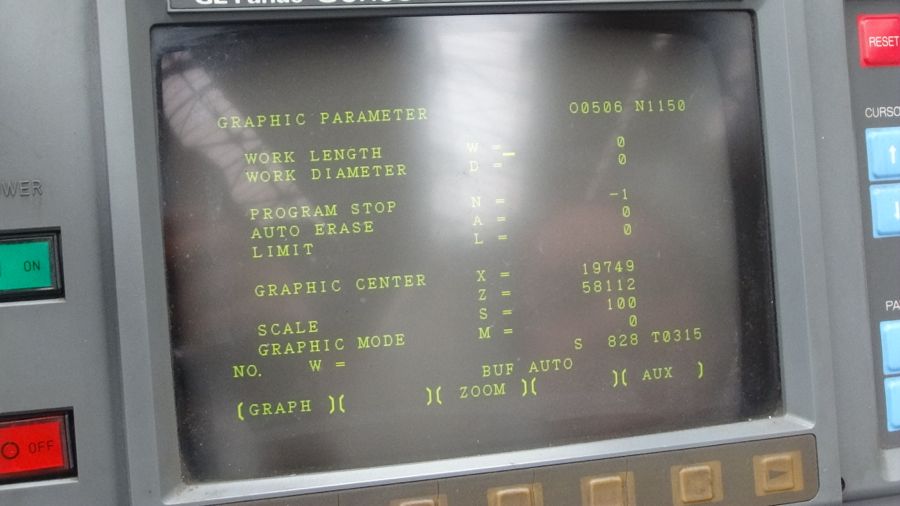

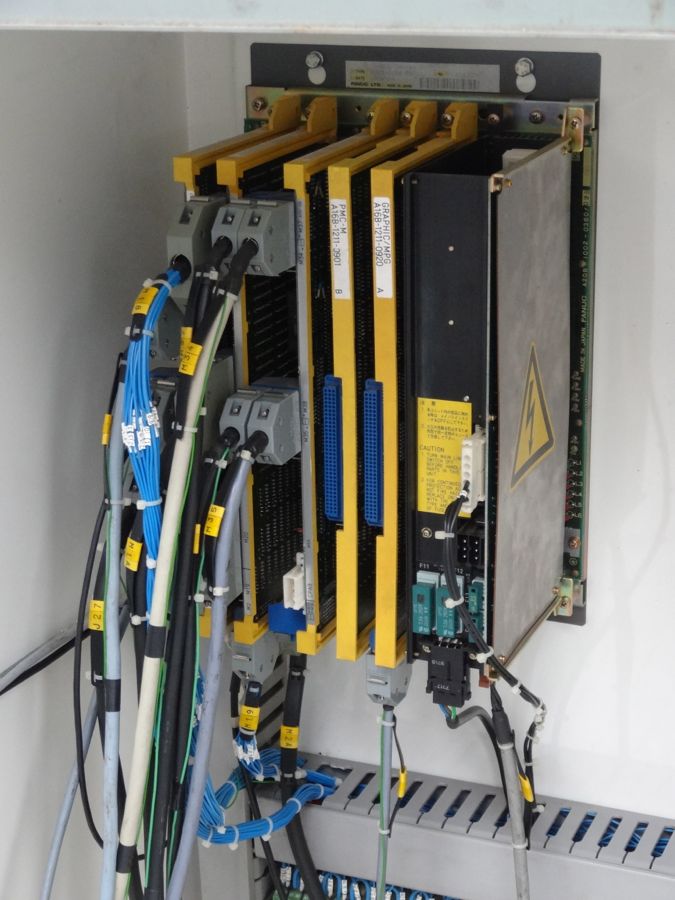

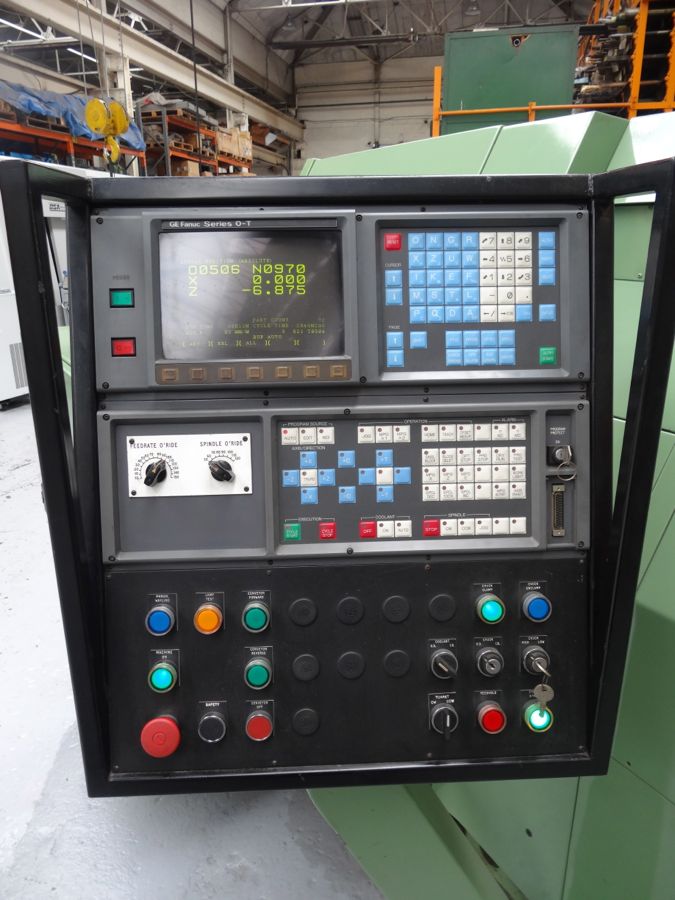

Machine fitted with: Fanuc OT-C CNC control

OPTIONAL FEATURES

Paint Standard colour is RAL 6011 Green.

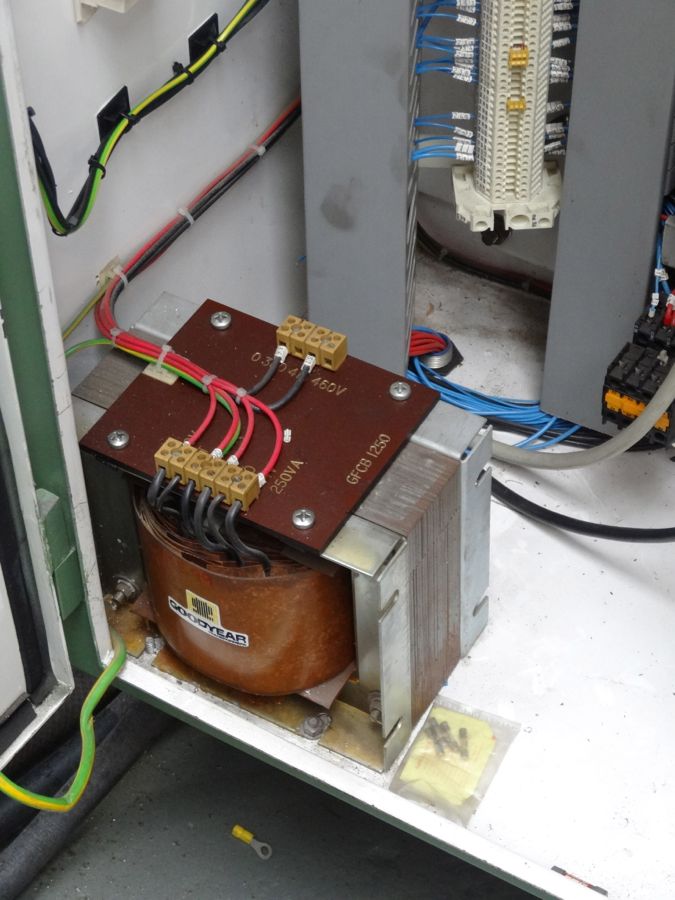

Electrics For voltage other than 415v – 3 Phase 50Hz

Worklight Fluorescent mounted on stationary chip guard

Chip Pan and coolant reservoir with pump, motor & piping

WORKHOLDING – CHUCK

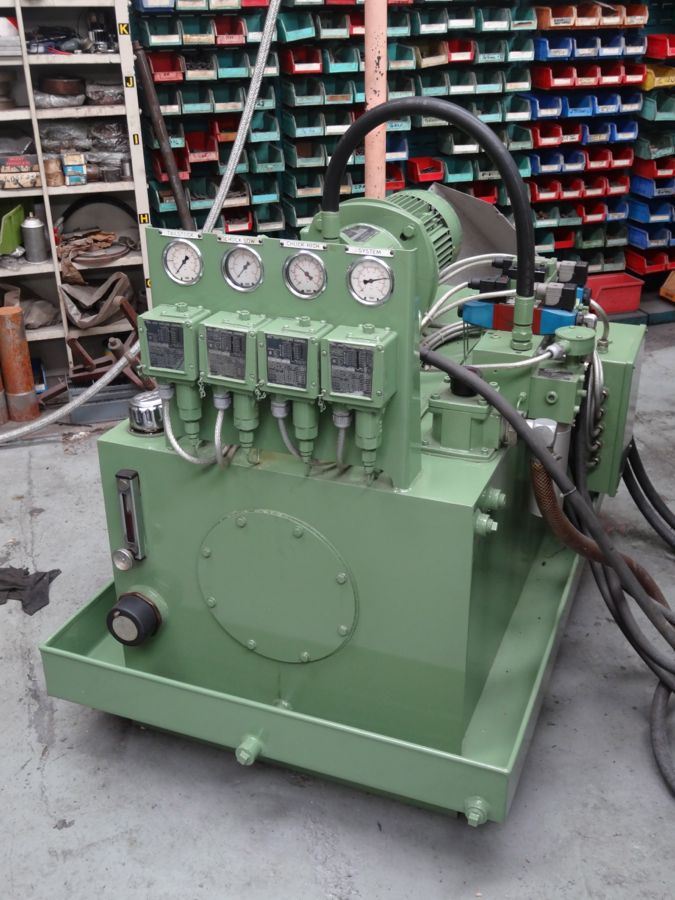

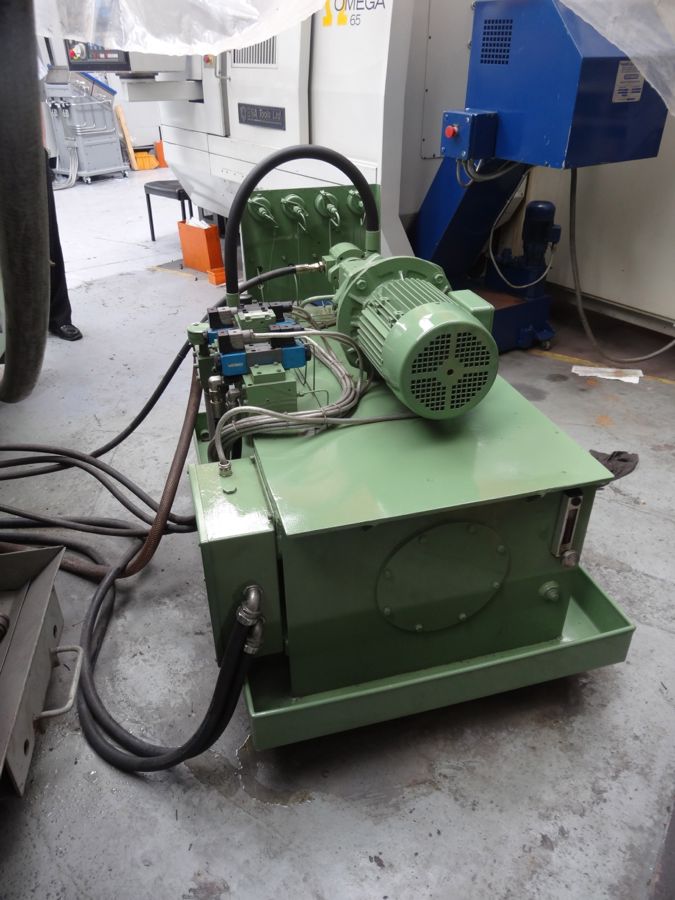

315mm Hydraulic 3 jaw self-centering chuck (includes electro/hydraulic operating valves etc)

DOCUMENTATION

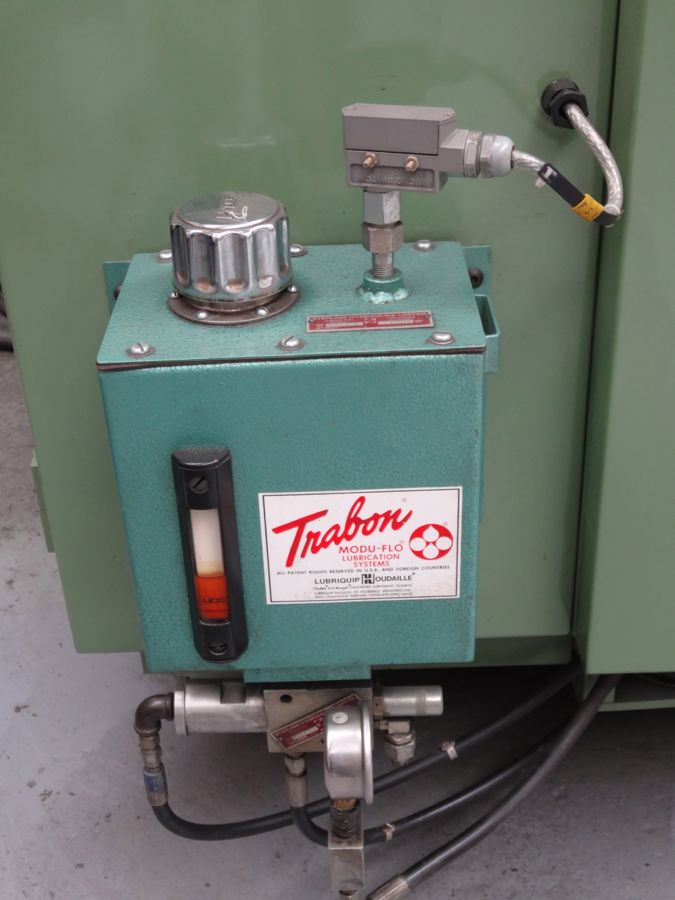

Lubrication,
Electrical and Hydraulic Schematics
Programming
Operating

WARRANTY
Machine will be guaranteed for 3 months from date of Full Payment.

TRAINING
The following training in our works can be arranged as follows:-

At additional cost.

Programming (5 Days) Operator Course (5 Days)
Maintenance (5 Days) Electrics/Electronics (5 Days)
INSTALLATION/COMMISSIONING In customers works

Can be carried out by BSA service engineers but will be subject of separate quotation and charge.

Location: BSA, Birmingham

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
