Lot 4 - Chester CUB 630 lathe
Description:

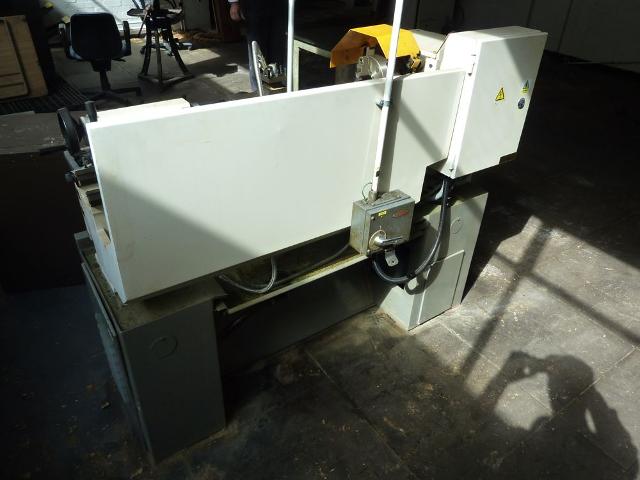

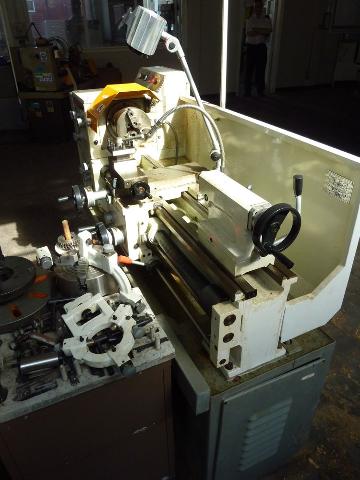

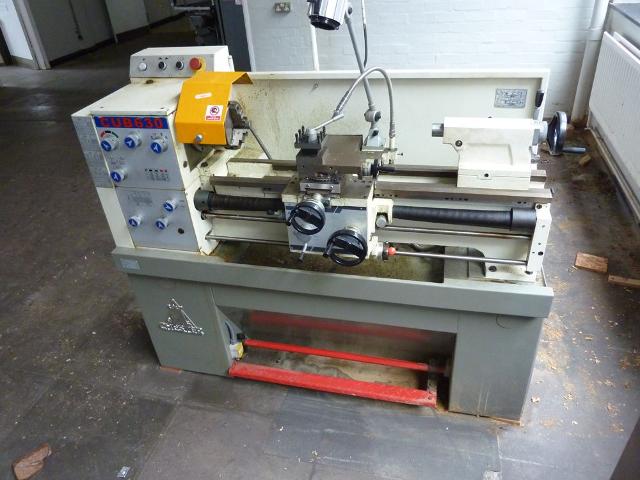

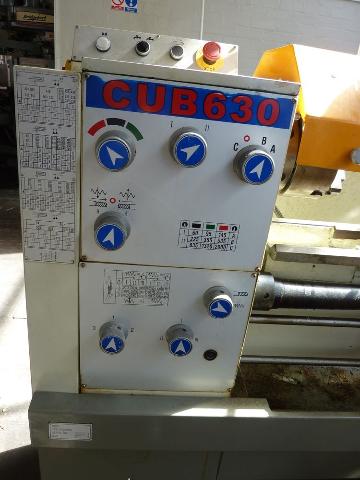

Chester CUB 630 lathe
Swing in Gap: 430mm
Weight: 500 Kgs
Height: 1200mm
Width: 680mm
Length: 1650mm
Tailstock Quill Taper: MT3
Tail Stock Quill Travel: 75mm
Tail Stock Quill Diameter: 38mm
Longitudinal Feed: 0.03-0.423mm
Top Slide Travel: 82mm
Cross Slide Travel: 160mm
Centre Height: 150mm
Spindle Nose - Camlock: D1-5
Gap length: 182mm
Swing Over Cross Slide: 180mm
Distance between centre: 750mm
Swing Over Bed: 300mm
Spindle Bore: 38mm
Speed Range (9): 60-2000rpm
Metric Pitches: 0.25-9.0mm
Tailstock Quill Travel: 75mm
Imperial Pitches: 4-72TPI
Motor: 1.5Hhp/240v/415v
Crosslide travel: 160mm
Spindle Taper: MT5
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
