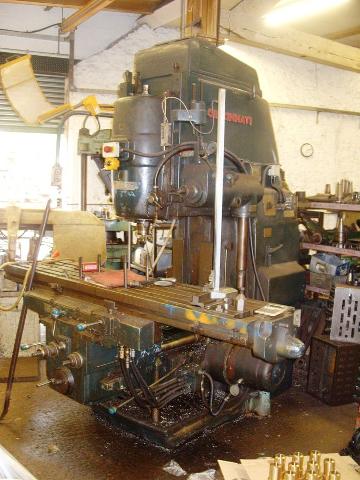

Lot 55 - CINCINNATI #3 VERTICAL KNEE TYPE MILLING MACHINE
Description:
CINCINNATI #3 VERTICAL KNEE TYPE MILLING MACHINE
Working surface of table 18" x 72", Longitudinal travel 34", Cross travel 16", Vertical travel 16", Head travel 8", Distance from spindle nose to top of table 22", centerline of spindle to column 18", Spindle taper #50, Rapid traverse rates, Longitudinal 100 ipm Cross 100 ipm Vertical 80 ipm, Spindle Drive Motor 10 and 20 hp, Spindle speeds (21) 16 - 1600 rpm, Feeds (32) ½" to 40", Approximate floor space 114" x 83", Approximate weight 4200kg
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
