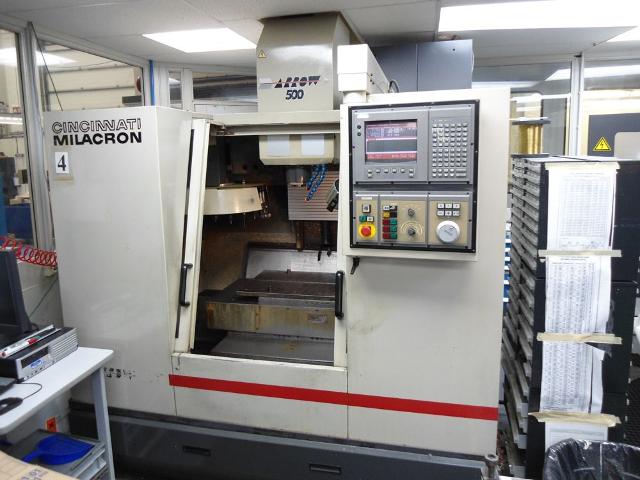

Lot 1 - Cincinnati Arrow 500 with 4 AXIS VMC
Description:
Cincinnati Arrow 500 with CT controller
Year: 1995
Includes 4th (A) Axis
New spindle fitted In July 2011
Current owner from new: Corin
Serial No: 7042/C00/RL/0473
Original Supplier:
Ward Hi-Tech
1 Atlas Way
Sheffield
S4 7QQ
Technical Spec:
Strokes X, Y, Z : 510 [mm]
Spindle nose to table : 127 - 637 [mm]
Table size : 700 x 520 [mm]
Max. table load : 500 [kg]
Spindle taper : N°40
Spindle power : 7.5 [kW]
Spindle speed range : 60 - 6000 [Rpm]
Tool changer storage capacity : 21
Max. tool weight : 6.8 [kg]
Max. tool diameter full : 80 [mm]
Tool change times : 7 [s]
Floor space (l x L): 2.2 x 2.1 x 2.7
Max. height : 2.7 [m]
Weight : 3050 [kg]
* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
