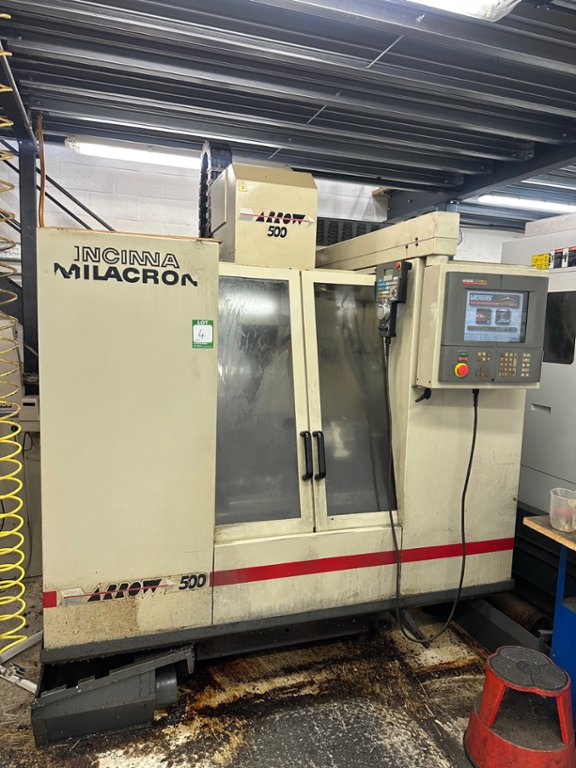

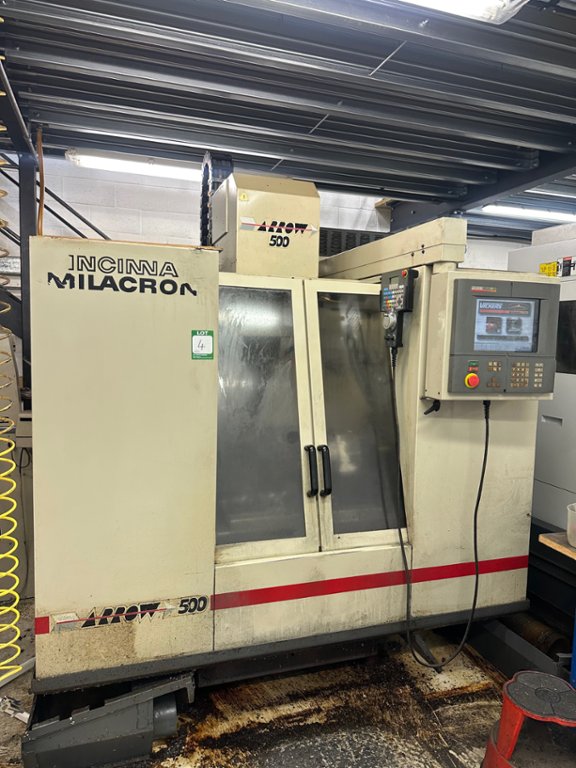

Lot 4 - Cincinnati Milacron Arrow 500 Vertical Machining Centre (1997)

Description:

No tooling included

Axis X - 762 mm, Axis Y - 510 mm, Axis Z - 510 mm, Type of CNC - Acramatic 2100, Table length - 698.5 mm, Table width - 520 mm, Max. part weight - 350 kg, Number of tool pockets - 21, Spindle taper - BT40, Max. spindle speed - 6000 rpm, Spindle motor power - 7.5 kW

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.

Recommended Transport

• Photos

Enlarge

Bid information

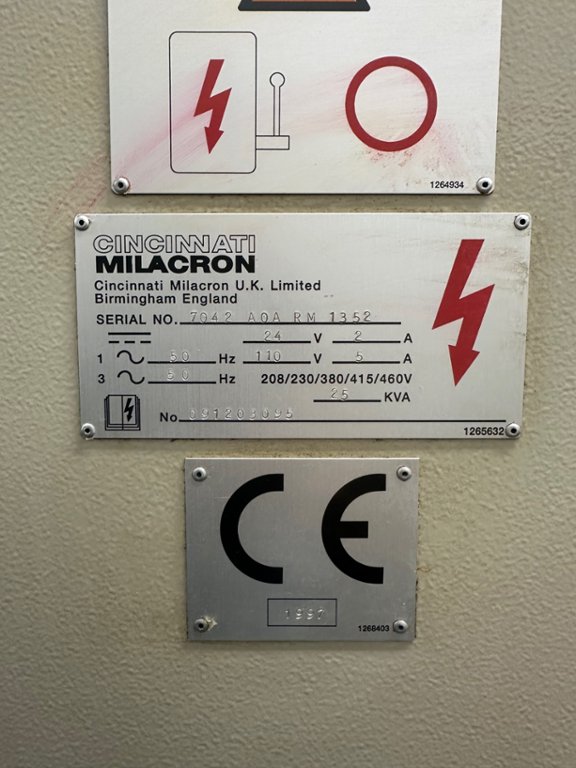

Serial Number: 704240AR111352

Location: Trowbridge

Transport information

• Width: 2109mm
• Depth: 2007mm
• Height: 2650mm
• Weight: 3176kg
• Other Transport Details: No loading facilities on site
