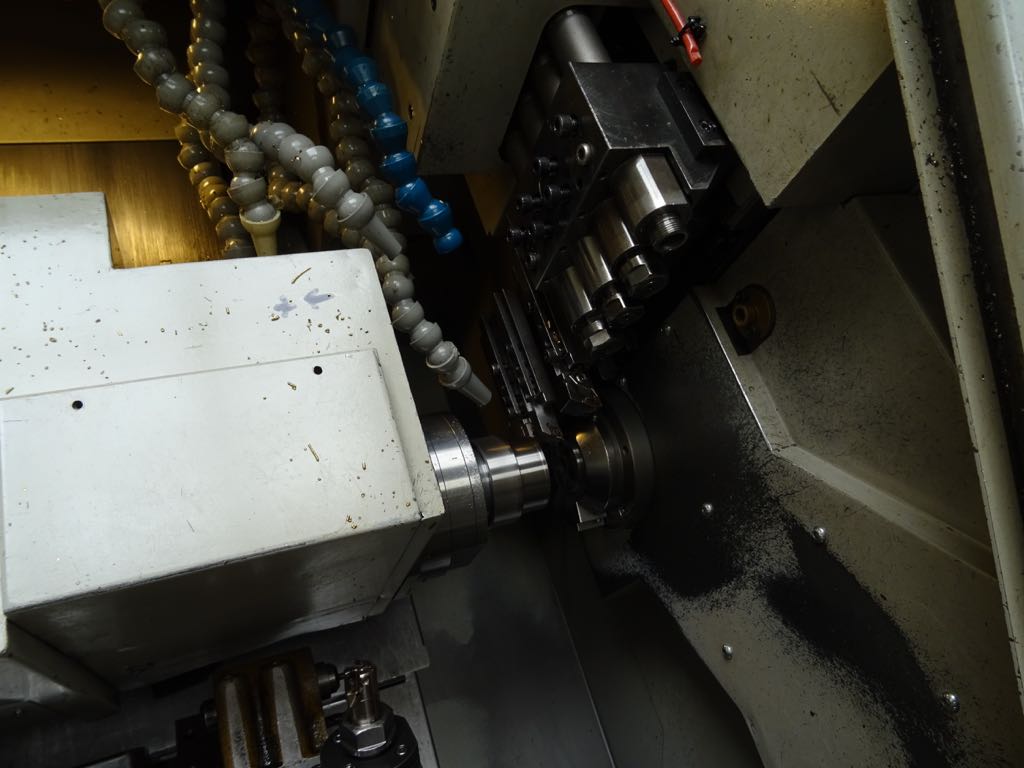

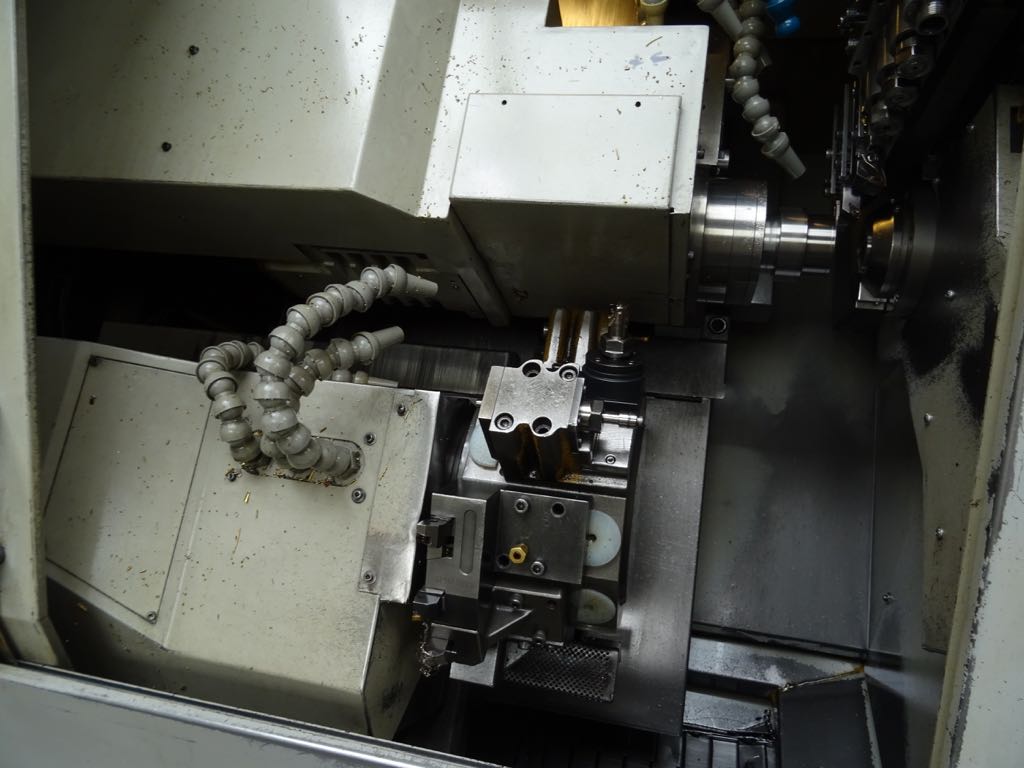

Lot 5 - Citizen Cincom M32 Sliding Head Lathe (2000) ** SOLD prior to auction **
Description:

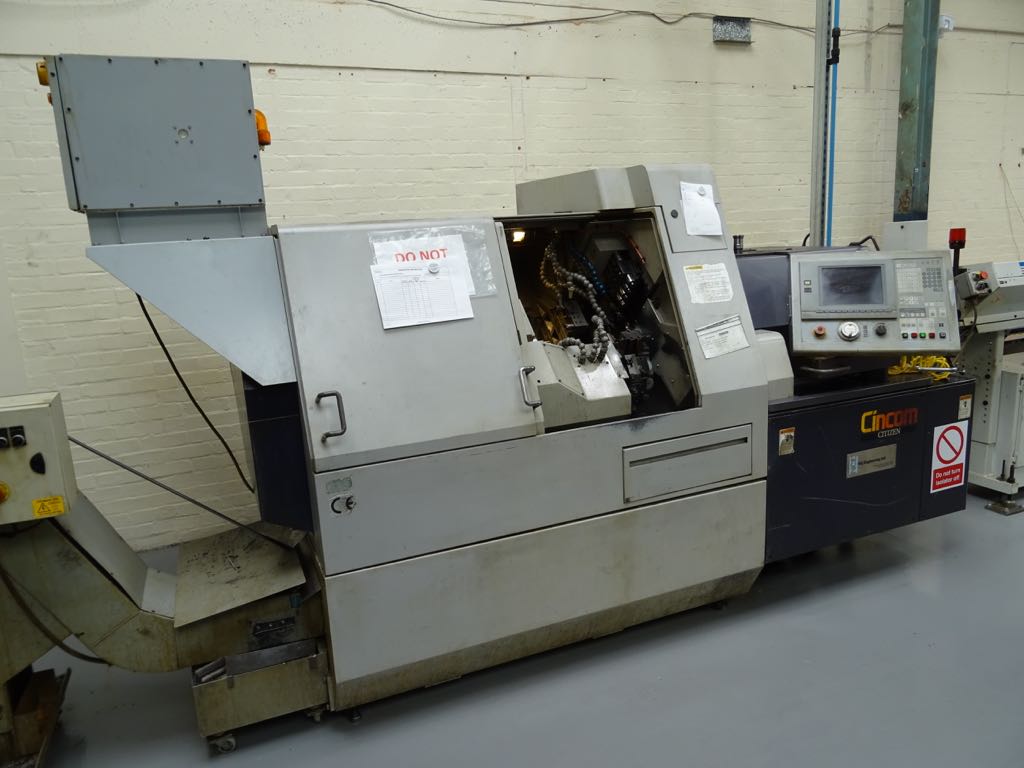

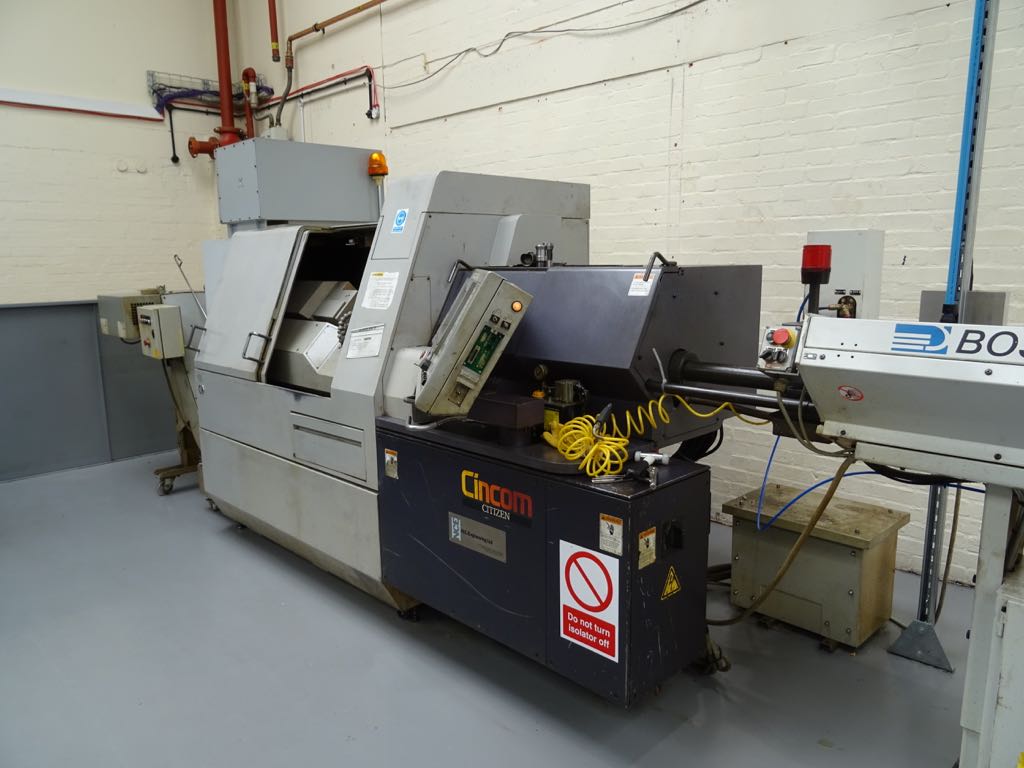

Citizen Cincom M32 (2000)
** SOLD prior to auction **
Max. Machining Diameter: 1-1/4" (32mm)
Max. Machining Length per chucking: 12.8"
Main Spindle Speeds: 200 - 8000 rpm
Rotary Tool Speeds: (turret & gang plate): 250 - 5000 rpm
BACKWORKING:
Max. Chucking Dia: 1-1/4" (32mm)
Max. Backwork Length: 5.80" (145mm)
Max. Drilling/Tapping: M8
Back Spindle Speeds: 180 - 7000 rpm

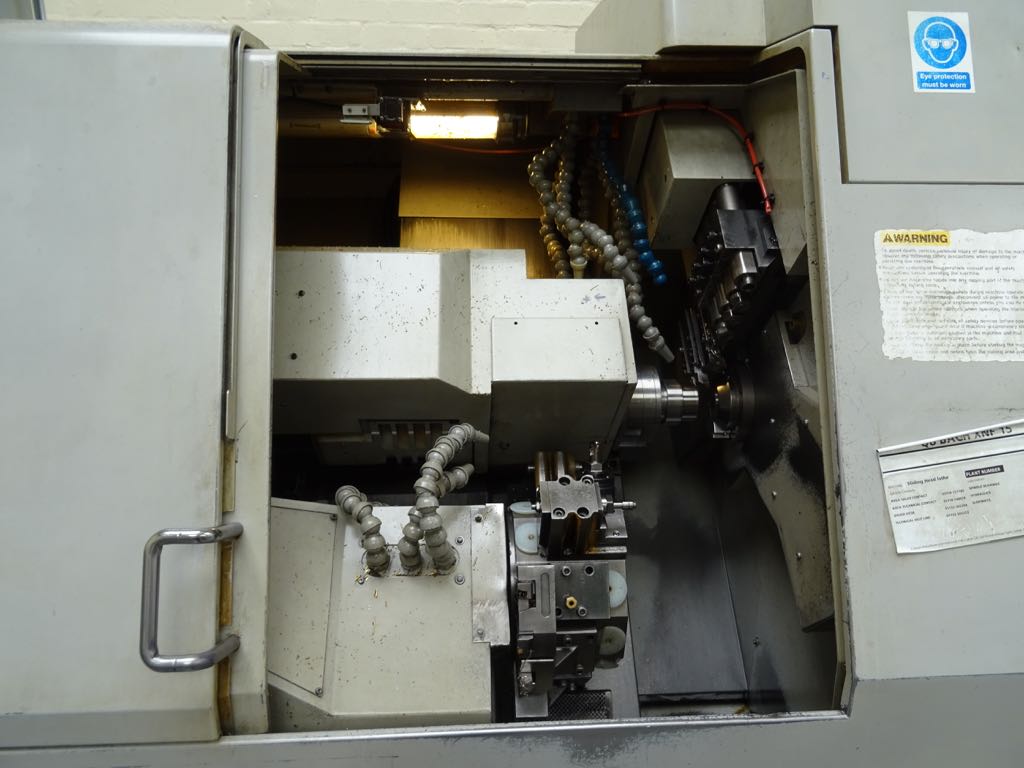

NUMBER OF INSTALLABLE TOOLS:
Turret Tooling: 10 (20 in half index mode)
Gang-tool Tooling: 5 Turning + 4 Rotary
Back Working Tool Post: 3 (plus rear facing tools on turret)
TOOL SIZES:
Gang Tooling: 16mm x 16mm x 130mm
Turret Tooling: 16mm x 16mm x 90mm
Sleeve Size: 25.4mm diameter
MOTORS:
Main Spindle Drive: 3.7/5.5 KW (10 HP approx)
Gang Plate: .75KW
Turret: .75/1.5KW
Back Spindle Drive: 1.5/2.2KW
Dimensions - Length (without barfeed) - 2,770mm x Width - 1,300 mm x Height - 1,790mm
Location: Midlands
*Can be loaded on to lorry free of charge
*Please satisfy yourself with the specifications as they may have been taken from the internet
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
