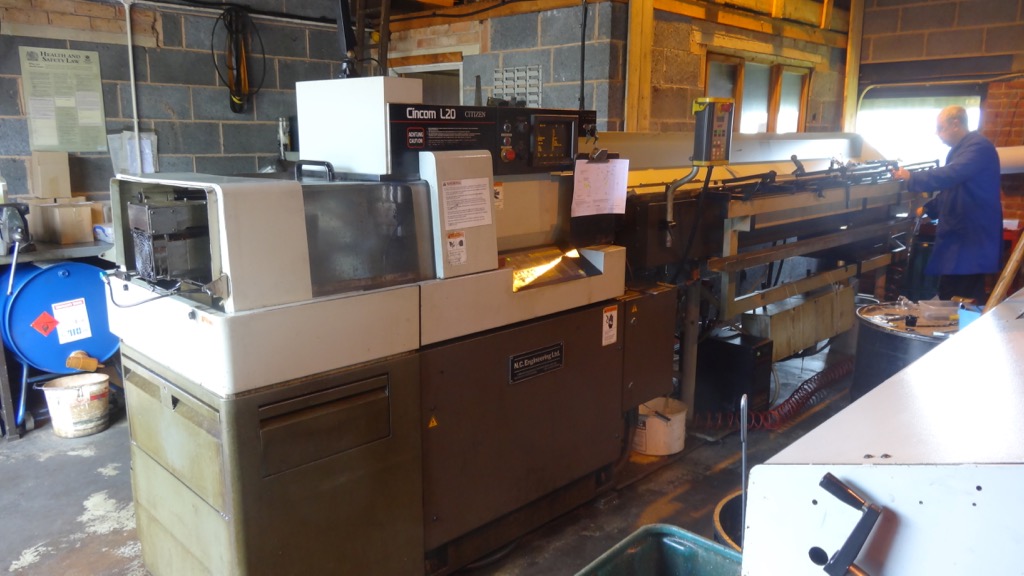

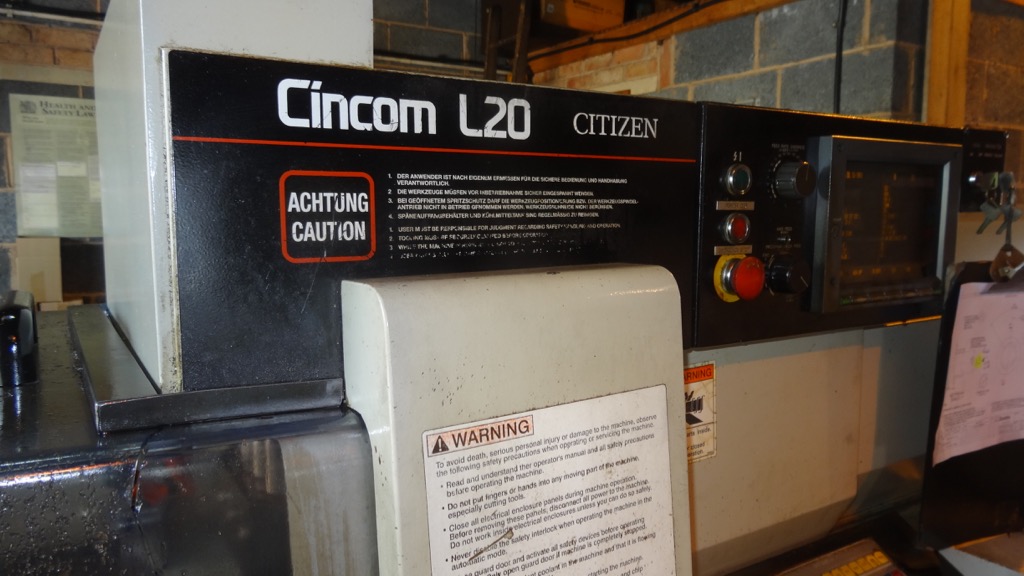

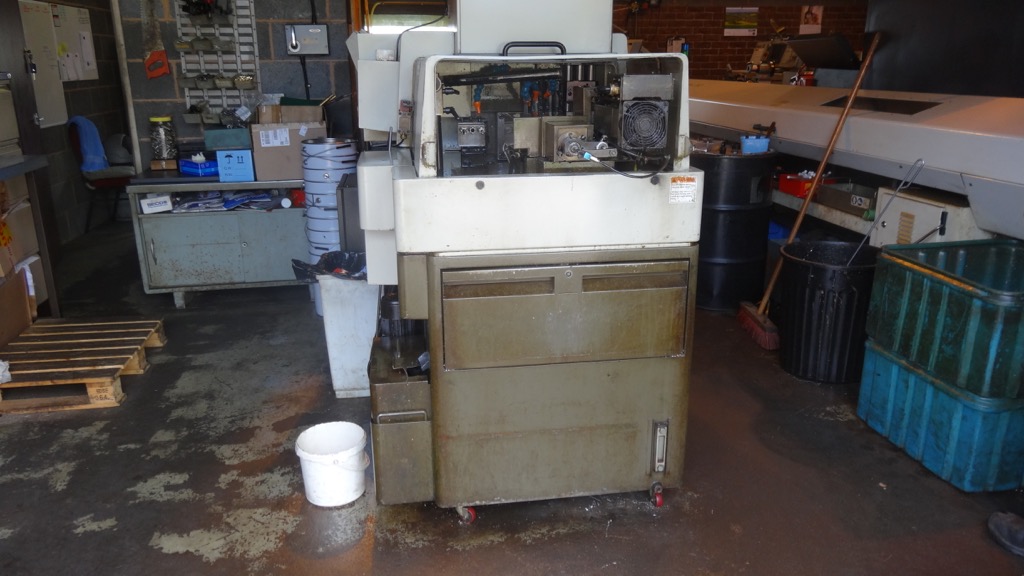

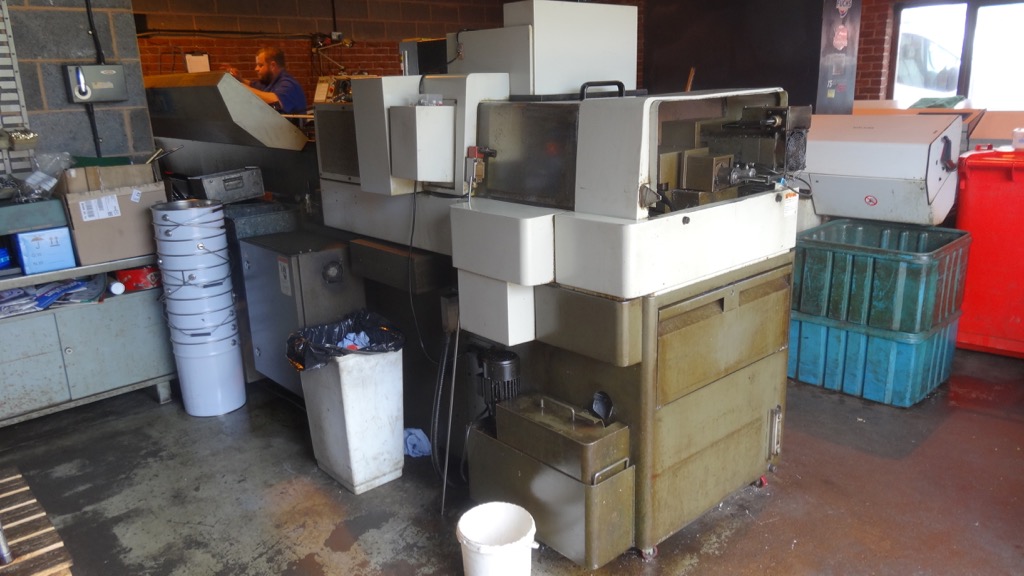

Citizen L20 Sliding Head Lathe (1997)

Lot 6 - Citizen L20 Sliding Head Lathe (1997)

Description:

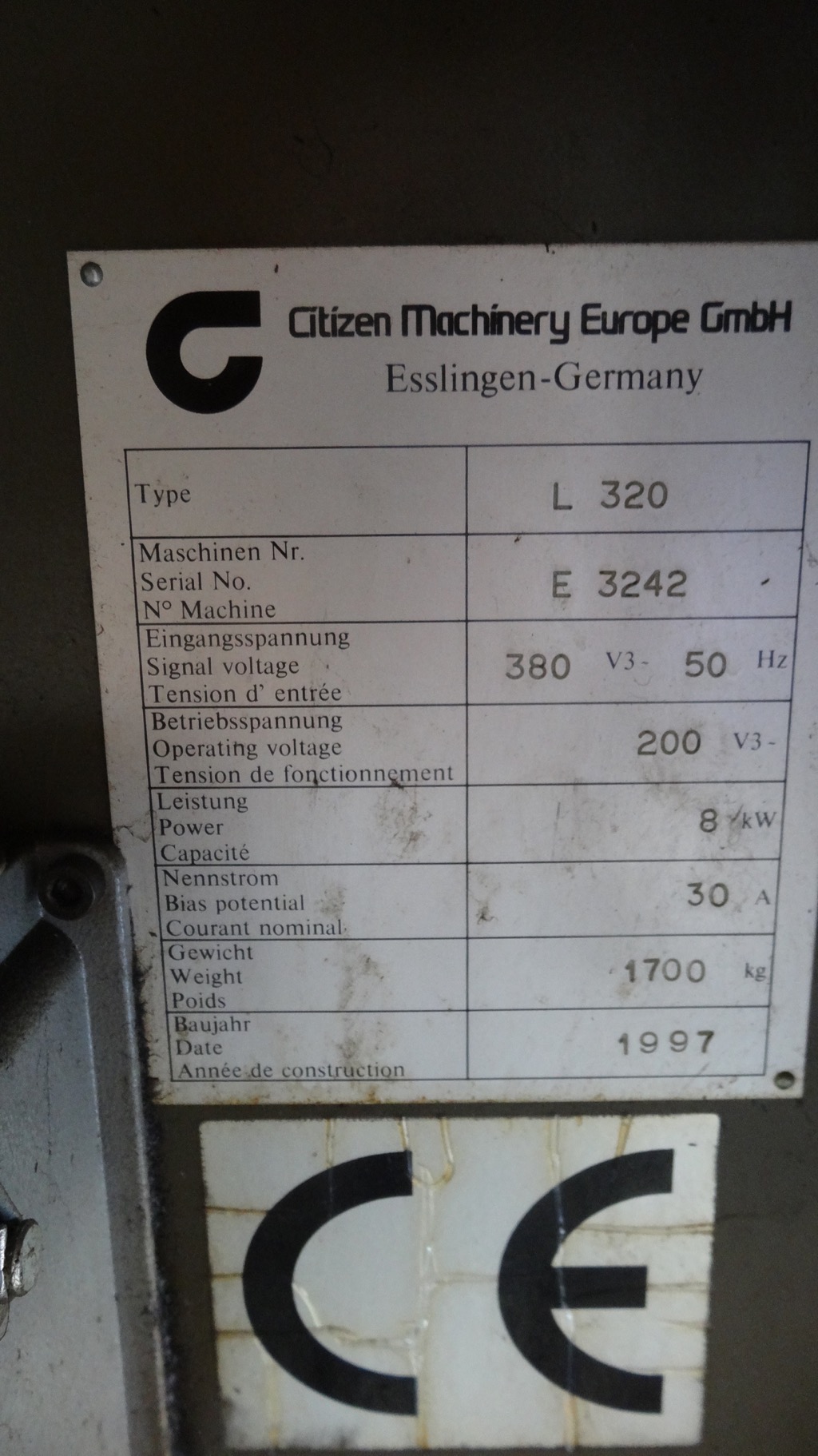

Serial No: E 3242

Weight: 1700kg

Max. Machining Diameter: 0.812"
Max. Machining Length per one chuck: 8.1"
Max. Drilling Diameter: up to .394"
Spindle Speed: 200 - 10000 rpm
Main Spindle Indexing: 15 degree

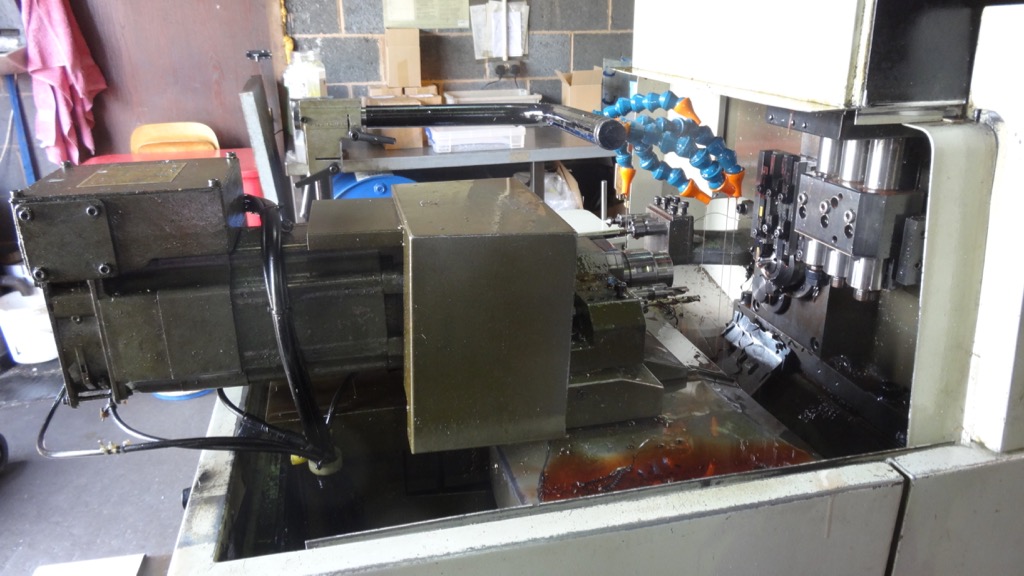

Back-work:
Max. Chucking Dia. of Pick-off Spindle: .812"
Pick-off Spindle Speed: 200 - 8000 rpm
Pick-off Spindle Motor: 2 hp

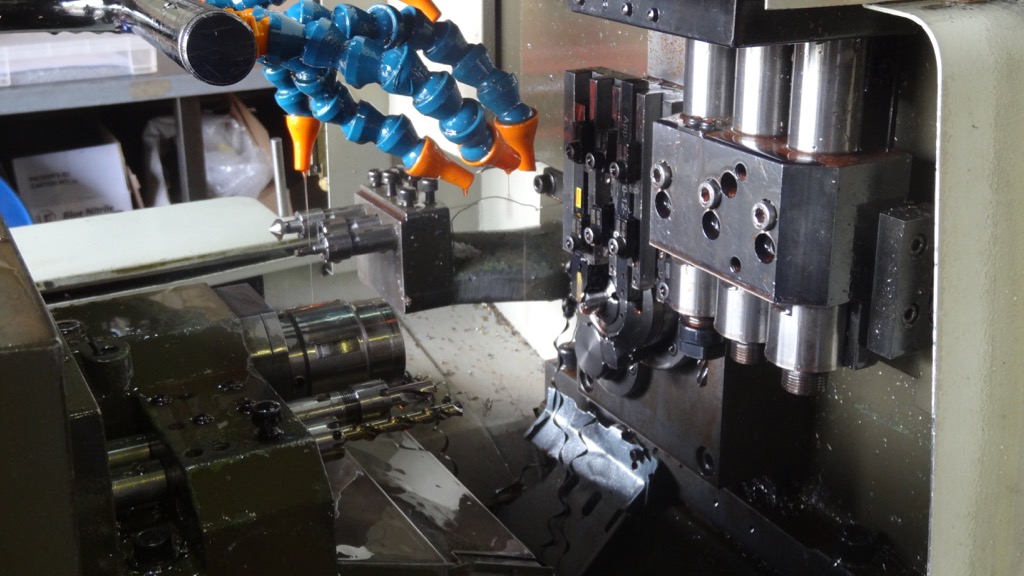

Rotary Tool:
Rotary Spindle Speed: 200 - 5000 rpm
Rotary Tool Motor: .5 hp
Power Consumption: 6 KVA
Required Floor Space: 65" x 37"

Location: Coventry

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
