Lot 7 - Colchester Triumph 2000 TR Lathe
Description:

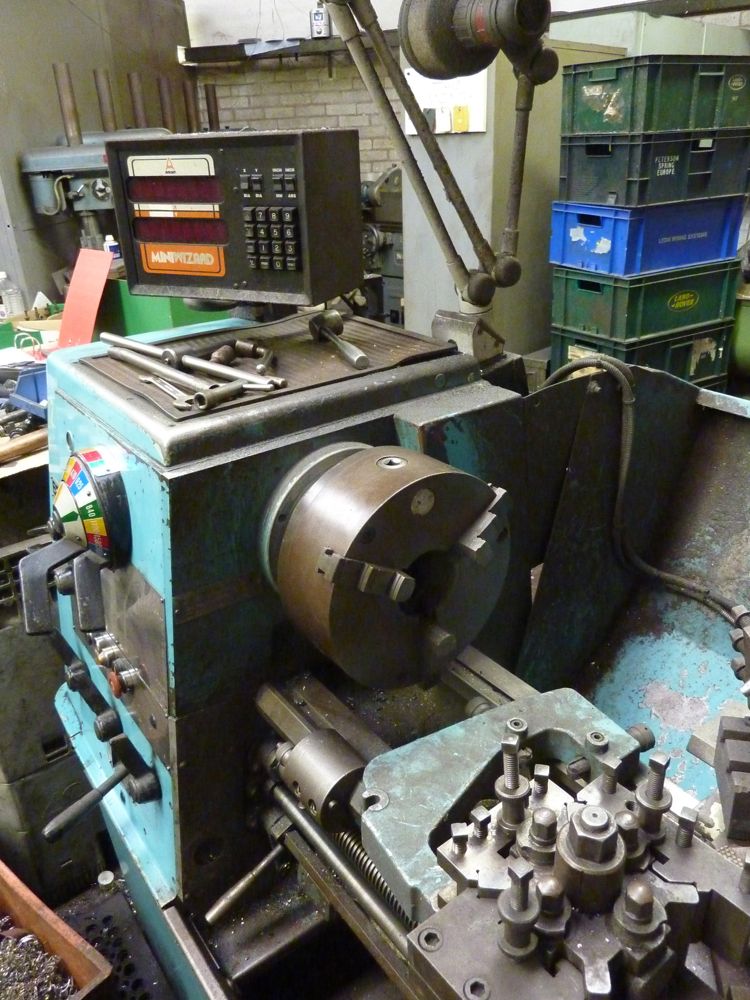

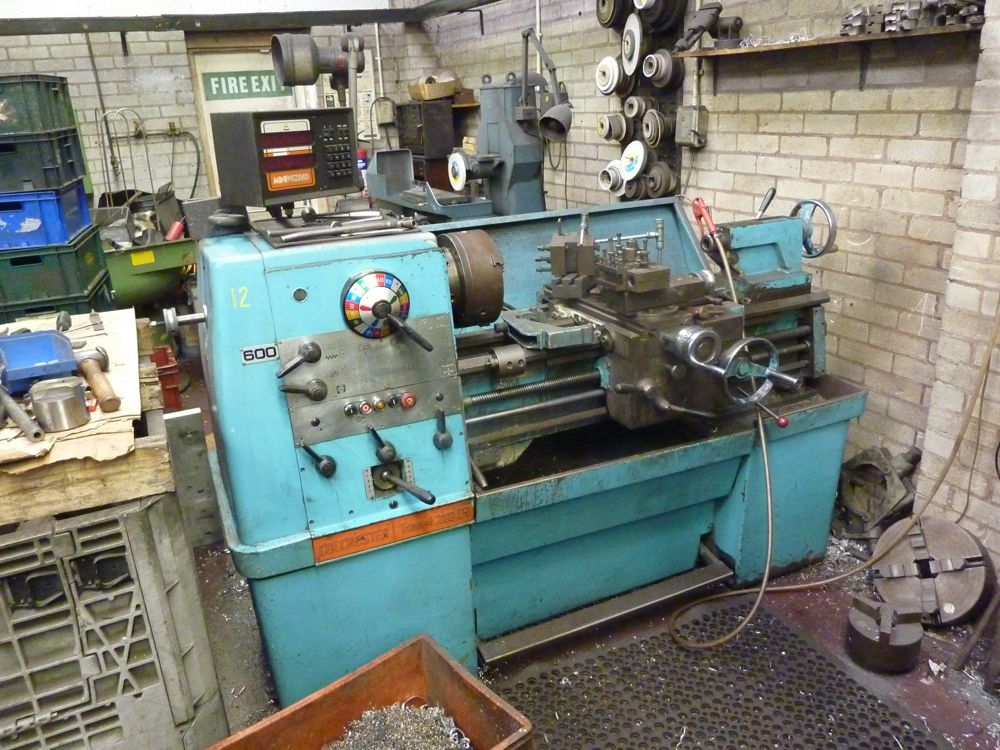

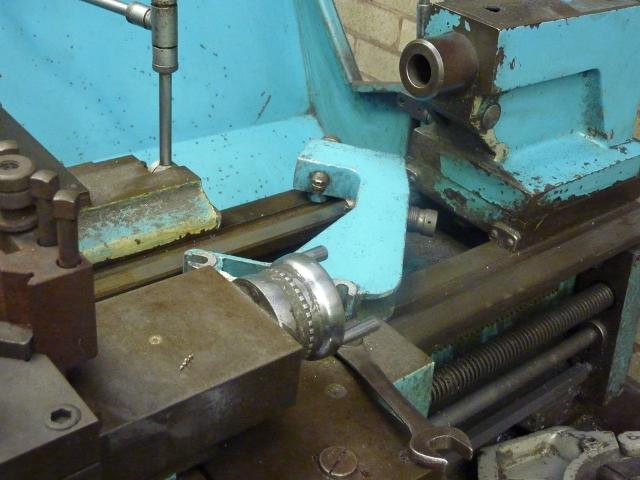

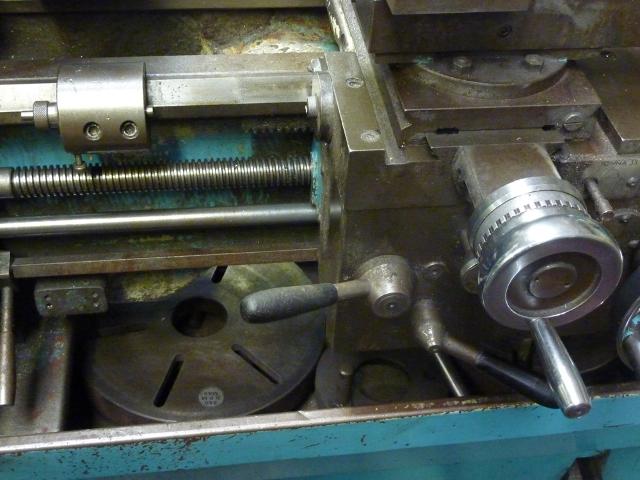

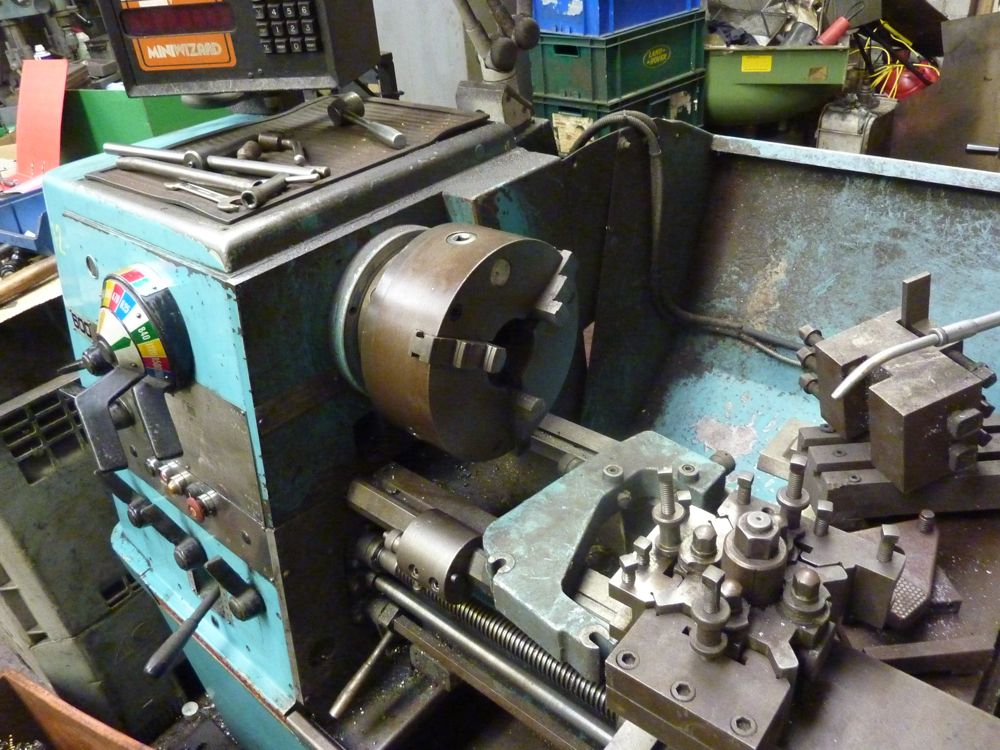

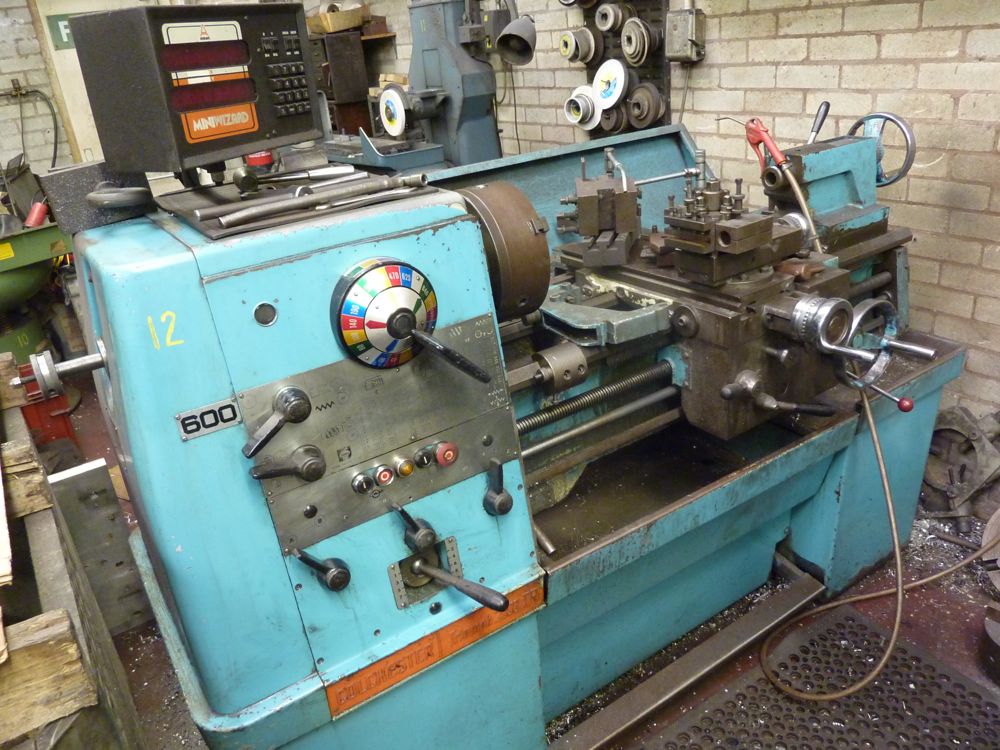

Colchester Triumph 2000 TR Lathe
Max. 2000 rpm
Straight Bed Toolroom Lathe
Height of Centres 190mm
Bed Length between Centres 762mm
Swing Over Bed 390mm
Swing Over Cross Slide 240mm
Spindle Bore (Max. Bar Dia.) 54mm
Spindle Speeds (16) 25 – 2000rpm
Taper in Spindle Nose Bush No. 4 Morse
Taper in Tailstock Barrel No. 4 Morse
Total Travel of Cross Slide 235mm
Total Travel of Tailstock Barrel 155mm
Motor 5.5kW
Nose Mounting 6 in D.1 Camlock
Induction Hardened and Precision Ground Bed
Backpost

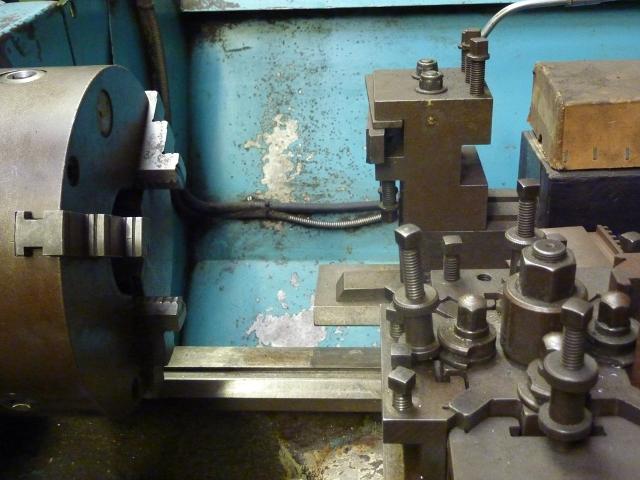

Quick Change Toolpost
Coolant

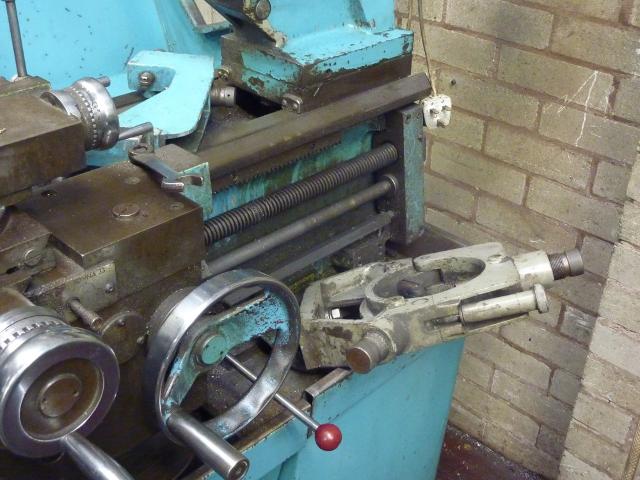

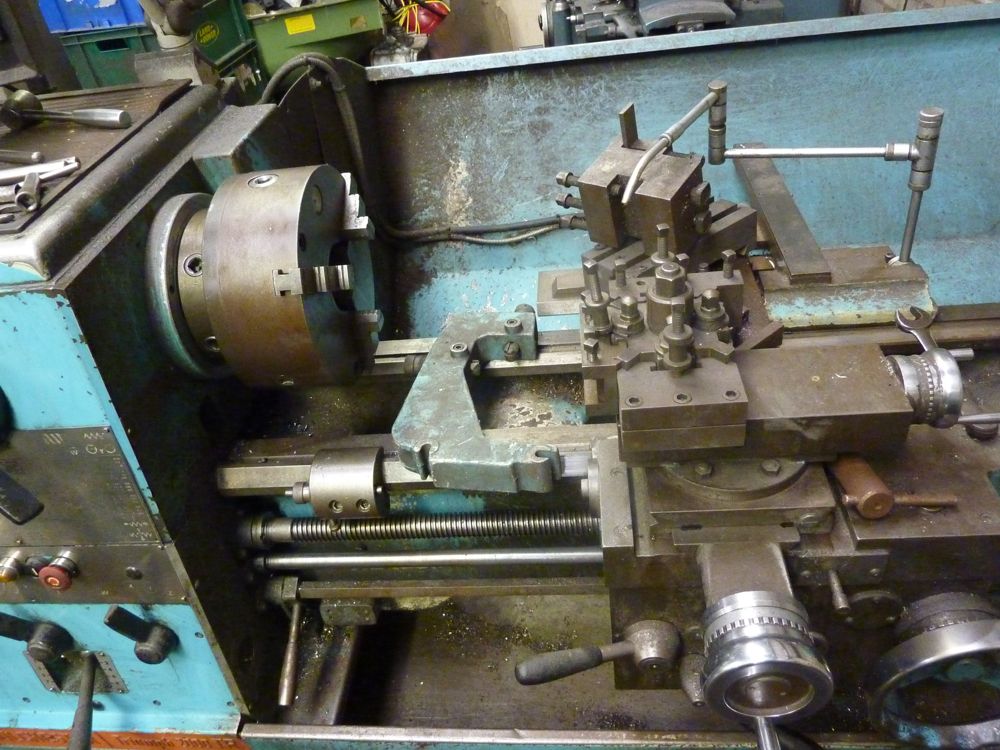

3 Point Steady

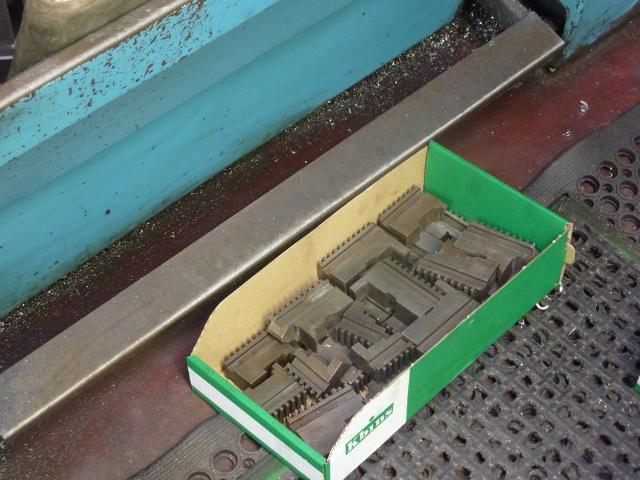

2 x 3 Jaw Chucks
4 Jaw Chuck

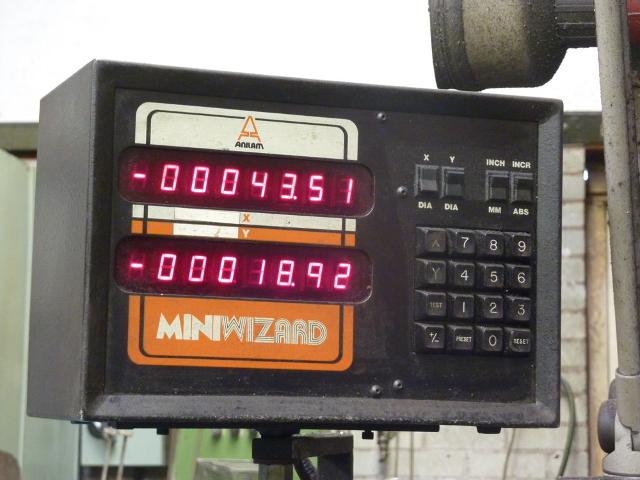

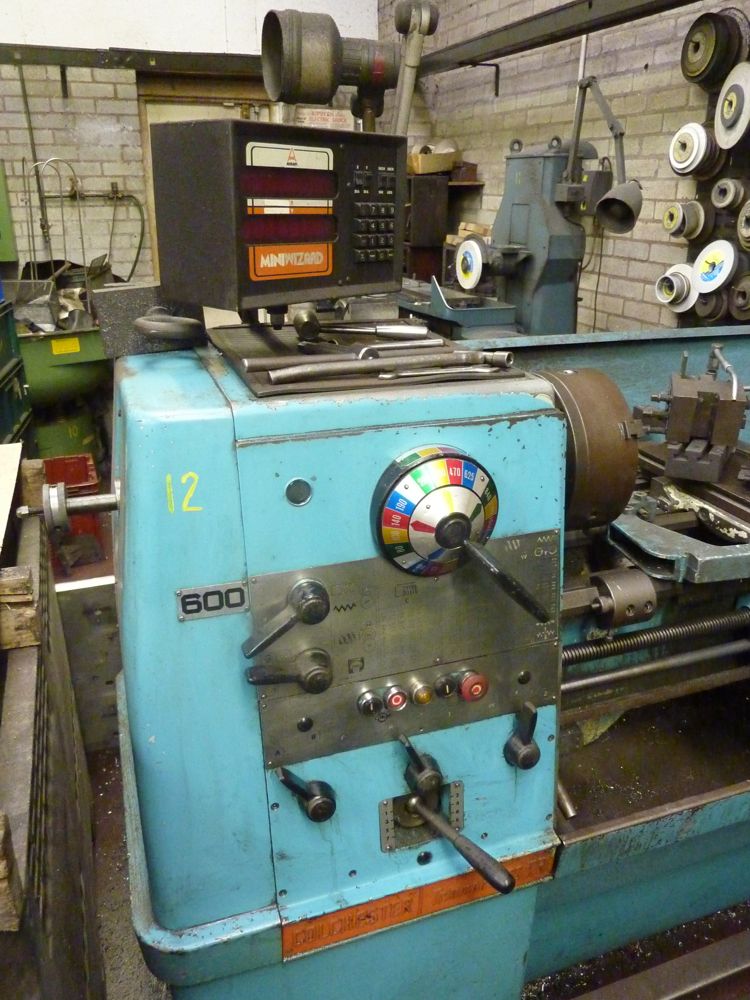

Mini Wizard Digital Readout

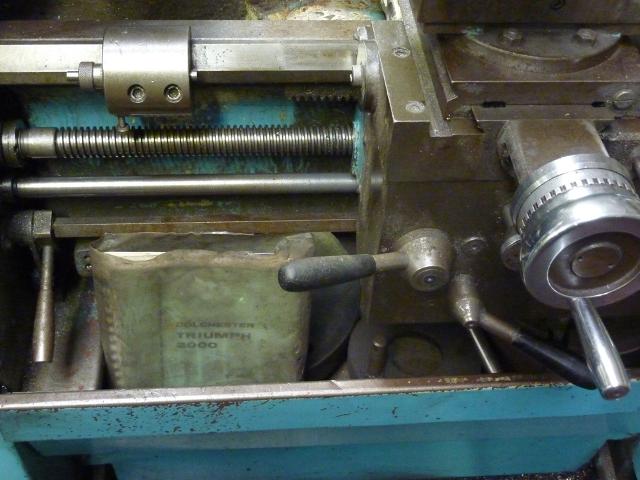

Manual
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
