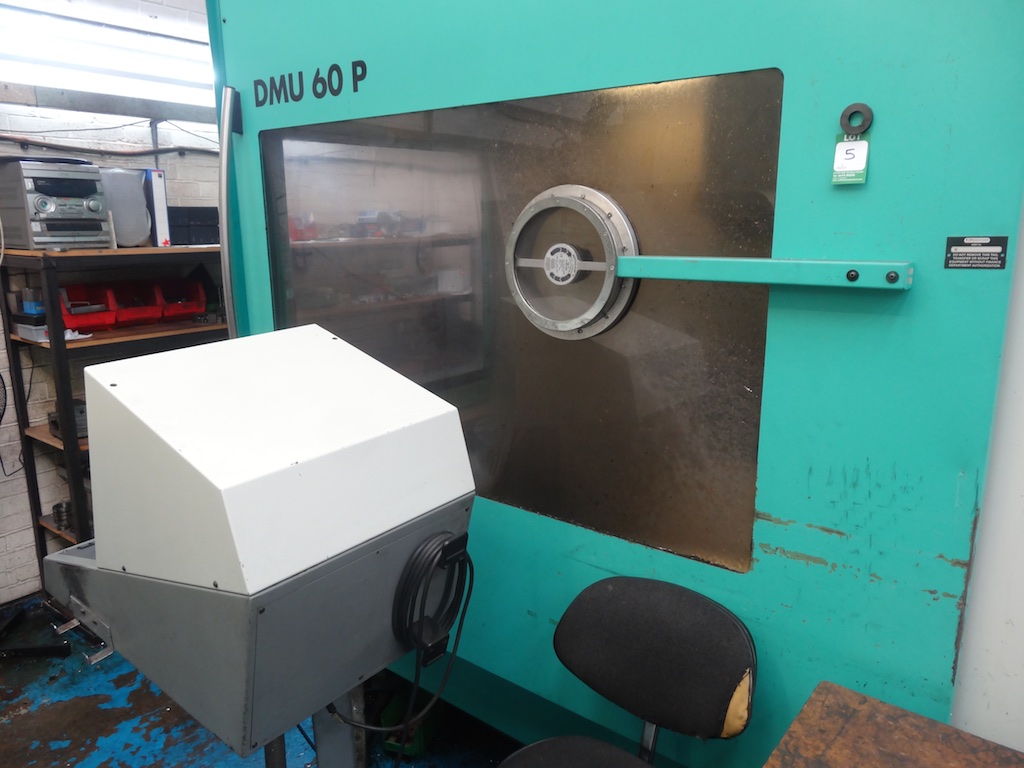

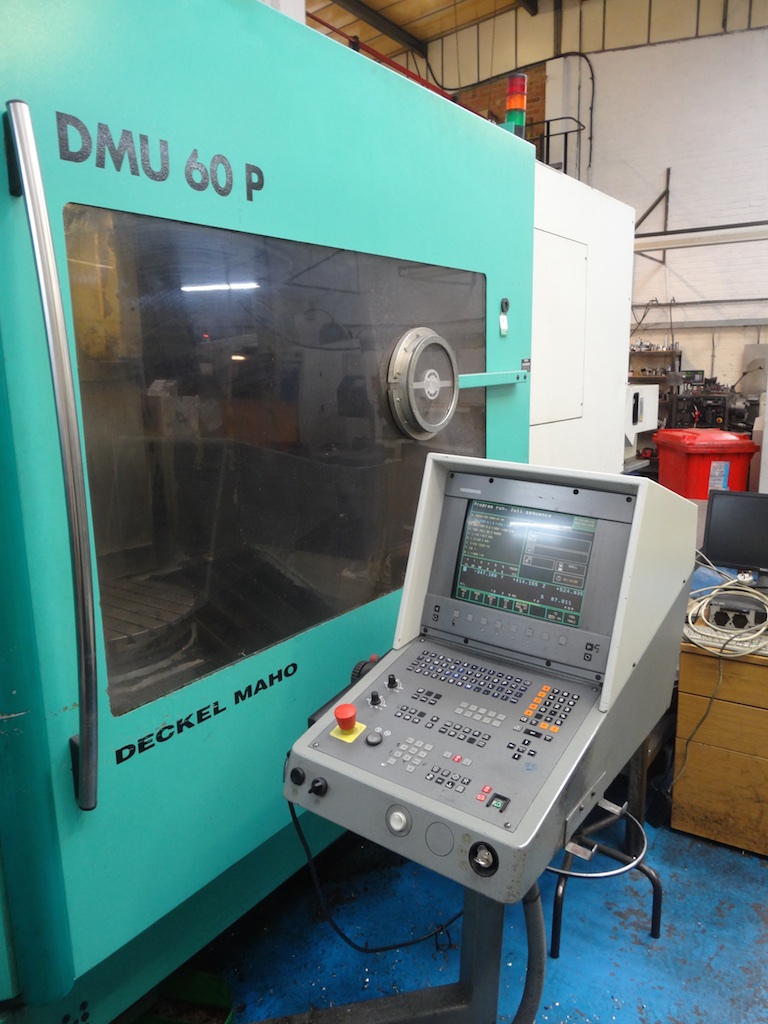

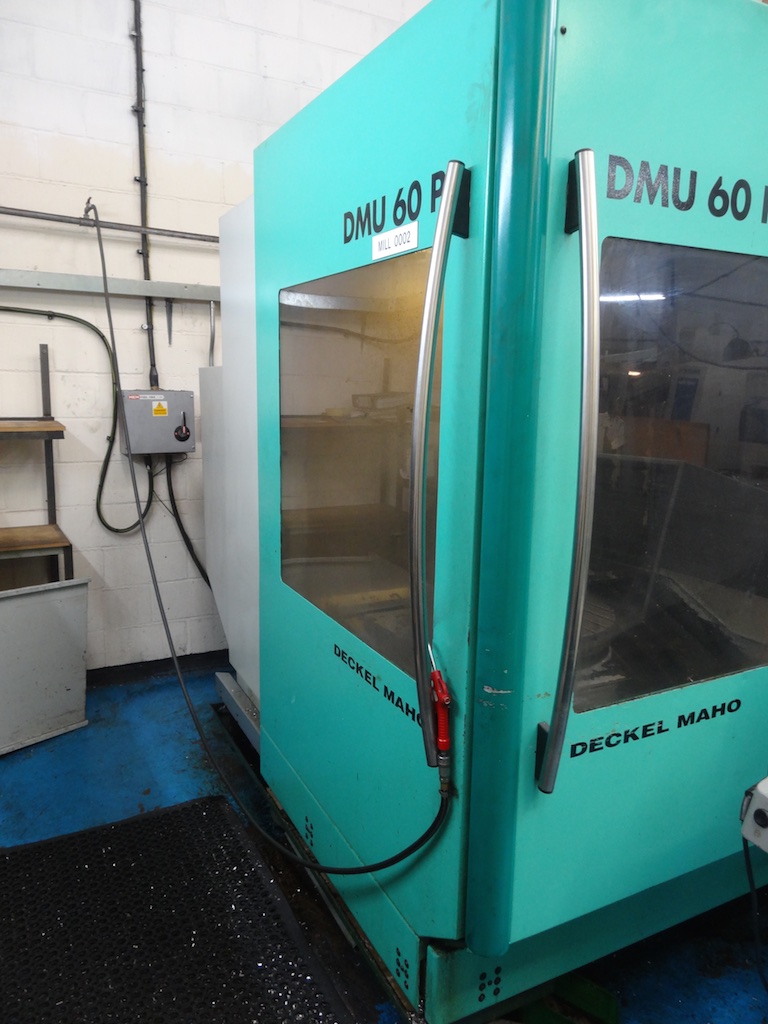

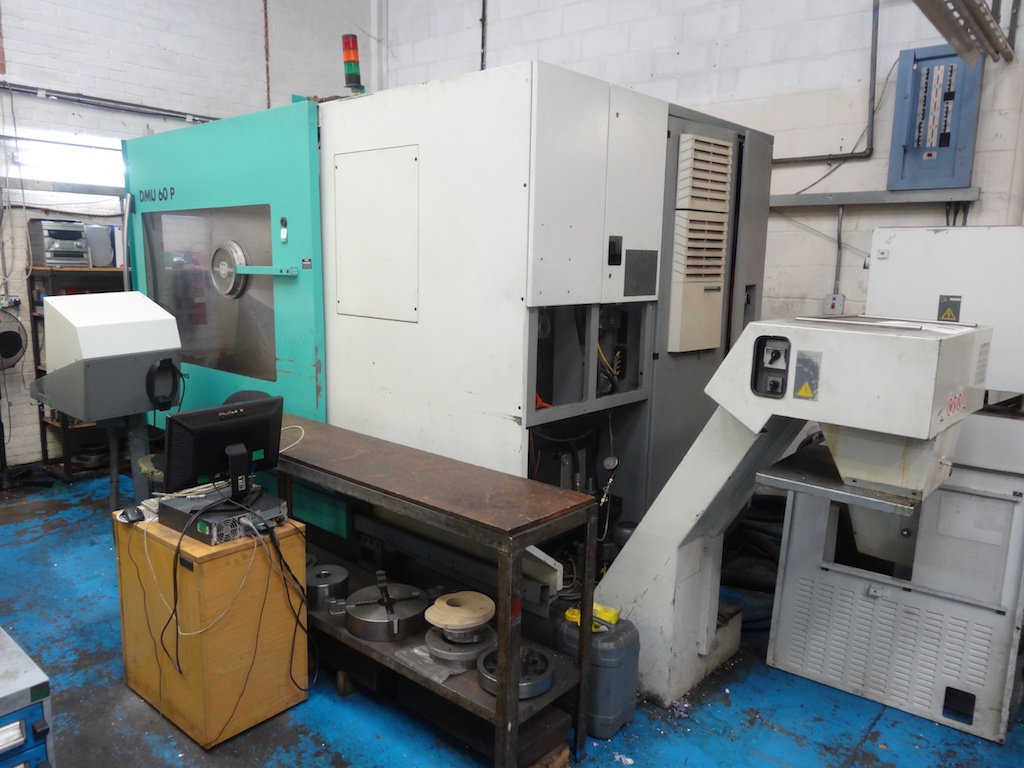

Deckel DMU 60P 5 Axis VMC

Lot 5 - Deckel DMU 60P 5 Axis VMC

Description:

S/N: 662755
L x W x H: 3230 x 2050 x 2440mm
Weight: 8250kg

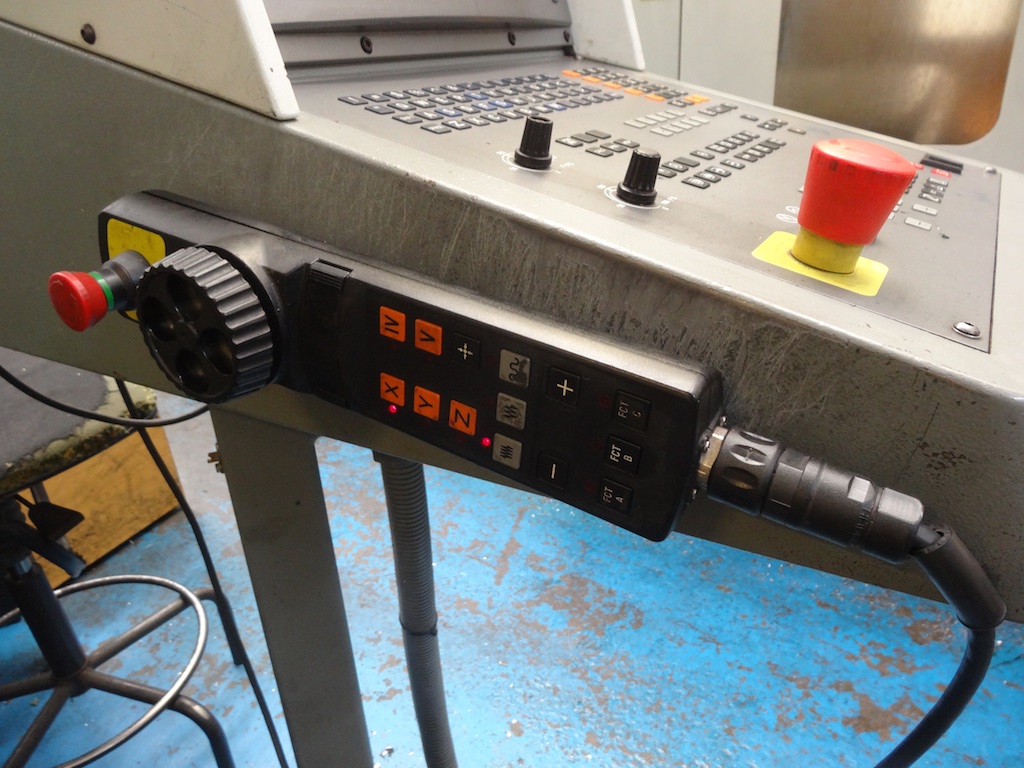

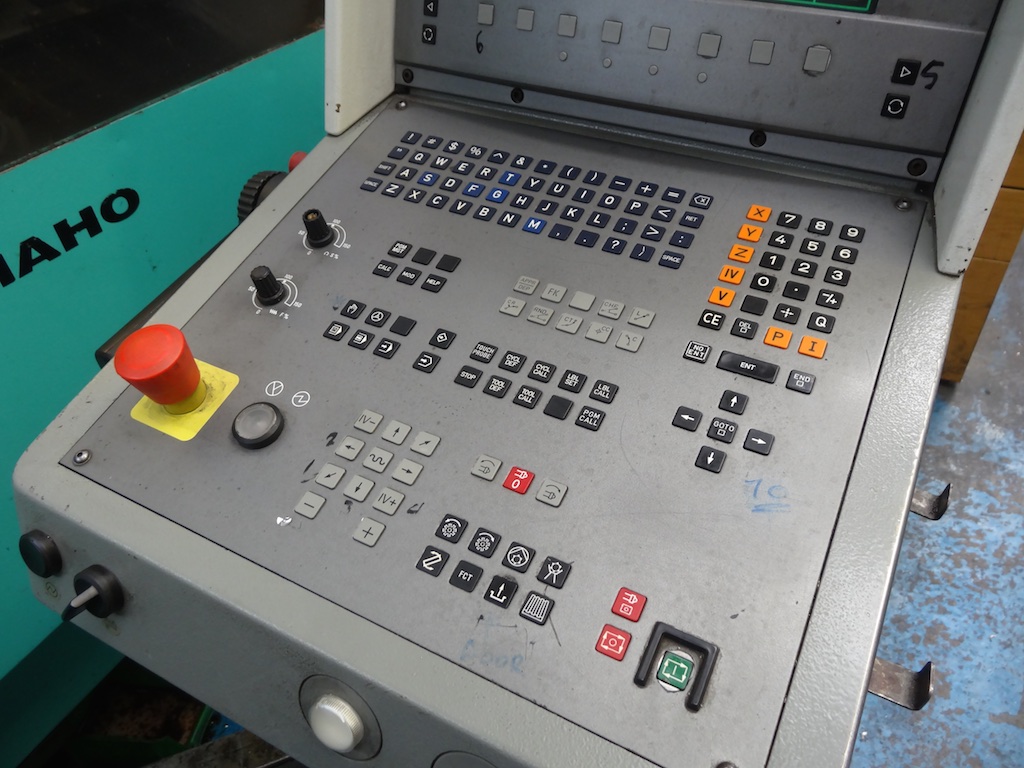

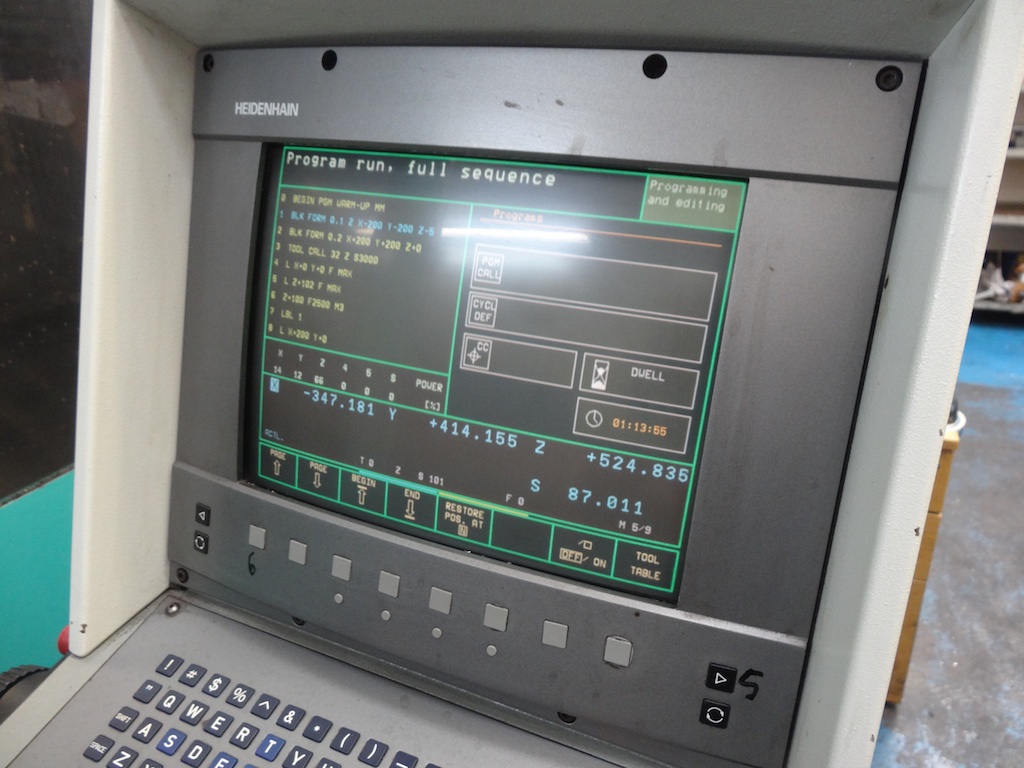

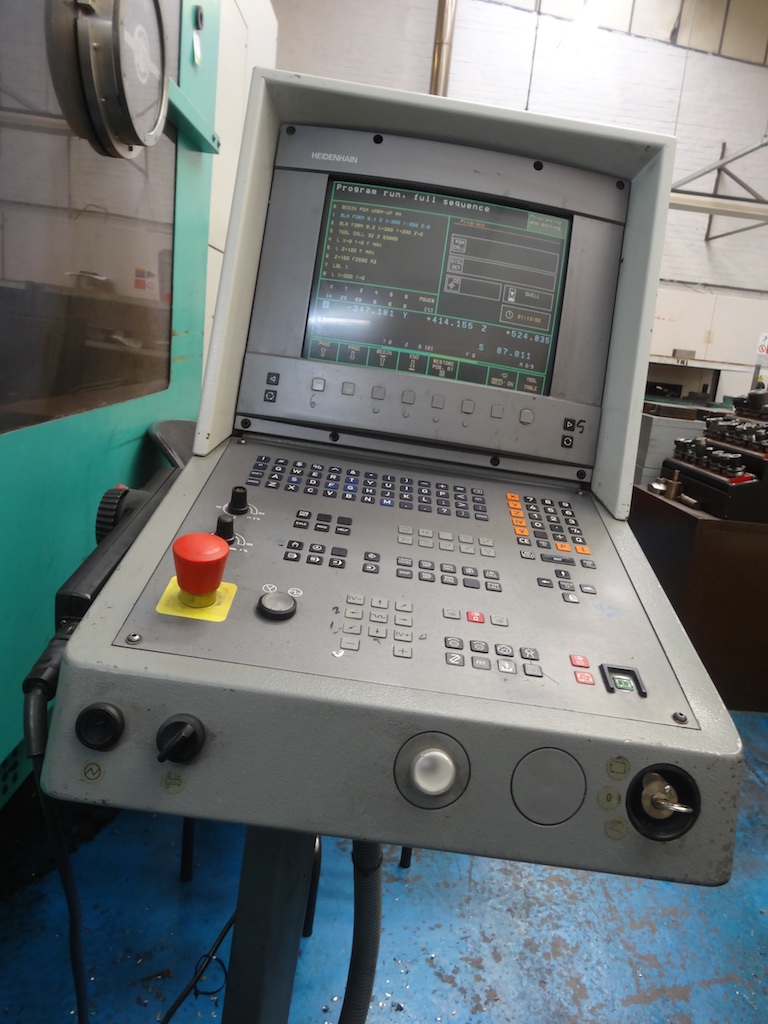

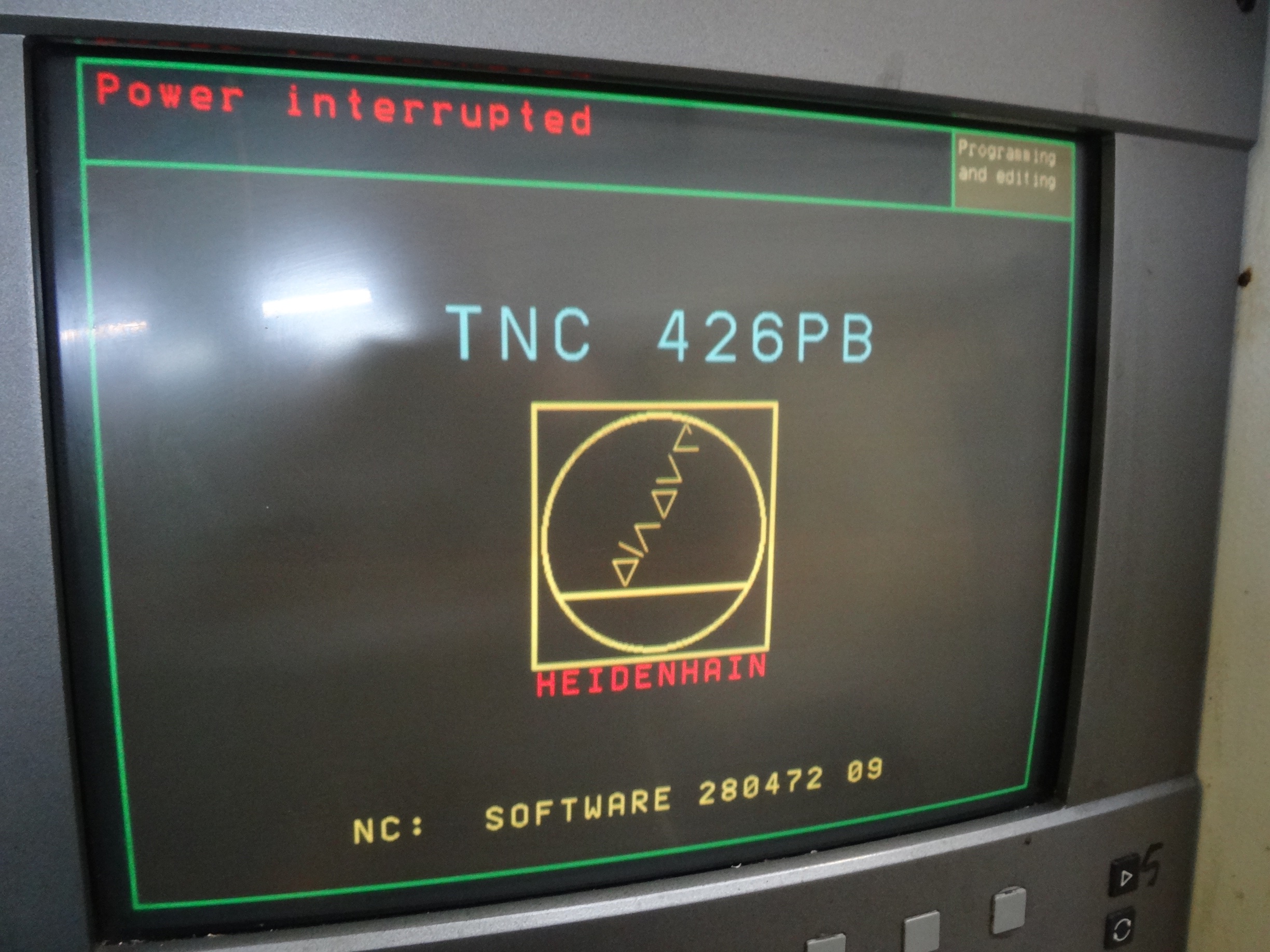

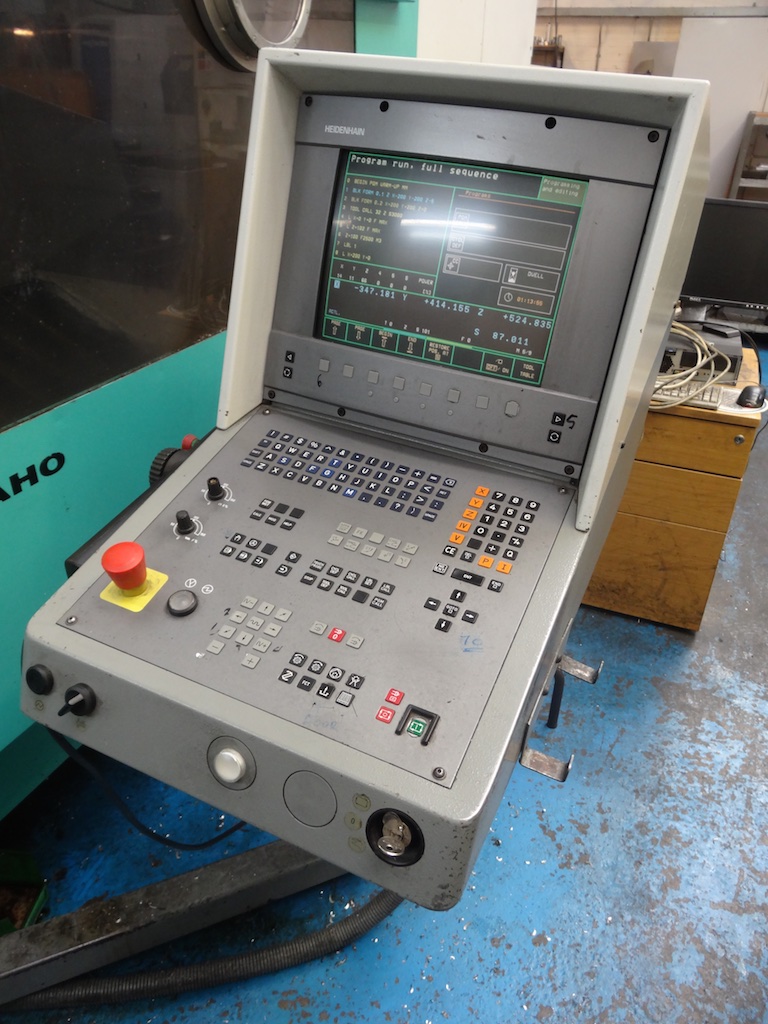

Heidenhain 426PB Control

Path measuring system:
Resolution X,Y, Z axis: 0.001mm
Least input Increment X,Y,Z axis: 0.001
Positioning tolerance X,Y,Z axis

Work Range: Traveling distance:
X: 600mm, T: 650mm X: 550mm

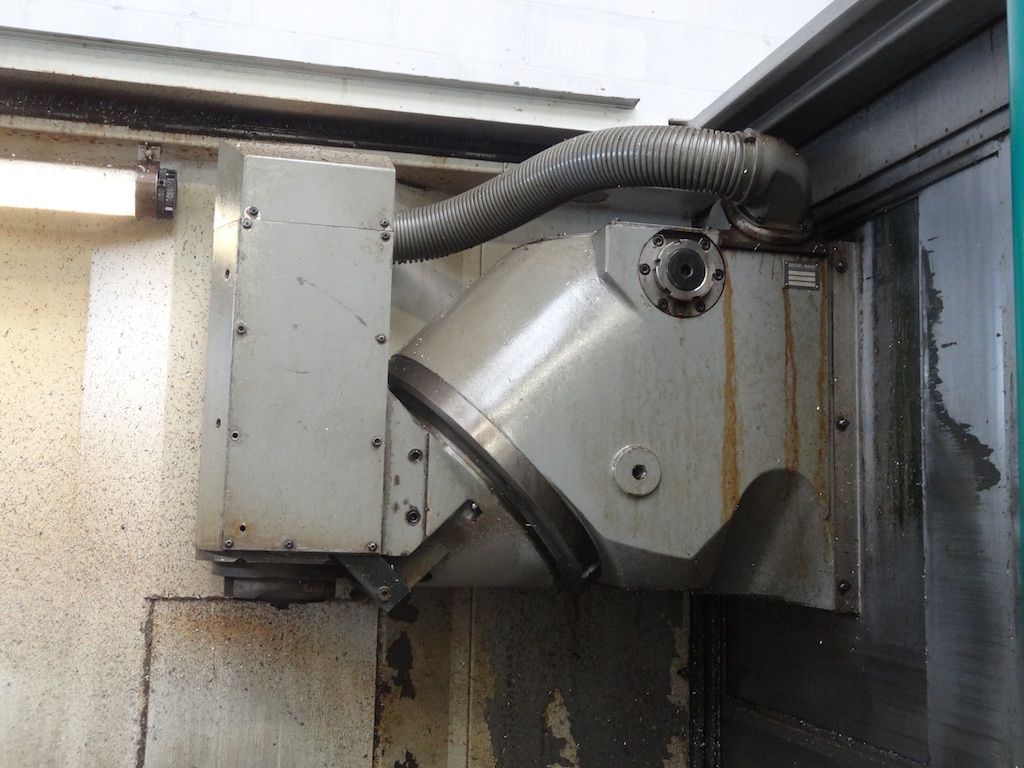

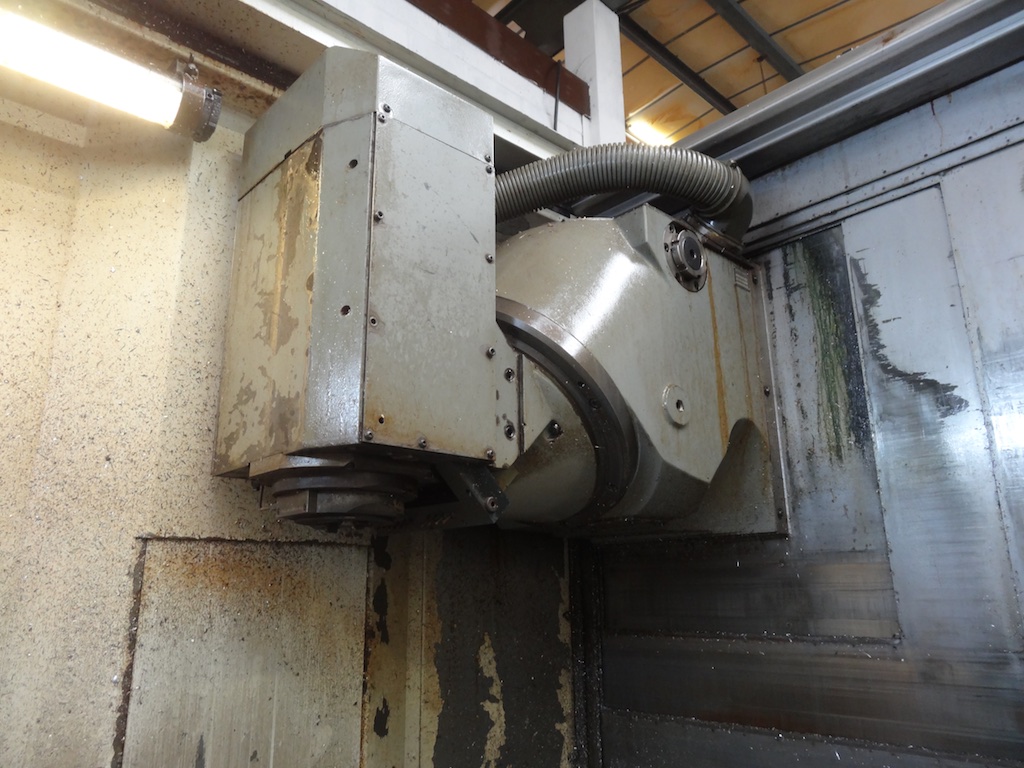

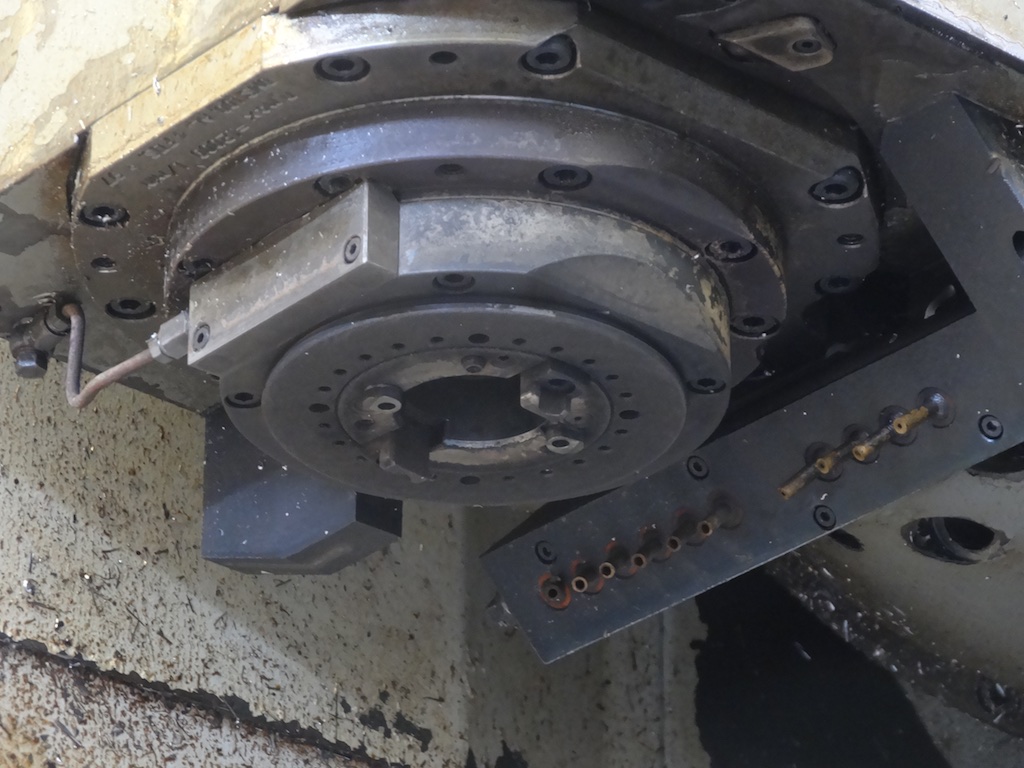

Work spindle:

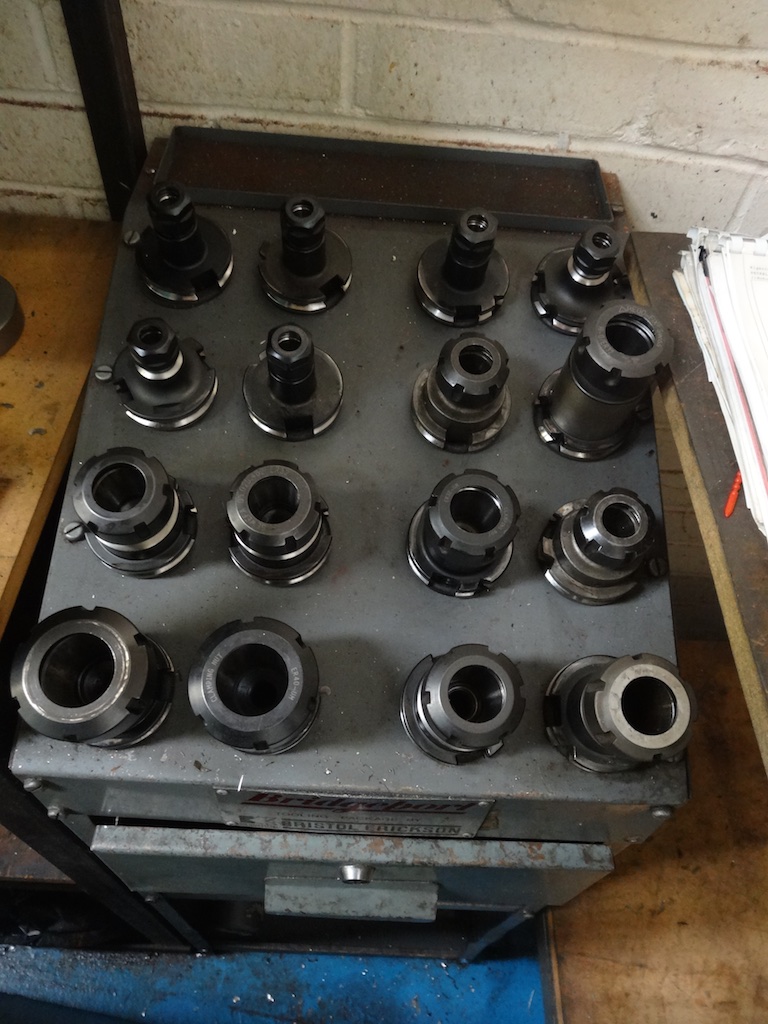

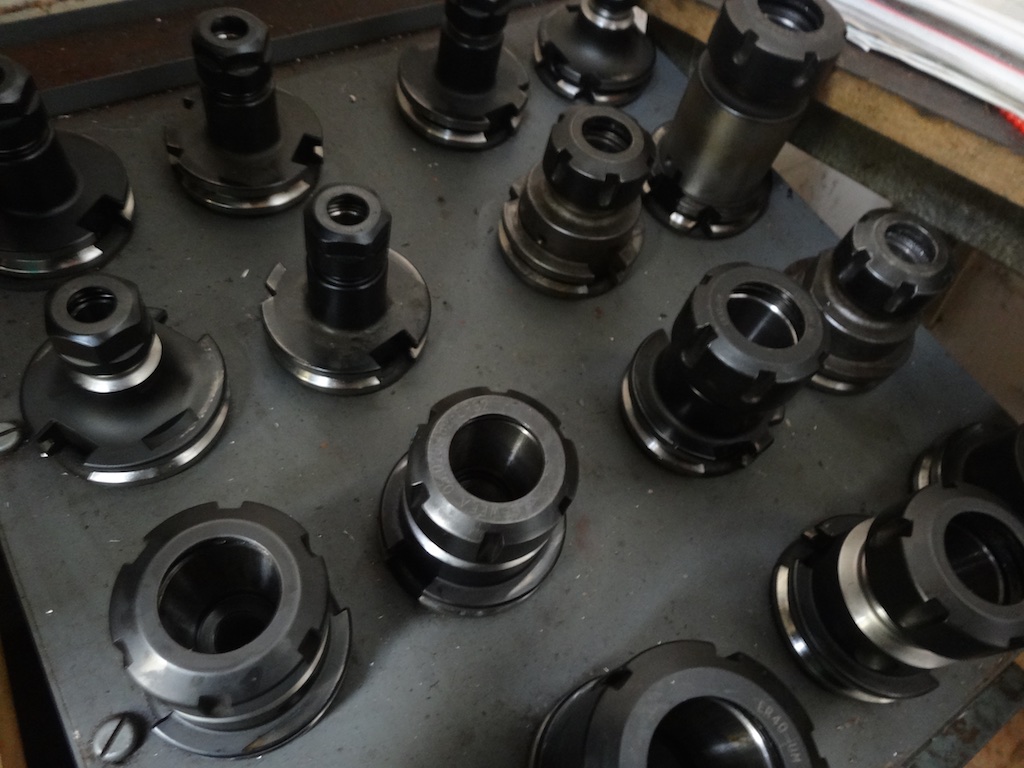

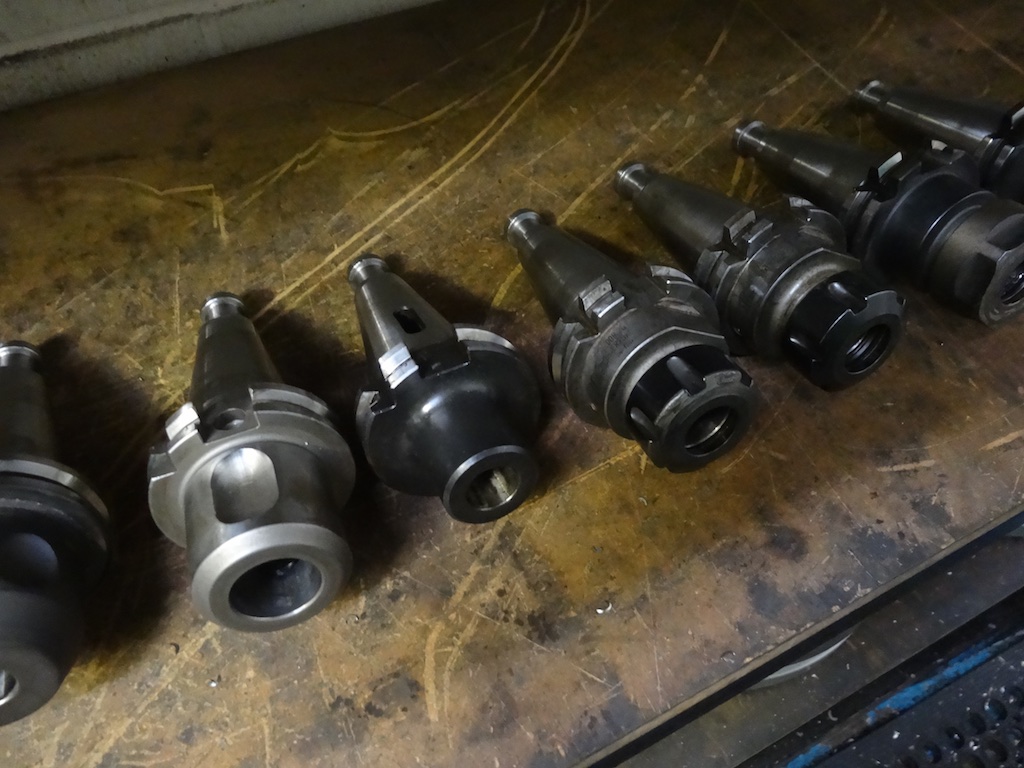

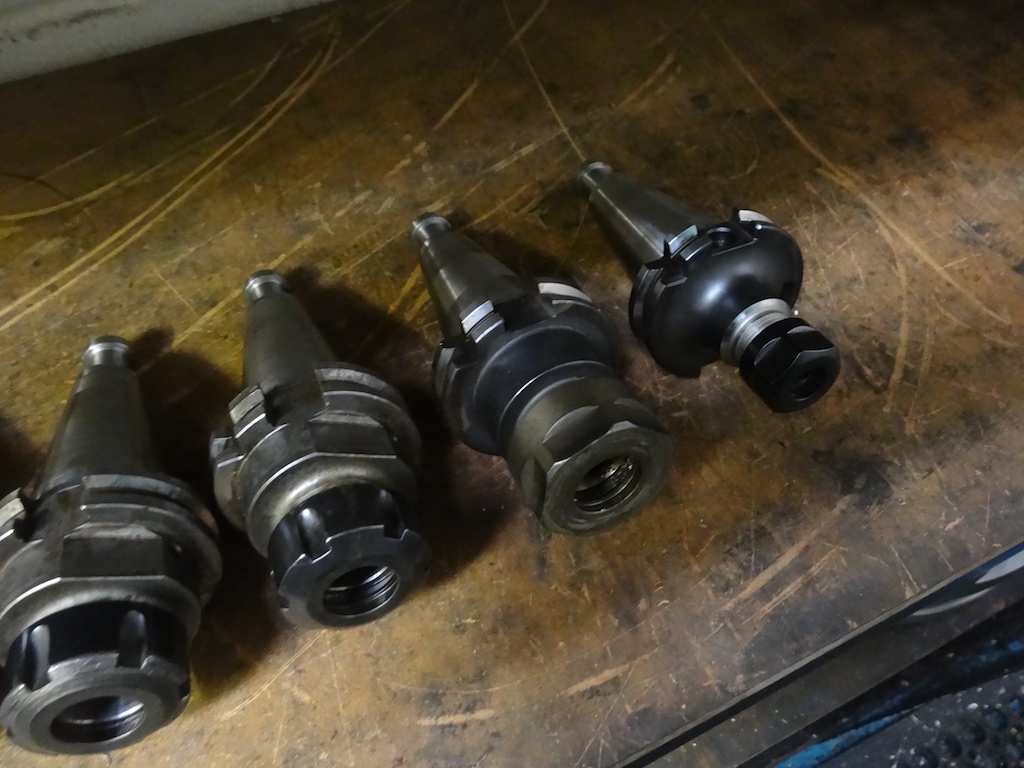

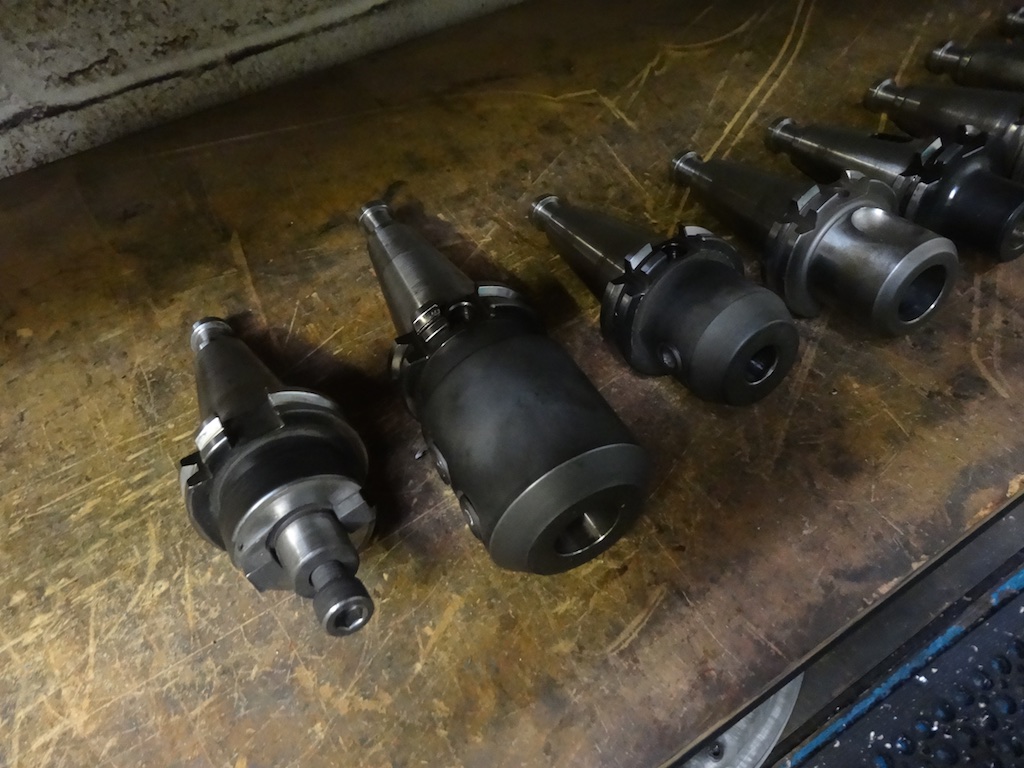

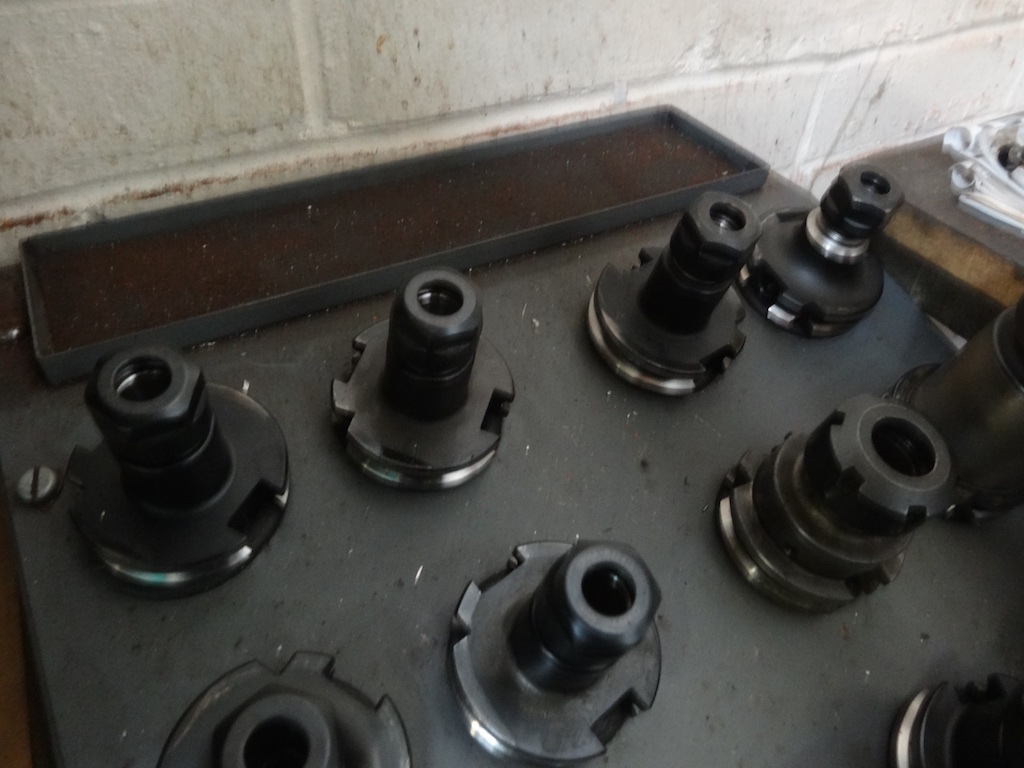

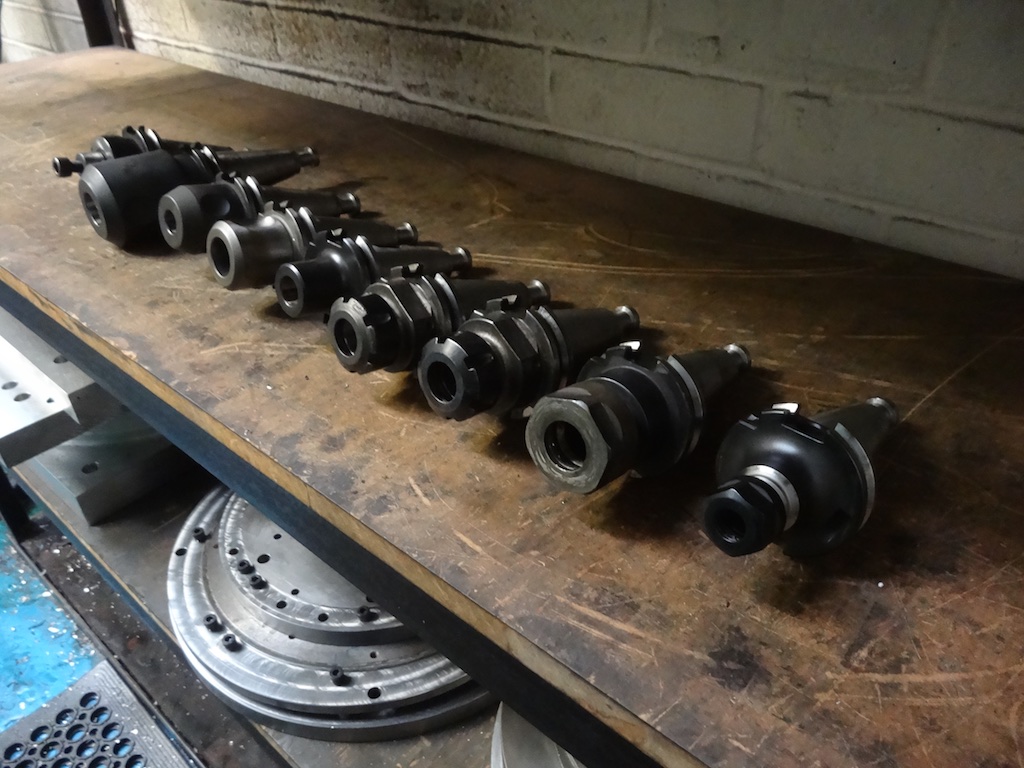

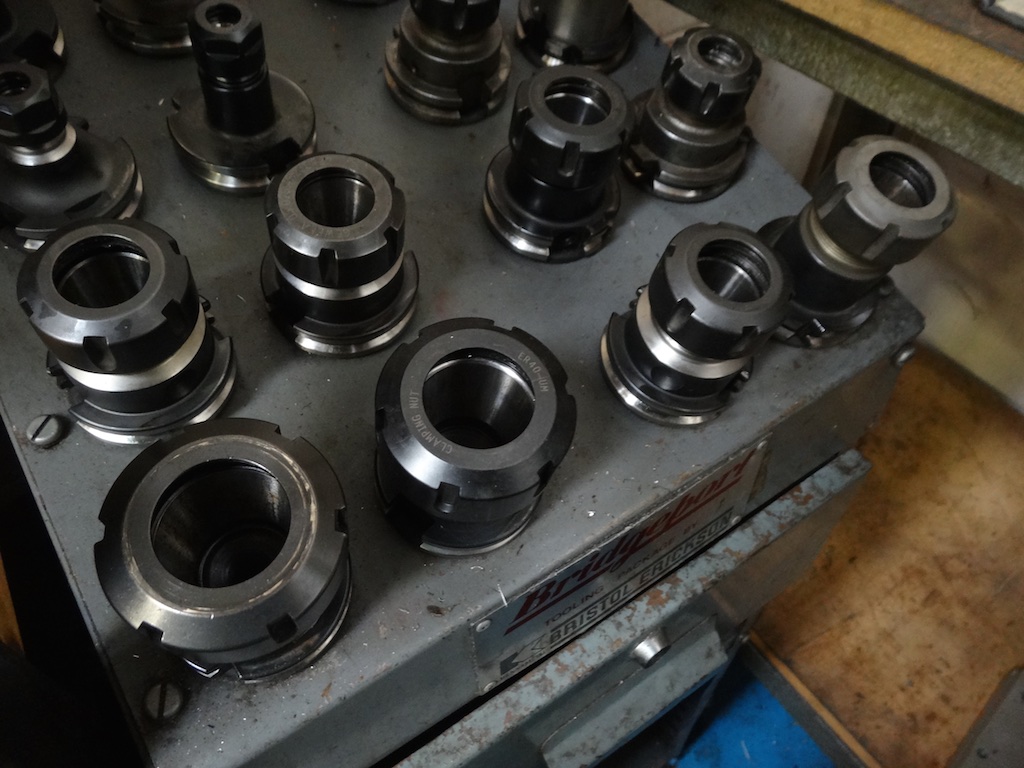

Tool holder: SK 40 DIN

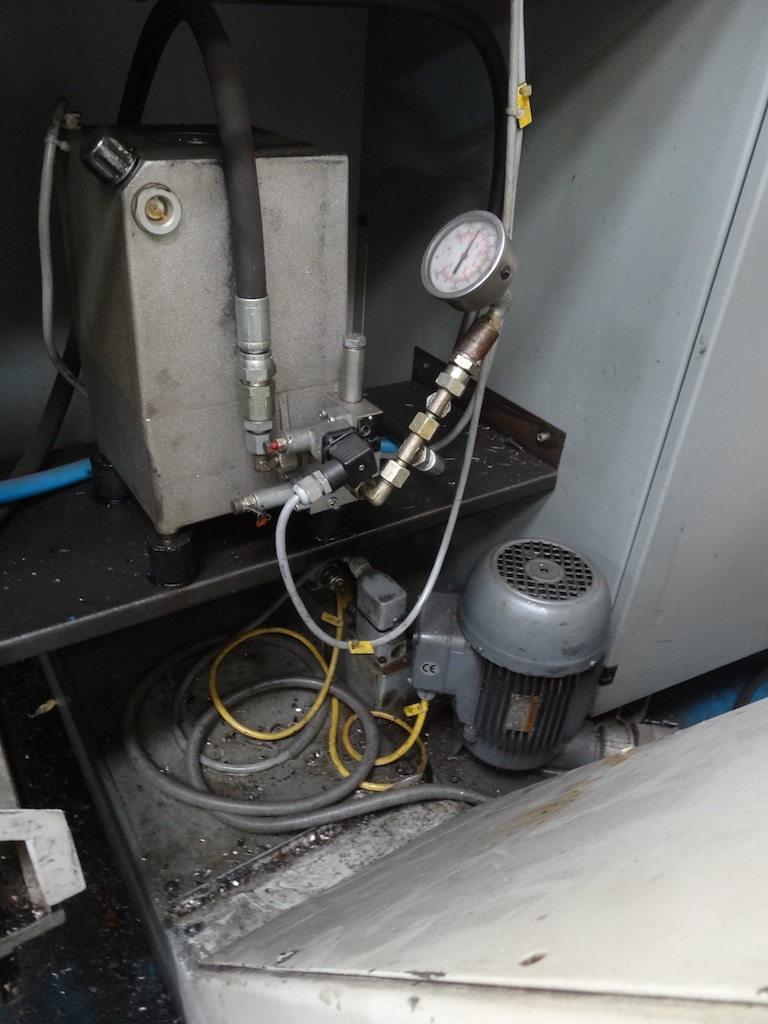

Hydraulic/mechanic tool clamping system

Feedrate: XYZ axis variable input: 20-10000mm/min
Rapid Feedrate: XYZ axis: 24mm/min
Setup/mode: XYZ Axis: 20-2000mm/min

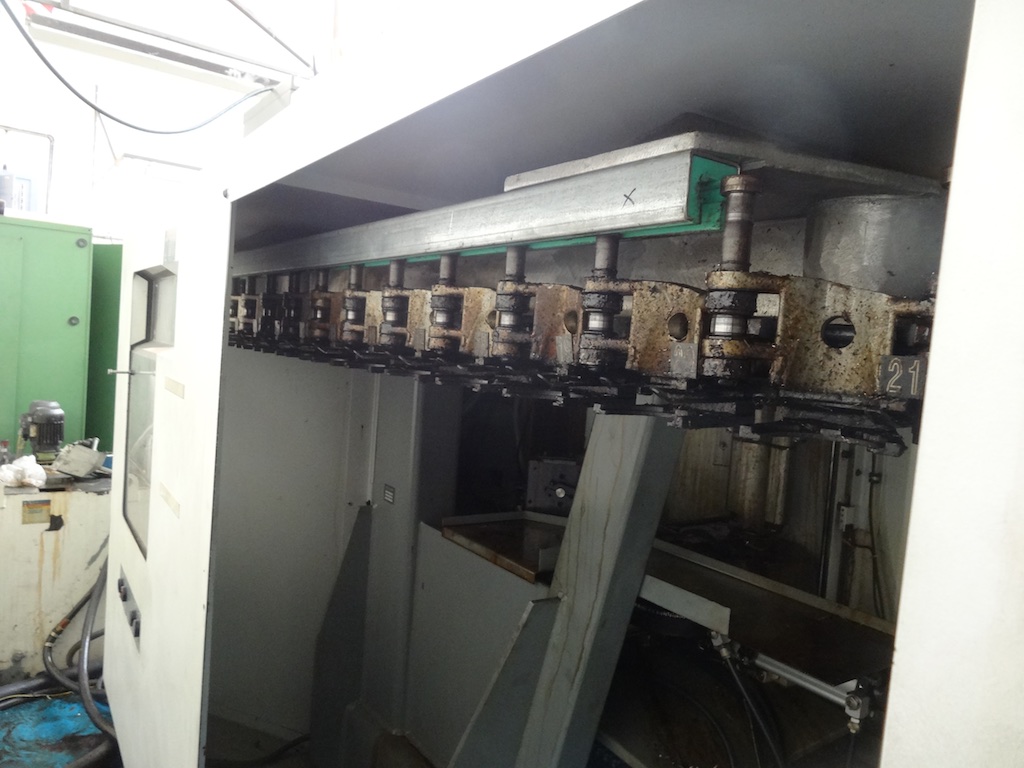

Magazine stations: 30
Max tool dia:100mm, 160mm alternate
Max tool length: 350mm
Auto tool changer: 8kg
Max overall tool weight in mag: 100kg

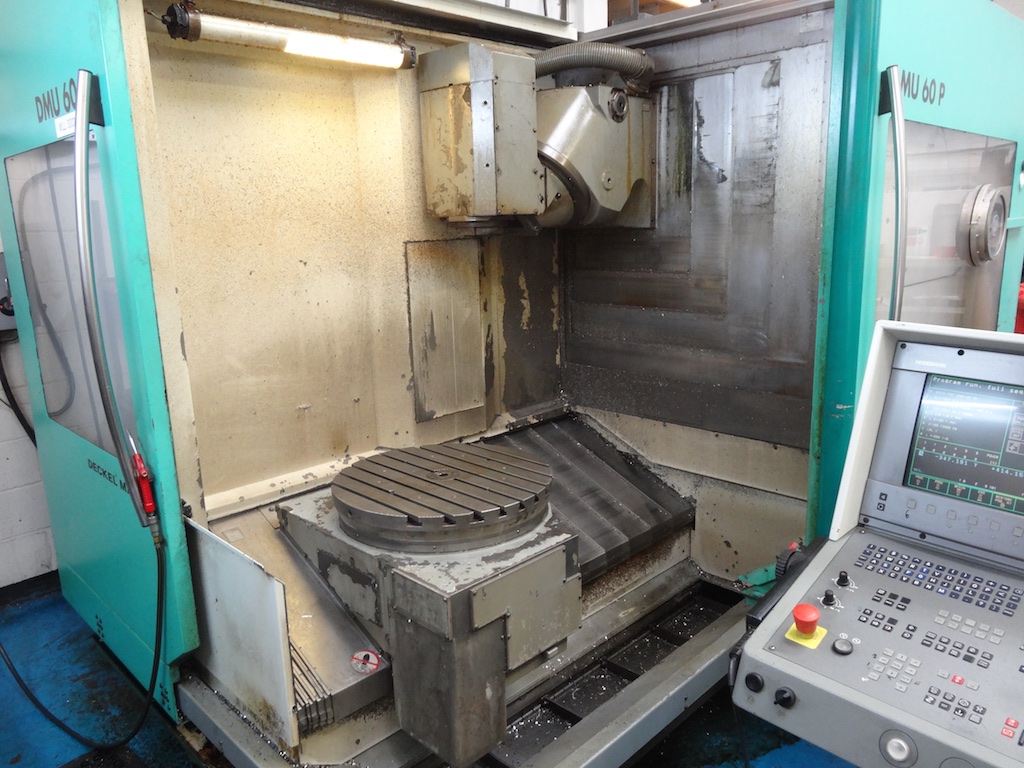

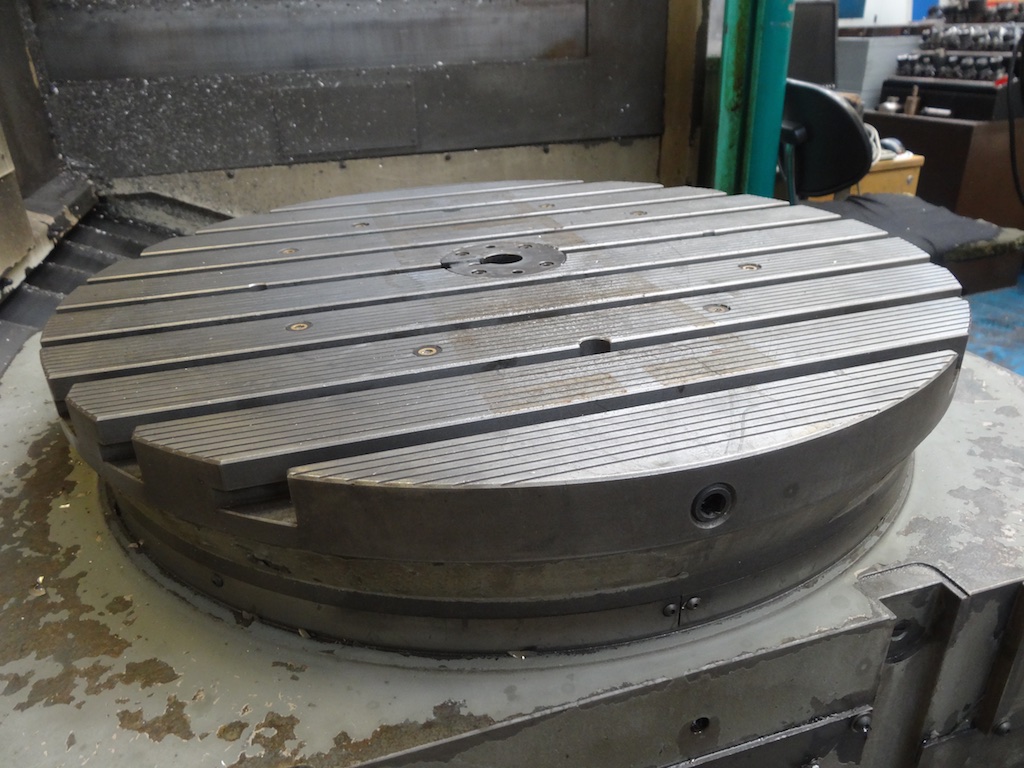

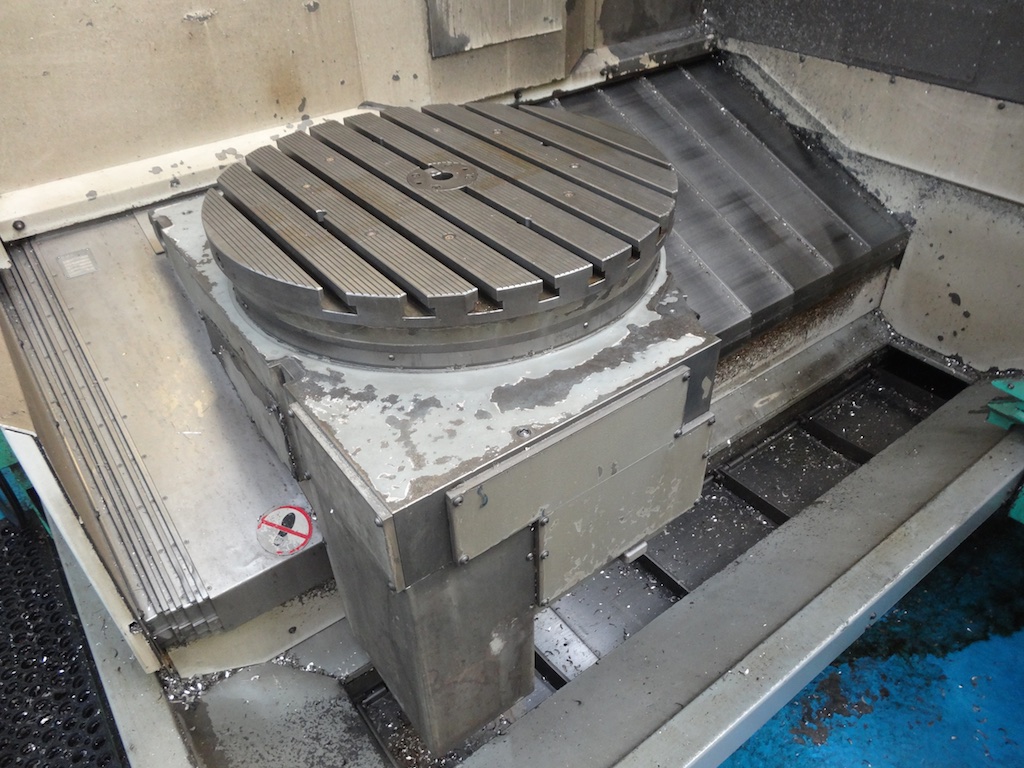

NC Swivel rotary table Worktables:
Clamping surface: 630 Dia mm
T grove distance: 63mm
Number of T groves: 9
Max torque: 3866Nm
Holding torque: 5750Nm
Max table top speed: 9.3rpm
Max carrying capacity : 500kg

Dimensions: 2700 x 3500 x 2500mm tall.
Weight: 7000kg

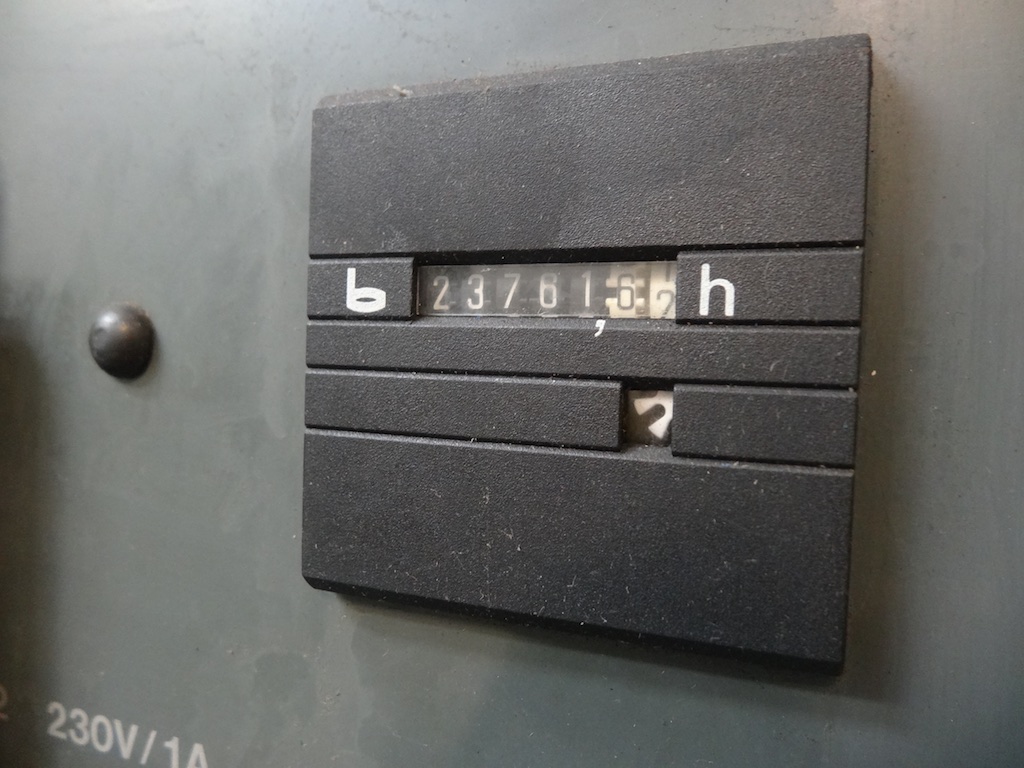

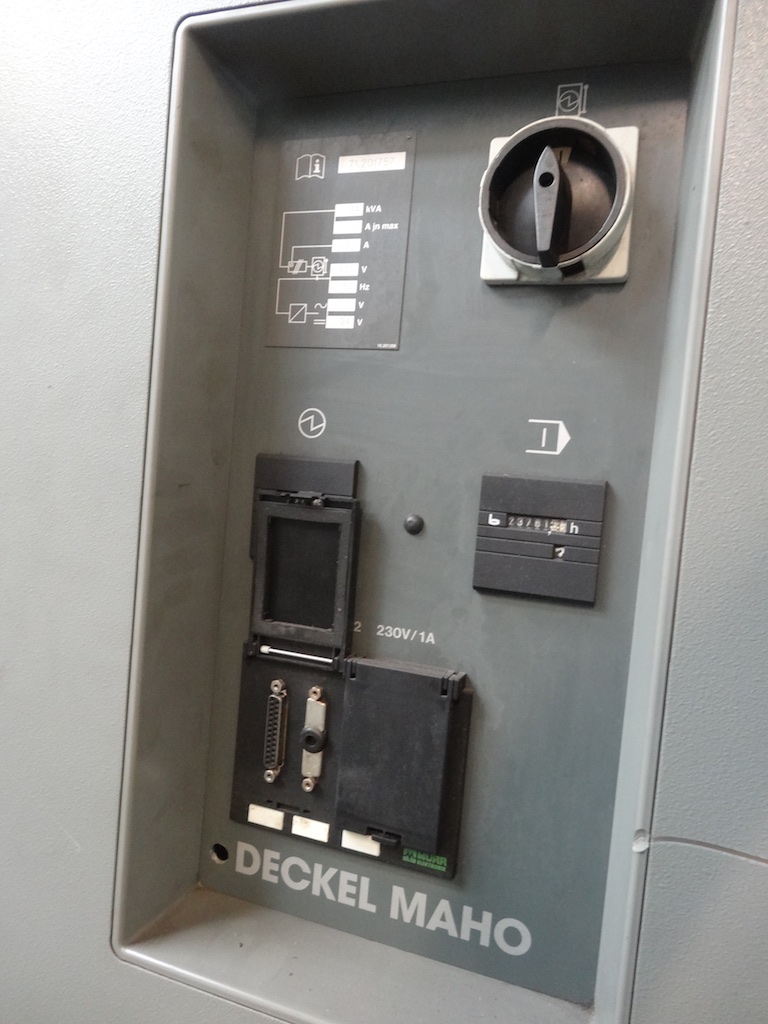

Hours: 23761.62 (at time of photo)

Location: Oxon UK

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
