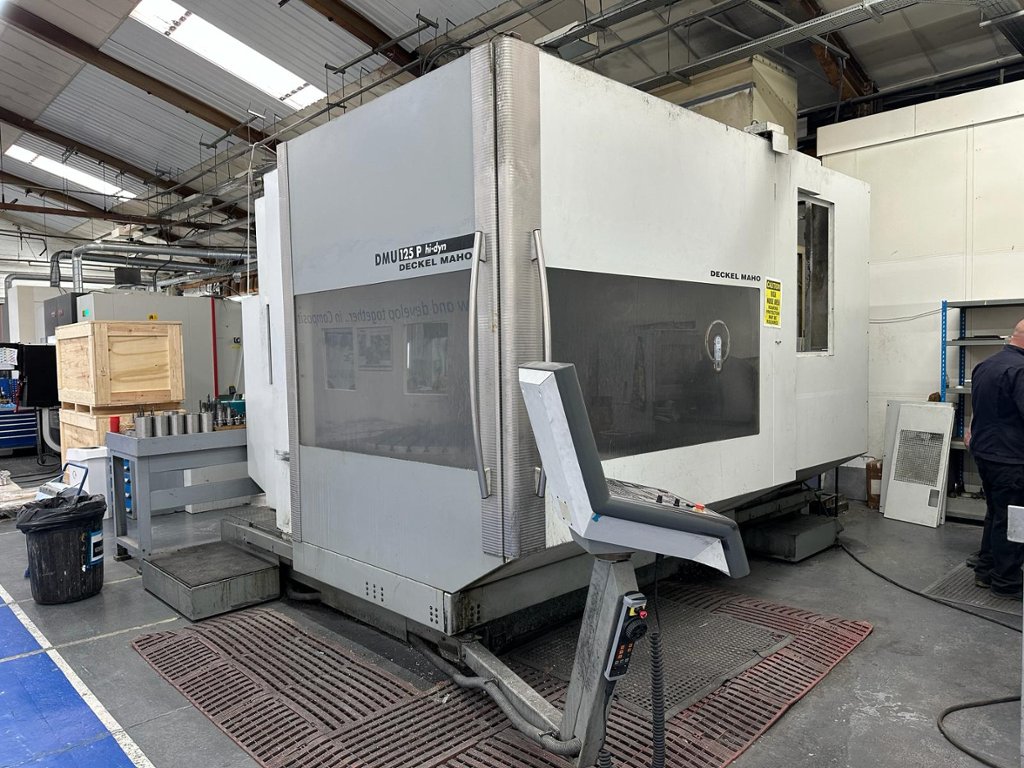

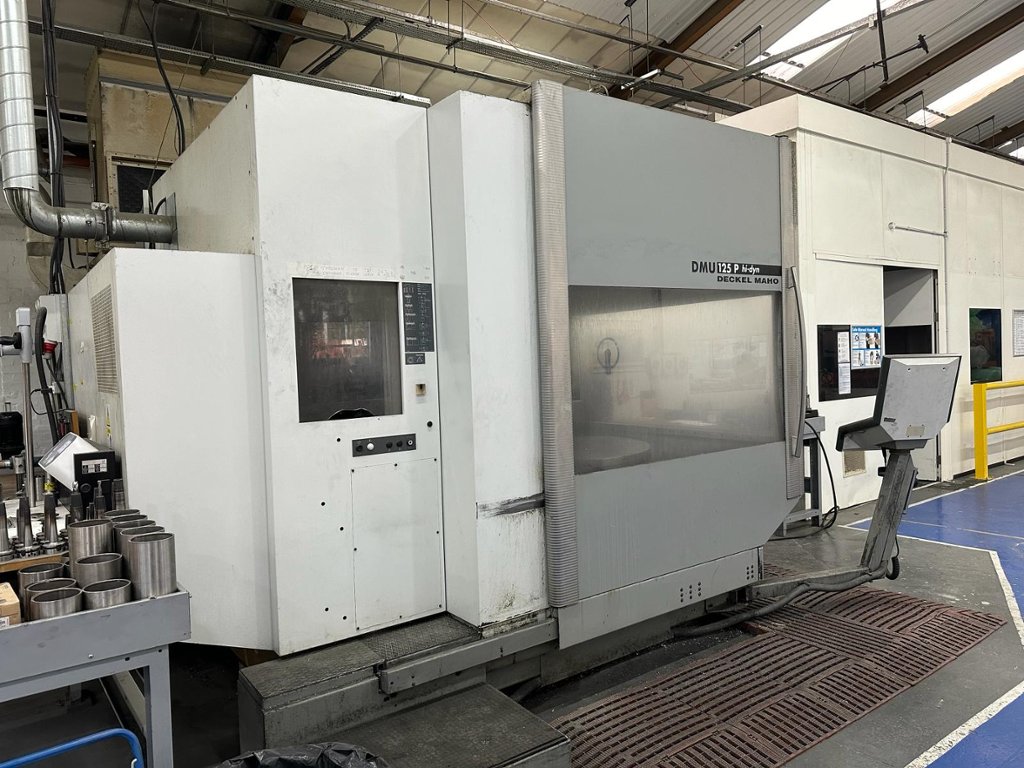

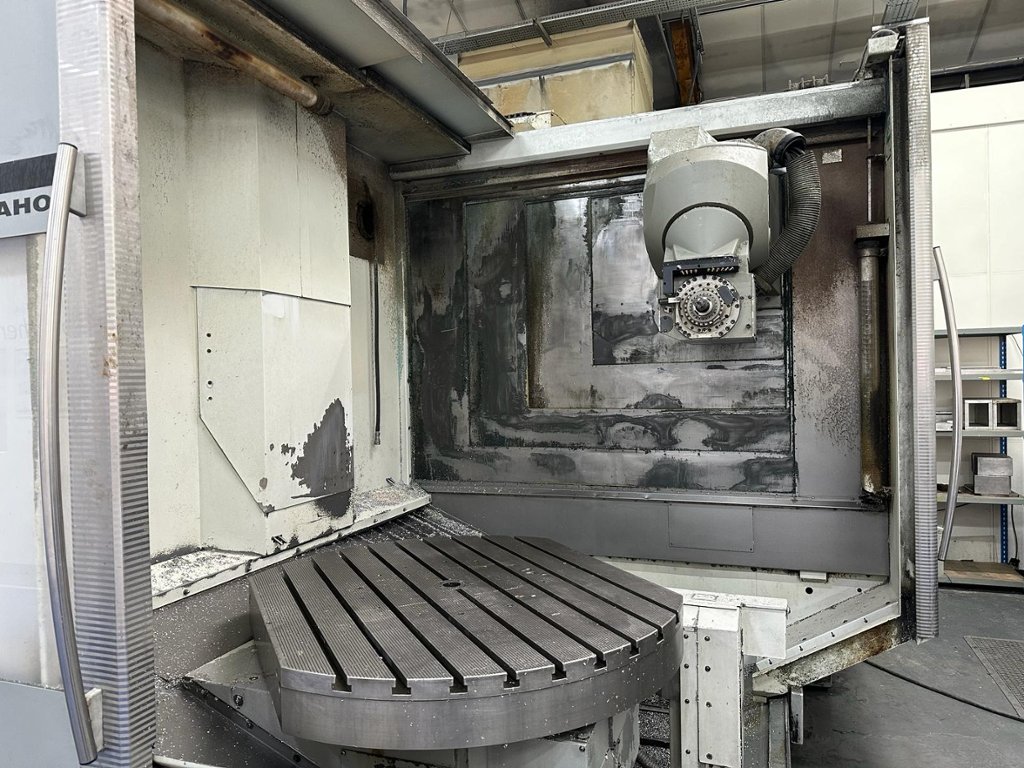

Deckel Maho DMG 125 P Universal Machining Centre (2004)

Lot 1 - Deckel Maho DMG 125 P Universal Machining Centre (2004)

Description:

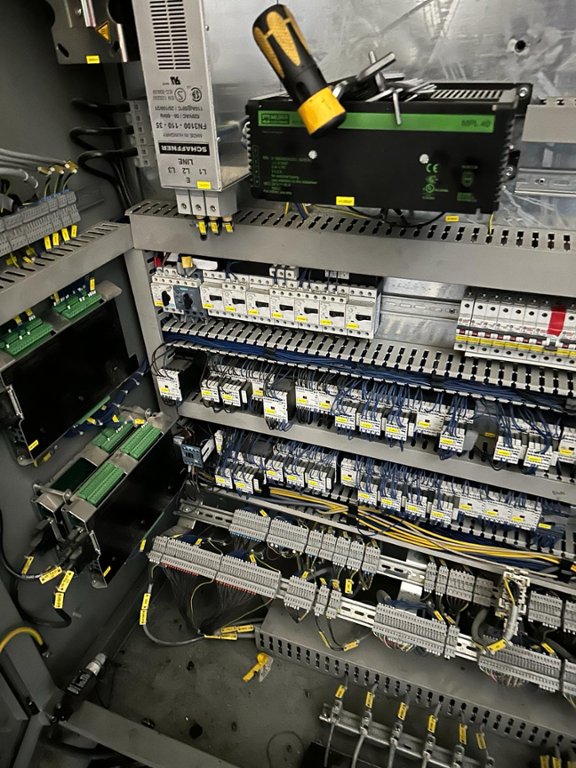

Not currently working due to an electrical fault

Number of axis 5-Axis
Tool changer 30 ATC
Spindle 18,000 rpm
Spindle taper CAT 40

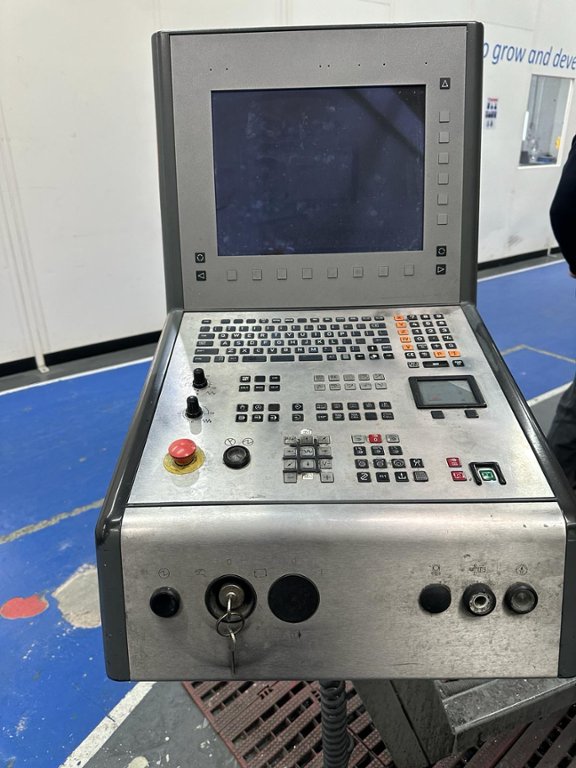

Control Heidenhain 530

X axis 49.2" (1,250 mm)
Y axis 34.6" (880 mm)
B axis -7 to +180 degrees
Z axis 31.5" (800 mm)

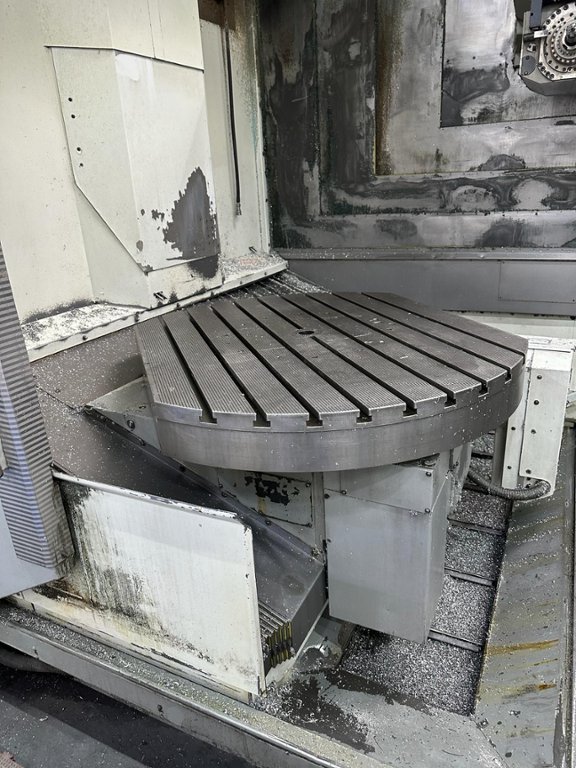

C axis 360 x 0.001 degrees

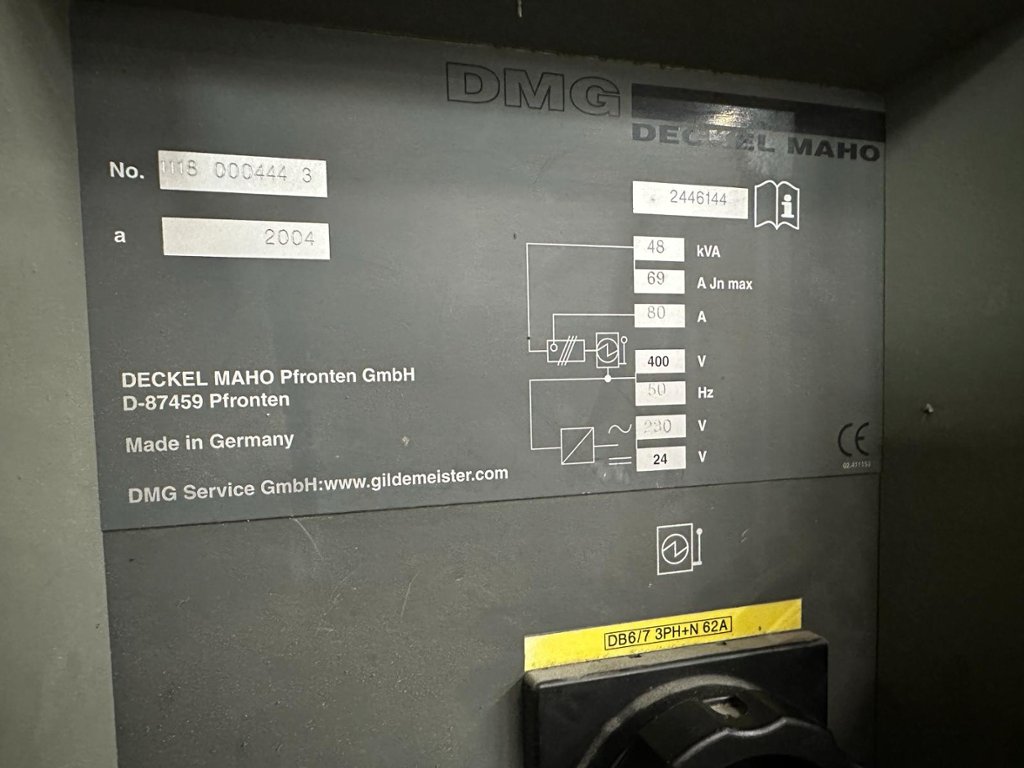

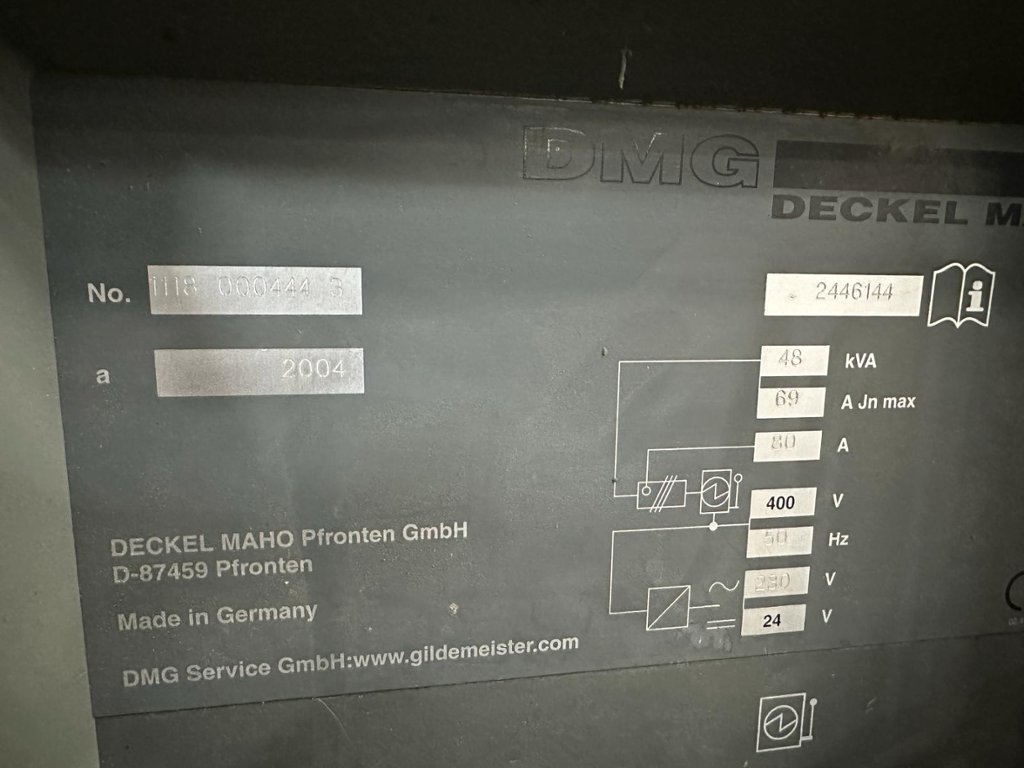

First installed new in the usa 01/2004
X axis (longitudinal) 49.2" (1,250 mm)
Y axis (transverse) 34.6" (880 mm)
Z axis (vertical) 31.5" (800 mm)
Maximum workpiece diameter 47.2" (1,200 mm)
Maximum workpiece height 59.06" (1,500 mm)
Maximum workpiece weight 4,409 lbs (2,000 kg)
Maximum table load (centered) 4,400 lbs (2,000 kg)
Maximum torque (40% ed) 3,872 ft/lb (5,250 Nm)
Maximum holding momentum (40% ed) 3,872 ft/lb (5,250 Nm)
Rapid speed rotary axis (c-axis) 15 rpm x 0.001 degree
Type Brushless AC/Digital
Power 40% duty cycle (s3) 37 hp (28 kW)
Power 100% duty cycle (s1) 25 hp (19 kW)
Spindle speed range 20-18,000 rpm
Acceleration/deceleration 2 seconds
Number of gear steps None
Maximum spindle torque 40% duty cycle 89.2 ft/lb (121 Nm)
Maximum spindle torque 100% duty cycle 60.48 ft/lb (82 Nm)
Spindle bearing diameter front 3.15" (80 mm)
Spindle bearing diameter rear 2.17" (55 mm)
Feed rate (x-y-z) 591 IPM (1-15,000 mm/min)
Rapid feed (x-y-z) 1,575 IPM (40 m/min)
Acceleration (x-y-z) 4.5/3.5/6 m/s-2
Feed power (x-y-z) 10/10/10 kN
Ball screw (x-y-z) 40 mm x 20 mm
Ball screw spindle 50 mm x 20 mm
Magazine type Chain, horizontal, double gripper
Number of pockets 30
Maximum tool weight 22.05 lb (10 kg)
Maximum tool diameter with neighbouring empty pockets 6.3" (160 mm)
Maximum tool length 17.7" (450 mm)
Input resolution 0.001 mm
Pump output external jets pressure 21.7 PSI (1.5 bar)
Pump output external jets flow rate 10.6 gallon/minute (40 l/min)

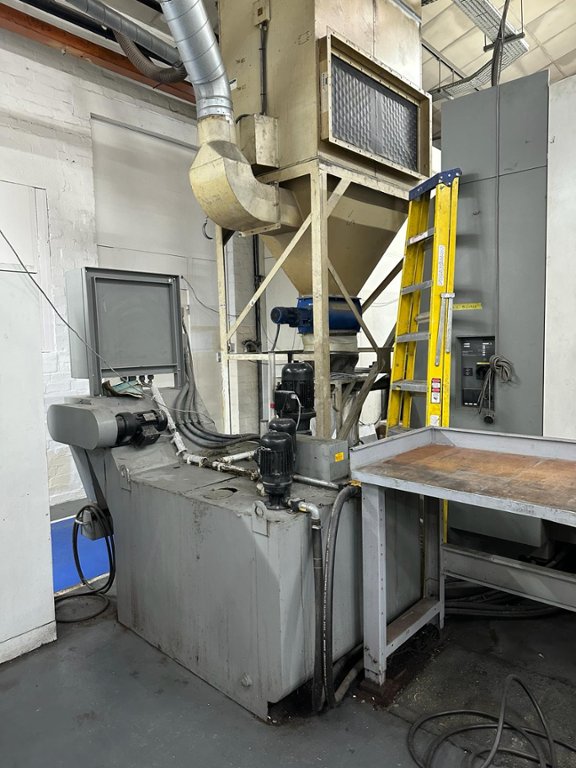

Coolant tank capacity 158 gallon (600 l)
Pump output 6.1 gallon/minute (23 l/min)
Pump pressure 580 PSI (40 bar)

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
