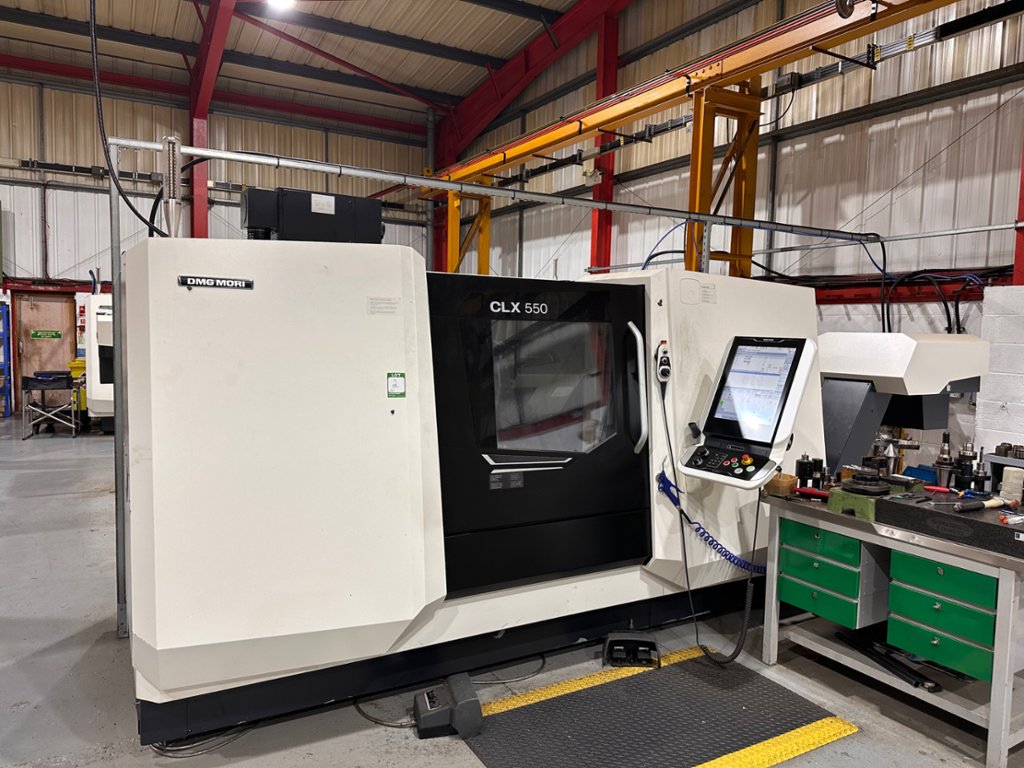

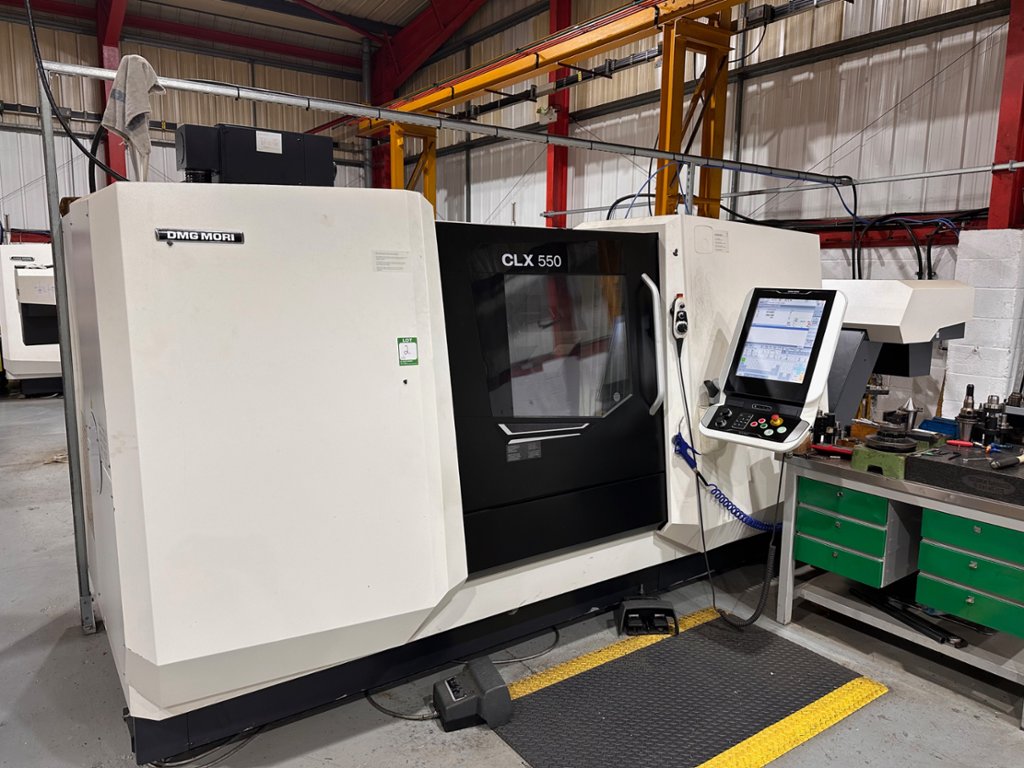

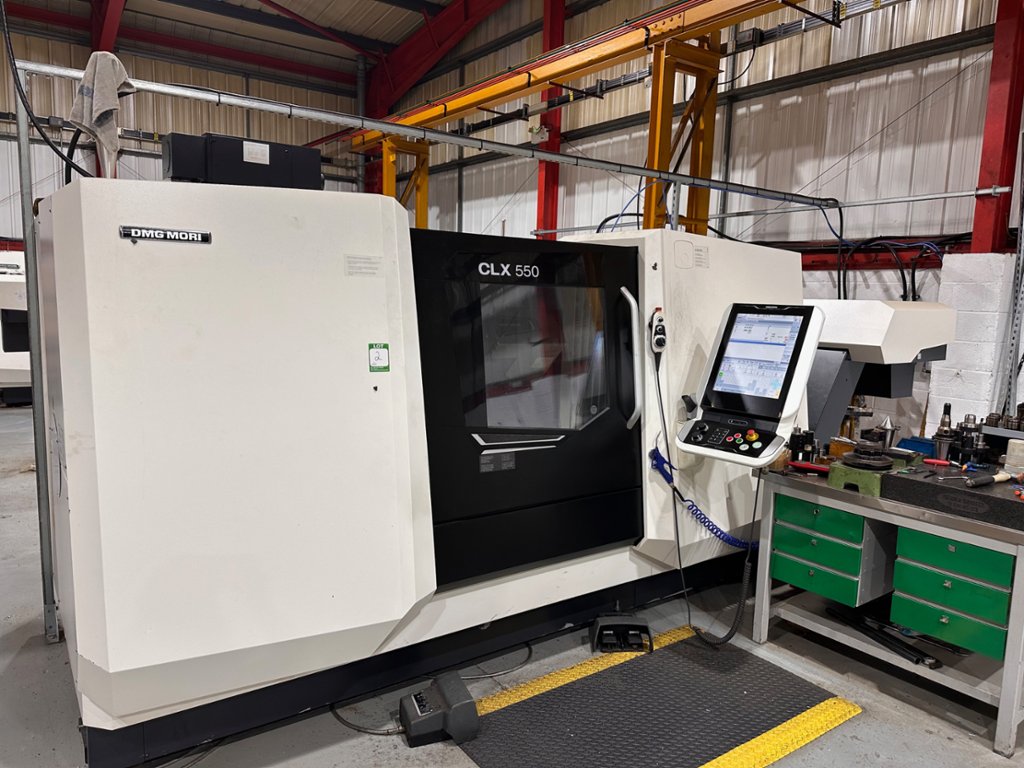

DMG Mori CLX 550 2-axis CNC Lathe (2020)

Lot 2 - DMG Mori CLX 550 2-axis CNC Lathe (2020)

Description:

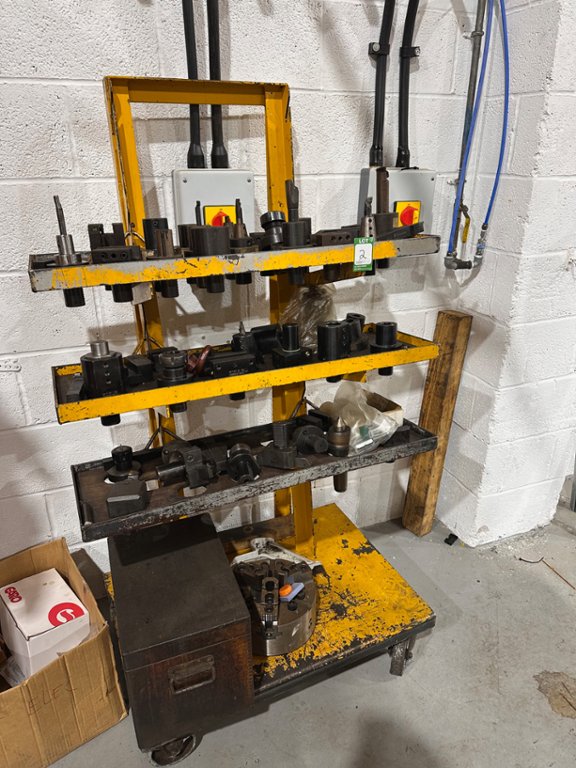

Comes with 10" 3 Jaw Chuck and a selection of Tooling

Spindle & Turret Performance

Main Spindle Speed: Max. 3,250 rpm, Spindle Power: 22 kW (Continuous DC) / 33 kW (S6 40% duty cycle), Spindle Torque: Max. 630 Nm (40% DC), Tool Turret: 12-position VDI 40 turret, Driven/Live Tools: Max. 4,000 rpm motorized turret (depending on configuration)

Axis Travel & Motion

X-axis Travel: 307.5 mm, Y-axis Travel: ±60 mm (optional for off-center milling/drilling), Z-axis Travel: 1,240 mm

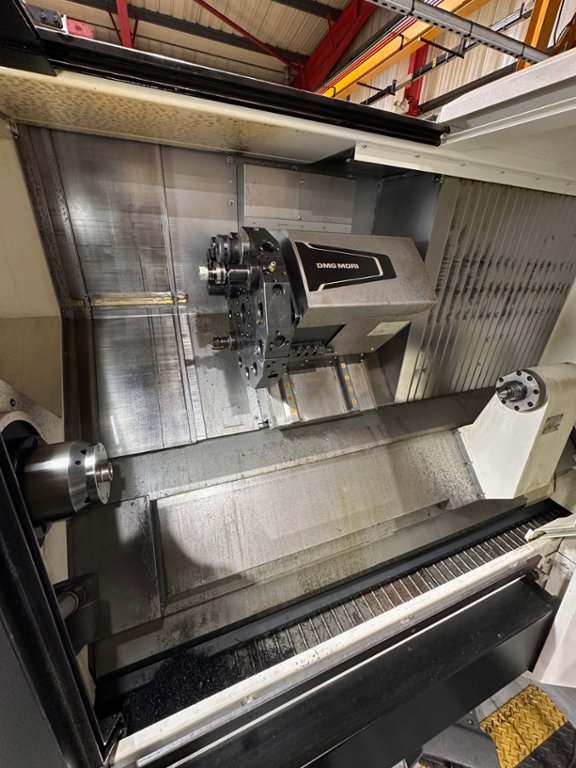

The machine is a 2-axis CNC Lathe fitted with

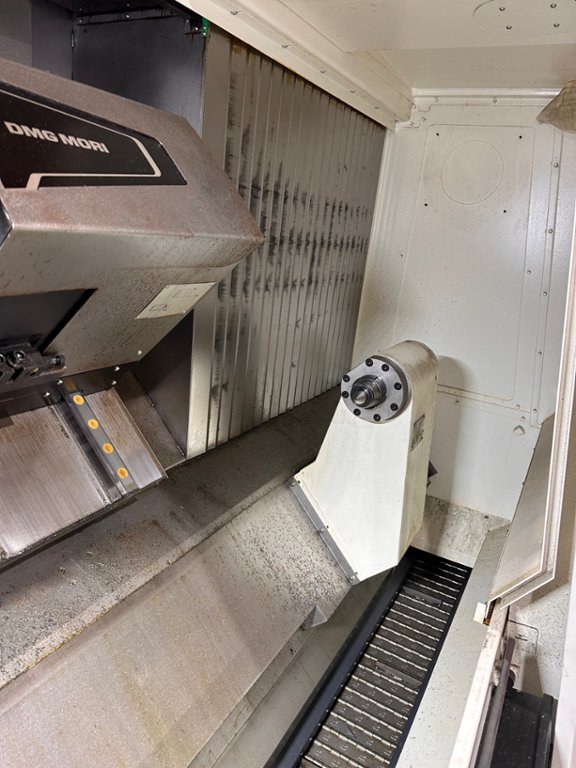

Slide driven tailstock

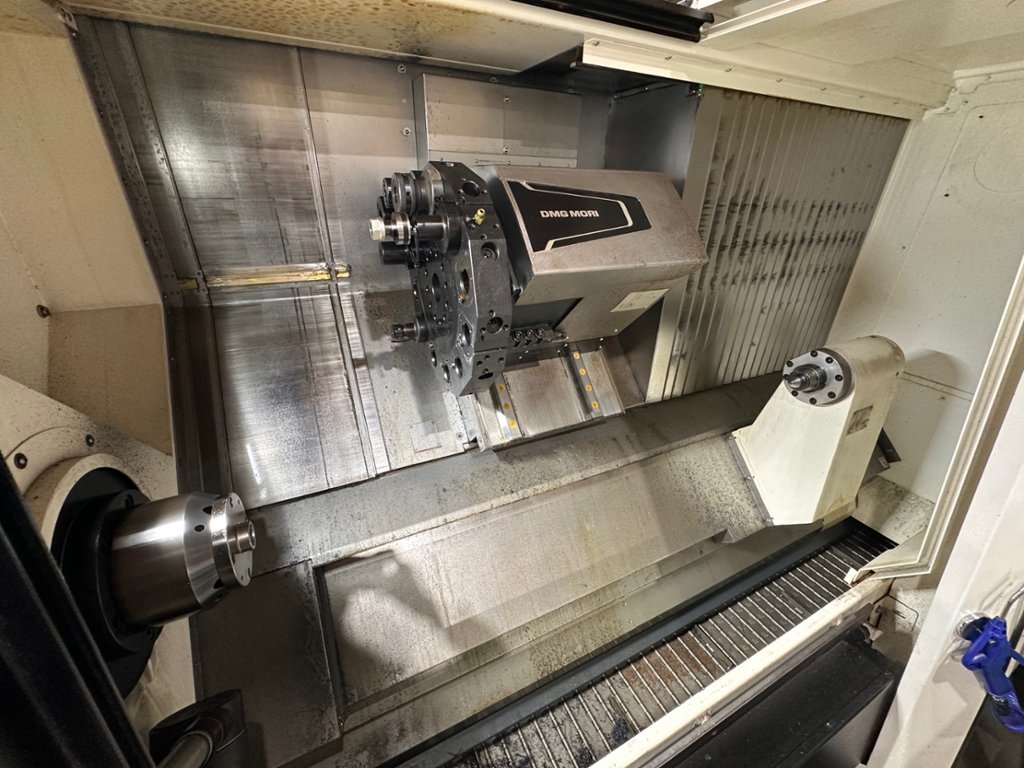

12 position VDI40 turret
Adapted spindle to accept ISO50 taper tooling

3 jaw manual Chuck on 50 tapers as part of the kit

Can be adapted back to standard drawbar with assistance of DMG
Accurate scales for hard metal turning

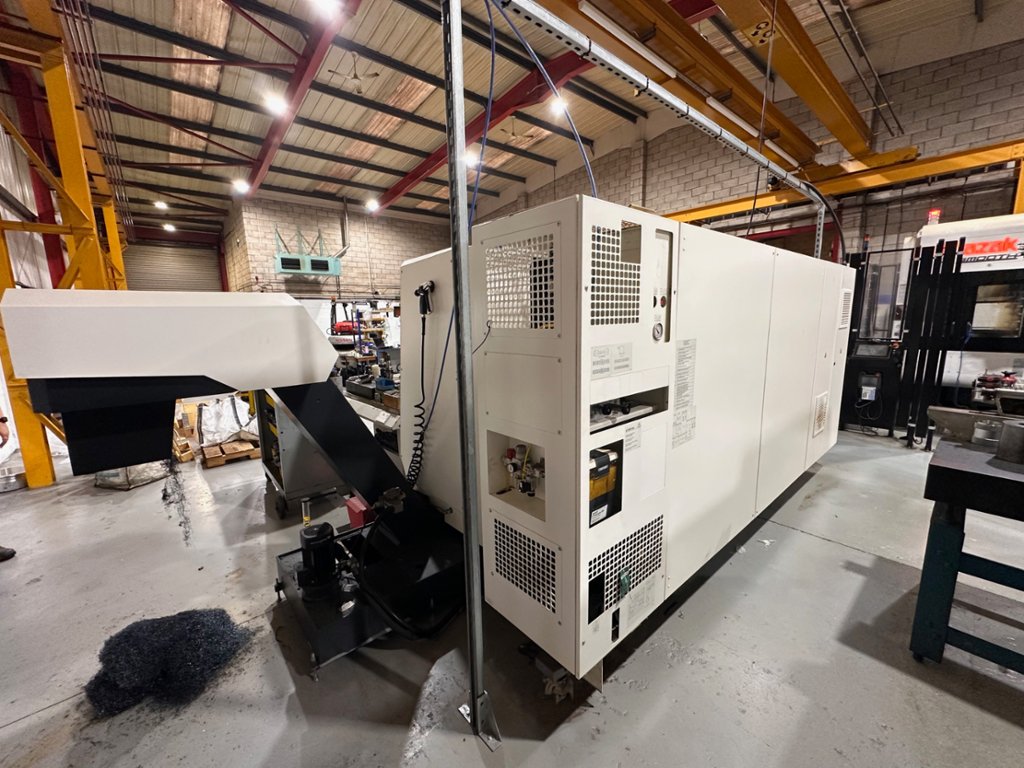

Coolant tank

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
