Lot 1 - DMG DMU 50 Eco (2011)

Description:

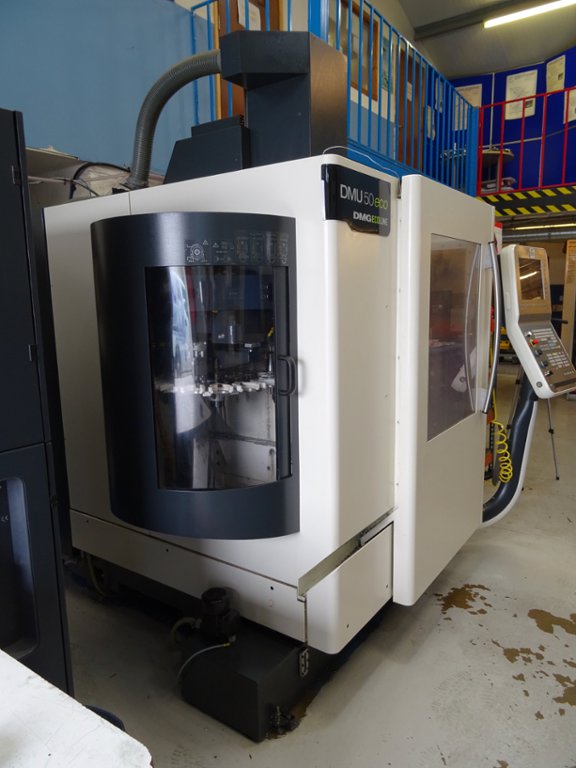

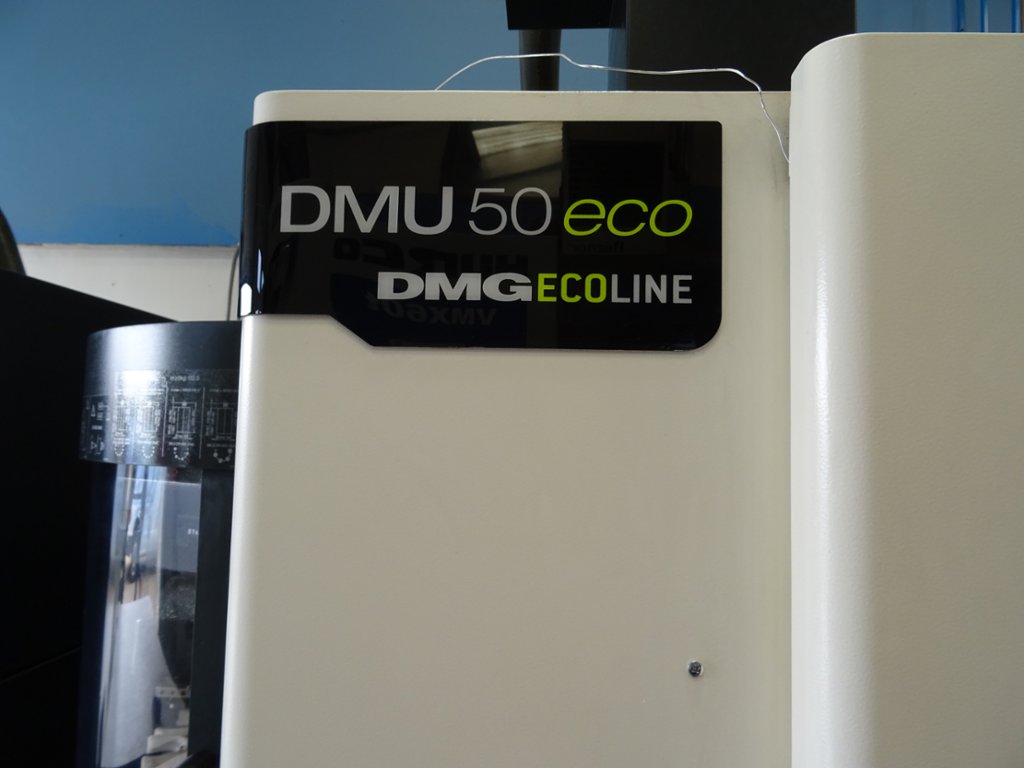

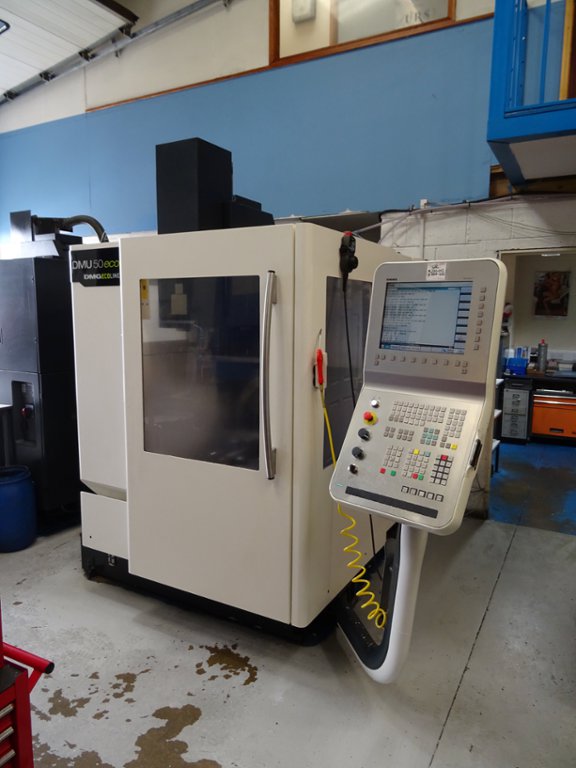

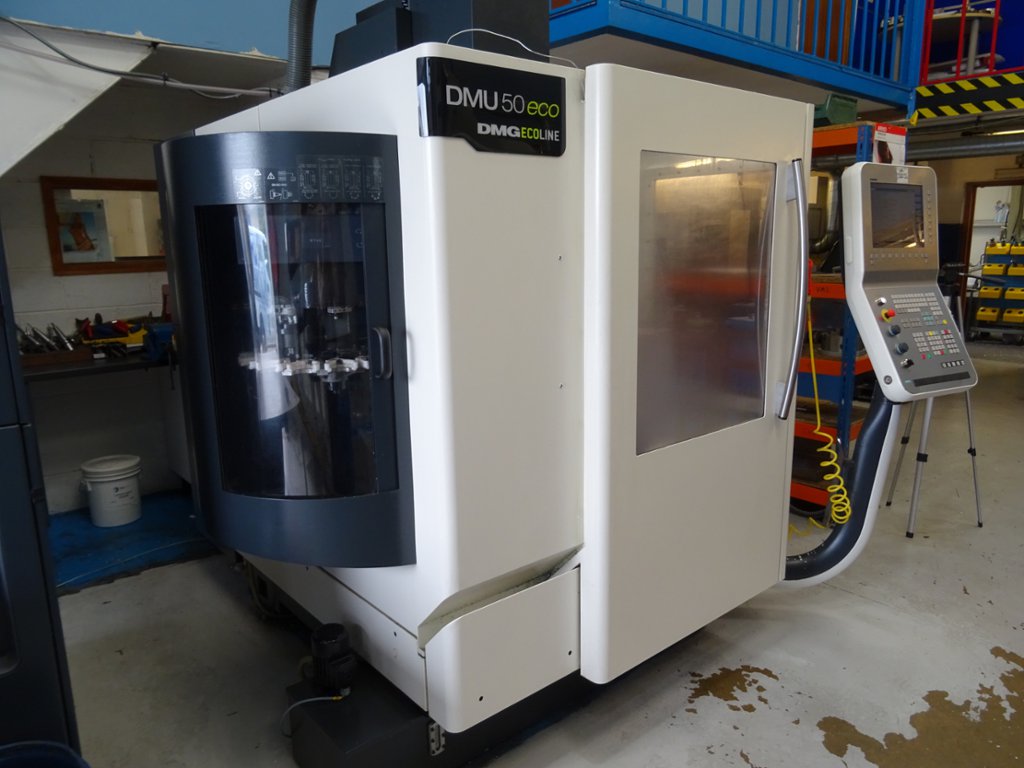

DMG DMU 50 Eco (2011) with Manuals

*There is a fault on the indexing table*

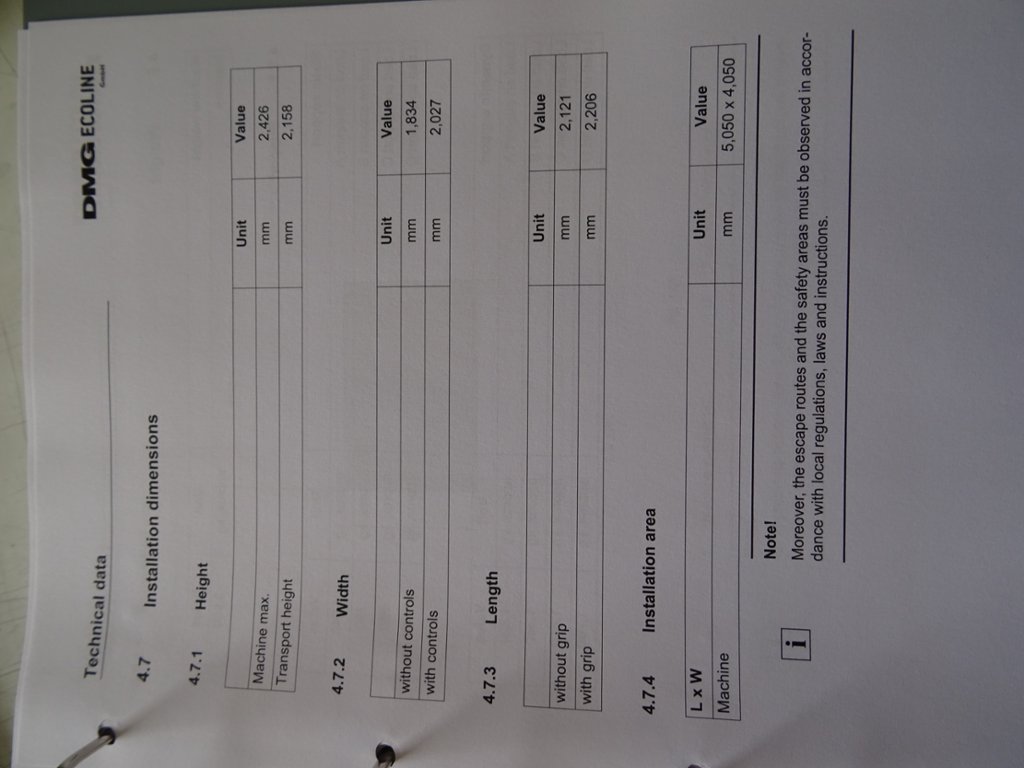

Installation Dimensions

Max height - 2426mm, Width without controls - 1834mm, Length without grip - 2121mm, Installation area - Machine - 5050 L X 4050 W

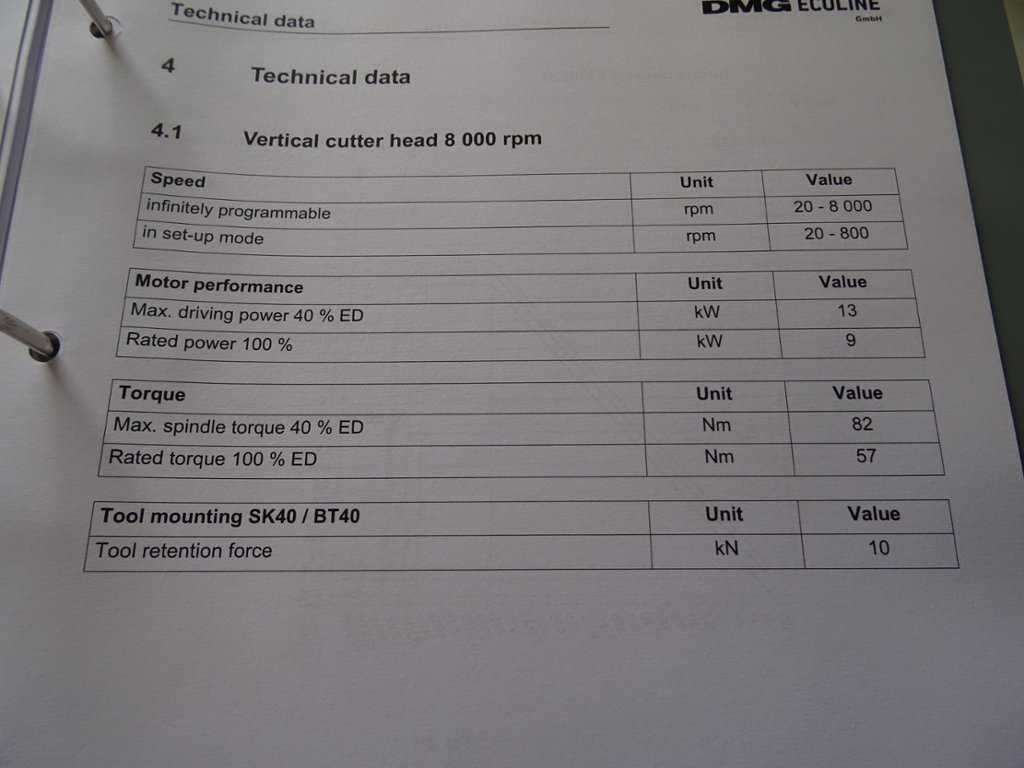

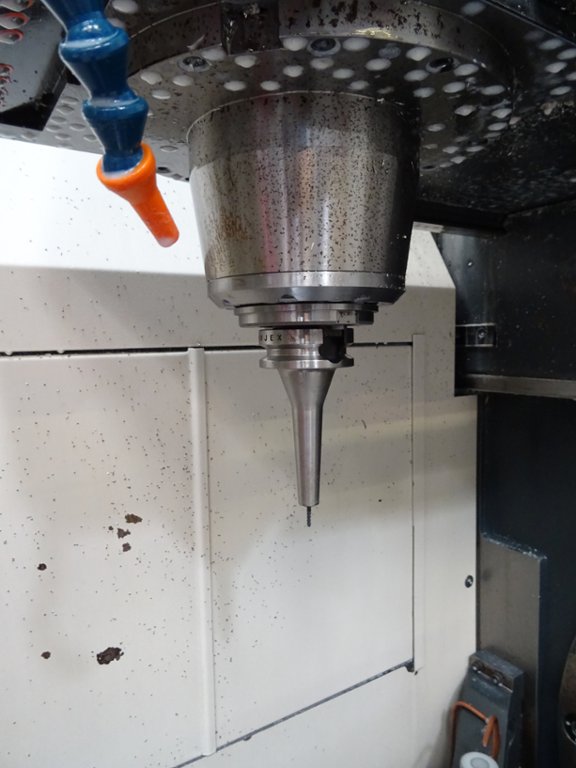

Vertical Cutter Head - 8000 rpm

Speed

Infinitely programmable - 20-8000 rpm, In setup mode - 20-800rpm

Motor Performance

Max driving power 40% ED - 13KW, Rated power 100% - 9KW

Torque

Max spindle torque 40% ED - 82 Nm, Rated torque 100% ED - 57 Nm

Tool Mounting KSK40/BT40

Tool retension force 10 kN

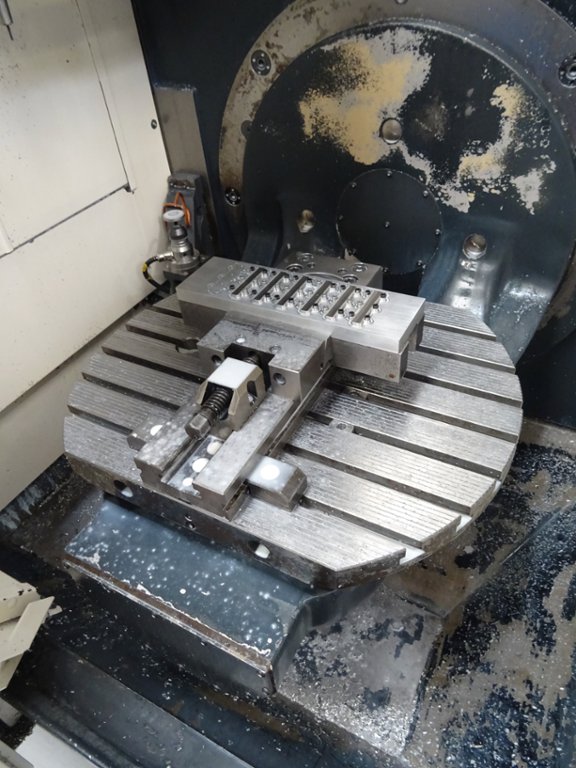

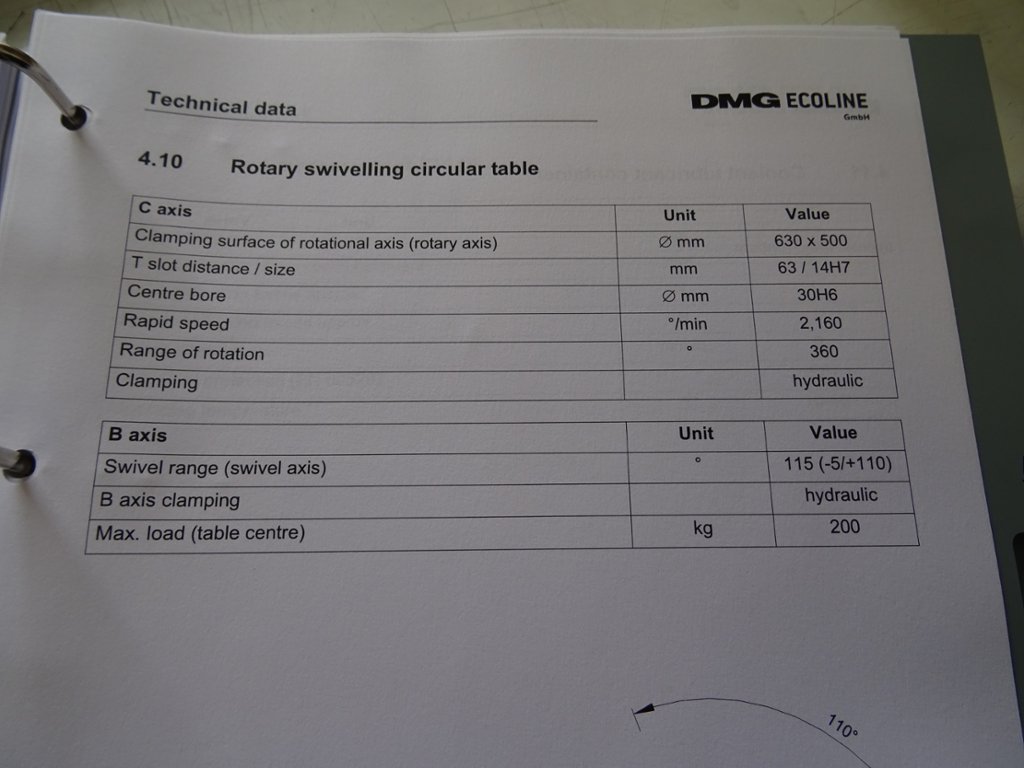

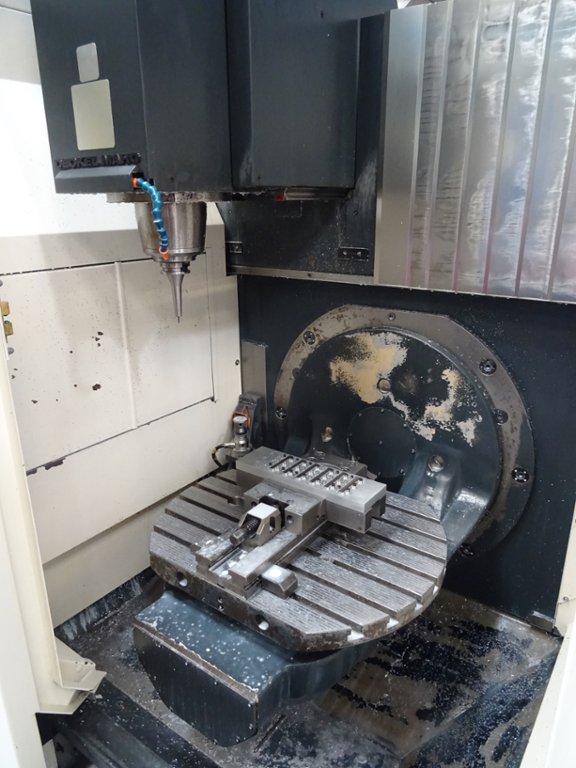

Rotary Swivelling Circular Table

C Axis

Clamping surface of rotational axis (rotary axis) - 630 X 500 mm, T Slot distance/size - 63/14H7 mm, Centre bore - 30H6 mm, Rapid speed - 2160 per min, Range of rotation - 360 degrees, Clamping - Hydraulic

B Axis

Swivel range (Swivel axis) - 115 (-5/+110), B Axis Clamping - Hydraulic, Max load (table centre) - 200 kg

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
