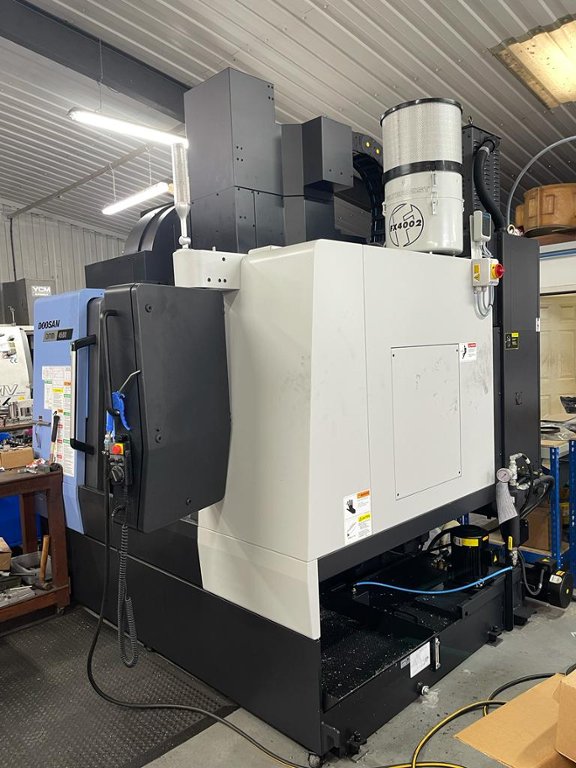

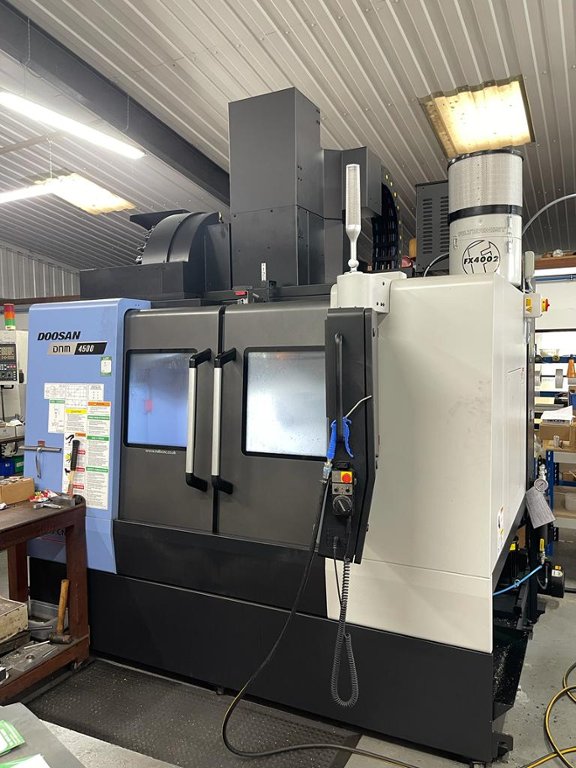

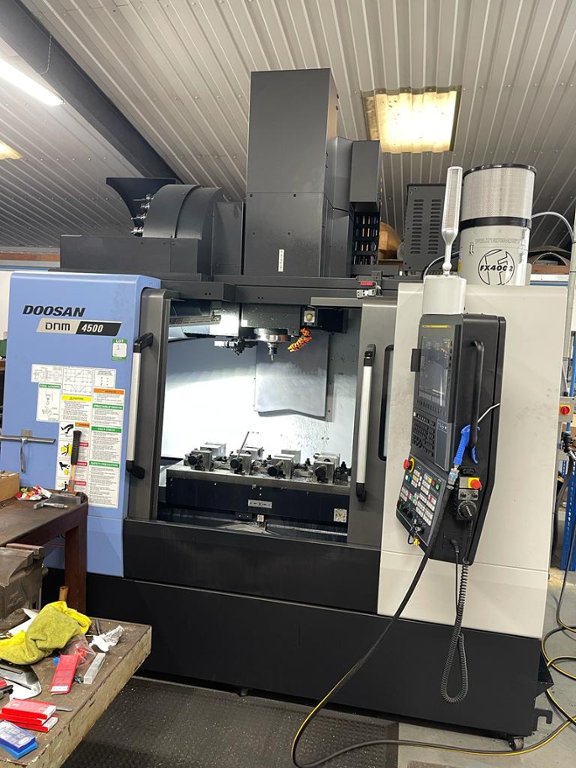

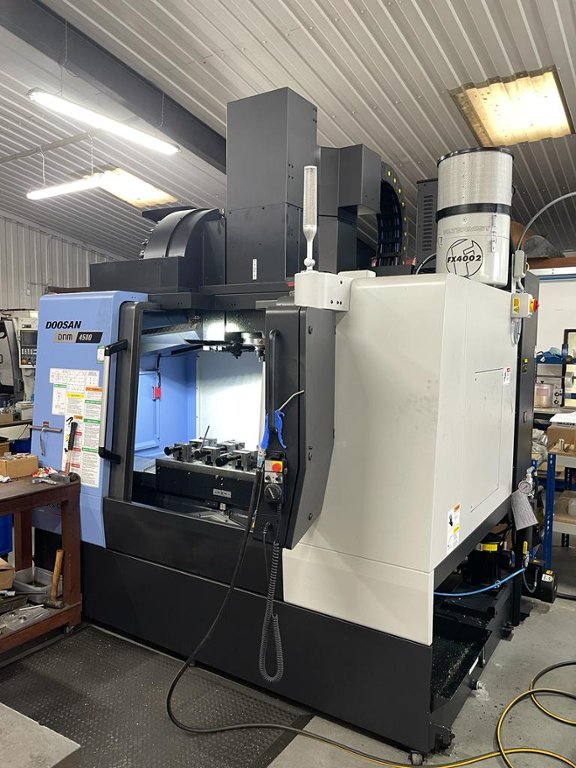

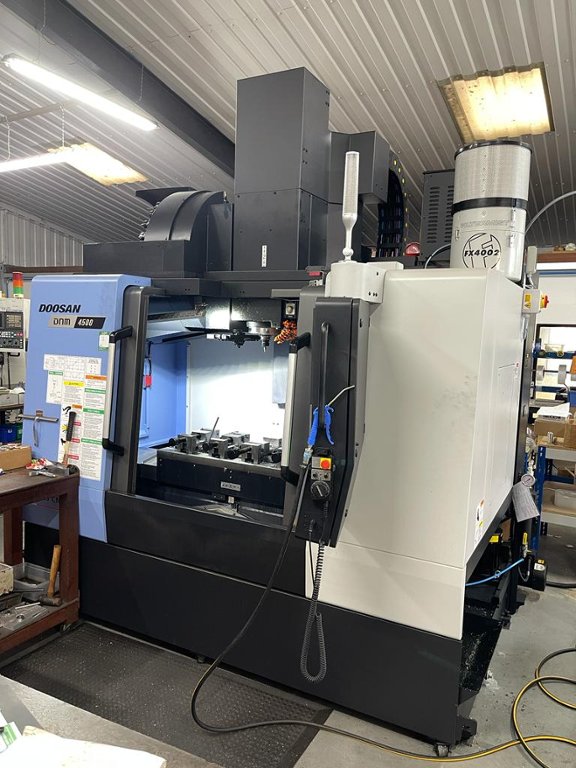

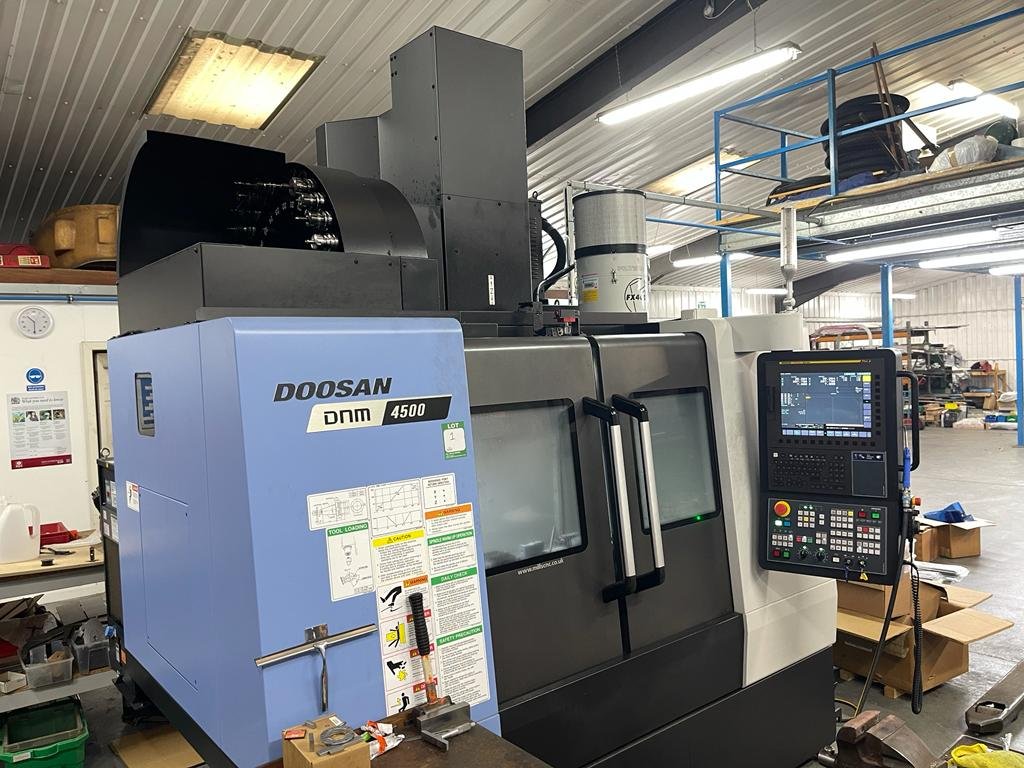

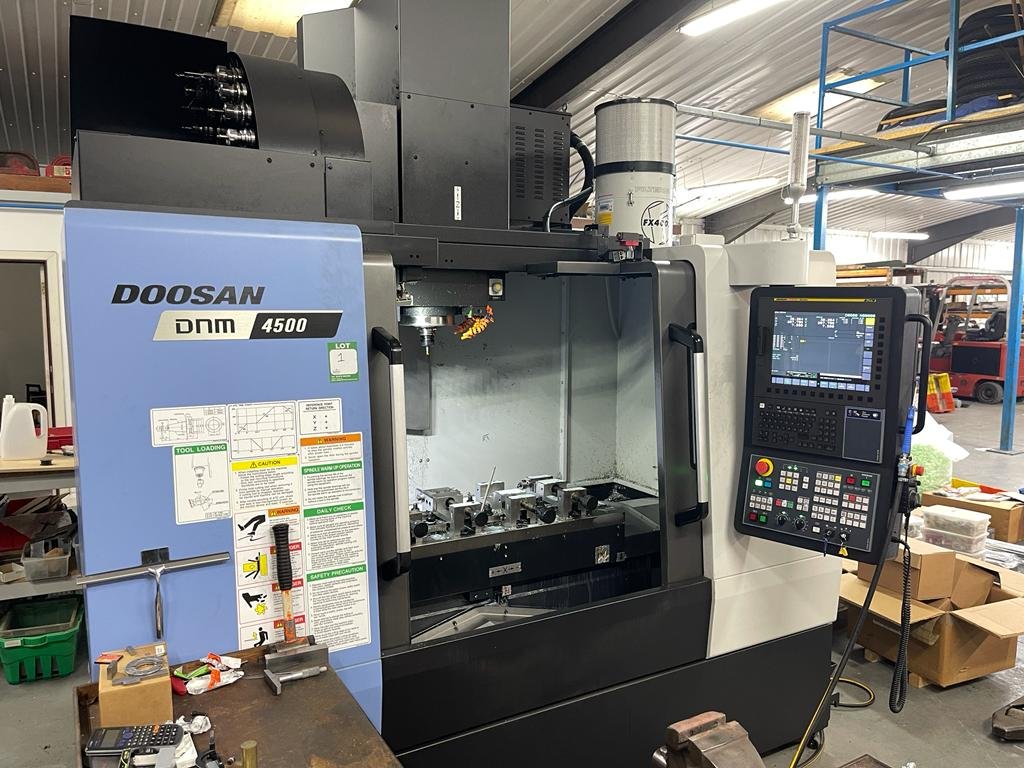

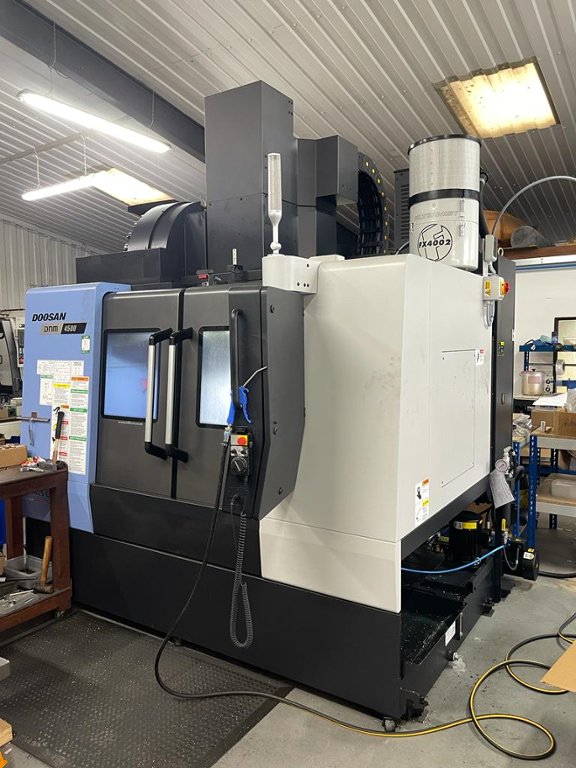

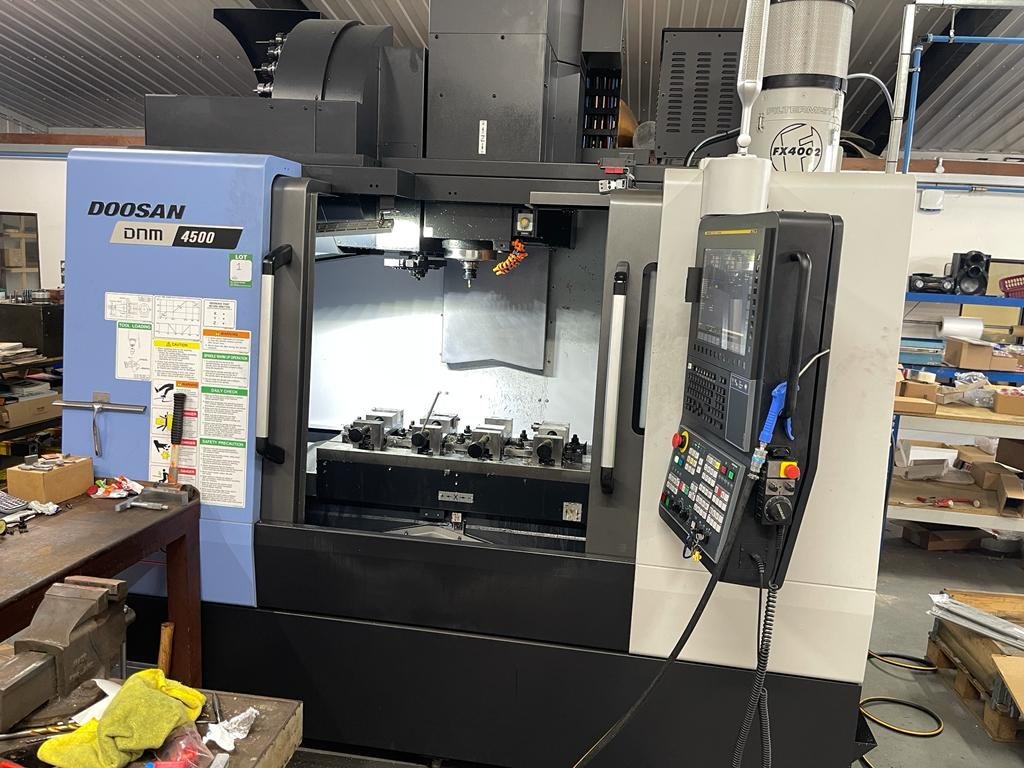

Doosan DNM 4500 Vertical Machining Centre (2020)

Lot 1 - Doosan DNM 4500 Vertical Machining Centre (2020)

Description:

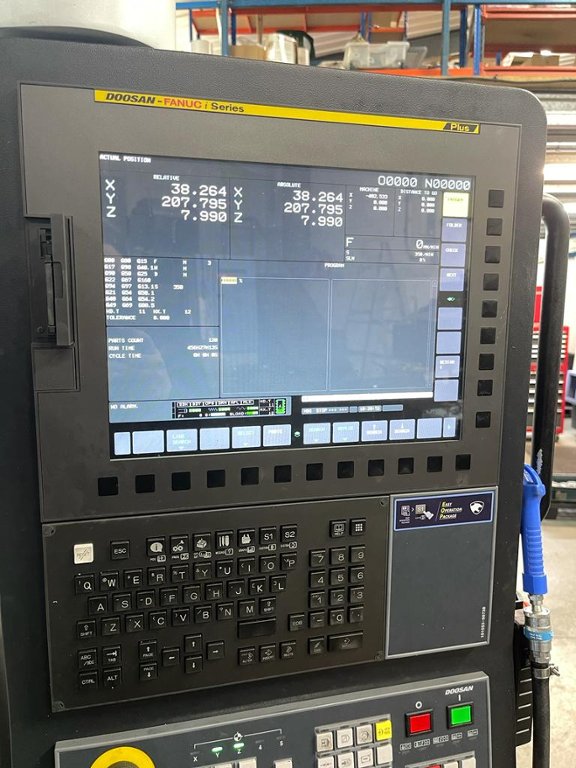

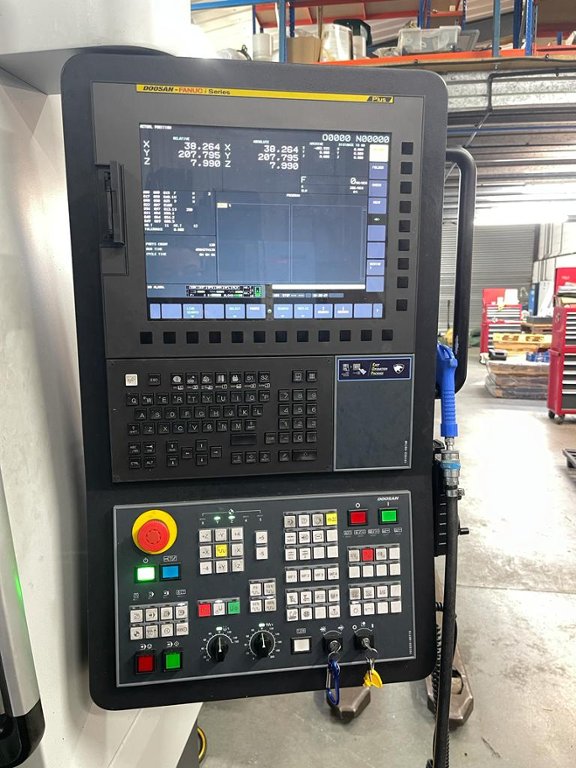

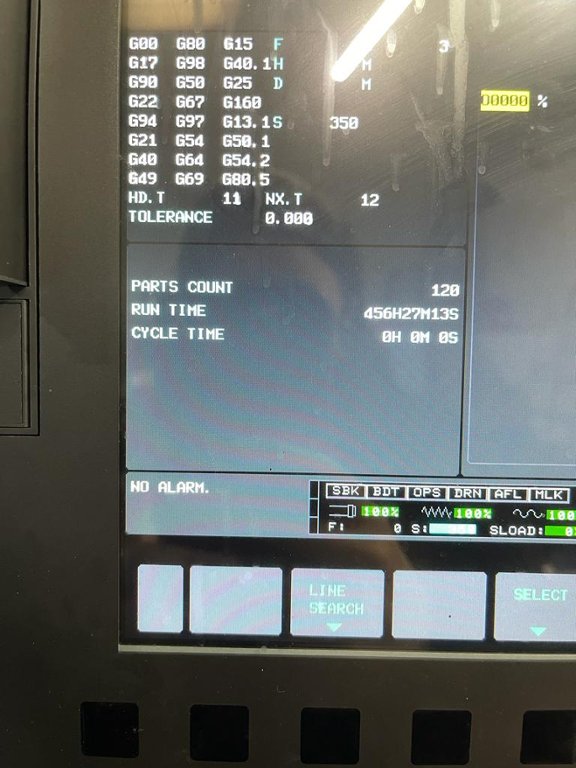

Fanuc i Control

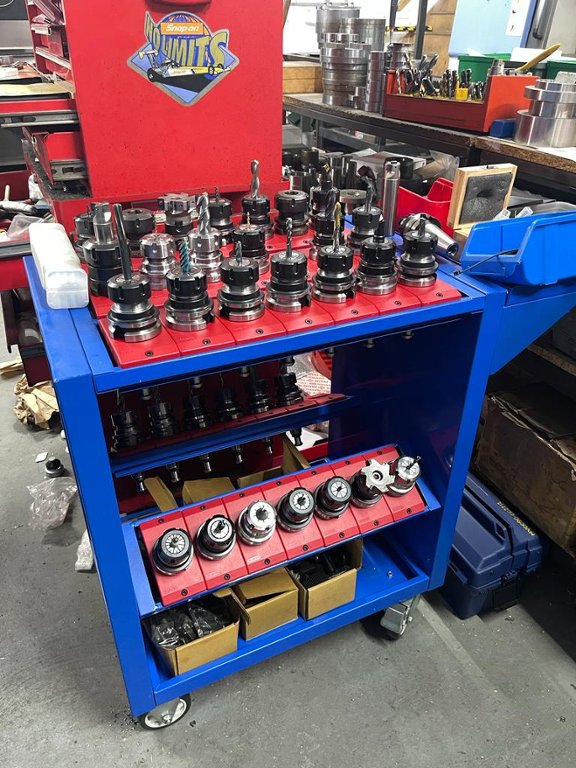

Comes with a selection of Tooling

TRAVELS

X Axis Travel distance - 800 mm, Y Axis Travel distance - 450 mm, Z Axis Travel distance - 510 mm

FEED RATES

X Axis Rapid Traverse - 36 m/min, Y Axis Rapid Traverse - 36 m/min, Z Axis Rapid Traverse - 30 m/min

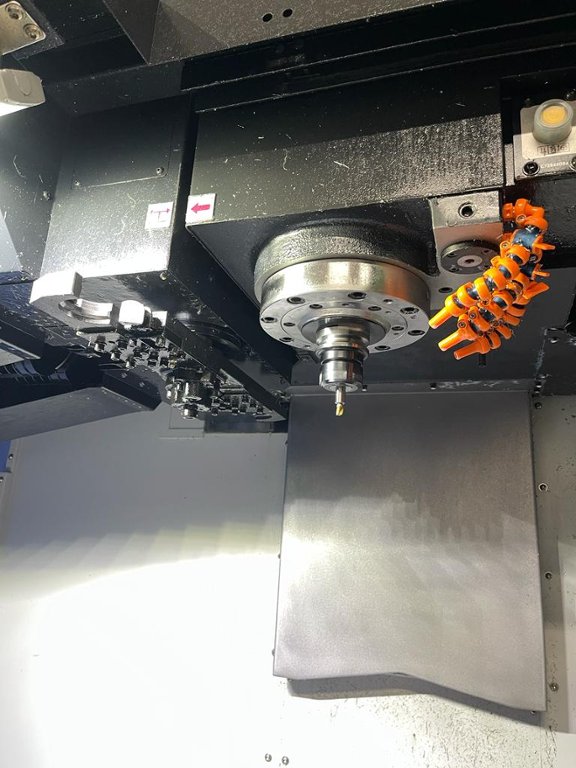

MAIN SPINDLE

Max. Spindle Speed - 8000 r/min,Max. Spindle Power - 18.5 kW,Max. Spindle Torque - 117.8 N·m,Tool Taper - ISO #40

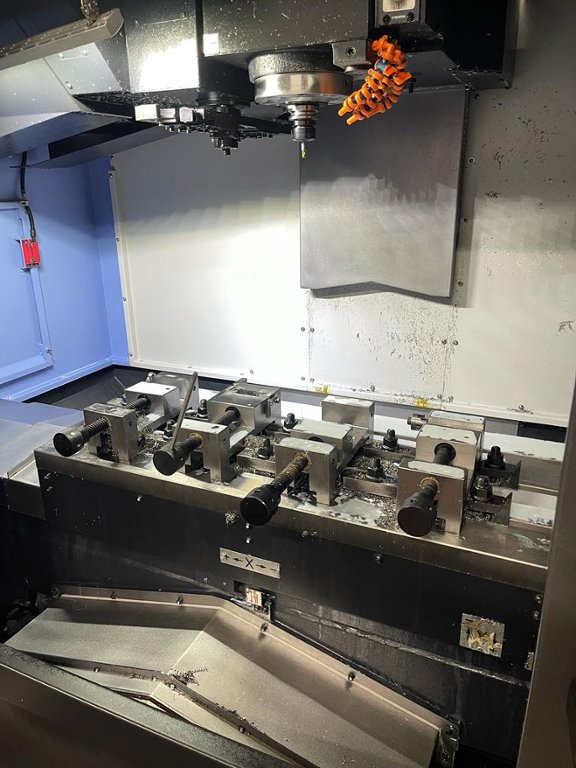

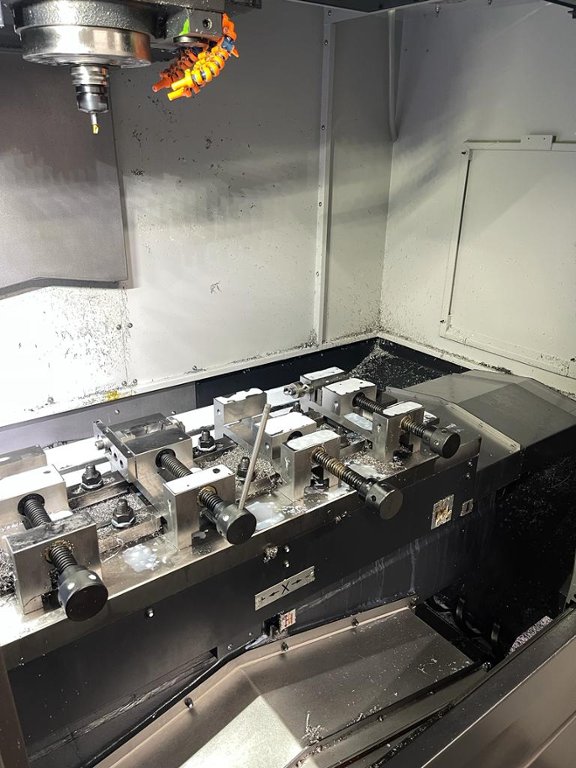

TABLE

Table Length - 1000 mm,Table Width - 450 mm,Maximum Workpiece weight - 600 kg

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
