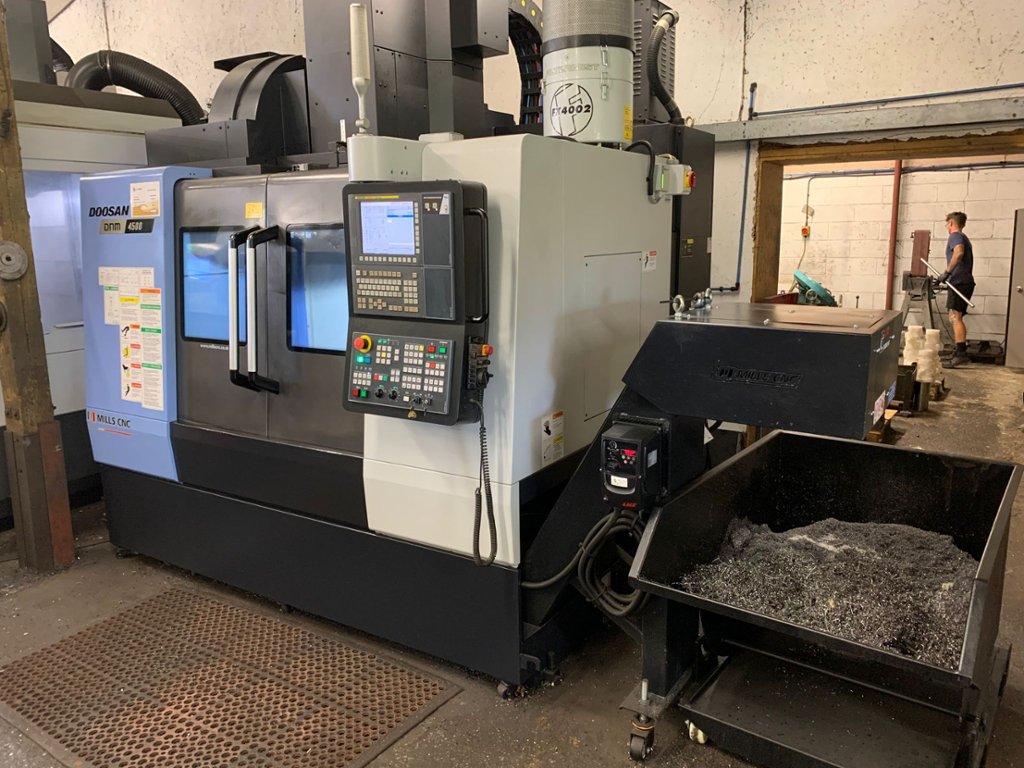

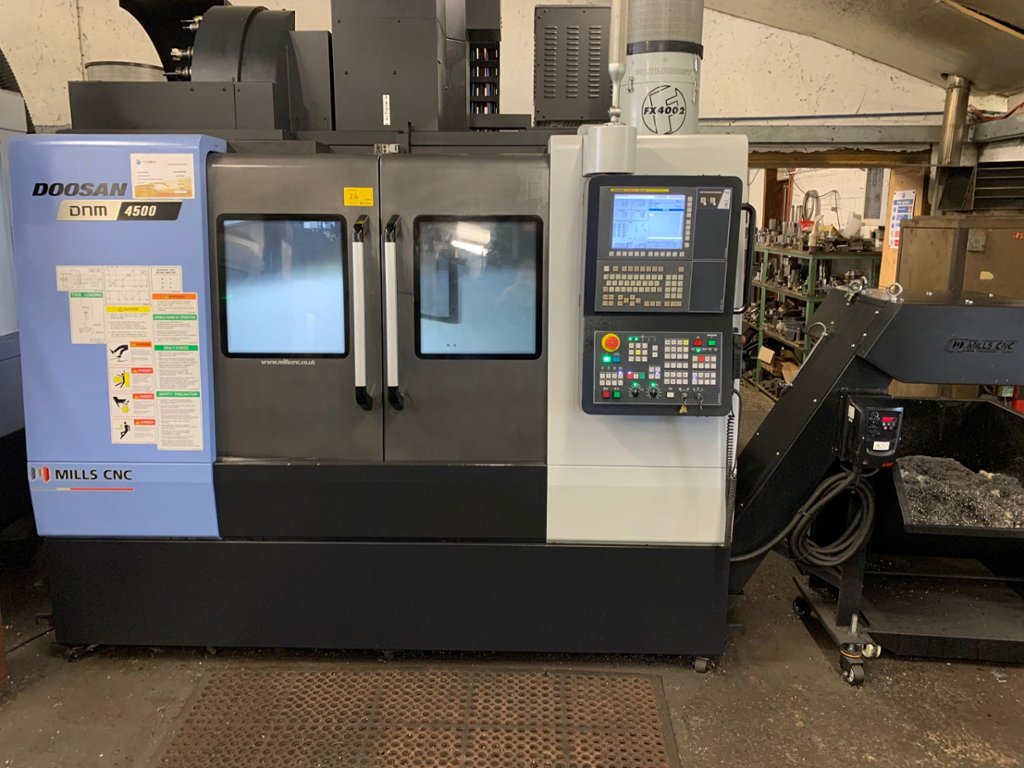

Doosan DNM 4500 Vertical Machining Centre (2019)

Lot 1 - Doosan DNM 4500 Vertical Machining Centre (2019)

Description:

X Axis Travel distance 800 mm
Y Axis Travel distance 450 mm
Z Axis Travel distance 510 mm
X Axis Rapid Traverse 36 m/min
Y Axis Rapid Traverse 36 m/min
Z Axis Rapid Traverse 30 m/min
Max. Spindle Speed 12000 r/min
Max. Spindle Power 18.5 kW
Max. Spindle Torque 117.8 N·m

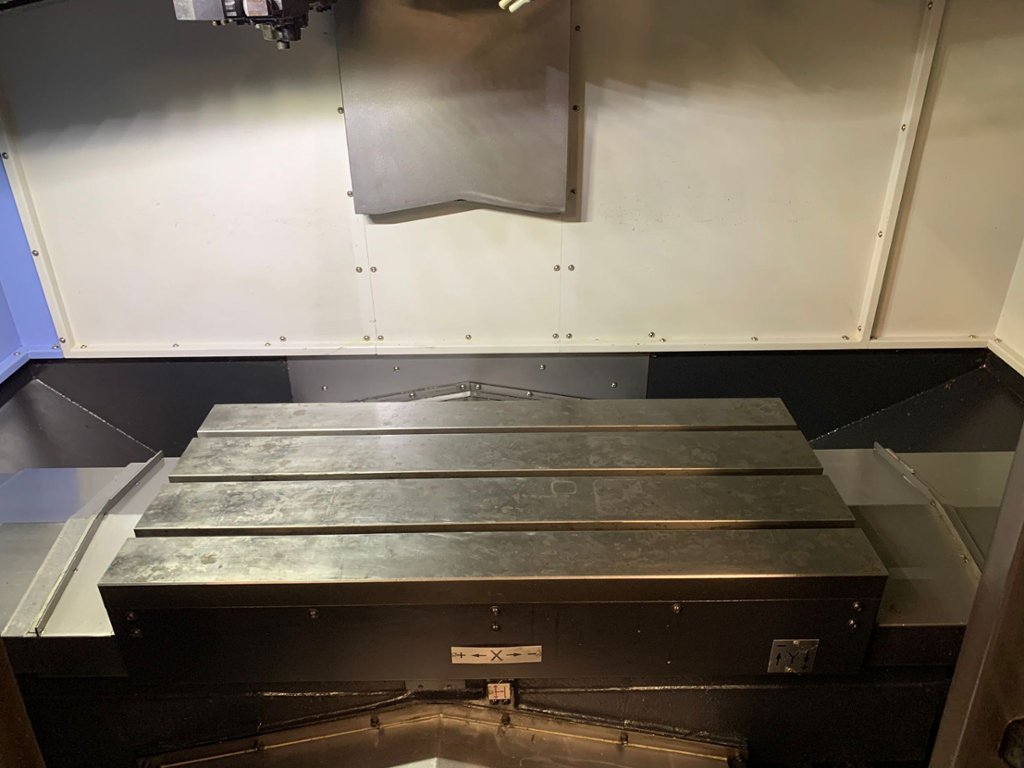

Table Length 1000 mm
Table Width 450 mm
Max. Table Weight 600 kg
No. of tool station 30

Through spindle coolant

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
