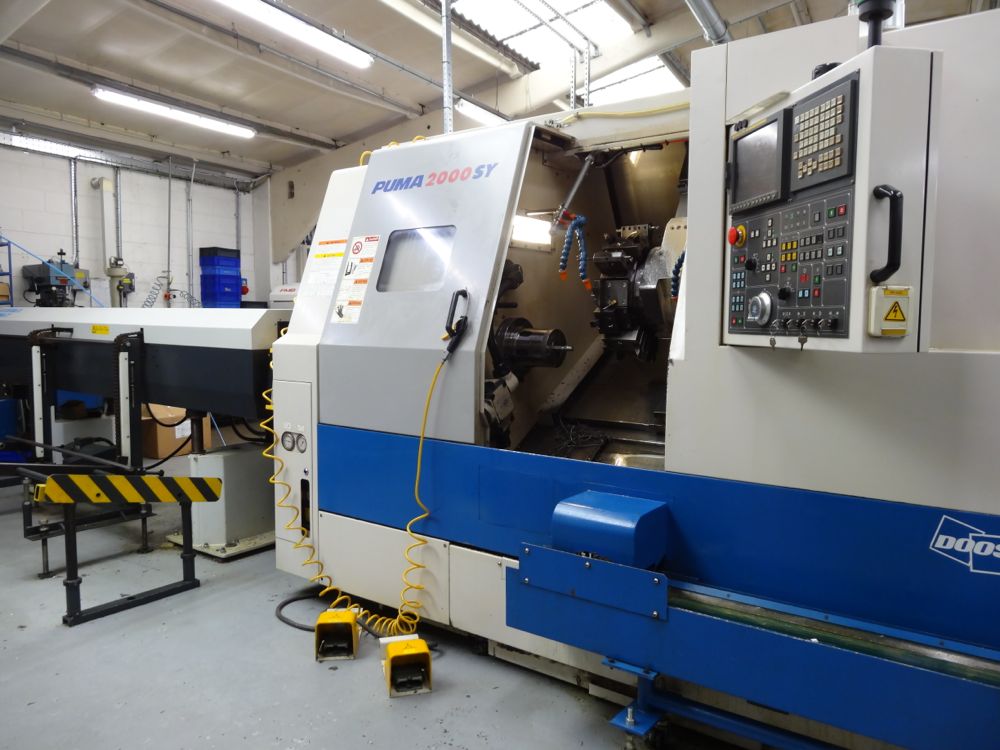

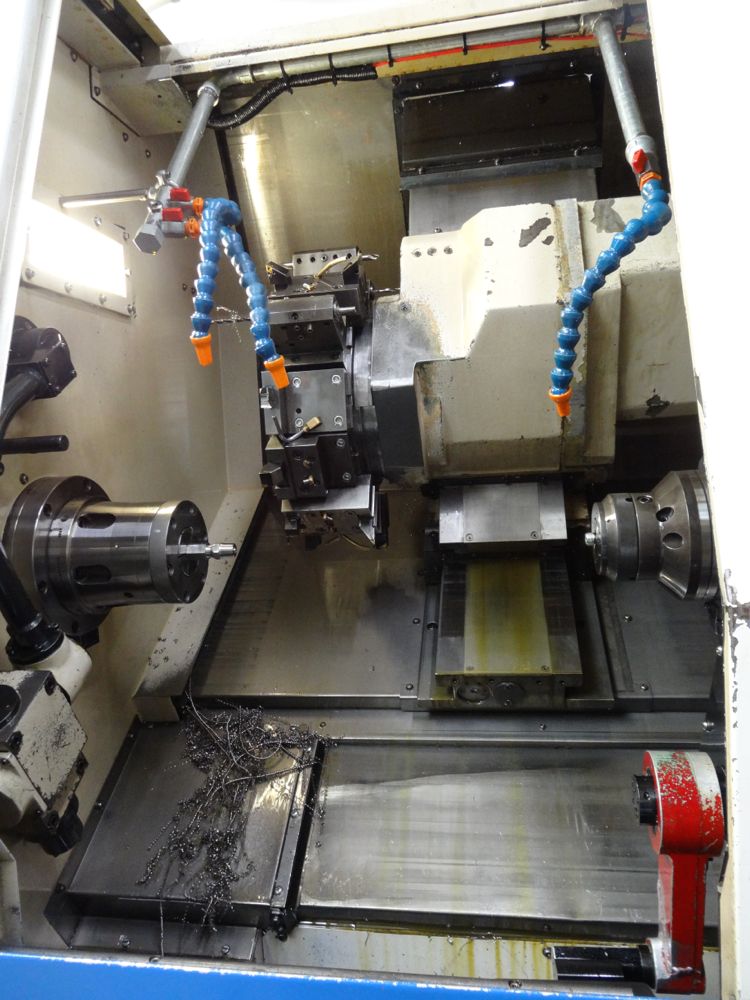

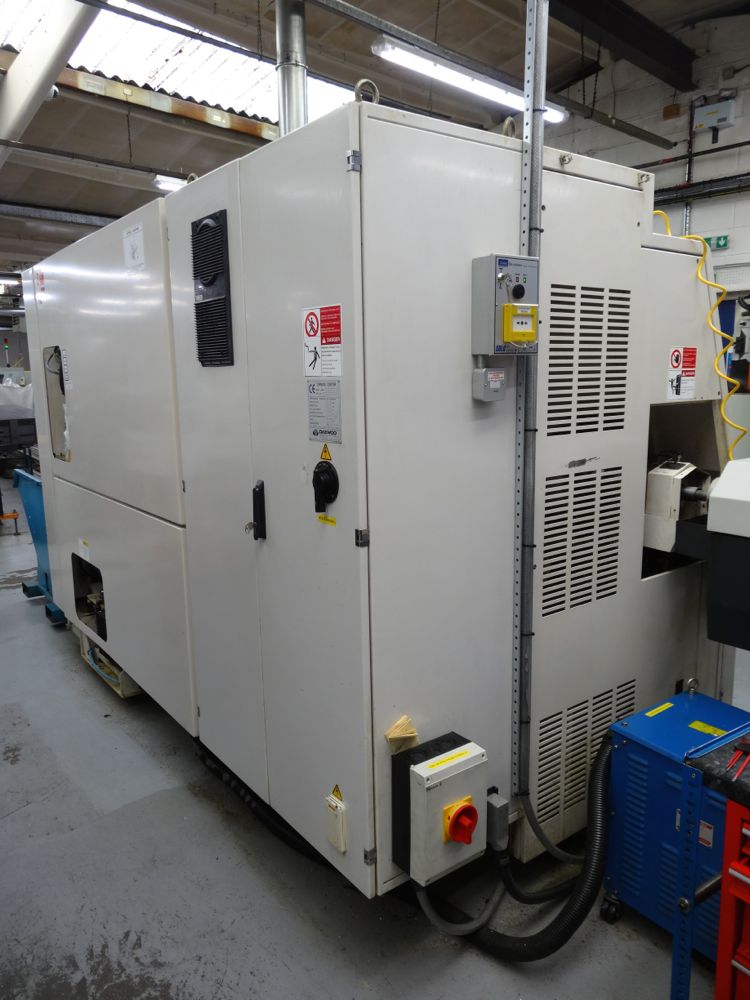

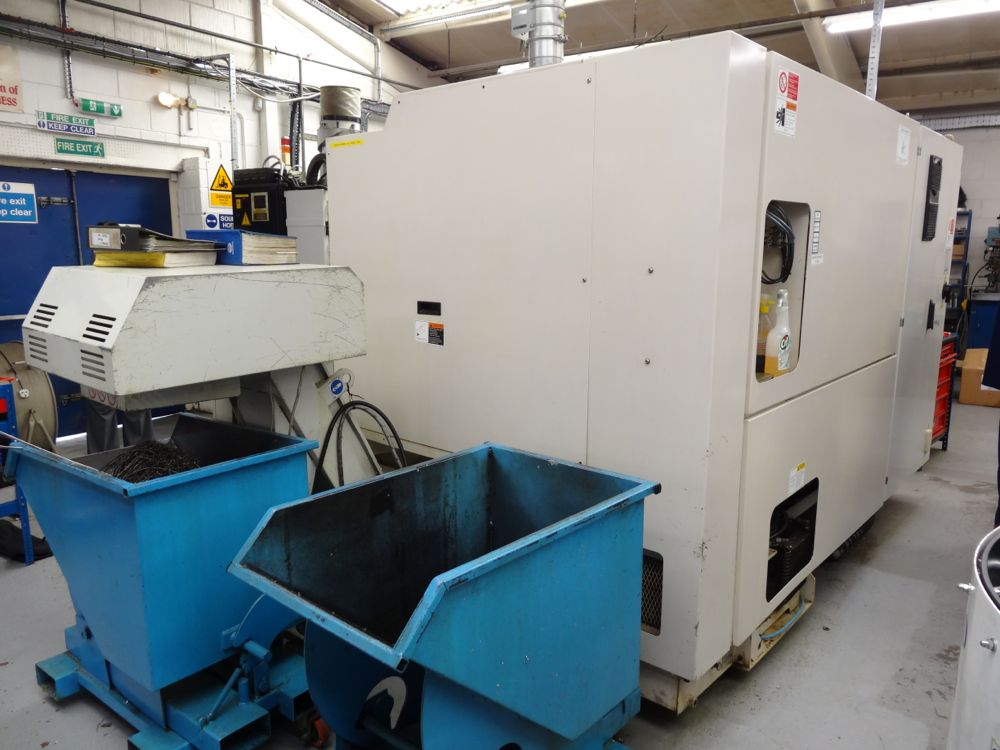

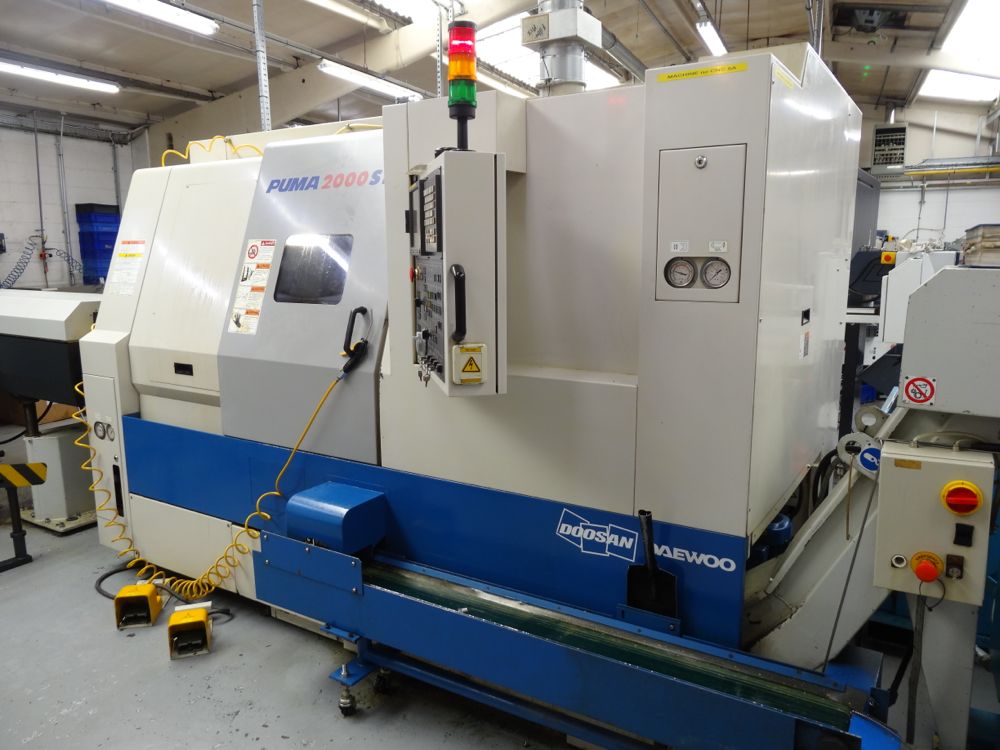

Doosan Puma 2000SY 5 Axis CNC Lathe, LNS Bar Feed and Driven Tooling Package

Lot 1 - Doosan Puma 2000SY 5 Axis CNC Lathe, LNS Bar Feed and Driven Tooling Package

Description:

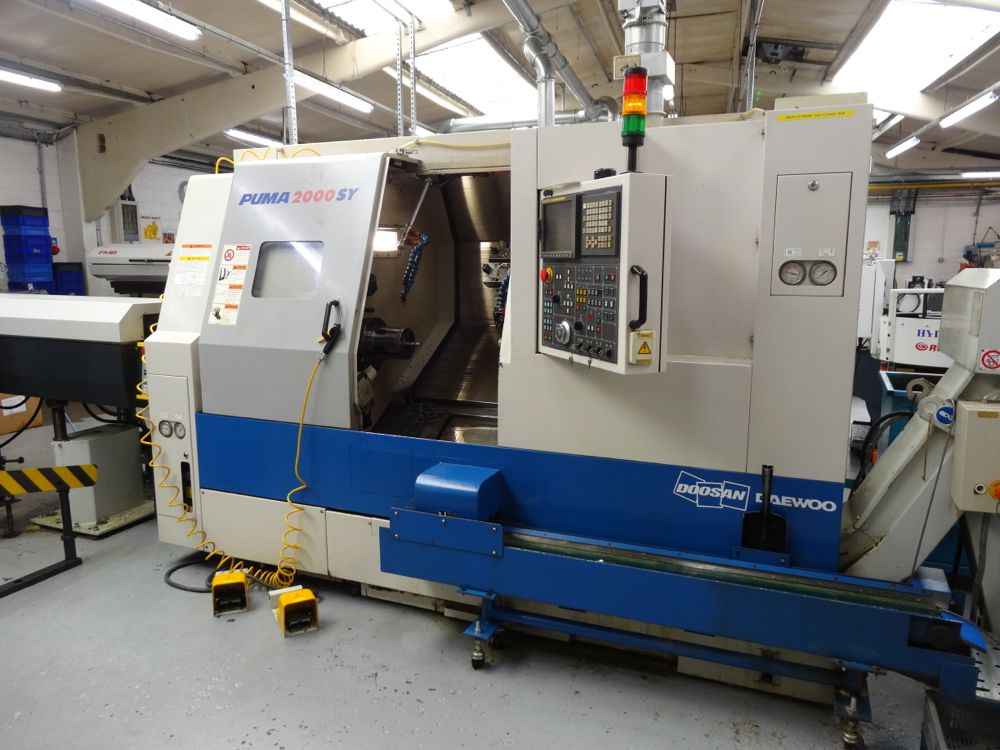

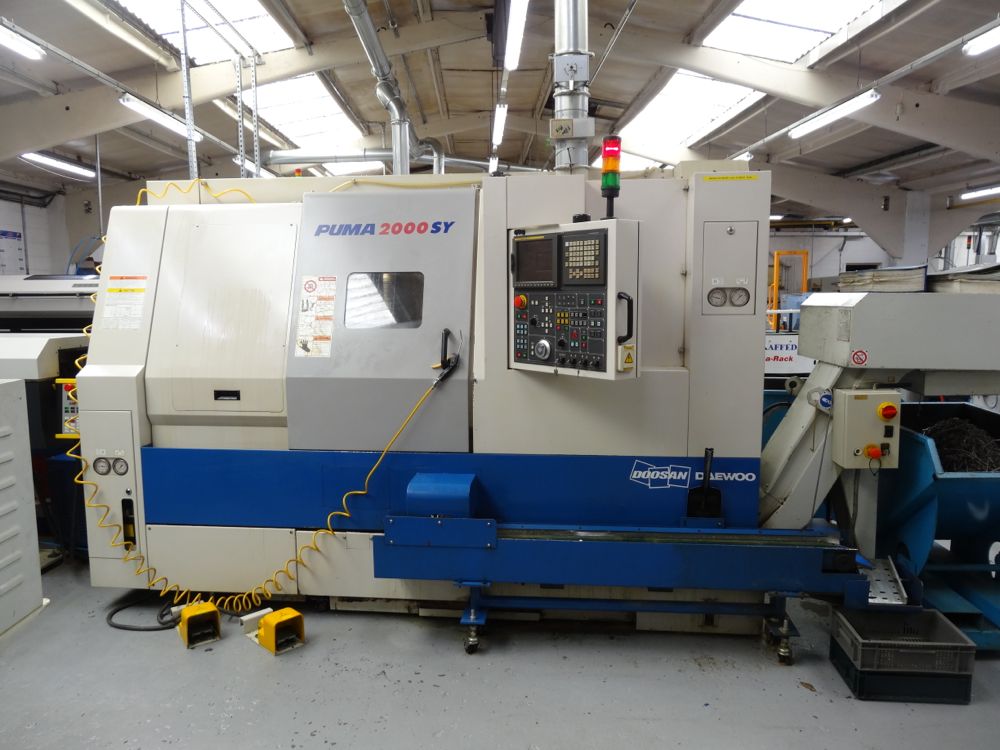

Doosan Daewoo Puma 2000SY 5 Axis LNS Hydrobar Sprint Bar Feed with Driven Tooling Package

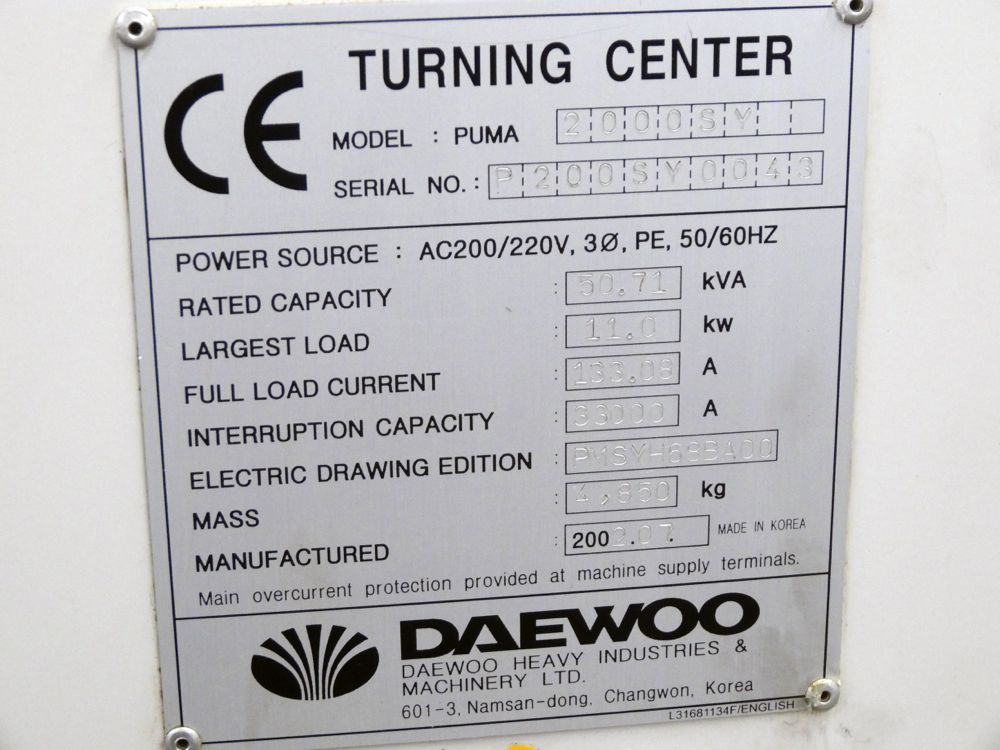

S/N: P200SY0043
Date: 07/2002

Approximate Machine Mass: 4850Kg
LxWxH: 3118x1750x2076 mm
Power Source: 3 Phase, 220V 60Hz

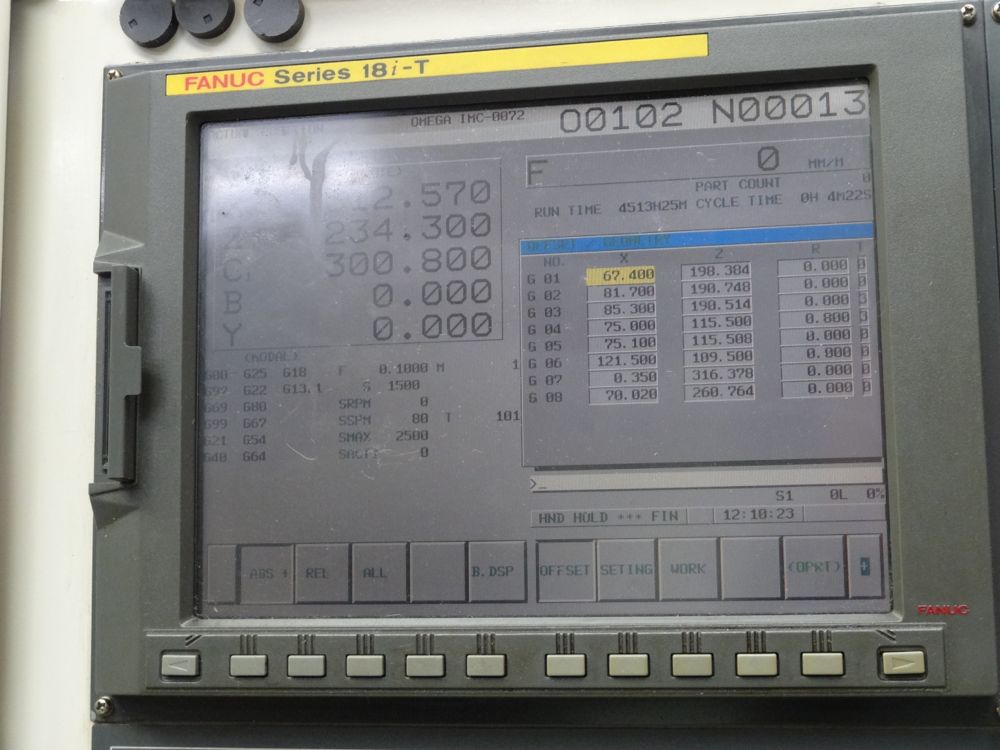

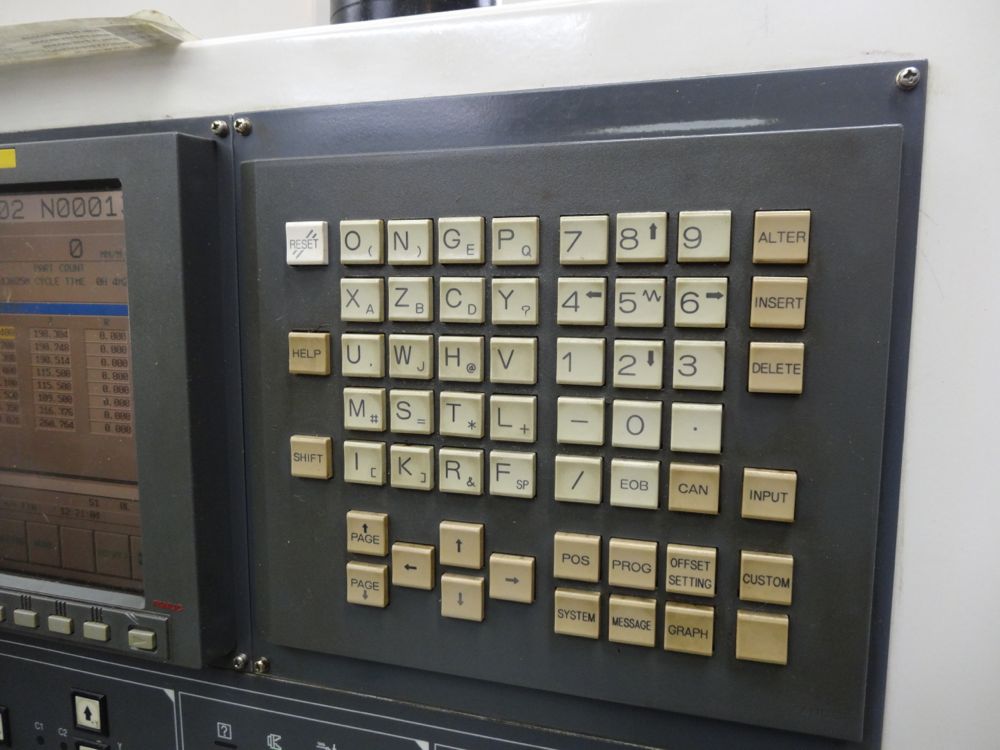

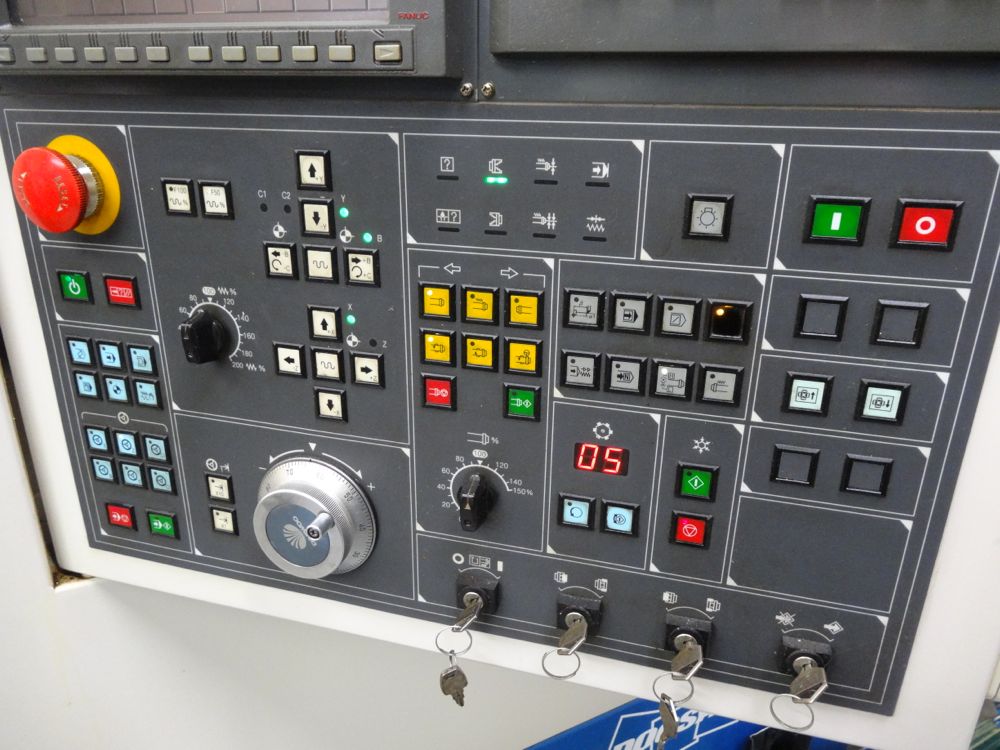

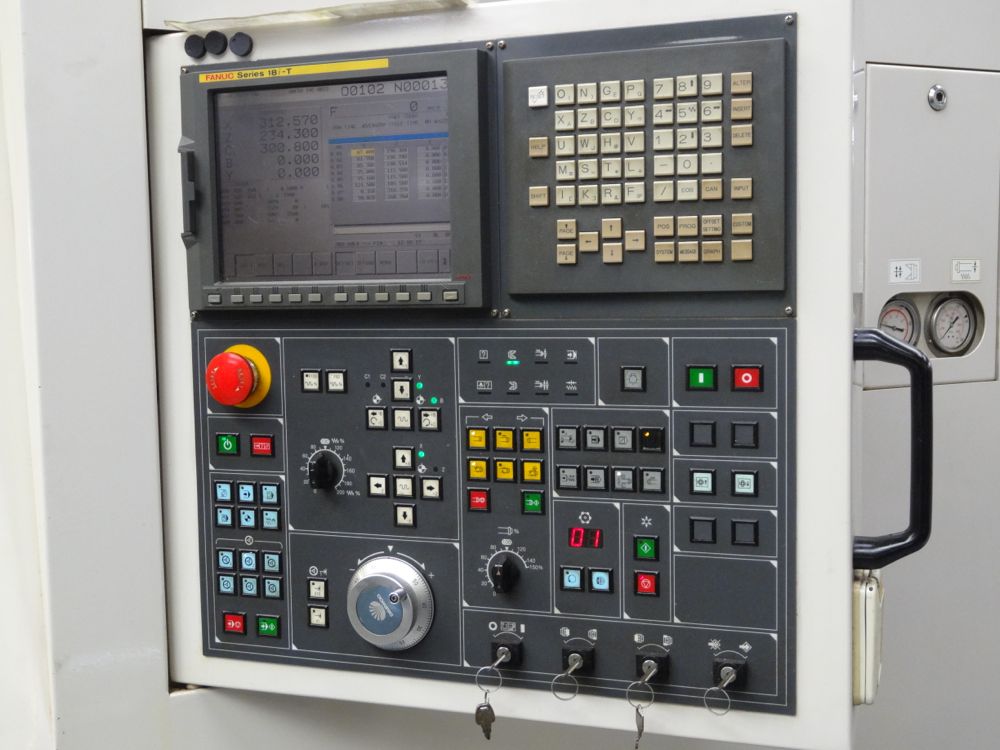

Fanuc 18iT control

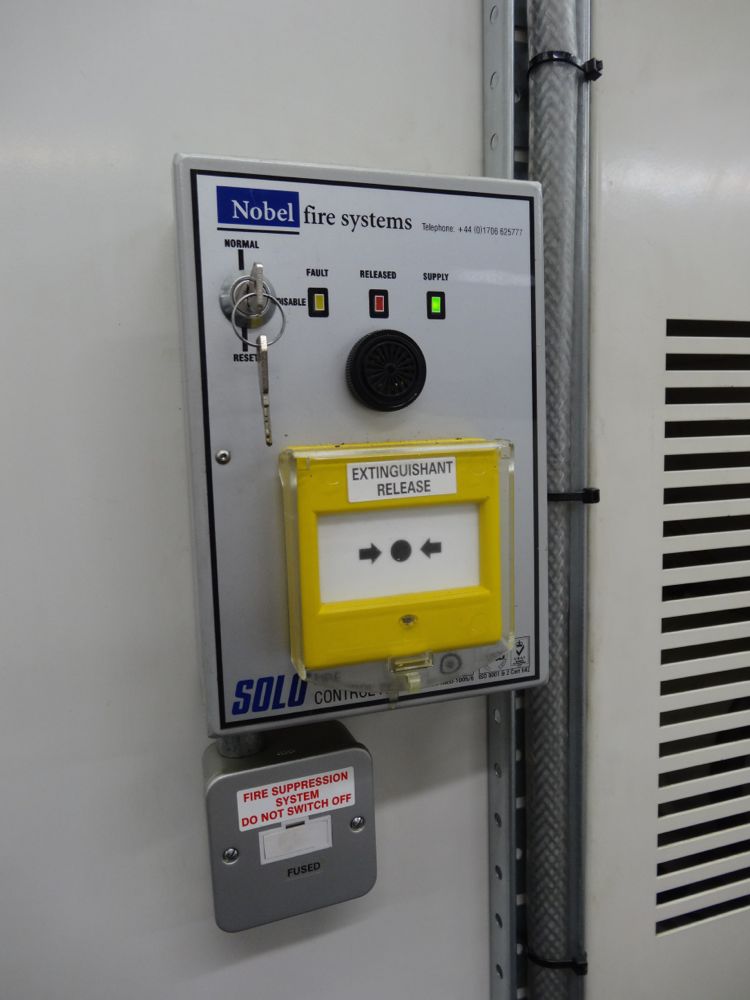

Nobel fire suppression system

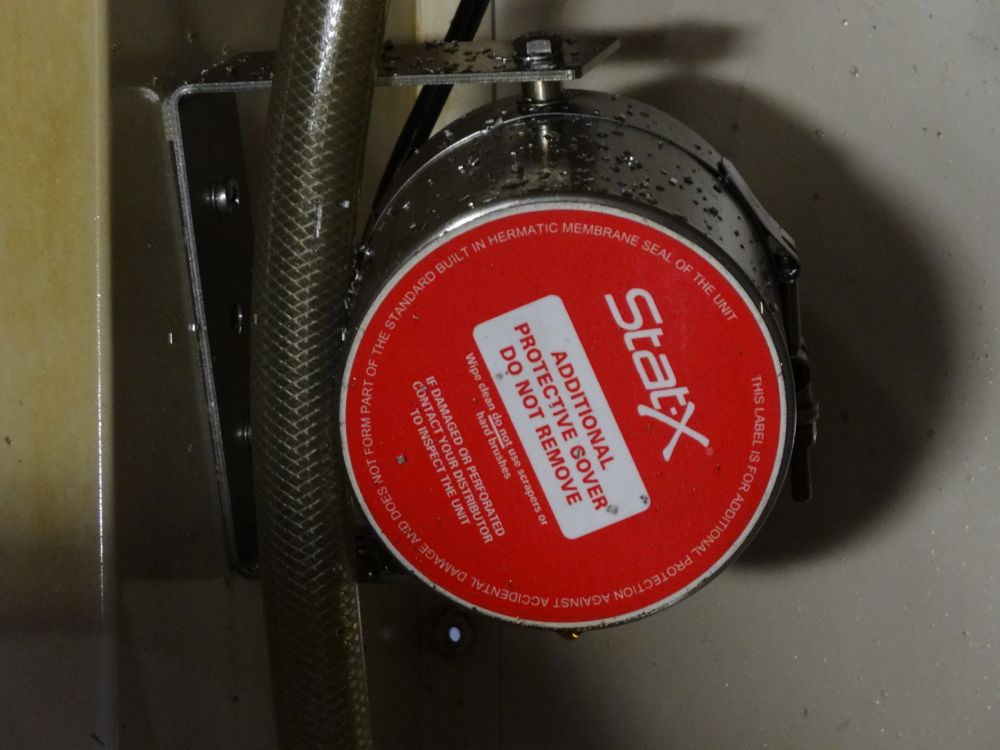

Stat-x

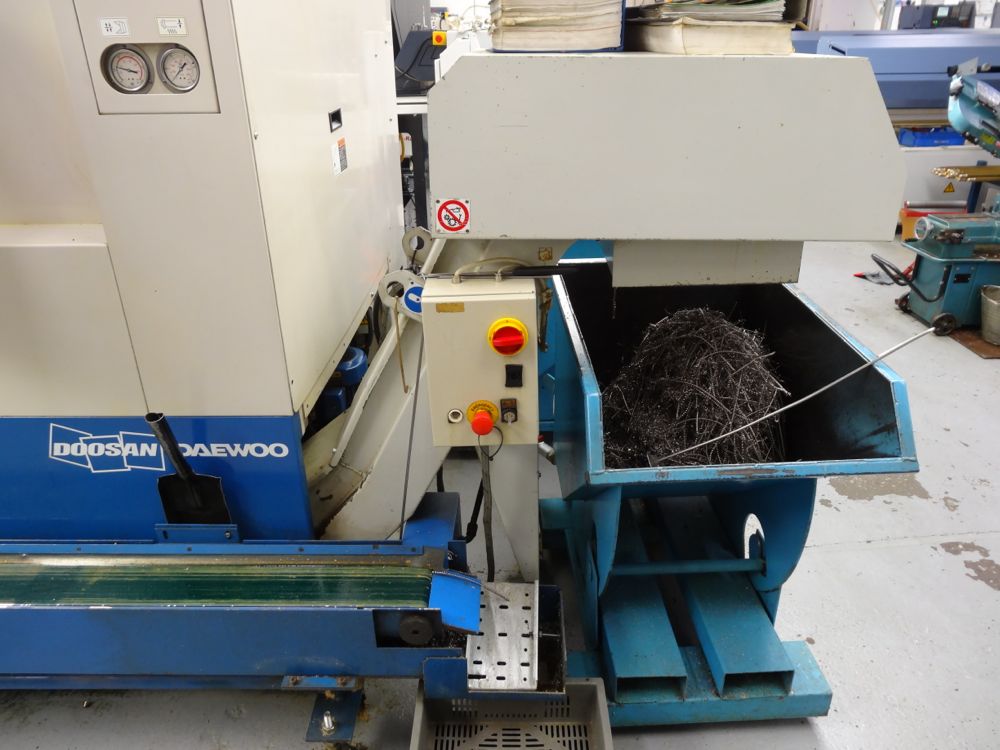

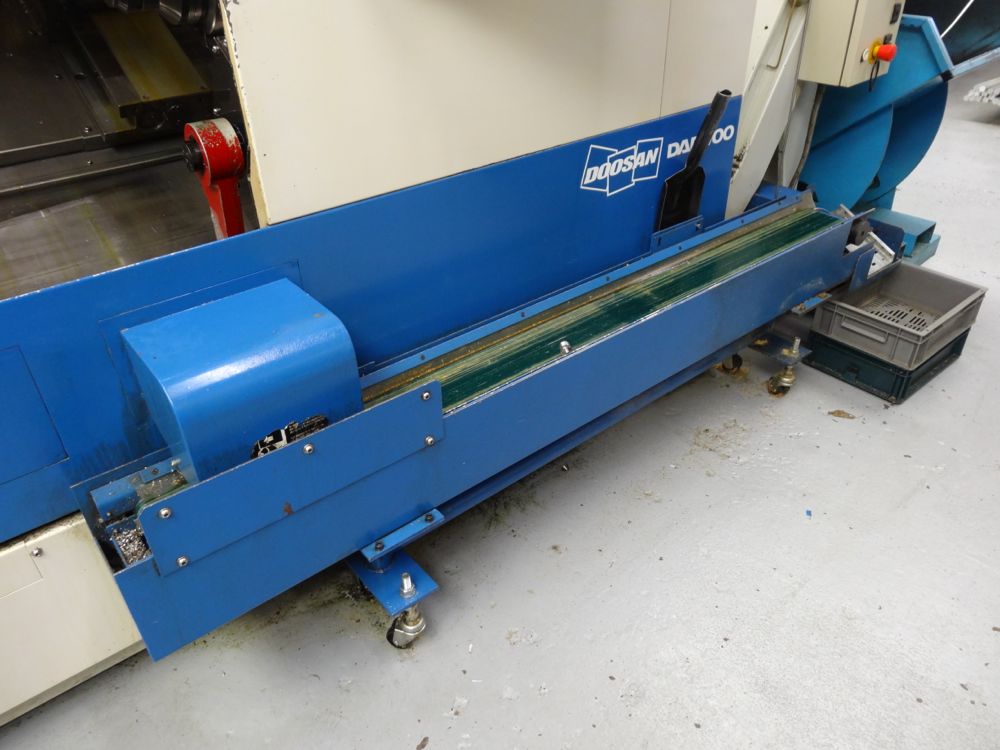

Includes 1 swarf bin

Motors:
Main Spindle motor: 15 kW
Rotary Tool: 3.7 kW
Sub Spindle motor: 7.5 kW
coolant pump motor: 0.4kW
Apparent Power: 58.19 kVA
Power Requirments: 48.30kW
Air Source: Pressure: 0.5MPa or higher
Discharge: 100NI/min or larger

Capacity:
Swing over bed: 600mm
Swing over saddle: 550mm
Recom turning dia:210mm
Max. turning dia: 330mm
Max turning length: 510mm
Bar Working Dia: 65mm

Travels:
X axis travel: 250mm
Y axis travel: 100mm
z axis travel: 580mm
B axis travel: 580mm

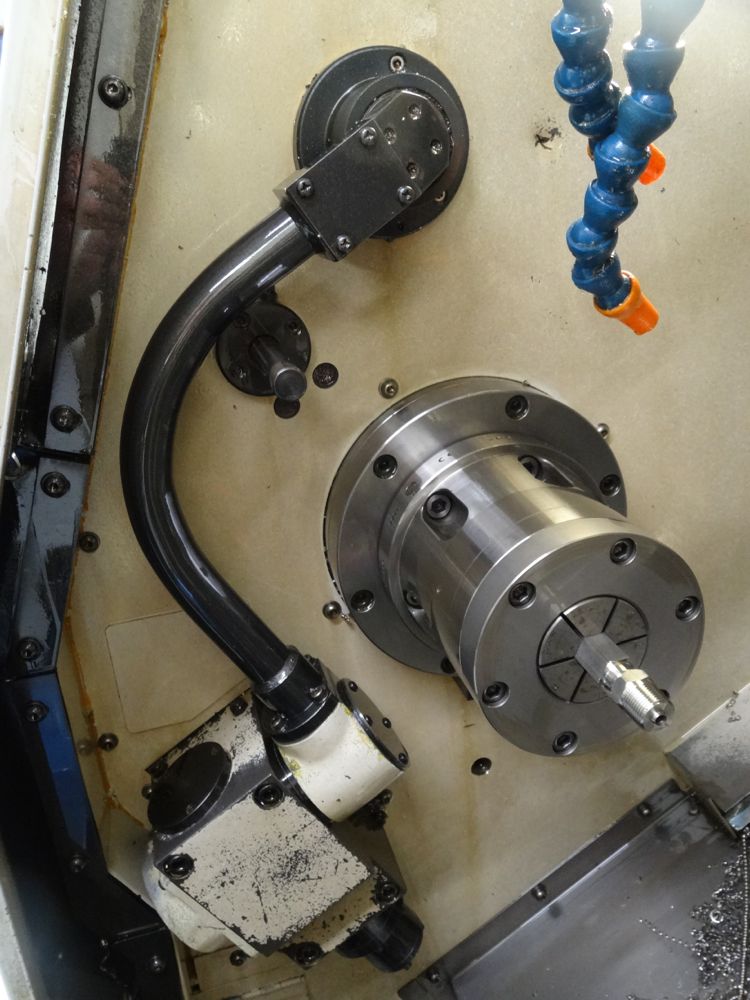

Main Spindle:
Spindle speed: 4500 rpm
Spindle bearing dia: 110mm
Spindle through hole dia: 76mm
Min. spindle indexing angle (C axis): 0.001

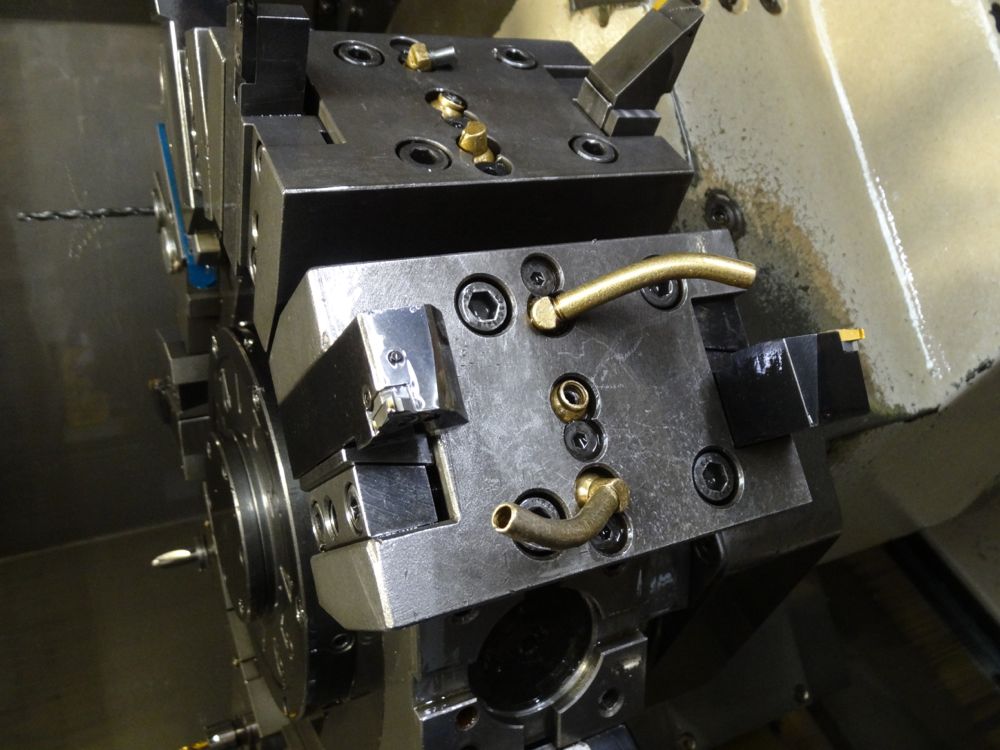

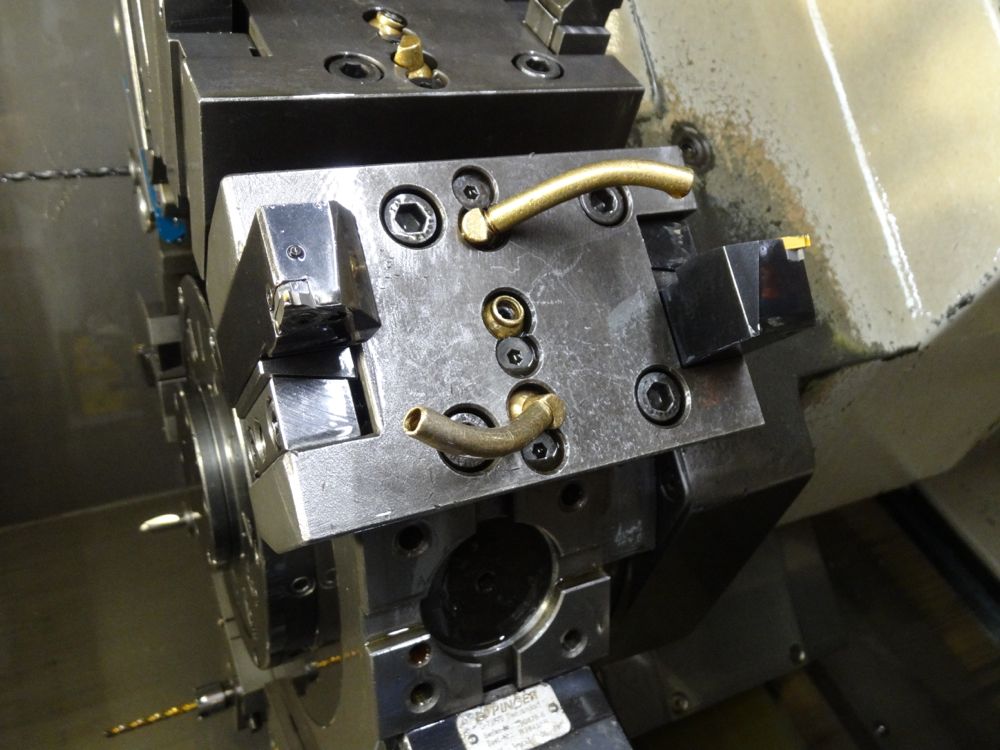

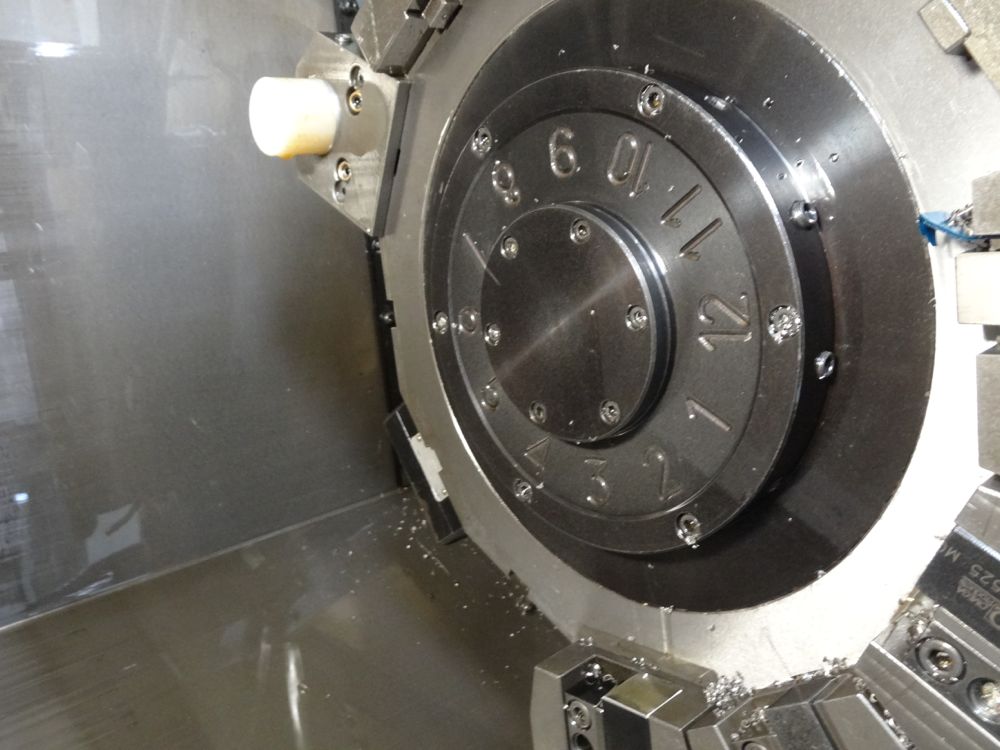

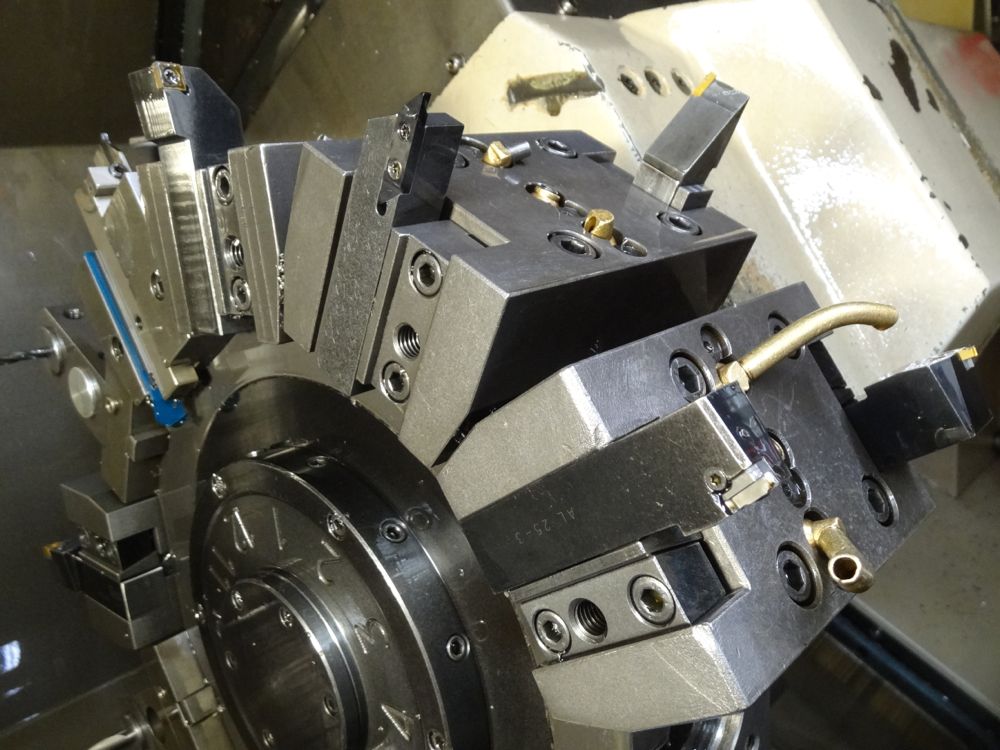

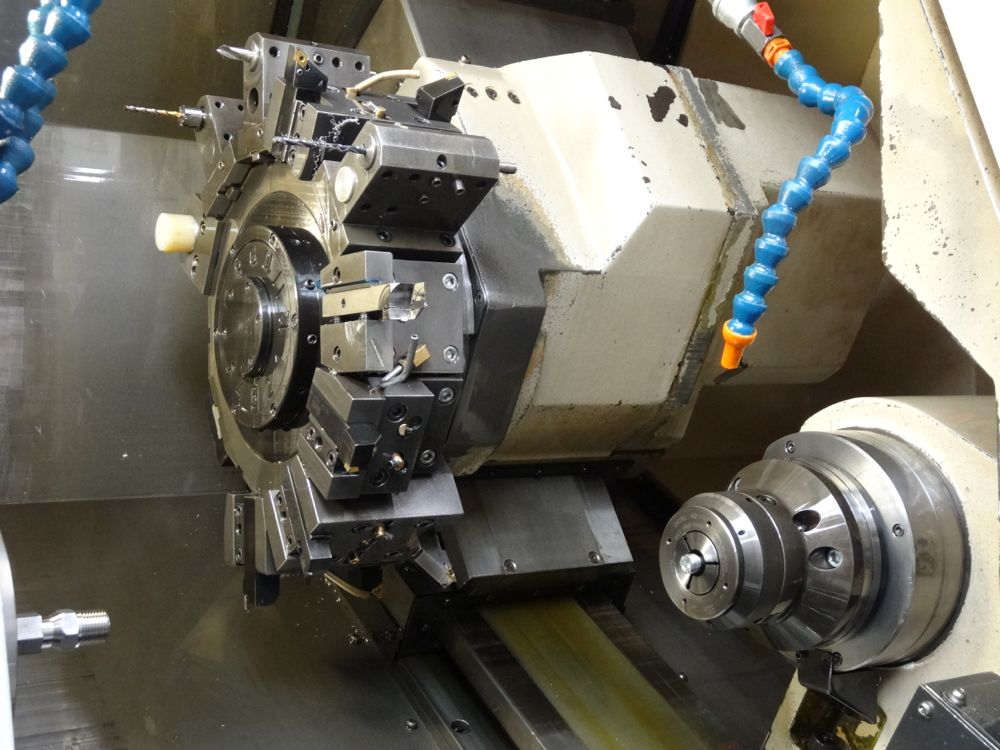

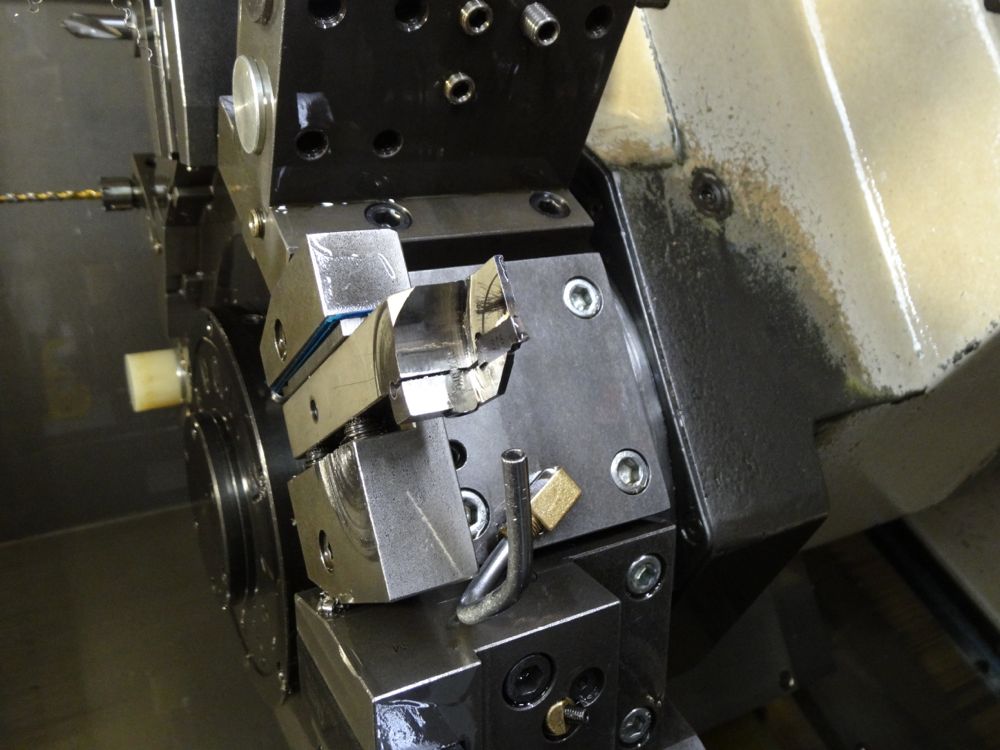

Turret:
No. of tool stations: 12
OD tool size: 25mm
Boring bar dia: 40mm
Indexing time: 0.1 sec
Rotary tool spindle speed: 6000 rpm
Spindle speed: 6000rpm
Spindle bearing diameter: 80mm
Spindle through hole diameter: 45mm
Min. spindle indexing angle (C axis): 0.001deg

Feedrate:
Rapid traverse (X/Z - axis): 20 m/min
Rapid traverse (Y - axis): 7.5m/min
Rapid traverse (B - axis): 20 m/min

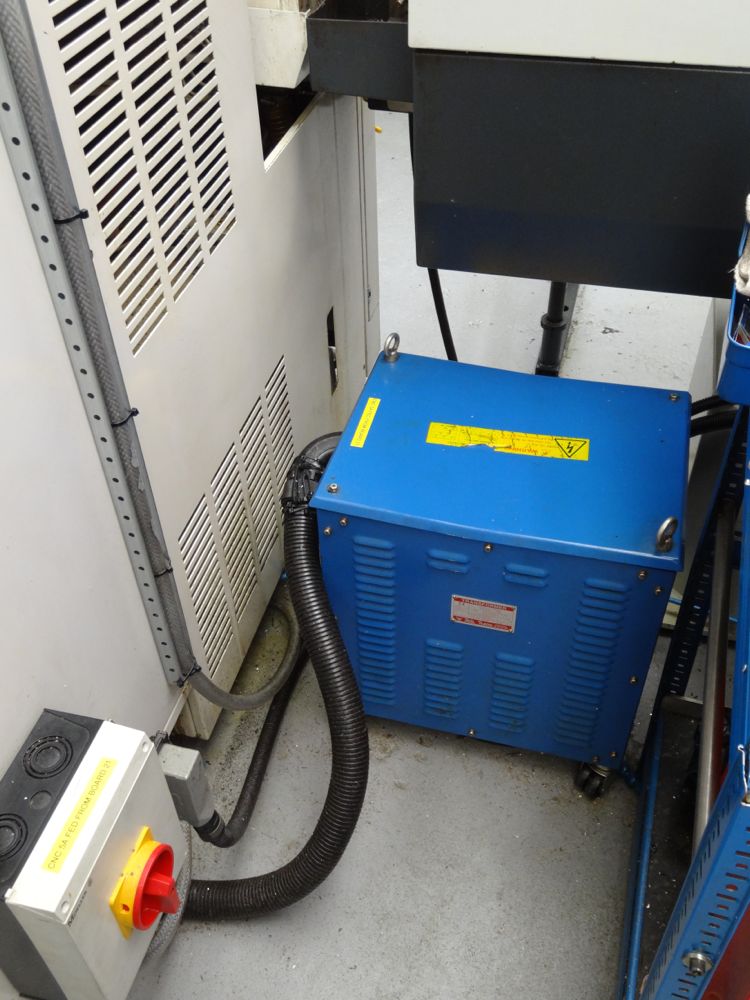

Transformer: Jeil Trans
S/N: 0067
Date: 07/2002
Weight: 290 kg
kVA: 50

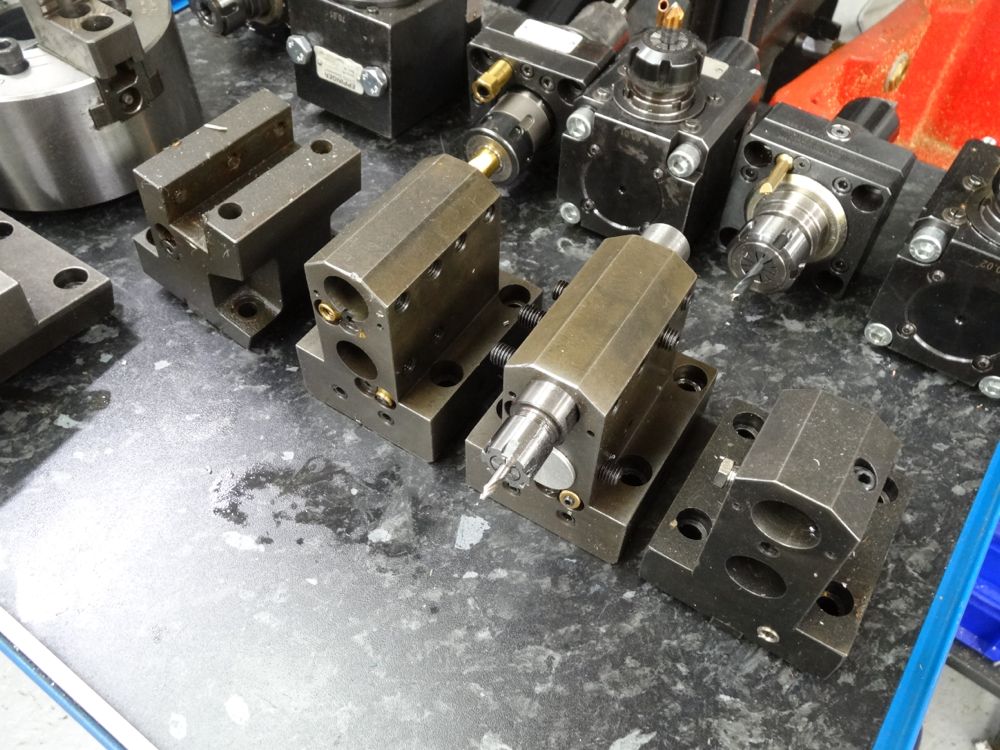

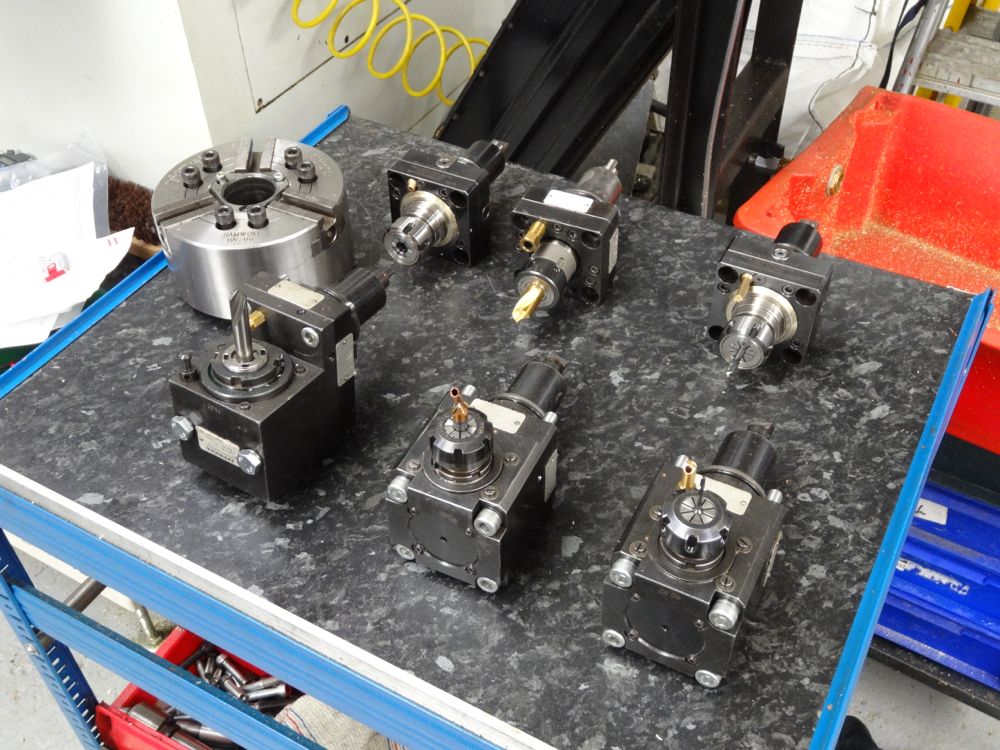

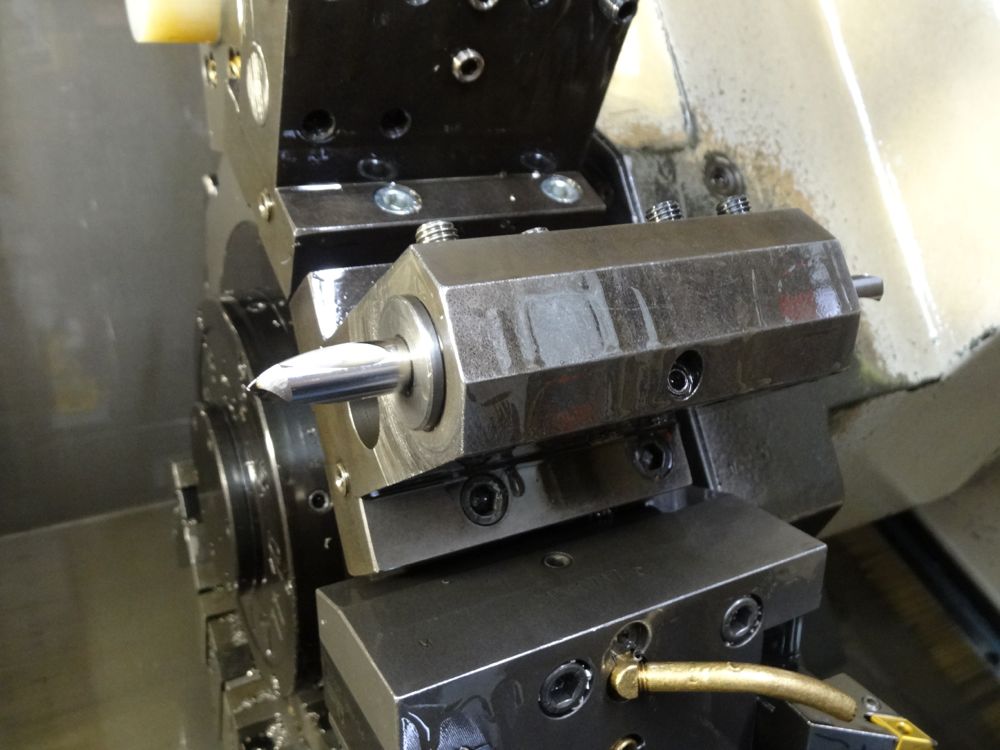

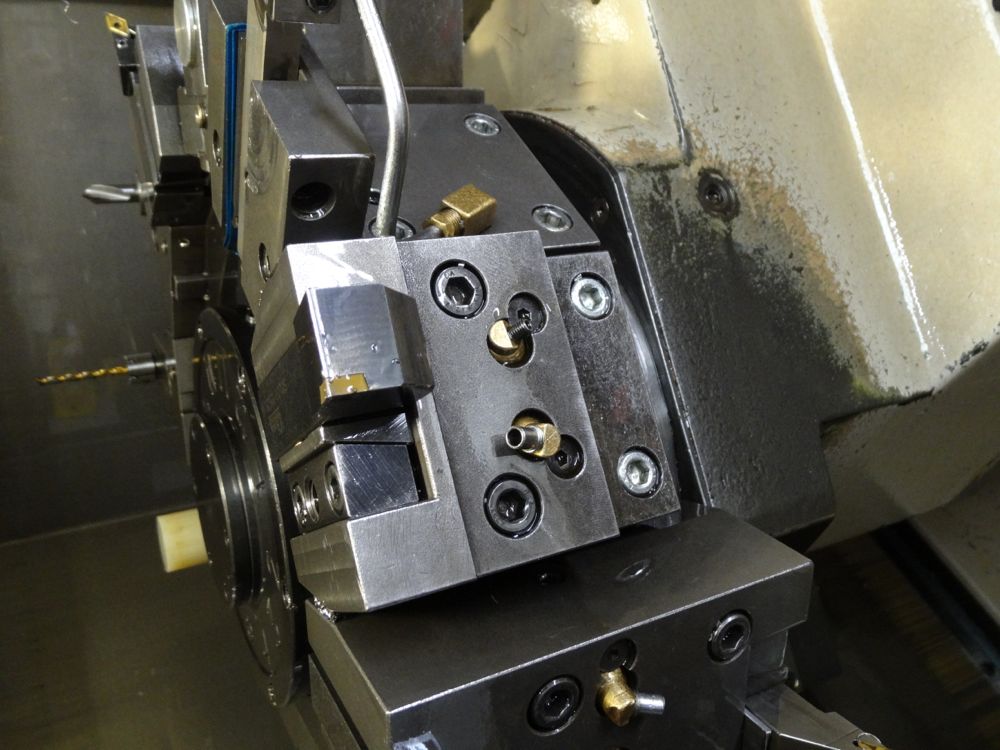

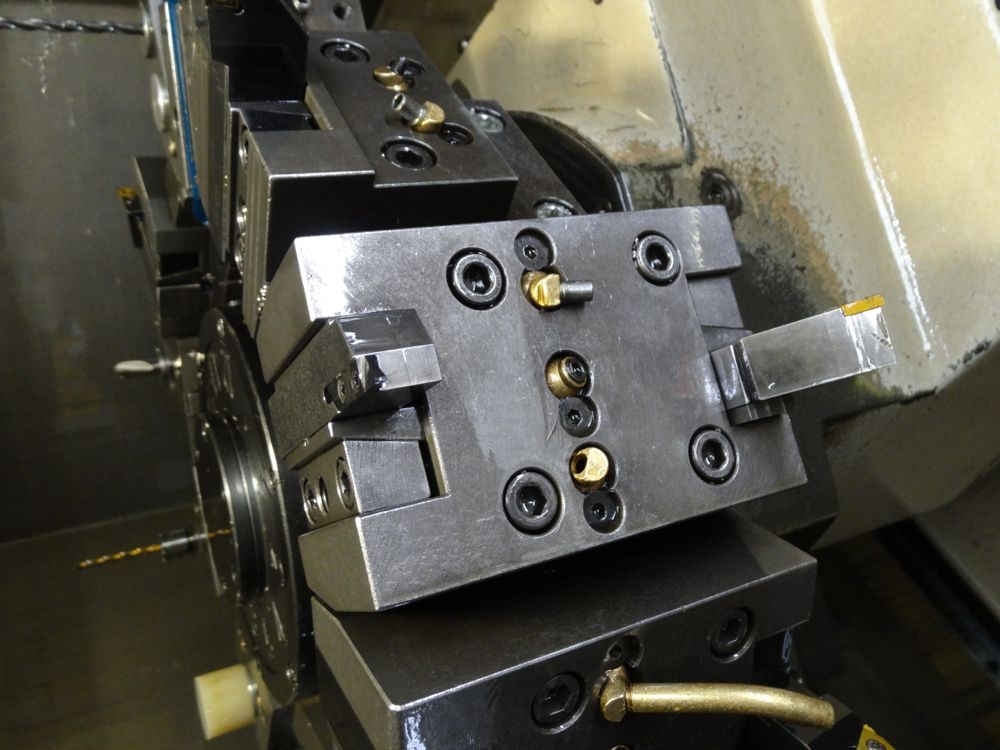

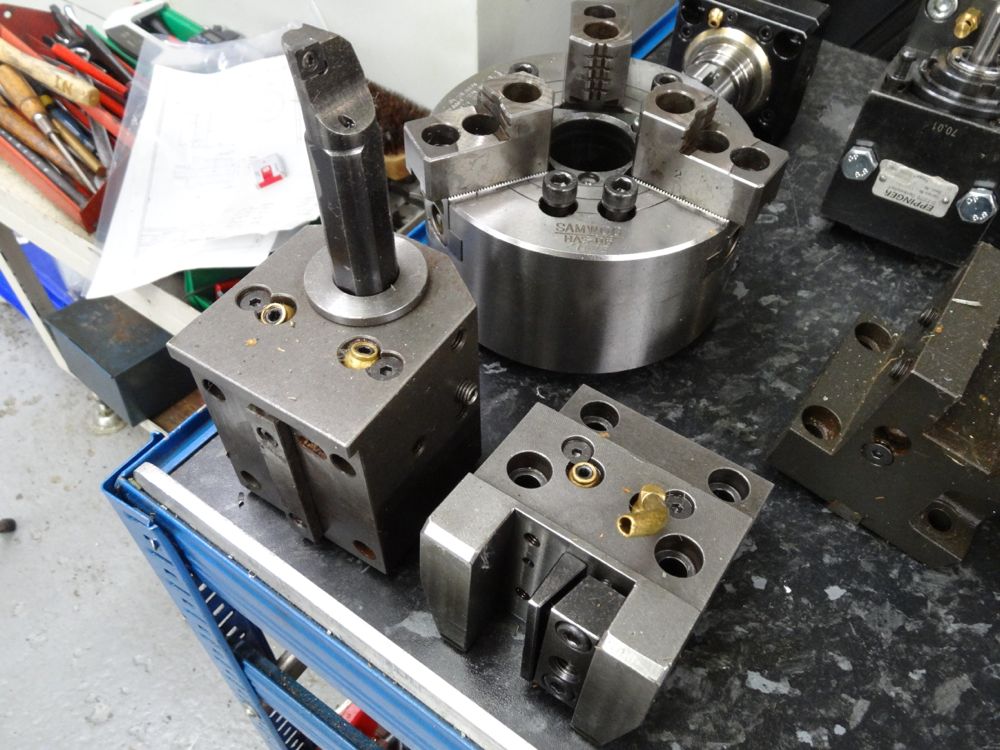

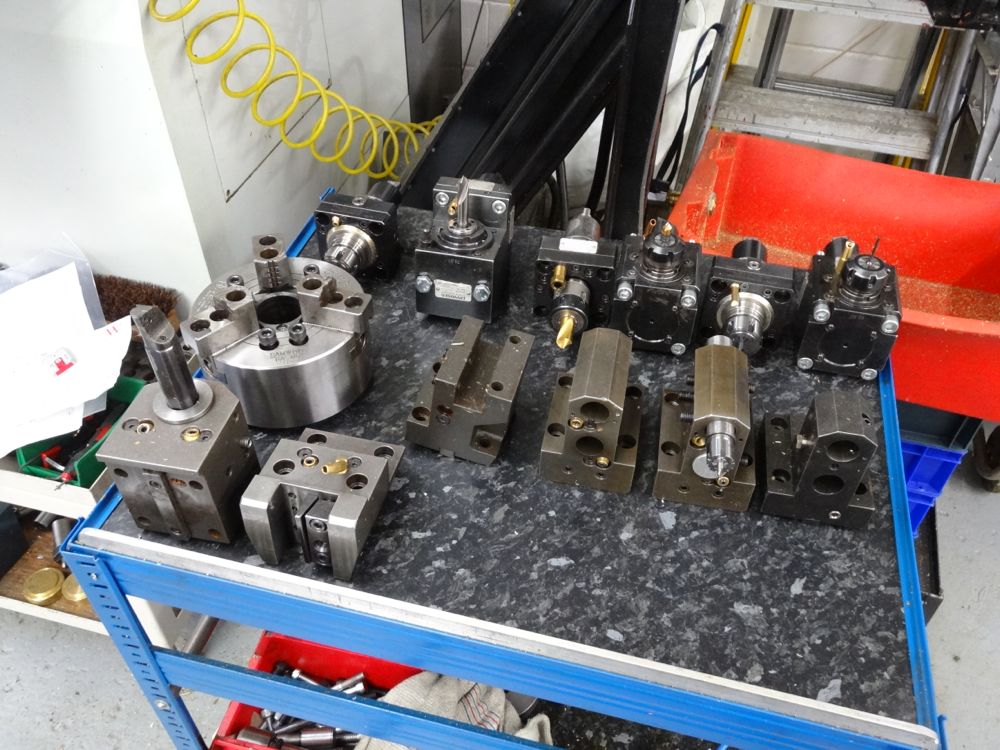

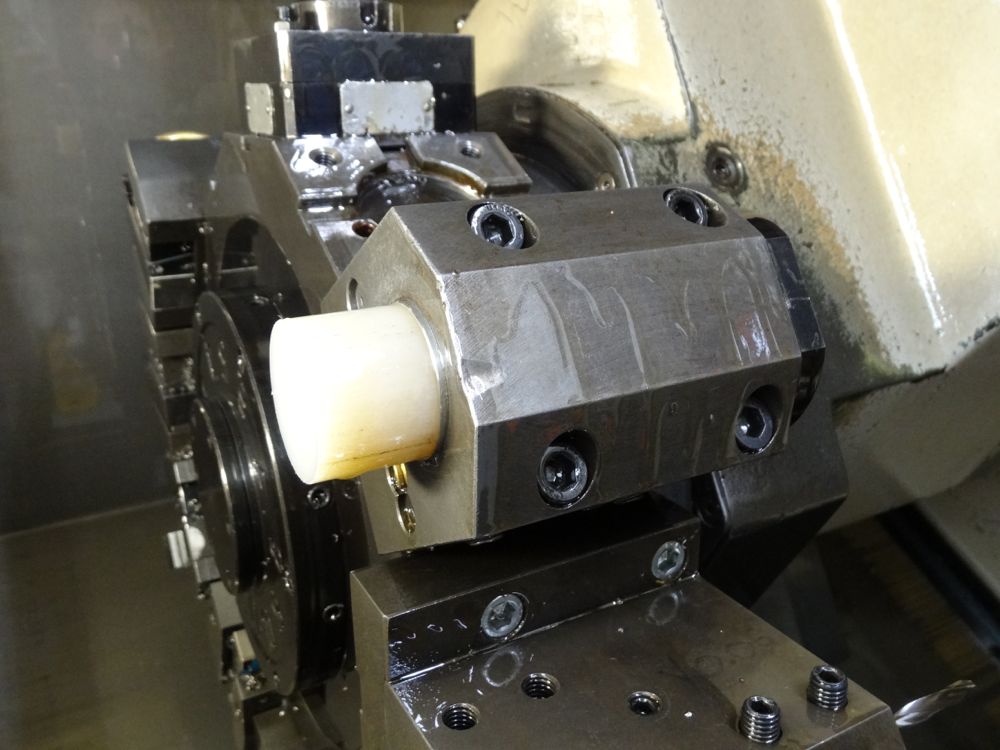

Tooling list:

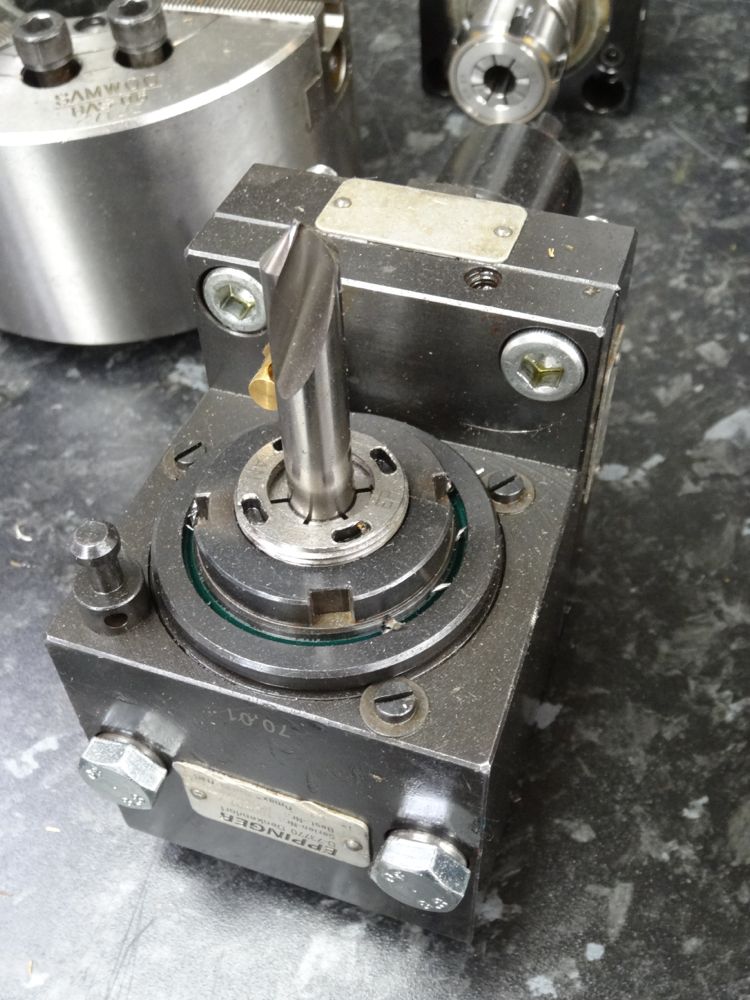

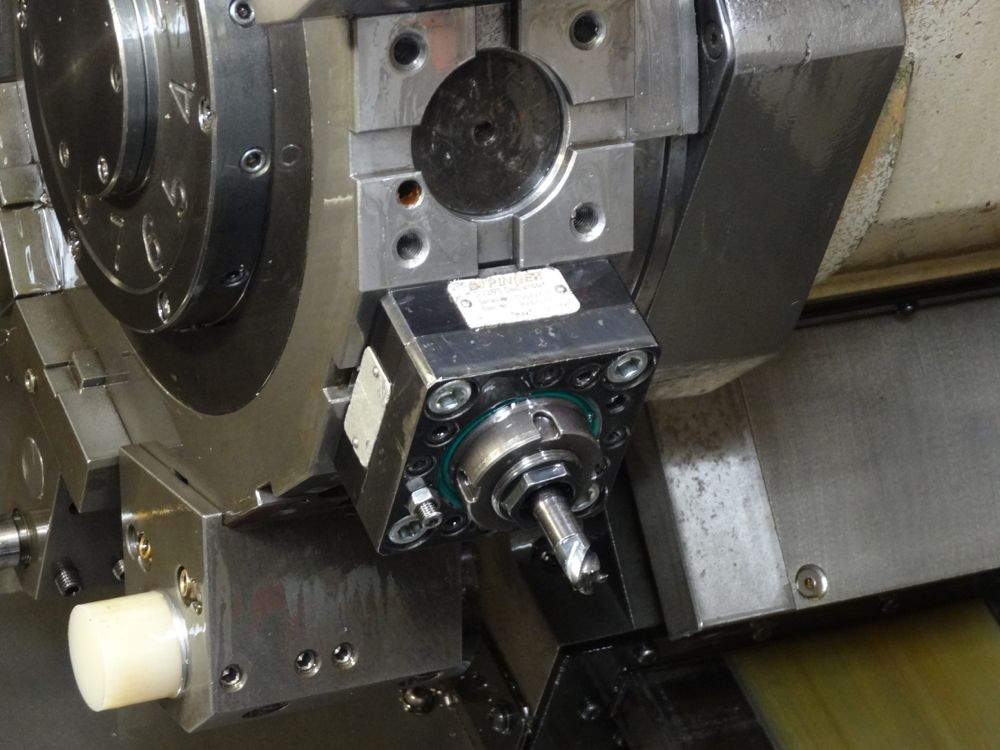

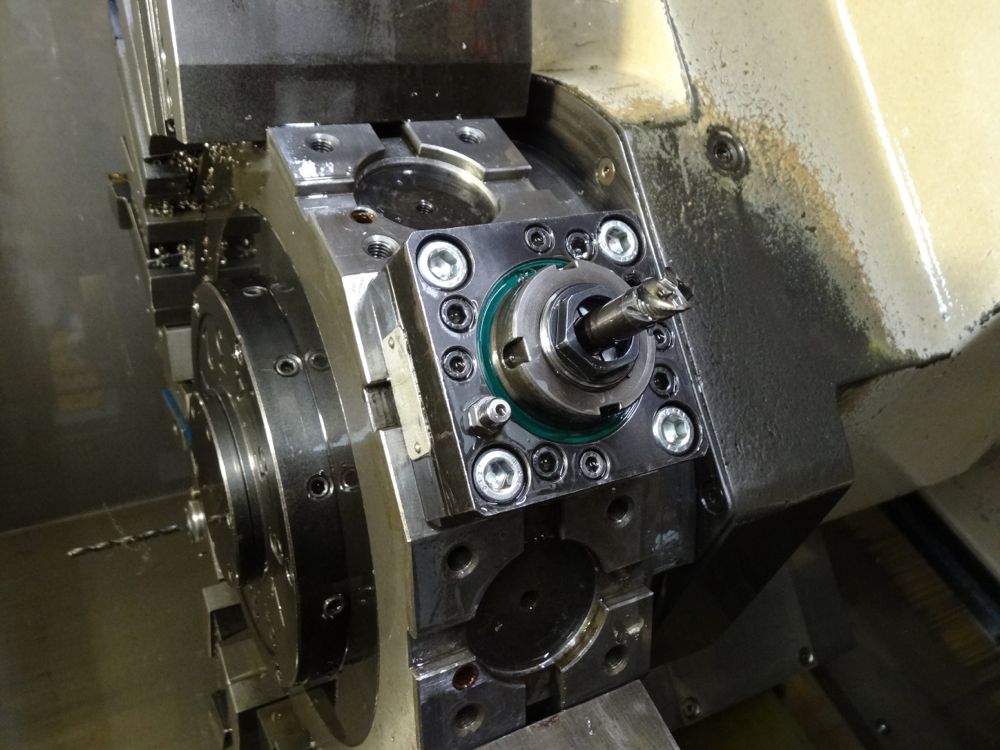

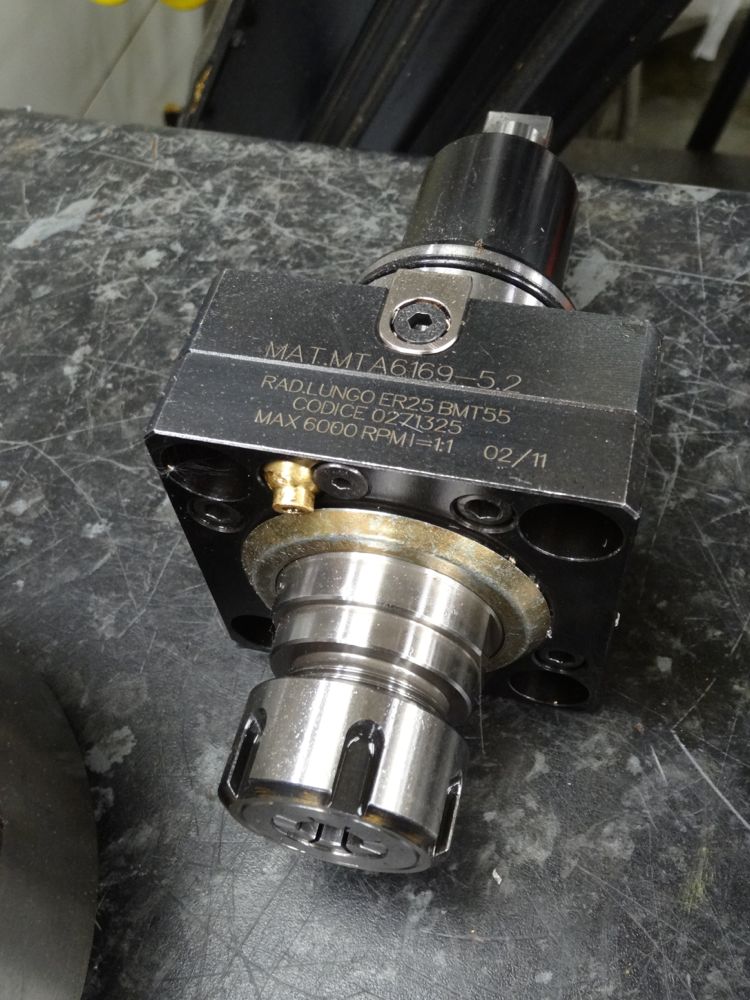

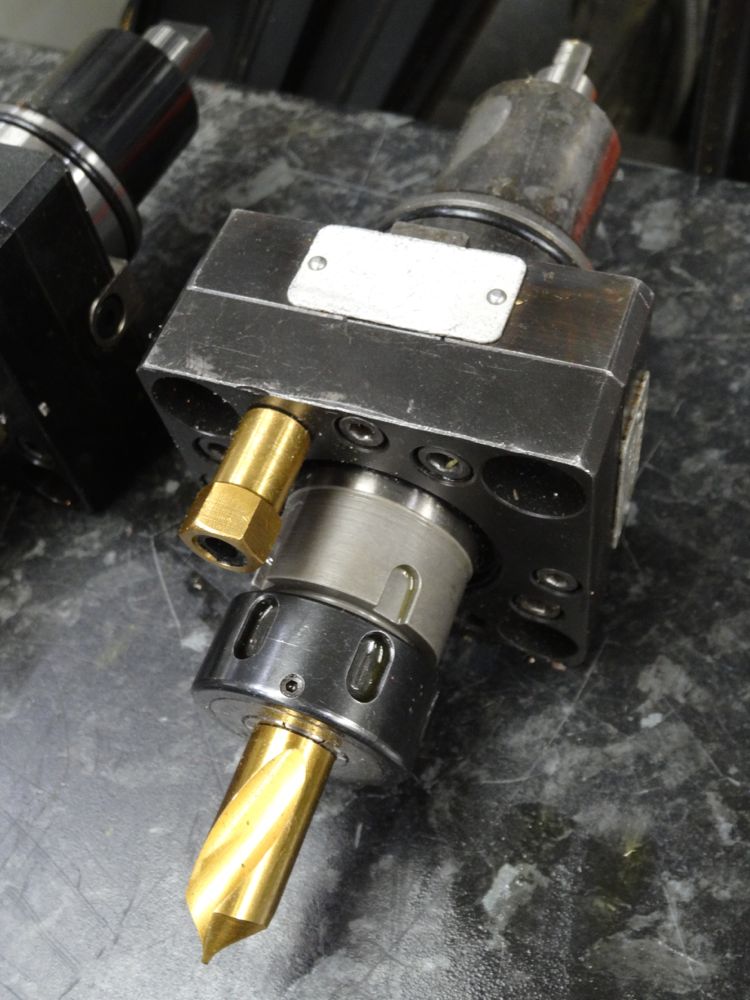

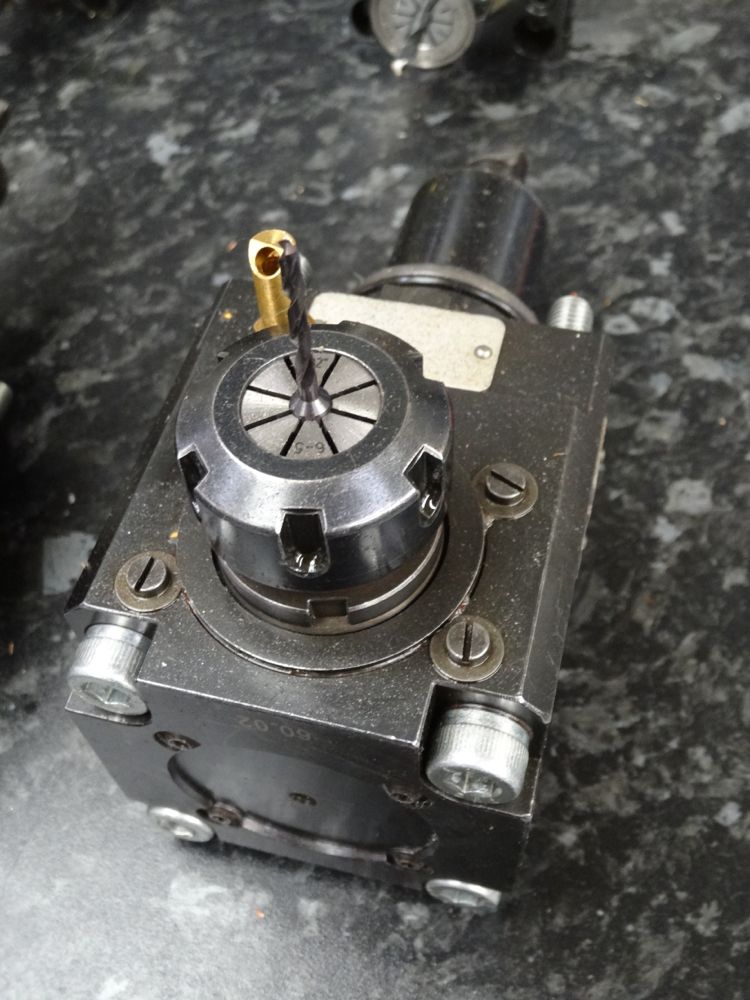

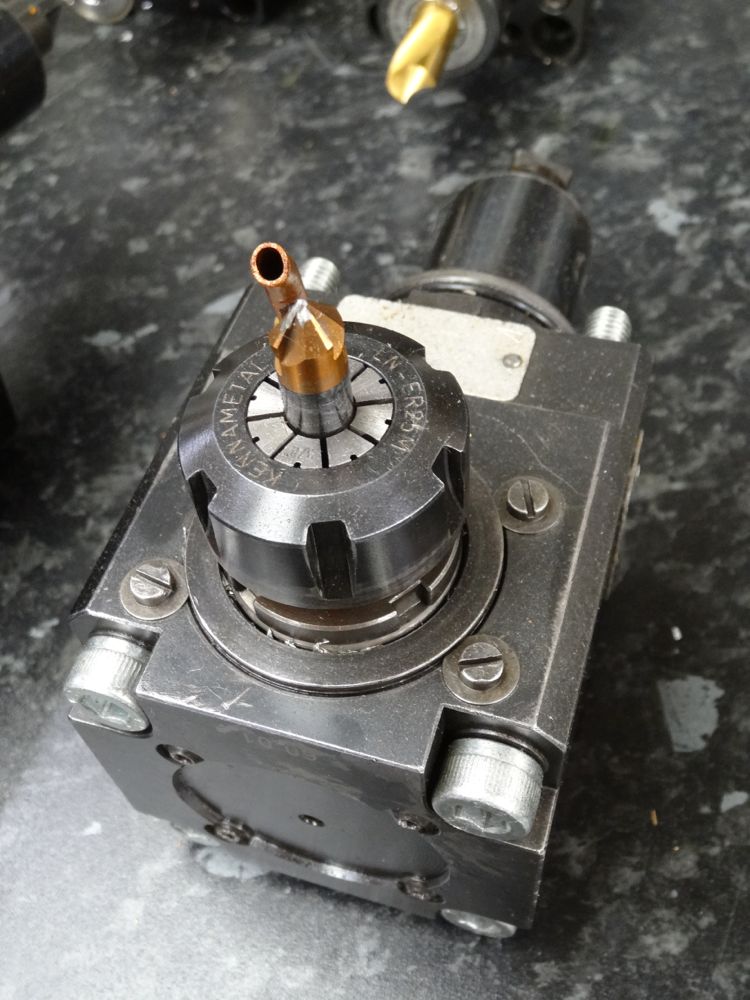

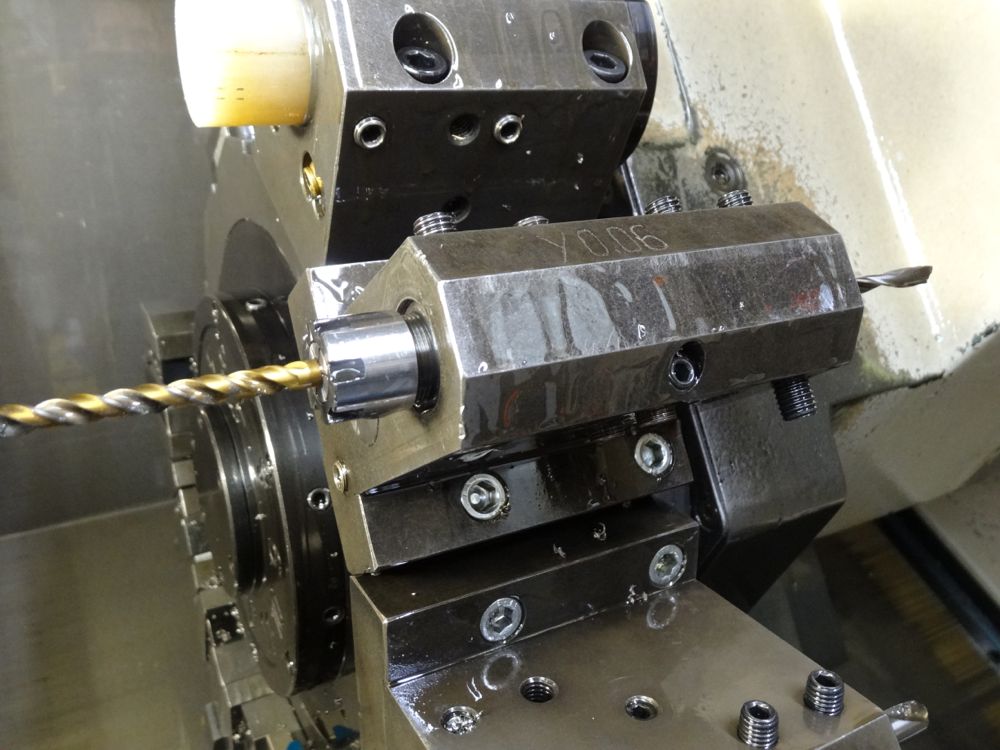

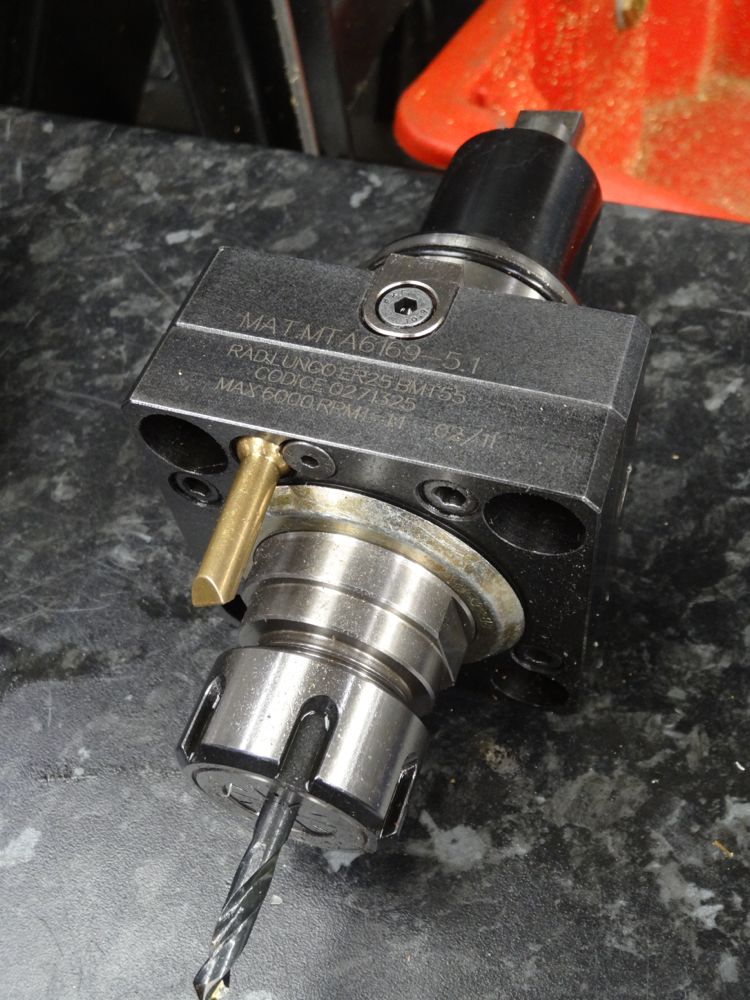

3 x ER 25 Z axis live tools
4 x ER 25 X axis live tools

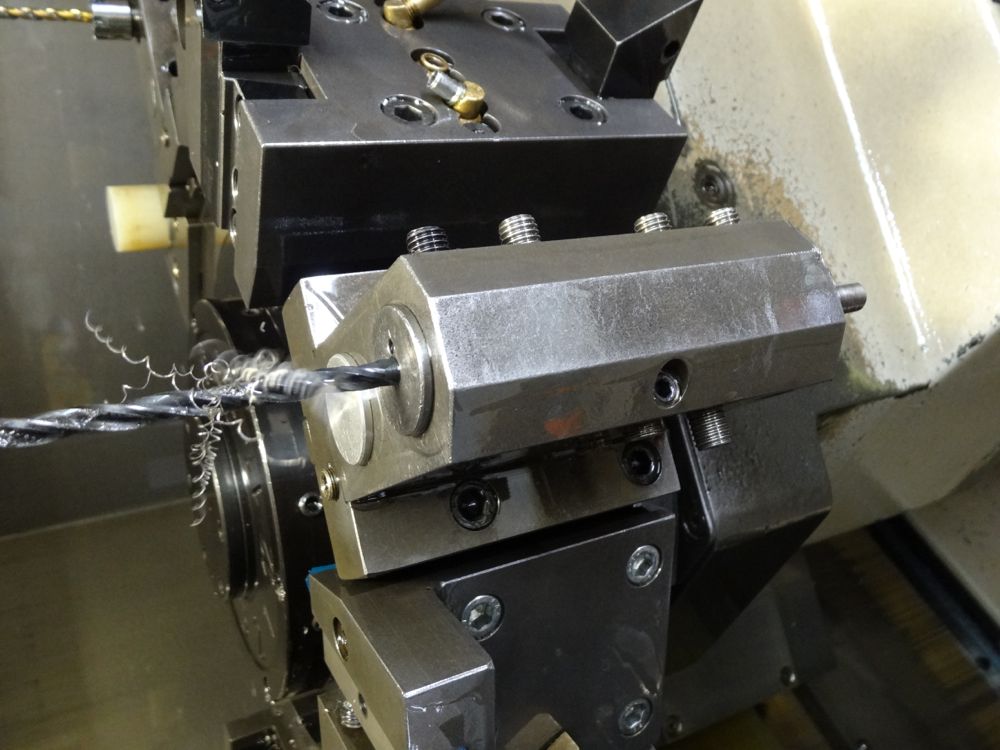

2 x Bore - Drill Holders 40mm
5 x Bore - Drill Holders 25mm

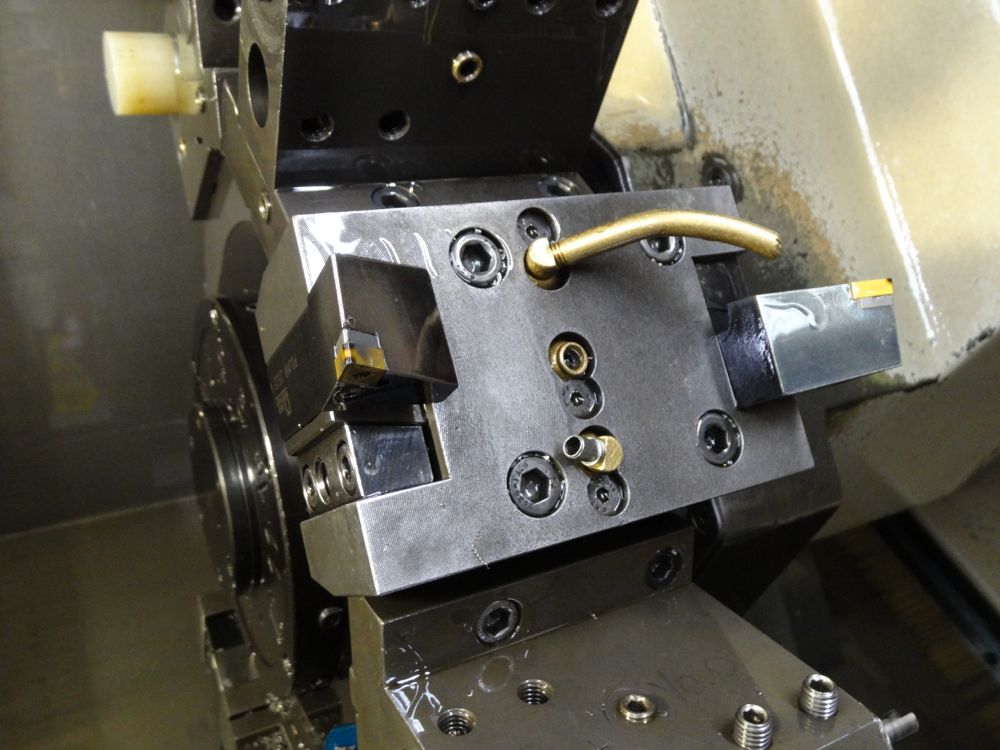

3 x Double turn Holders 25mm x 25mm section
2 x Single turn Holders 25mm x 25mm section
1 x Turn Holder forward facing
1 x Part off Holder 25mm x 25mm section

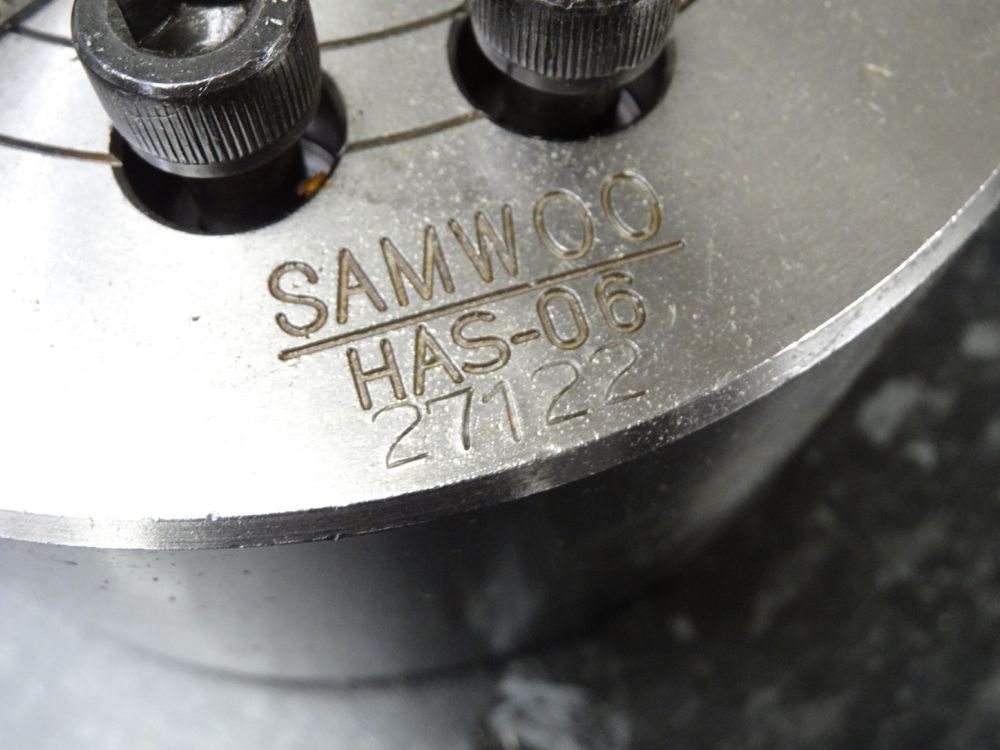

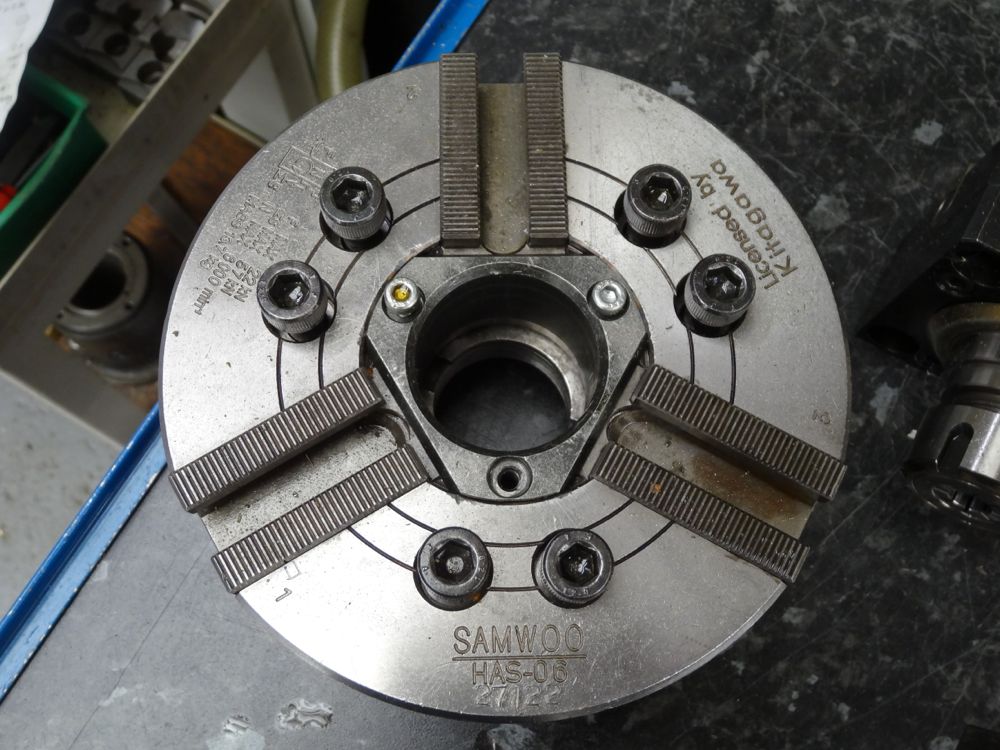

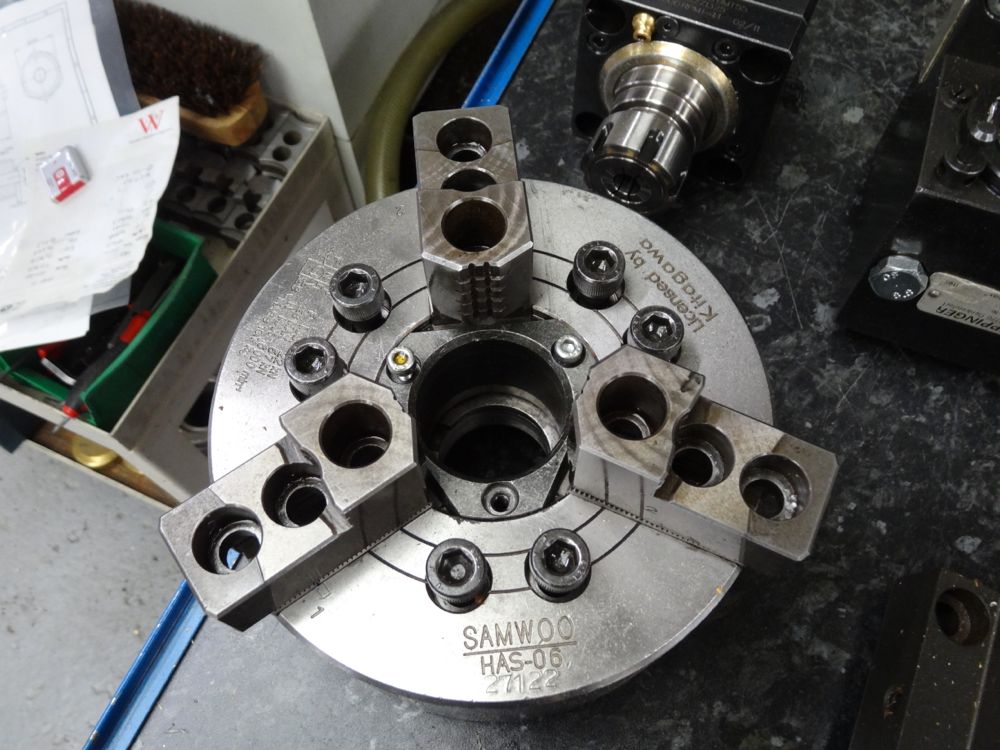

1 x 6" Kitagawa HAS - 06 3 Jaw Chuck

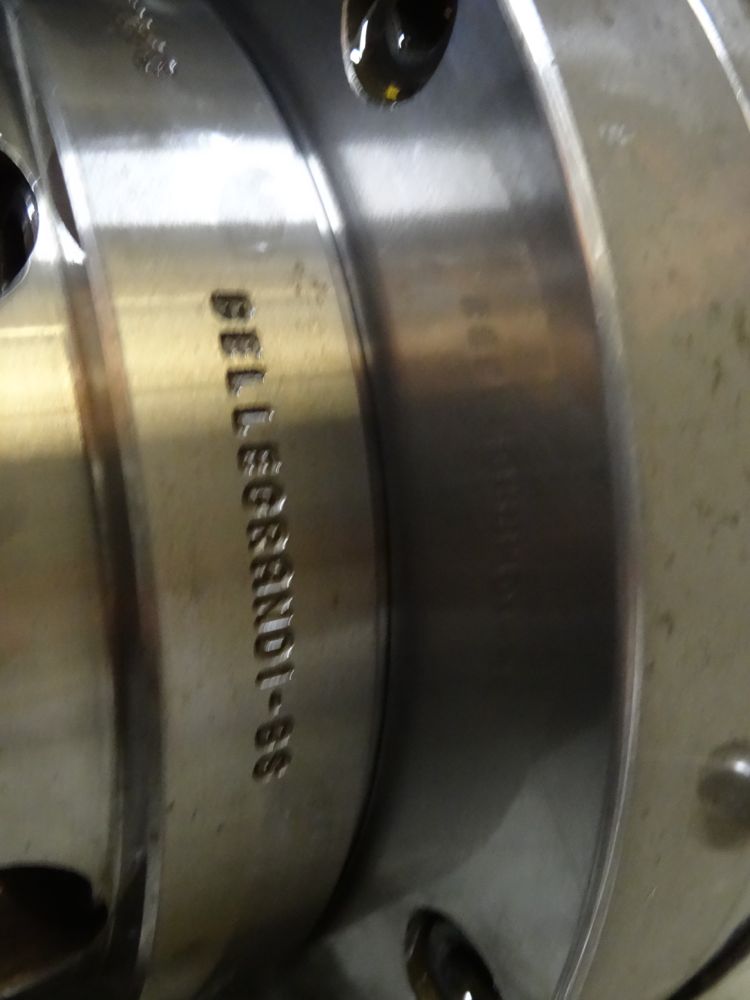

1 x Bellegrandi Din Chuck No. 818

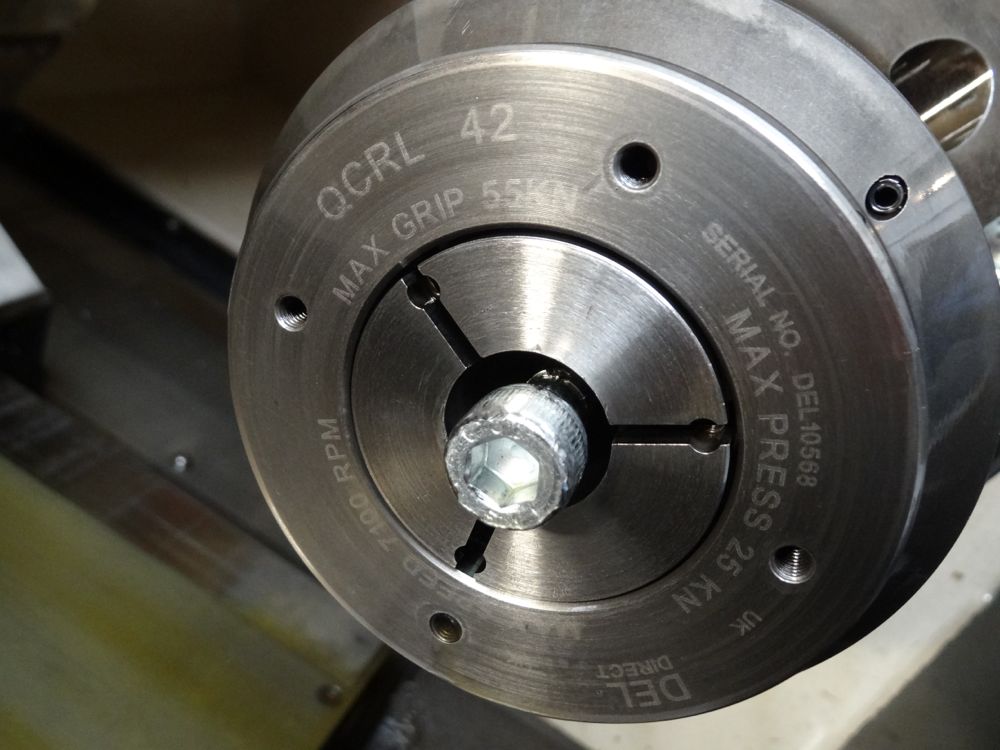

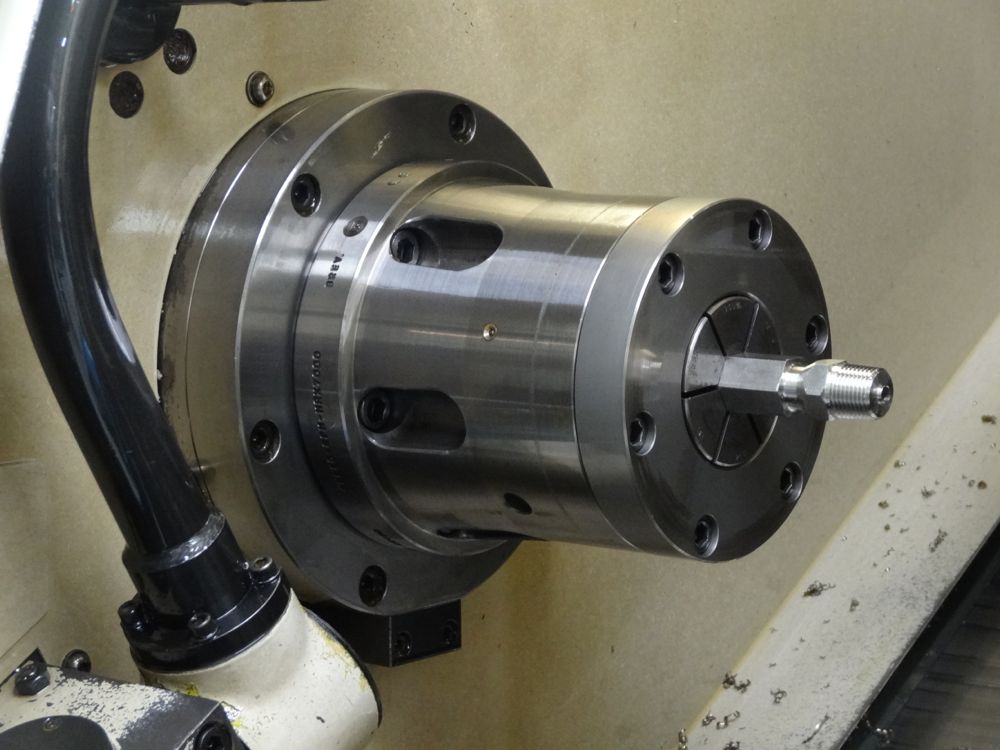

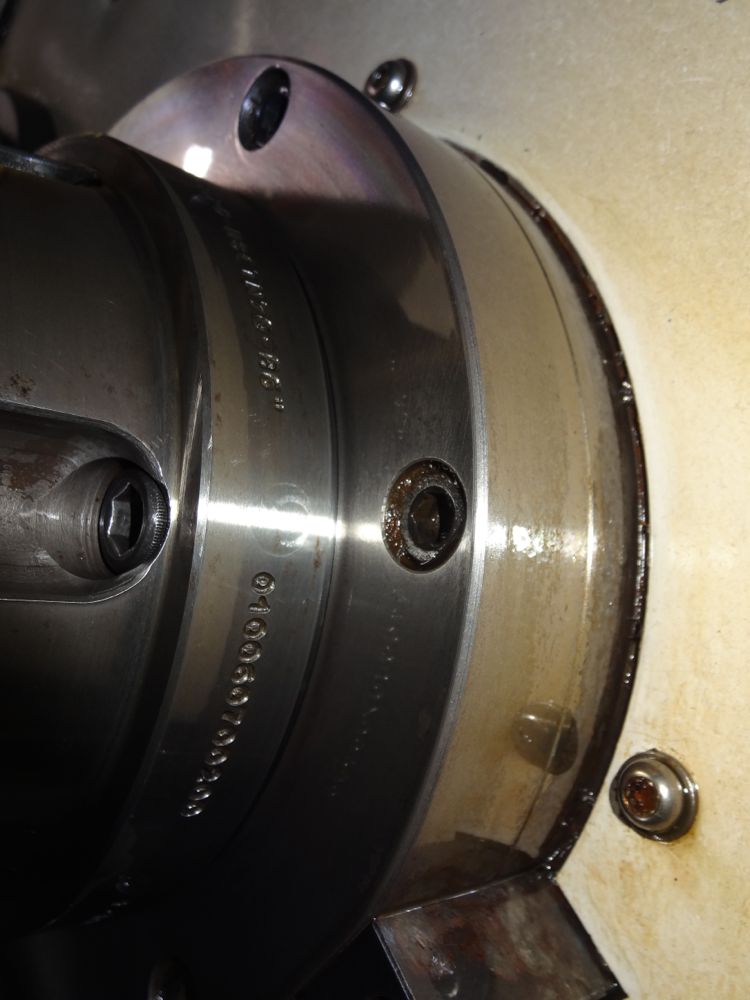

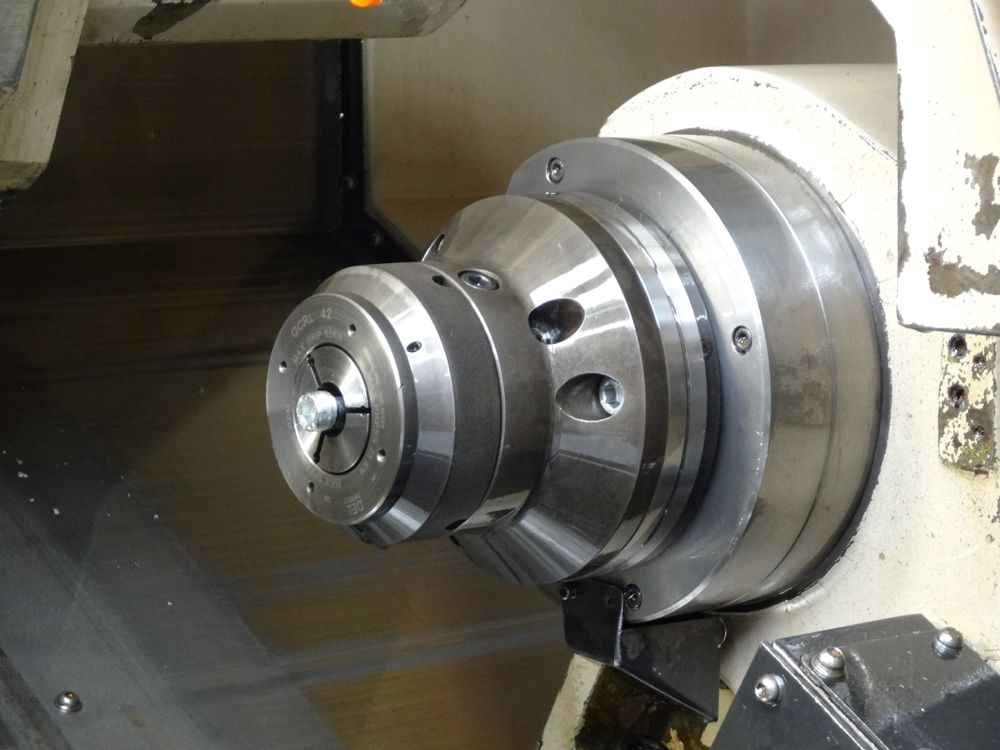

1 x QCRL 42 Din Chuck Quick Release

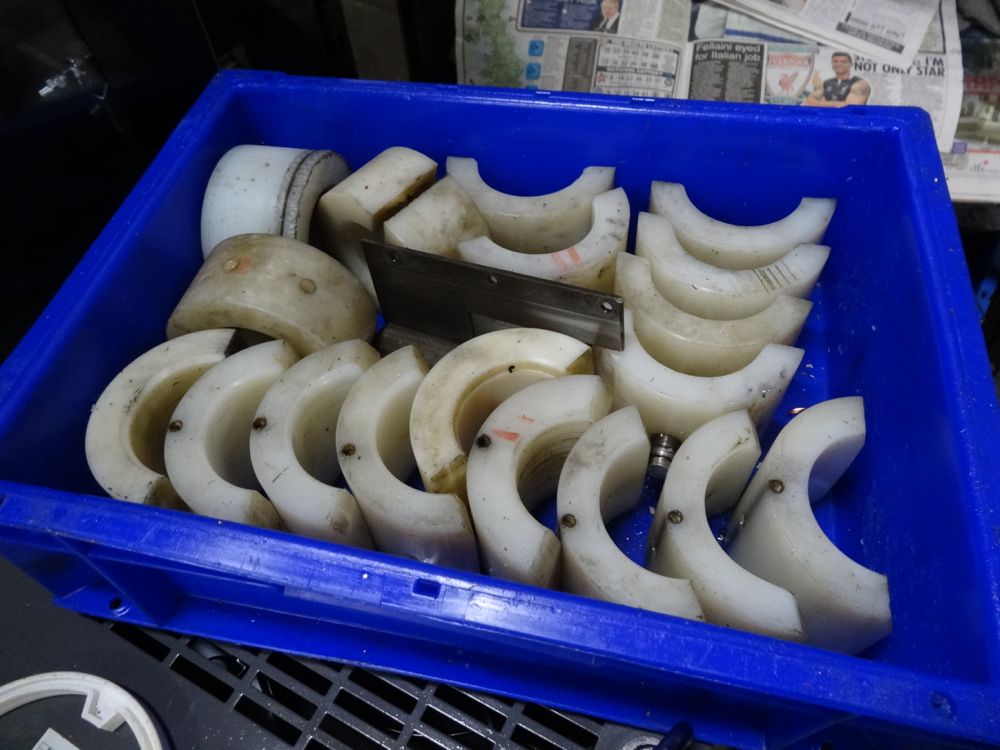

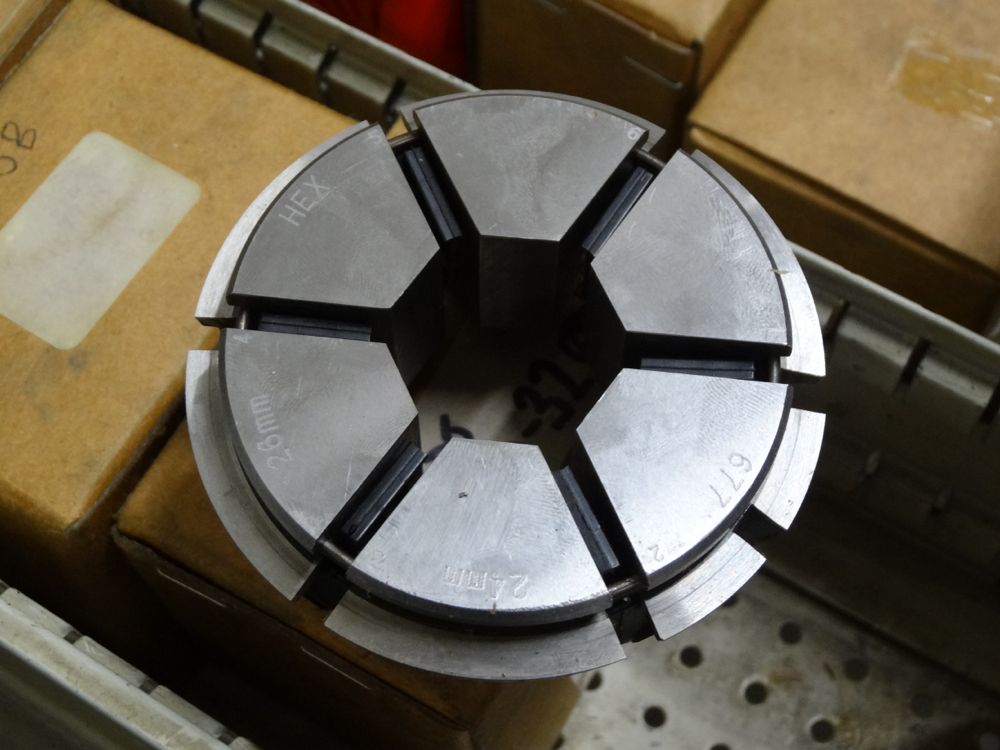

9 x MT677 Multibore Collets 20mm - 60mm

Collets x mm round:
20-22
24-26 Hex
30-32
26-38
40-42
44-46
50-52
56-58
58-60

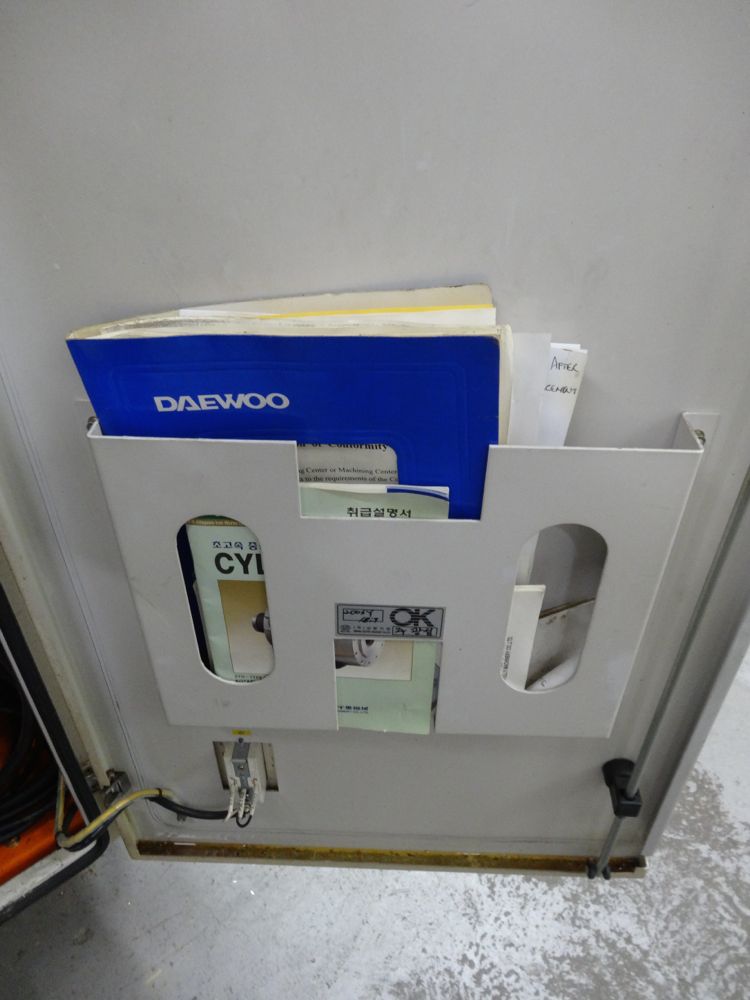

Manuals

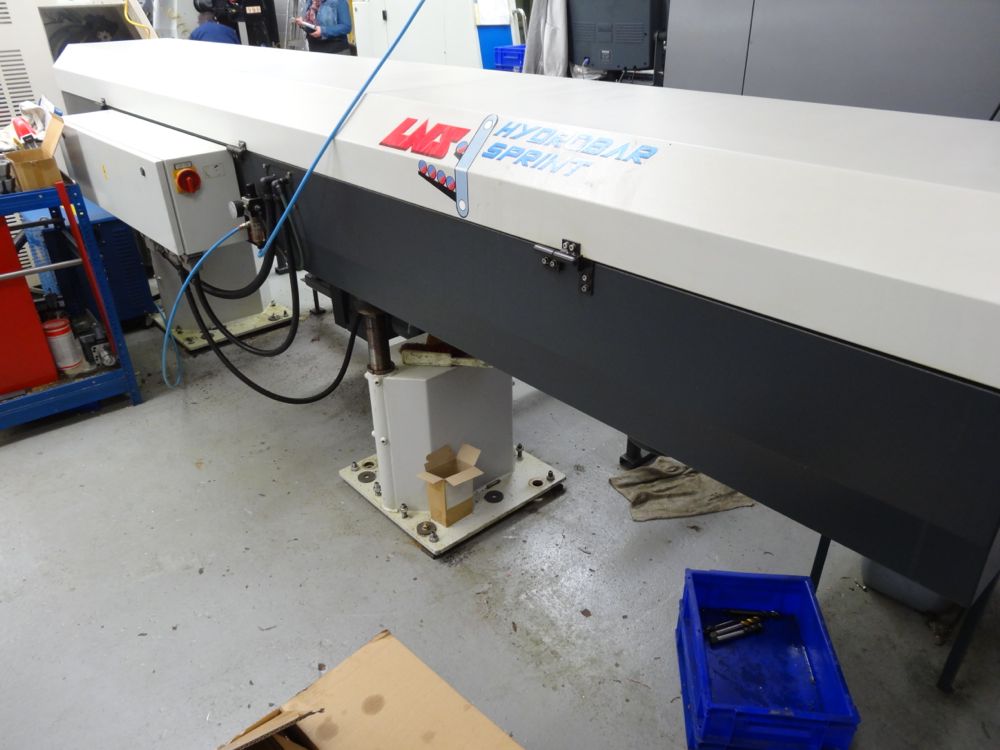

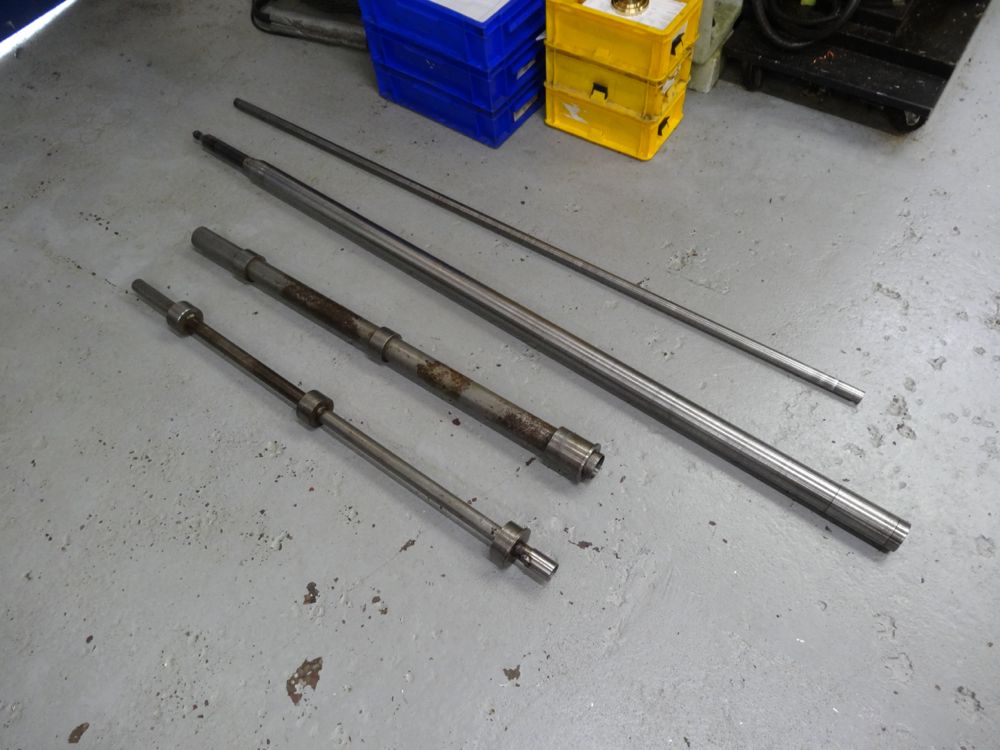

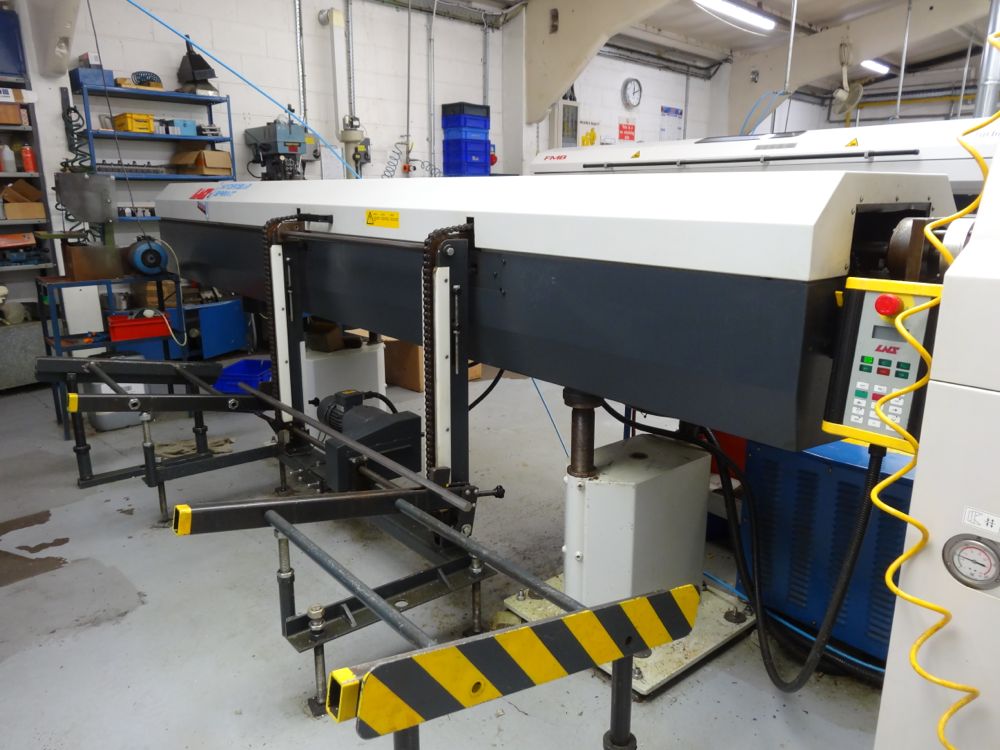

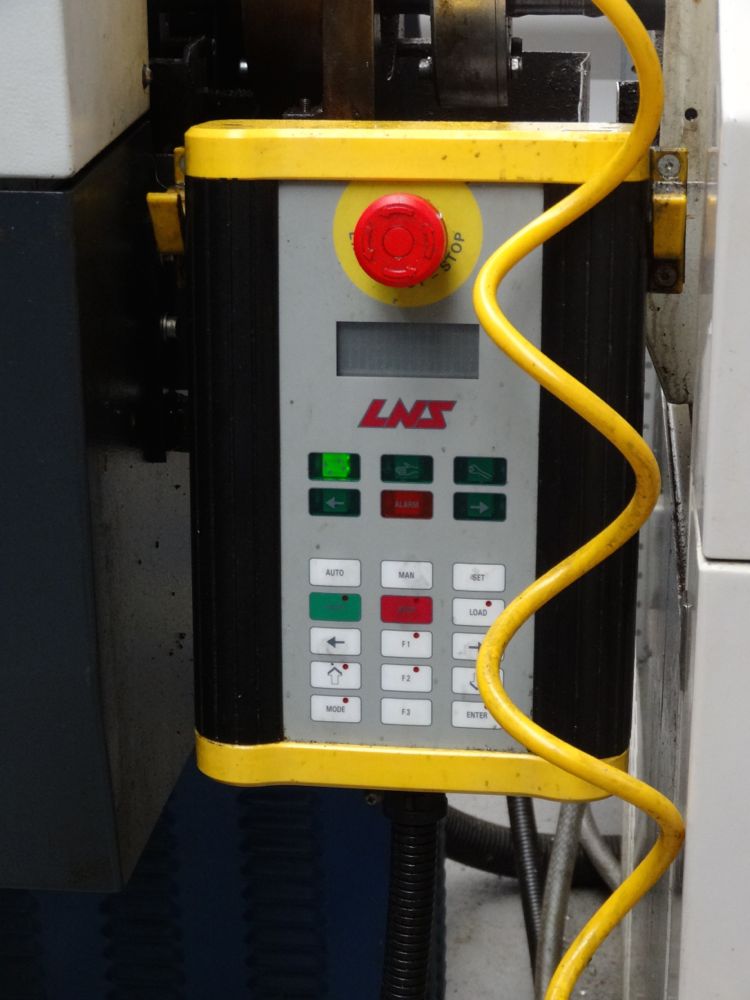

Bar Feed:
S/n 16945
Date: 2003
Length: 3M

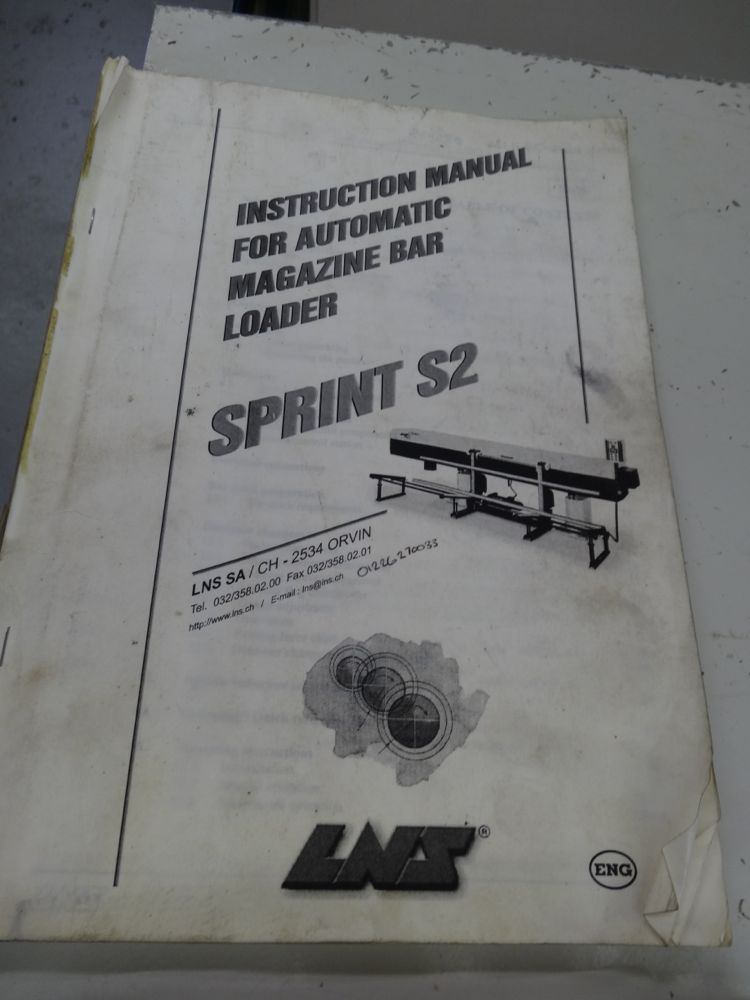

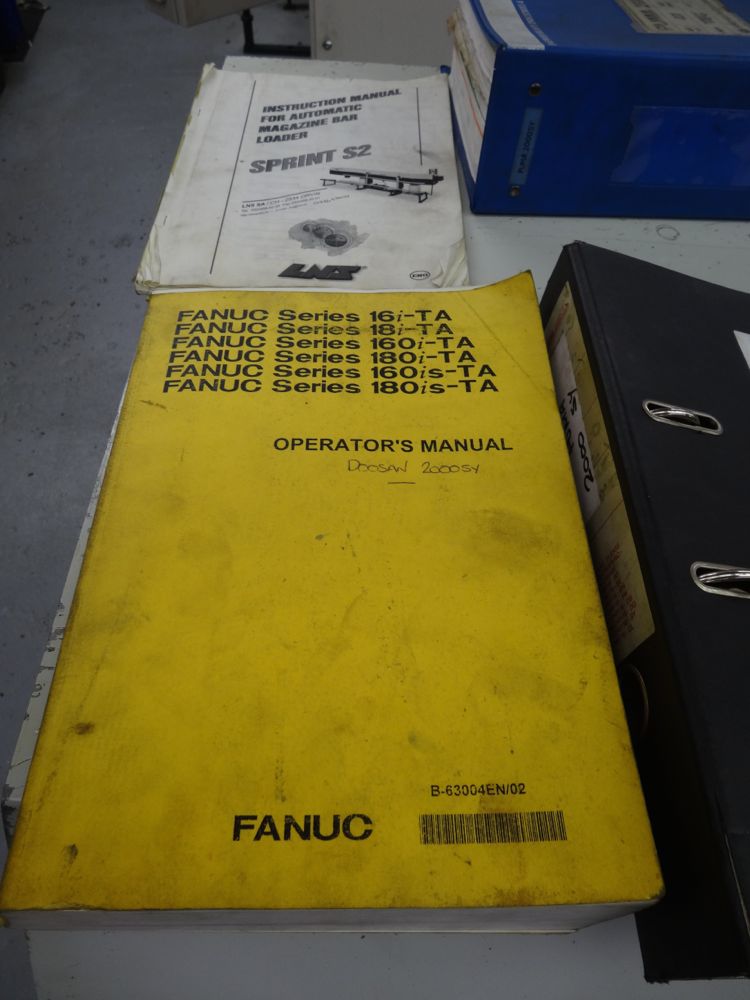

Manuals

Tools are not included

Machine will be cleaned, free from coolant and oil and fully drained
Machine will be placed on machine skates ready to move but cannot be loaded
Machine cannot be collected until 1st October 2014

Location: St Helens

* The purchaser shall at it's own costs be responsible for disconnecting, dismantling and removing items purchased from the auction location. If the purchaser is intending to export items purchased at the auction it shall be responsible at its own cost for ensuring compliance with all UK export conditions and the obtaining of any applicable Export Licences.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
