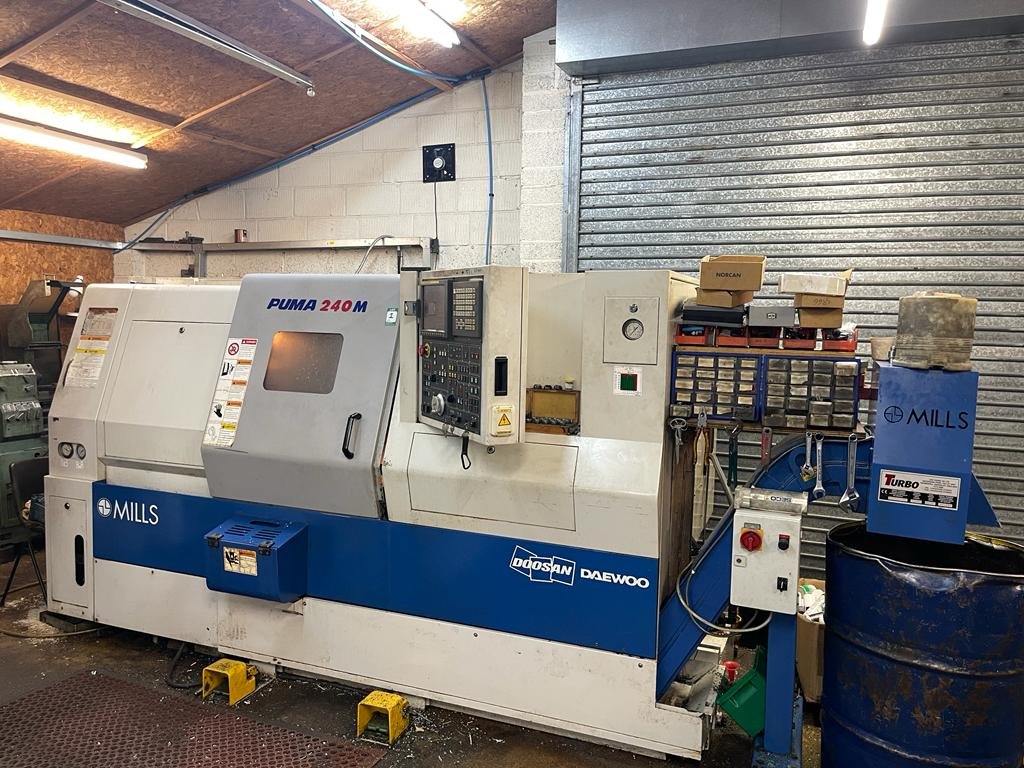

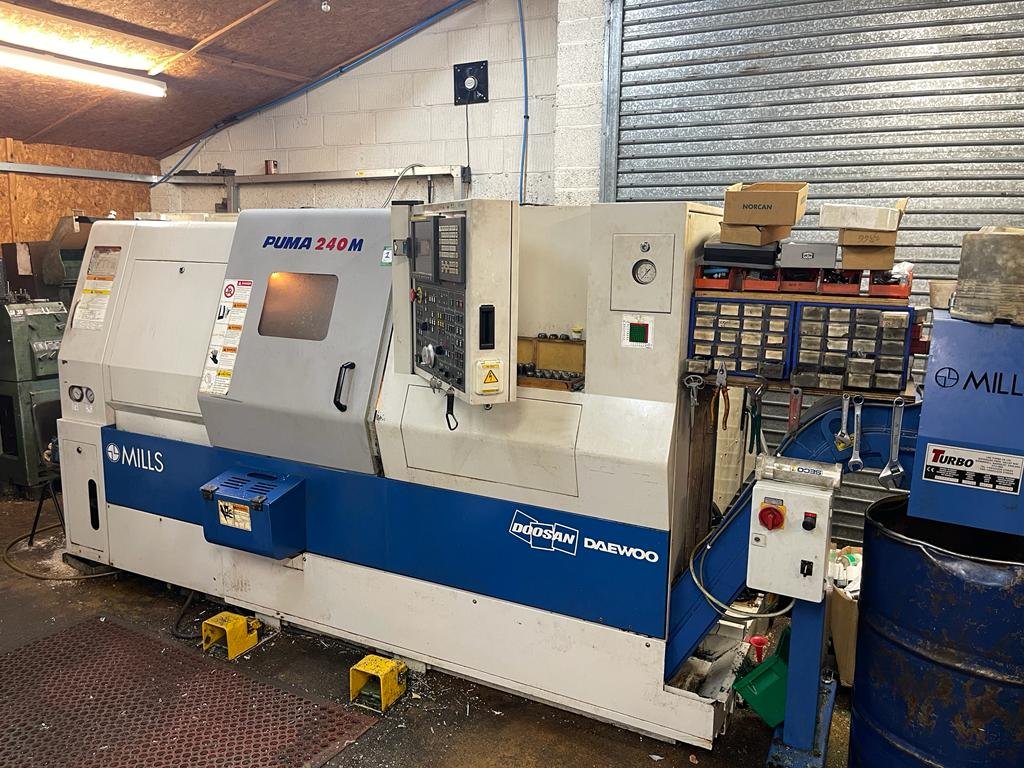

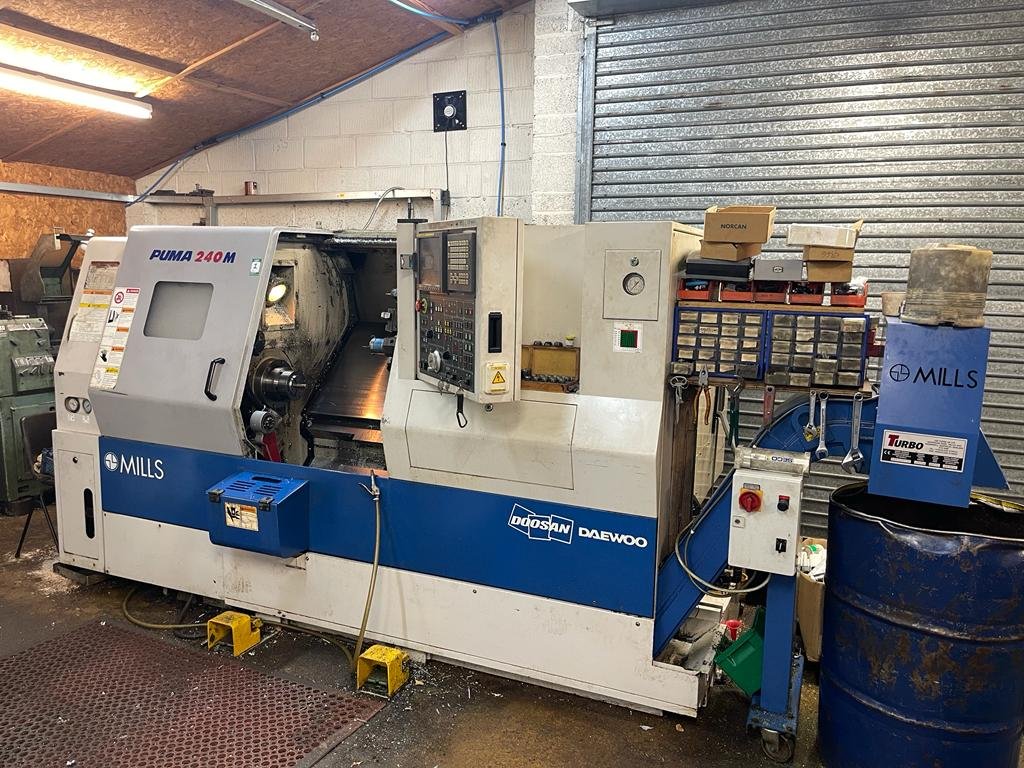

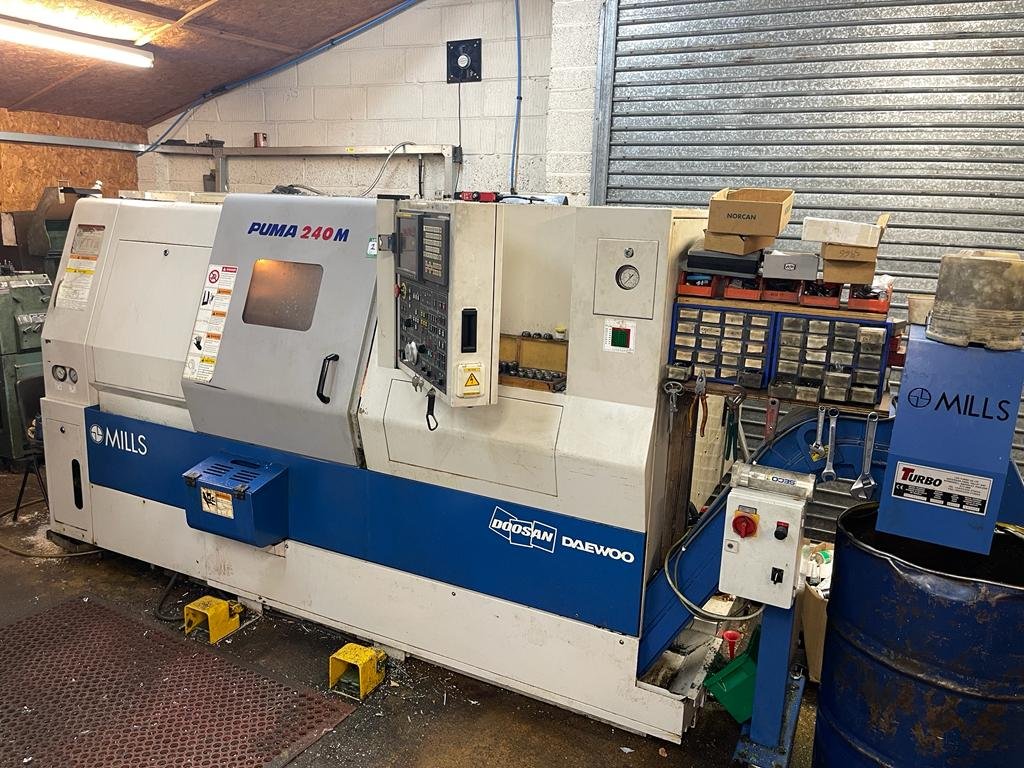

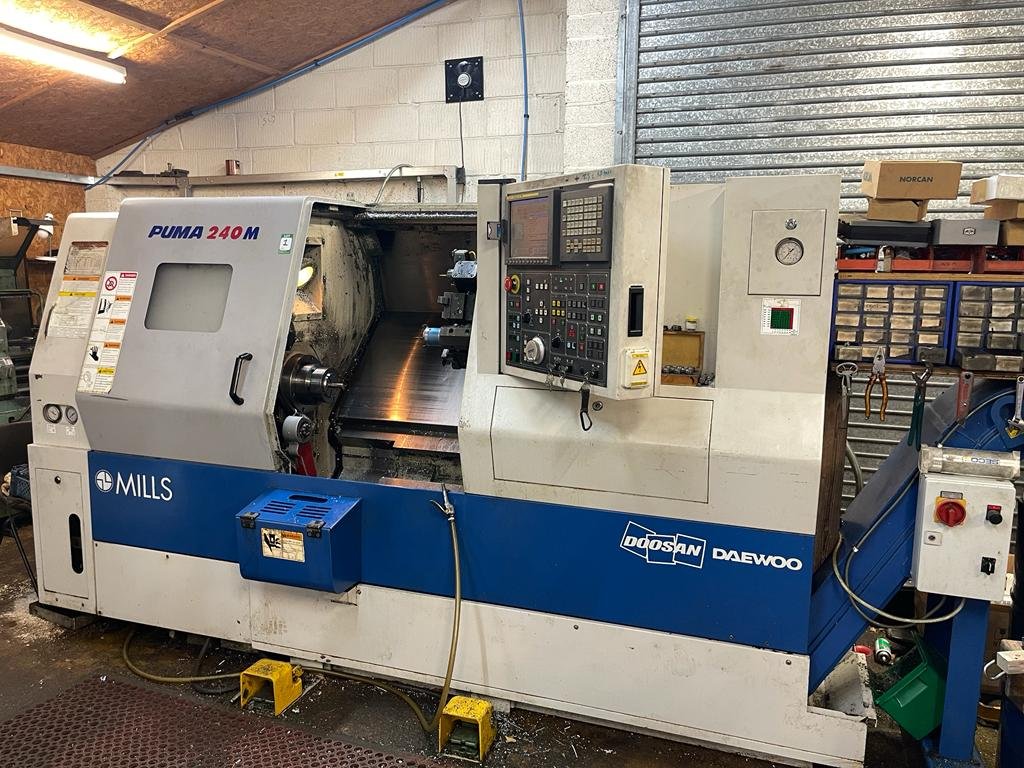

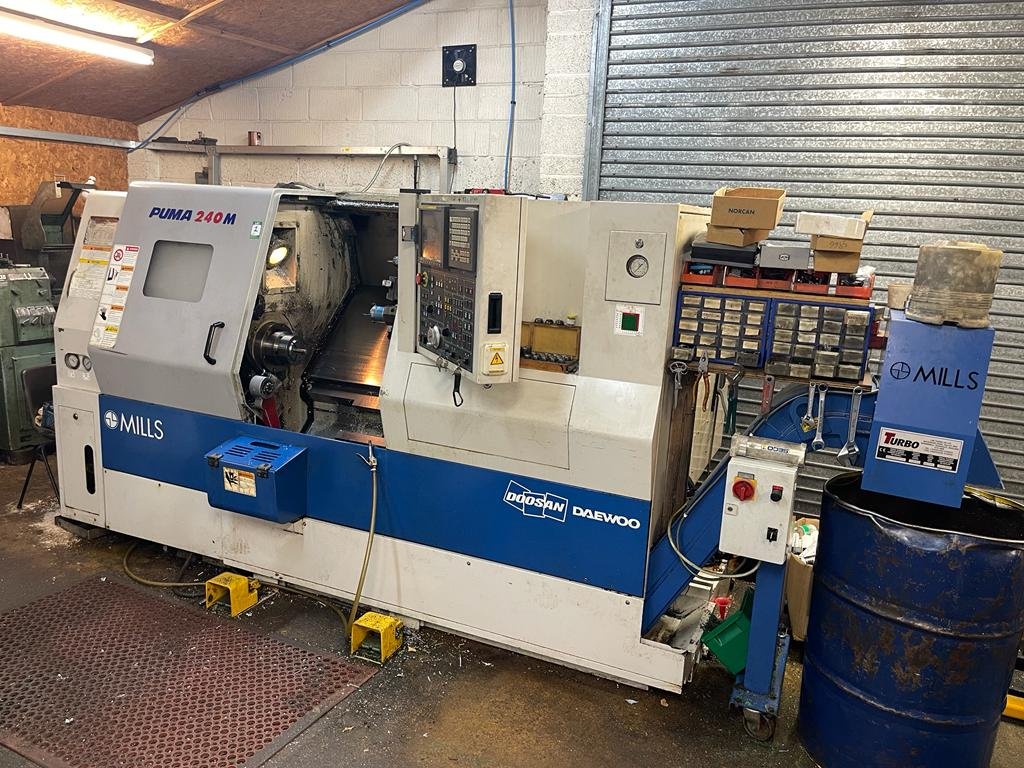

Doosan Puma 240MB CNC Lathe (2006)

Lot 1 - Doosan Puma 240MB CNC Lathe (2006)

Description:

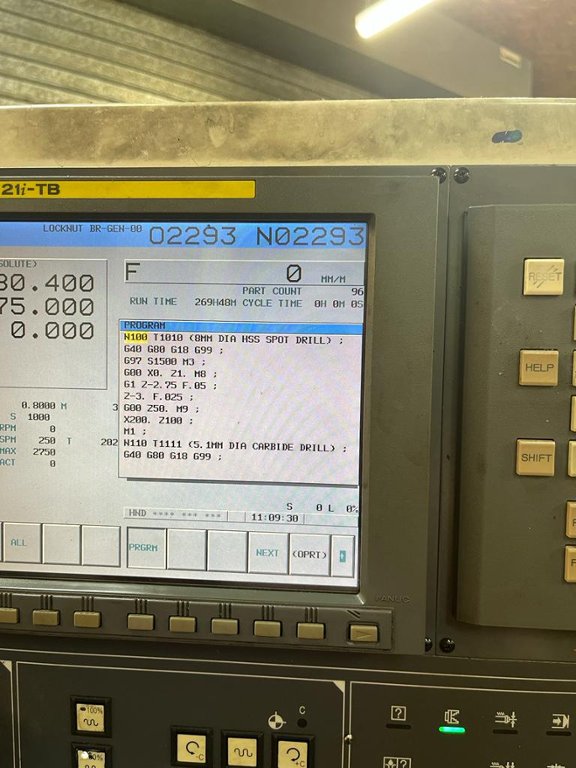

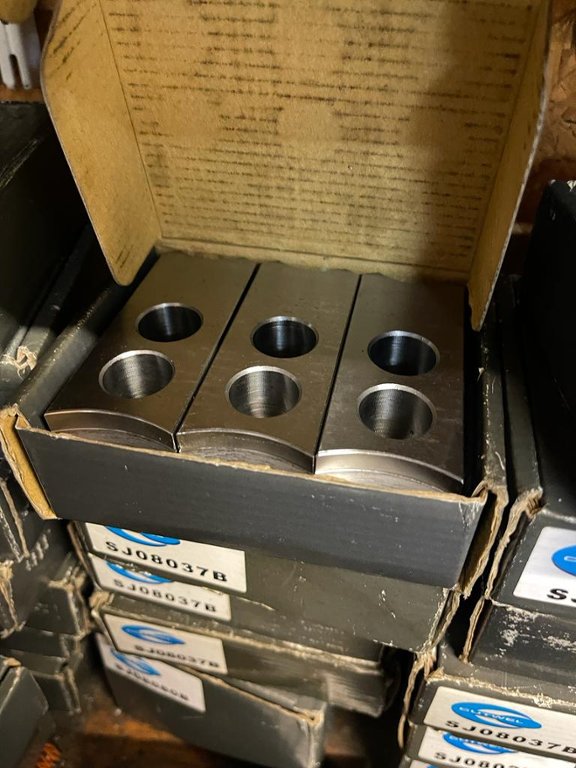

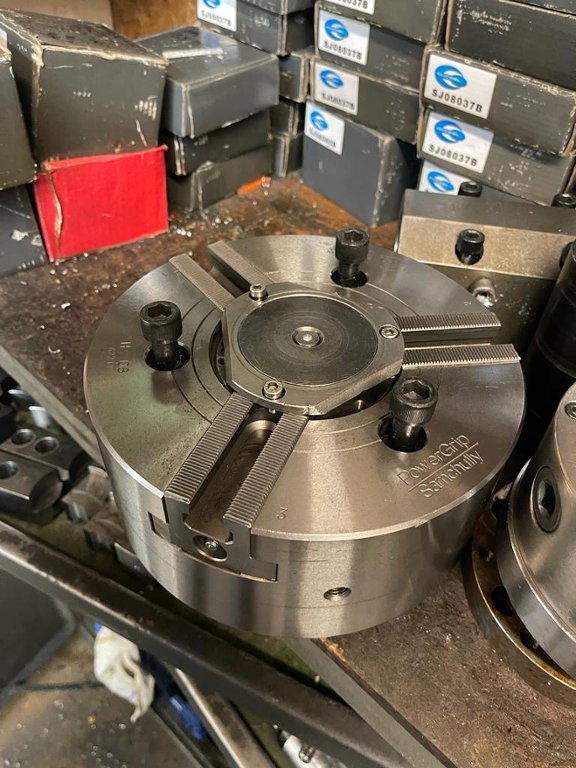

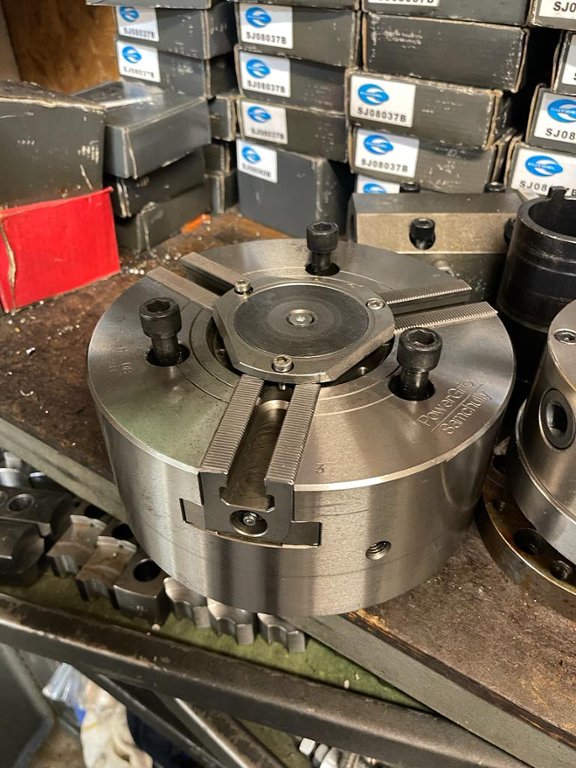

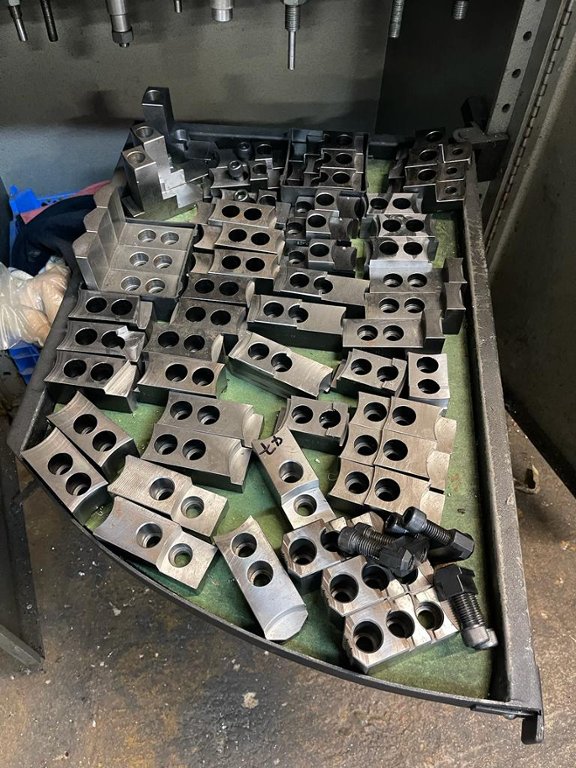

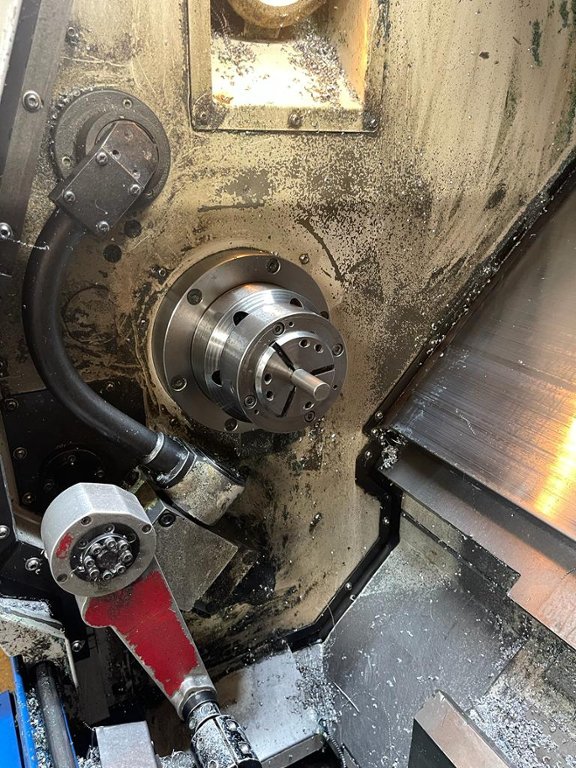

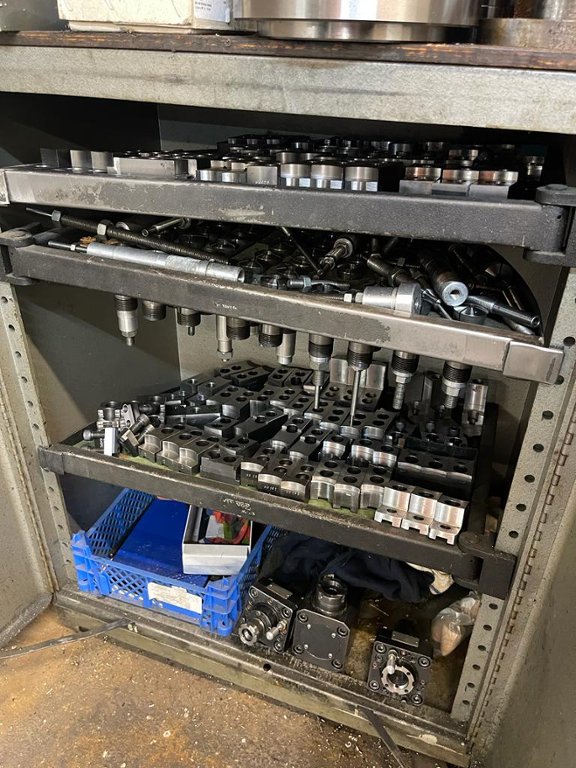

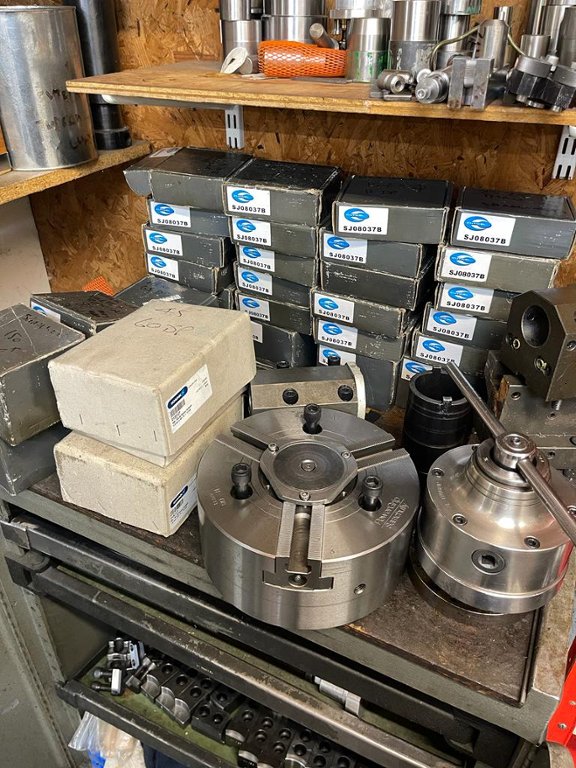

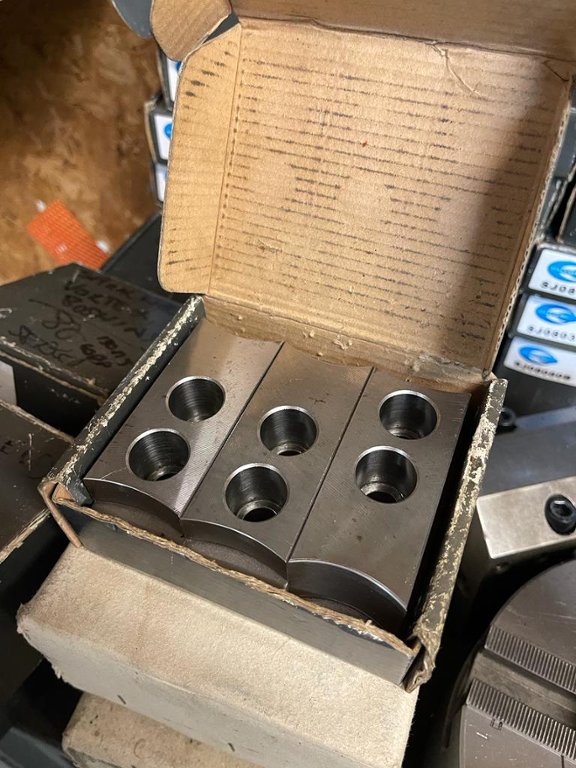

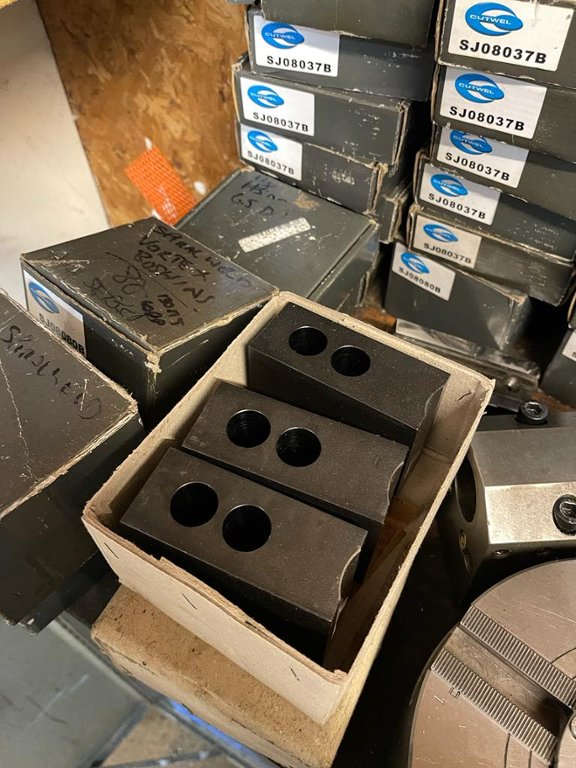

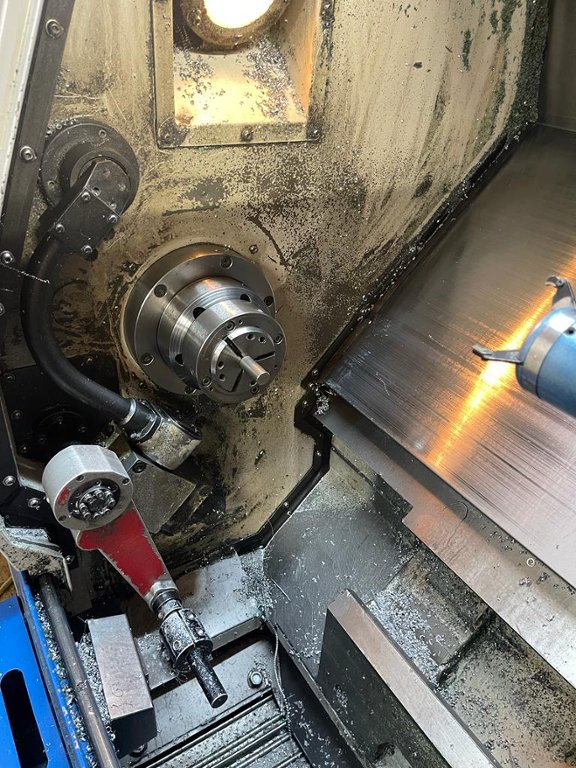

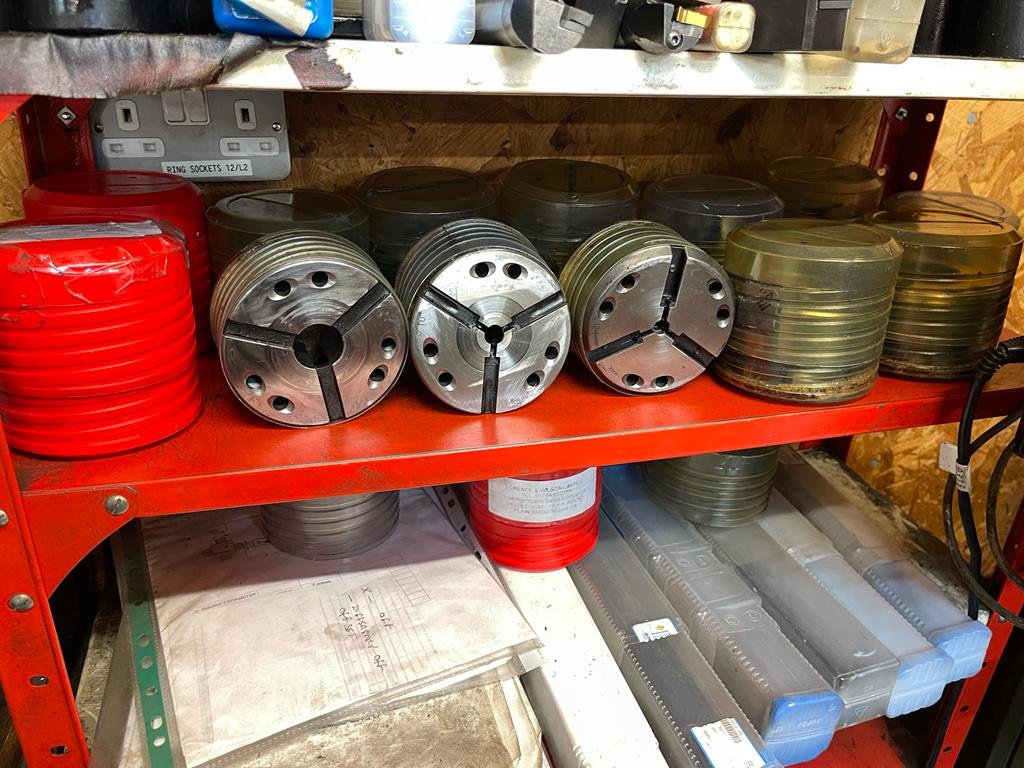

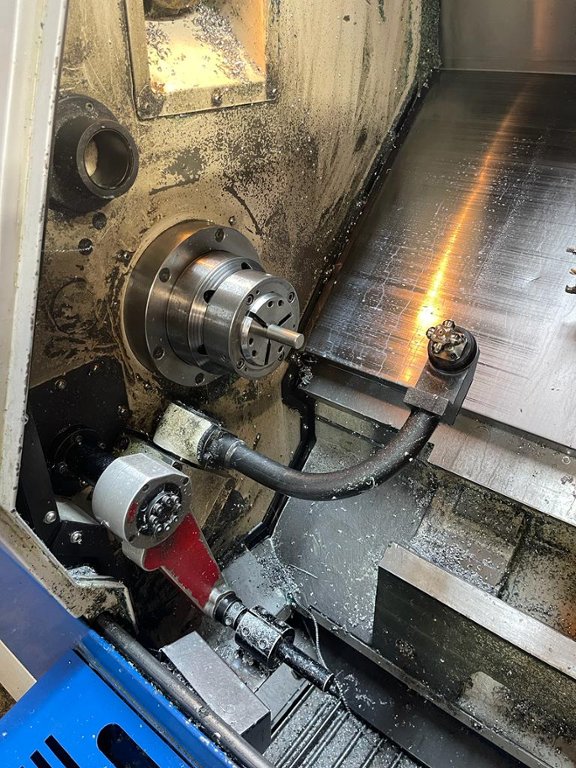

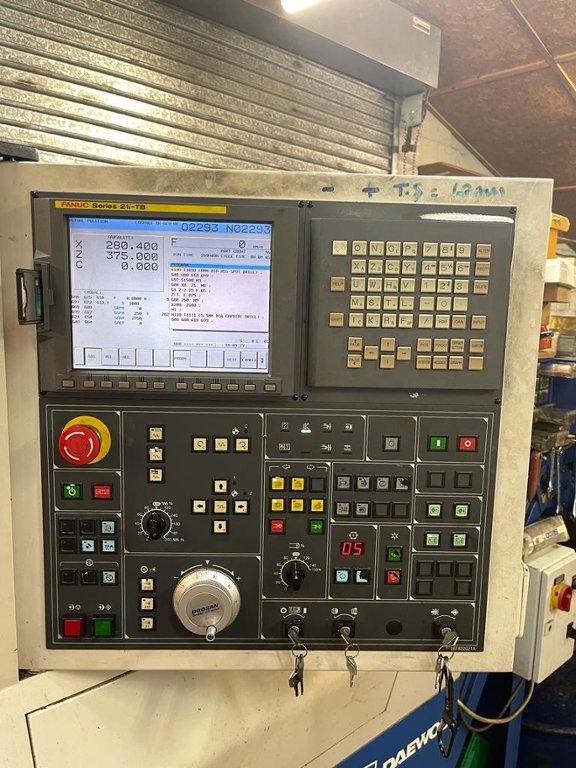

Fanuc 21b Control, Tailstock, 8" Chuck & Collet Chuck, Turning Tools, Jaws, Parts Catcher, Swarf Conveyor

Capacity

Swing over bed - 550mm, Swing over saddle - 390mm, Recom turning diameter - 210/255mm, Max turning diameter - 300mm, Max turning length - 513/501mm, Bar working diameter - 65/76mm

Travels

X Axis travel - 205mm, Z Axis travel - 580mm

Main Spindle

Spindle Speed - 4500/3500RPM, Spindle Nose - A2#6/A2#8 ASA, Spindle bearing diameter - 110/120mm, Spindle through hole diameter - 76/90mm, Min spindle indexing angle (C axis) - 0.001 deg

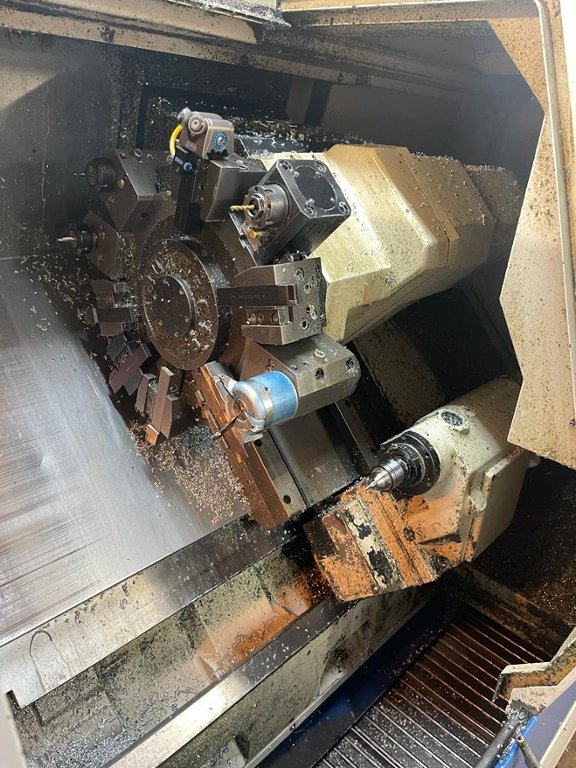

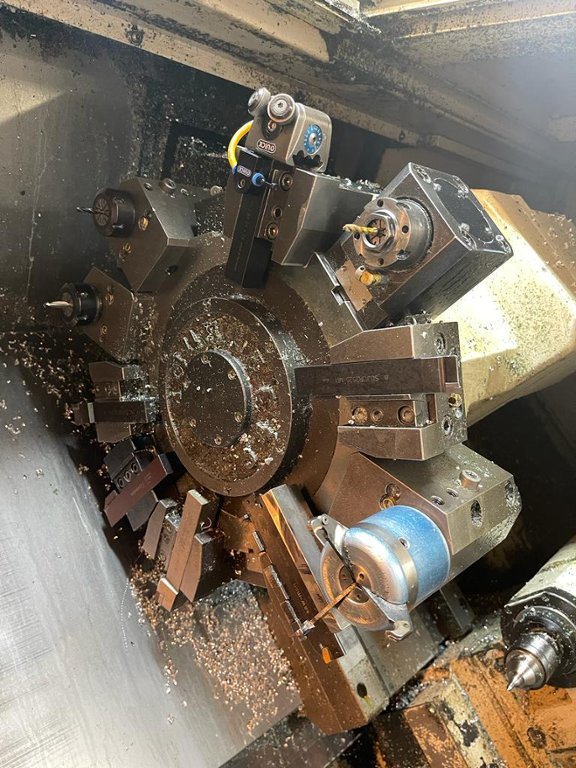

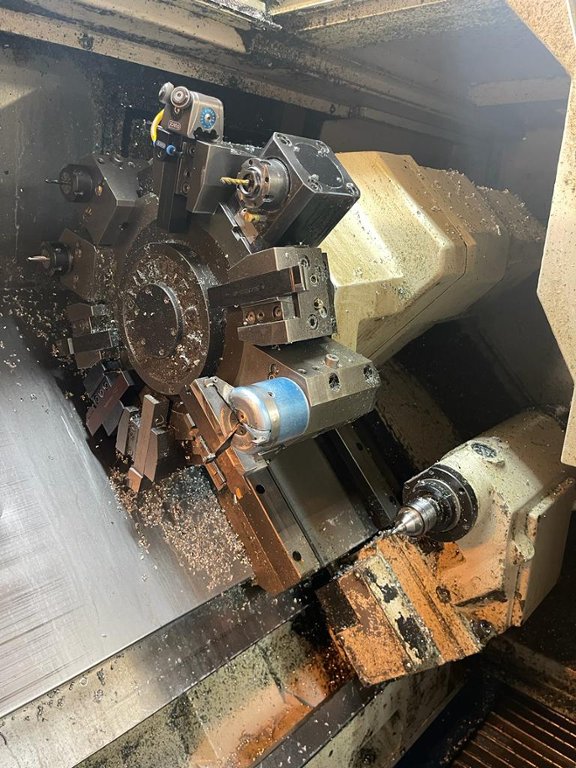

Turret

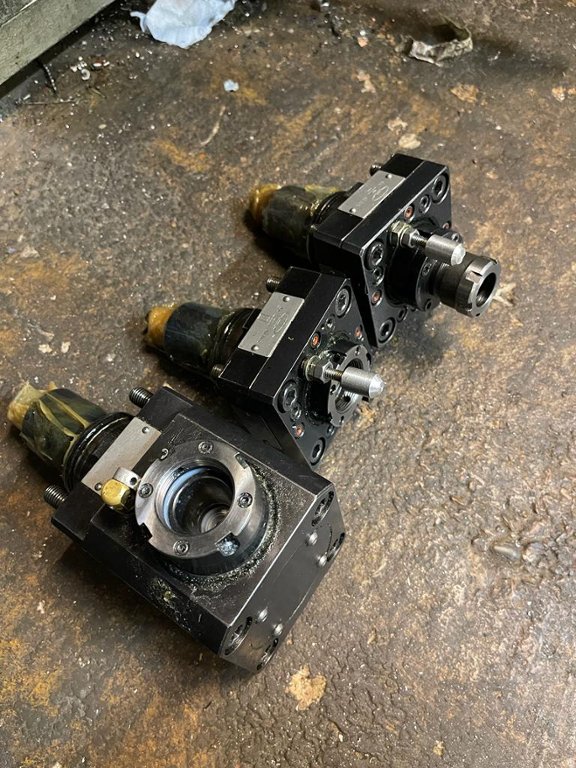

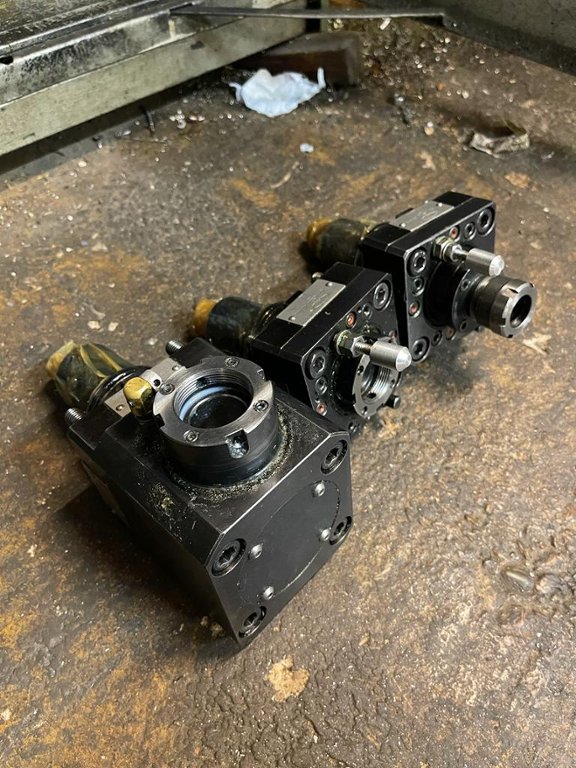

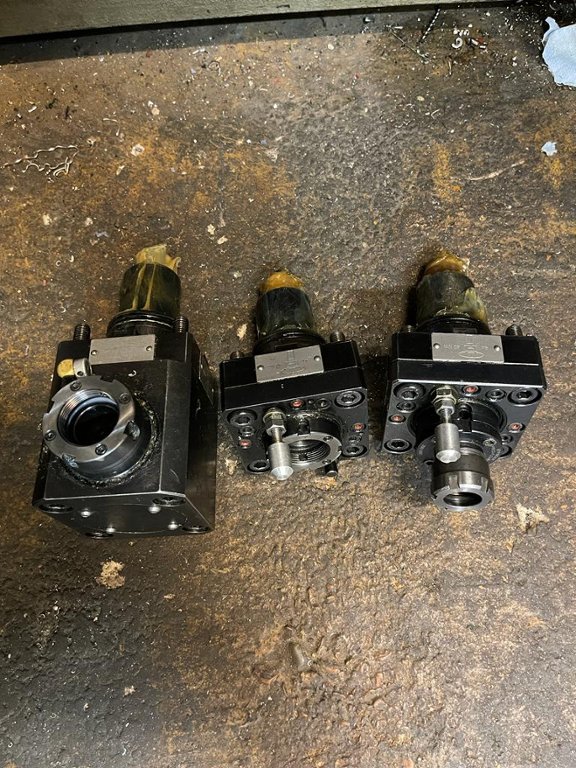

No of Tool Stations - 12 st, OD Tool Size - 25mm, Boring Bar diameter - 40mm, Indexing Time - 0.15 sec, Rotary Tool Spindle Speed - 5000RPPM

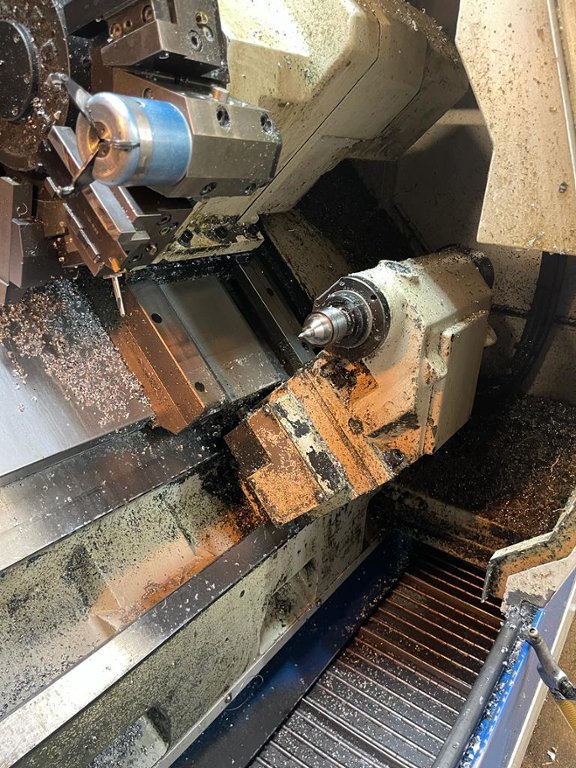

Tailstock

Quill diameter - 75mm, Quill Bore Taper - MT#4 MT, Quill Travel - 80mm

Feedrate

Rapid traverse - X/Z Axis -20/24 m/min, Rapid Traverse - B Axis - 20 m/min

Motors

Main Spindle Motor - 15/18.5kW - 9/11kW - 15/18.5kW, Rotary Tool Spindle Motor - 3.7kW, Feed Motor (X/Z/B Axis) - X - 1.6kW, Z - 3.0kW, Coolant Pump Motor - 0.4kW

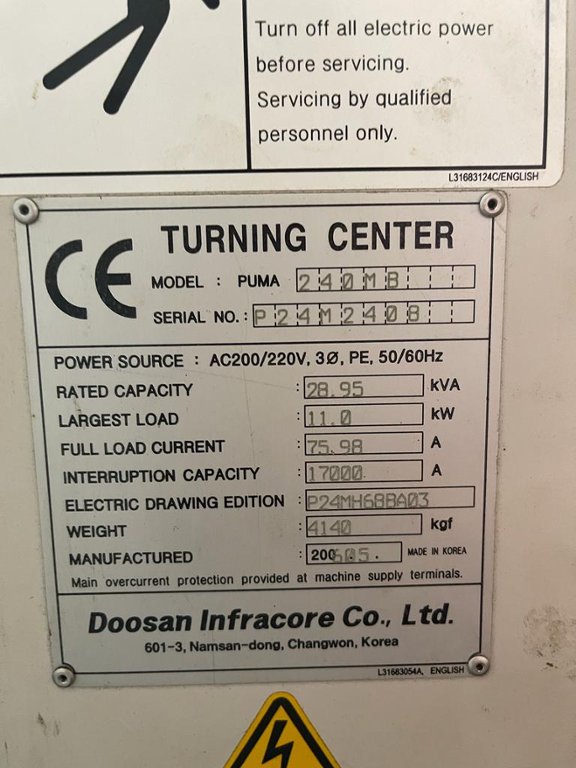

Power Source

Electric Power Supply - 30.92kVa

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
