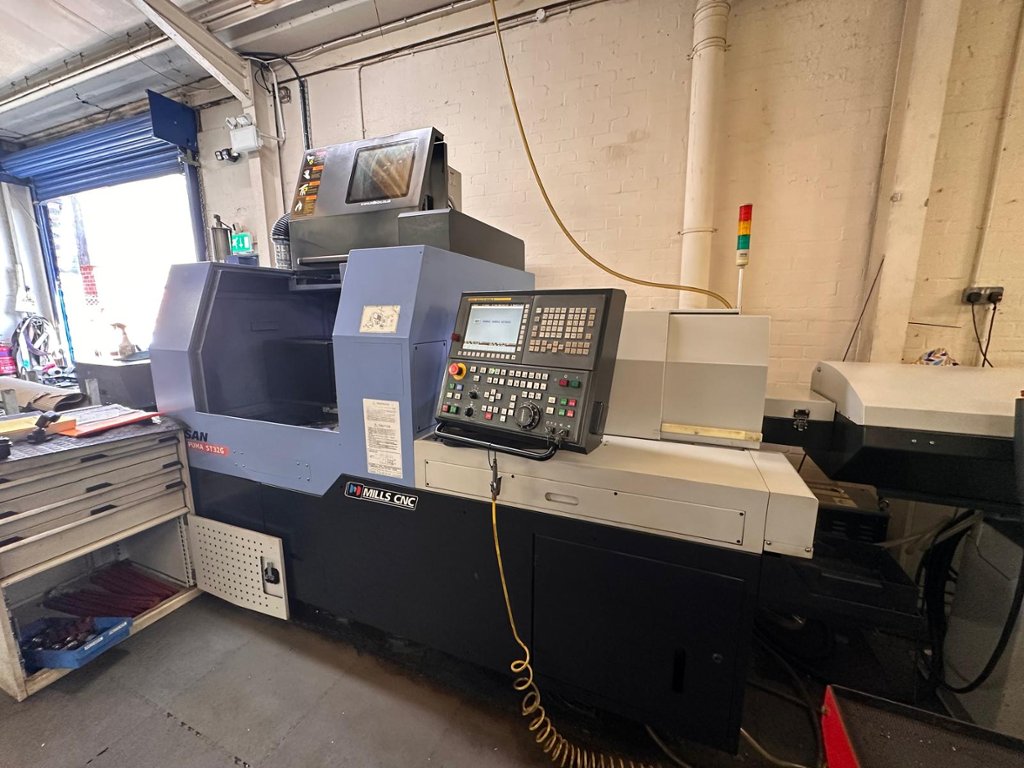

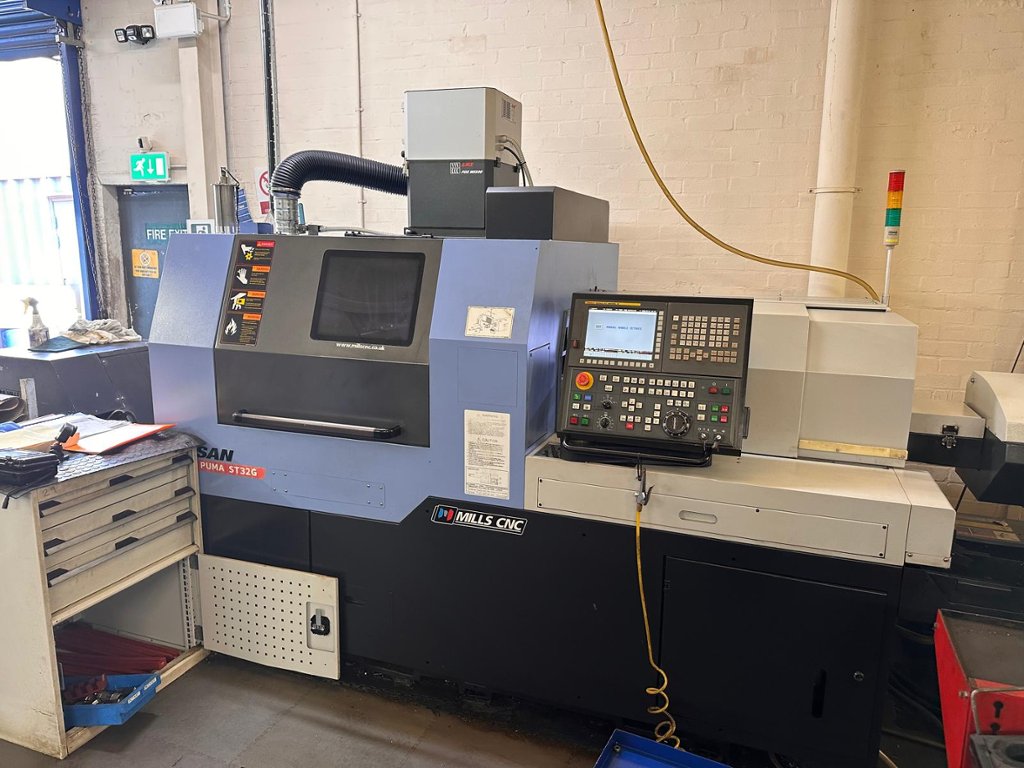

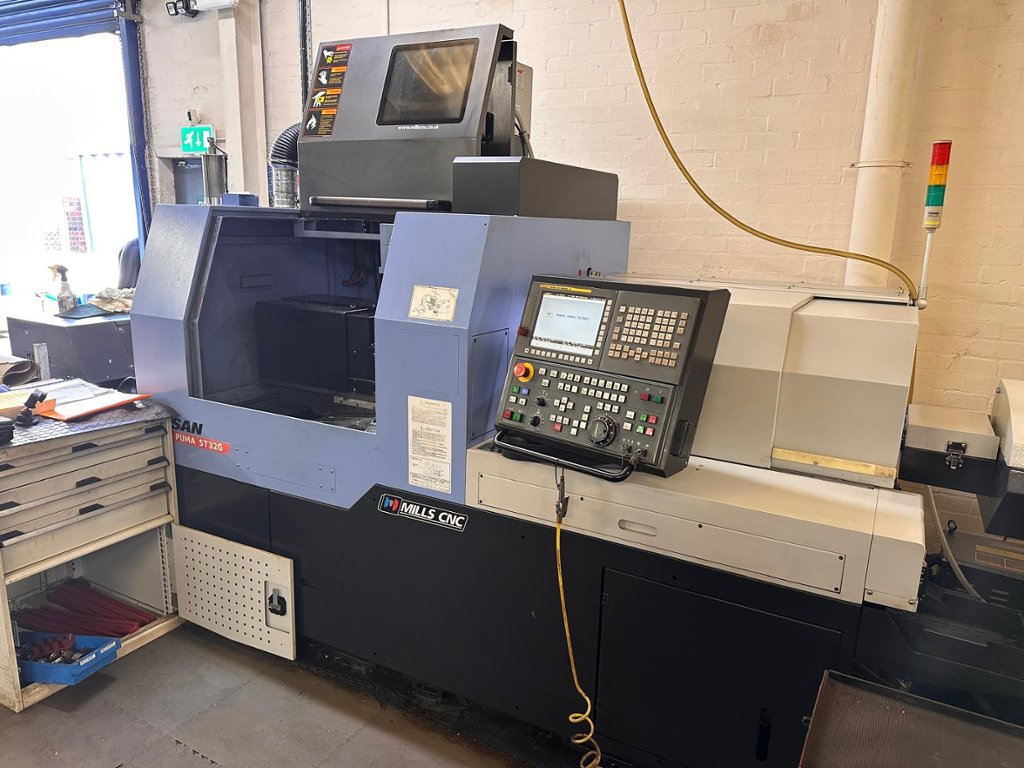

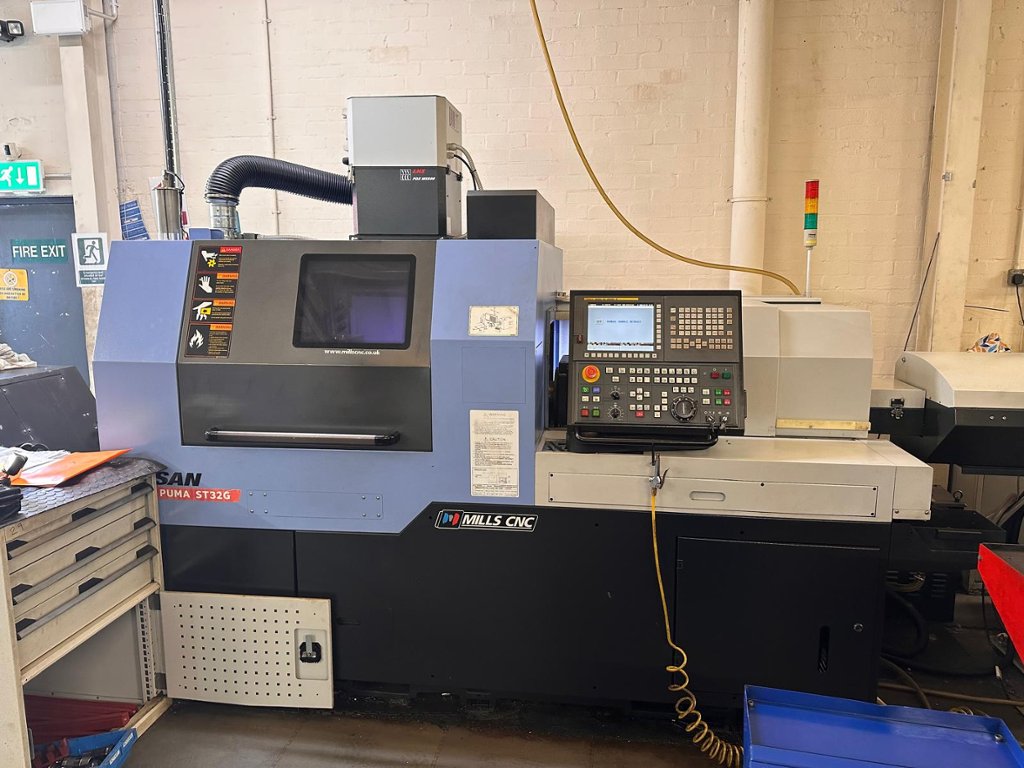

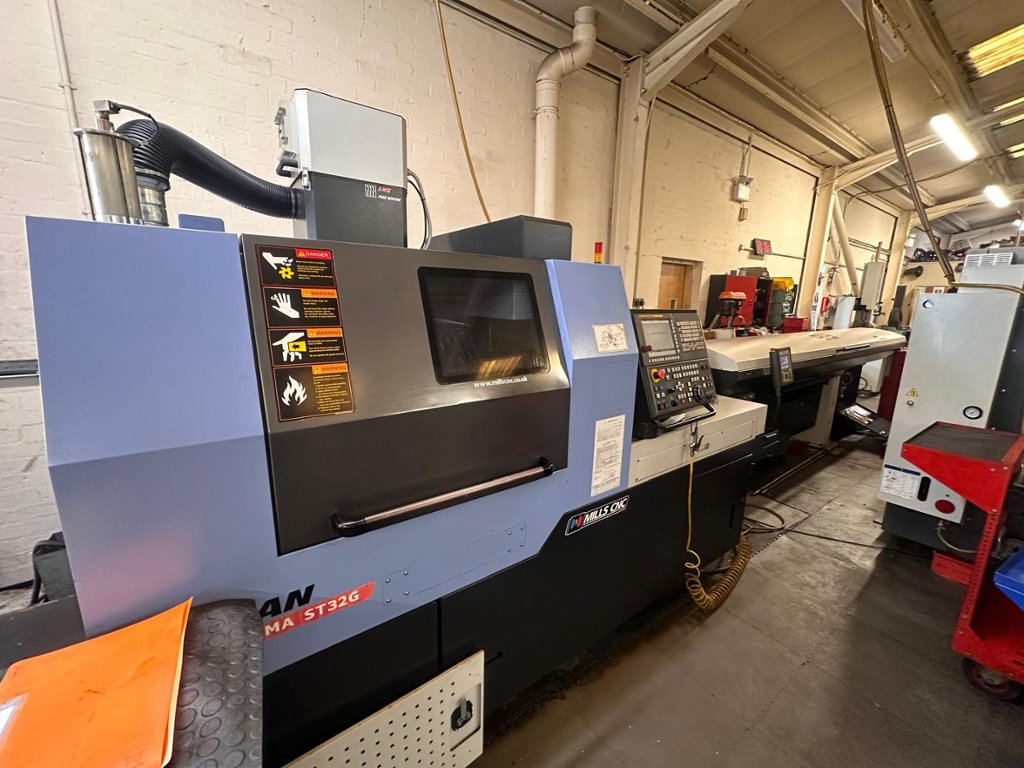

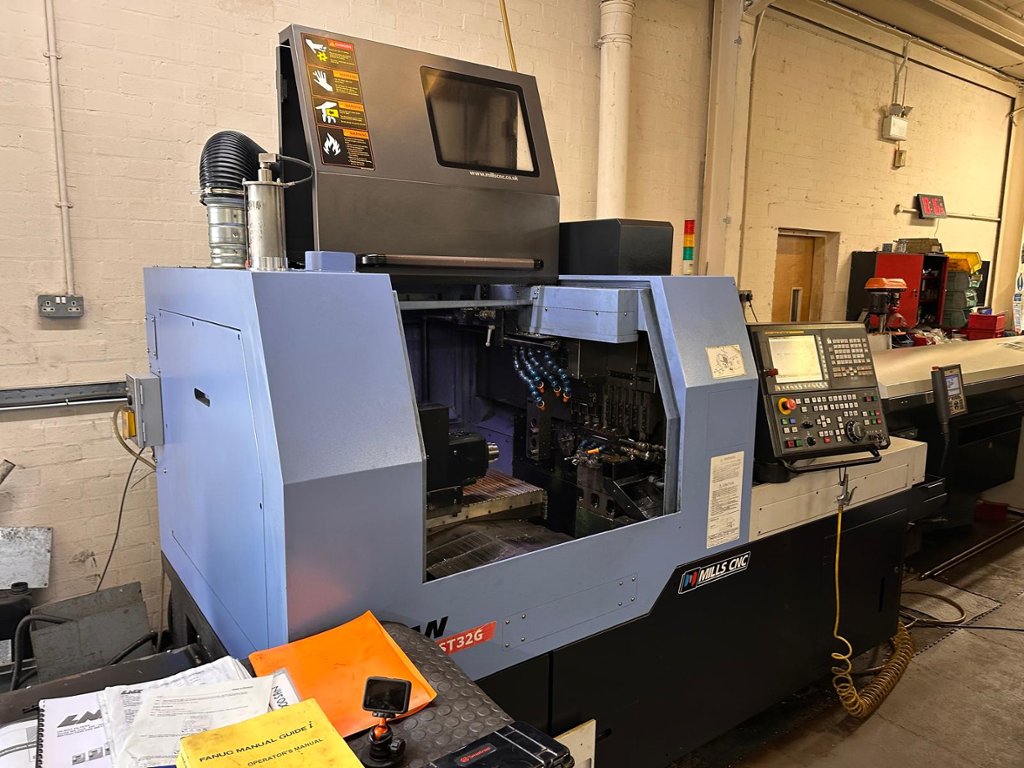

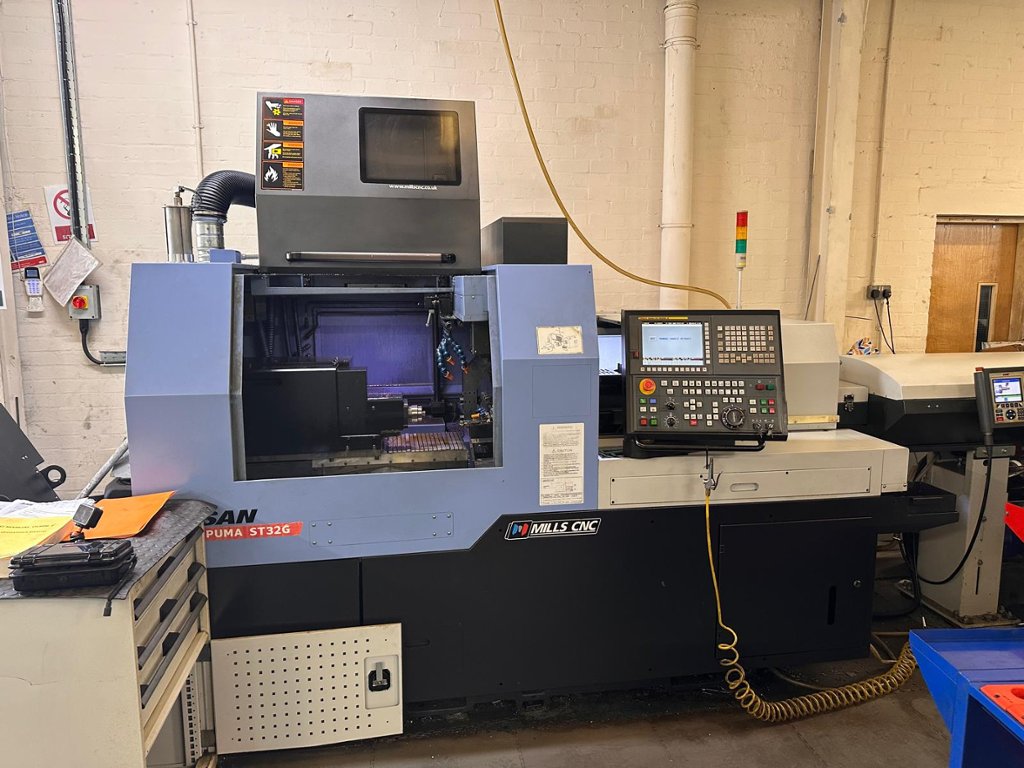

Doosan Puma ST32G Lathe (2014)

Lot 1 - Doosan Puma ST32G Lathe (2014)

Description:

Max Machining Diameter - 32mm, Max Main Spindle Stroke - 320mm, Max Drilling Capability - 13, 10 & 8mm, Max Tapping Capability - M12x1.75mm & M6x1.0.mm, Max Milling Capability - 8mm

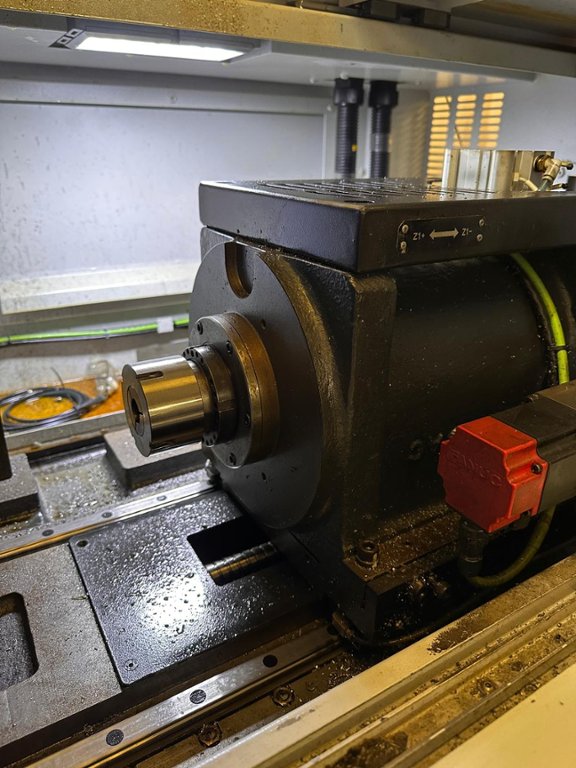

Main Spindle

Spindle Speed - 8000 r/min, Main Spindle Motor Power - 5.5/7.5kW

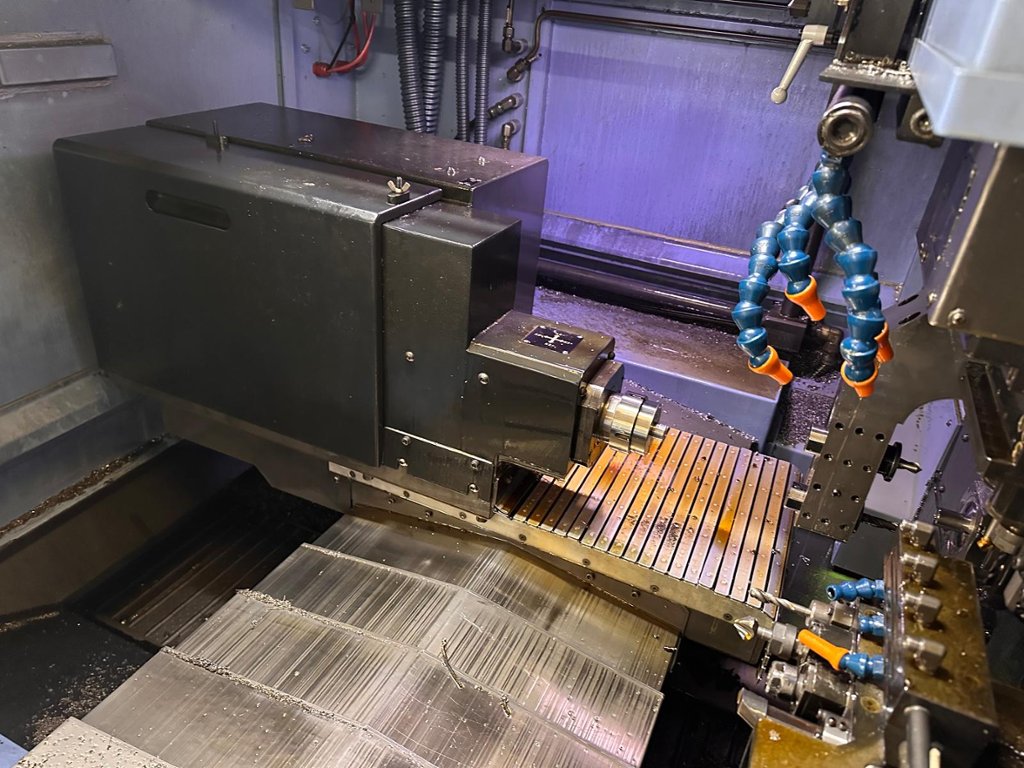

Sub Spindle

Spindle Speed - 8000 r/min, Sub Spindle motor power - 2.2/3.7kW

Travel Distance

X1 - 114mm, Z1 - 320mm, Y - 404mm, C1 - 360 deg (in 0.001), X2 - 393mm, Z2 - 343mm, C2 - 360 deg (in 0.001)

Rapid Traverse

X1 - 32m/min, Z1 - 32m/min, Y - 32m/min, X2 - 32m/min, Z2 - 32m/min

Ball Screw Diameter x Lead

X1/2 - 25.5 X 10mm, Z1/2 - 25.5 X 10mm, Y - 25.5 X 10mm,

Export Information

Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.

All invoices are issued on an Incoterms FCA basis.

Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.

* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
