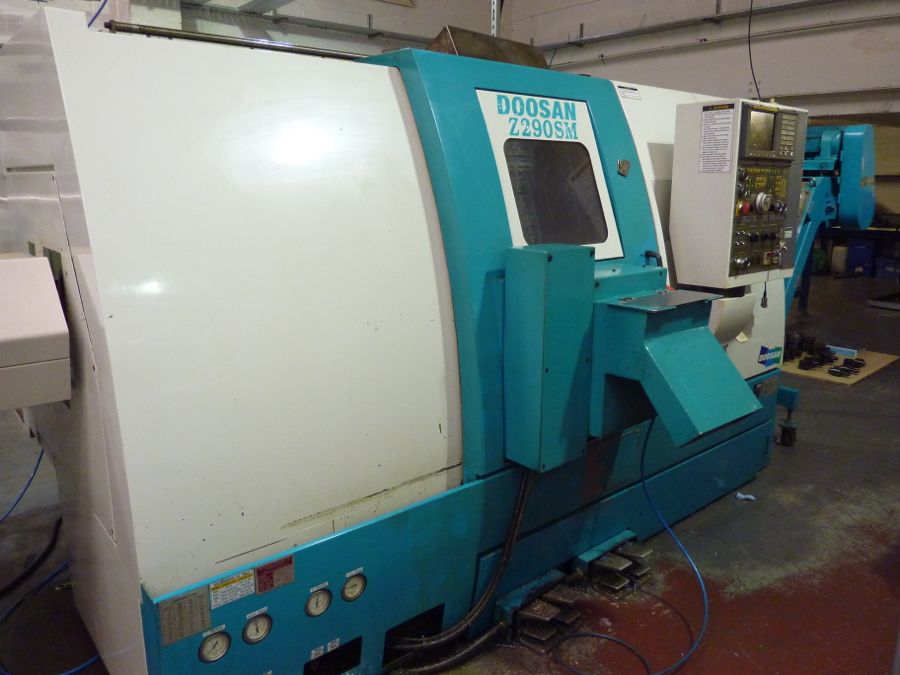

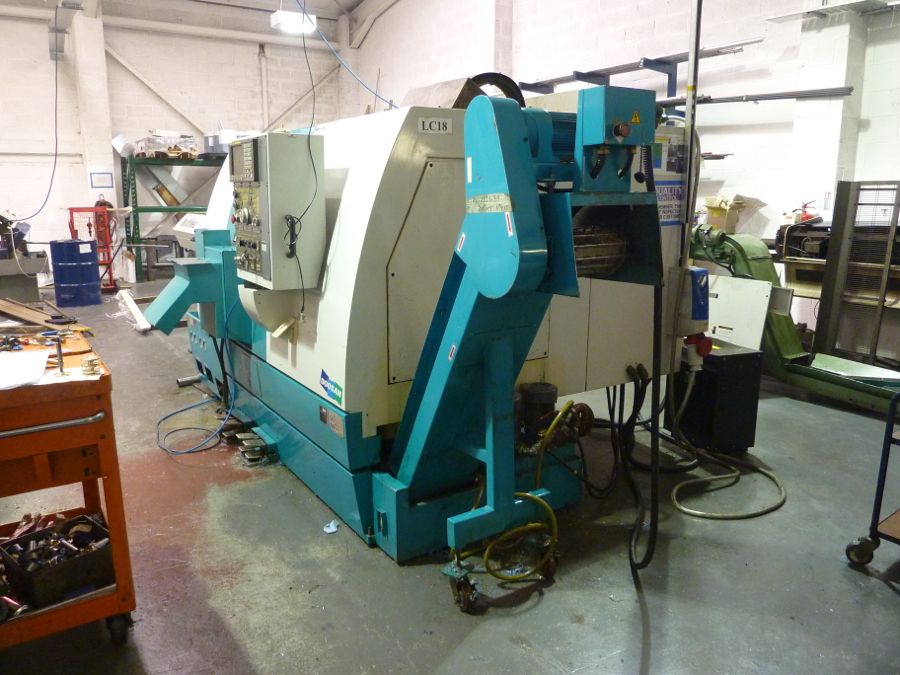

Lot 1 - Doosan Z290 SM 6 Axis, Twin Spindle, Twin Turret CNC Lathe
Description:

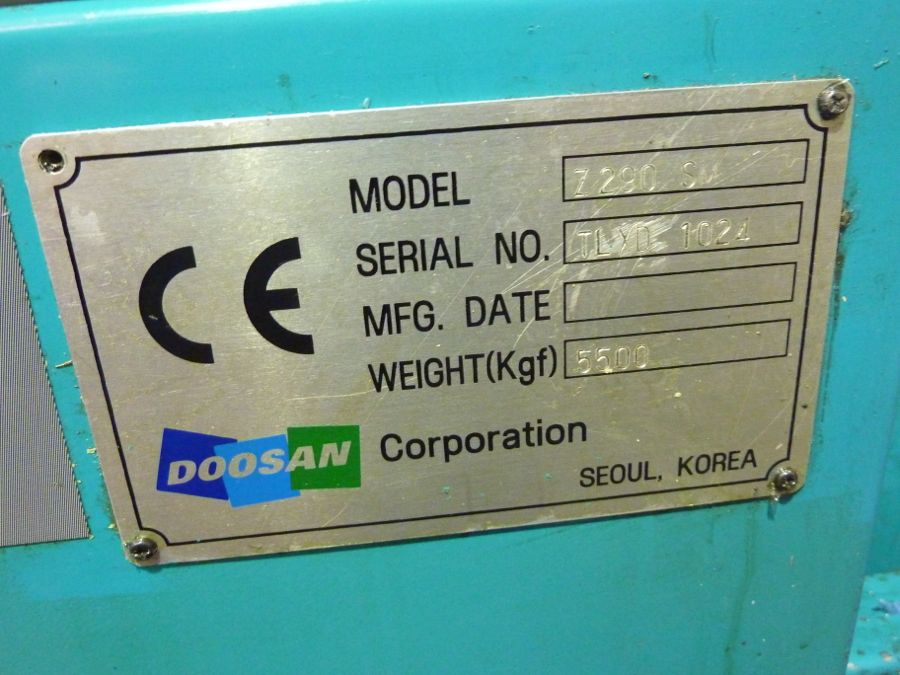

Doosan Z290 SM 6 Axis, Twin Spindle, Twin Turret CNC Lathe

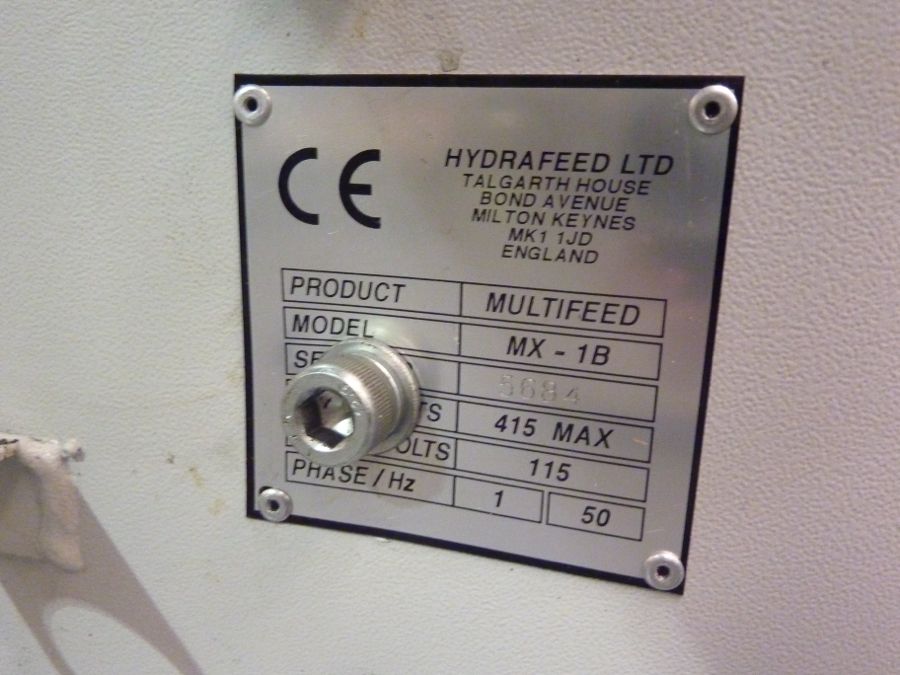

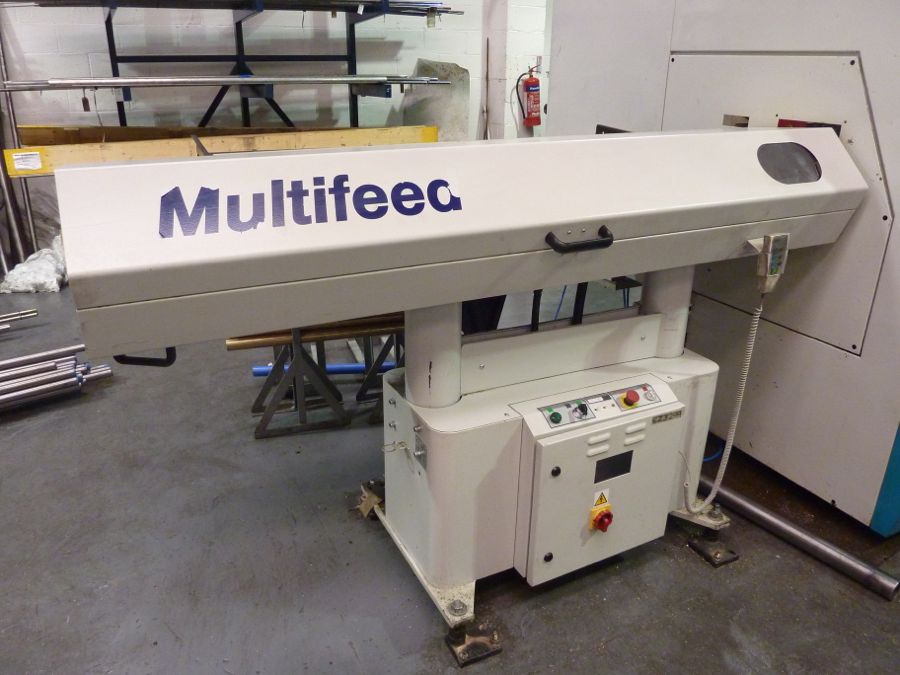

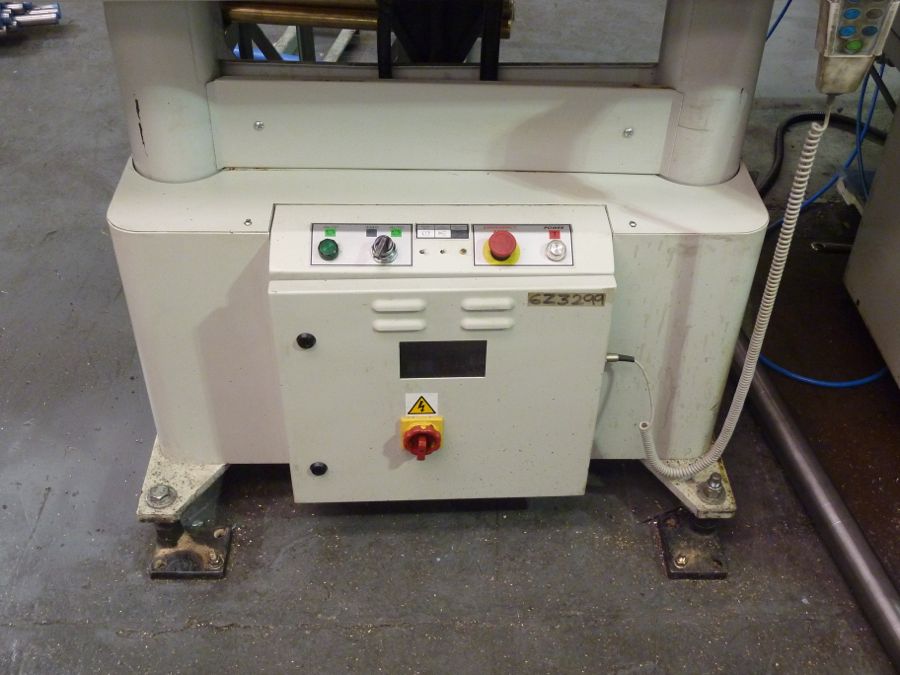

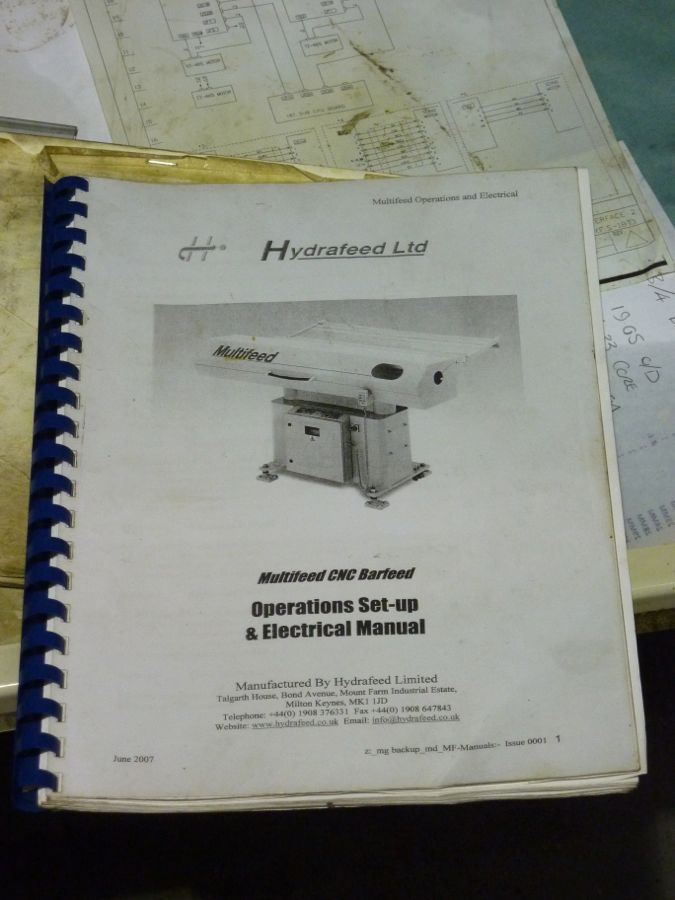

Includes Multifeed 1X-1B Bar Feed (Approx 2010) Sn 5684
Yom 2001

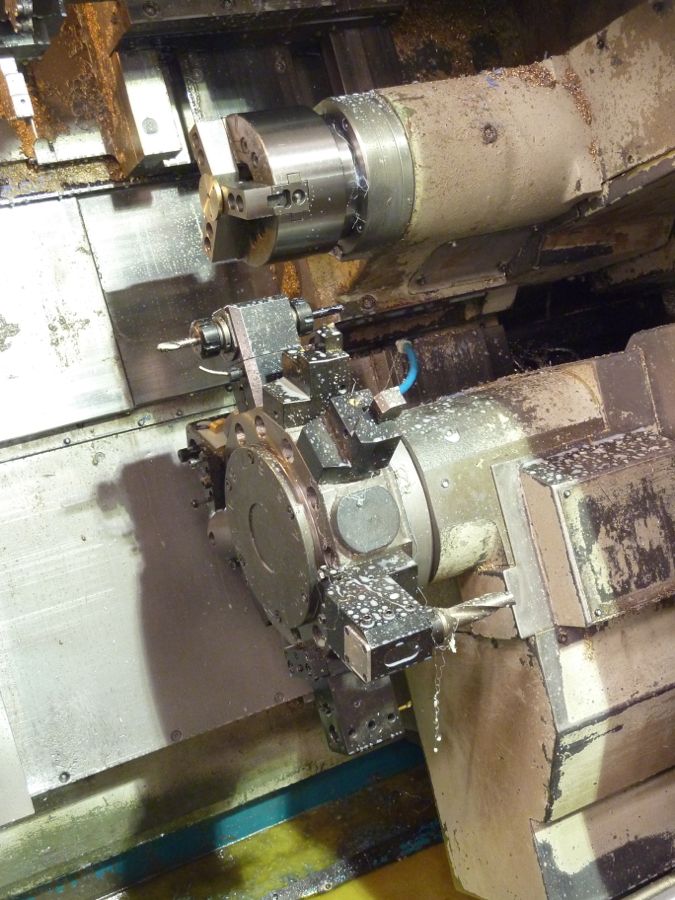

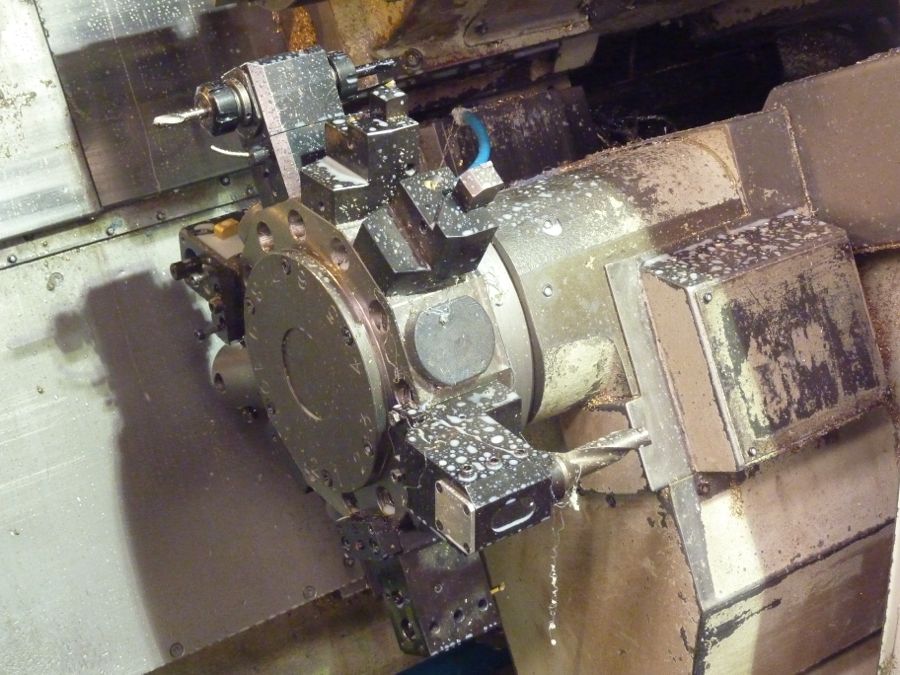

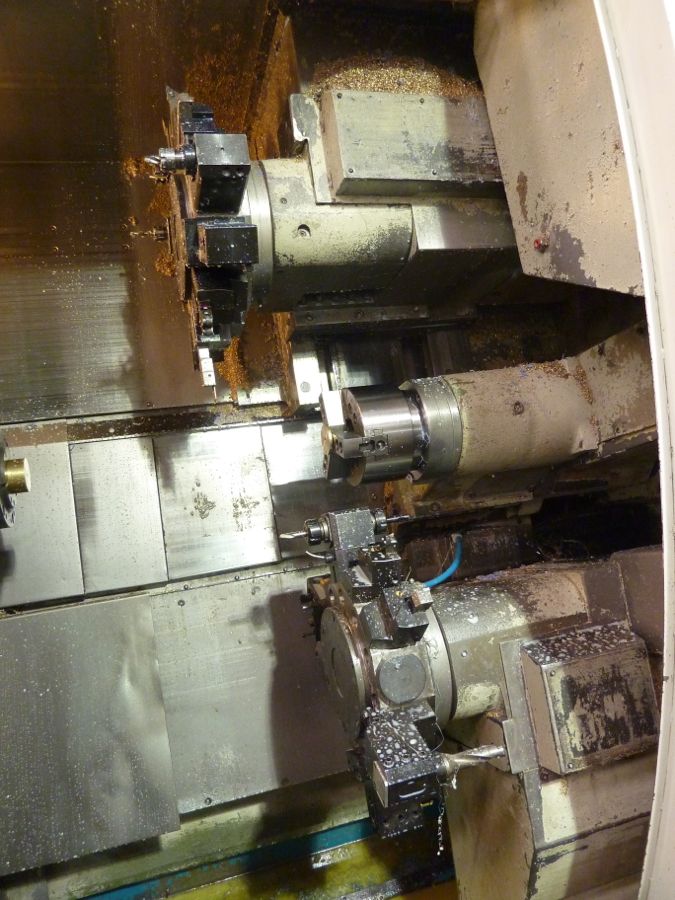

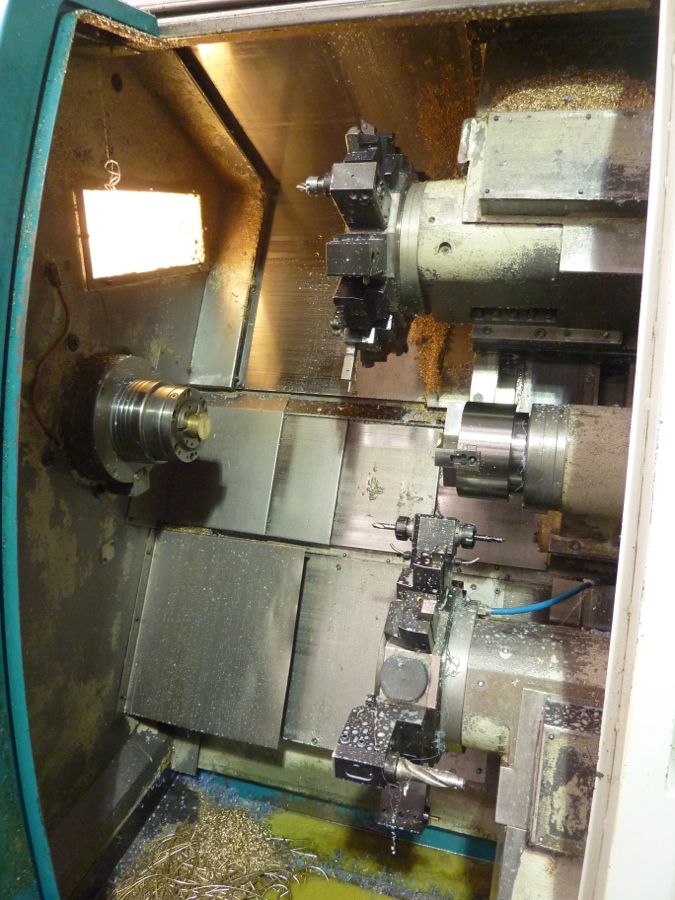

C axis on both turrets

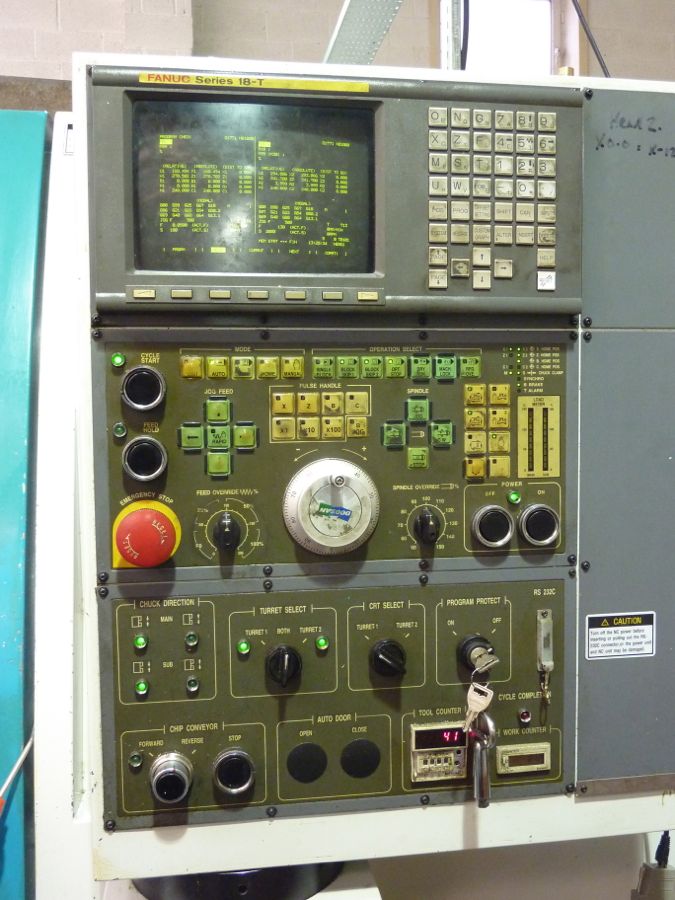

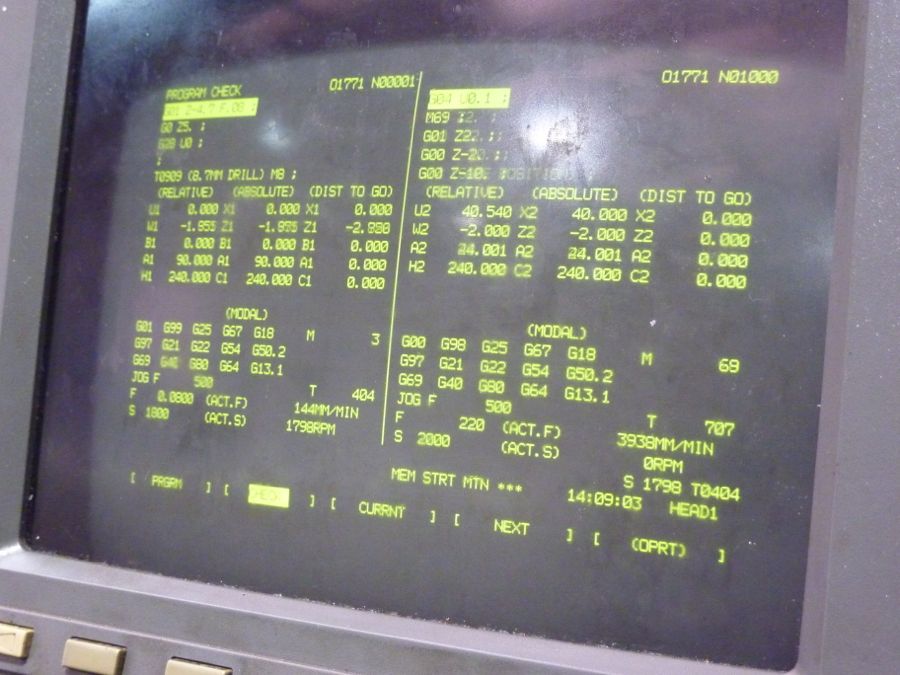

Fanuc 18TC Control
65mm Bar capacity

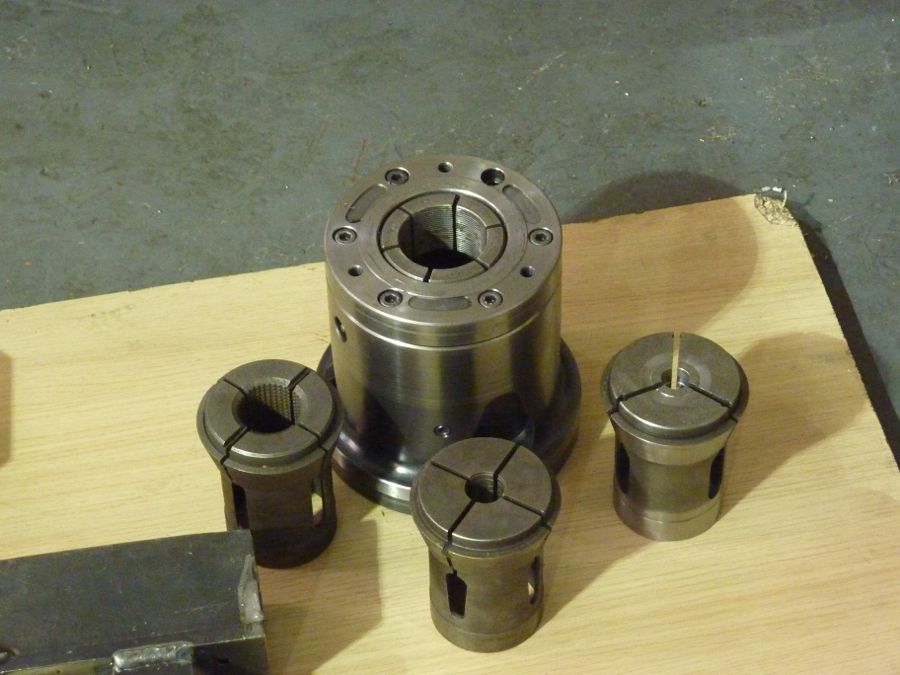

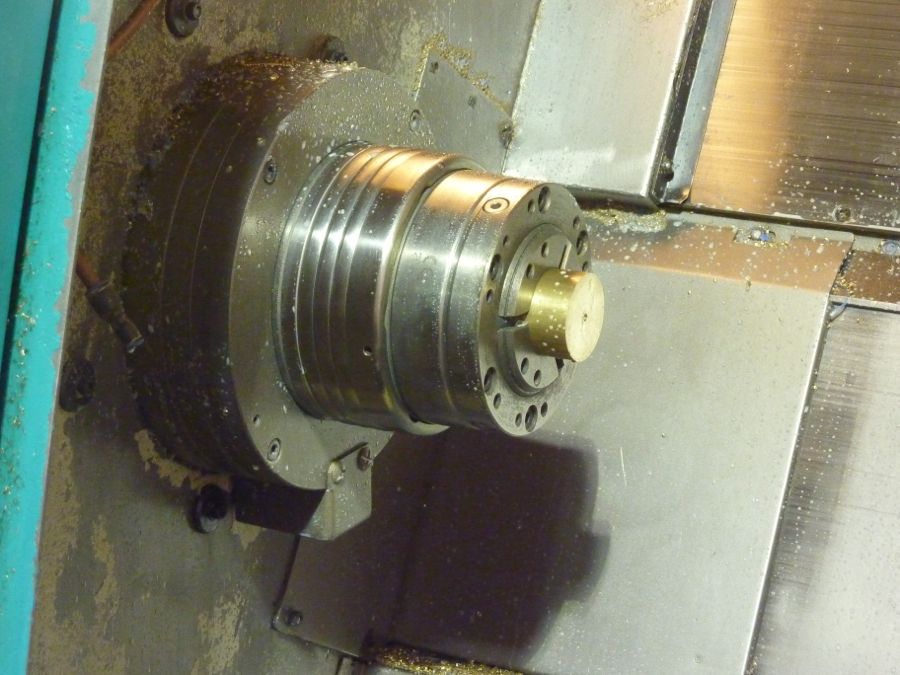

M677 Collet head main spindle

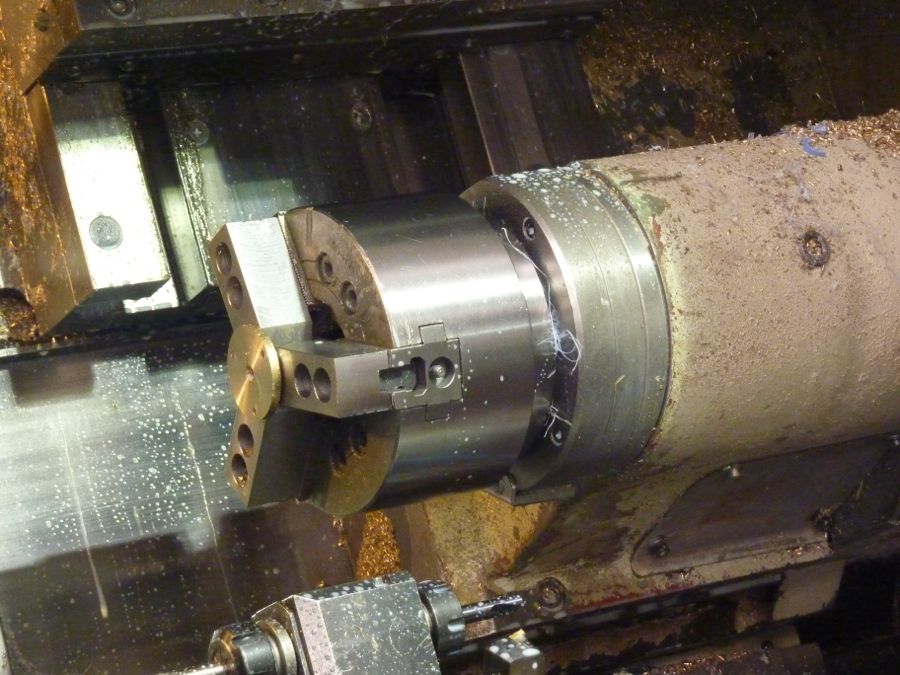

6" Chuck on sub spindle

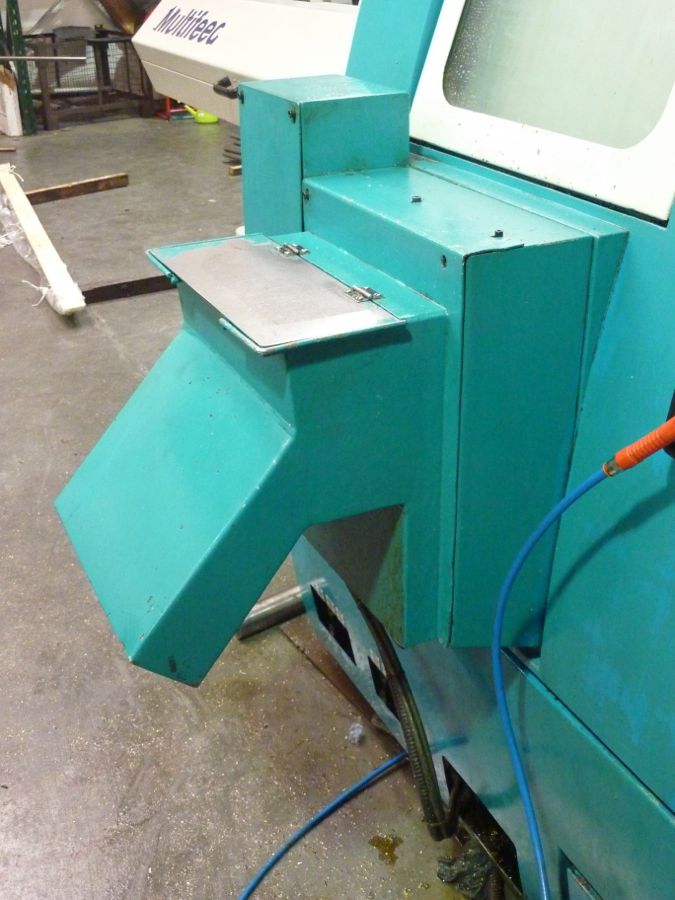

Parts catcher
Swarf conveyor

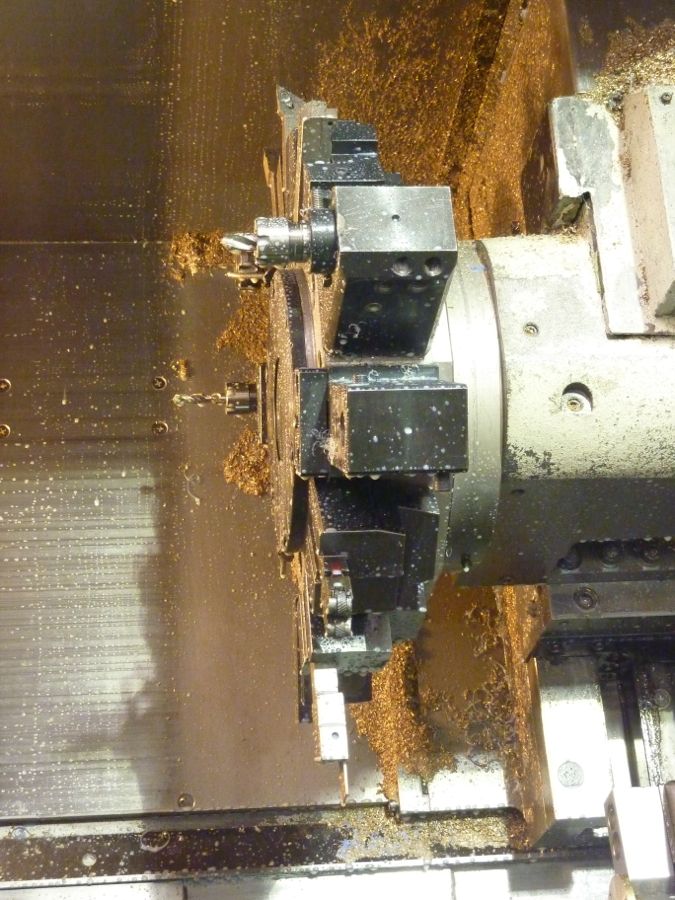

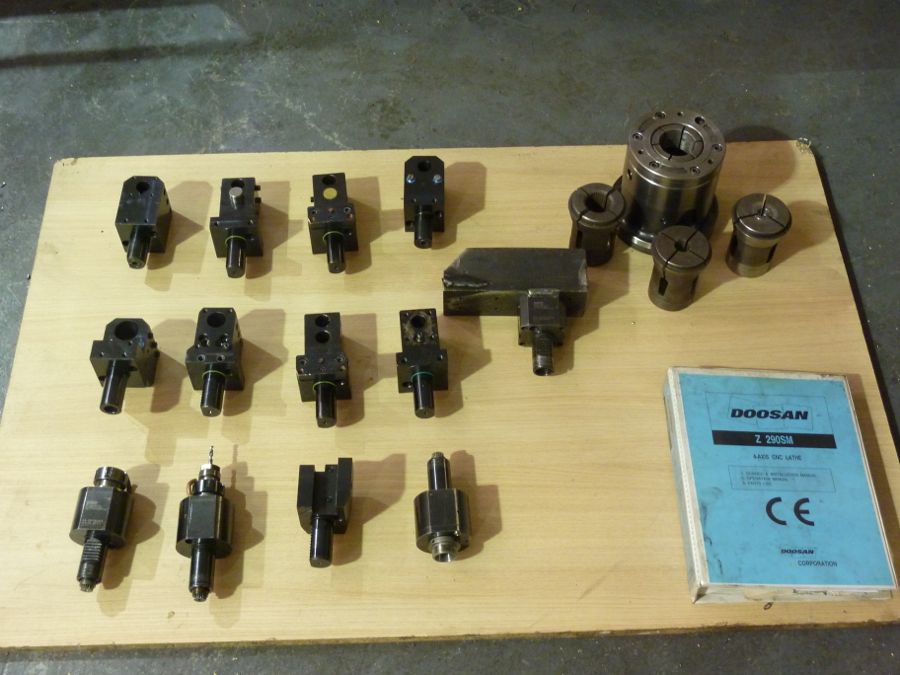

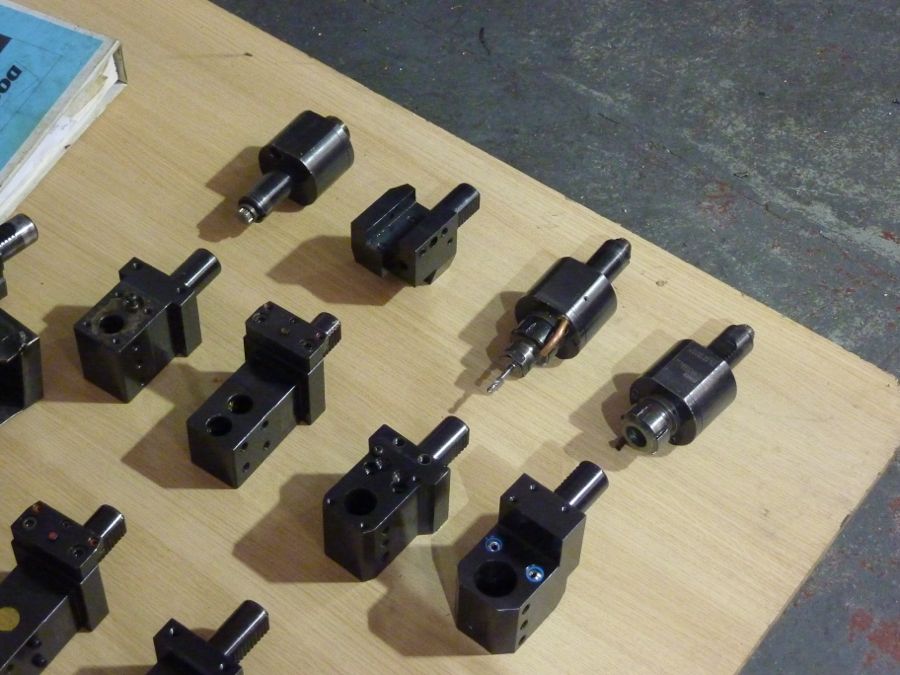

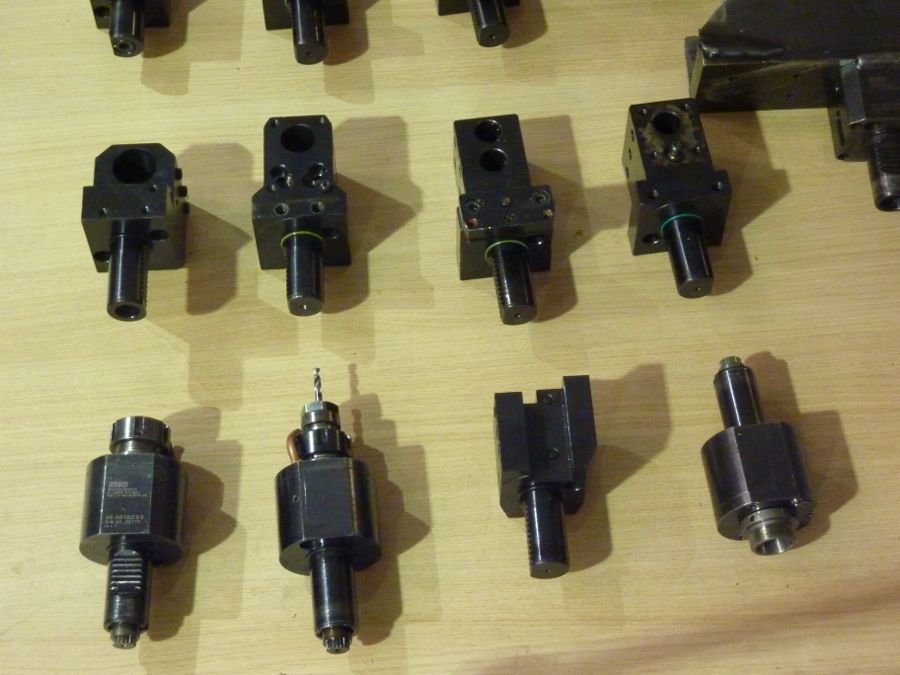

4 Cross driven tools
2 Face driven tools(1 is double ended)

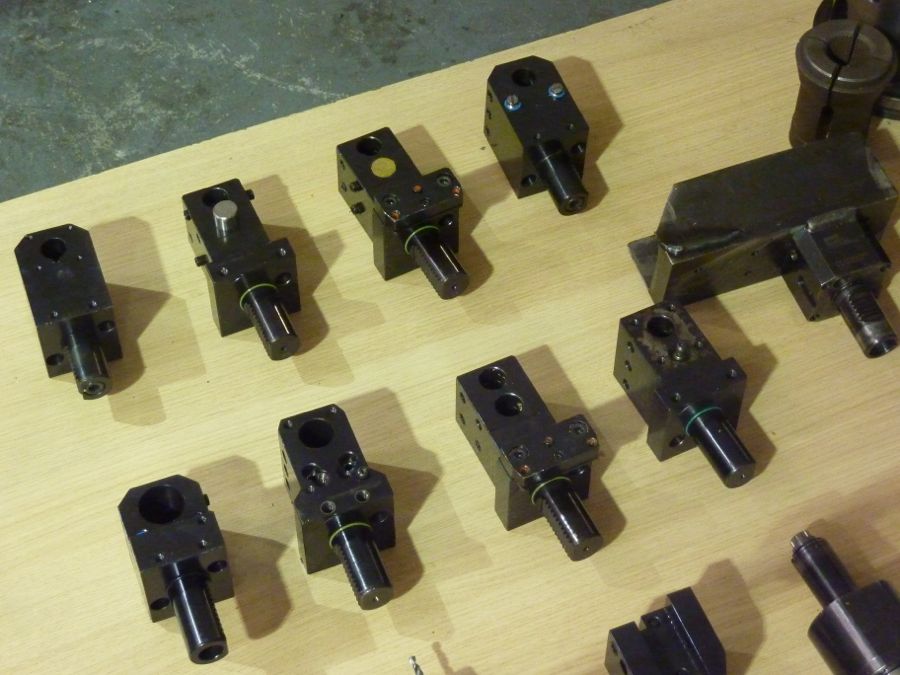

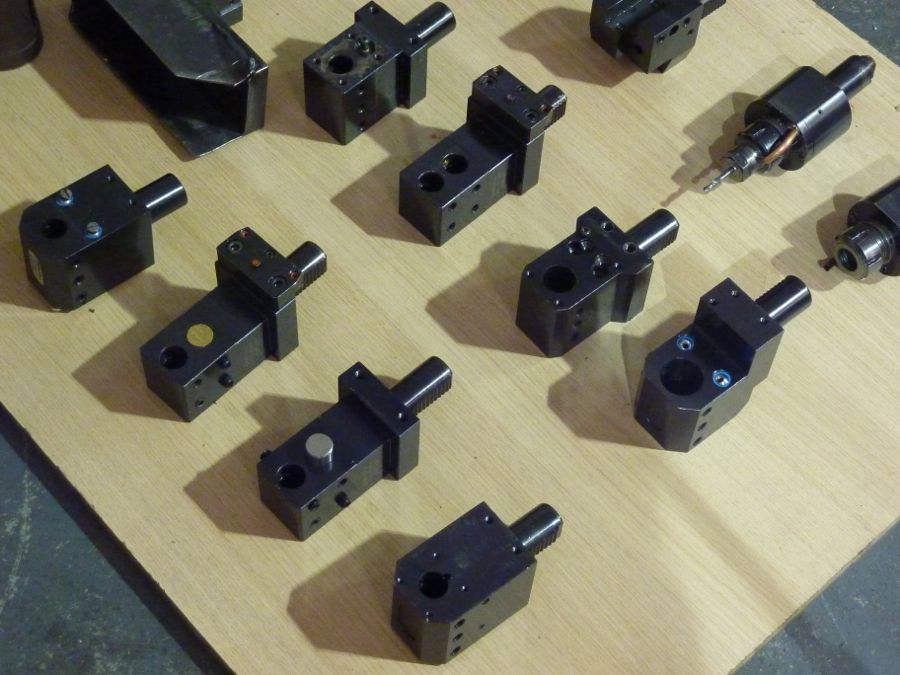

Lots of boring and turning tool holders

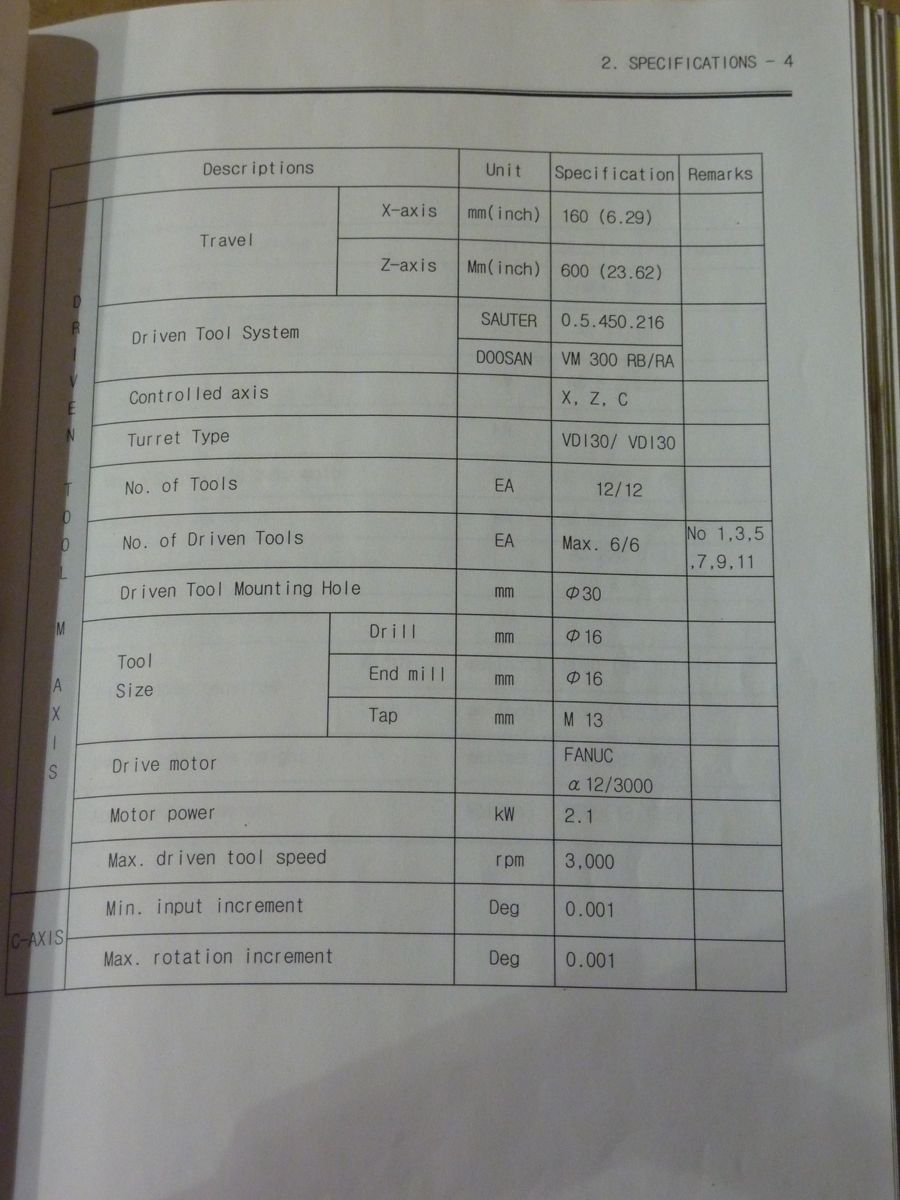

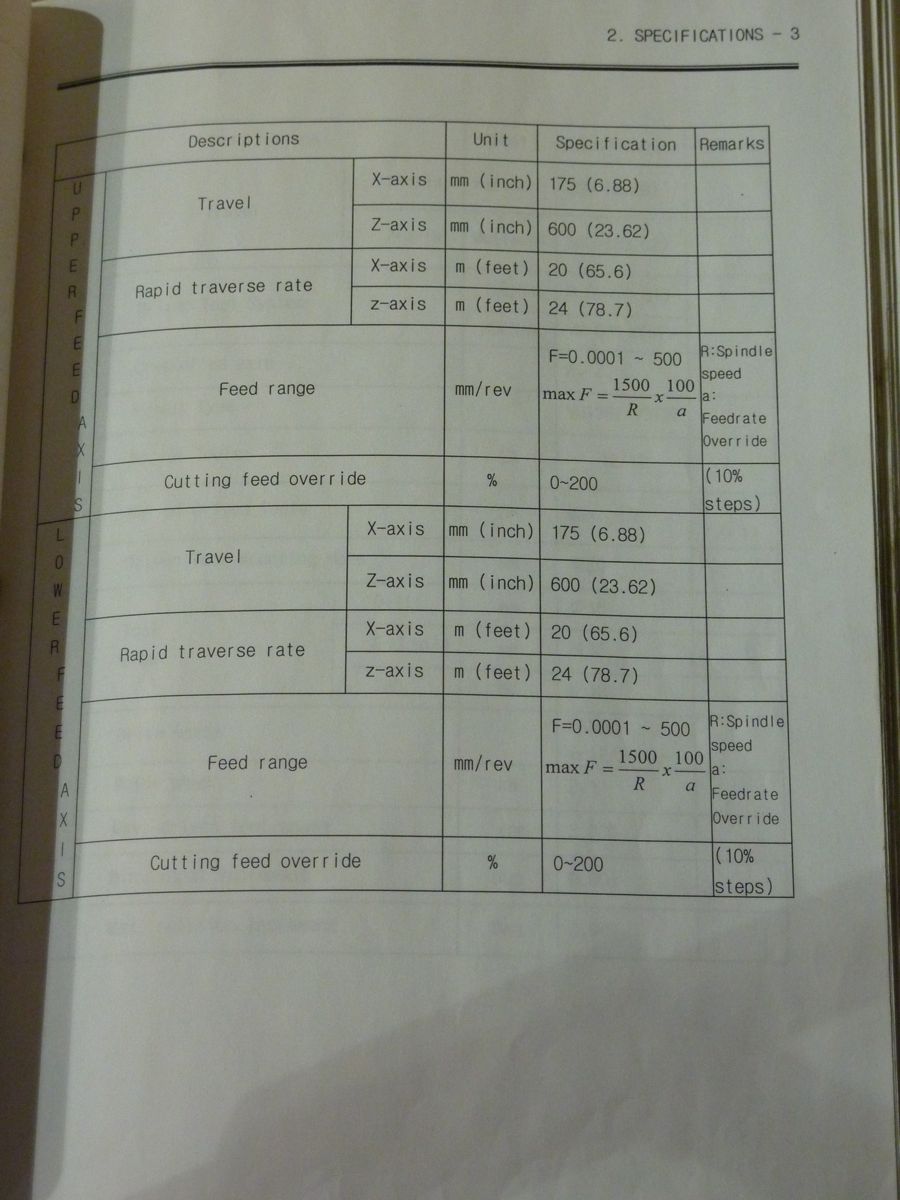

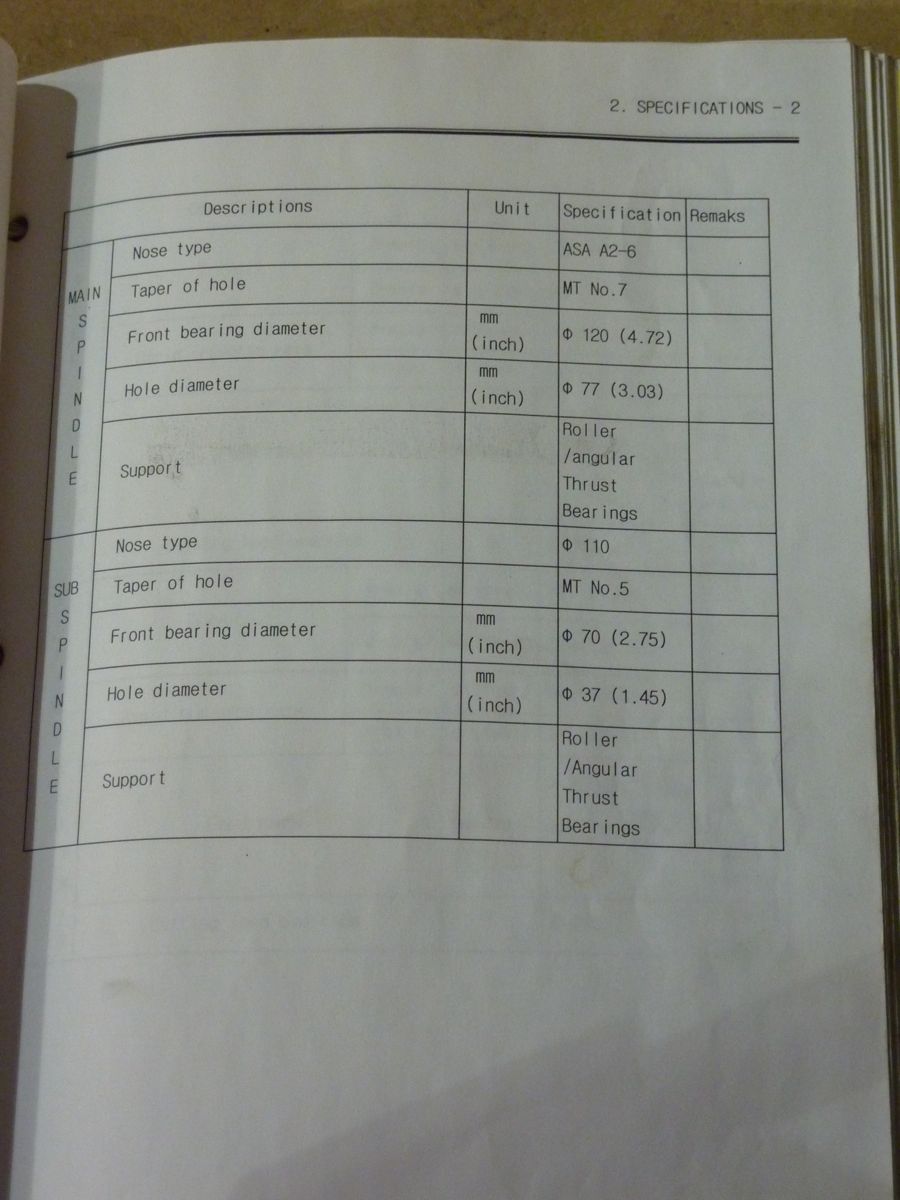

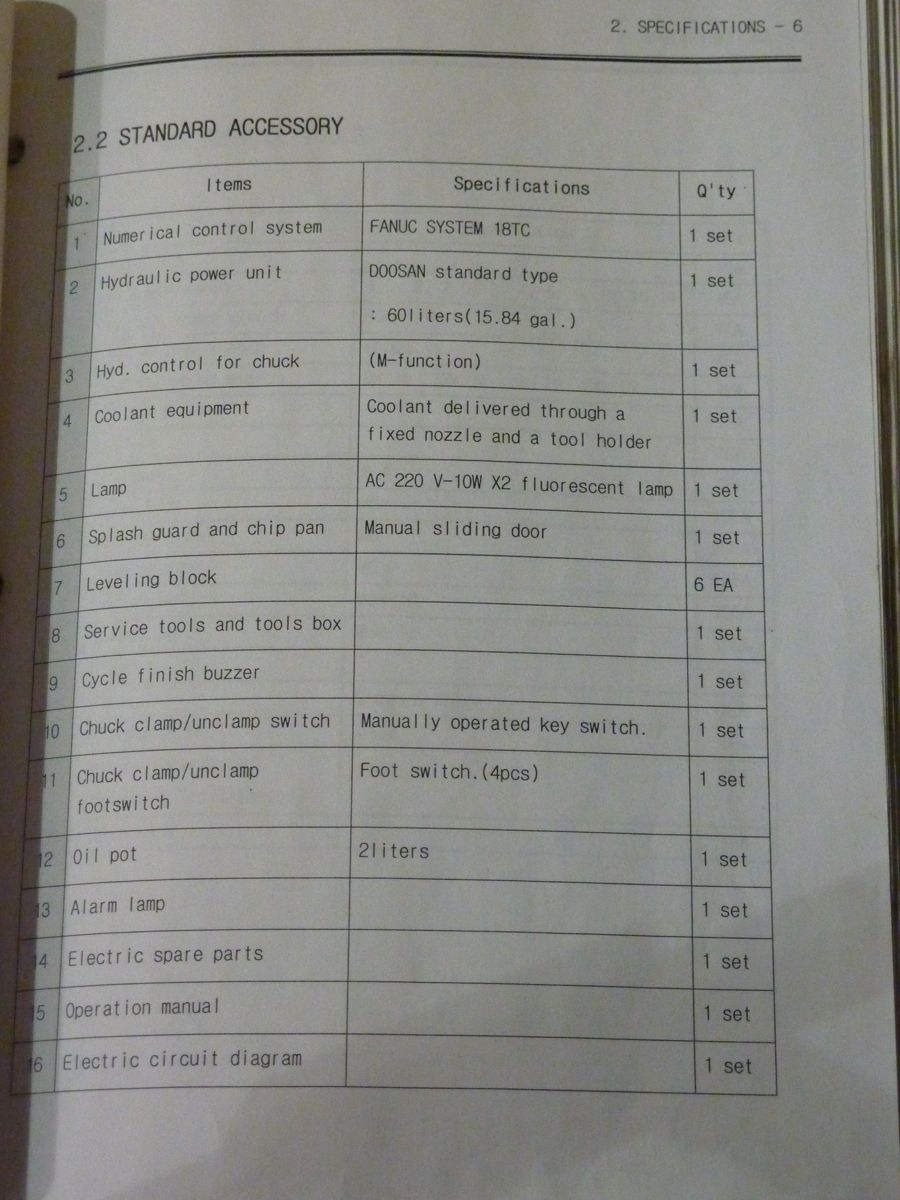

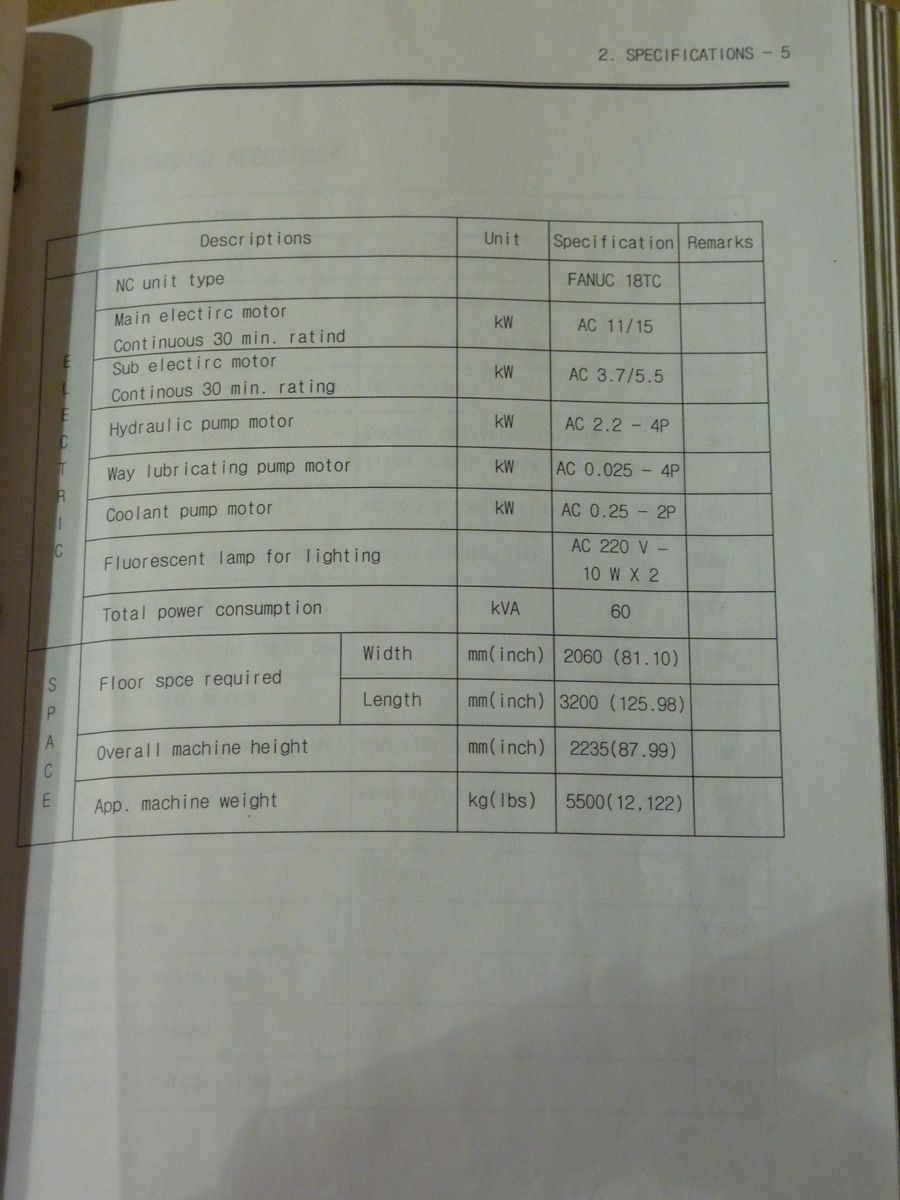

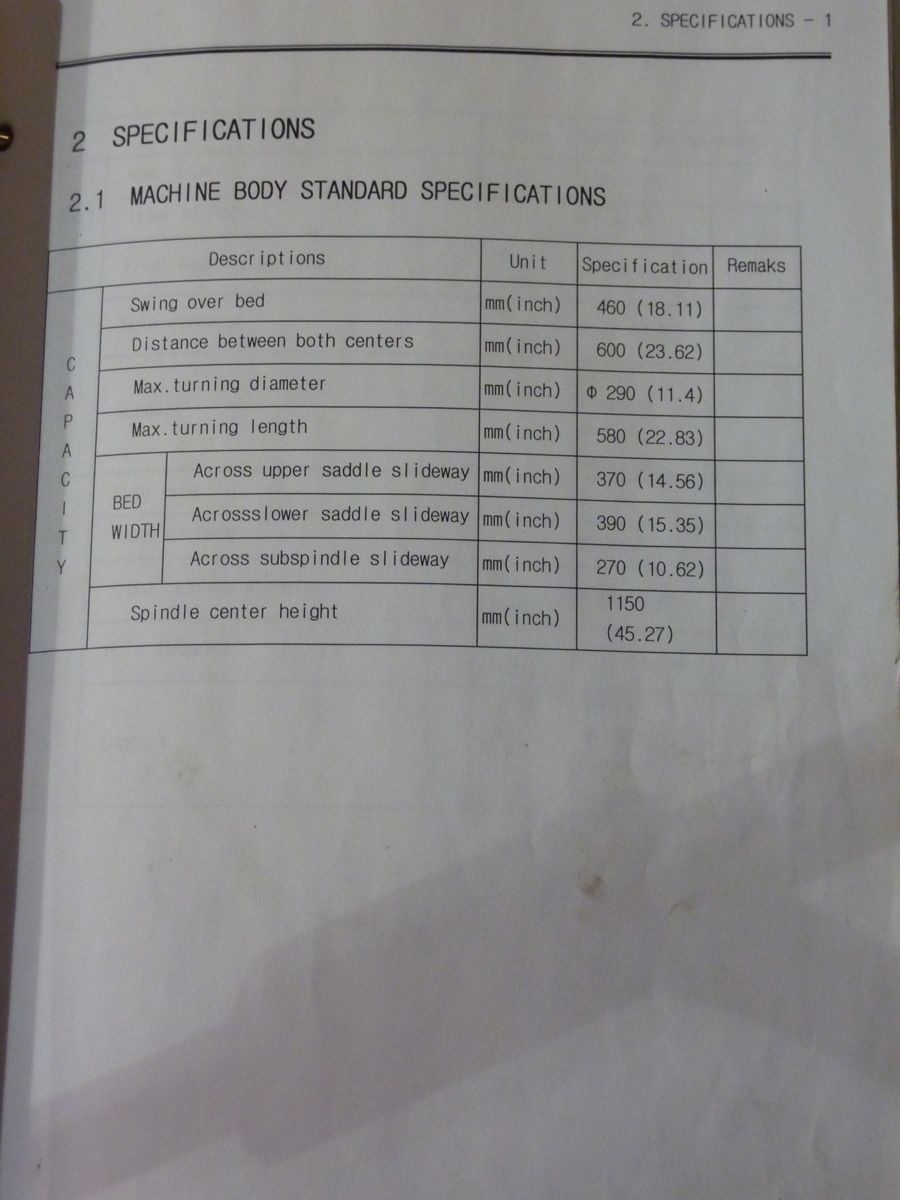

Download Specification PDF (1.5mb)
Machine Dimensions:
2600mm Deep including 300mm part catcher
3100mm Long
2130mm High
Swarf conveyor adds 1150mm
Tank 460 x 310mm plus pipes

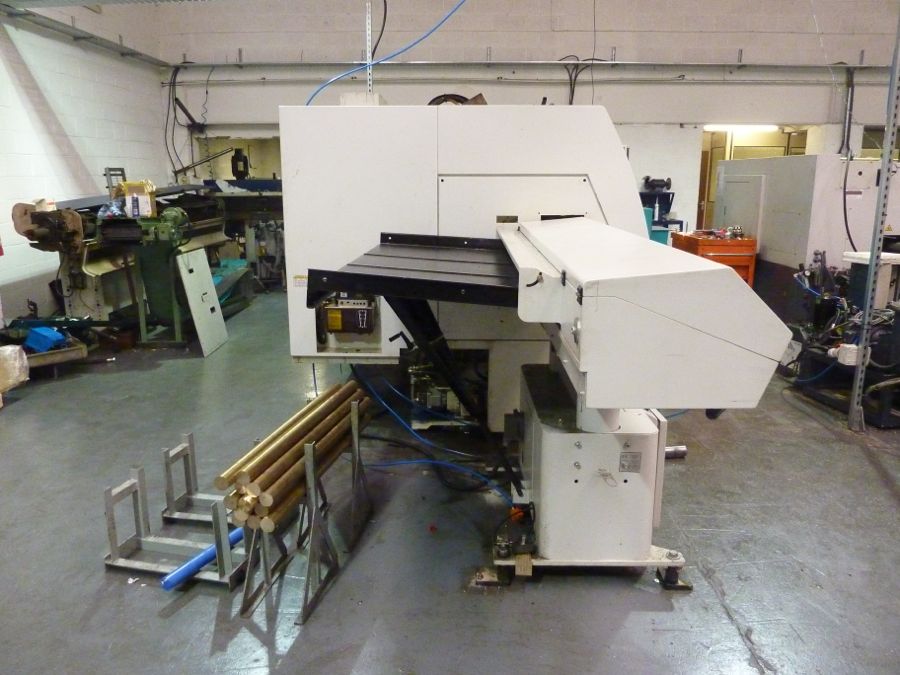

Multifeed Bar Feed. 2100 x 1300
Weight 5500kg
Location: Blackburn, UK
Export Information
Please note: If you are successful in purchasing an item and wish to export it from the UK, a charge of £75.00 will be automatically added to your invoice to cover preparation of the goods and completion of the required UK export customs declarations. This process has been a mandatory UK export requirement since 1 January 2021.
All invoices are issued on an Incoterms FCA basis.
Exports outside the EU may require an export licence. Where applicable, a further charge of £250.00 will be automatically added to your invoice. Please also note that, while an export licence is being processed, the purchaser is responsible for placing into storage until the licence is issued.
* Please note all dimensions stated are approximate, however the accuracy cannot be guaranteed and should be verified by the bidder before bidding.
